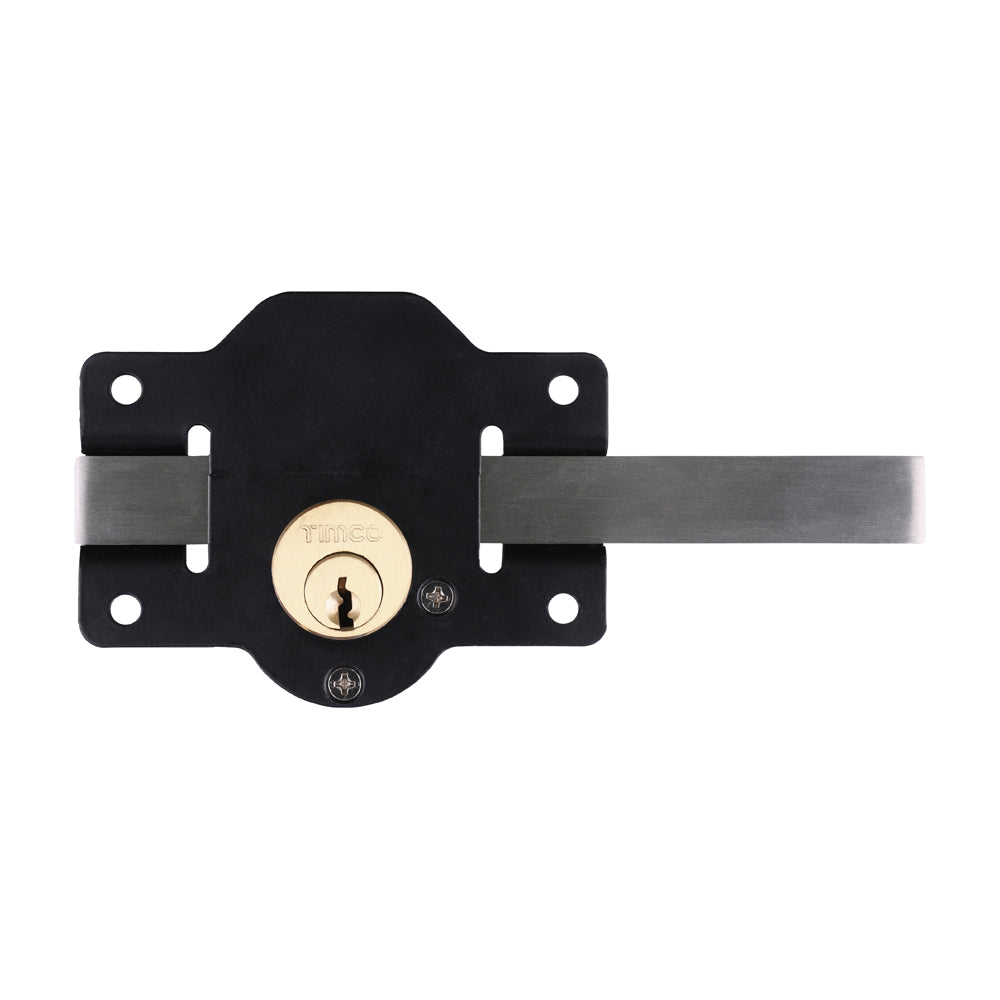

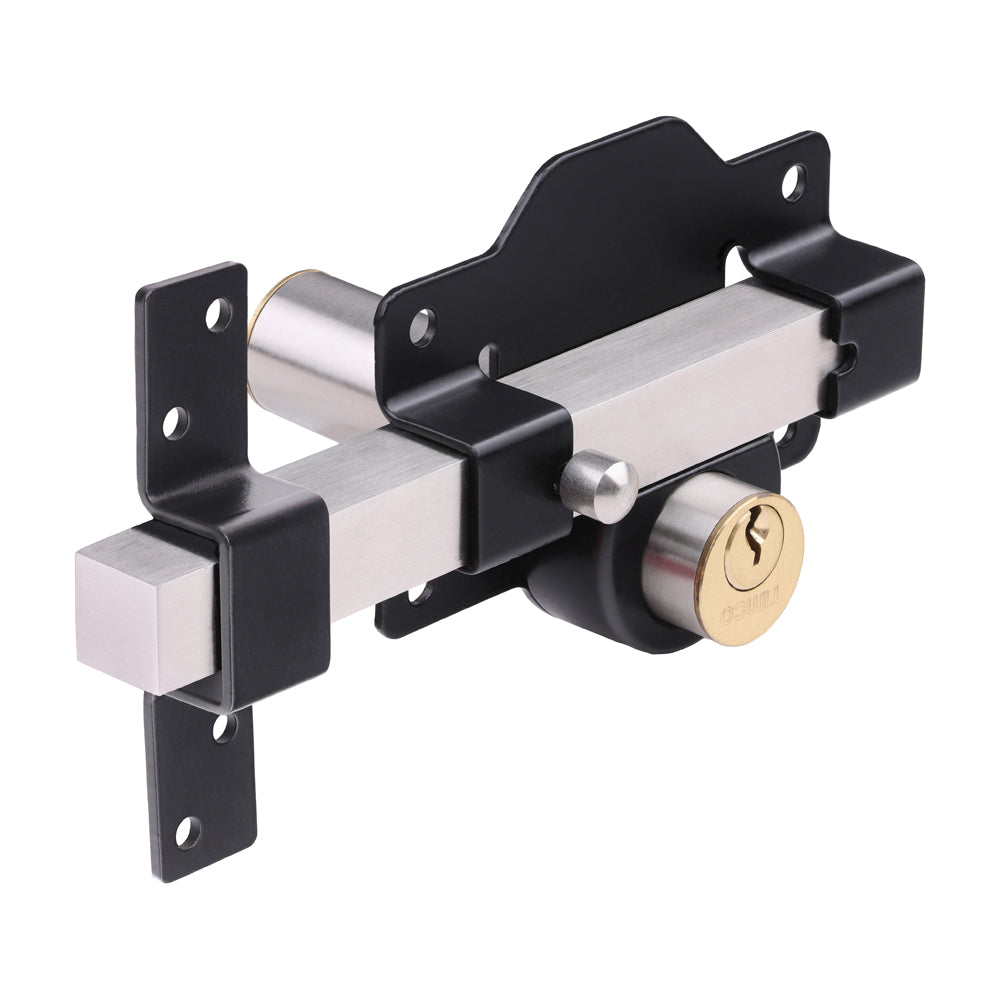

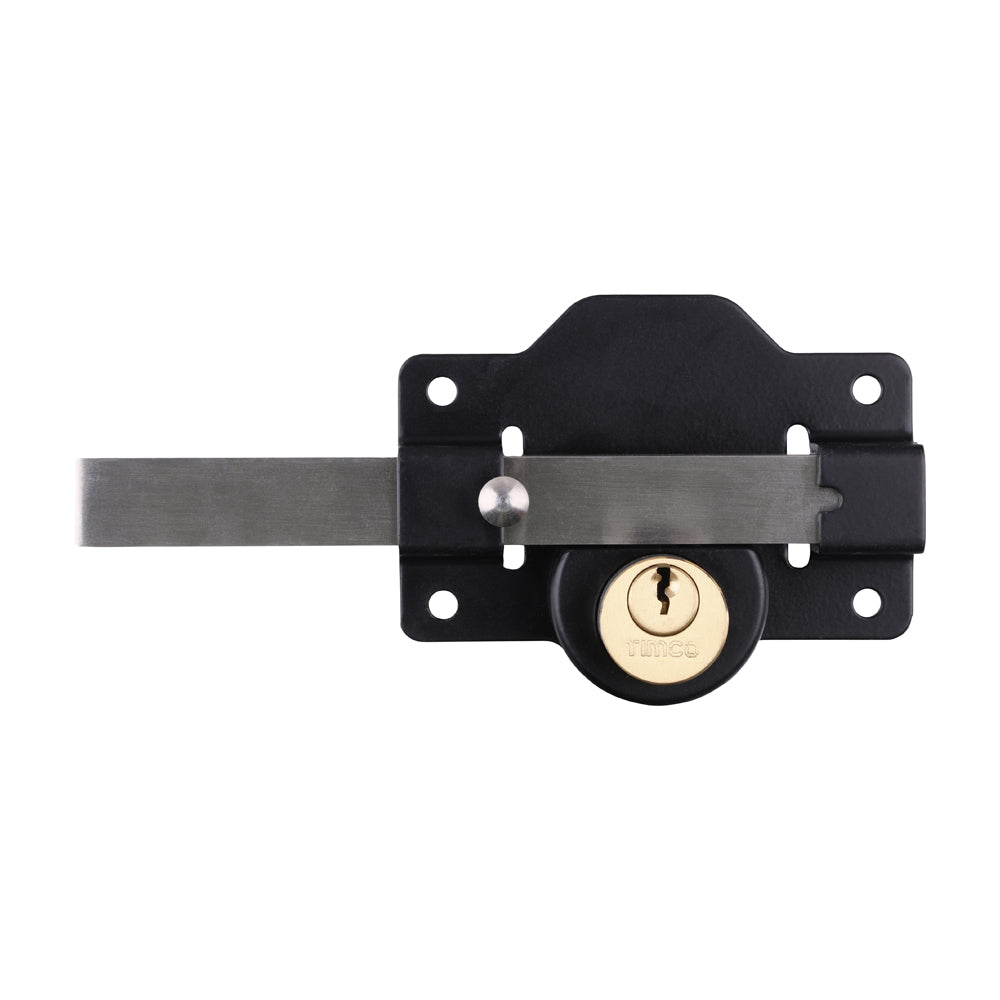

Timco Double Long Throw Gate Lock 70mm

Key Features:

• Ideal high-security lock for gates.
• Requires key access from both outside and inside.
• Features a cylinder suitable for gate thicknesses up to 70mm.

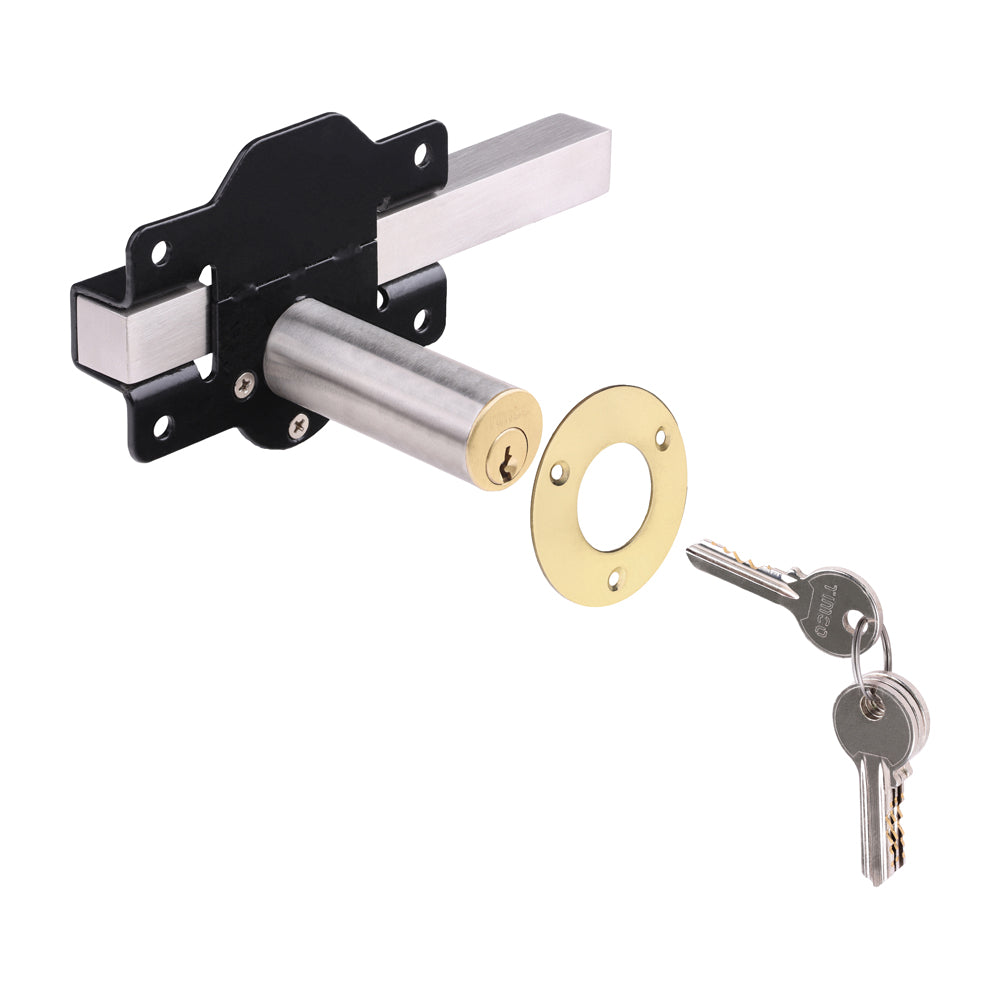

• Supplied with a brass escutcheon for a clean flush finish around the lock cylinder.
• Alternatively, a rim lock escutcheon handle can be used (sold separately).
• Fixings included.
• Supplied with 3 keys.

Technical Specifications:

• Corrosion Rating (1-5): 2 - Occasionally damp/wet, rural and sheltered areas
• Cylinder Ø (mm): 26
• Finish: Epoxy Black
• Keep Size H x W (mm): 125 x 28
• Lock Case Size H x D (mm): 106 x 70
• Lock Type: Double
• Locking Option: Outside and Inside
• Material: Carbon Steel
• Max. Door Thickness (mm): 70
• No. of Pan Screws: 11
• Number of Screw Holes: 8
• Pan Screw Size (mm): 5.5 x 20 and 3.0 x 16
• Included Items: 5.5 x 20mm Pan Head Self-Tapping Screws (Qty 8), 3.0 x 16mm Pan Head Chipboard Screws (Qty 3)
