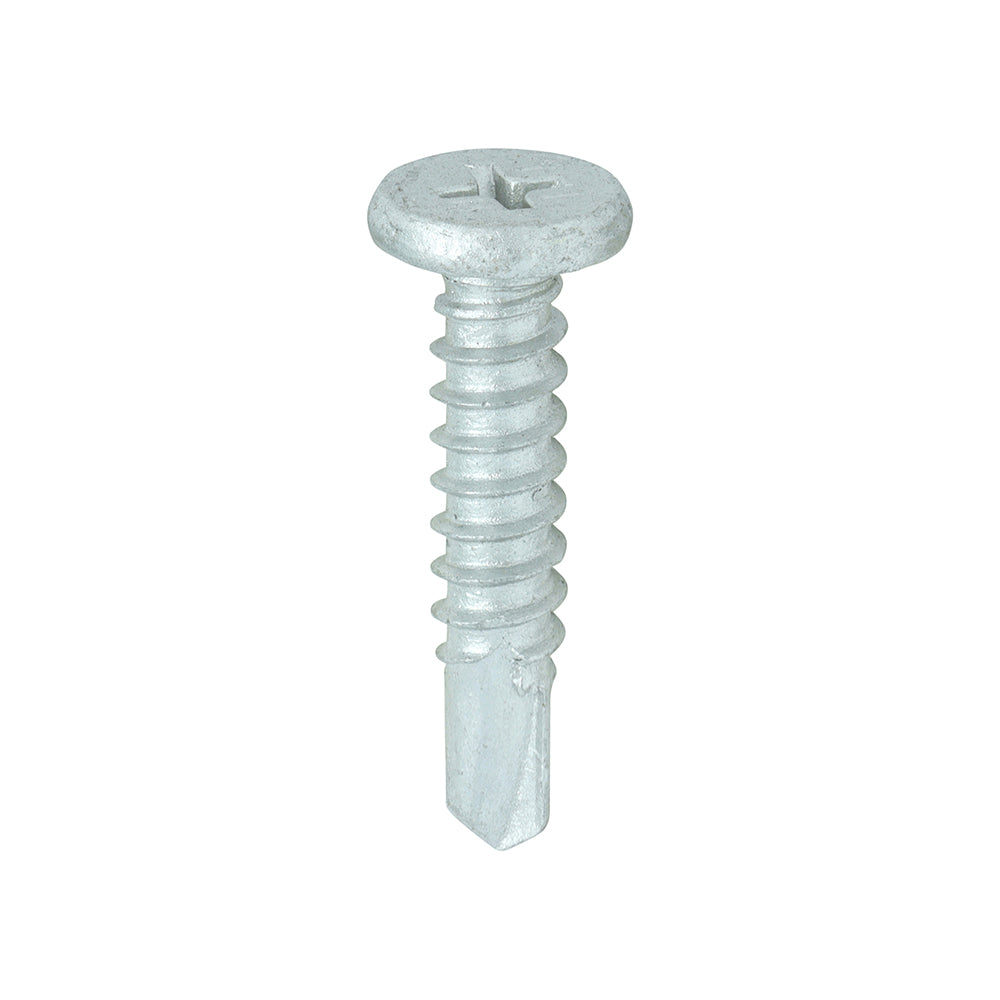

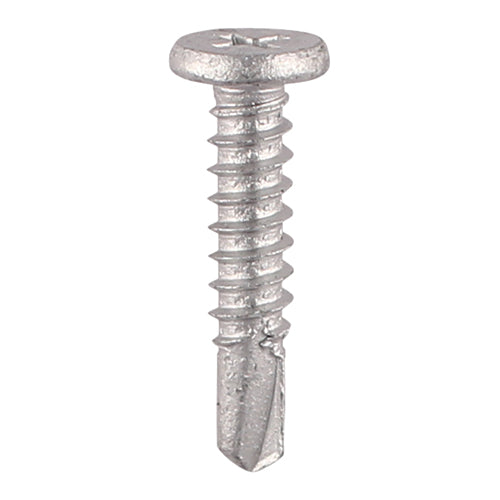

TIMCO Self-Drilling Metal Framing Low Profile Pancake Head Exterior Silver Screws

Details:

• Metsec TestedLarge head diameter for increased clamping

• Coarse 60° self-tapping thread for extreme grip & excellent pull-out

• Phillips No.2 recess for a positive drive

• Fire Classification - A1


A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours of salt spray test.

Technical Specifications:

• CE Standard: BS EN 14566:2008, BS EN 10666:2008

• Corrosion Rating (1-5): 3 - Urban & industrial areas with a low salt atmosphere

• Driver Bit Size: PH2

• Finish: Exterior (Silver Organic)

• Head Type: Low Profile Pancake

• Included Items: PH2 S2 Bit (Qty 1)

• Material: Carbon Steel

• MDT (mm): 5

• Pack Qty: 500

• Pack Type: Box

• Point Type: Self-Drilling

• Recess Type: Phillips

• Size (mm): 5.5 x 19/5.5 x 26

• Substrates: Steel

• Thread Type: 60° Self-Tapping
