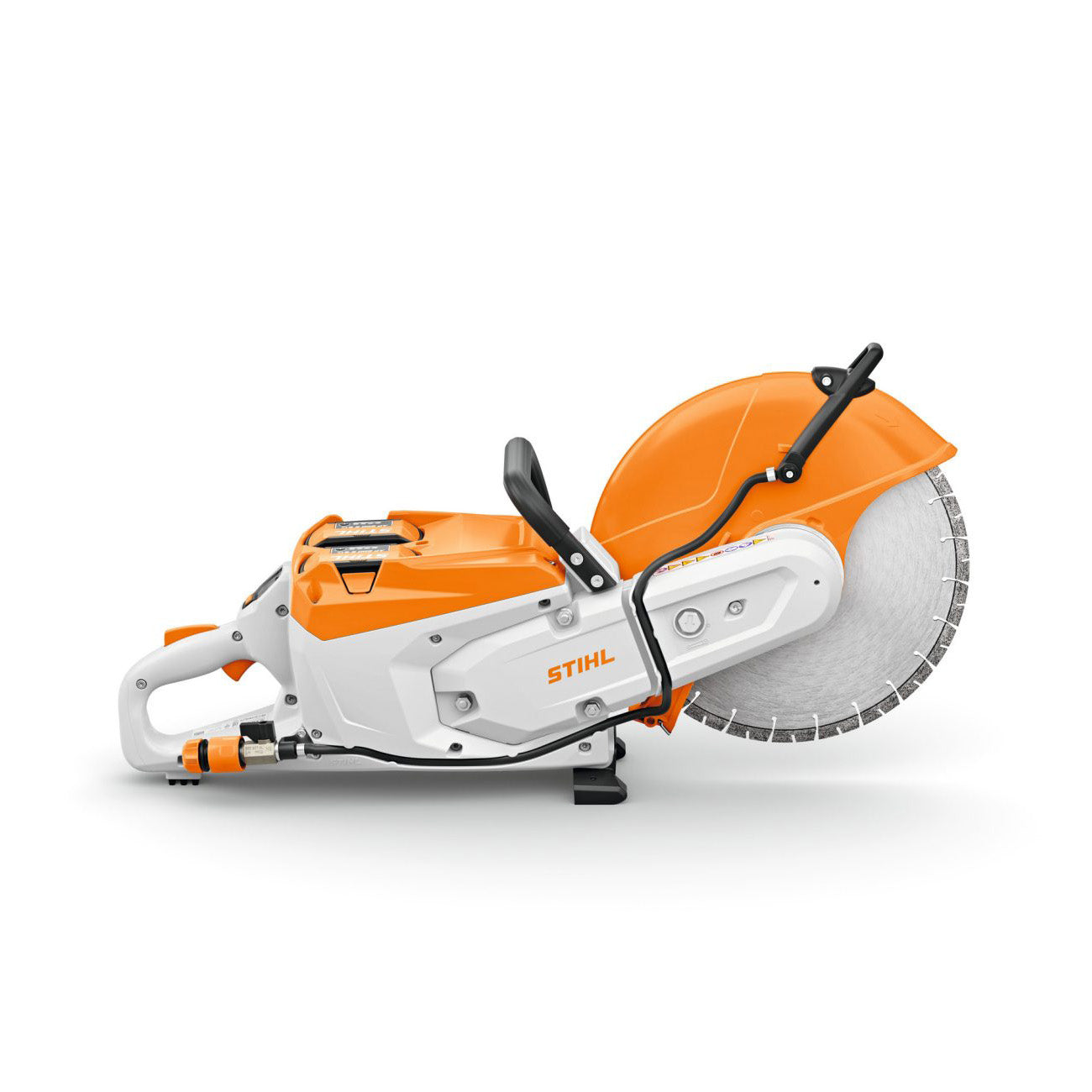

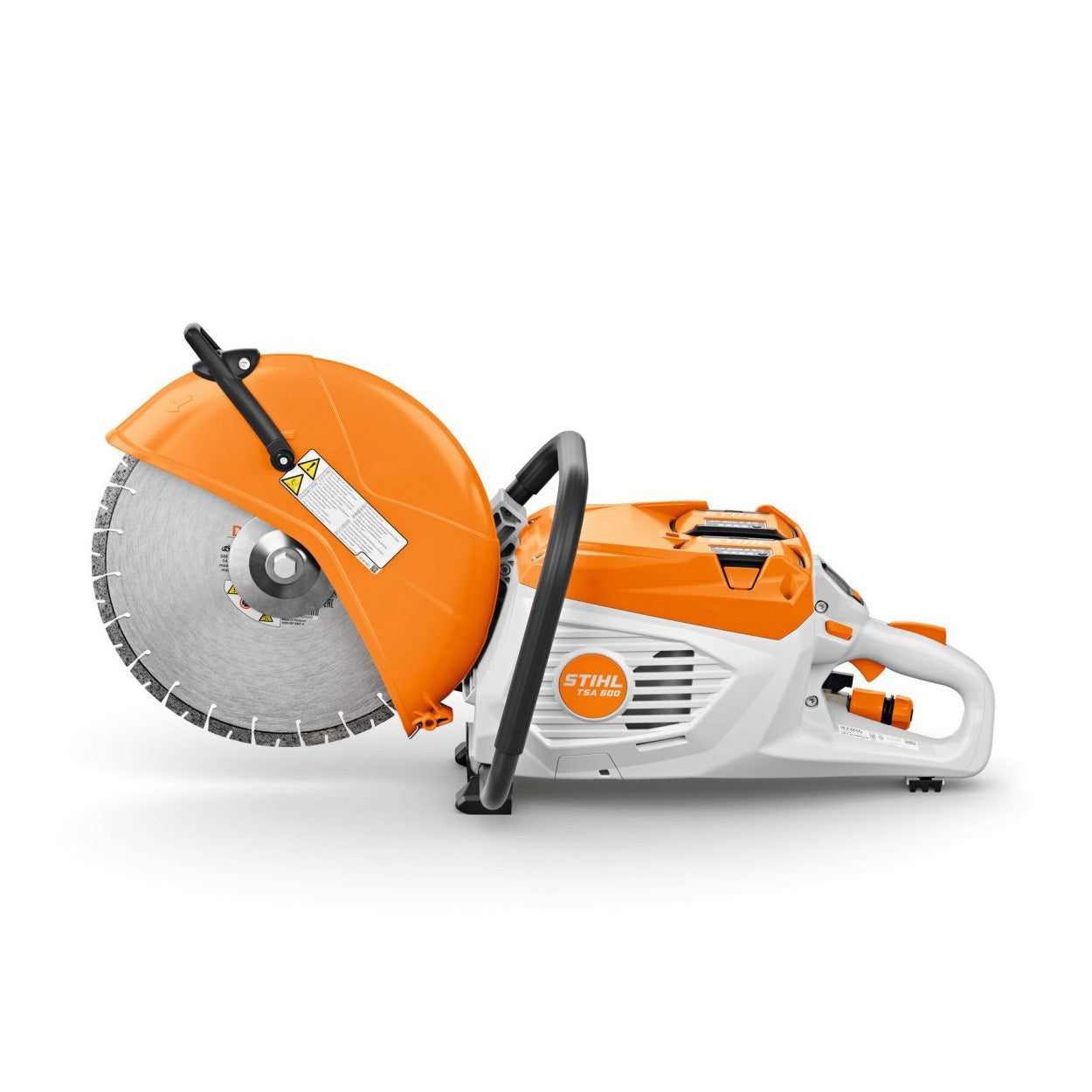

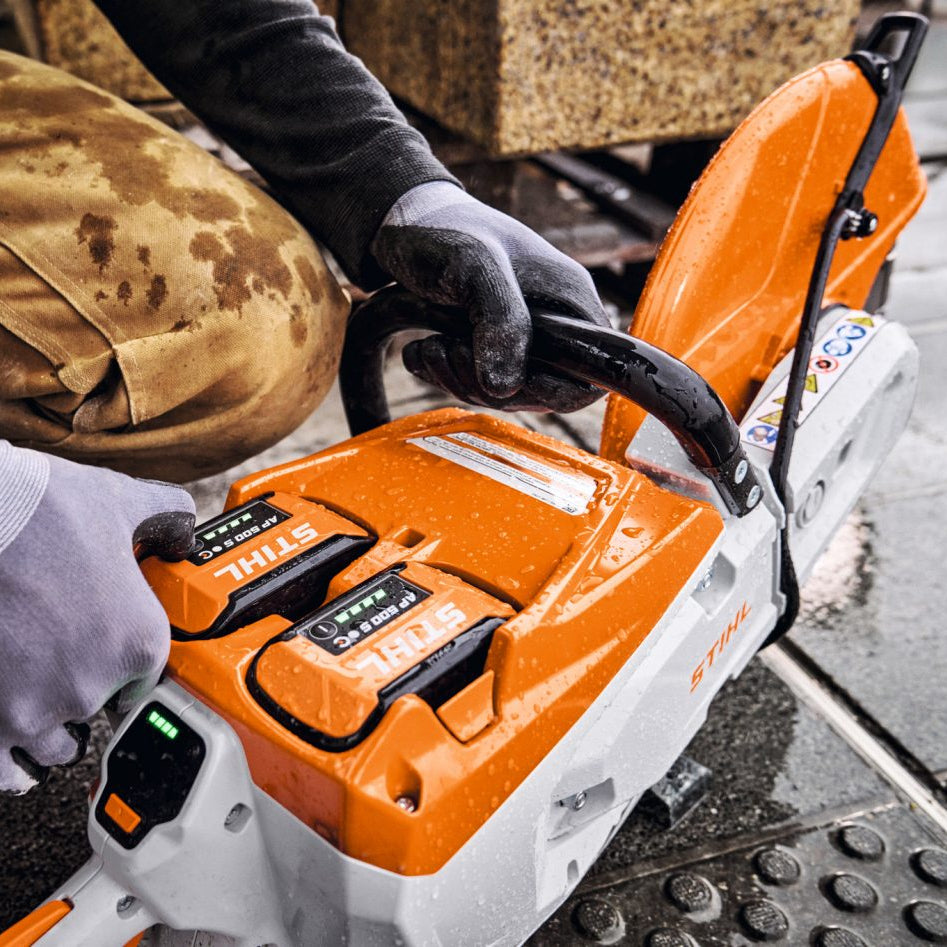

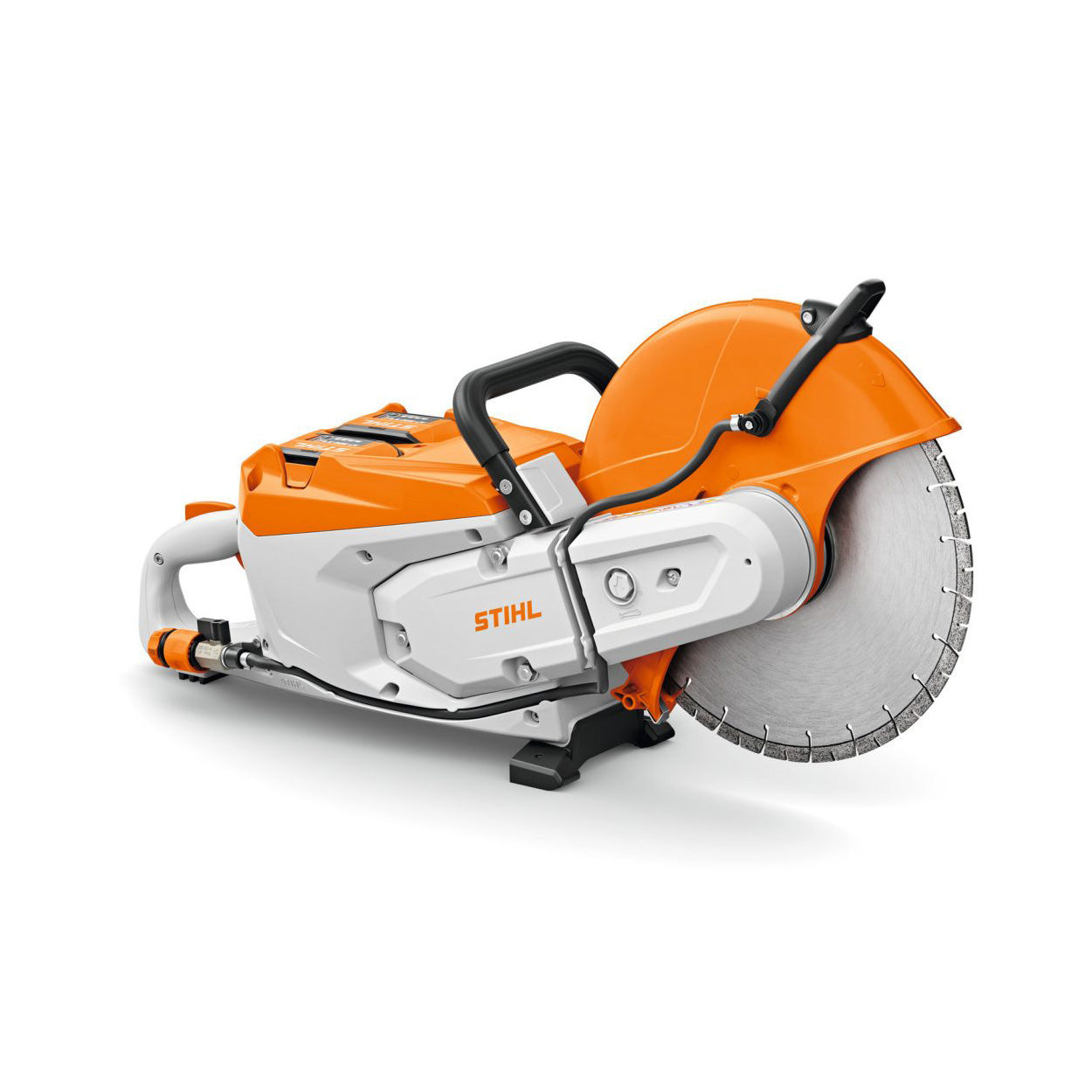

STIHL TSA 500 Cordless Cut-Off Saw

NOTE: The cut-off machine comes as standard with a powerful 14” / 350 mm composite resin cutting wheel, which has a very high cutting performance; however, STIHL recommend fitting the TSA 500 with a diamond cutting wheel for longer and more intensive jobs.

The TSA 500 must be used with the AP 500 S battery for maximum performance. If you use an AP 200 S or AP 300 S, there will be a reduction in performance. On a full charge with the AP 500 S, the TSA 500 has a working time of 20–40 minutes.

Features:

• Very powerful professional STIHL battery cut-off machine
• Individual tool without battery or charger
• For professionals working in construction, hardscaping and pipework
• HMI ADVANCE PLUS module with integrated STIHL Smart Connector
• STIHL magnetic filter for a long service life
• For 350 mm cutting wheels

Technical Specification:

• Rated voltage - 72 V

• Power - 4.20 kW 1)

• Battery system - AP

• Recommended battery - AP 500 S

• Device weight without battery - 9.1 kg 2)

• Cutting disc diameter - 350 mm

• Max. cutting depth - 125 mm

• IPX Rating - IPX4

• Min. battery working time AP 200 S - 8 min 3)

• Max. battery working time AP 200 S - 16 min 3)

• Min. battery working time AP 300 S - 15 min 3)

• Max. battery working time AP 300 S - 30 min 3)

• Min. battery working time AP 500 S - 20 min 3)

• Max. battery working time AP 500 S - 40 min 3)

• Device length with cutting disc - 82.1 cm

• Sound pressure level - 106 dB(A) 4)

• Sound power level - 117 dB(A) 5)

• Vibration level, left - 2.4 m/s²

• Vibration level, right - 2 m/s²


1) Mechanical power as a comparative value to a petrol appliance.
2) Without a cutting disc.
3) The indicated working times per battery charge are indicative and may vary depending on the working material and process. They do not represent runtime under full load.
4) Measurement according to ISO 19432.
5) Measurement with cutting discs in the cut according to EN 60745-2-22.
