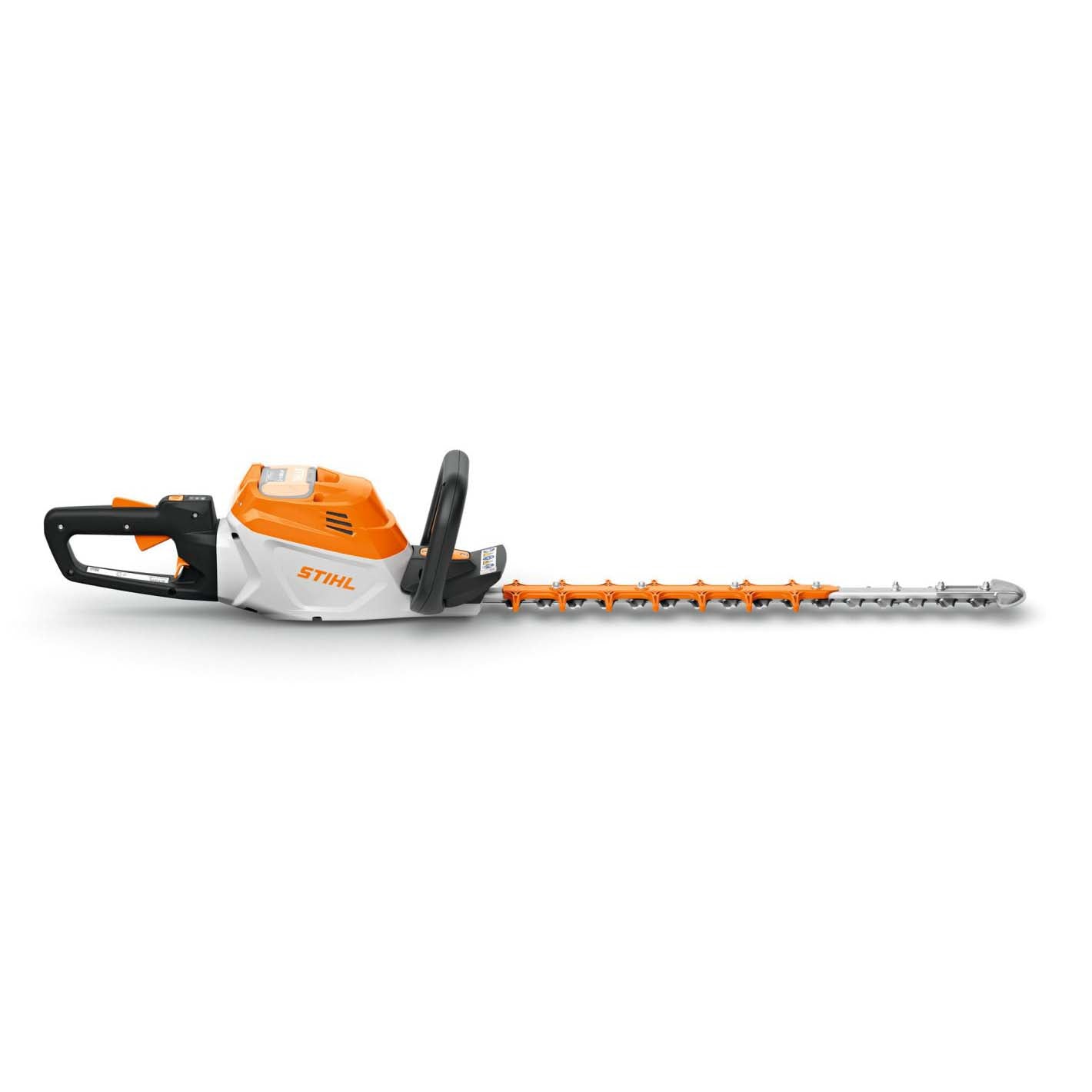

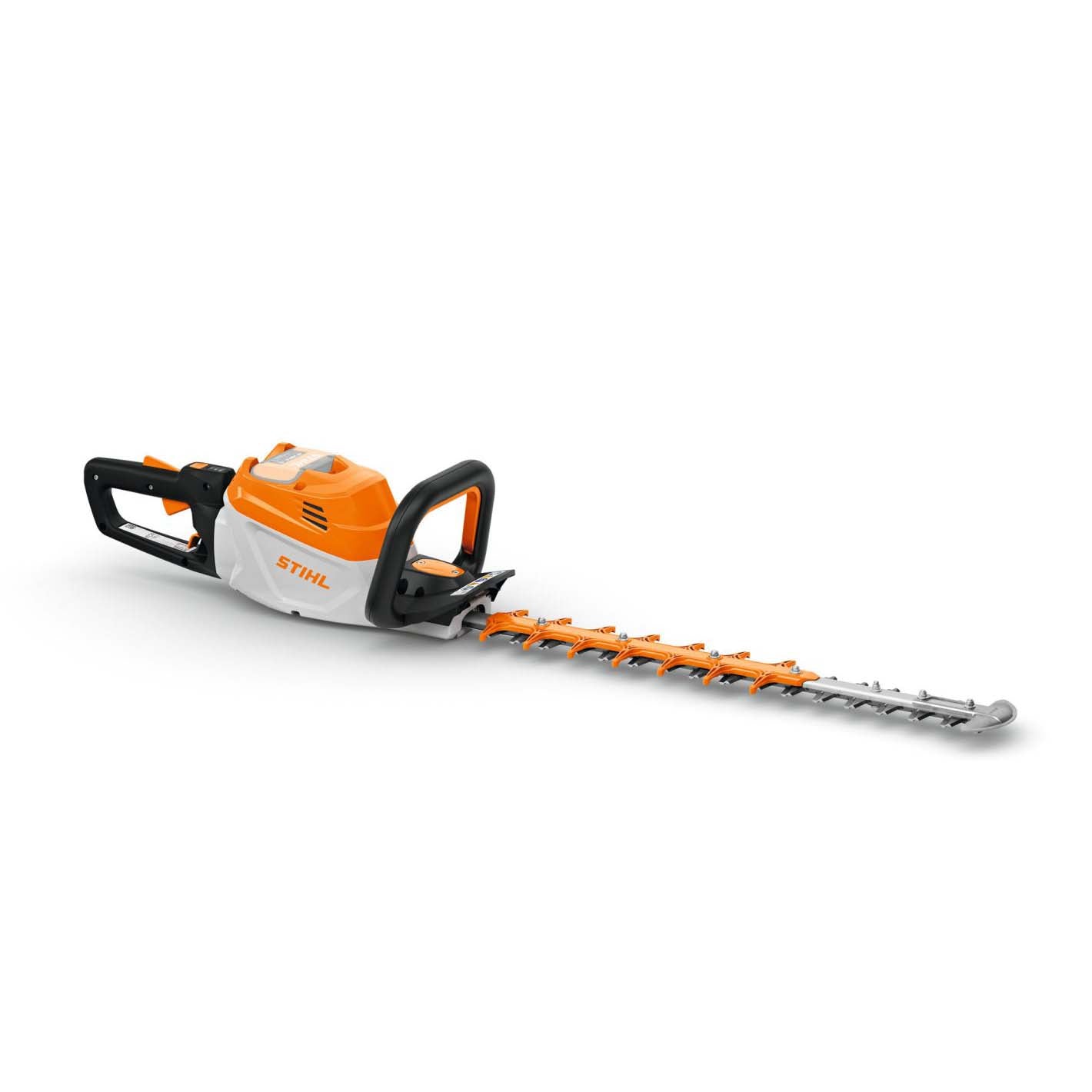

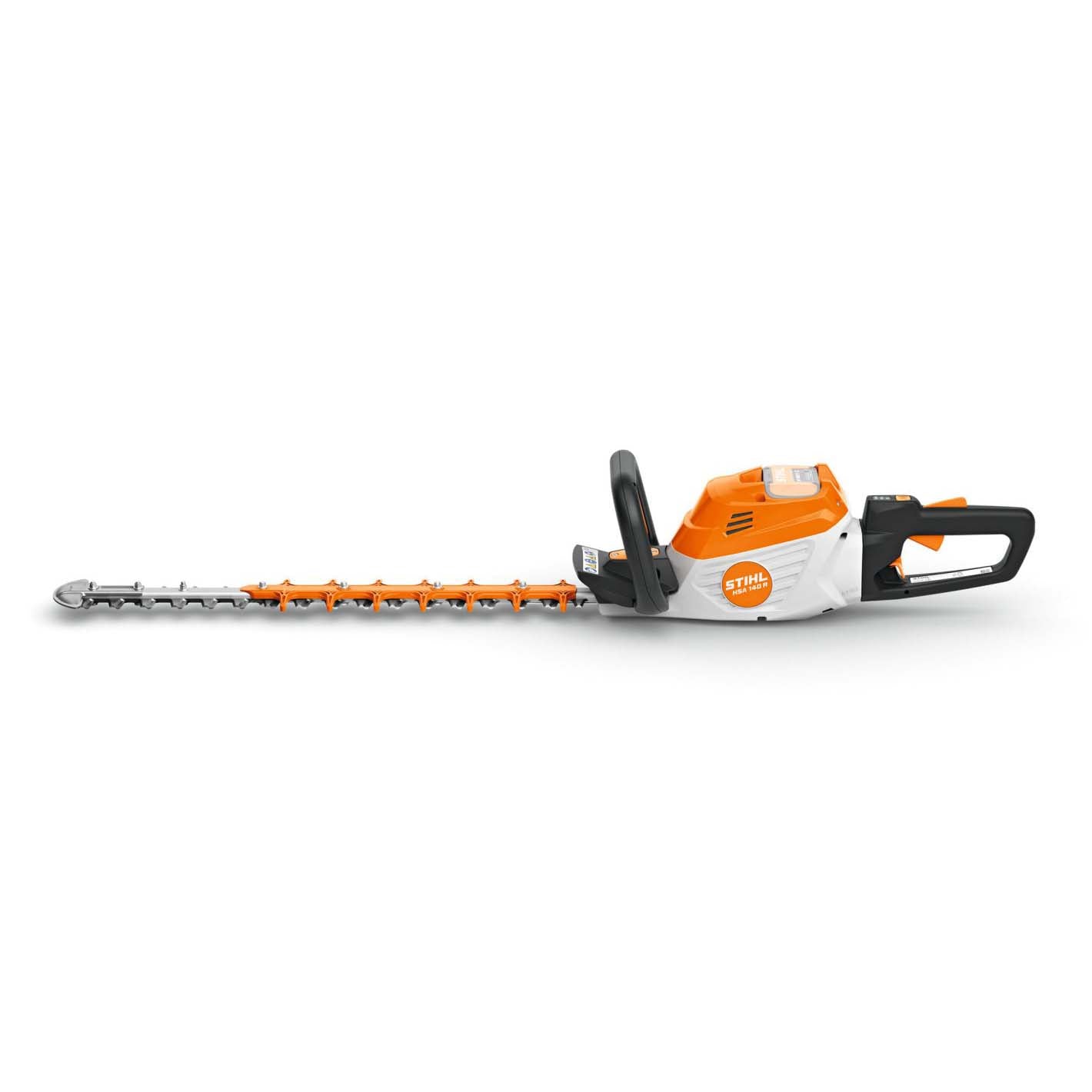

STIHL HSA 140 R Cordless Hedge Trimmer

With an integrated battery slot, there’s no need to carry the battery on your belt or back. The design prioritises ergonomic comfort and perfect balance when used with the AP 200 S battery, making extended use less tiring. The hedge trimmer is IPX4 water-resistant, suitable for all weather conditions. A rotatable handle allows you to cut hedges from any angle, adapting easily to various hedge shapes and positions.

The HSA 140 R includes an anti-jamming function that reverses the blades to clear blockages on thicker branches. Its advanced gearbox works seamlessly with the EC motor for high cutting force and quick acceleration.

Using the AP 200 S battery, expect 100–150 minutes of run time per charge. For longer sessions, the AP 300 S or AP 500 S batteries can be used, though these add weight and may affect tool balance.

Features:

• Cutting Variation (R): Optimised for high-volume cutting with wide tooth spacing and high tooth height for thicker branches.
• Rotatable Multi-Function Handle: Ergonomic 90° rotating handle ensures comfortable use at any angle—suitable for left and right-handed users.
• Double-Sided Cutting Blade: Enables precise vertical, horizontal and corner trimming.
• Adjustable Blade-Stroke Rate: Three-speed settings easily controlled via the rotating handle cockpit.
• Blade Scabbard: Tailor-made cover for safe transport and storage.
• Tip Protector: Shields blade ends from damage; ideal for ground-level and wall-adjacent cuts.
• Screw-On Cut Protection: Increases user safety; replaceable when worn.
• Hanging Eyelet: Integrated loop for convenient, compact storage.
• EC Motor: Lightweight, efficient, and low-maintenance with a long service life.
• Smart Connector Compatible: Enables tool monitoring via STIHL connected app.
• Anti-Vibration System: Minimises hand and arm fatigue for more comfortable operation.
• Constant Power: Maintains performance throughout the full battery charge.
• IPX4 Certified: Splashwater protection for reliable use in wet weather.

STIHL HSA 140 T – Technical Specifications

• Rated Voltage: 36 V

• Motor Power Output: 0.46 kW (1)

• Battery System: AP System

• Recommended Battery: AP 200 S

• Stroke Rate – Level 1: 2,600 rpm

• Stroke Rate – Level 2: 3,000 rpm

• Stroke Rate – Level 3: 3,400 rpm

• Cutter Blade Length: 60 – 75 cm

• Tooth Spacing: 38 mm

• Device Weight (without battery): 4.4 – 4.7 kg (2)

• Device Length (with blade): 125 – 138 cm

• IP Rating: IPX4 (weather resistant)

• Sound Pressure Level: 77 – 79 dB(A) (4)

• Sound Power Level: 85 – 87 dB(A) (4)

• Vibration Level – Left Hand: 2.7 – 3.0 m/s² (5)

• Vibration Level – Right Hand: 2.3 – 2.5 m/s² (5)

Battery Working Time (Per Charge)

• AP 100: 60 – 80 min

• AP 200: 100 – 150 min

• AP 200 S: 100 – 150 min

• AP 300: 140 – 195 min

• AP 300 S: 175 – 245 min

• AP 500 S: 210 – 290 min

• AR 2000 L: 670 – 935 min

• AR 3000 L: 1,005 – 1,405 min

Footnotes:

• (1) Power output according to operating performance

• (2) Weight varies by blade length

• (3) Runtime may vary based on use and conditions

• (4) K-value uncertainty: 2 dB(A)

• (5) K-value uncertainty: 1.5 m/s²
