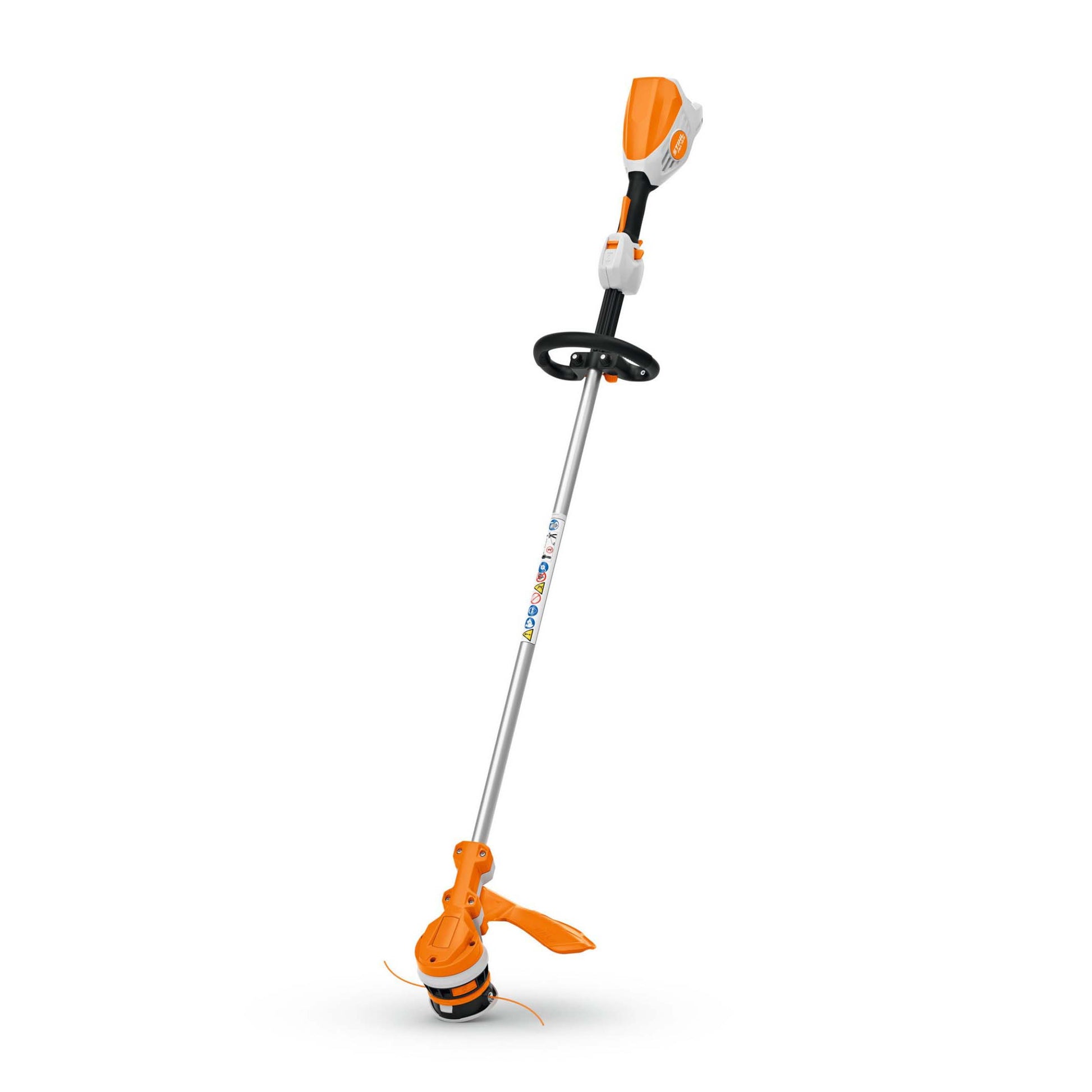

STIHL FSA 70 R Cordless Brushcutter

Fitted with a loop handle that has a quick-mounting system, which means you can adjust the handle to your height for an ergonomic working position. This handle also makes mowing on slopes, around trees or on uneven terrains even easier. The FSA 70 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for mowing thicker grass, which will use more of the battery energy.

On a full charge with the AK 20 battery, the FSA 70 R has a working time of 25 – 45 minutes when used with the AutoCut C 12-2 and 50 – 90 minutes when used with the PolyCut 12-2 mowing head.

Features:

• Powerful cordless brushcutter for homeowners
• Individual tool without battery or charger

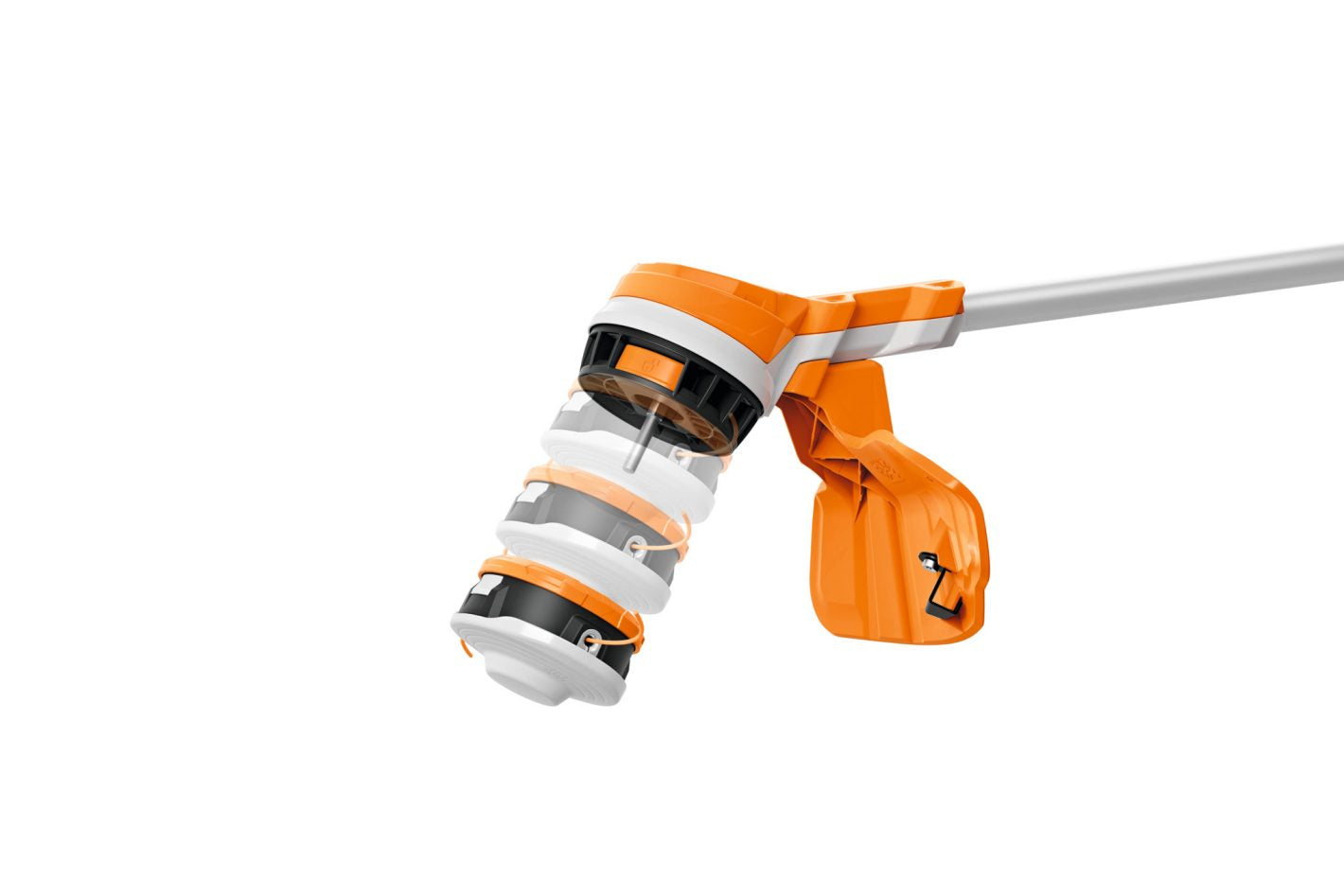

• Rapid Click System for quick, tool-free removal of the mowing head
• Advanced EasySpool for quick and easy winding of the mowing head

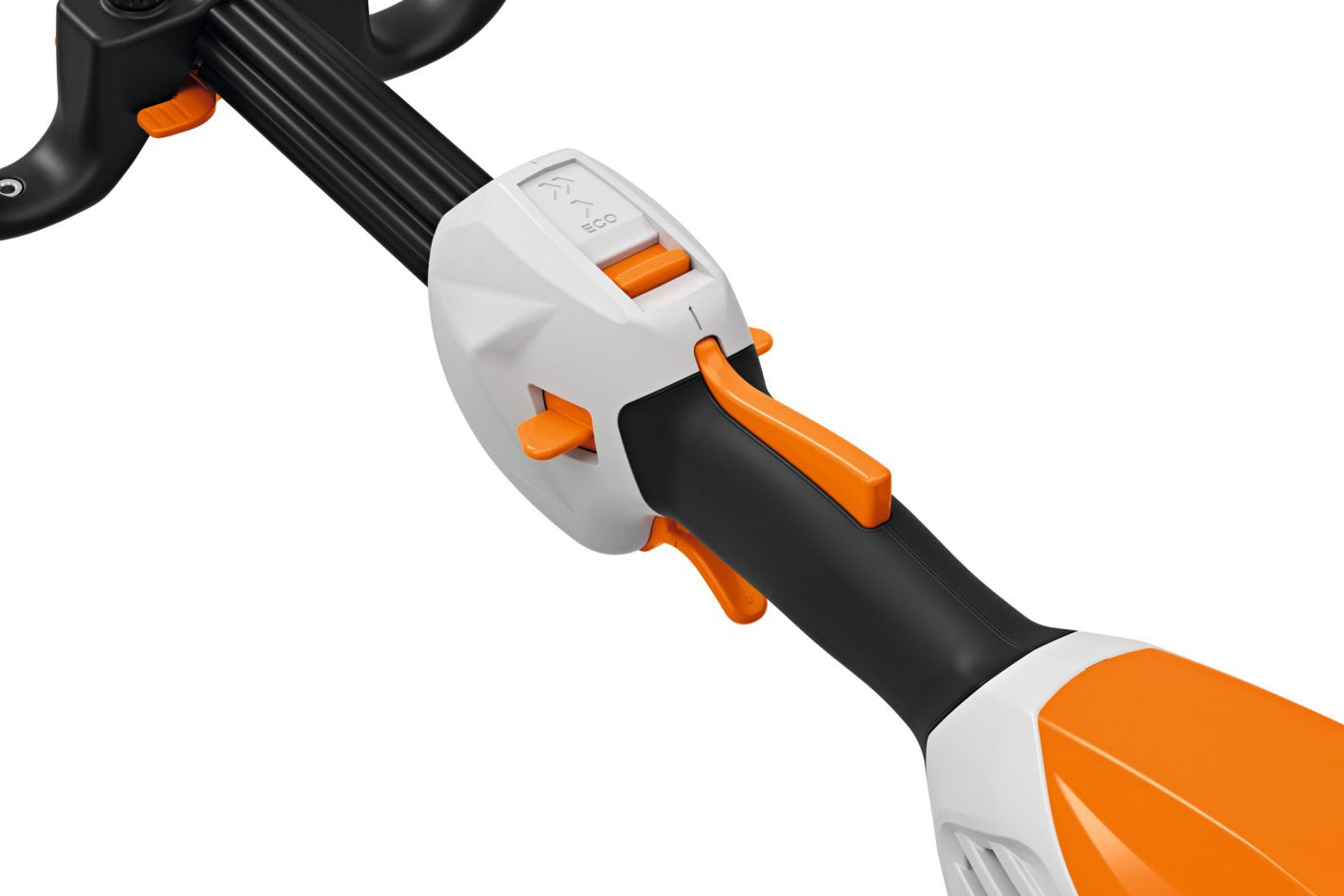

• 2 power levels with variable speed control

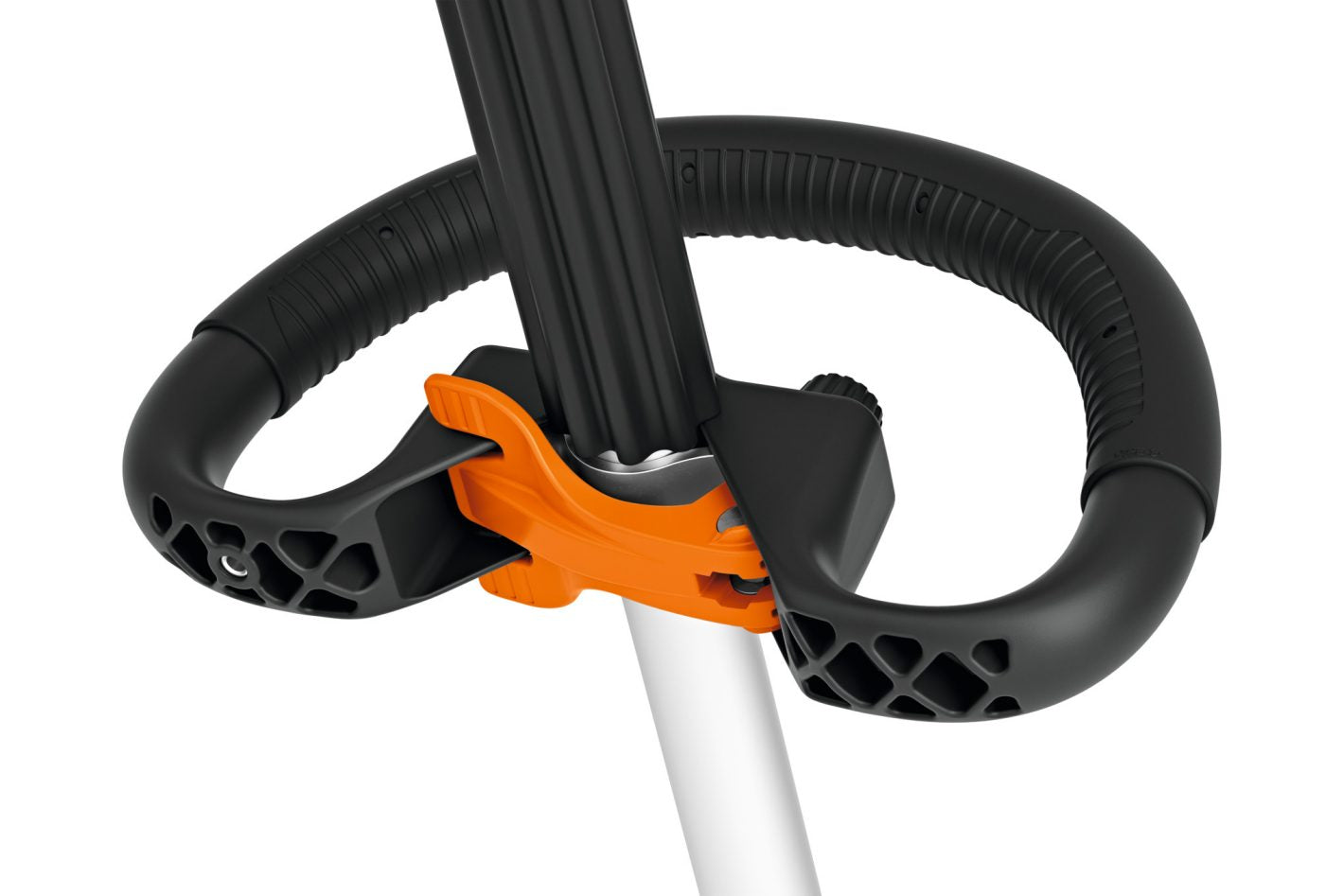

• Tool-free adjustable loop handle

Technical Specification:

• Rated voltage - 36 V

• Power - 0.8 kW 1)

• Battery system - AK

• Recommended battery - AK 20

• Device weight without battery - 3.2 kg 2)

• Cutting circle diameter - 380 mm

• Standard cutting attachment - AutoCut C 12-2

• IPX Rating - N/A

• Min. battery working time AK 10 with line mowing head - 15 min 3)

• Max. battery working time AK 10 with line mowing head - 30 min 3)

• Min. battery working time AK 10 with plastic blade mowing head - 30 min 3)

• Max. battery working time AK 10 with plastic blade mowing head - 60 min 3)

• Min. battery working time AK 20 with line mowing head - 25 min 3)

• Max. battery working time AK 20 with line mowing head - 45 min 3)

• Min. battery working time AK 20 with plastic blade mowing head - 50 min 3)

• Max. battery working time AK 20 with plastic blade mowing head - 90 min 3)

• Min. battery working time AK 30 with line mowing head - 30 min 3)

• Max. battery working time AK 30 with line mowing head - 55 min 3)

• Min. battery working time AK 30 with plastic blade mowing head - 60 min 3)

• Max. battery working time AK 30 with plastic blade mowing head - 110 min 3)

• Min. battery working time AK 30 S with line mowing head - 30 min 3)

• Max. battery working time AK 30 S with line mowing head - 55 min 3)

• Min. battery working time AK 30 S with plastic blade mowing head - 60 min 3)

• Max. battery working time AK 30 S with plastic blade mowing head - 110 min 3)

• Max. area per battery charge AK 10 - 100 m² 4)

• Max. area per battery charge AK 20 - 300 m² 4)

• Max. area per battery charge AK 30 - 360 m² 4)

• Max. area per battery charge AK 30 S - 360 m² 4)

• Max. lawn edge per battery charge AK 10 - 500 m 4)

• Max. lawn edge per battery charge AK 20 - 1500 m 4)

• Max. lawn edge per battery charge AK 30 - 1800 m 4)

• Max. lawn edge per battery charge AK 30 S - 1800 m 4)

• Device length without cutting tool - 166 cm

• Sound pressure level - 76 dB(A) 5)

• Sound power level - 91 dB(A) 5)

• Vibration level, left - 4.9 m/s² 6)

• Vibration level, left - 3.8 m/s² 6)

• Vibration level, right - 2 m/s² 6)

• Vibration level, right - 2 m/s² 6)

1) Mechanical power as a comparative value to a petrol appliance
2) Without cutting tool and protection
3) The indicated working times per battery charge are indicative and may vary depending on the application and operating mode
4) The stated area output per battery charge may vary depending on the application and operating mode
5) K-value according to Directive 2006/42/EC = 2.0 dB(A)
6) K-value according to RL 2006/42/EG = 2 m/s²
