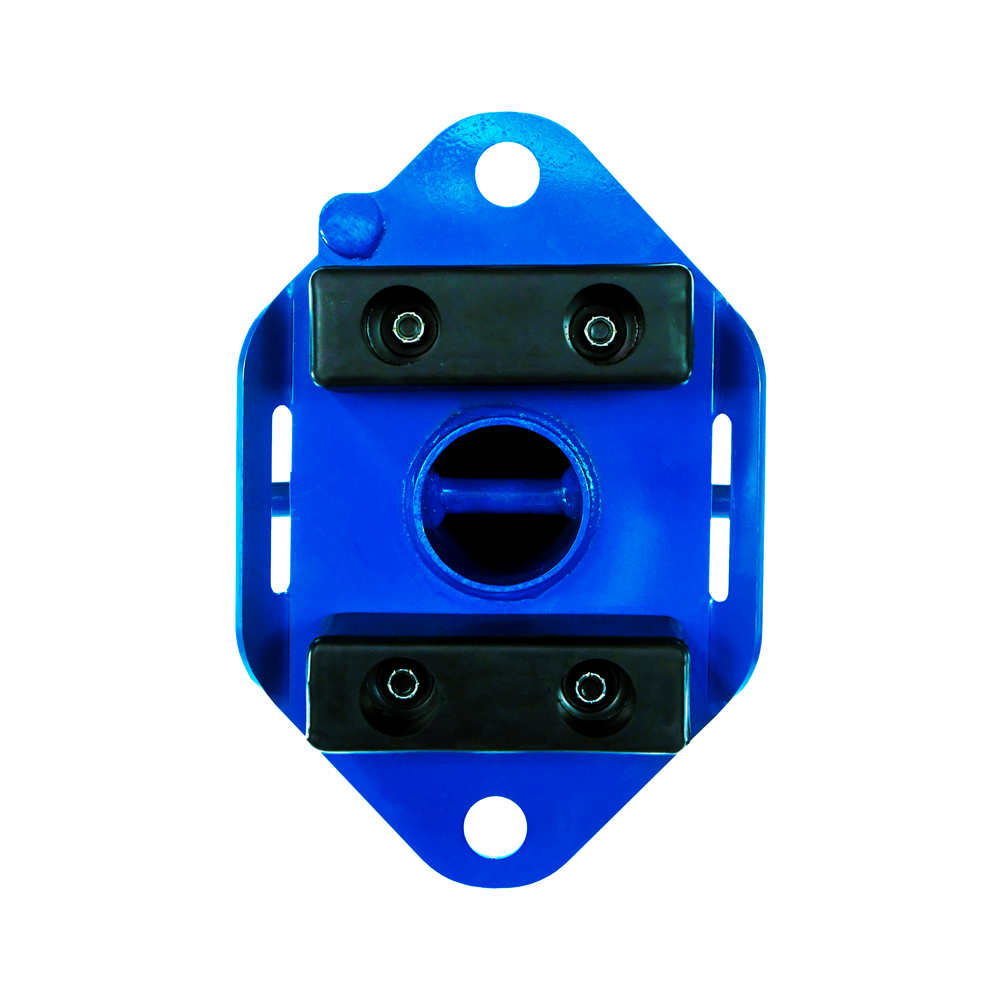

STEIN SMB1000 Fixed Lowering Device 1000kg

STEIN SMB1000 Fixed Lowering Device 1000kg

Regular price £239.00
Regular price Sale price £239.00
Sale Sold out
Tax included.

Out of stock

Free standard delivery on this item

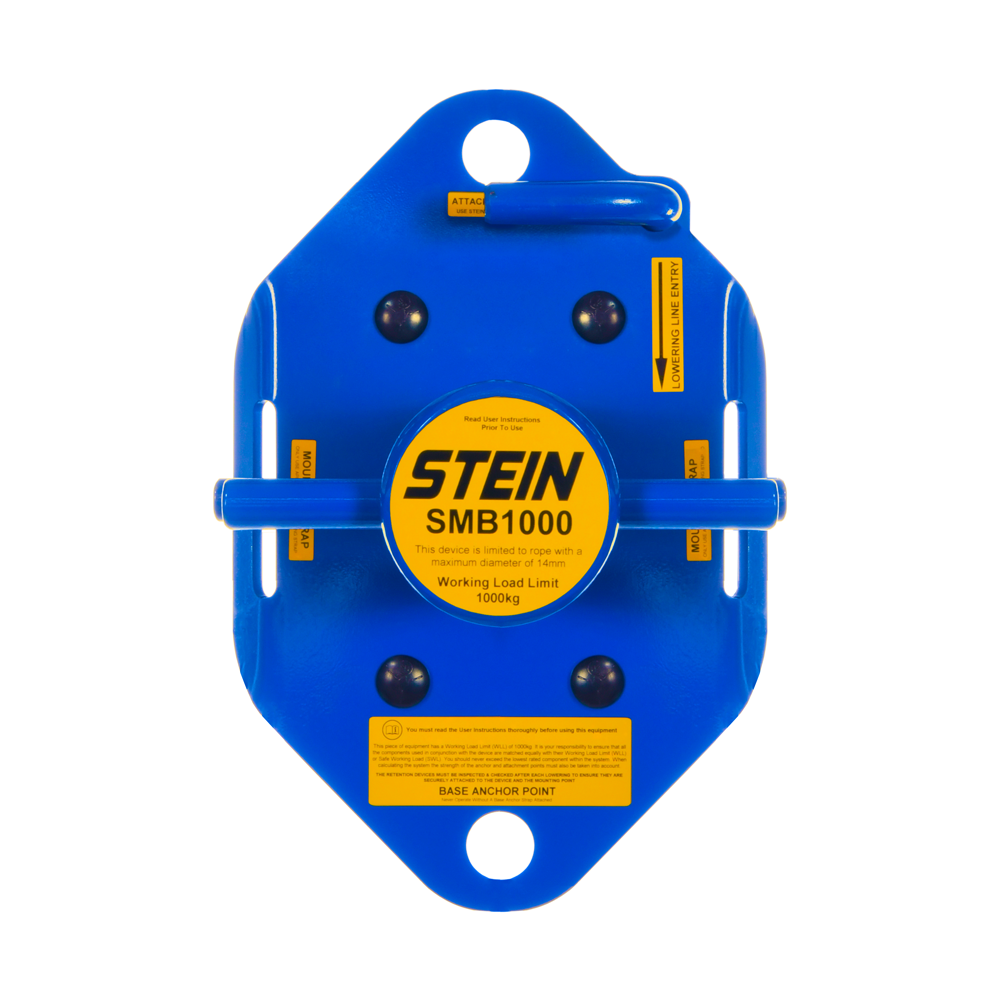

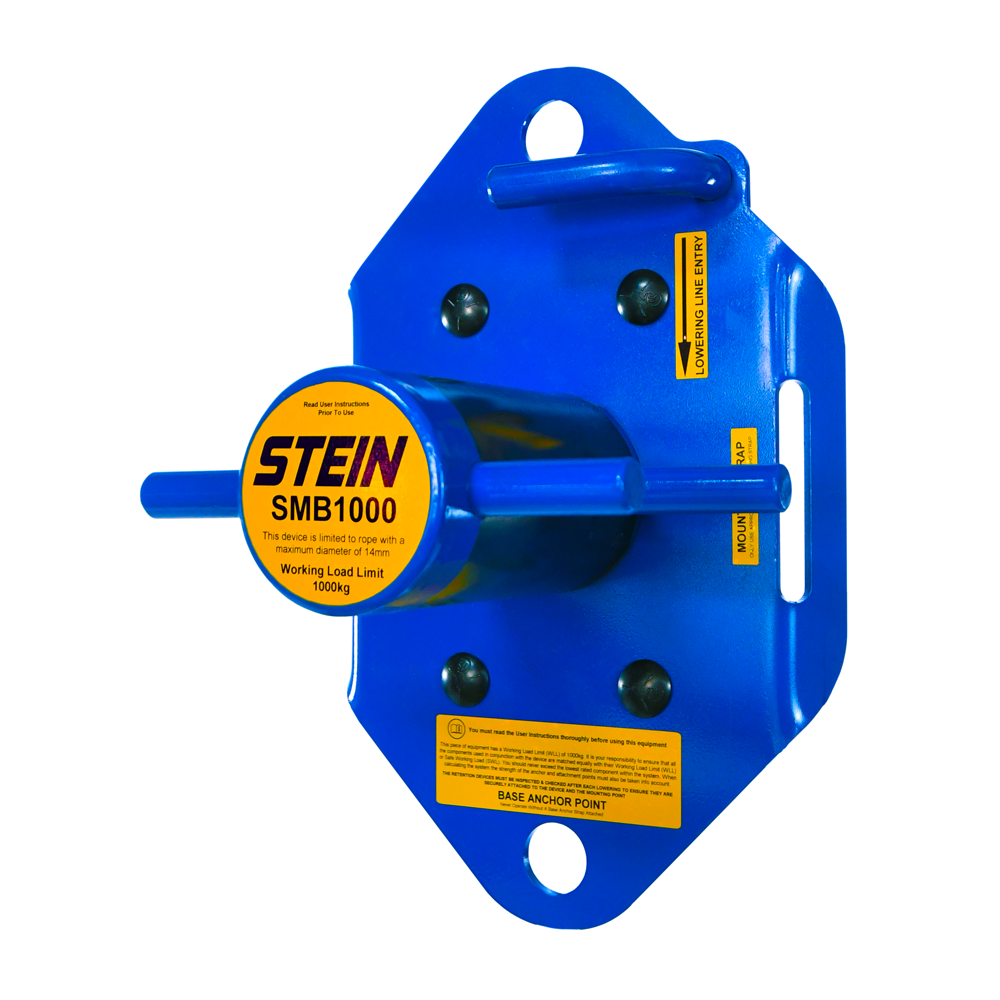

The STEIN SMB1000 single bollard lowering device has a WLL of 1000kg and designed to work effectively with ropes of up to 14mm (Recommended Rope - STEIN Omega 12mm or 14mm).

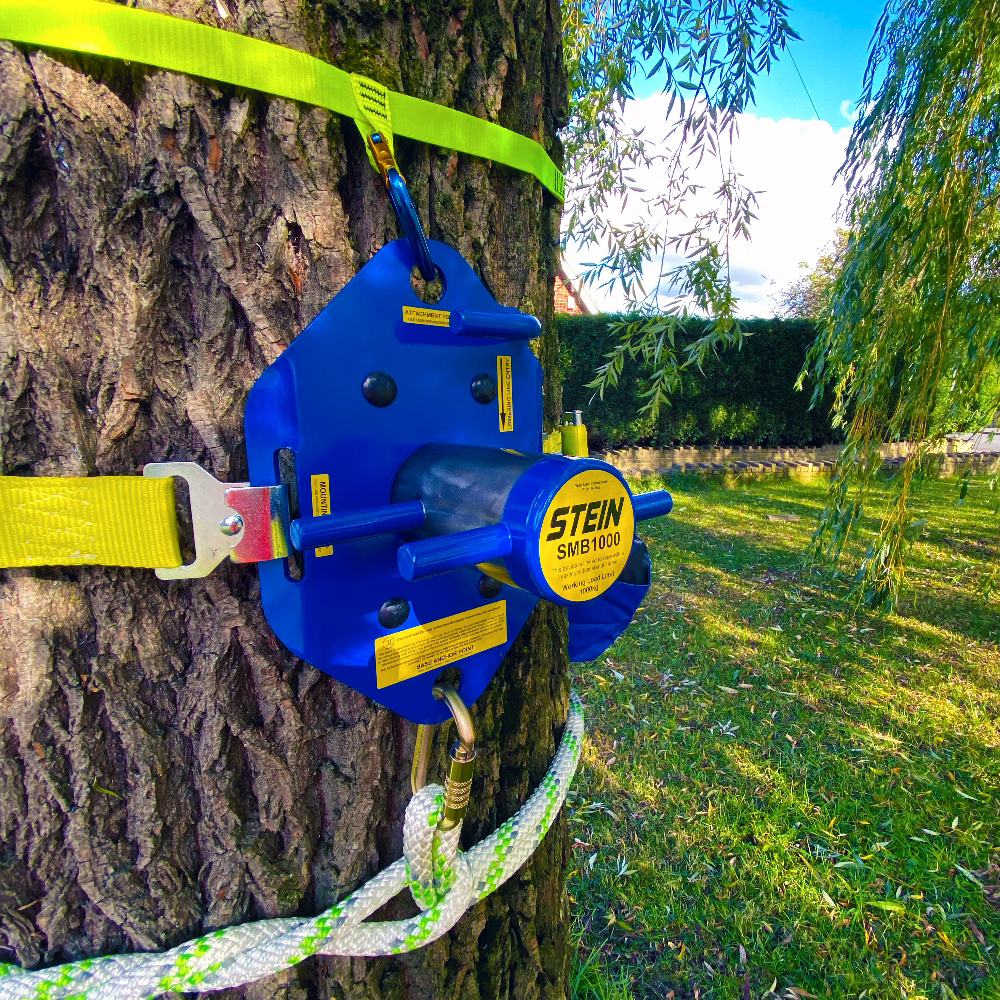

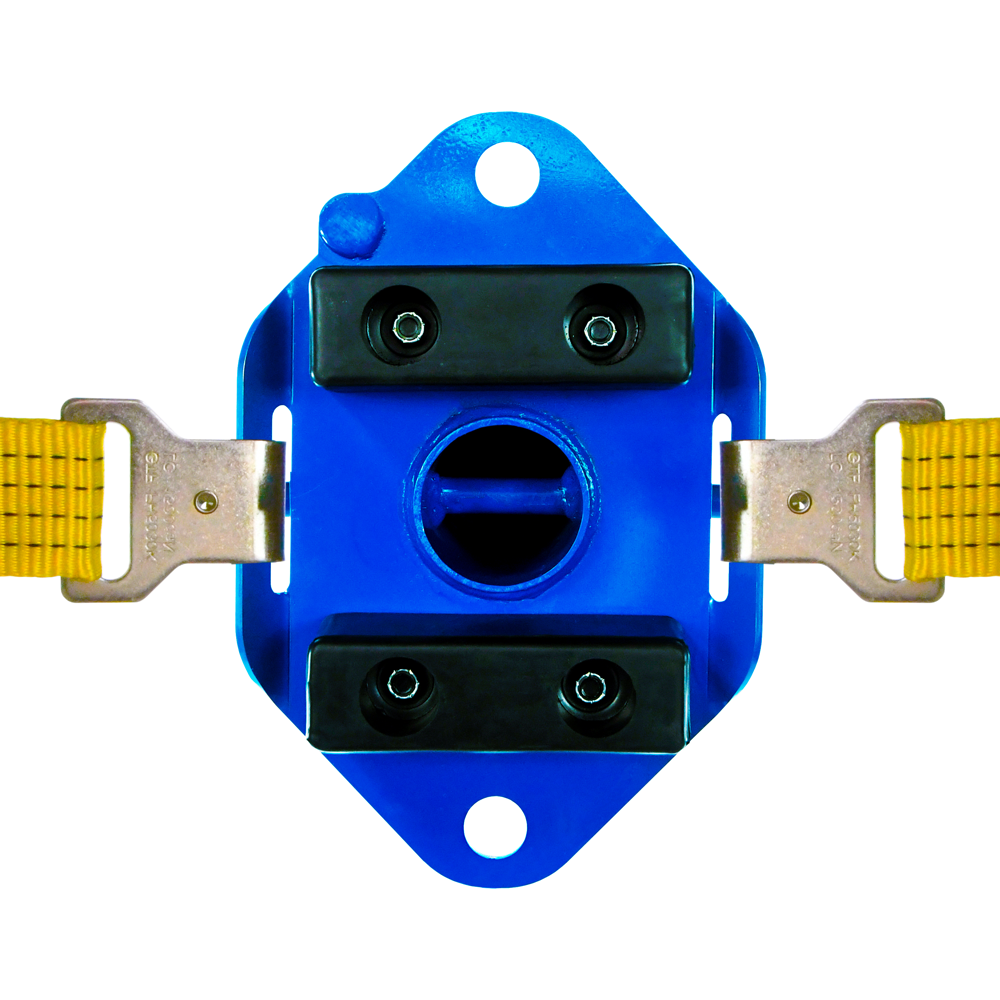

The line is guided down to the bollard and managed by fairleads both front and rear. To help prevent damage to the tree the device is fitted with 2 replaceable heavy duty Tree Protection Rubbers made from a hardwearing blend of SBR/NR rubber. The device weighs in at just 4.4kg so can easily be mounted by one person utilising the top suspension point with the recommended STEIN Mounting Strap (SS-RCP6004). For added security it is recommended the device is backed up by securing a sling to the base anchor point terminated in a self-tightening hitch such as a cow-hitch or timber-hitch. (Recommended Sling - STEIN 20mm Multi-Sling SS-3372008005).

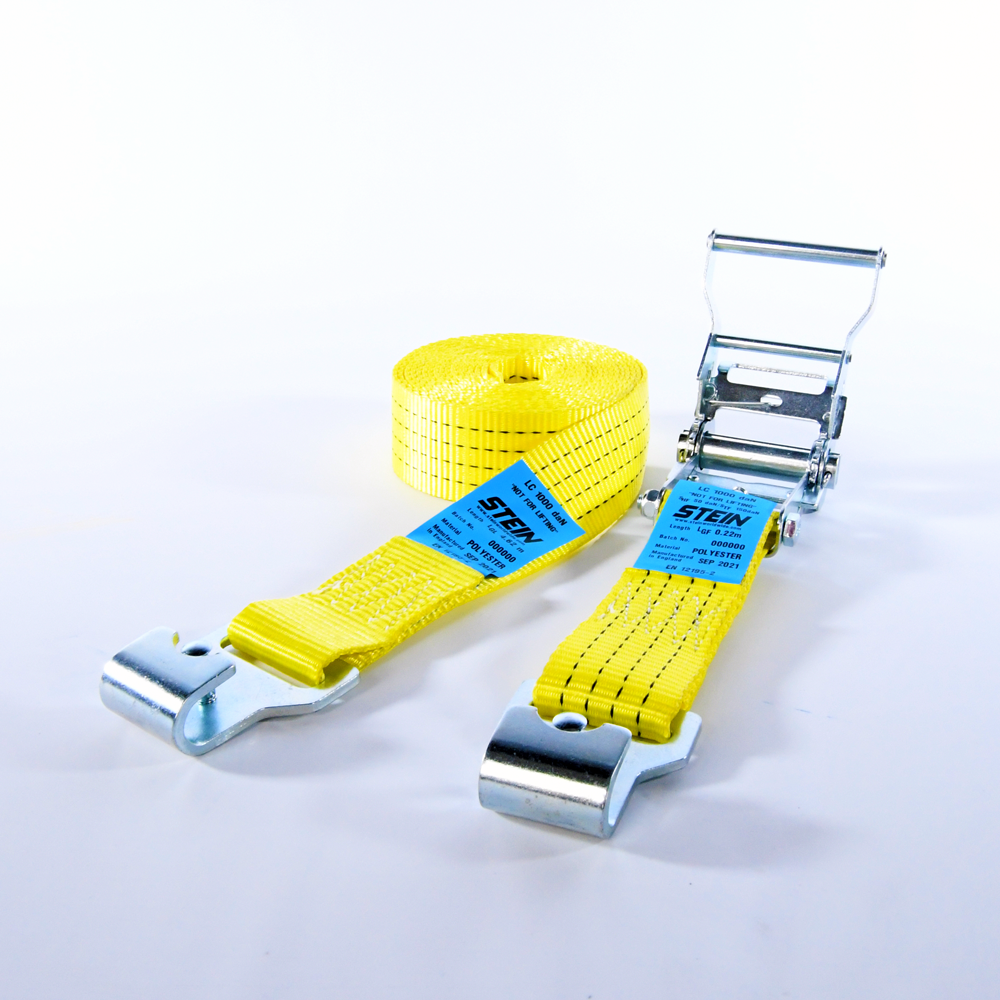

Ratchet Strap Specifications:

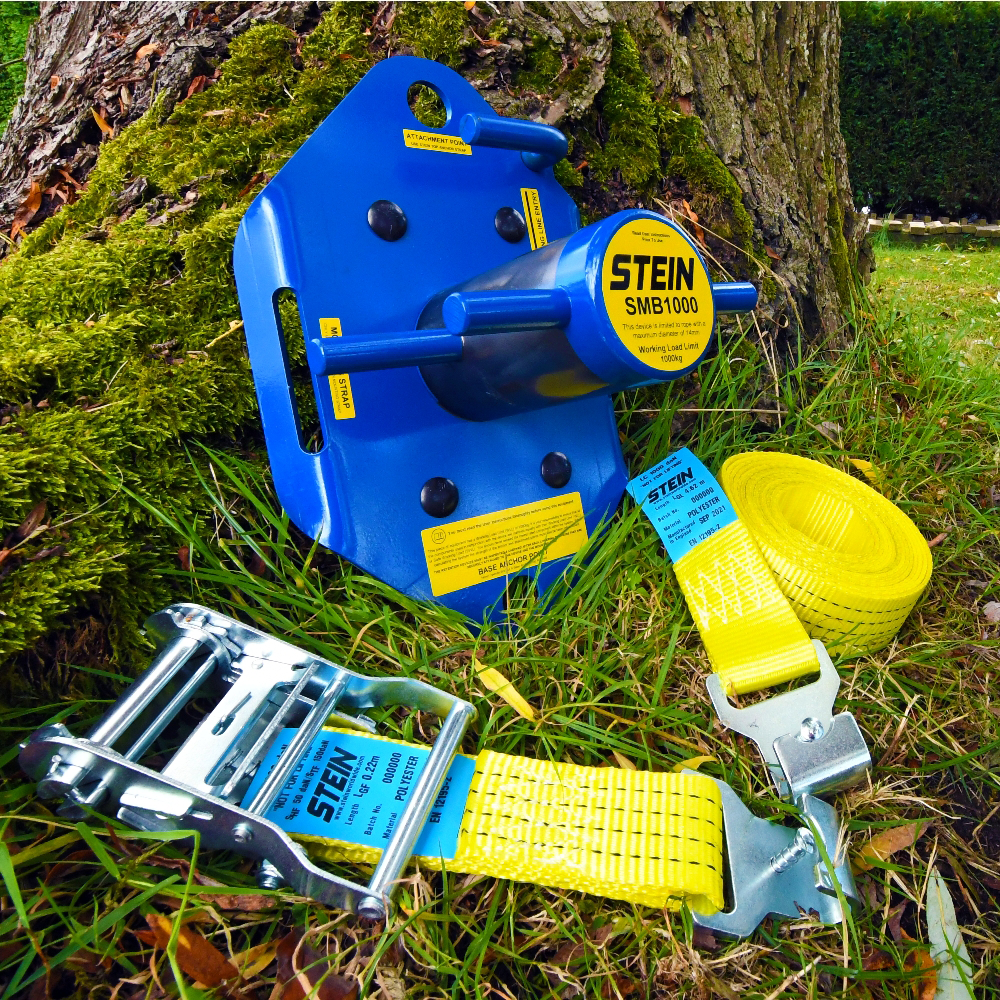

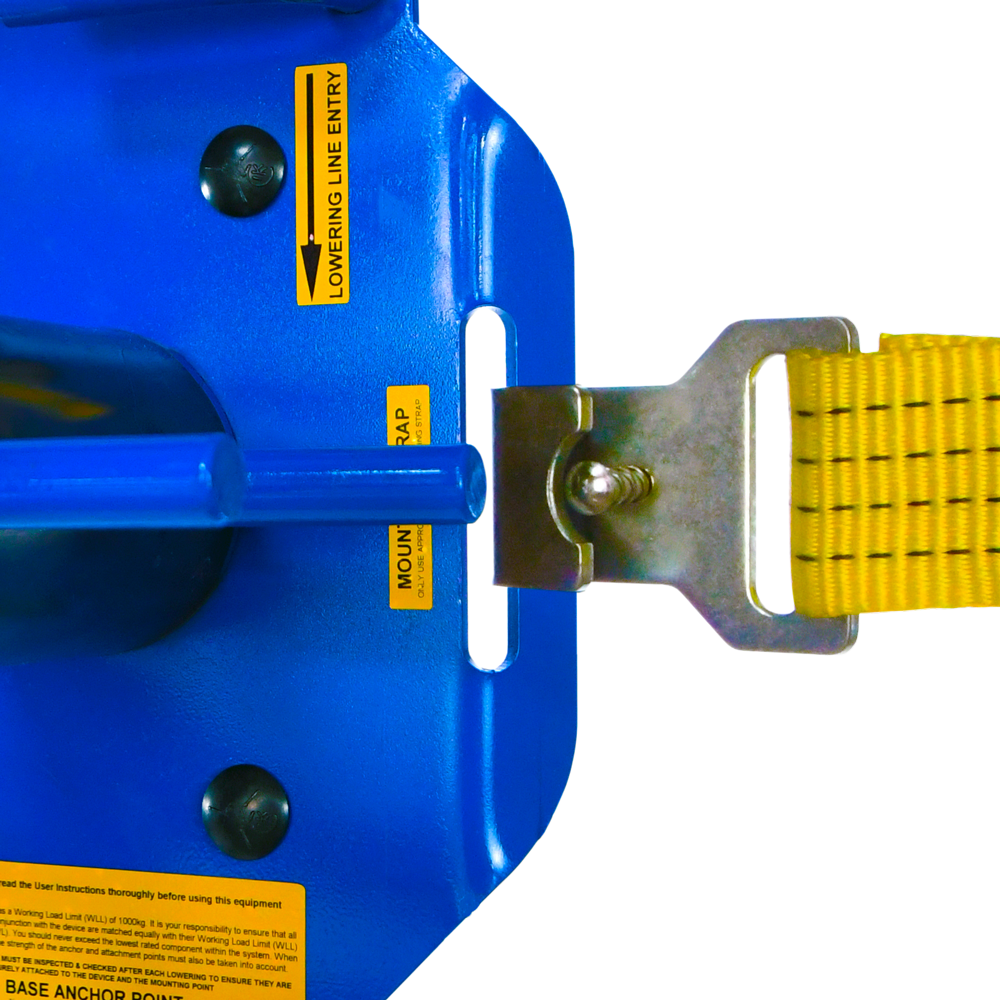

Supplied with a specially designed ratchet strap fitted with Carbon Steel hooks with Keeper Pins to prevent the mounting hooks from detaching from the device when not under tension. The webbing is made from a high tenacity 50mm wide polyester yarn and is UV resistant with a 6000kg breaking strength.

This strapping system allows the device to be fitted to the tree with a diameter of up to 145cm.

The ratchet meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires the buckle to have a lashing capacity (LC) of 1000daN. This capacity is stamped on the ratchet together with a label for full traceability. The breaking strength (BS) of 2000Kg is also shown to indicate the maximum load that can be applied to the buckle before failure.

STEIN SMB1000 SPECIFICATIONS:

  • Working Load Limit: 1000kg (WLL) refer to the manual

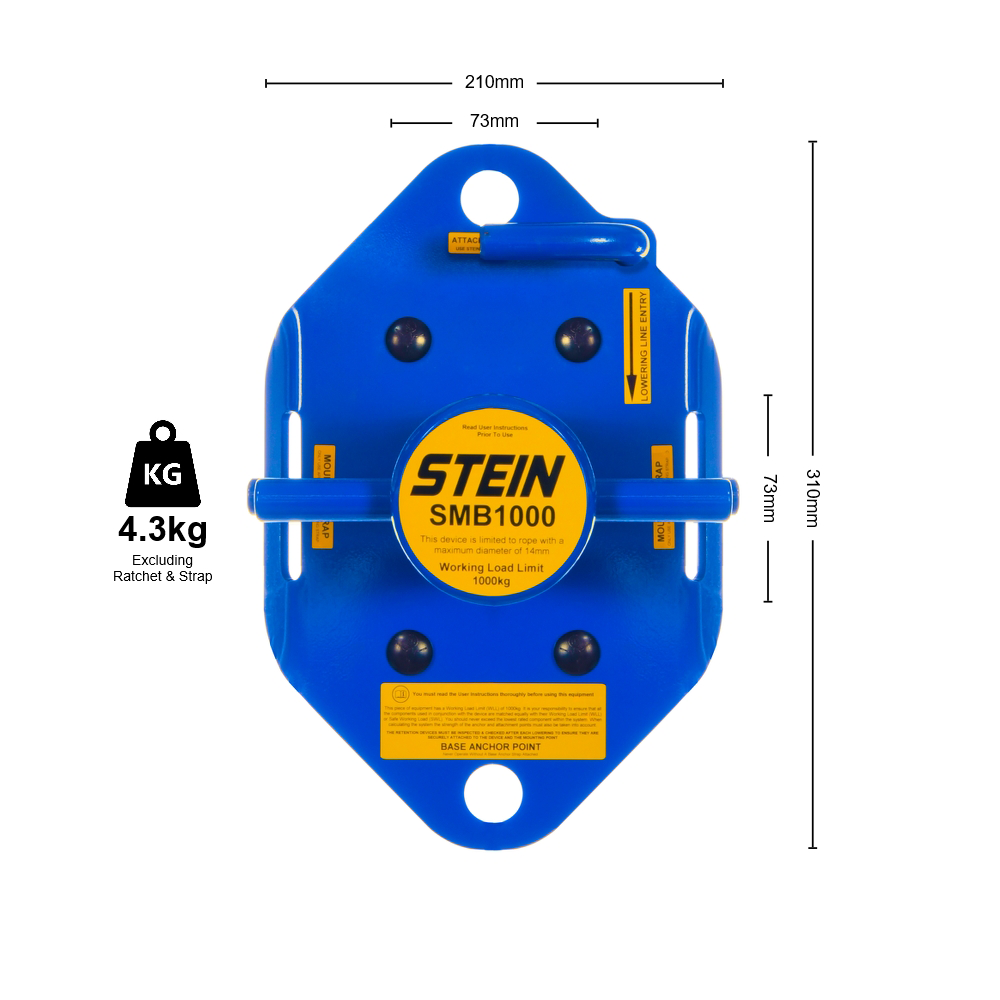

  • Dimensions: 210mm (w) x 310mm (h)
  • Bollard Dimension: 73mm diameter x 140mm (l)
  • Materials: Back Plate 5mm Steel
  • Fairleads: 15mm Solid Bar
  • Body Finish: Powder coated
  • Bollard Finish: Lacquered with Rust Prevention
  • Rubbers: 148mm (l) x 50mm (w) x 50mm (h)
  • Rubber Material: SBR/NR rubber
  • Rubber Hardness: 70 medium/hard (Shore A Scale)
  • Strapping System: Ratchet Handle with tail
  • Webbing length: 4.65m (5.0m combined with Ratchet Handle)
  • Weight: 4.4kg (excluding Ratchet Strap), 5.8kg (Including Ratchet Strap)

SKU: CG-SS-SMB1000

MPN: SMB1000

ID: CG-SS-SMB1000
