Scheppach UMF1550 Universal Mitre Saw Stand - 150kg Load Capacity
Scheppach UMF1550 Universal Mitre Saw Stand - 150kg Load Capacity
No reviews
Regular price
£59.00
Regular price
Sale price
£59.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Lightweight and portable tool support built for precise, effortless cutting.
Delivers a dependable 150kg load capacity with adjustable workpiece extensions up to 1.94 metres. Compatible with Scheppach mitre saws and 95% of major brand power tools for versatile site and workshop performance.
Features:

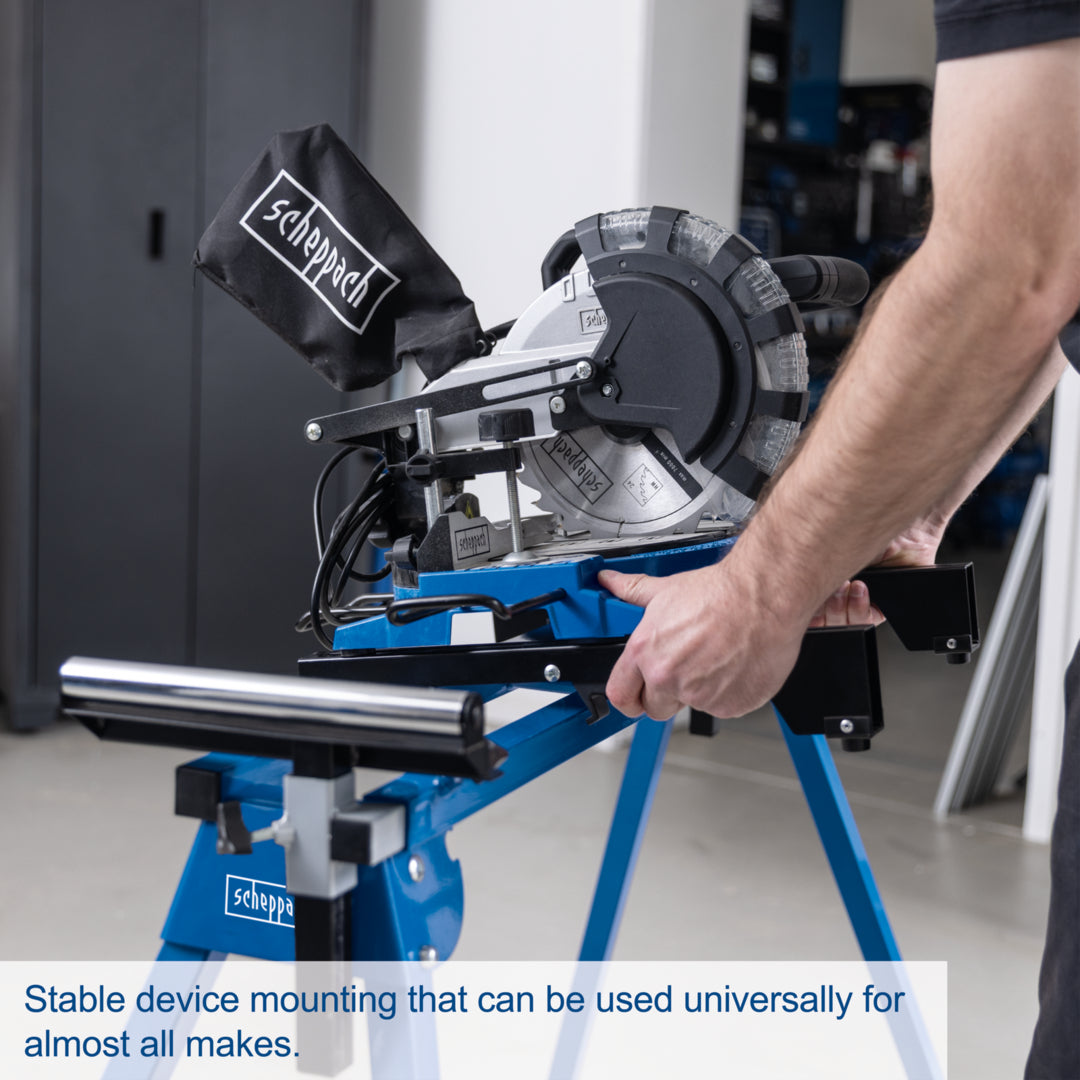

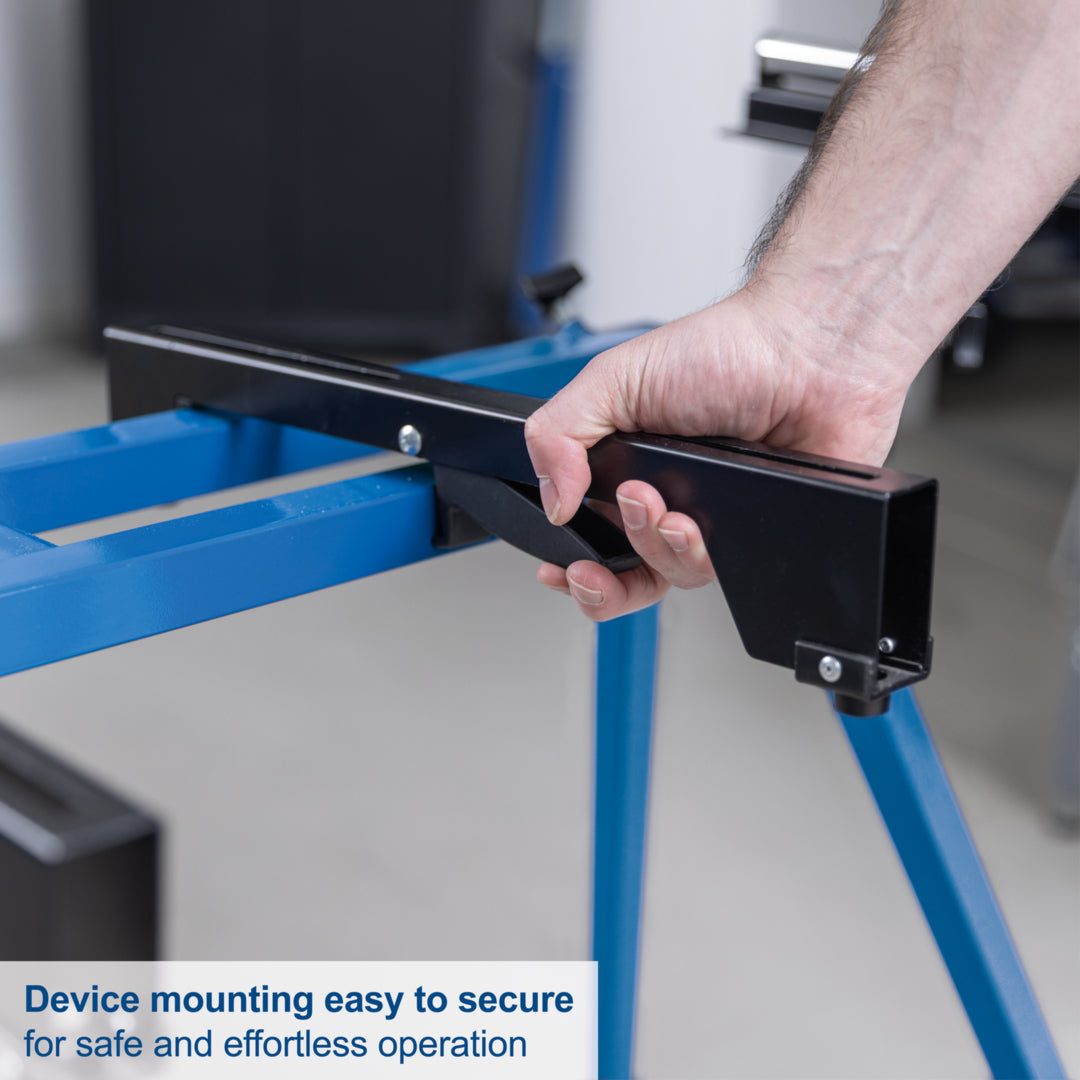

- Universal Machine Mounting: Fits all Scheppach mitre saws and up to 95% of other major brand mitre saws, planers, and benchtop tools with mounting depths up to 38.4cm.
- Solid 150kg Load Capacity: Engineered with a robust steel frame that securely holds timber, long boards, and heavy machinery without sagging.

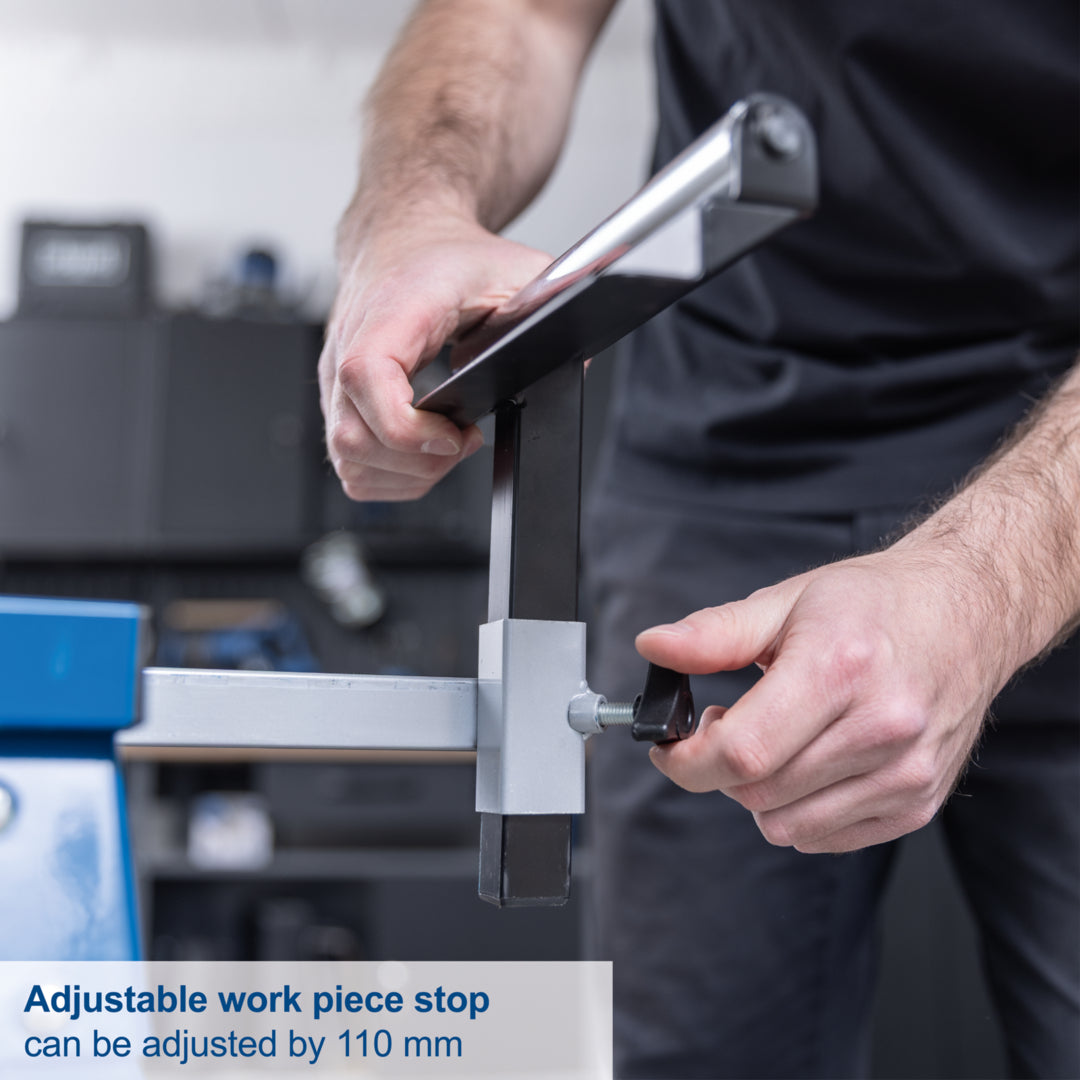

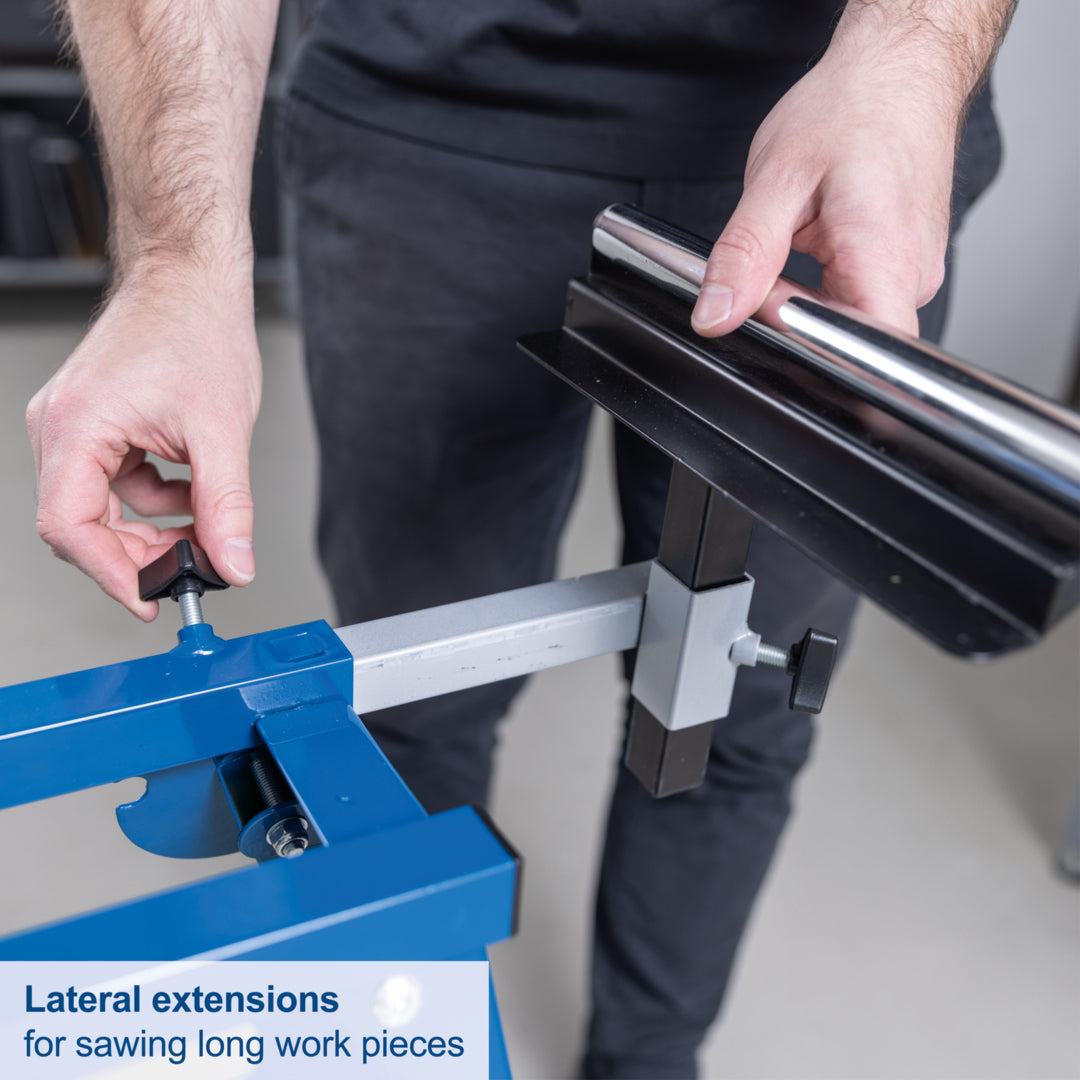

- Extendable Material Supports: Lateral arms adjust smoothly from 93.5cm to 194.5cm, featuring height-adjustable stops up to 91.5cm for precise batch cutting.
- Ergonomic 81cm Working Height: Raises your machine to a comfortable working height, taking the strain off your back during long cutting sessions and removing the need to work on the floor.

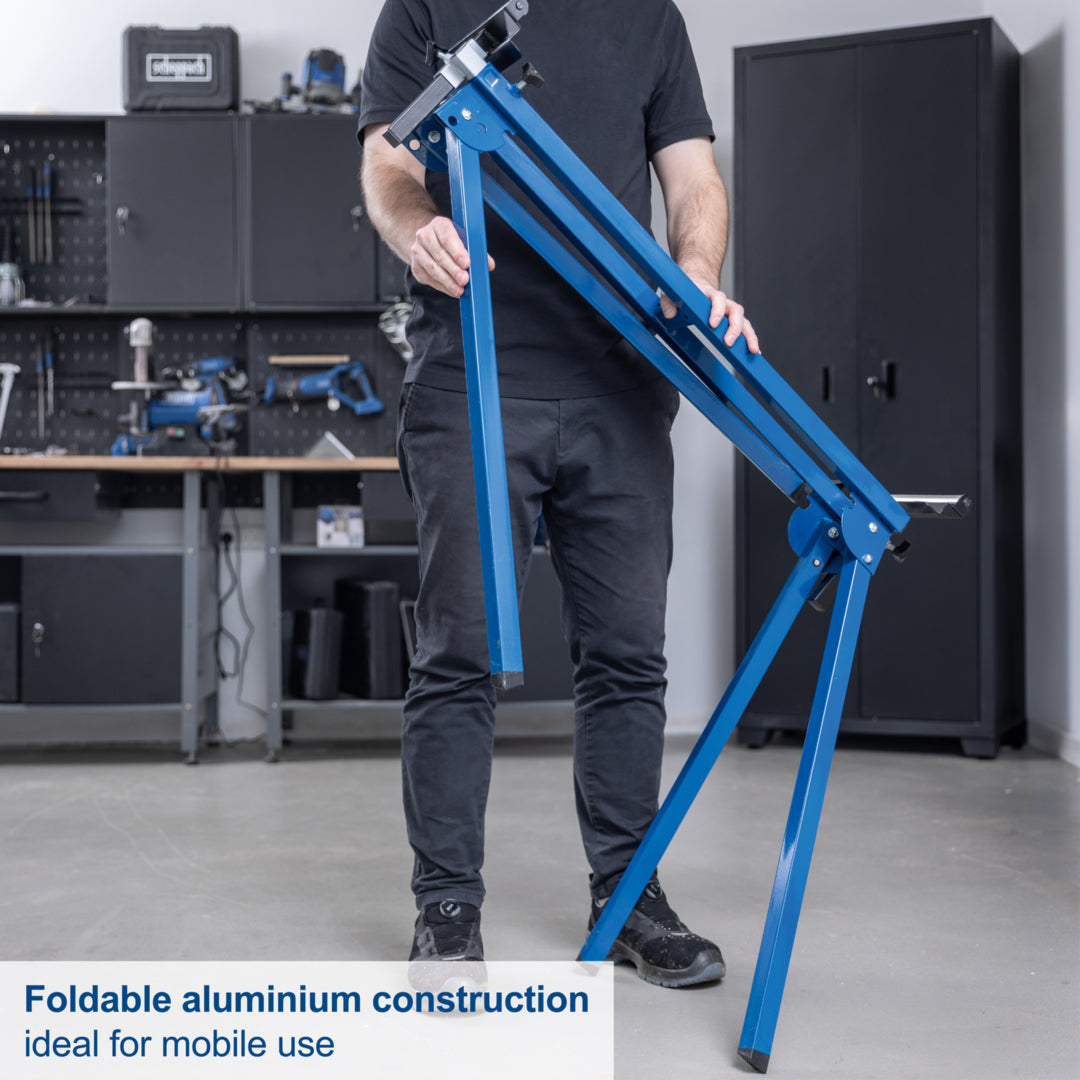

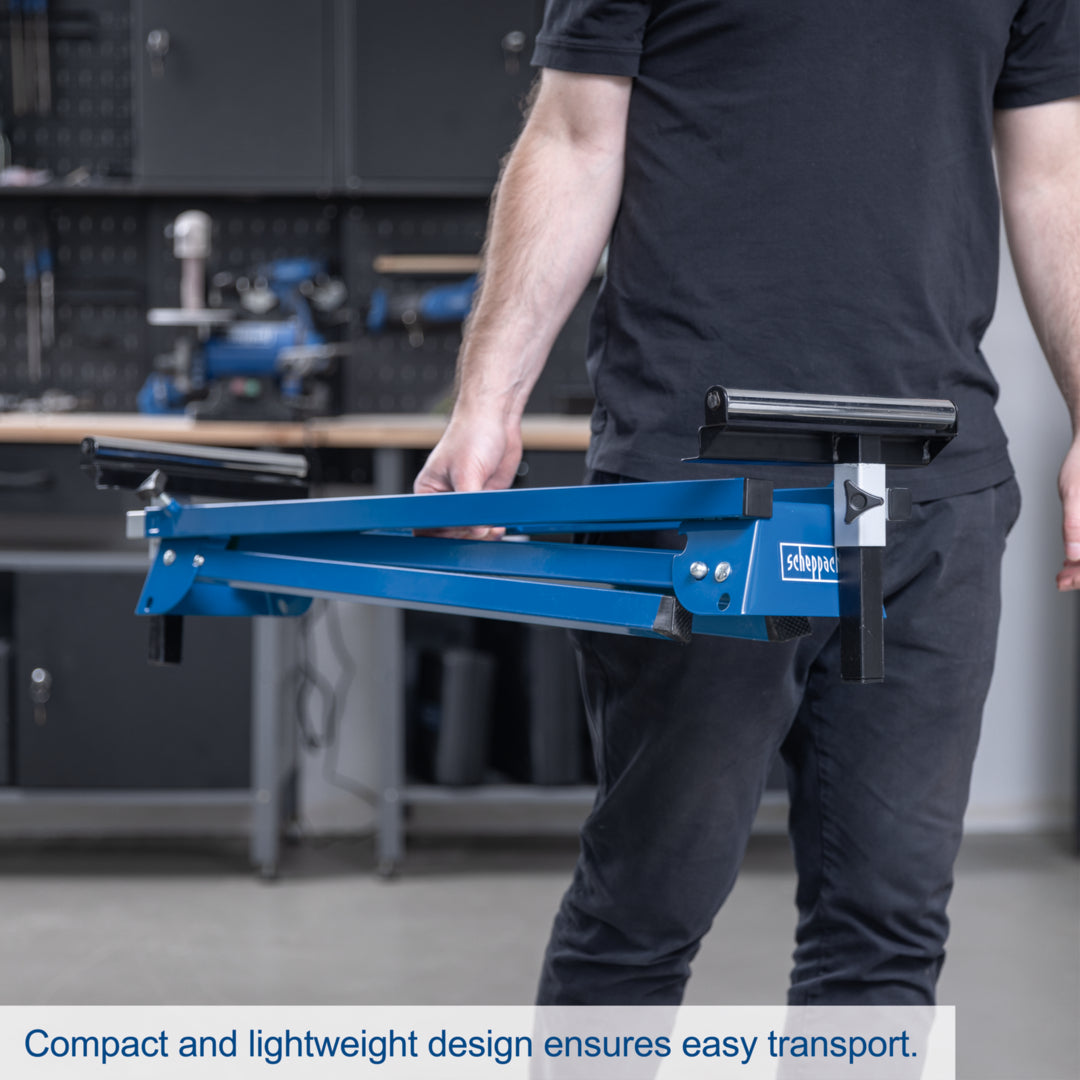

- Ultra-Lightweight & Mobile: Weighs only 9.8kg and features quick-folding legs for easy single-handed transport, loading into vehicles, and compact storage.
Technical Specification
| General Details | |
|---|---|
| Title | Universal Base Frame UMF1550 Scheppach (DIY) |
| Article Number | 5907107900 |
| Model Description | UMF1550 |
| Machine Group | Universal Base Frame |
| EAN | 4046664040521 |
| IAN / PLU | 820053 (Aldi IB) |
| Mass Gross | 11.2 kg |
| Mass Net | 10.04 kg |
| General Dimensions (L x W x H) | 950.0 mm x 540.0 mm x 805.0 mm |
| Folded Dimensions (L x W x H) | 1000.0 mm x 915.0 mm x 545.0 mm |
| Foldable | Yes |
| Drive & Power System | |
| General Drive Type | No Drive |
| Subgrouping Drive Type | No Drive |
| Battery Included | No |
| Stand & Workstation Specifications | |

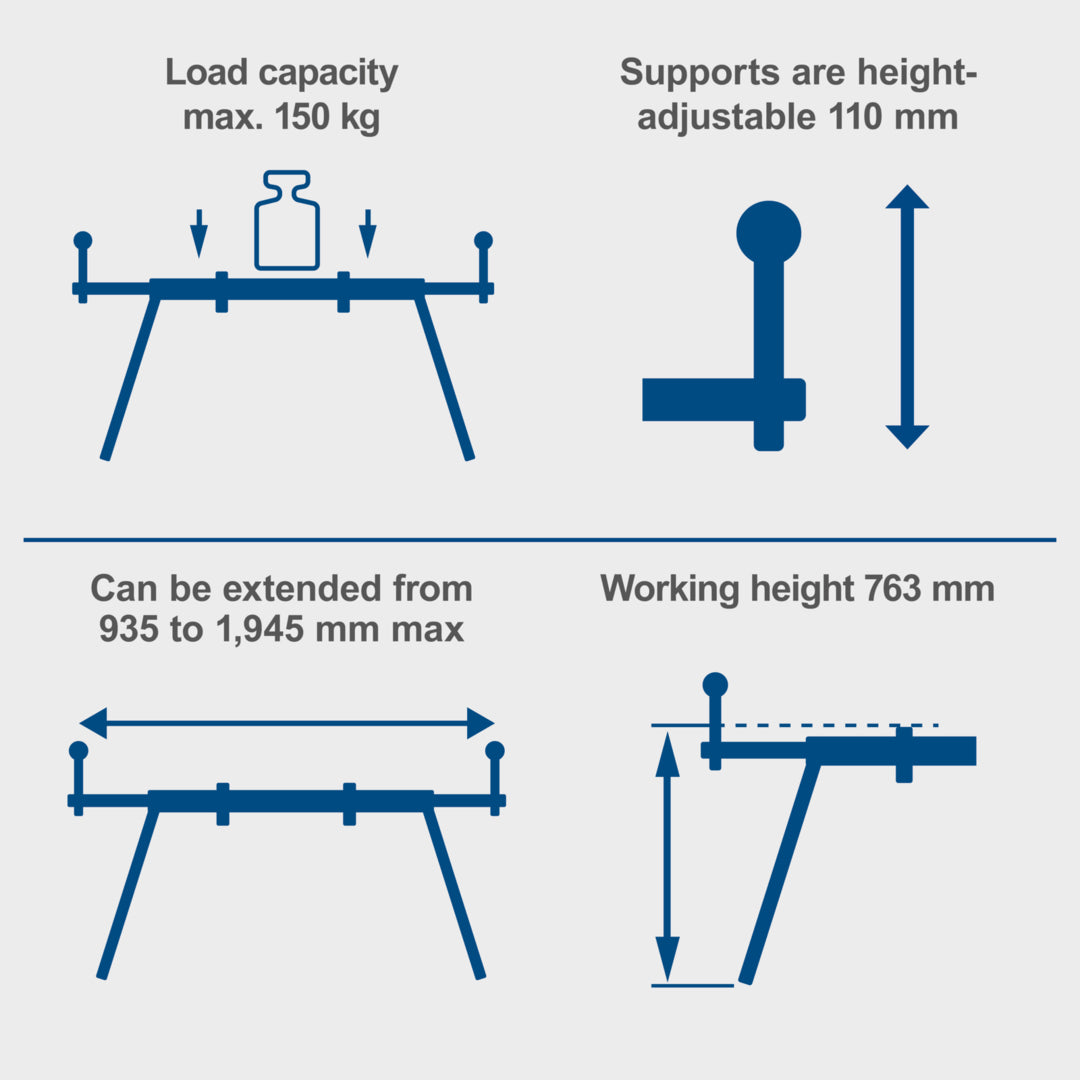

| Loading Capacity Max | 150.0 kg |
| Working Height | 738.0 mm |
| Stand Bed Heights With Support Levers | 763.0 mm |
| Rollers Extendable Range | 935.0 mm - 1945.0 mm |
| Support Roller Width | 250.0 mm |
| Wheel Material | n/a |
| Mounting & Fastening Rail Dimensions | |
| Span Fixing Rail Width (Min / Max) | 100.0 mm / 375.0 mm |
| Span of Mounting Rails Length (Min / Max) | 100.0 mm / 690.0 mm |
| Slot Length Fastening Rails in Front | 115.0 mm |
| Slot Length for Mounting Rails at the Back | 250.0 mm |
| Slot Width Fastening Rails in Front | 8.5 mm |
| Slot Width for Mounting Rails at the Back | 8.5 mm |
| Fastening Rails Screw Size | M8 |
| Delivery Content | |
| Delivery Content Text | 1x universal tool stand, 2x support arm, 2x crossbar, 2x adjustable workpiece support, 4x screw, 4x washer, 4x spring washer, 4x nut, 4x star grip screw |
SKU: D-SCH-5907107900
MPN: 5907107900
