Scheppach TS310 12" Table Saw 2200W
Scheppach TS310 12" Table Saw 2200W
No reviews
Regular price
£449.00
Regular price
Sale price
£449.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Perform precise sheet cutting and timber sizing with smooth induction power.

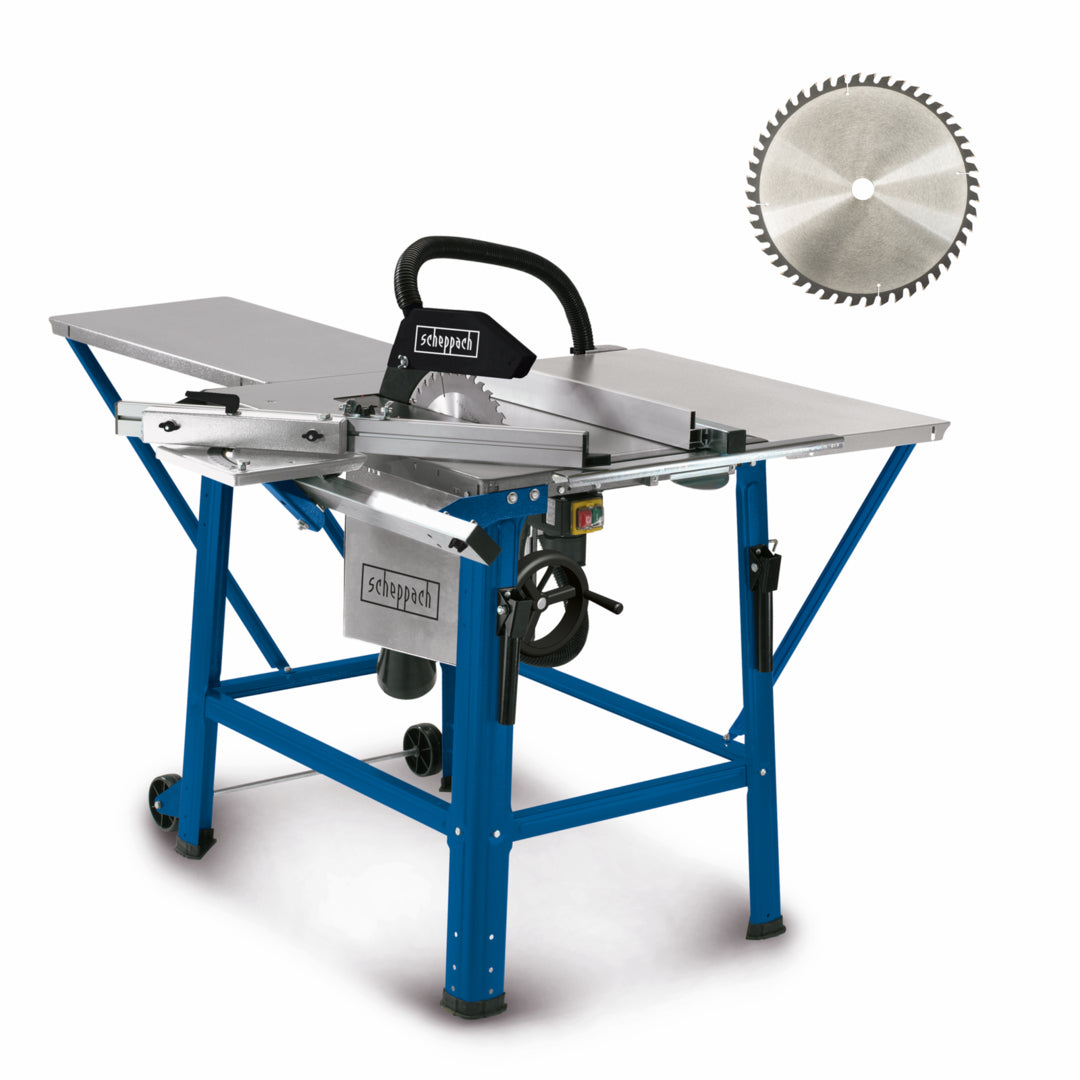

This robust 315 mm table saw system combines a powerful 2200W motor with a standard sliding carriage for dependable workshop accuracy. Designed with dual carbide blades, table extensions, and a galvanized work surface, it delivers versatile cutting performance for DIY enthusiasts and tradespeople.
Features:
- Powerful 2200W Induction Motor: Delivers smooth start-up and consistent torque for quiet, reliable cutting through thick hardwoods and sheet materials.
- Generous 83 mm Cutting Depth: Features an easy-to-use handwheel for fast, accurate depth adjustments to suit a wide range of timber sizes.

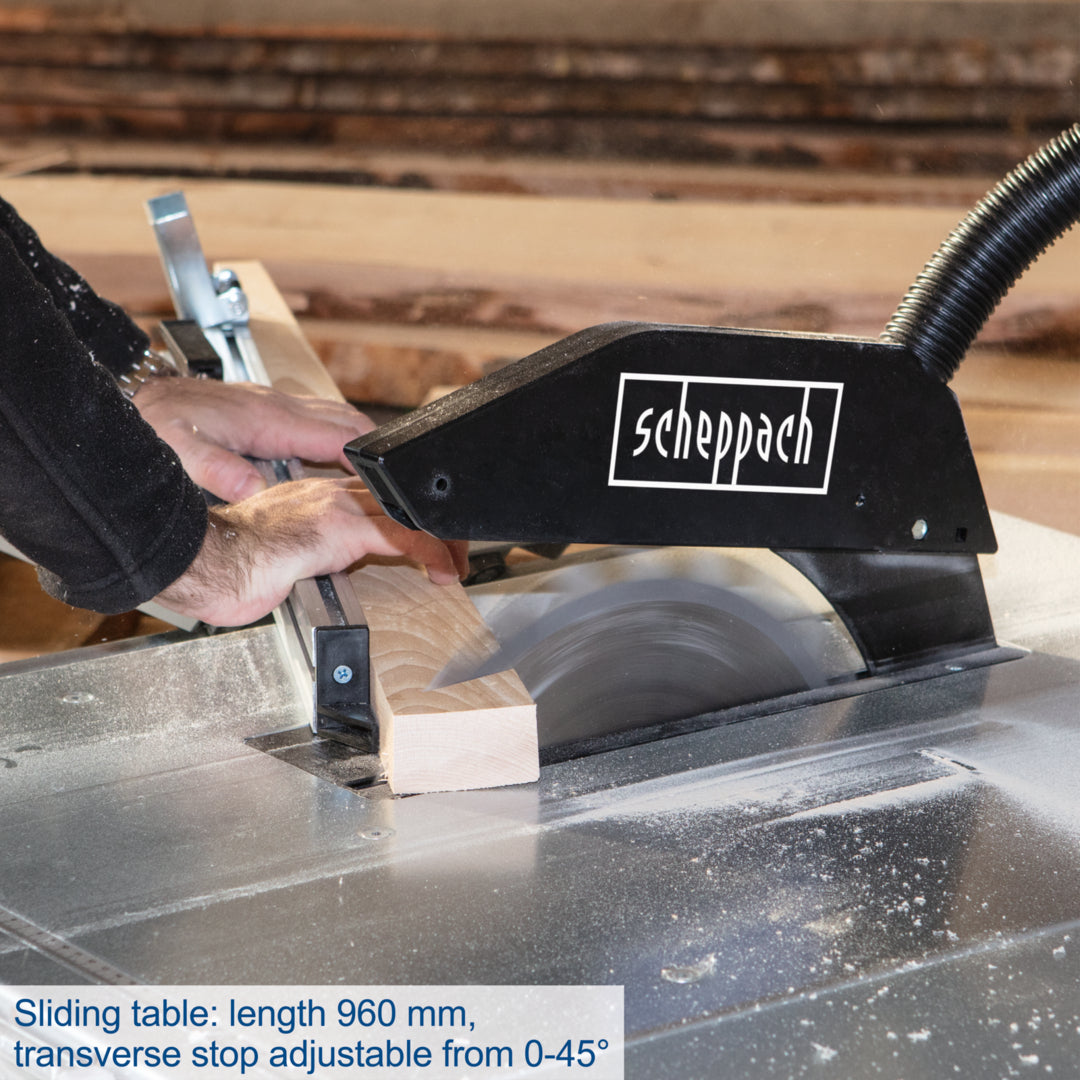

- Standard Sliding Carriage: Includes a sliding table with a stop rail to support precise, repeatable cross-cuts on larger workpieces.
- Galvanised Steel Work Surface: Built with a powder-coated steel frame and galvanised table that resists wear and corrosion during heavy workshop use.

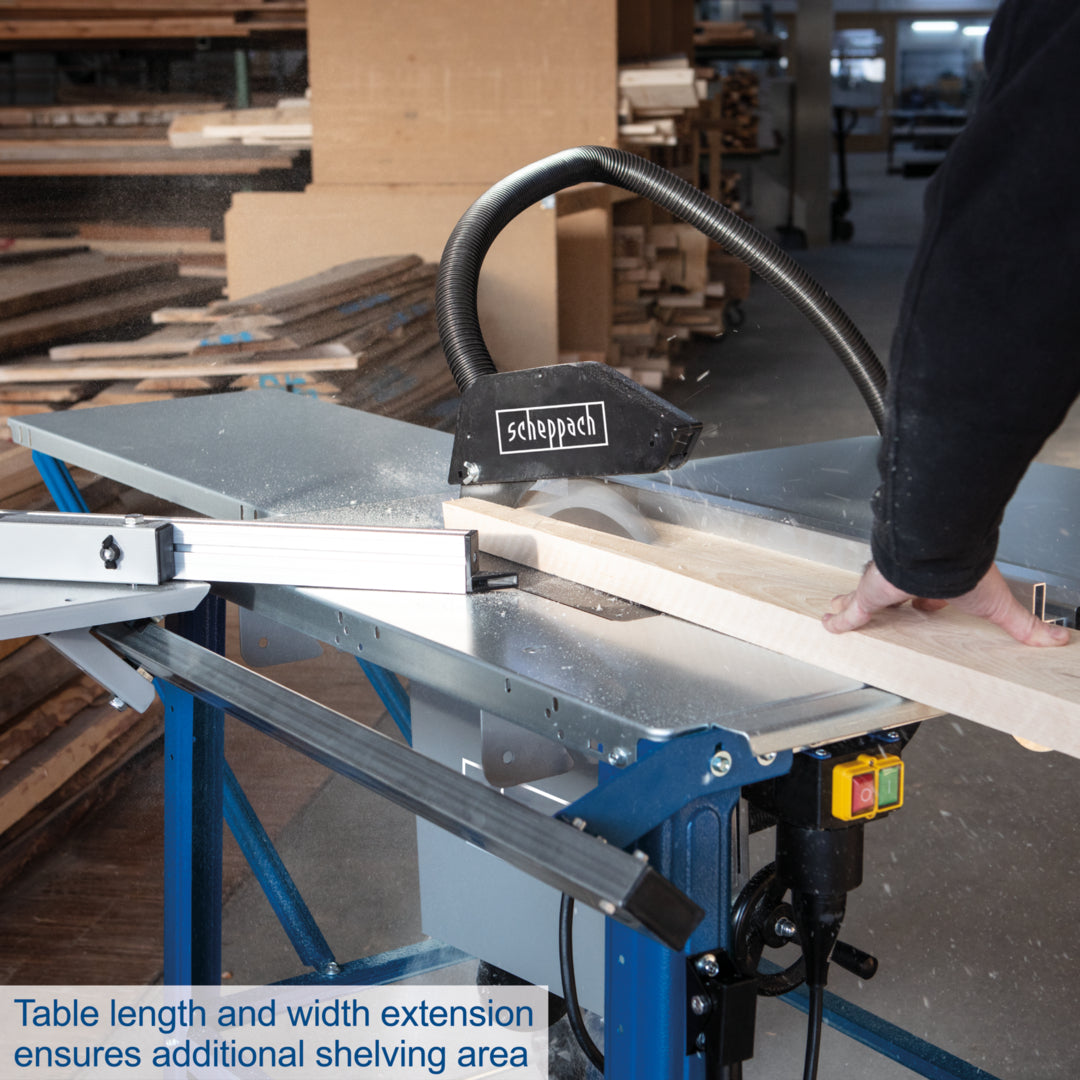

- Integrated Table Extensions: Comes equipped with side and rear table wideners as standard, providing a stable platform for wide sheets and long boards.
- Twin 315 mm Carbide Blades Included: Supplied with two durable TCT saw blades to ensure clean, consistent cuts right out of the box.
- Stable Parallel Stop Rail: Features a rigid rip fence for accurate vertical cuts and smooth bevel adjustments.
- Dust Extraction Guard: The protective blade guard connects directly to a suction hose to keep your cutting line clear and your workshop clean.

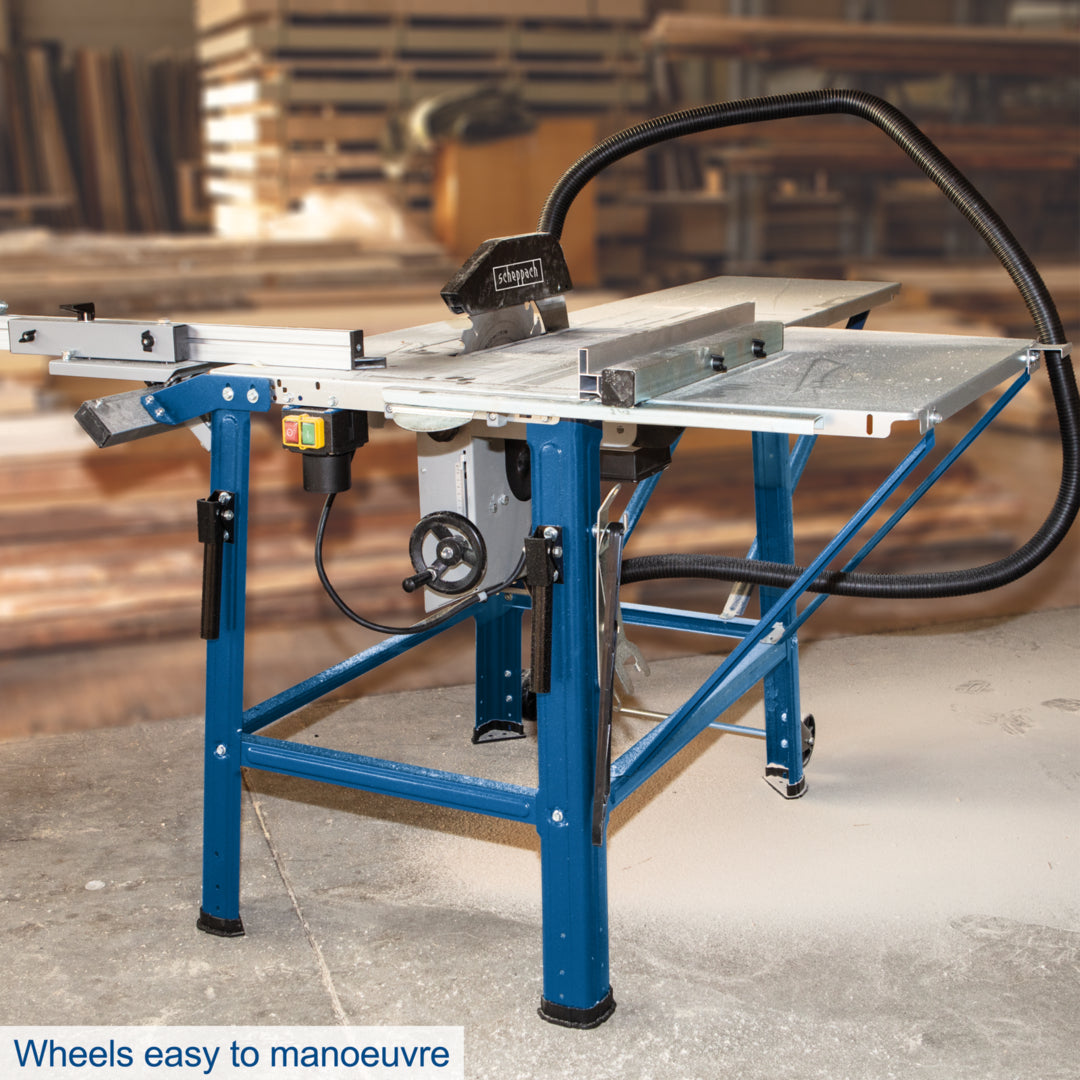

- Easy Workshop Mobility: Designed with foldable transport handles and sturdy wheels for convenient positioning around the job site or shed.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach TS310 table saw (DIY) |
| Model Description | TS310 |
| Machine Group | Table saw |
| Article Number | 4901305901 |
| EAN | 4014915082040 |
| Net Weight | 55.5 kg |
| Gross Weight | 61.37 kg |
| General Dimensions (L x W x H) | 1750.0 mm x 1240.0 mm x 1150.0 mm |
| Base Material | Sheet metal |
| Frame Material | metal_sheet |
| Swivel Frame Material | Sheet metal |
| Table & Cutting Performance Data | |

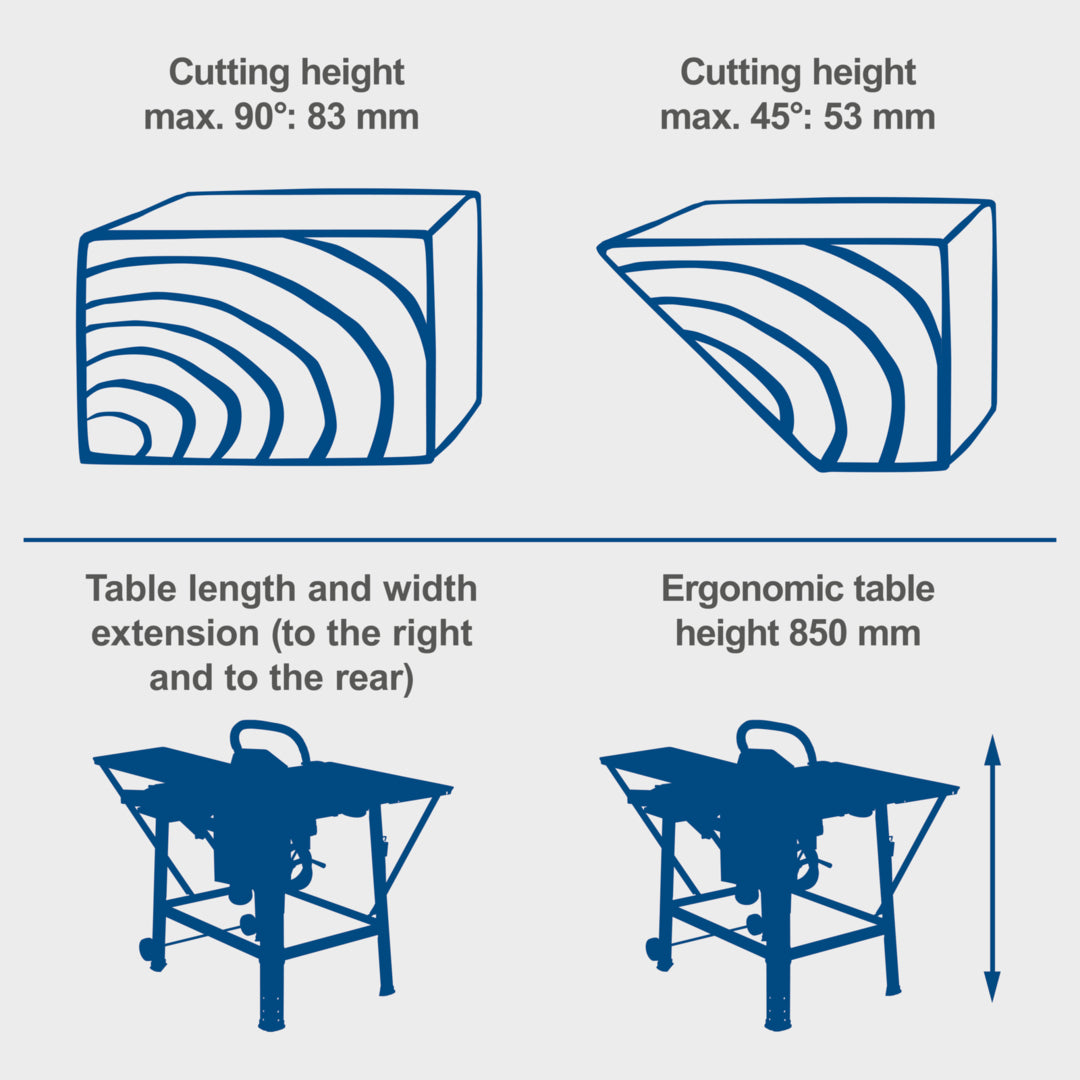

| Max. Cutting Height 90° | 83.0 mm |
| Max. Cutting Height 45° | 53.0 mm |
| Cutting Speed | 47.0 m/sec |
| Swivel / Tilting Range | 45.0 ° – 0.0 ° |
| Cutting Height Indicator | Yes |
| Saw Blade Height Adjustment Range | 0.0 mm – 83.0 mm (Via Handwheel) |
| Direction of Rotation | Left |
| Table Dimensions (L x W) | 800.0 mm x 550.0 mm |
| Table Height / Thickness | 850.0 mm / 2.0 mm |
| Tabletop Material | Sheet metal |
| Adjustable End Stop for Tabletop | Yes |
| Table Extension Dimensions (L x W) | 800.0 mm x 400.0 mm |
| Table Extension Material | Sheet metal |
| Splitting Wedge Thickness / Material | 2.5 mm / Sheet metal G60 |
| Suction Hose Included / Length / Hose Diameter | Yes / 2100.0 mm / 35.0 mm |
| Laser | No |
| Saw Blade Specifications | |

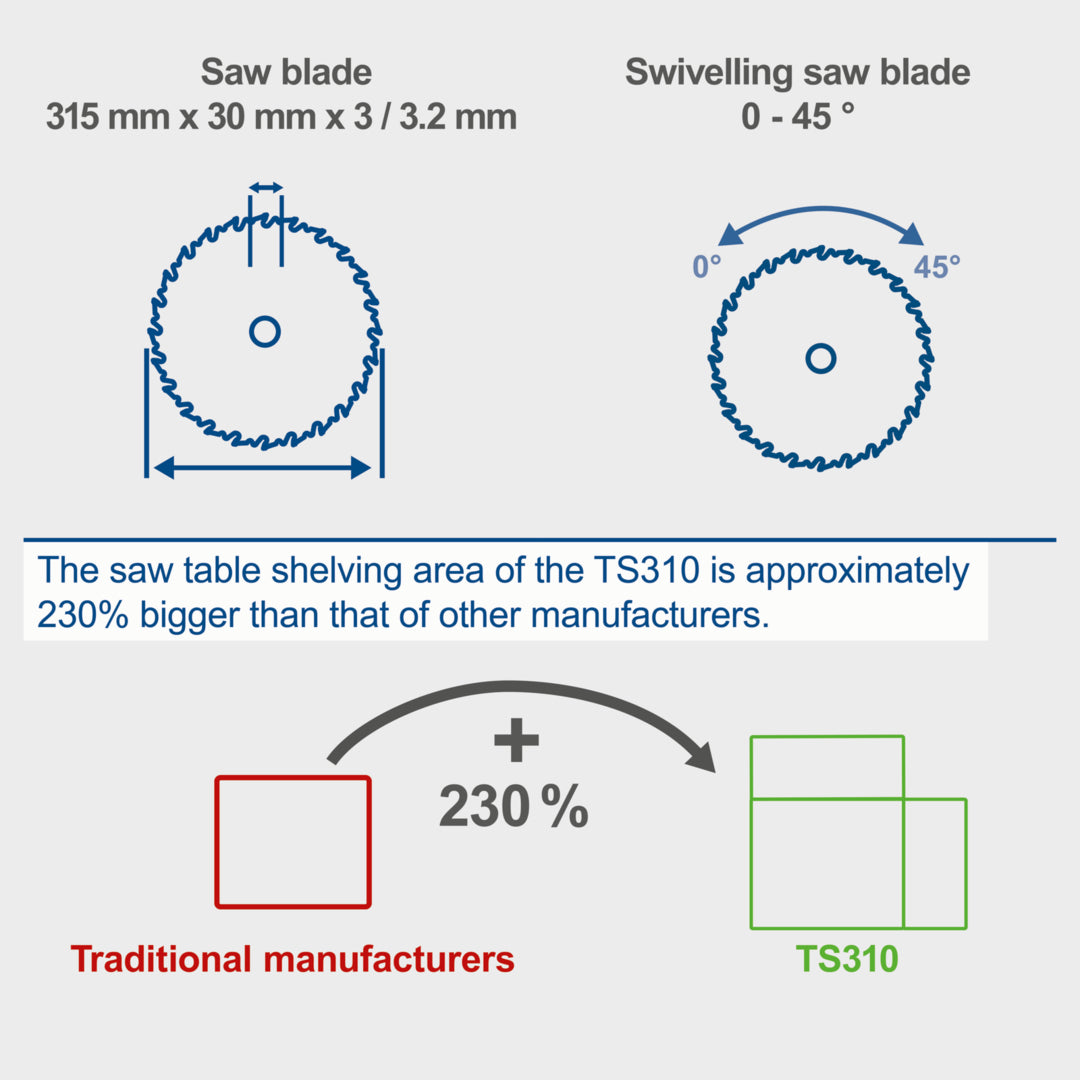

| Saw Blade Diameter | 315.0 mm (12.0 ") |
| Saw Blade Bore Diameter | 30.0 mm |
| Number of Teeth / Tooth Shape | 24 pieces/tooth |
| Wide Saw Blade / Tooth Width | 2.0 mm / 3.0 mm |
| Type of Saw Blade | Circular saw blade (HW, TCT Steel Blade) |
| Maximum Saw Blade Speed | 5000.0 1/min |
| Braking Time Saw Blade | 10.0 sec |
| Drive Type Saw Blade | Direct |
| Lot | Lot |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |

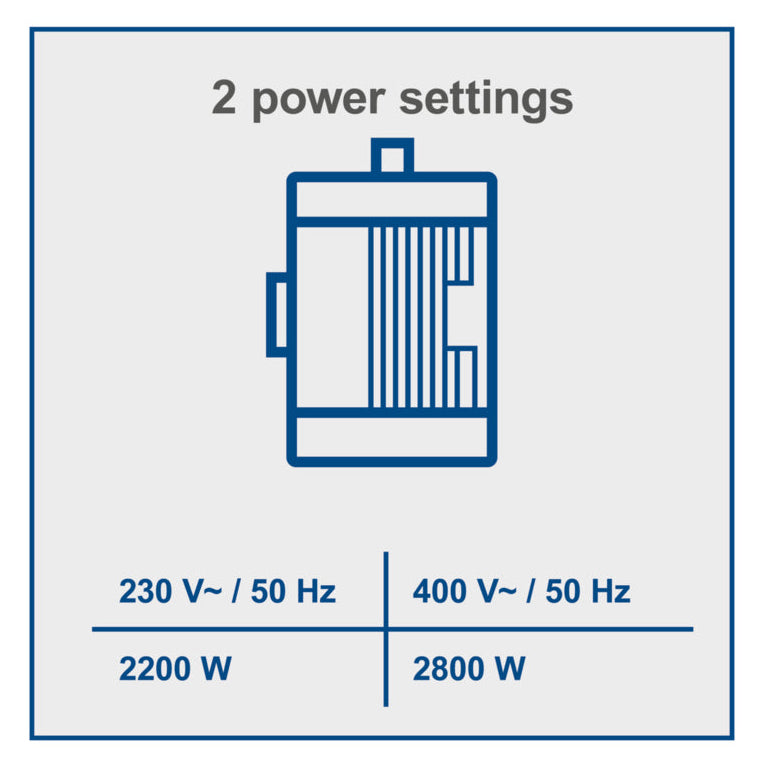

| Tension / Frequency | 230 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 2200.0 W |
| Motor Type: Electric | Induction Motor |
| Engine Speed (Min / Max) | 2800.0 1/min / 2800.0 1/min |
| Protection Class | Class I |
| Protection Class for Electrical / Power Connection | IP 44 / IP 54 |
| Insulation Class | F (max. motor temp. 155°C) |
| Engine Protection (Thermoprotector) | Yes |
| Engine Braking Type | Mechanical |
| Soft Start | No |
| Switches Without Voltage Release (New) | Yes |
| Plug Type | EU plug (Class II) |
| Battery Included | No |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 105.2 dB |
| Sound Pressure Level Lp(A) | 90.2 dB |
| Sound Power Level Lw(A) (Under Load / Without Load) | 103.53 dB / 93.67 dB |
| Sound Pressure Level Lp(A) (Under Load / Without Load) | 92.9 dB / 82.9 dB |
| Uncertainty KpA / KwA | 3.0 dB / 3.0 dB |
| Scope of Delivery | |
| Scope of Delivery Content | Table saw TS310, rip fence with angle rail, sliding table, blade guard with screw and wing nut, riving knife, push stick, table extension, 2 table extension supports, 2 table widening supports, 2 wheel and bracket units, saw blade ø 315 x 30 x 3.0/2 24 teeth, blade wrench, push handle, dust extraction hose and clamp, accessory bag, instruction manual |
