Scheppach Tiger 2000S Wet Bench Grinder 120W
Scheppach Tiger 2000S Wet Bench Grinder 120W
Regular price
£99.00
Regular price
Sale price
£99.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Achieve razor-sharp tool edges with low-vibration precision.

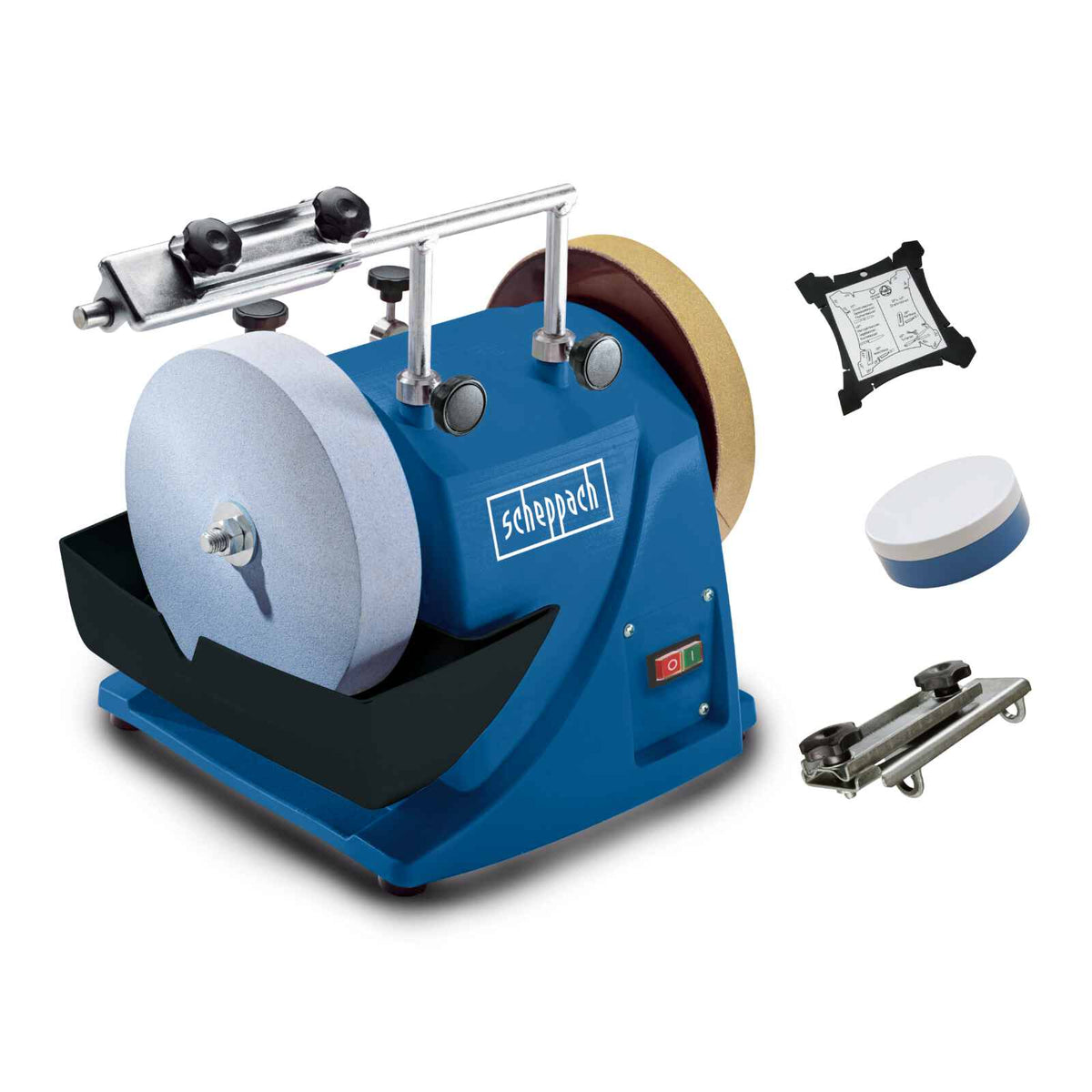

This compact wet grinding system combines a smooth 120W induction motor with a water-cooled corundum wheel to protect tool temper. Designed for hobbyists and tradespeople, it delivers accurate, repeatable sharpening results without prior experience.
Features:
- Quiet 120W Induction Motor: Runs smoothly at 120 rpm with minimal vibration, allowing steady tool guidance and controlled grinding.

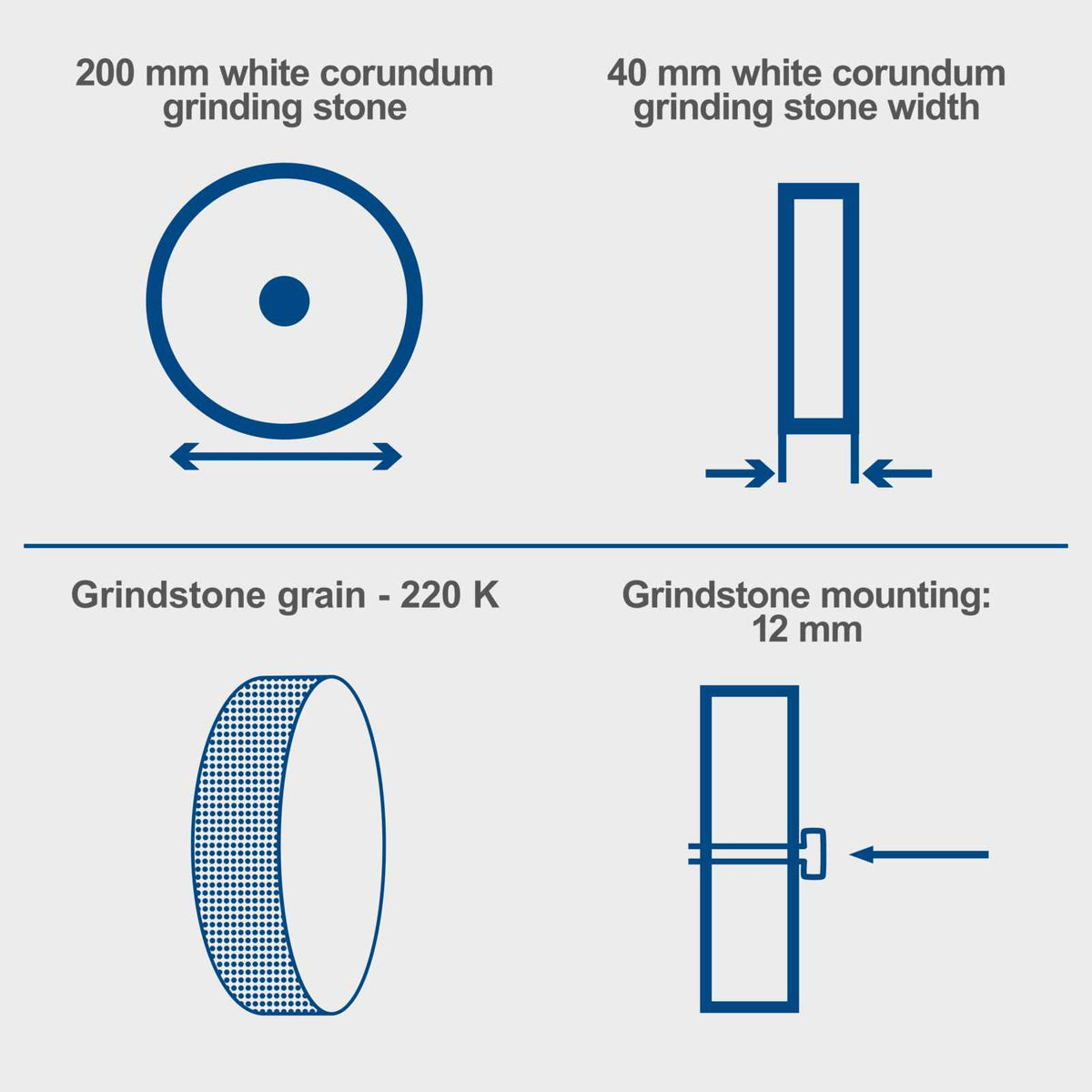

- 200 mm Corundum Grinding Wheel: High-grade K 220 aluminium oxide wheel treats hard steel over 60 HRC, keeping tool steel cool to preserve edge hardness.

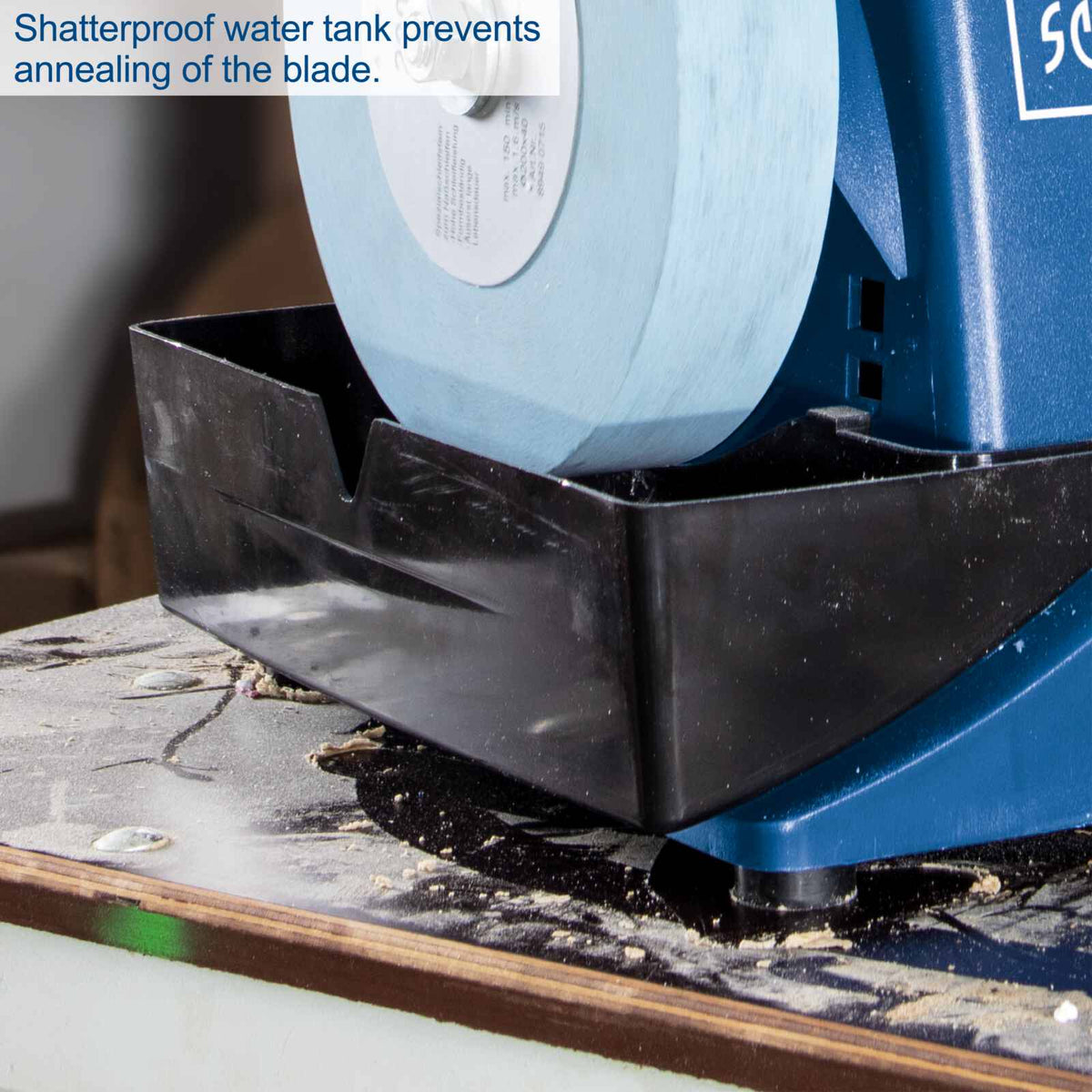

- Shatterproof Water Tank: Submerges the stone in a continuous water bath during operation, catching grinding dust and keeping workbenches dry.

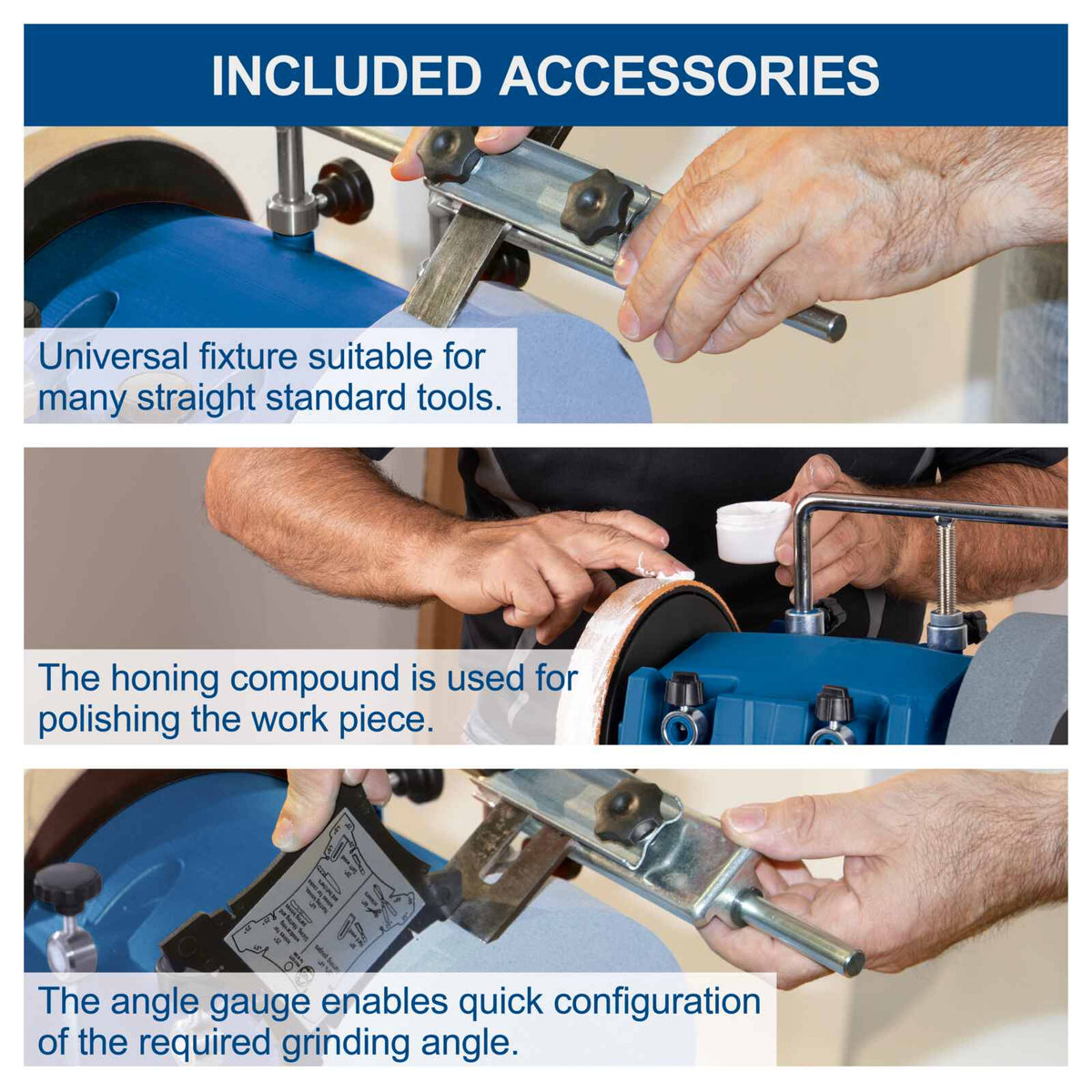

- Universal Grinding Jig 70 Included: Secures straight chisels and blades firmly in position, preventing slipping and ensuring consistent edge bevels.
- Precision Angle Gauge: Takes the guesswork out of setup by helping you measure and set exact sharpening angles before grinding.
- Polishing Honing Compound: Supplied with specialised honing compound to remove fine wire burrs and leave a clean finish on cutting tools.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach TIGER 2000S wet grinding system (DIY) |
| Model Description | TIGER 2000S |
| Machine Group | Wet grinding system |
| Article Number | 89490916 |
| EAN | 4014915042006 |
| Net Weight | 8.64 kg |
| Gross Weight | 10.42 kg |
| General Dimensions (L x W x H) | 460.0 mm x 270.0 mm x 305.0 mm |
| Wet Grinder Performance Data | |
| Leather Disc Diameter | 220.0 mm |

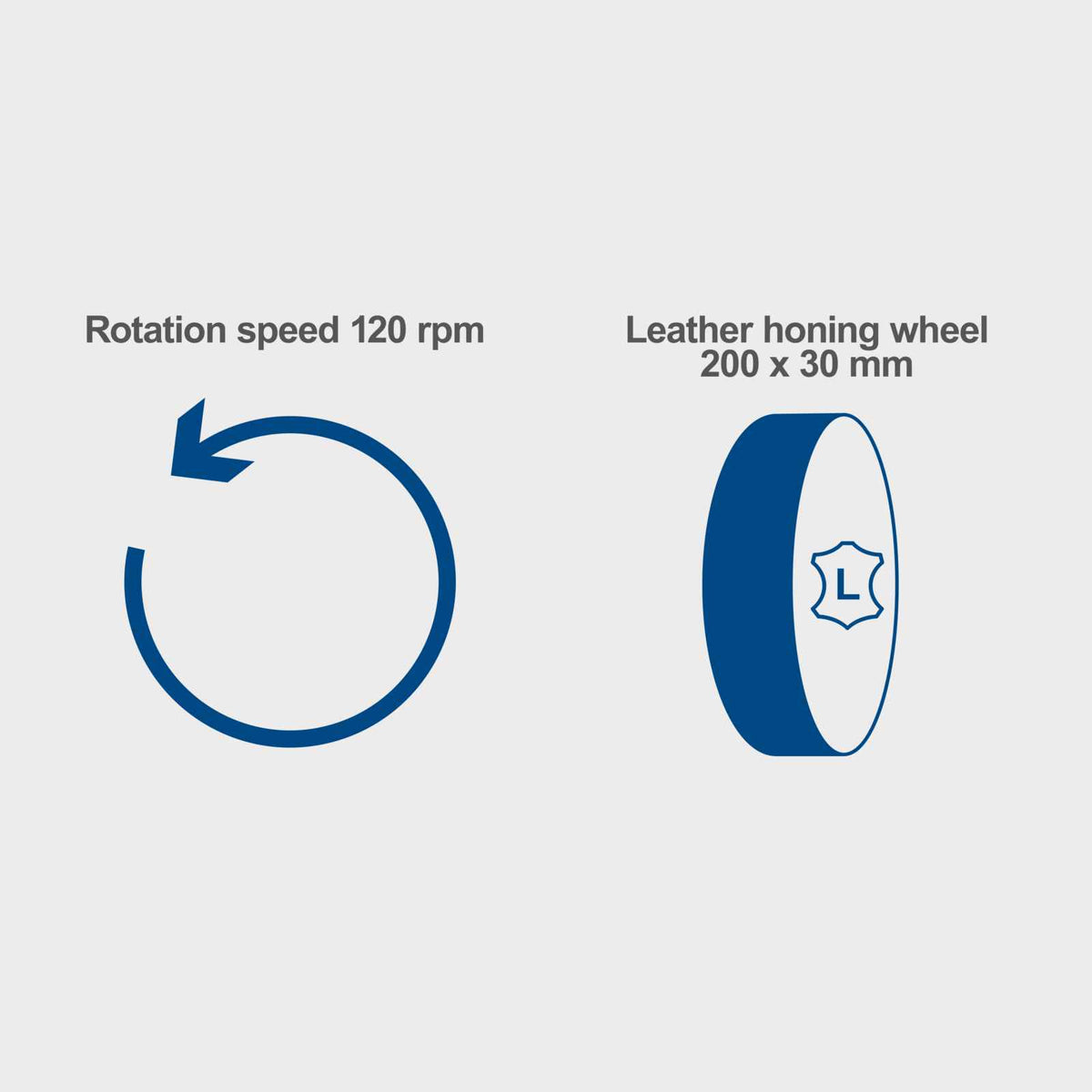

| Leather Disc Speed | 120.0 1/min |
| Leather Disc Width | 30.0 mm |
| Drive Shaft Radial Runout | 0.2 mm |
| Draining Tray (Water Container) | No |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230 V / 50 Hz |
| Continuous Power Consumption S1 (W / hp) | 120.0 W / 0.0 n/a |
| Power Consumption in Operating Mode 1 / 2 | 0.0 n/a / 0.0 n/a (Operating Mode 2: n/a) |
| Rated Current / Efficiency | 0.6 A / 0.34% |
| Motor Type: Electric | Induction motor |
| Maximum Engine Speed | 1400.0 1/min |
| Protection Class / Protection Class for Electrical | Class I / IP 23 |
| Insulation Class | B (max. motor temp. 130°C) |
| Engine Protection (Thermoprotector) / Soft Start | No / No |
| Engine Braking Type | No |
| Battery or Rechargeable Battery Included | No |
| Power Connection | |
| Cable Length / Motor Cable Entry | 2000.0 mm / Yes |
| Protection Class | IP 54 |
| Plug Type | EU plug (Class II) |
| Phase Changeover Switch 400V in Plug New | No |
| Switches Without Voltage Release (New) | Yes |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 88.7 dB |
| Guaranteed / Measured Sound Power Lw(A) | 0.0 n/a / 0.0 n/a |
| Sound Pressure Level Lp(A) | 75.8 dB |
| Uncertainty K / KpA / KwA | 0.0 dB / 3.0 dB / 3.0 dB |
| Vibration Emission Value ah | 0.0 m/sec² |
| Scope of Delivery | |
| Comes with | Grinding stone, universal holder, honing paste, angle gauge, 200 leather honing wheel, operating instructions |
SKU: D-SCH-5903201907
MPN: 5903201907
ID: D-SCH-5903201907
