Scheppach SD1600V Scroll Saw 120W
Scheppach SD1600V Scroll Saw 120W
No reviews
Regular price
£119.00
Regular price
Sale price
£119.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability
Craft intricate wood contours and delicate scrollwork with precision and ease.

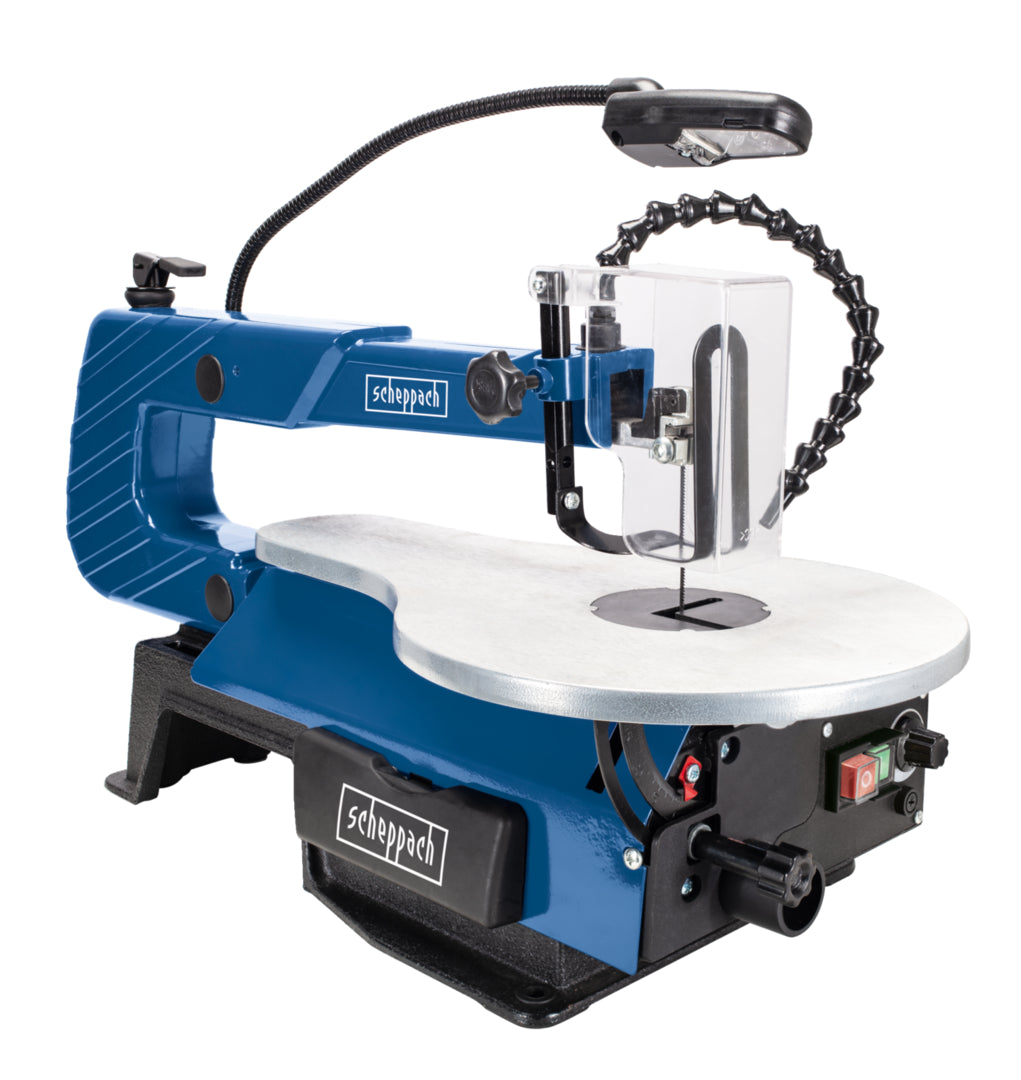

This versatile scroll saw pairs a low-vibration 120 W motor with variable stroke speed control to handle fine hobby projects and model making. Equipped with a tilting worktable, a flexible LED work light, and a chip blower, it provides excellent visibility and control for detailed cutting tasks.
Features:

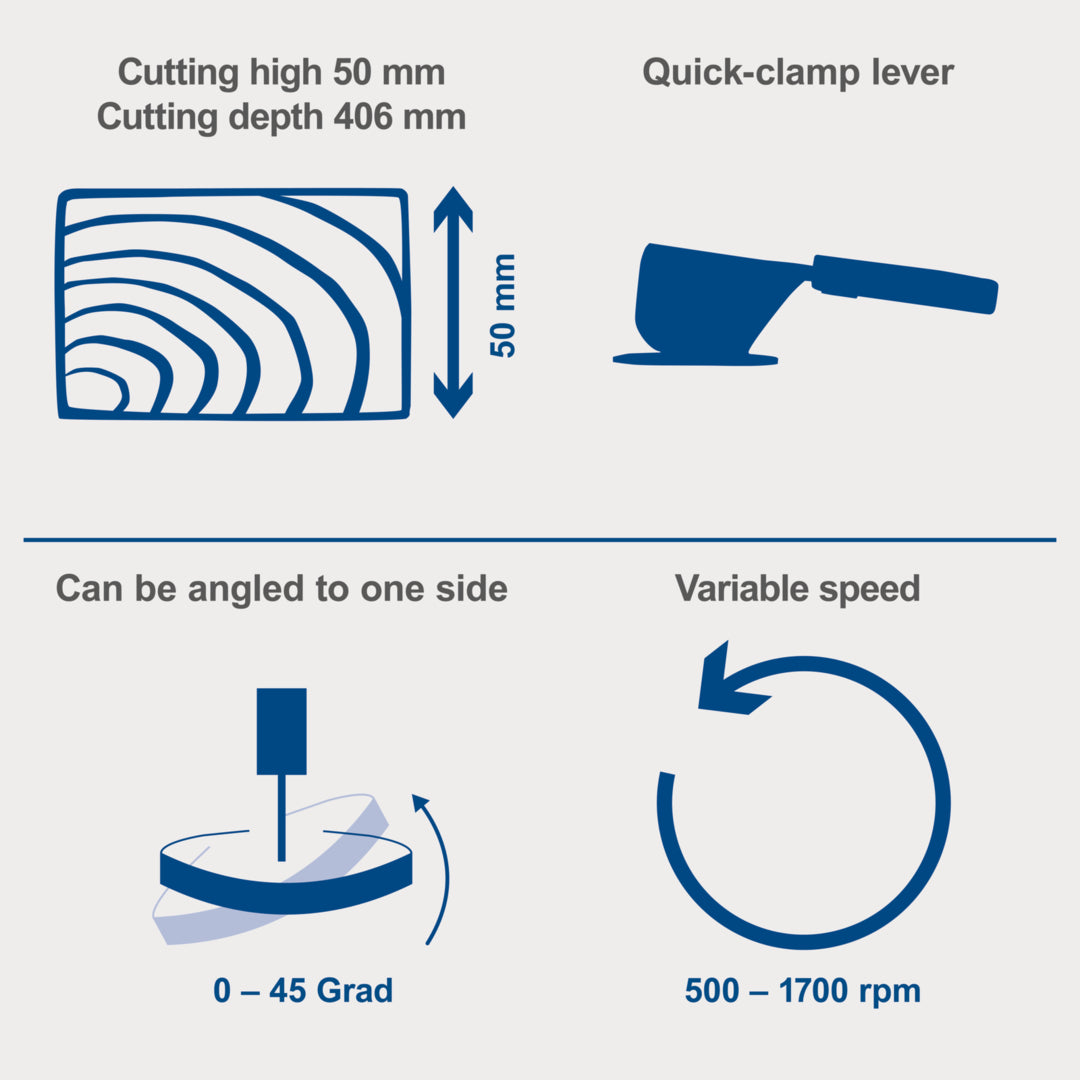

- Variable Speed Control: Rotary dial lets you adjust the stroke rate smoothly from 500 to 1,700 min⁻¹, giving you optimal speed management across wood, plastic, metal, plaster, and acrylic.
- Generous Cutting Capacity: Offers a 50 mm maximum cutting depth and a 406 mm throat capacity, allowing you to manoeuvre larger material panels when creating complex patterns.

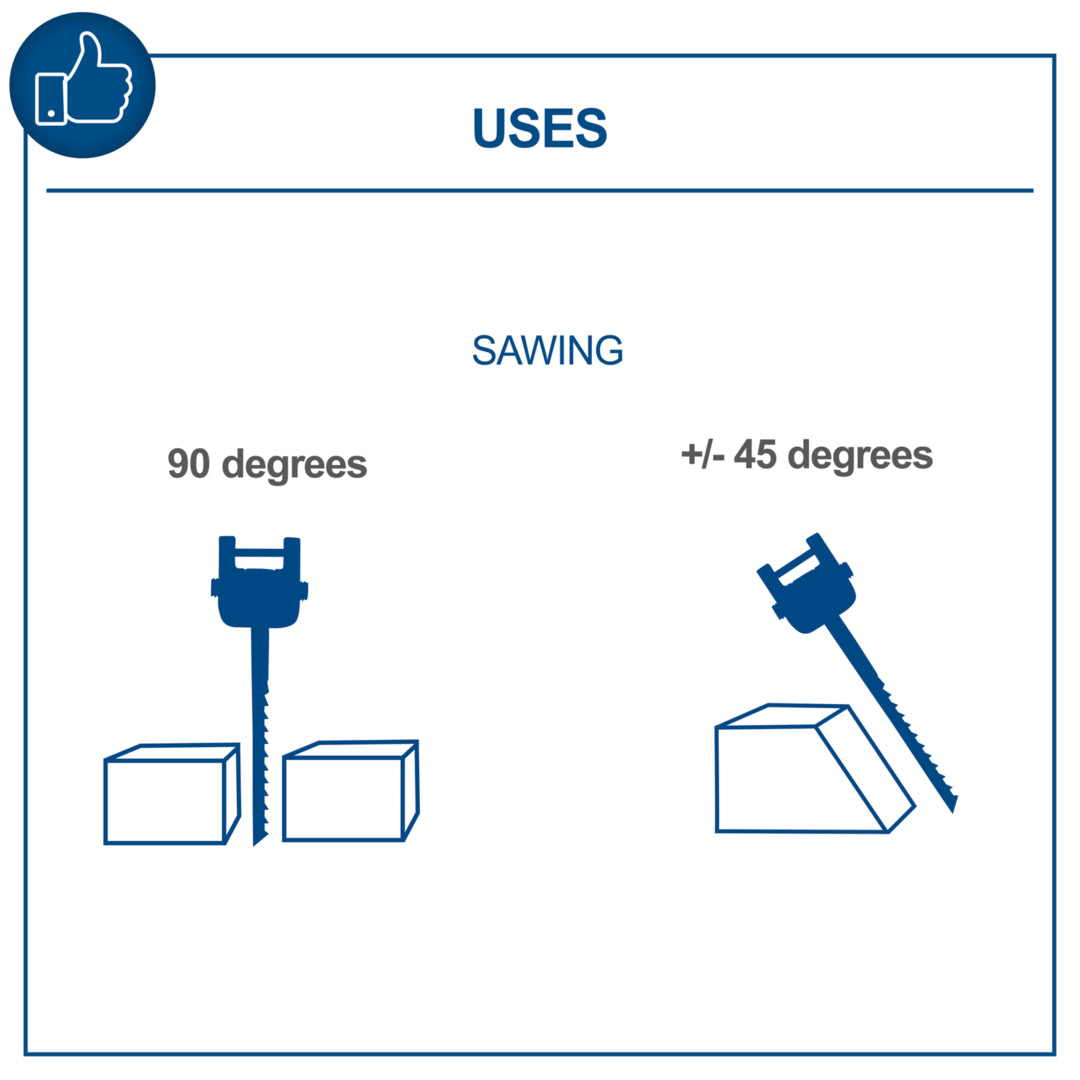

- Tilting Aluminium Worktable: Precision work table tilts up to 45 degrees with an integrated angle scale, enabling clean bevels and compound angle cuts on delicate workpieces.
- Flexible Blade Compatibility: Accepts both pin-end and standard pinless fret saw blades up to 134 mm in length, giving you total freedom over your choice of blade.
- Quick-Release Tension Lever: Features a convenient quick-change mechanism to simplify internal cutout work and blade swaps without slowing down production.

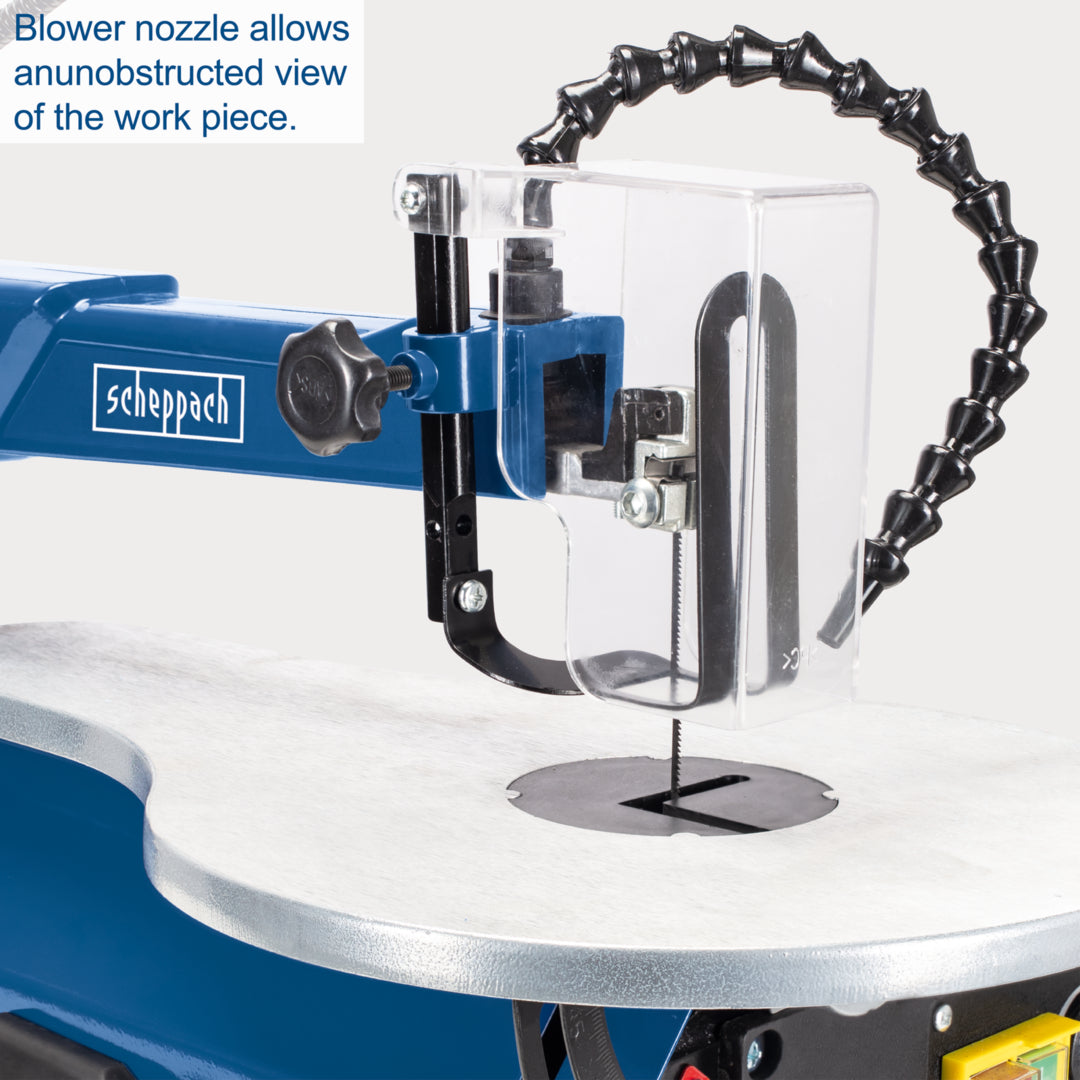

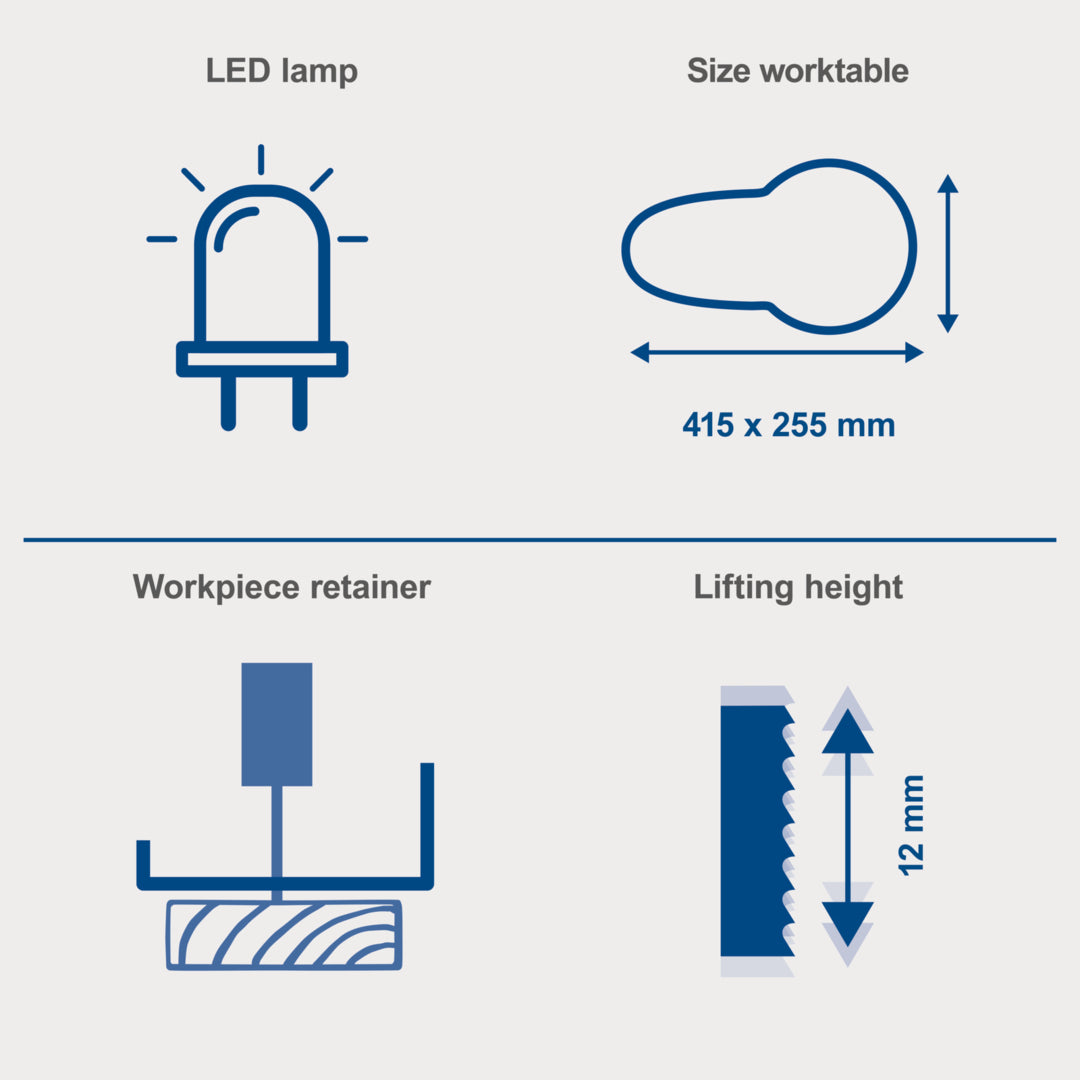

- Integrated LED Light and Blower: Adjustable LED lamp illuminates dark lines, while the flexible air blower clears sawdust continuously from your cut path for an unobstructed view.
- Workpiece Hold-Down Clamp: Keeps material pressed securely against the table surface, reducing vibration and preventing delicate timber from lifting during fast strokes.

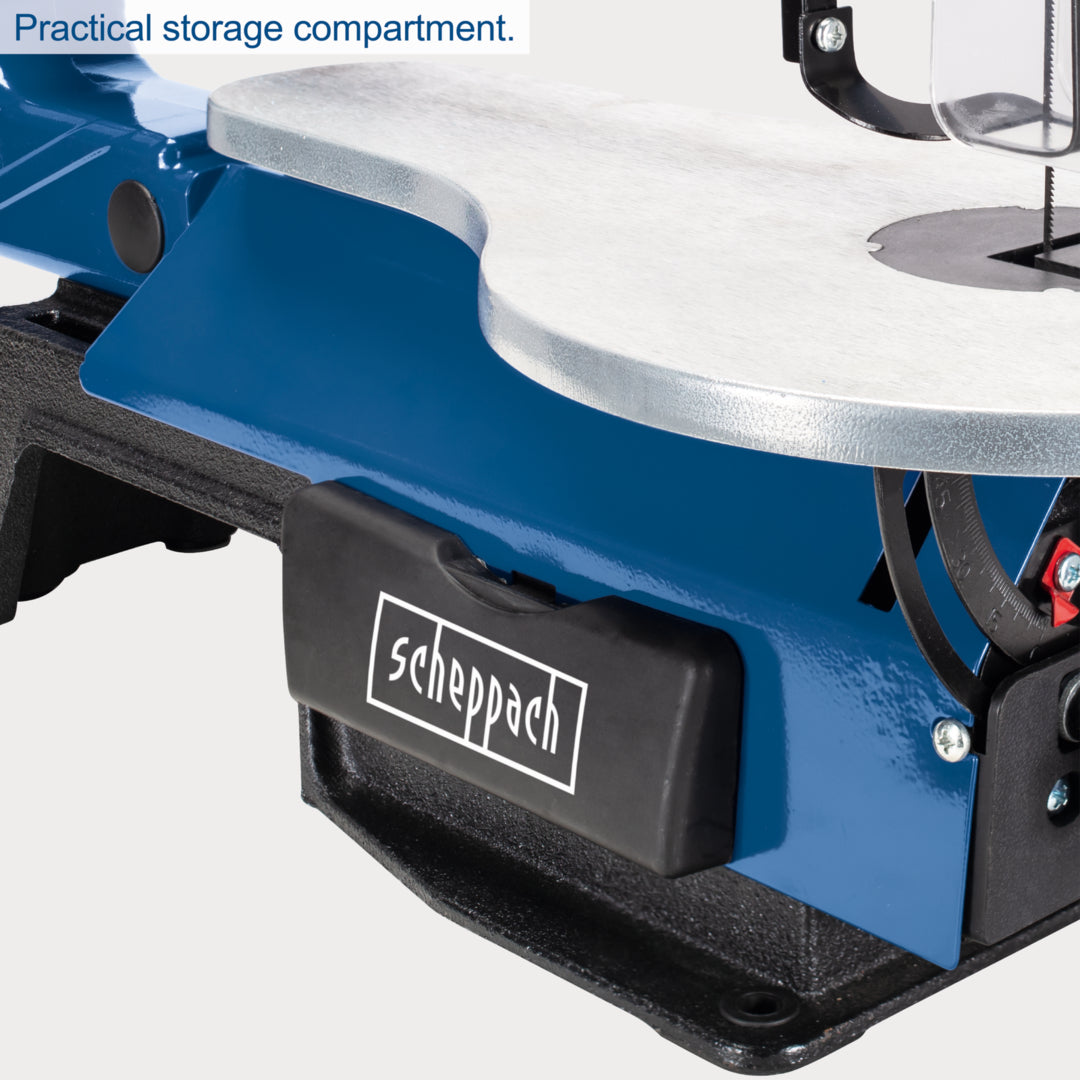

- On-Board Blade Storage: Built-in compartment keeps spare saw blades organised and within easy reach right at your workbench.
Technical Specification
| General Details | |
|---|---|
| Title | Scroll saw SD1600V scheppach (DIY) |
| Model Description | SD1600V |
| Machine Group | Scroll saw |
| Article Number | 5901403903 |
| EAN | 4046664037040 |
| Net Weight | 12.5 kg |
| Gross Weight | 14.6 kg |
| General Dimensions (L x W x H) | 640.0 mm x 305.0 mm x 340.0 mm |
| Scroll Saw Specifications | |
| Cutting Height 90° / 45° | 50.0 mm / 22.0 mm |
| Depth of Passage | 406.0 mm |
| Lifting Height | 12.0 mm |
| Lifting Speed Range (Min / Max) | 500.0 1/min – 1700.0 1/min |
| Saw Speed Adjustable | Yes |
| Table Dimensions (L x W) | 415.0 mm x 255.0 mm |
| Tabletop Adjustment Range (Min / Max) | 0.0 ° – 45.0 ° |
| Table Flatness Lengthwise | 0.2 mm |
| Tabletop Material | Aluminum |
| Suction Nozzle Diameter (Inner / Outer) | 35.0 mm / 38.0 mm |
| Saw Blade & Accessories | |
| Saw Blade Length | 127,134 mm |
| Number of Teeth | 18 pcs |
| Saw Blade Fixation | With pen/without pen |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 220-240 V / 50 Hz |
| Continuous Power Consumption S1 | 80.0 W |
| Power Consumption (Operating Mode 1) | 120.0 W |
| Efficiency | 0.3% |
| Motor Type: Electric | Brushed motor |
| Engine Speed Range (Min / Max) | 500.0 1/min – 1700.0 1/min |
| Protection Class / Protection Class for Electrical | Class I / IP 20 |
| Insulation Class | Y (max. motor temp. 90°C) |
| Engine Braking Type | Mechanical |
| Engine Protection (Thermoprotector) | No |
| Battery or Rechargeable Battery Included | No |
| Power Connection | |
| Cable Length | 2000.0 mm |
| Protection Class | IP X0 |
| Plug Type | Special plug type E+F |
| Phase Changeover Switch 400V in Plug New | No |
| Switches Without Voltage Release (New) | Yes |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 79.9 dB |
| Guaranteed / Measured Sound Power Lw(A) | 0.0 n/a / 0.0 n/a |
| Sound Pressure Level Lp(A) | 66.9 dB |
| Uncertainty K / KpA / KwA | 0.0 dB / 3.0 dB / 3.0 dB |
| Vibration Emission Value ah | 0.0 m/sec² |
