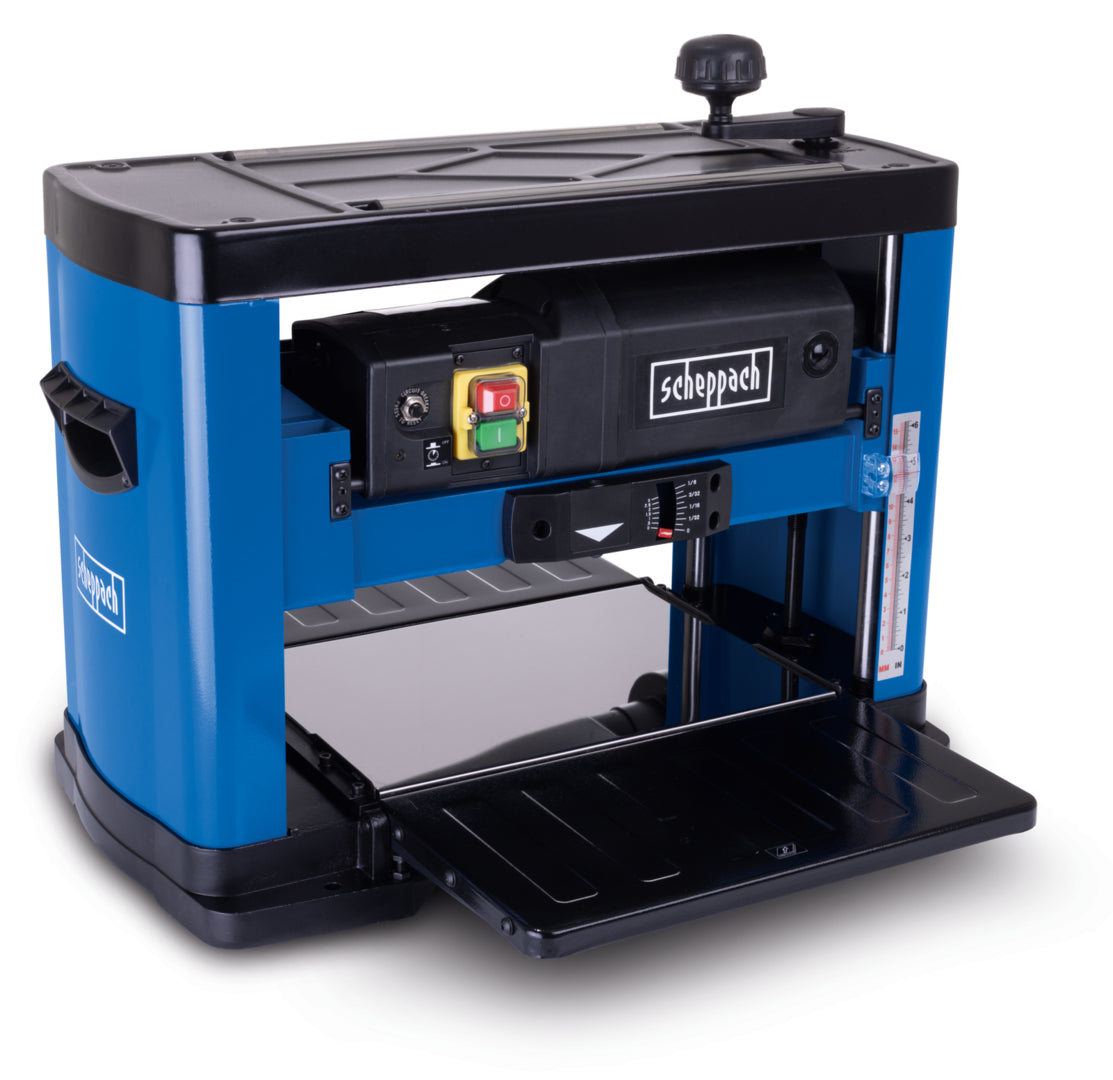

Scheppach PLM1800 Portable Thickness Planer 1500W
Scheppach PLM1800 Portable Thickness Planer 1500W
No reviews
Regular price
£379.00
Regular price
Sale price
£379.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Achieve smooth, millimetre-precise timber thicknessing on site or in the workshop.
This compact benchtop thicknesser pairs a strong 1500W motor with an automatic feed mechanism for efficient wood surfacing. Built with steel extension tables and dual carrying handles, it delivers smooth planing performance for mobile tradespeople and woodworkers.
Features:

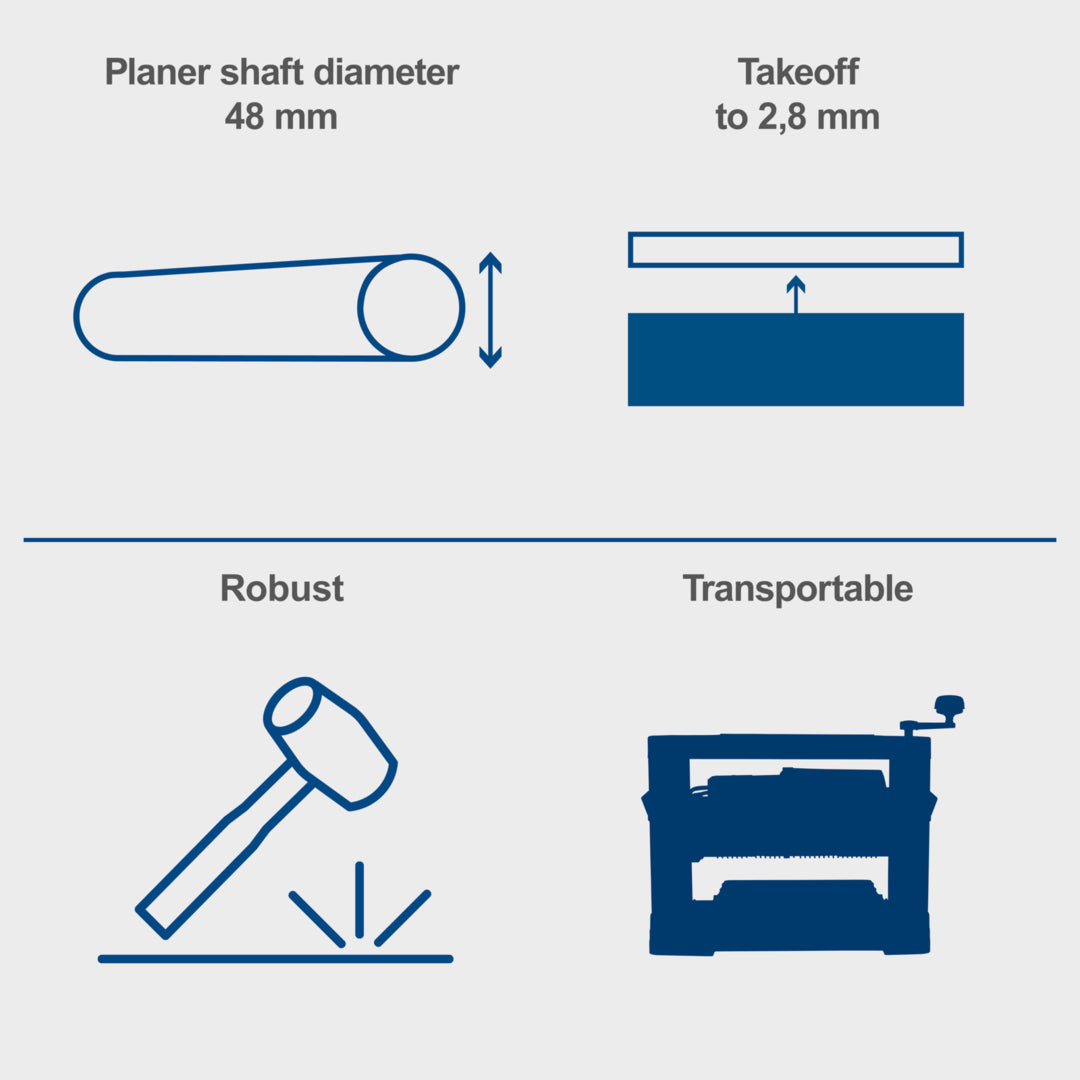

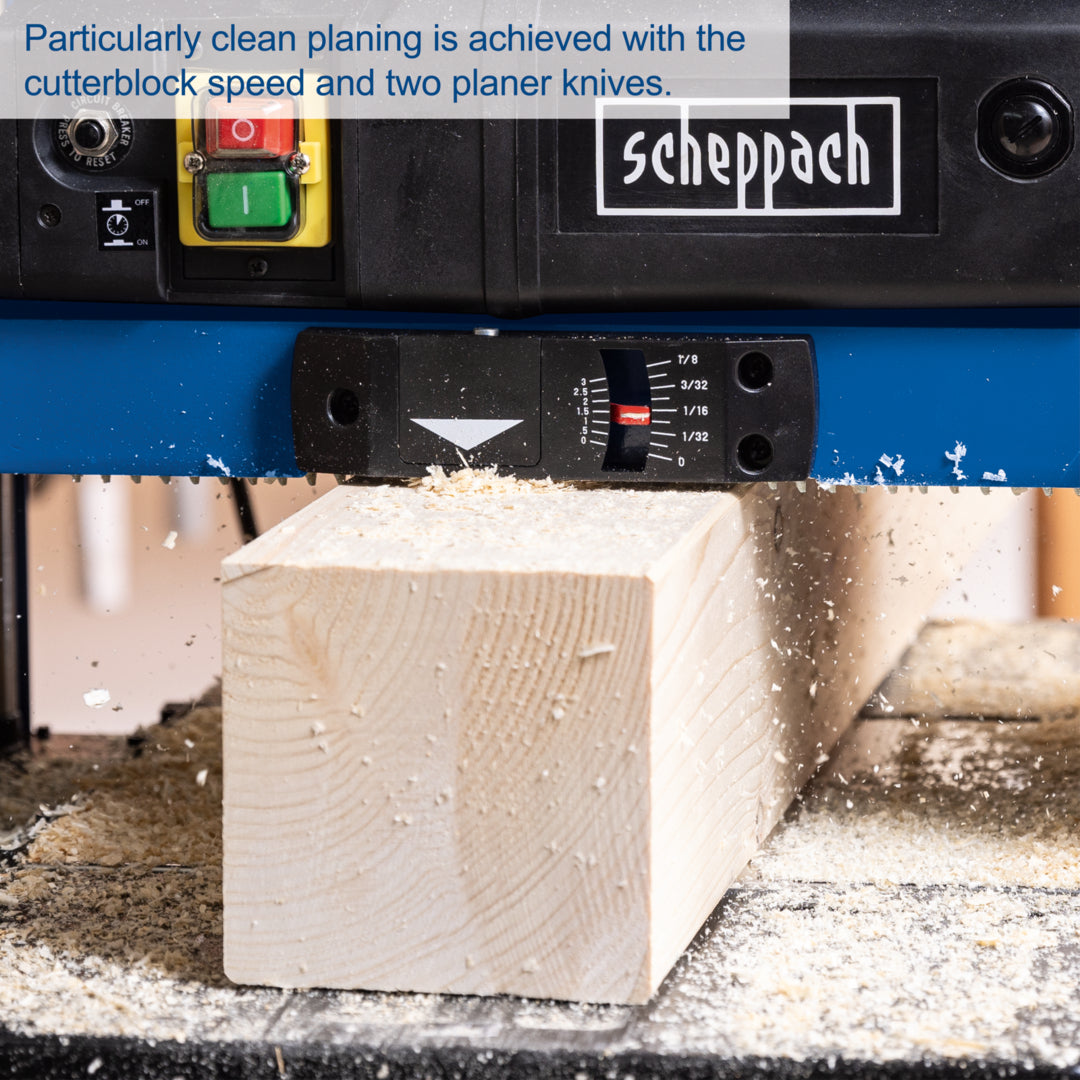

- Powerful 1500W Motor: Drives the steel cutterhead at 8,500 rpm and 17,000 cuts per minute, stripping up to 2.8 mm of material per pass effortlessly.

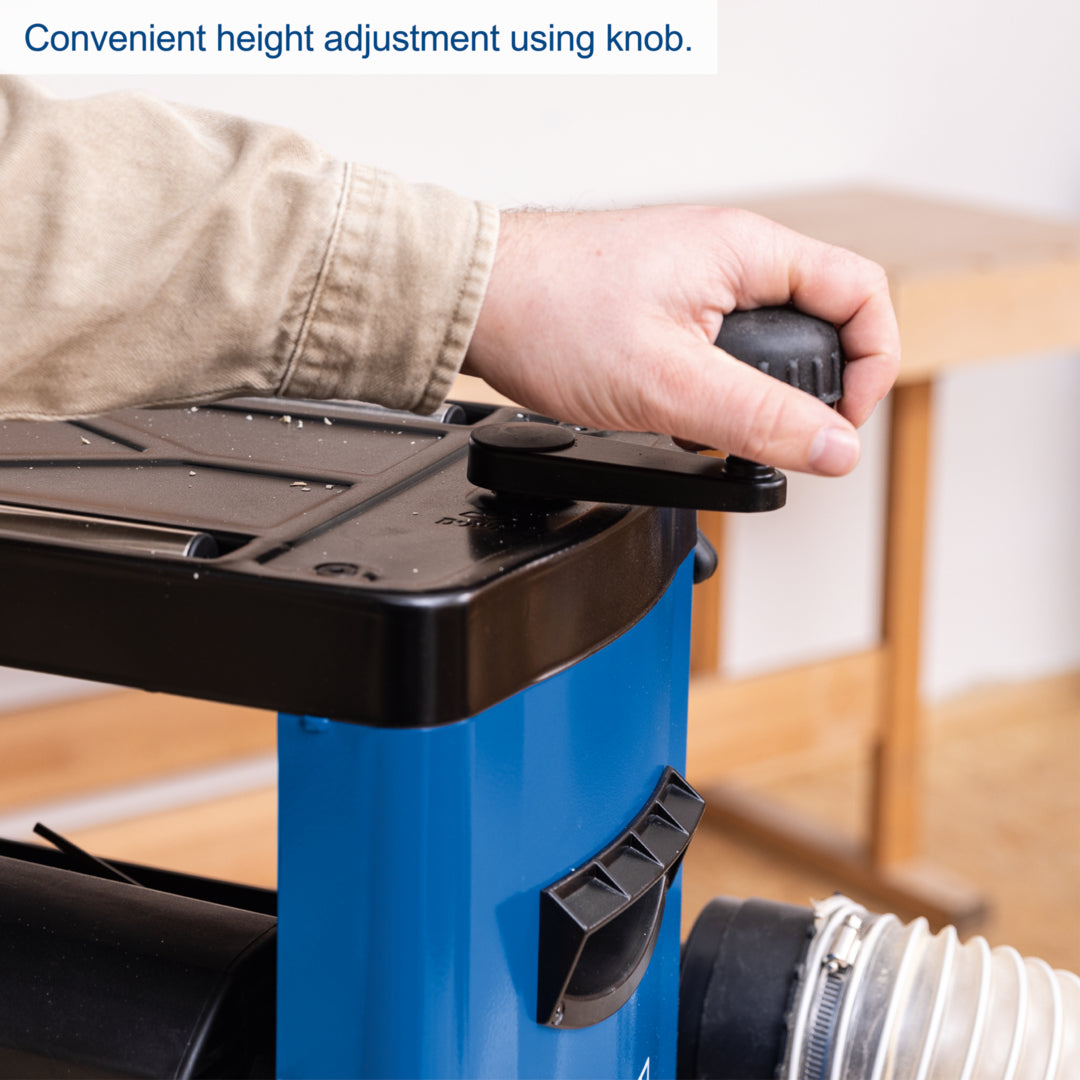

- Millimetre-Precise Height Adjustment: Features a prominent hand crank and clear scale to set exact planing heights from 5 mm to 152 mm for consistent, repeatable batch processing.

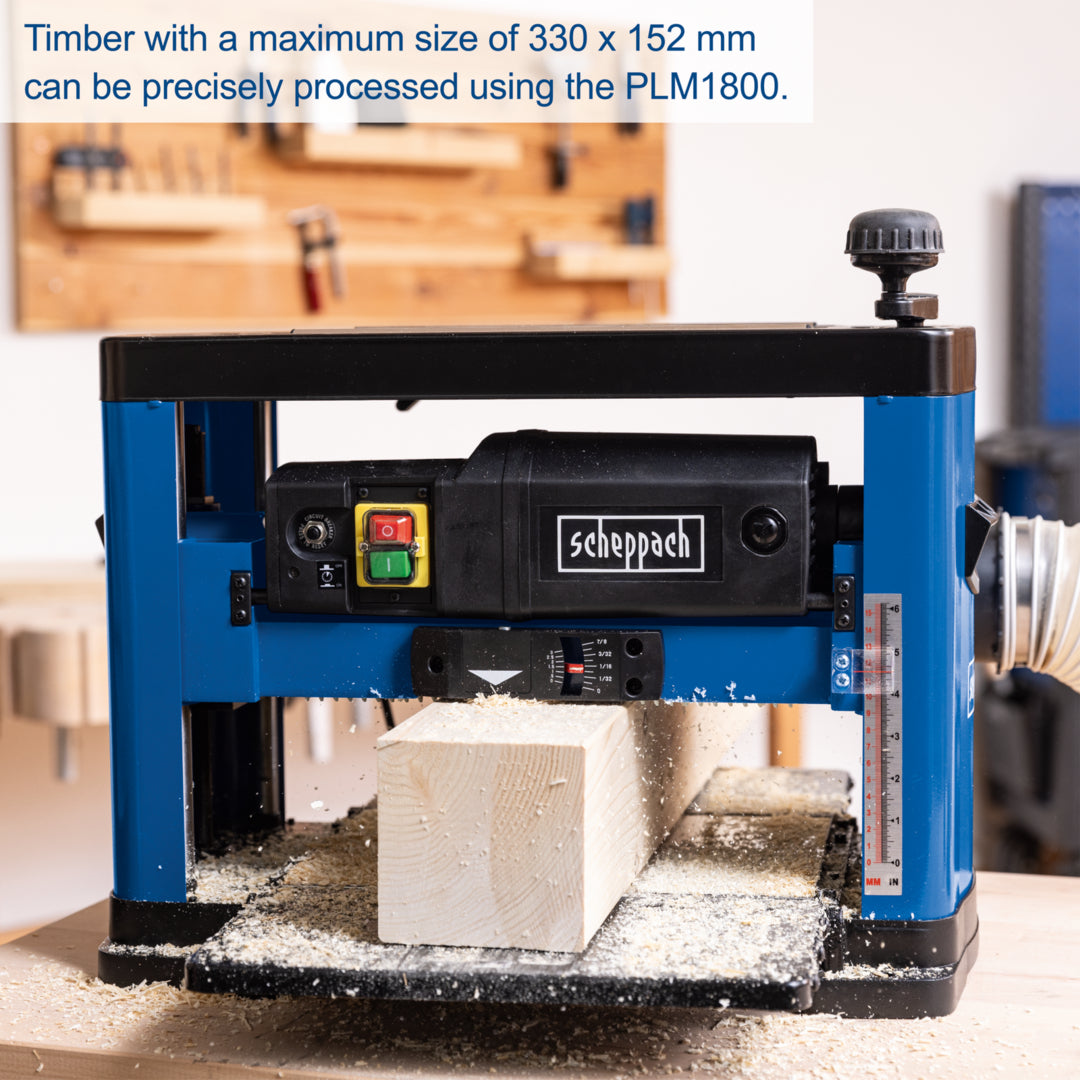

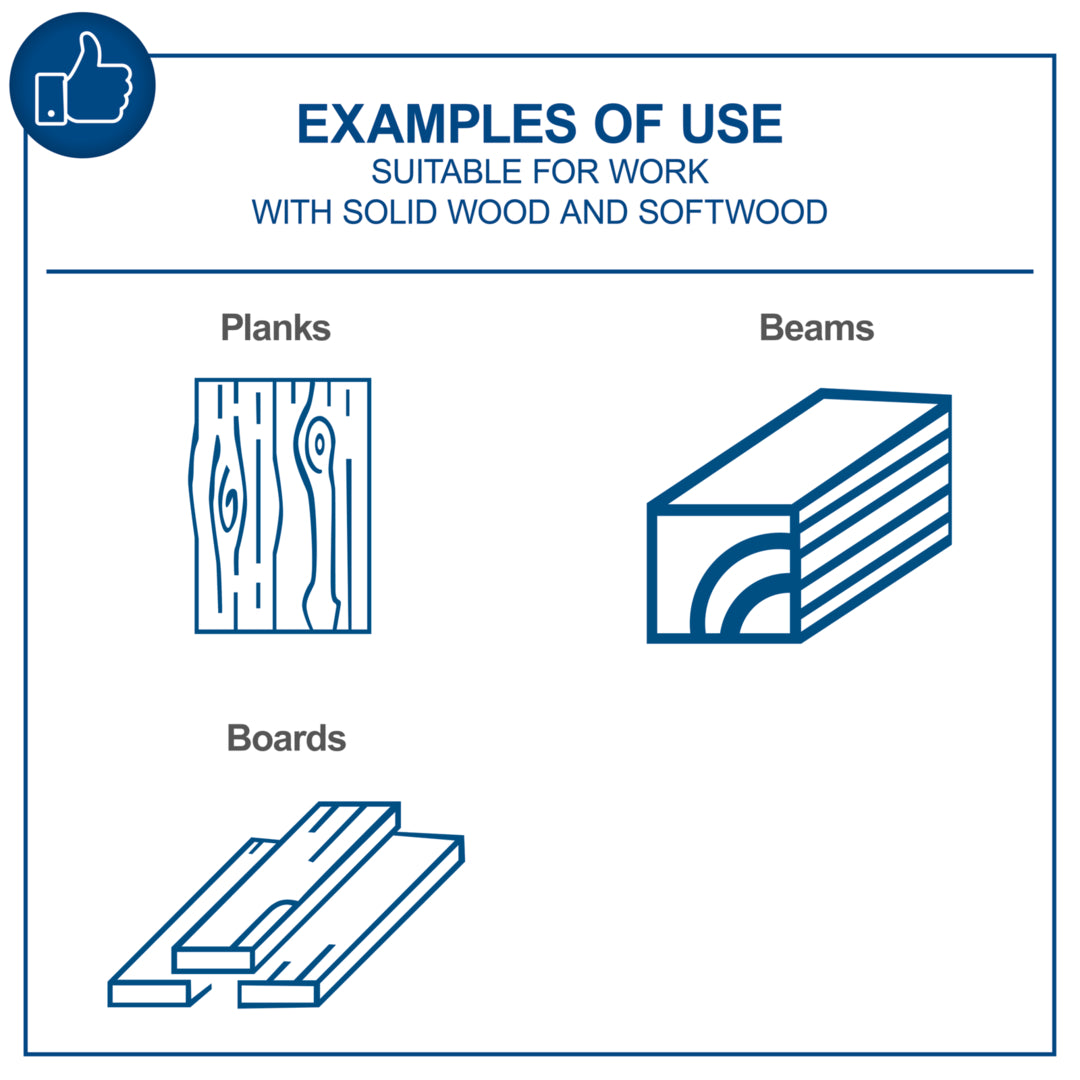

- Generous 330 mm Planing Width: Accommodates wide timber boards, floorboards, and joists, making it ideal for a variety of timber sizing tasks.

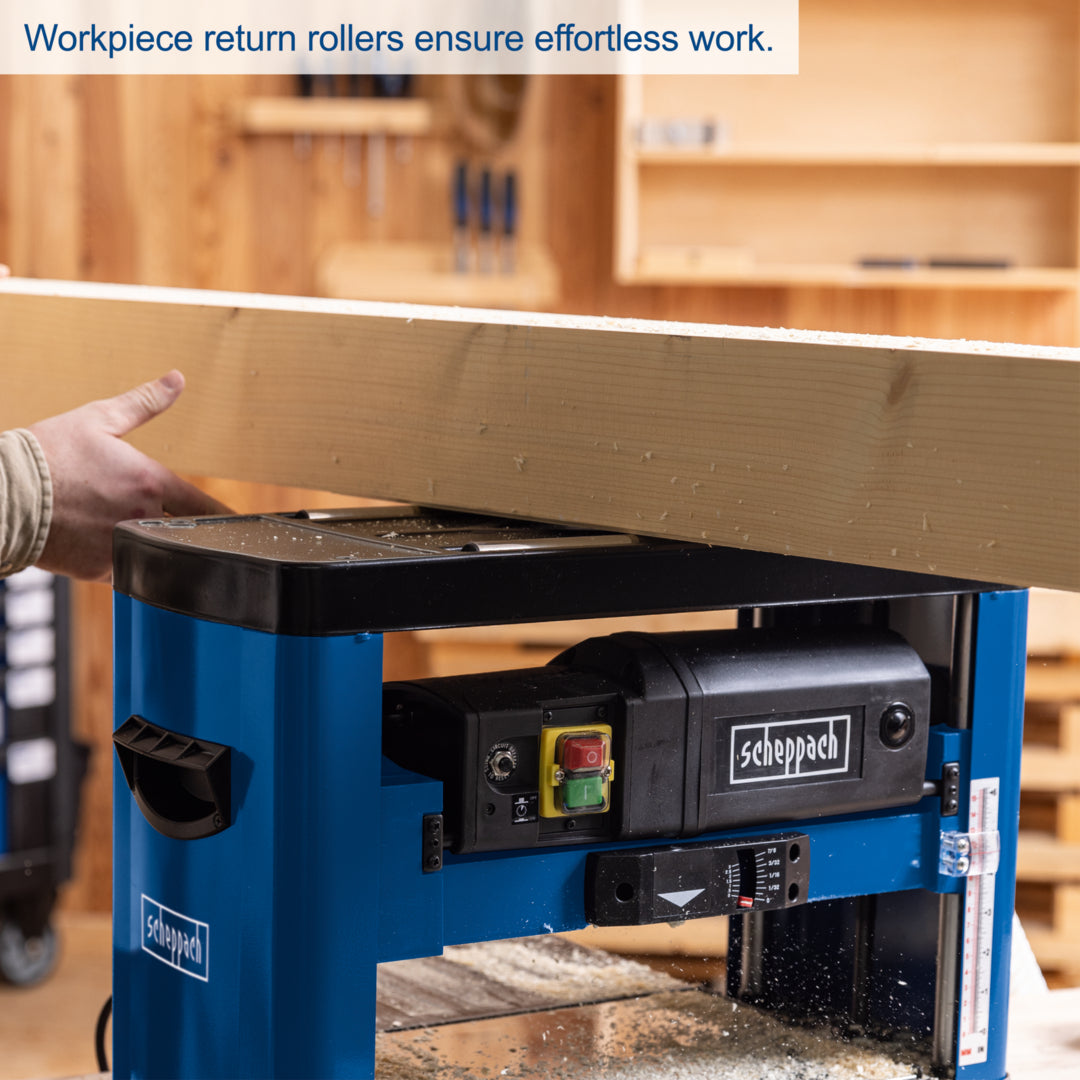

- Automatic Feed Rate: Pulls timber through at a steady 7.4 m/min, supported by rubber-coated return rollers for smooth workflow and reduced physical strain.

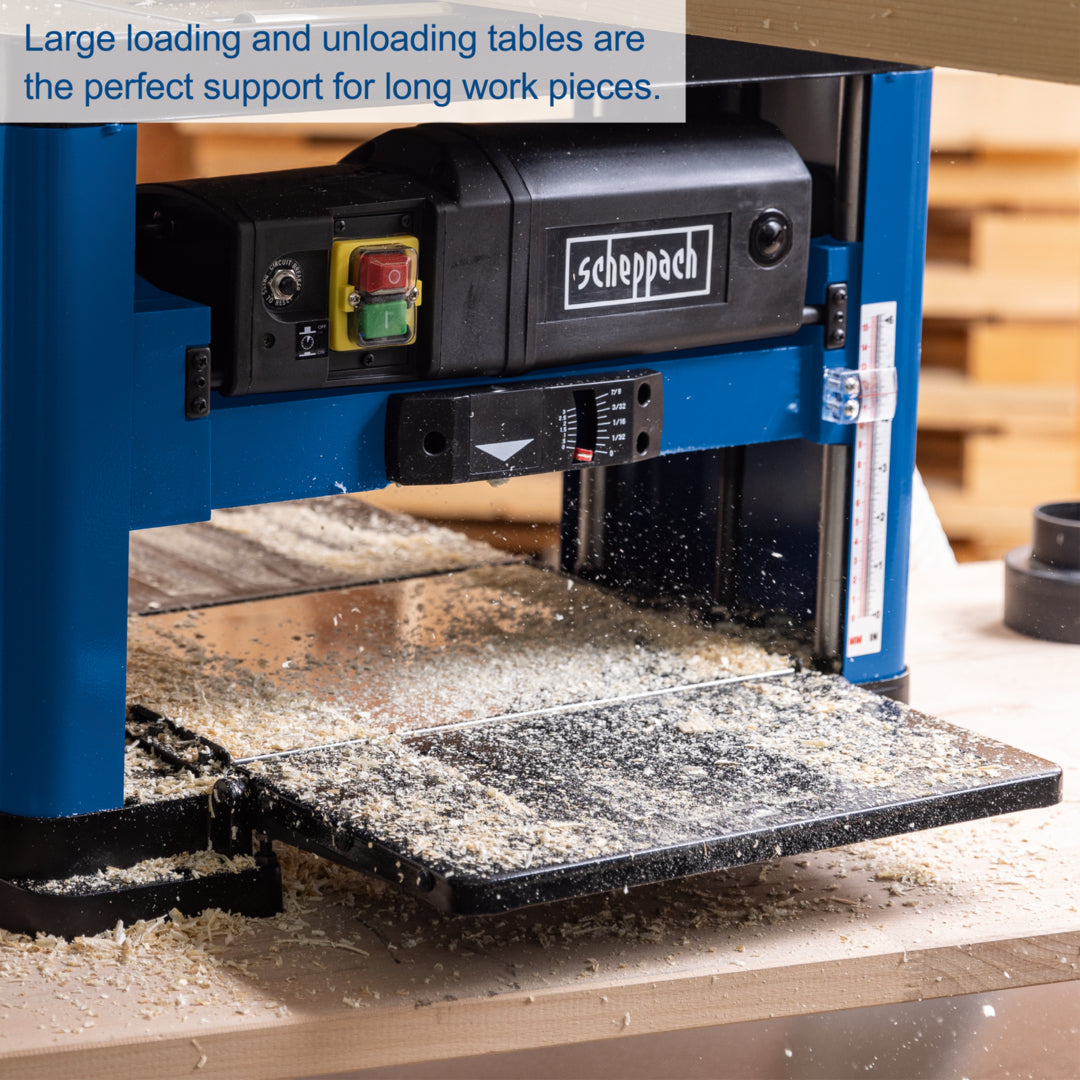

- Stainless Steel Extension Tables: Extends by 19 cm at the front and rear to provide a stable 330 x 630 mm total support area for longer workpieces.
- Portable Benchtop Design: Compact body dimensions and built-in side handles make transporting this machine between workshop and job site straightforward.
- Integrated Dust Extraction Port: Connects easily to an external extraction unit to keep the cutter shaft clear of shavings and maintain a dust-free work area.
Technical Specification
| General Details | |
|---|---|
| Title | Thickness planer PLM1800 scheppach (DIY) |
| Model Description | PLM1800 |
| Machine Group | Thickness planer |
| Article Number | 5902208901 |
| EAN | 4046664073659 |
| Net Weight | 30.65 kg |
| Gross Weight | 33.0 kg |
| General Dimensions (L x W x H) | 630.0 mm x 570.0 mm x 505.0 mm |
| Carrying Handles / Number of Handles | Yes / 2 pieces |
| Planing Performance & Specifications | |

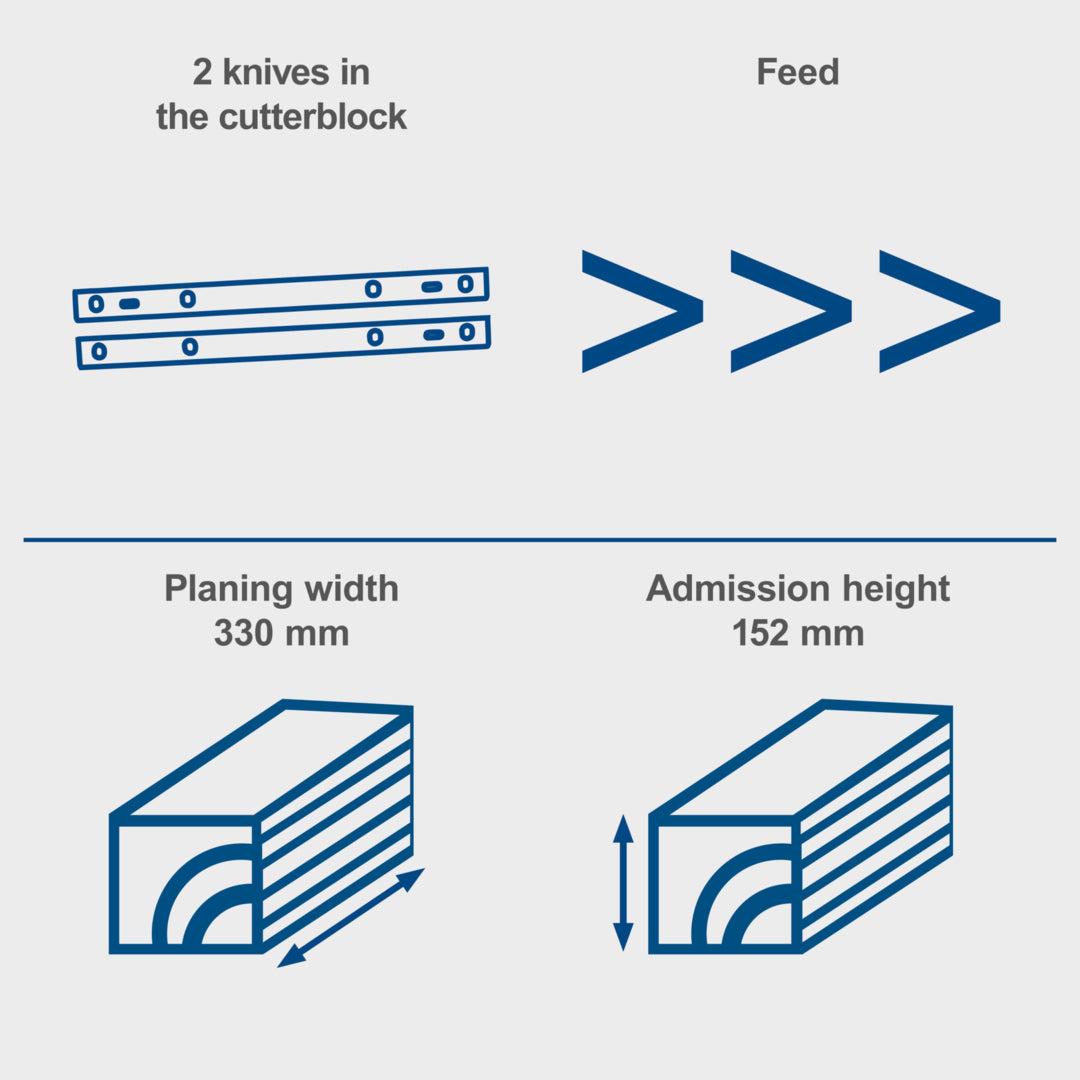

| Planing Width | 330.0 mm |
| Max. Chip Removal | 2.8 mm |
| Thickness Clearance Height (Min / Max) | 5.0 mm – 152.0 mm |
| Cuts Per Minute | 17000 |
| Cutting Speed / Feed Rate | 7.4 m/min / 7.4 m/min |
| Knife Length / Material | 330.0 mm / Steel SK5 |
| Planer Shaft Material / Belt Drive | Steel / Yes (Belt Planer Shaft) |
| Feed Rollers / Belt Feed / Material | Yes / Yes / Rubber |
| Feed Roller Dimensions (Diameter x Length) | 34.0 mm x 310.0 mm |
| Thickness Table Material | Stainless steel |
| Height Adjustment Type | Via Crank |
| Scale for Cutting Depth | Yes |
| Extraction Port Diameter (Inner / Outer) | 47.5 mm / 52.5 mm |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230 V / 50 Hz |
| Continuous Power Consumption S1 (W / hp) | 1500.0 W / 2.0 hp |
| Power Consumption (Operating Mode 1) | 1500.0 W |
| Rated Current / Efficiency | 7.0 A / 0.6% |
| Motor Type: Electric | Brushed motor |
| Maximum Engine Speed | 21000.0 1/min |
| Protection Class / Electrical Protection / Power Connection Protection | Class I / IP 20 / IP 54 |
| Insulation Class | B (max. motor temp. 130°C) |
| Engine Protection (Thermoprotector) | Yes |
| Engine Braking Type | No |
| Battery or Rechargeable Battery Included | No |
| Power Connection | |
| Cable Length | 1800.0 mm |
| Plug Type | EU plug (Class II) |
| Motor Cable Entry | Yes |
| Phase Changeover Switch 400V in Plug New | No |
| Switches Without Voltage Release (New) | No |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 96.8 dB |
| Sound Pressure Level Lp(A) | 83.8 dB |
| Uncertainty KpA / KwA | 3.0 dB / 3.0 dB |
| Scope of Delivery | |
| Scope of Delivery Text | • 1x Thickness planer • 1x Dust extraction hood • 2x Knurled screws • 2x Magnets • 1x Dust extraction adapter • 1x Crank for height adjustment • 1x Hex socket screw • 1x Washer • 1x Hex key • 1x Push stick • 1x Instruction manual |
SKU: D-SCH-5902208905
MPN: 5902208905
