Scheppach OSM600 2-in-1 Oscillating Belt & Spindle Sander 450W
Scheppach OSM600 2-in-1 Oscillating Belt & Spindle Sander 450W
No reviews
Regular price
£219.00
Regular price
Sale price
£219.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Versatile 2-in-1 sanding performance for complex curves and straight edges.
Combines oscillating spindle and belt sanding in one compact workshop unit. Delivers smooth, chatter-free finishes across furniture making, joinery, and detailed craft projects.
Features:

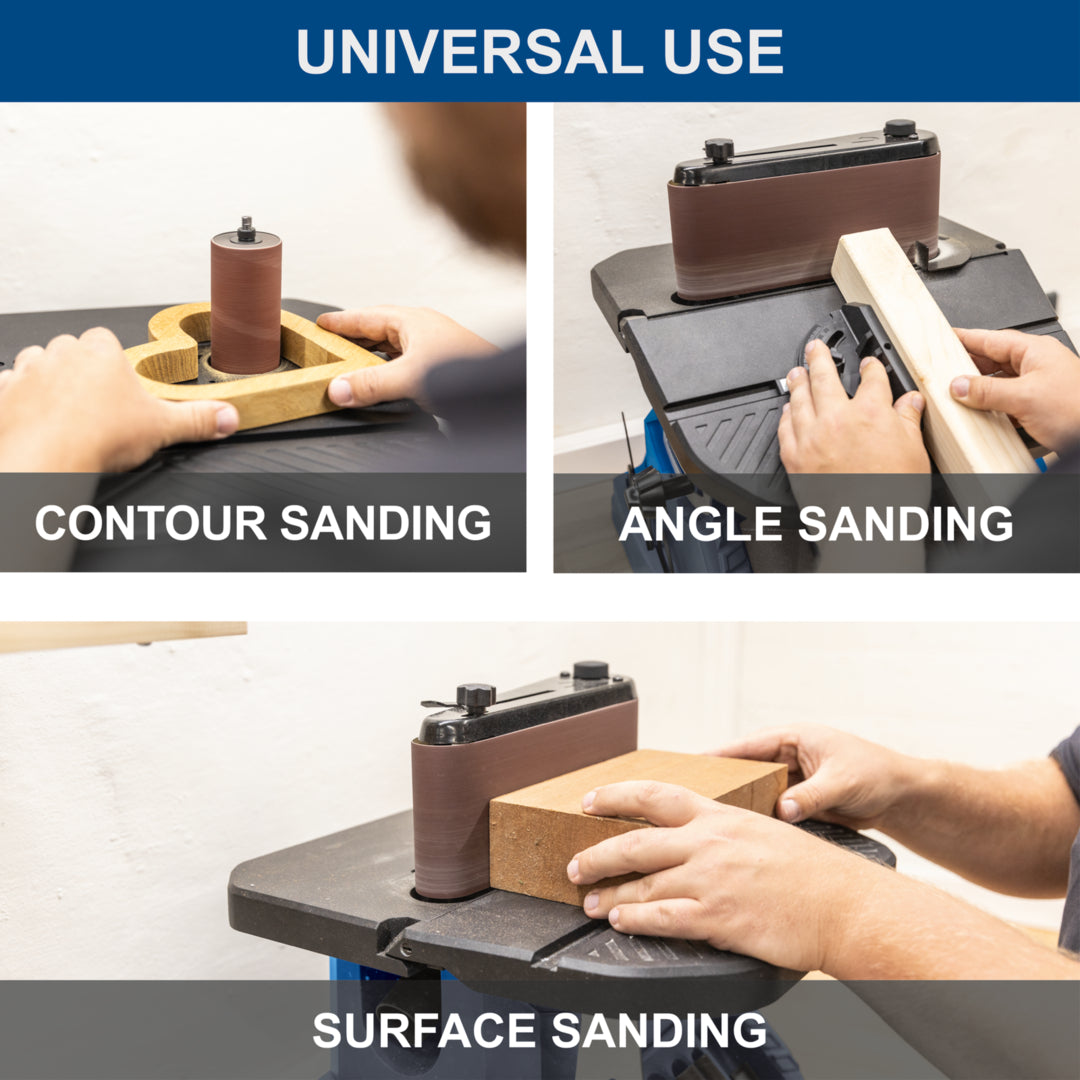

- 2-in-1 Dual Functionality: Easily converts between an oscillating spindle sander and a belt sander, allowing you to finish internal curves, contours, and straight edges with a single machine.
- Oscillating Action: Features a 16mm stroke length that moves the abrasive up and down during rotation, preventing burn marks on the timber and extending sleeve life.
- Powerful 450W Motor: Provides smooth, low-vibration power to ensure consistent stock removal across hardwoods, softwoods, plastics, and light metals.

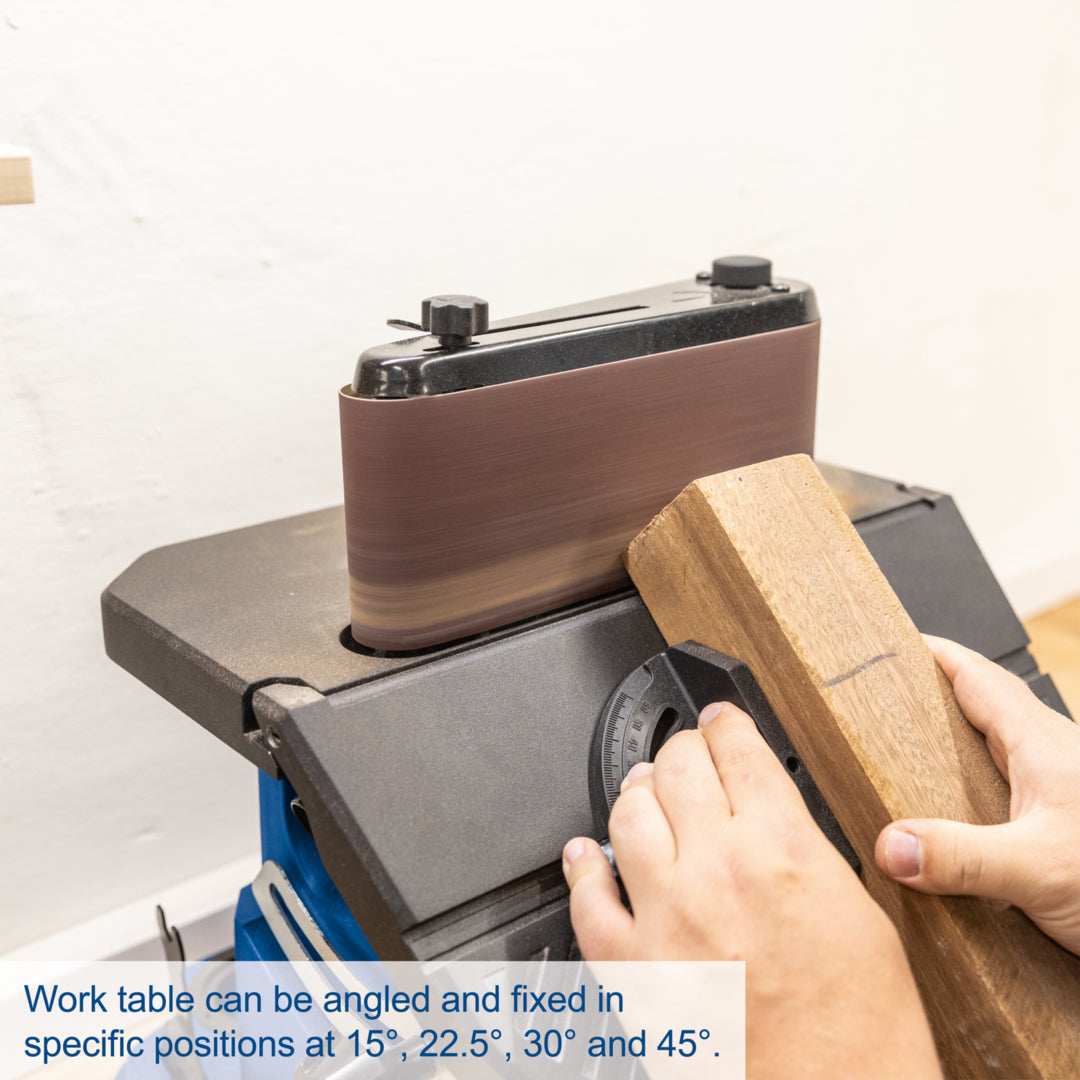

- Tilting Aluminium Table: The spacious 410 x 425mm work surface tilts up to 45 degrees, secured by heavy-duty locking screws for precise bevel and angle sanding.
- Tidy Workshop Design: Includes built-in storage bays to keep spare sleeves, table inserts, and the belt attachment neatly organised, alongside an integrated dust port for cleaner working.
Technical Specification
| General Details | |
|---|---|
| Title | Oscillating Edge, Belt and Spindle Sander OSM600 Scheppach (DIY) Great Britain |
| Article Number | 5903405904 |
| Model Description | OSM600 |
| Machine Group | Oscillating Edge-, Belt- and Spindle Sander |
| EAN | 4046664285014 |
| Mass Gross | 15.76 kg |
| Mass Net | 12.76 kg |
| General Dimensions (L x W x H) | 460 mm x 440 mm x 475 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Brush Motor |
| Voltage | 230-240 V |
| Frequency | 50 Hz |
| Nominal Current | 3.5 A |
| Continuous Power Consumption S1 (W) | 450 n/a |
| Continuous Power Consumption S1 (hp) | 0.6 n/a |
| Maximum Engine Speed | 10000 1/min |
| Efficiency | 61 % |
| Appliance Class | Class II |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class Electro | IP 20 |
| Motor Protection | No |
| Motor Brake Type | None |
| Cable Length | 2000 mm |
| Plug Type | UK Plug (Class II) |
| Spindle & Sanding Specifications | |
| Spindle Speed Max | 58 1/min |

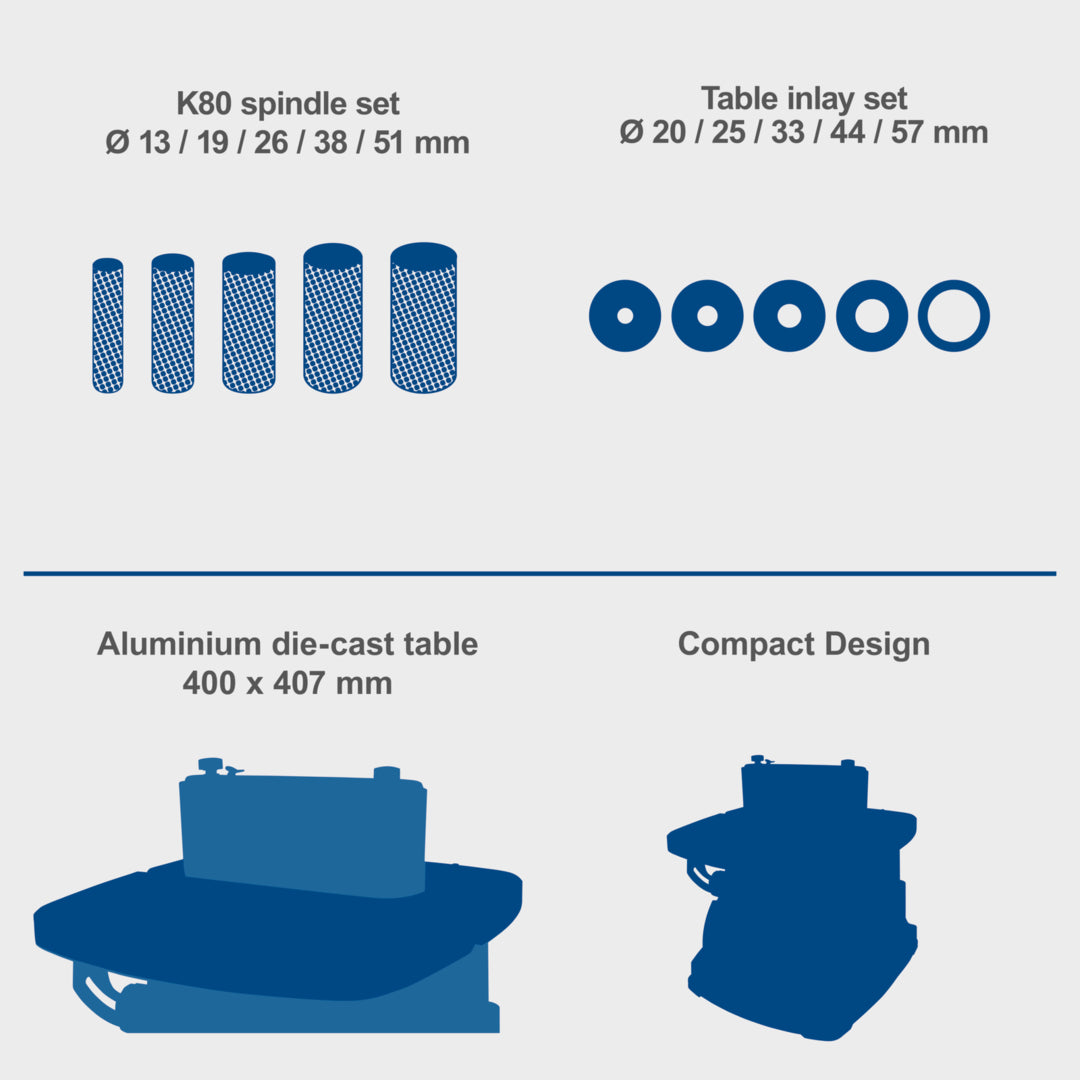

| Sanding Sleeve Sizes | 13 / 19 / 26 / 38 / 51 mm |

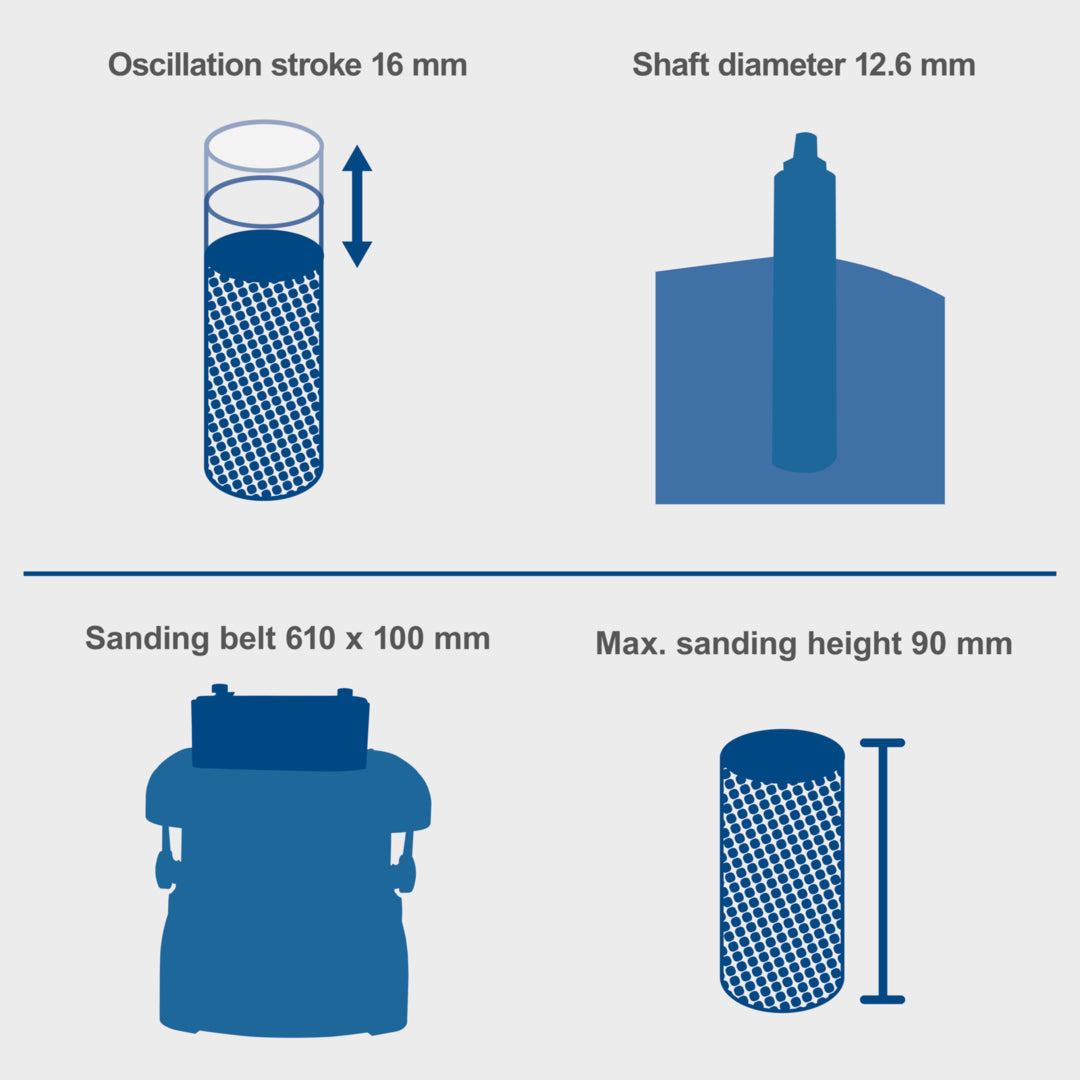

| Oscillation Stroke | 16 mm |
| Sanding Depth Max | 90 mm |
| Spindle Diameter | 12.7 mm |
| Spindle Height | 115 mm |
| Table Dimensions (L x W) | 400 mm x 407 mm |
| Suction Connector Inside Diameter | 35 mm |
| Dust Suction Diameter Outside | 39 mm |
| Sound & Emissions | |
| Sound Power Level Lw(A) | 88.3 dB |
| Sound Pressure Level Lp(A) | 75.3 dB |
| Uncertainty KpA | 3 dB |
| Uncertainty KwA | 3 dB |
| Delivery Content | |

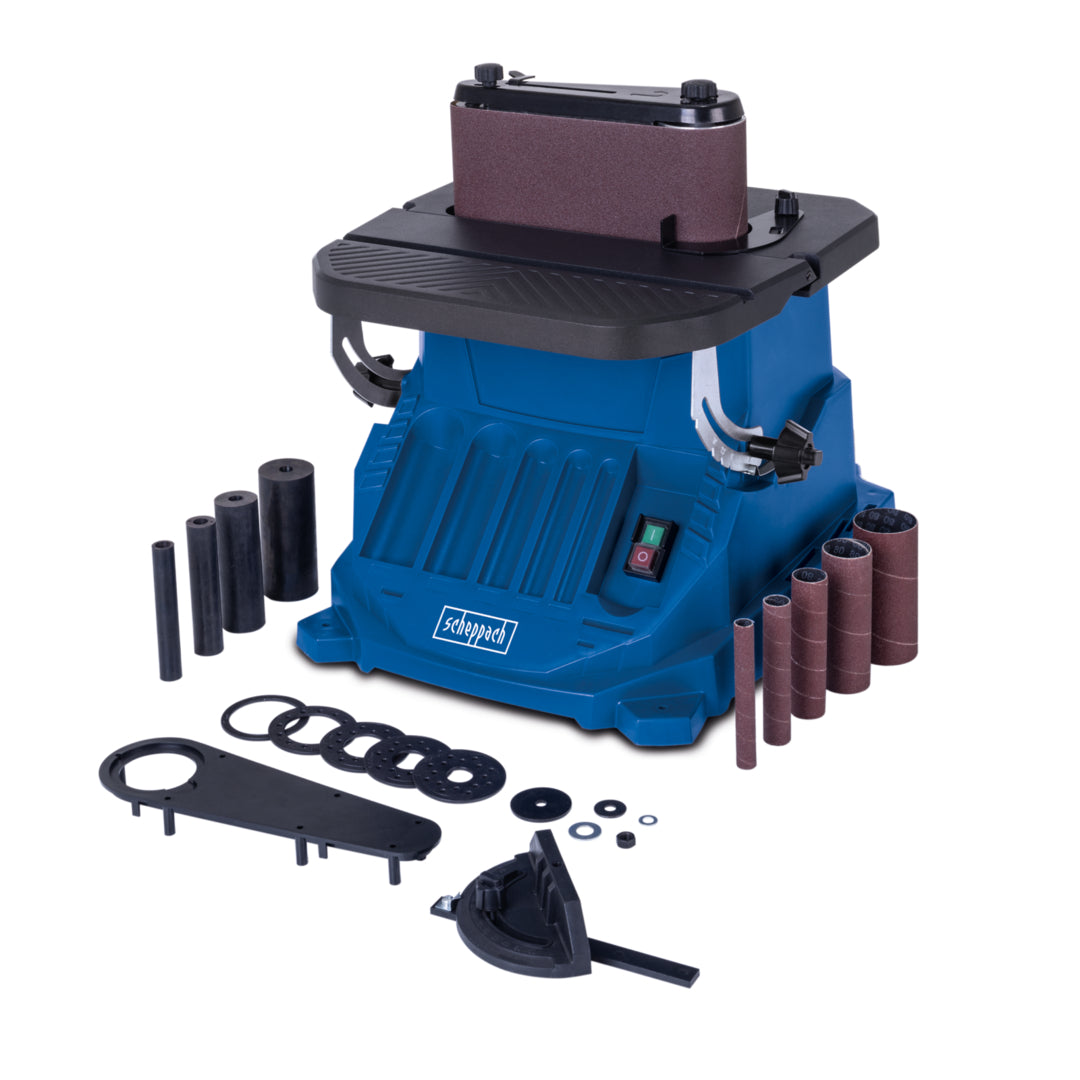

| Delivery Content Text | 1x Spindle, 1x M8 hexagonal nut, 3x Spindle washers Ø 14/24/44 mm, 1x Drive plate, 1x Cover, 1x Sanding belt attachment, 1x Locking screw (grinding belt), 1x Washer, 1x Workpiece stop, 1x Locking screw (stop), 1x Transverse stop, 4x Rubber grinding roller K80 (Ø 19/26/38/51 mm), 5x Abrasive sleeves K80 (Ø 13/19/26/38/51 mm, pre-assembled), 5x Table inlays Ø 13/19/26/38/51 mm, 1x 13 mm spanner, 1x Key for the spindle, 1x Operating manual, 1x Oscillating edge-, belt- and spindle sander |
SKU: D-SCH-5903405904
MPN: 5903405904
ID: D-SCH-5903405904
