Scheppach OSM100 Oscillating Spindle Sander 450W
Scheppach OSM100 Oscillating Spindle Sander 450W
No reviews
Regular price
£149.00
Regular price
Sale price
£149.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability

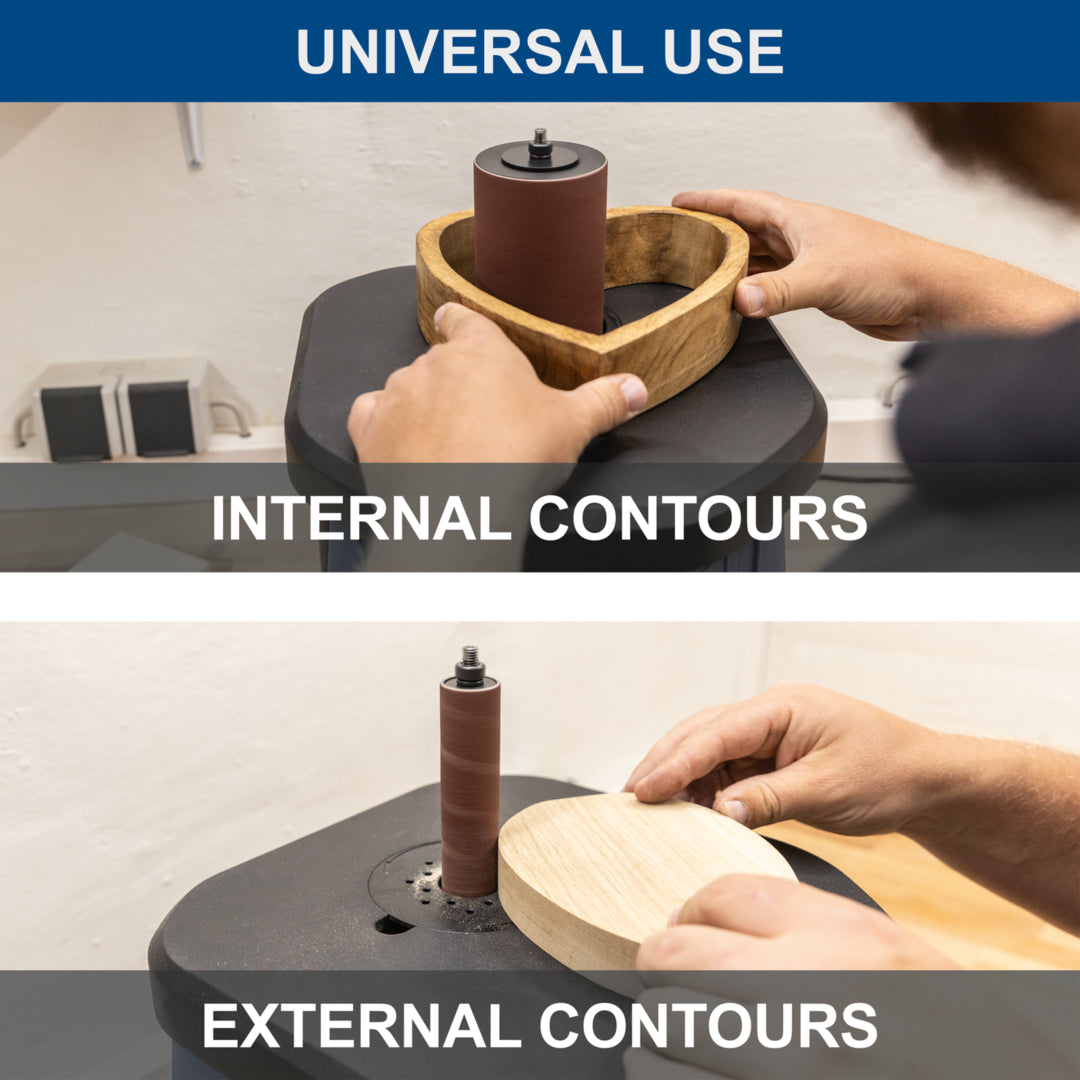

Sand smooth curves, internal radii, and complex wooden edges with absolute precision.
This compact oscillating spindle sander combines a reliable 450 W motor with a dual rotating and oscillating movement to prevent surface burning and grooves. Complete with a cast aluminium worktable, six sanding sleeve sizes, and integrated accessory storage, it offers a dependable finishing solution for hobbyists and woodworkers.
Features:
- Dual Rotating and Oscillating Motion: Drives the sanding spindle at 58 rpm with a 16 mm vertical stroke, ensuring even abrasive wear and producing a smooth, mark-free timber surface.
- Dependable 450 W Motor: Delivers consistent rotational power to sand softwoods, hardwoods, and complex curves smoothly up to a maximum 98 mm sanding depth.
- Solid Cast Aluminium Worktable: Sturdy 370 x 290 mm table offers a flat, stable platform for supporting larger furniture parts, musical instrument components, and craft projects.

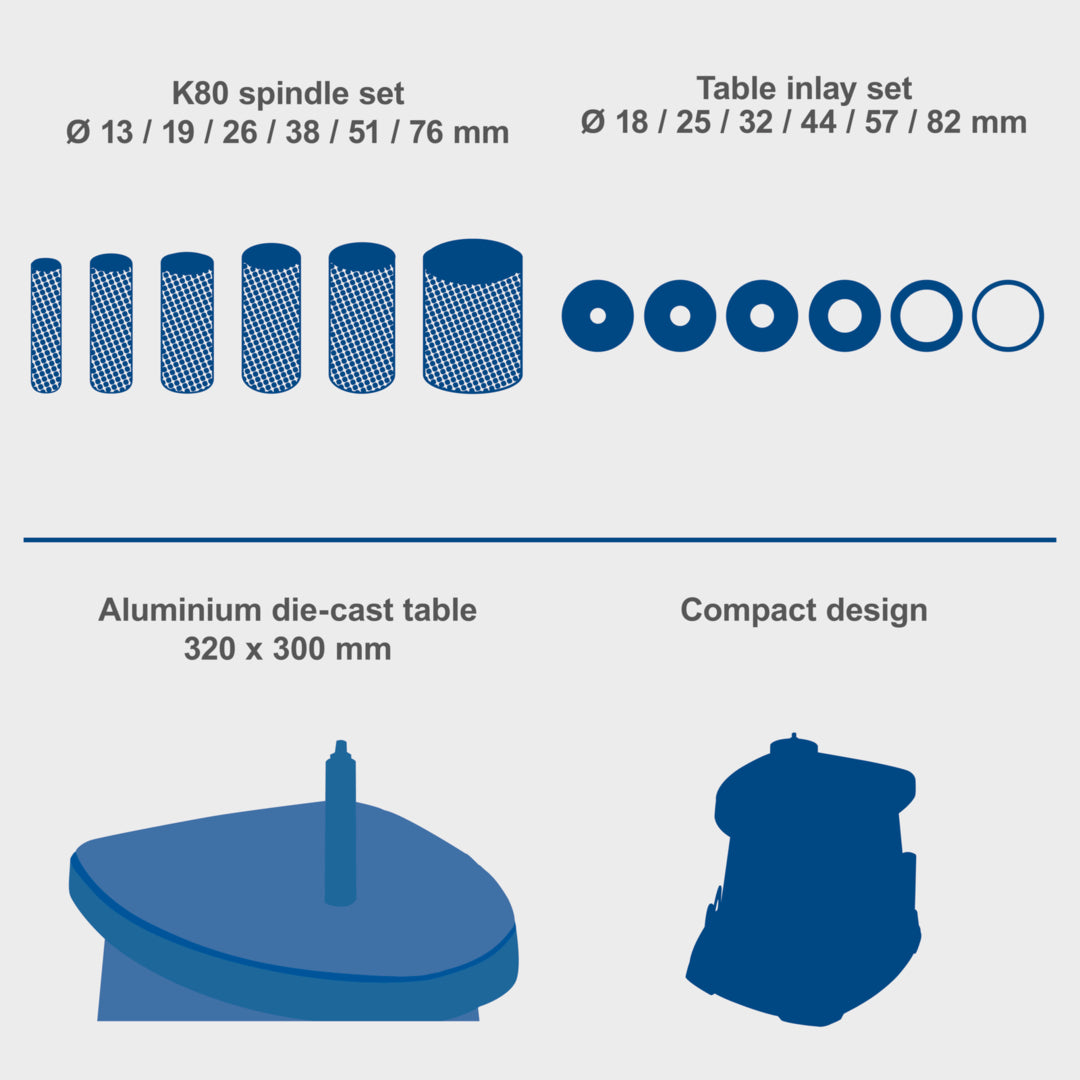

- Six Sanding Sleeve Sizes Included: Comes supplied with 13, 19, 26, 38, 51, and 76 mm diameter sleeves, matching rubber rollers, table inserts, and spindle discs to handle varying radii.

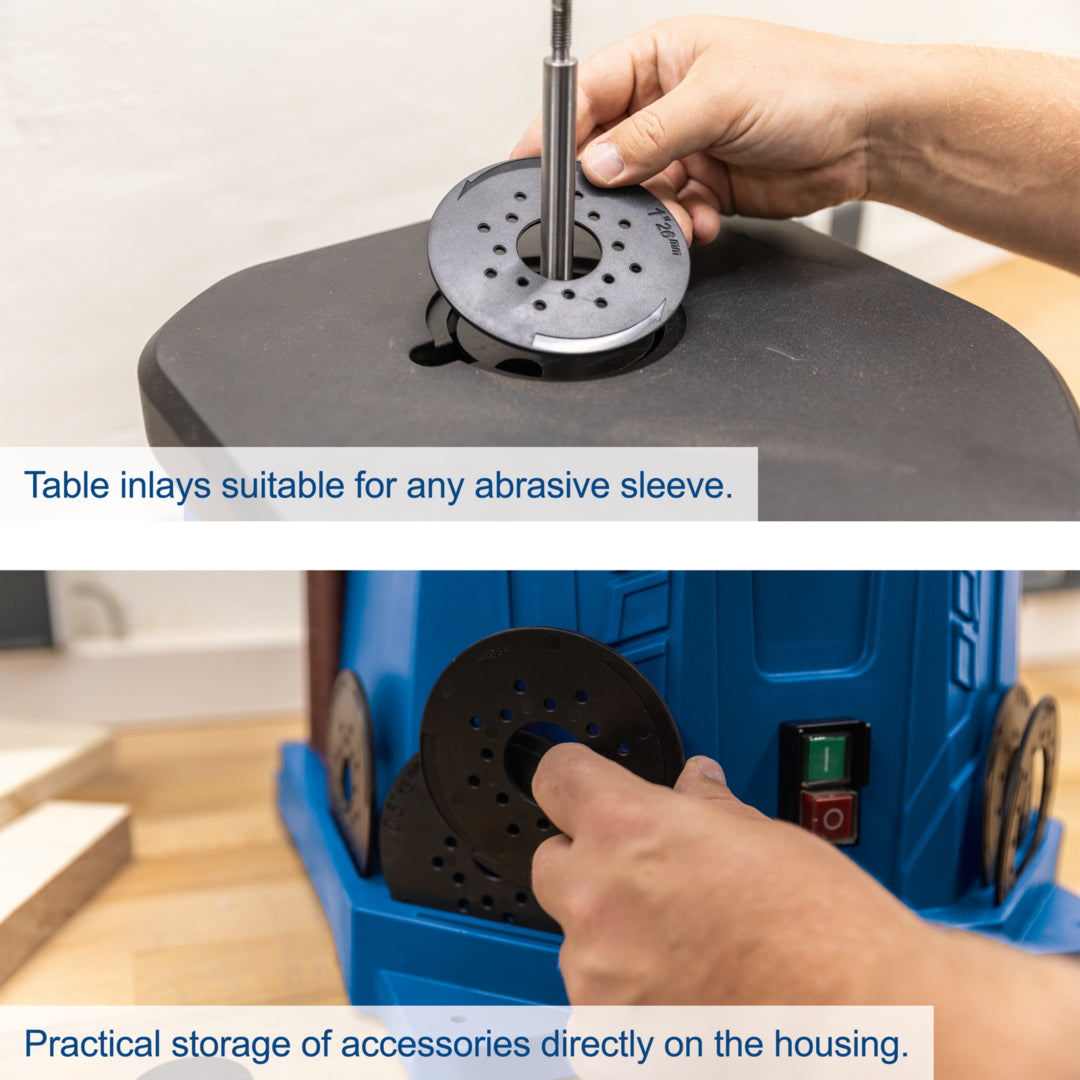

- Integrated On-Board Accessory Storage: Dedicated storage slots around the housing keep all rubber drums, table inserts, and assembly tools organized and within arm's reach.
- Integrated Dust Extraction Port: Easily connects to a workshop vacuum or dust extractor to pull fine wood particles away, keeping your workspace clean and healthy.
- Workbench Mounting Base: Pre-drilled mounting holes in the housing allow you to bolt the unit securely to your workbench for maximum stability during heavy sanding.
- Compact and Portable Design: Weighing just 13.5 kg with a dust-protected on/off switch, this sander is easy to reposition around smaller home workshops.
Technical Specification
| General Details | |
|---|---|
| Title | Oscillating spindle grinding machine OSM100 scheppach (DIY) |
| Model Description | OSM100 |
| Machine Group | Oscillating spindle grinding machine |
| Article Number | 5903408901 |
| EAN | 4046664246343 |
| Net Weight | 12 kg |
| Gross Weight | 14 kg |
| General Dimensions (L x W x H) | 400 mm x 365 mm x 440 mm |
| Spindle Grinder Specifications | |

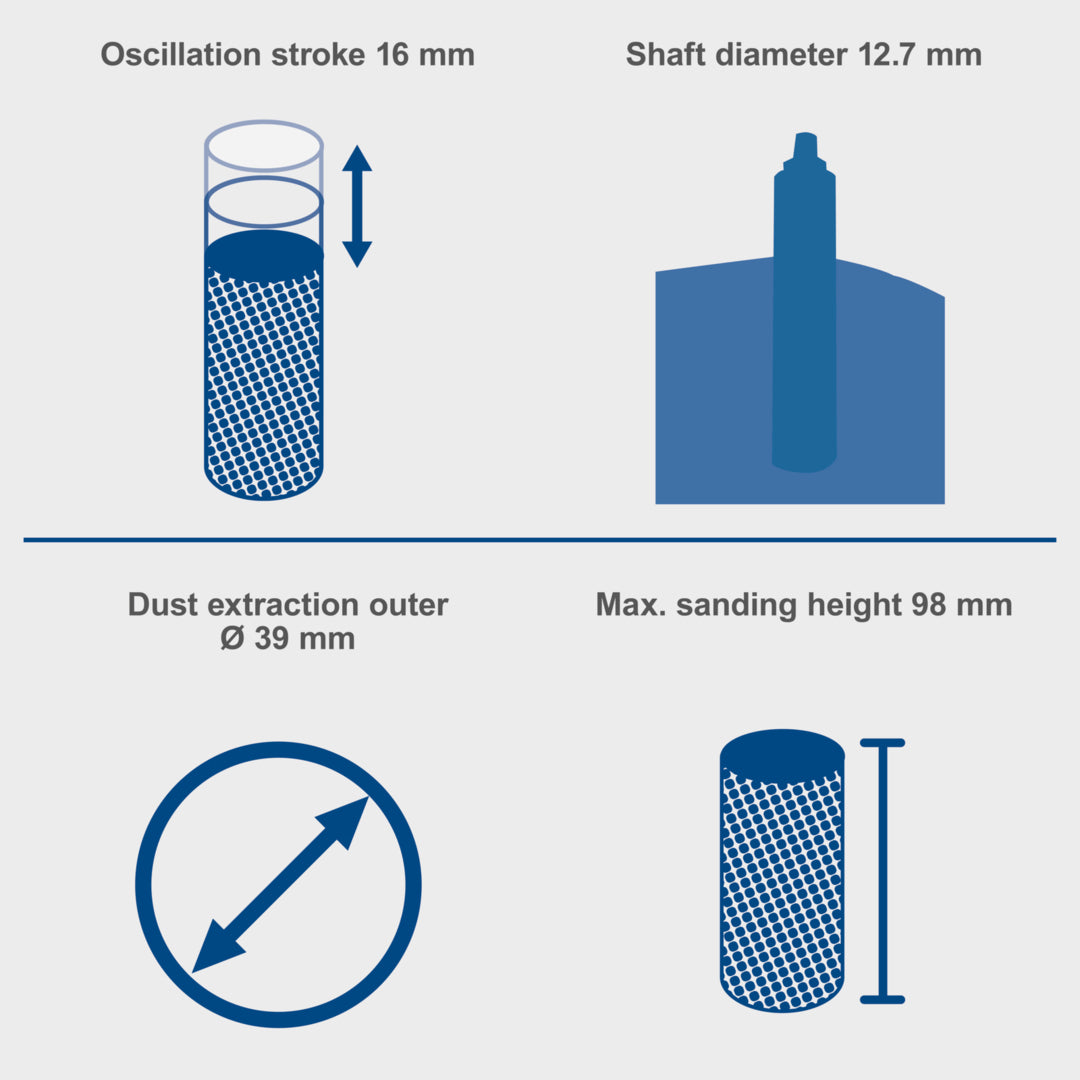

| Oscillation Stroke | 16 mm |
| Max. Grinding Depth | 98 mm |
| Spindle Diameter / Height | 12.7 mm / 1.5 mm |
| Max. Spindle Speed | 58 rpm |
| Spindle Right/Left Function | No |
| Table Dimensions (L x W) | 320 mm x 300 mm |
| Sanding Sleeve Sizes | 13 / 19 / 26 / 38 / 51 / 76mm |
| Suction Nozzle Diameter (Inner / Outer) | 35 mm / 38 mm |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230-240 V / 50 Hz |
| Continuous Power Consumption S1 (W / hp) | 450 W / 0.6 hp |
| Rated Current / Efficiency | 2.3 A / 61% |
| Motor Type: Electric | Brushed motor |
| Maximum Engine Speed | 10000 rpm |
| Protection Class / Electrical Protection | Class II / IP 20 |
| Insulation Class | B (max. motor temp. 130°C) |
| Power Connection | |
| Phase Changeover Switch 400V in Plug New | No |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 88.3 dB |
| Sound Pressure Level Lp(A) | 75.3 dB |
| Uncertainty KpA / KwA | 3 dB / 3 dB |
| Scope of Delivery | |

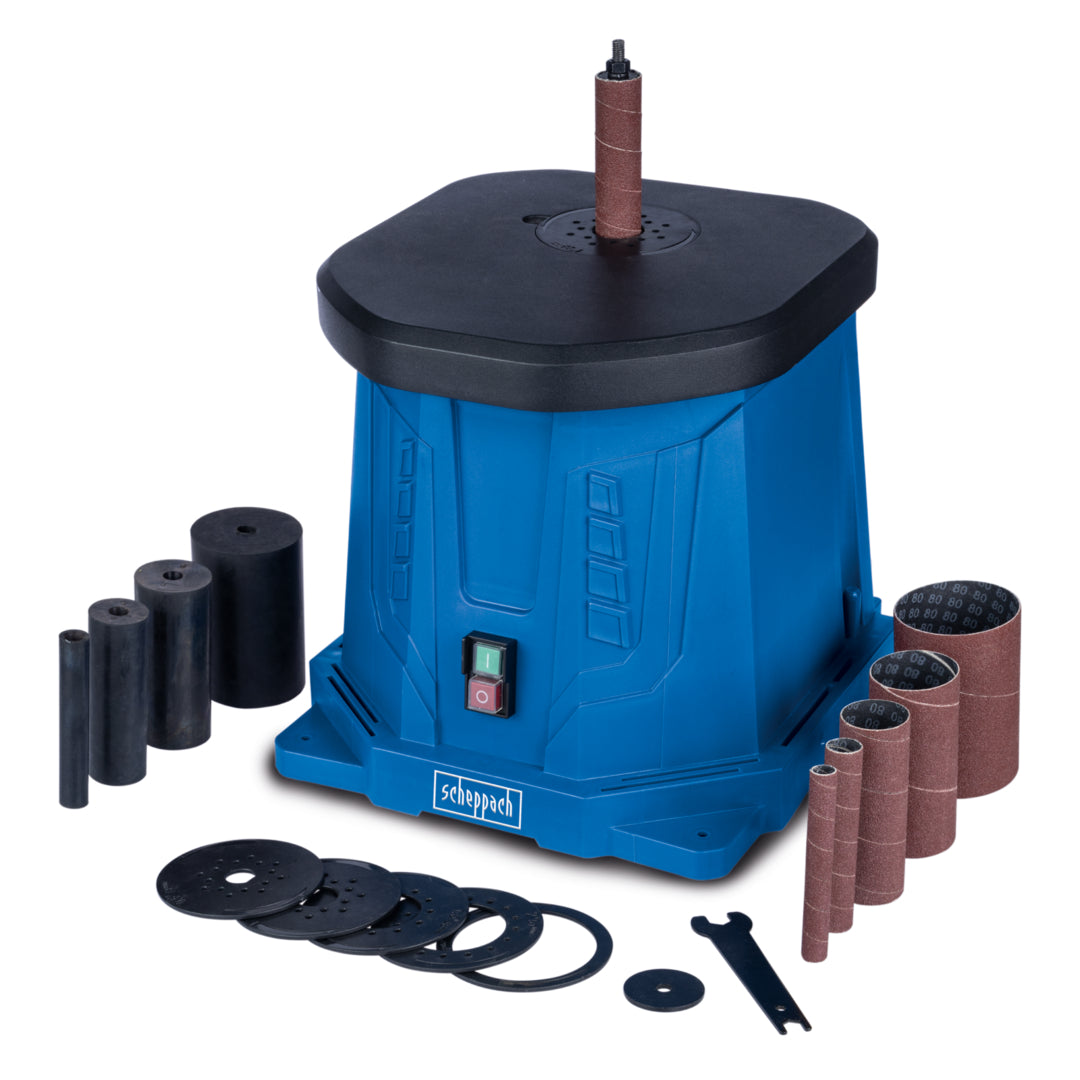

| Scope of Delivery Text | • 1x Hex nut • 1x Spring washer • 3x Spindle washers ø 14/24/44 mm • 6x Table inserts ø 13/19/26/38/51/76 mm • 6x Sanding sleeves (K80, ø 13/19/26/38/51/76 mm) • 5x Rubber sanding rollers ø 19/26/38/51/76 mm • 1x Clamping wrench SW13 • 1x Spindle wrench • 1x Instruction manual |
SKU: D-SCH-5903401906
MPN: 5903401906
