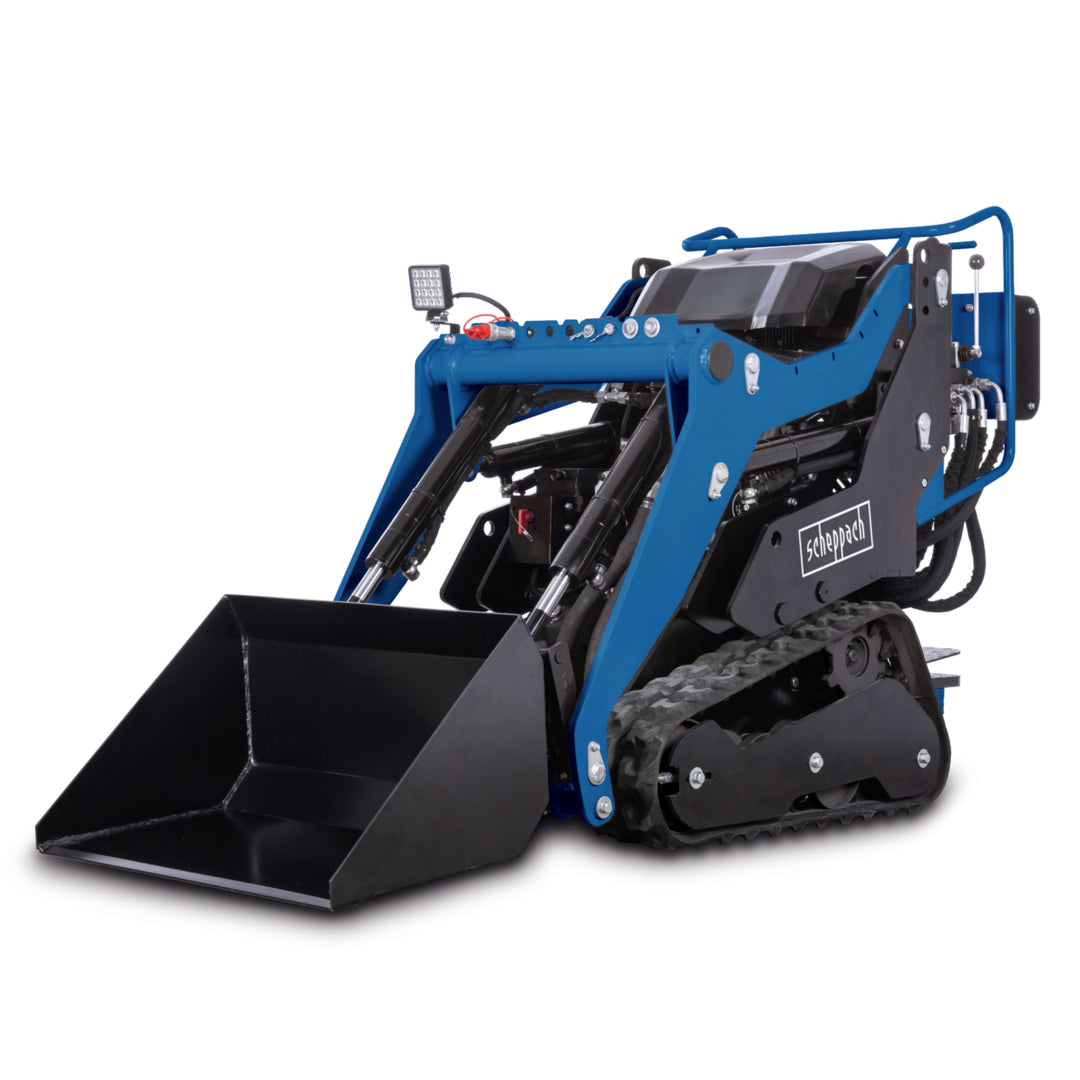

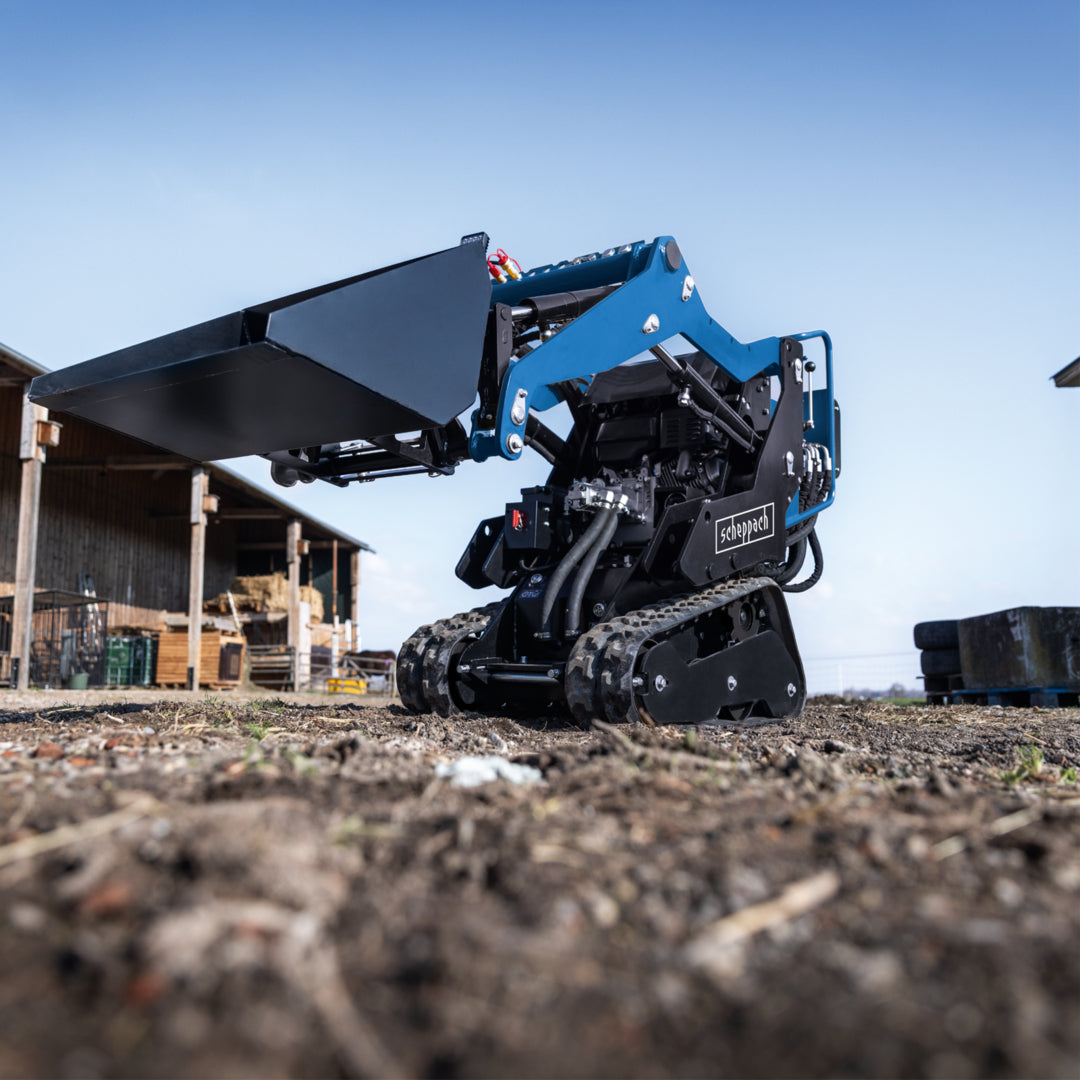

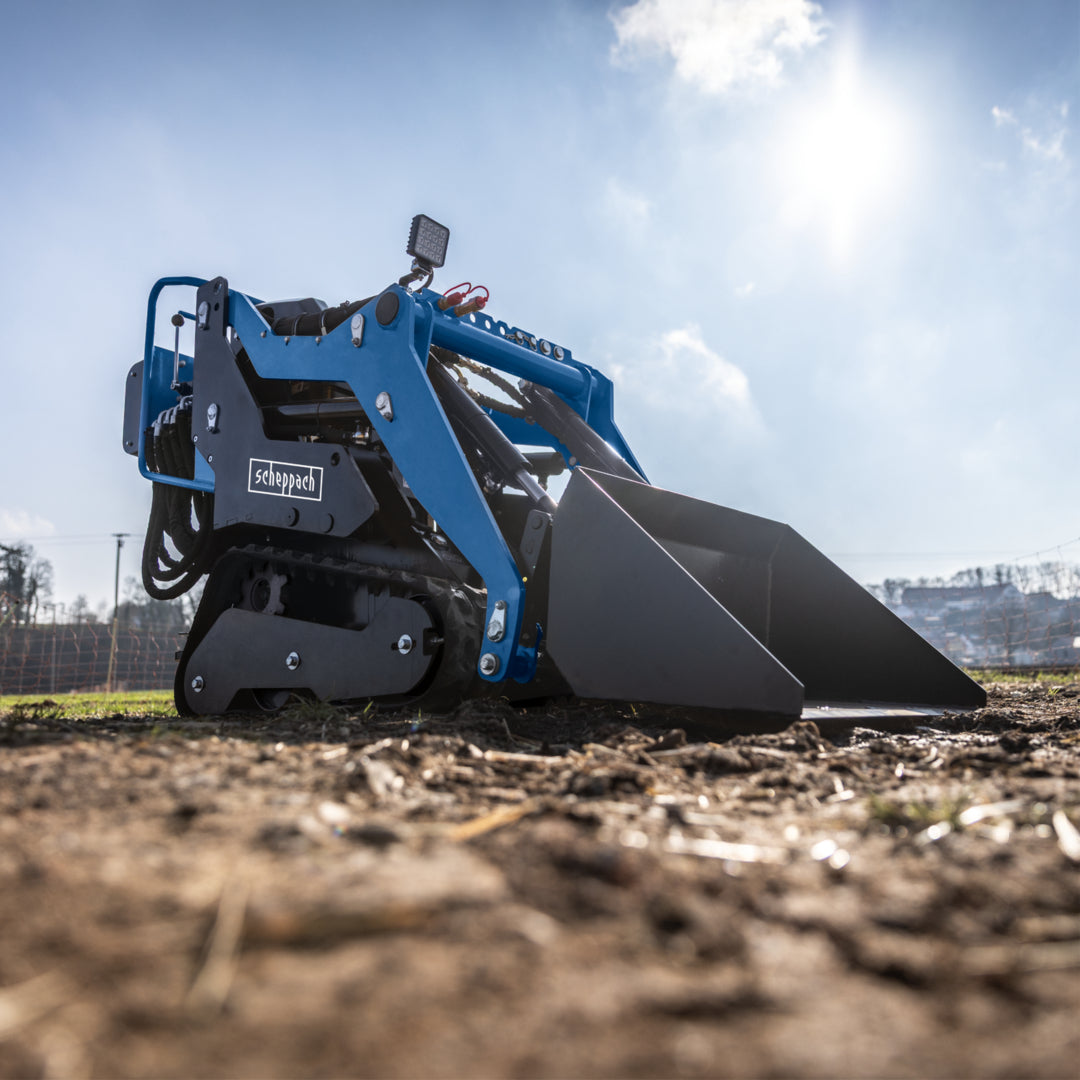

Scheppach MKL730 Petrol Skid Steer Loader
Scheppach MKL730 Petrol Skid Steer Loader
Regular price
£5,999.00
Regular price
Sale price
£5,999.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Compact material handling power engineered for tight spaces and tough terrain.

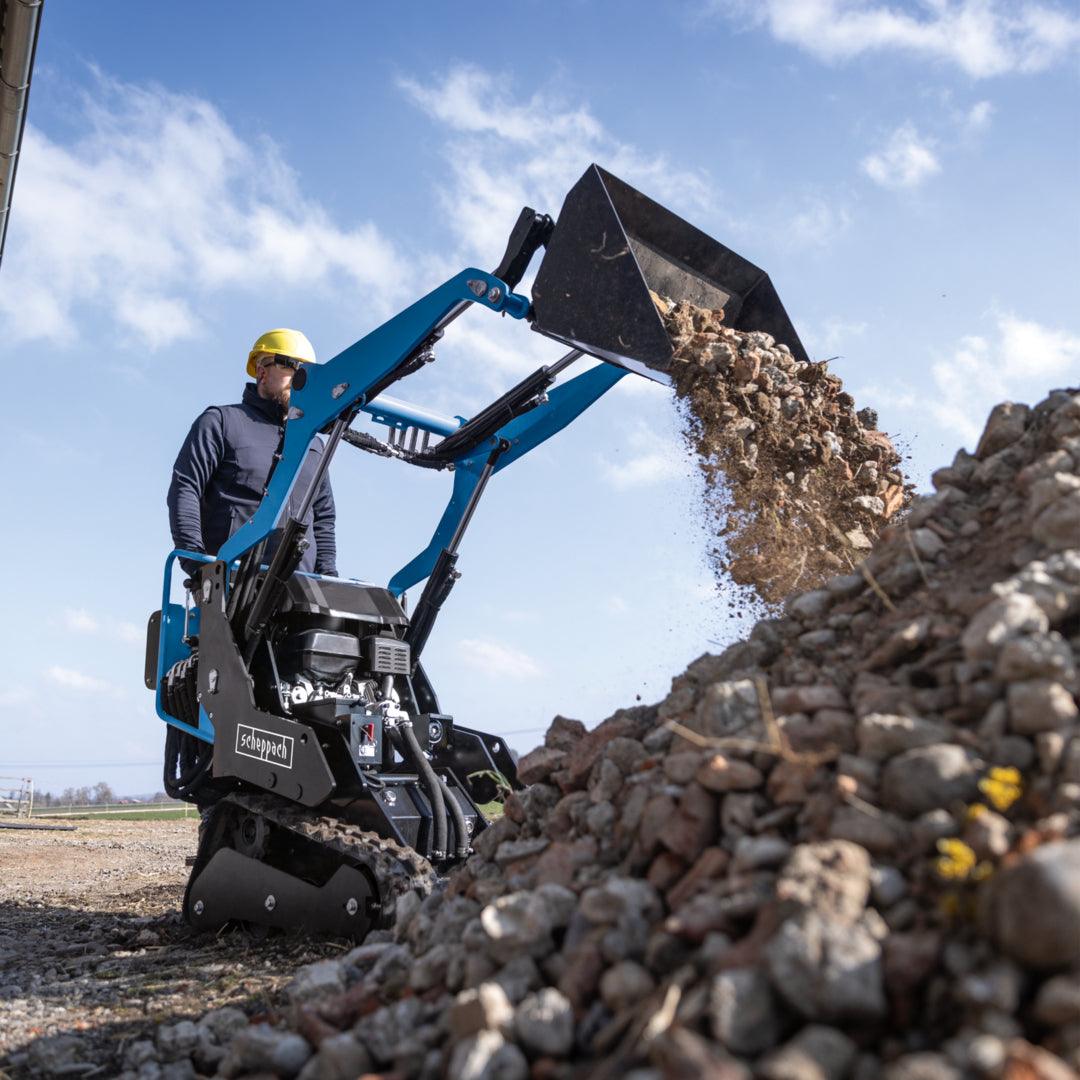

Delivers robust 8.5HP hydraulic performance across landscaping, agricultural, and construction tasks. Built with a narrow 740mm track width to navigate restricted gateways and confined sites with ease.
Features:

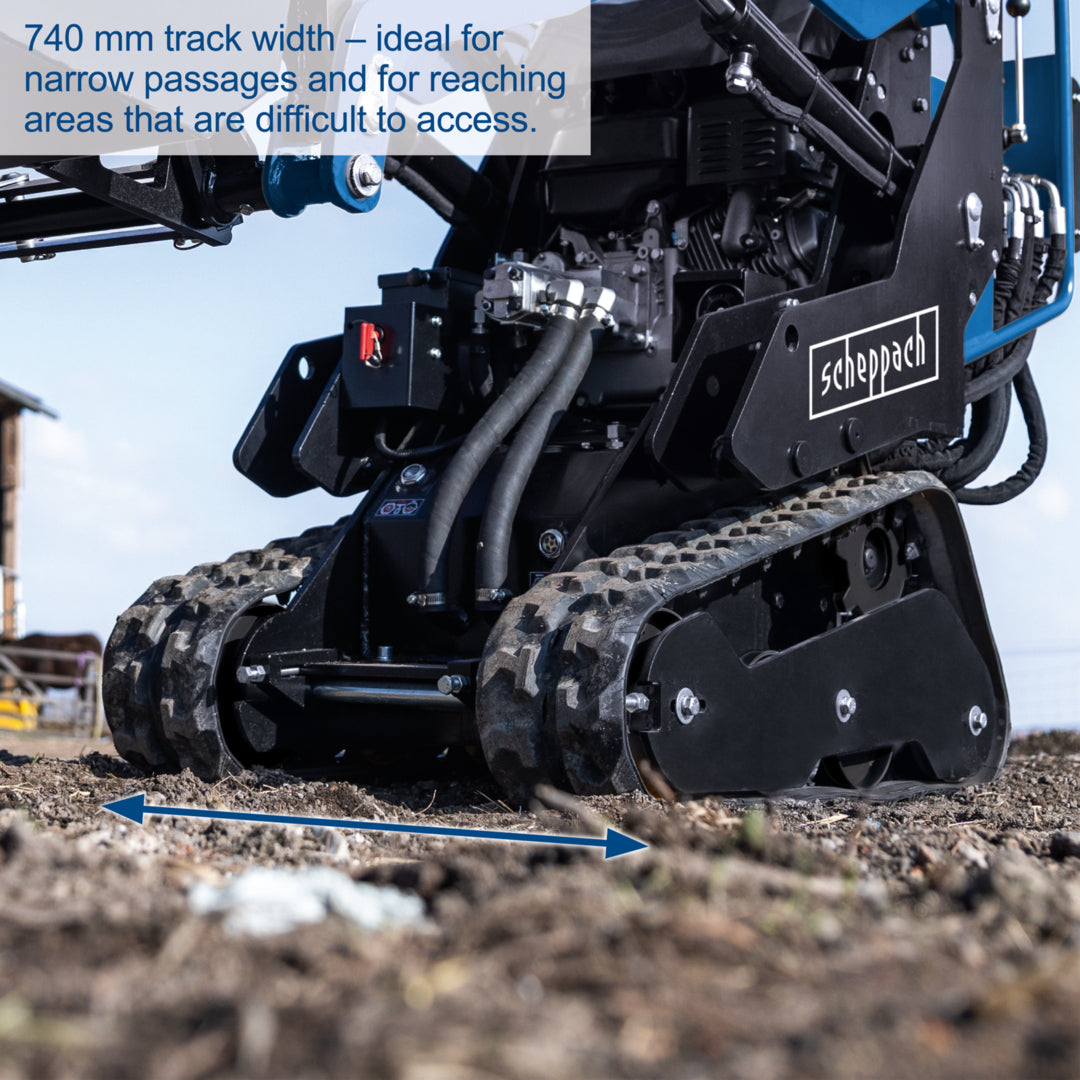

- Narrow Access Capability: The compact 740mm overall track width allows you to drive through standard garden gates and tight passageways that traditional loaders cannot reach.

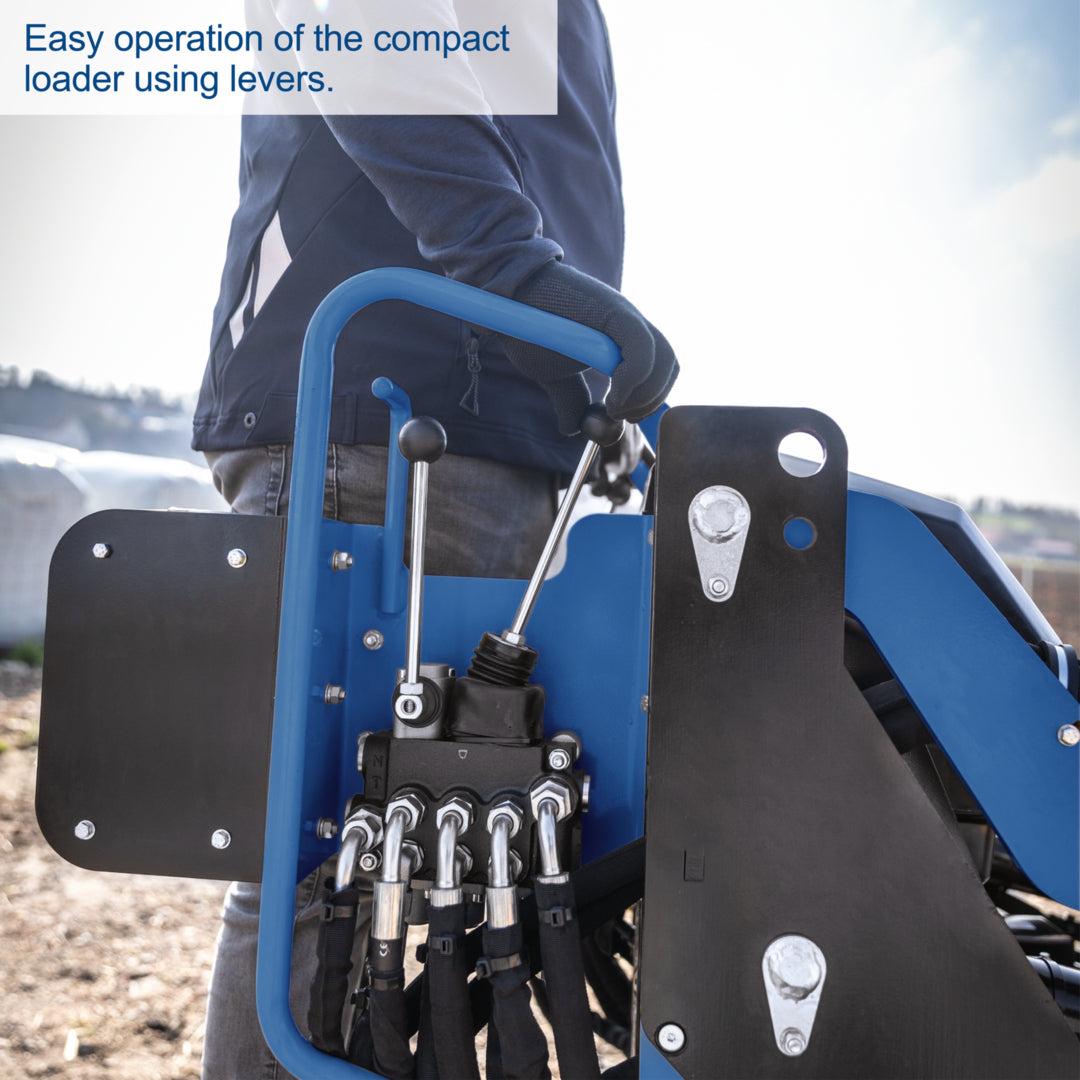

- Dependable Hydraulic Power: Driven by an 8.5HP 306cc petrol engine paired with a dual hydraulic pump system, delivering smooth, responsive control for heavy lifting and loading.
- Superior All-Terrain Traction: Individually controlled 180mm rubber tracks provide exceptional stability, low ground pressure, and a 25-degree climbing ability on soft or uneven ground.

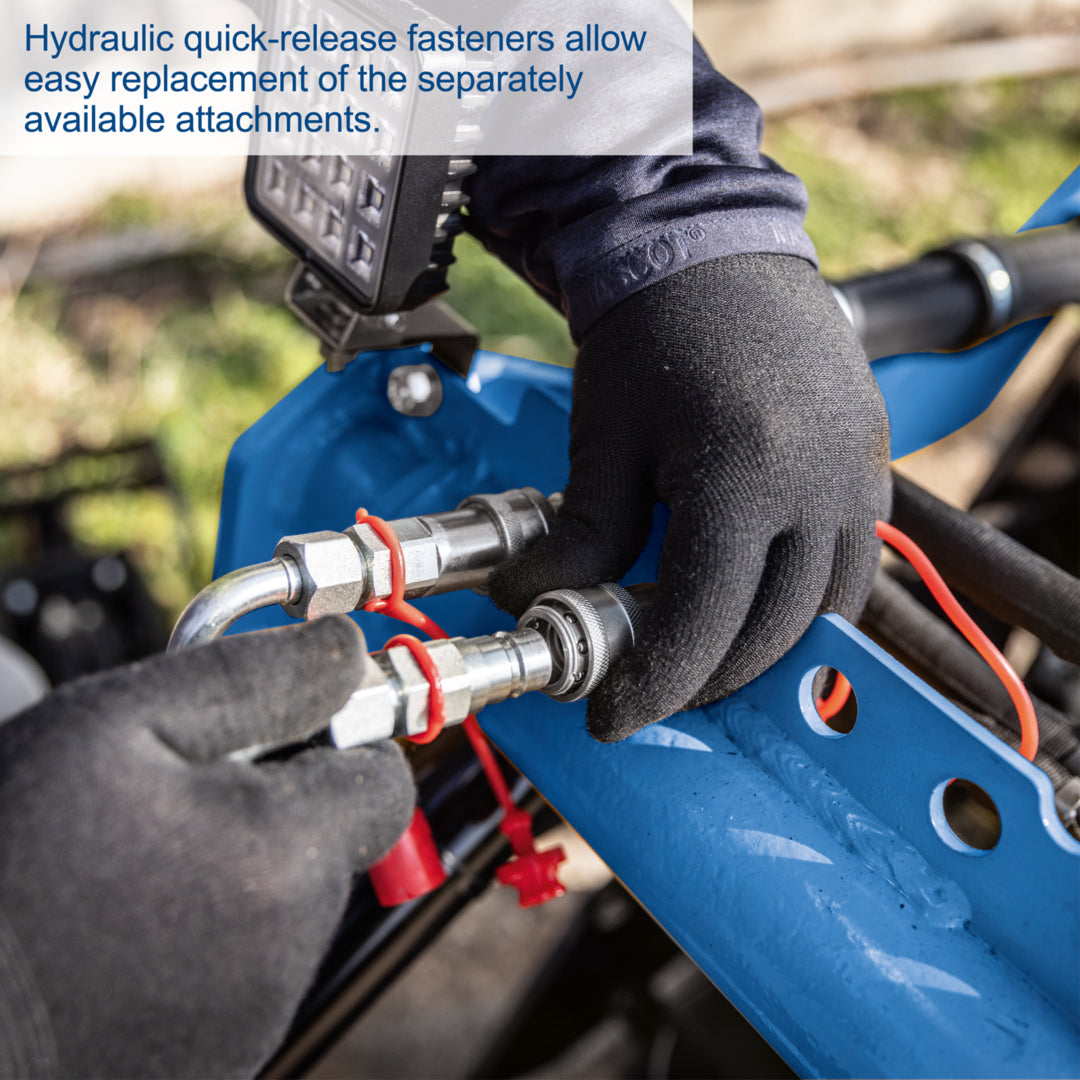

- Versatile Attachment System: Features hydraulic quick couplers to swap between the supplied 80L bucket and optional attachments rapidly, maximising productivity on site.

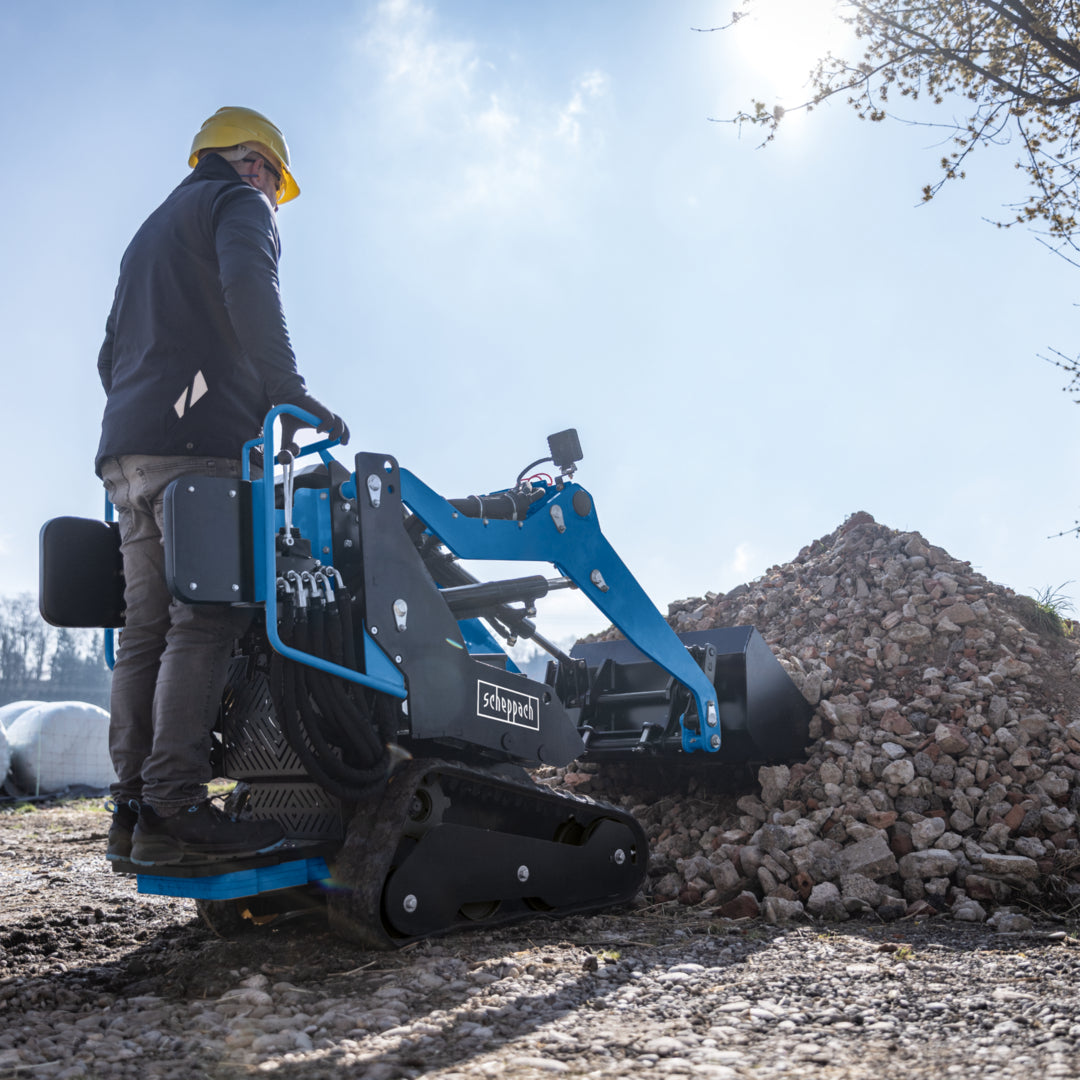

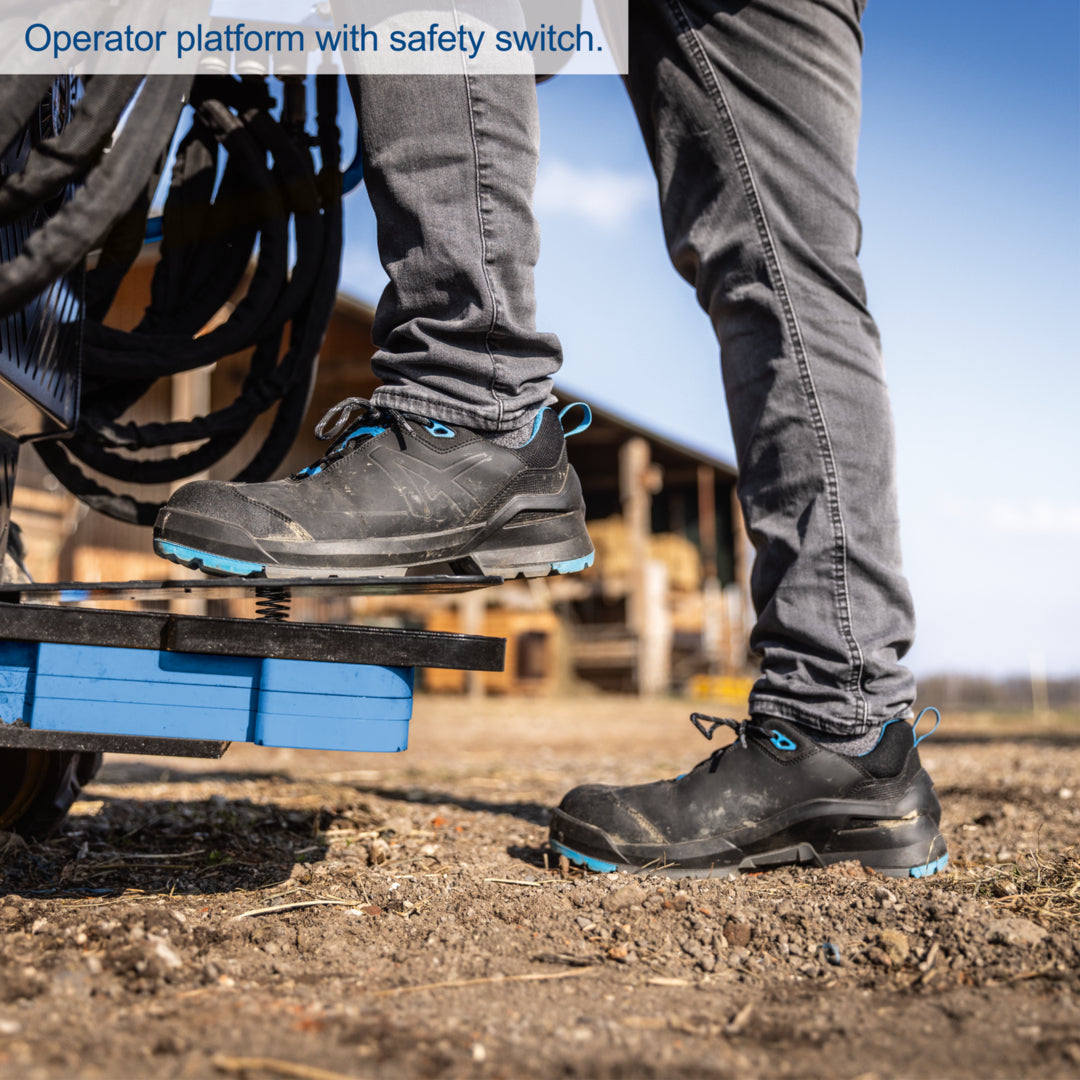

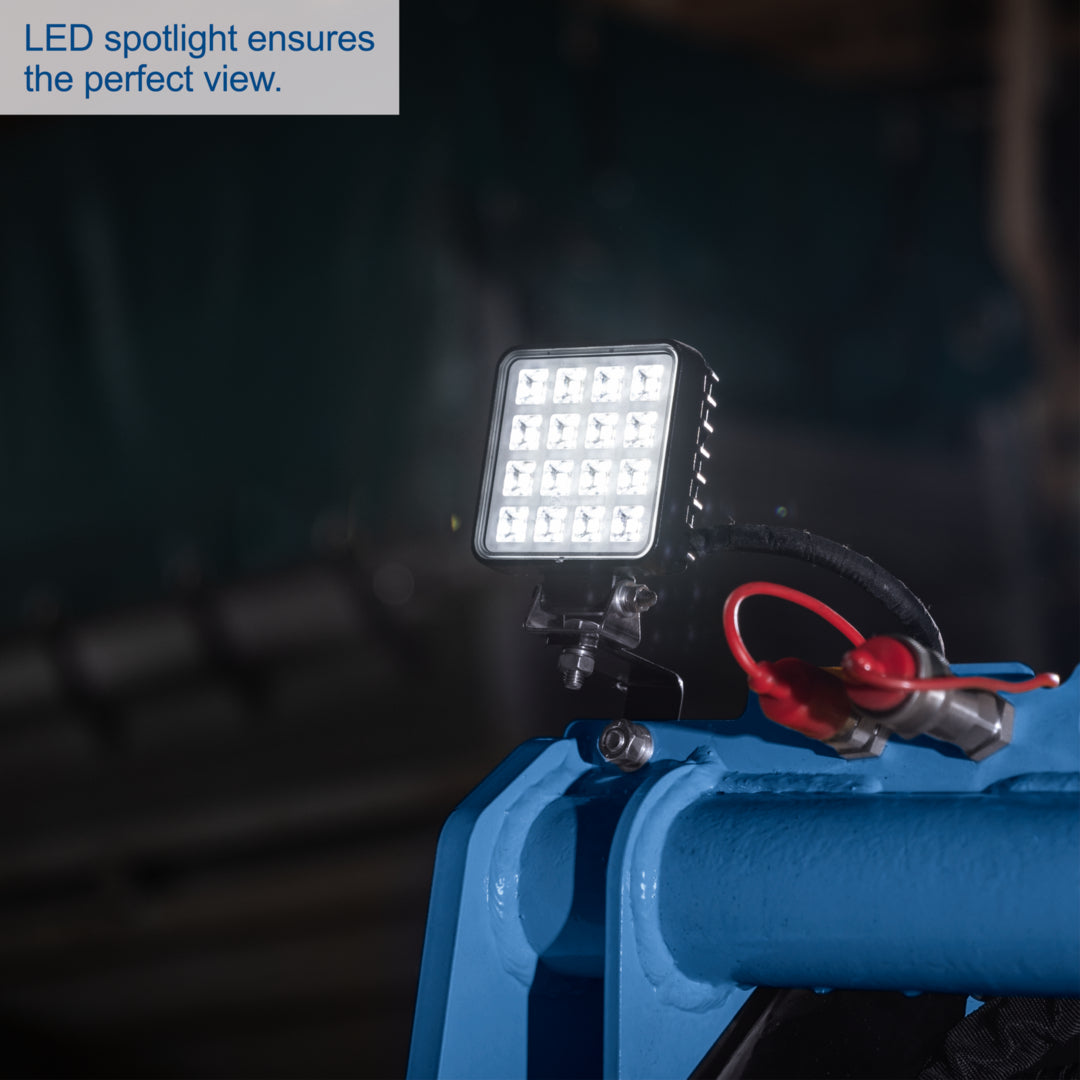

- Safe and Ergonomic Operation: Built with a comfortable standing operator platform, protective side padding, integrated operator safety switch, and bright LED work lights for low-light conditions.
Technical Specification
| General Details | |
|---|---|
| Title | Skid Steer Loader MKL730 scheppach (DIY) |
| Article Number | 5915401903 |
| Model Description | MKL730 |
| Machine Group | Skid Steer Loader |
| EAN | 4046664279280 |
| Mass Net | 751 kg |
| Mass Gross | 817 kg |
| Operating Weight | 832 kg |
| General Dimensions (L x W x H) | 1395 mm x 751 mm x 1200 mm |
| Engine & Drive Performance | |
| General Drive Type | Combustion Engine with E-Start |
| Subgrouping Drive Type | Other |

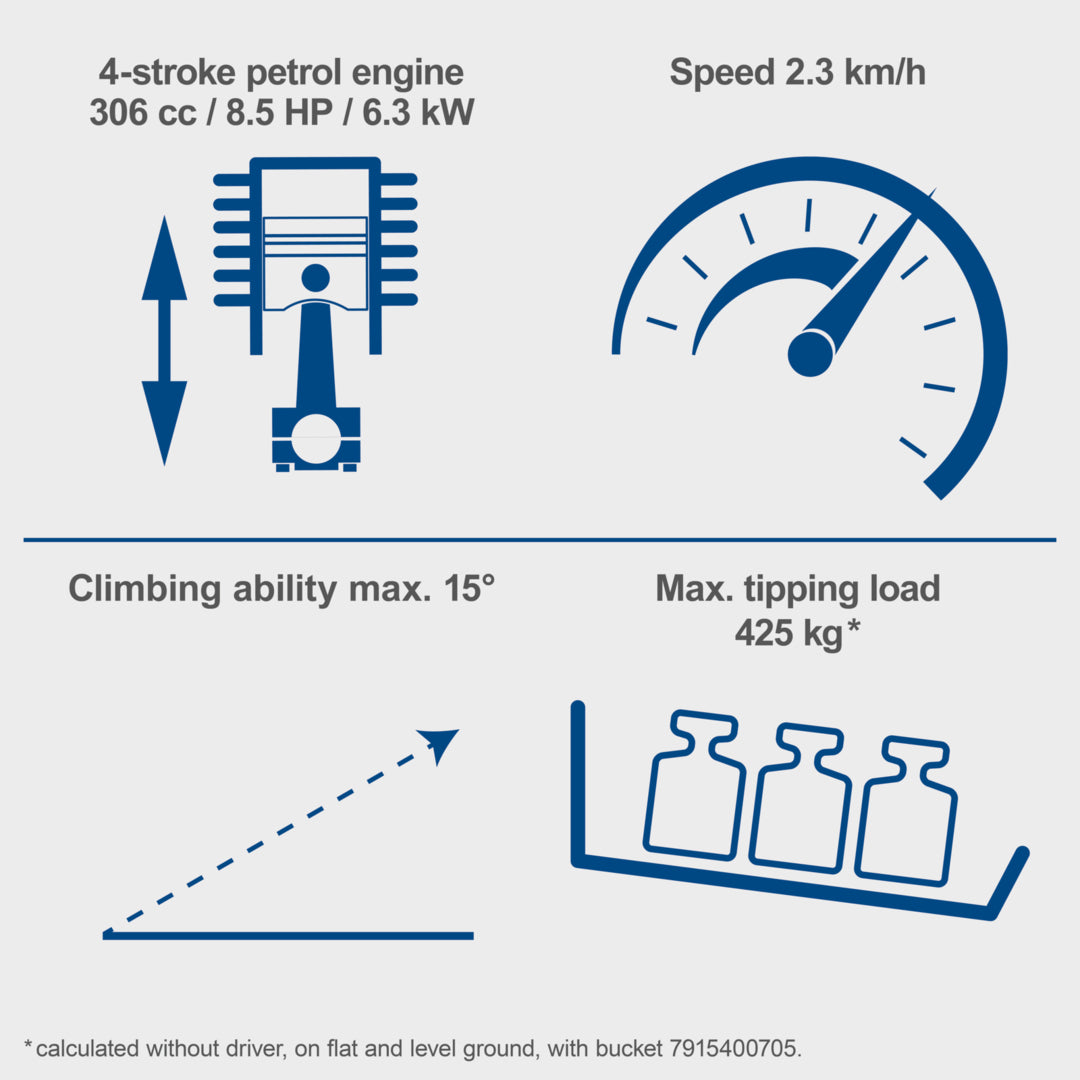

| Engine Type | 4-Stroke Engine |
| Displacement | 306 cm³ |
| Power Output | 6.3 kW / 8.5 PS |
| Starter Type | Electrical / Wire Rope |
| Max Speed | 3600 1/min |
| Engine Idle Speed | 1800 1/min (Tolerance: 100 1/min) |
| Travelling Speed | 2.5 km/h |

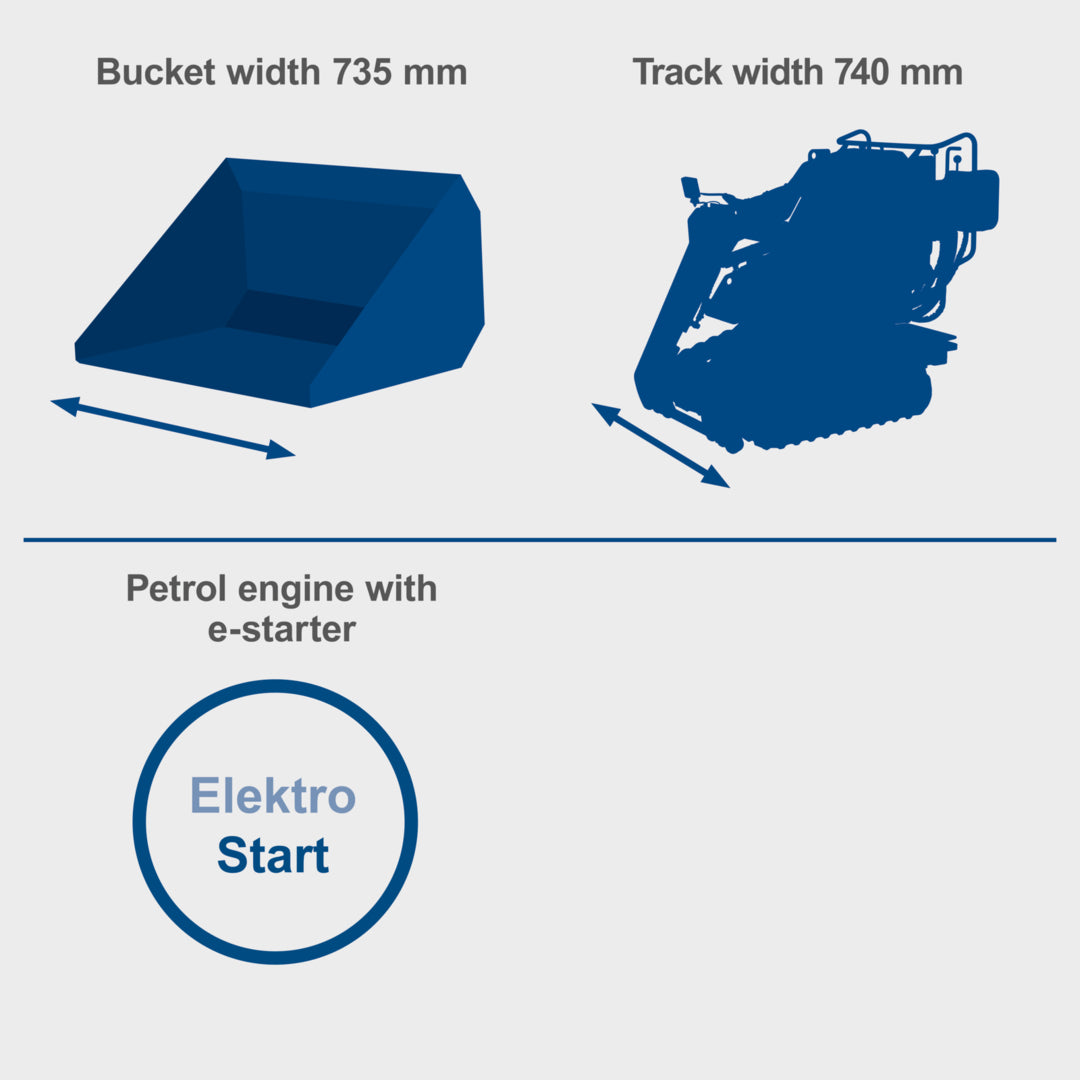

| Track Width | 740 mm |
| Ground Clearance Side | 62 |
| Fluids & Emissions | |
| Fuel Tank Volume | 6 l |
| Min Fuel Octane Rating | 90 |
| E10 Suitable | Yes |
| Oil / Fuel Mixing Ratio | N/A |
| Engine Oil Type | SAE10W40 |
| Motor Oil Quantity | 1.1 l |
| Motor Oil Included | No |
| Oil Watch | Yes |
| Coolant | Air |
| Spark Plug | F7RTC |
| Emission Class | Euro V |
| CO² Emission | 788.2 g/kWh |
| Hydraulics System | |
| Hydraulics Necessary? | Yes |
| Hydraulic Pressure Actual | 17.5 MPa |
| Hydraulic Tank Capacity | 29 l |
| Pumping Capacity Per Pump | 15 l/min |
| Hydraulic Oil Type | HLP 32 |

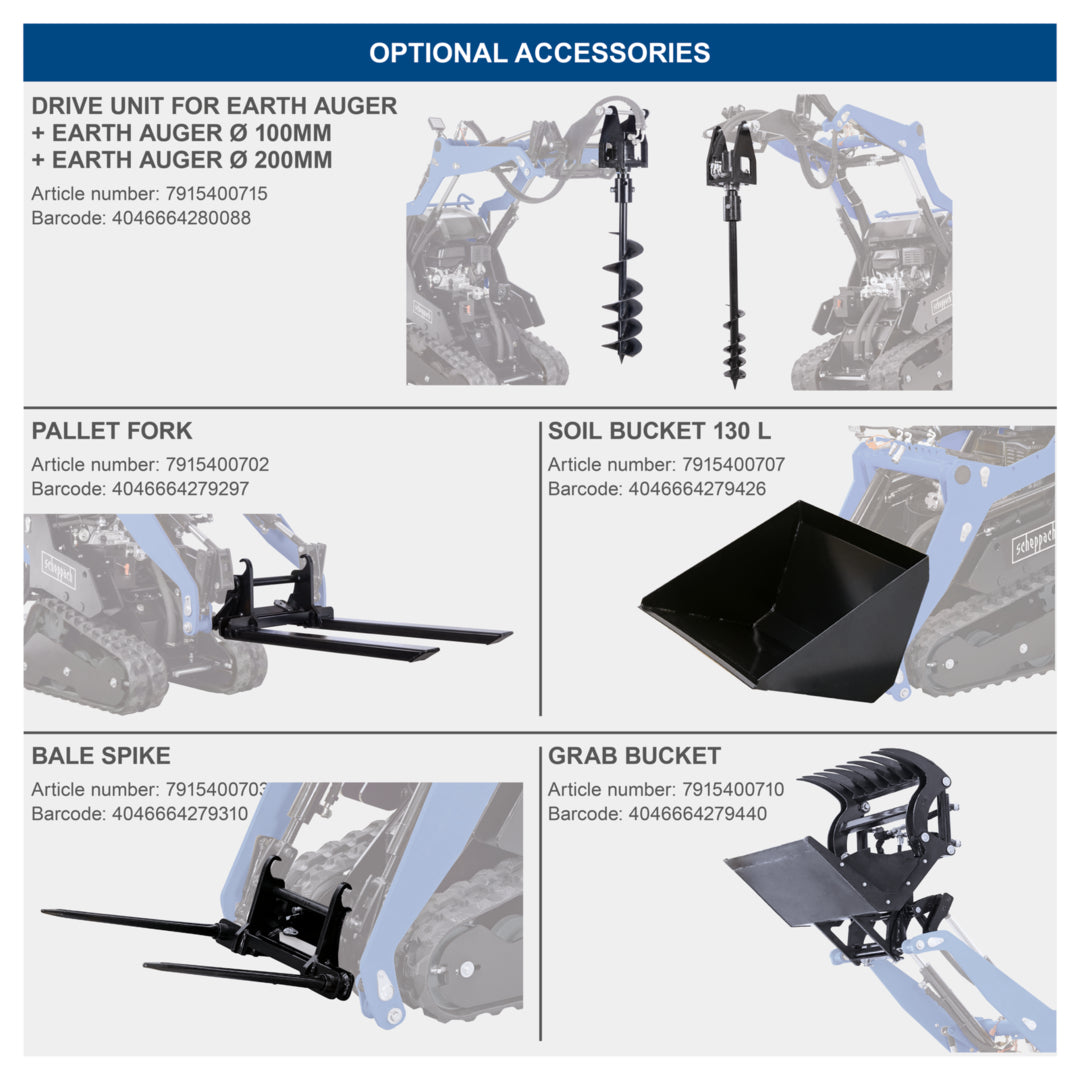

| Attachments & Accessories | |
| Clockwise Rotation Speed | 50 1/min |
| Counter-Clockwise Rotation Speed | 50 1/min |
| Drill Bit (Ø100 mm) Length | 800 mm |
| Drill Bit (Ø200 mm) Length | 800 mm |
| Drill Weight 100 | 7.1 kg |
| Drill Weight 200 | 9.5 kg |
| Weight Drill Holder | 42.5 kg |
| Ball Head Diameter | 50 mm |
| Ball Head Weight | 13 kg |
| Max Attached Weight Ball Head Coupling (Incl. Trailer) | 750 kg |
| Pallet Fork Payload (With 60kg Counterweight Max) | 150 kg |
| Pallet Fork Length | 1036 mm |
| Width of Fork | 550 mm |
| Pallet Fork Weight | 28 kg |

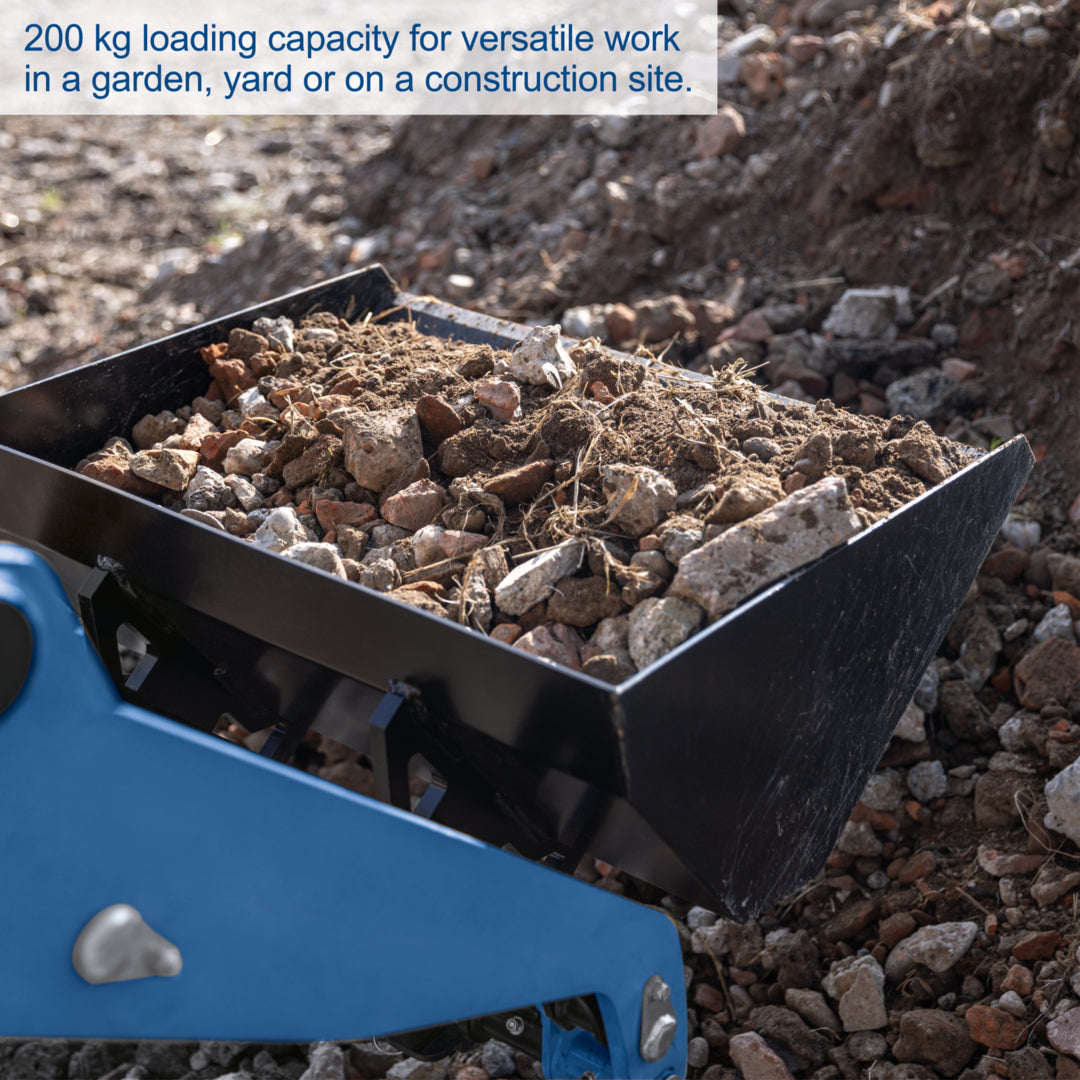

| Earth Bucket Capacity (80 Litres) | 80 l |
| Earth Bucket Dimensions 80L (L x W x H) | 675 mm x 735 mm x 385 mm |
| Weight of Earth Bucket (80 Litres) | 35 kg |
| Earth Bucket 80 Litre Teeth Available? | No |
| Earth Bucket Capacity (130 Litres) | 130 l |
| Earth Bucket Dimensions 130L (L x W x H) | 835 mm x 735 mm x 533 mm |
| Weight of Earth Bucket (130 Litres) | 48 kg |
| Earth Bucket 130 Litre Teeth Available? | No |
| Loading Bucket Capacity / Height | 385 mm |
| Loading Bucket Dimensions (L x W) | 740 mm x 735 mm |
| Loading Bucket Weight | 38 kg |
| Loading Bucket Teeth Available? | Yes |
