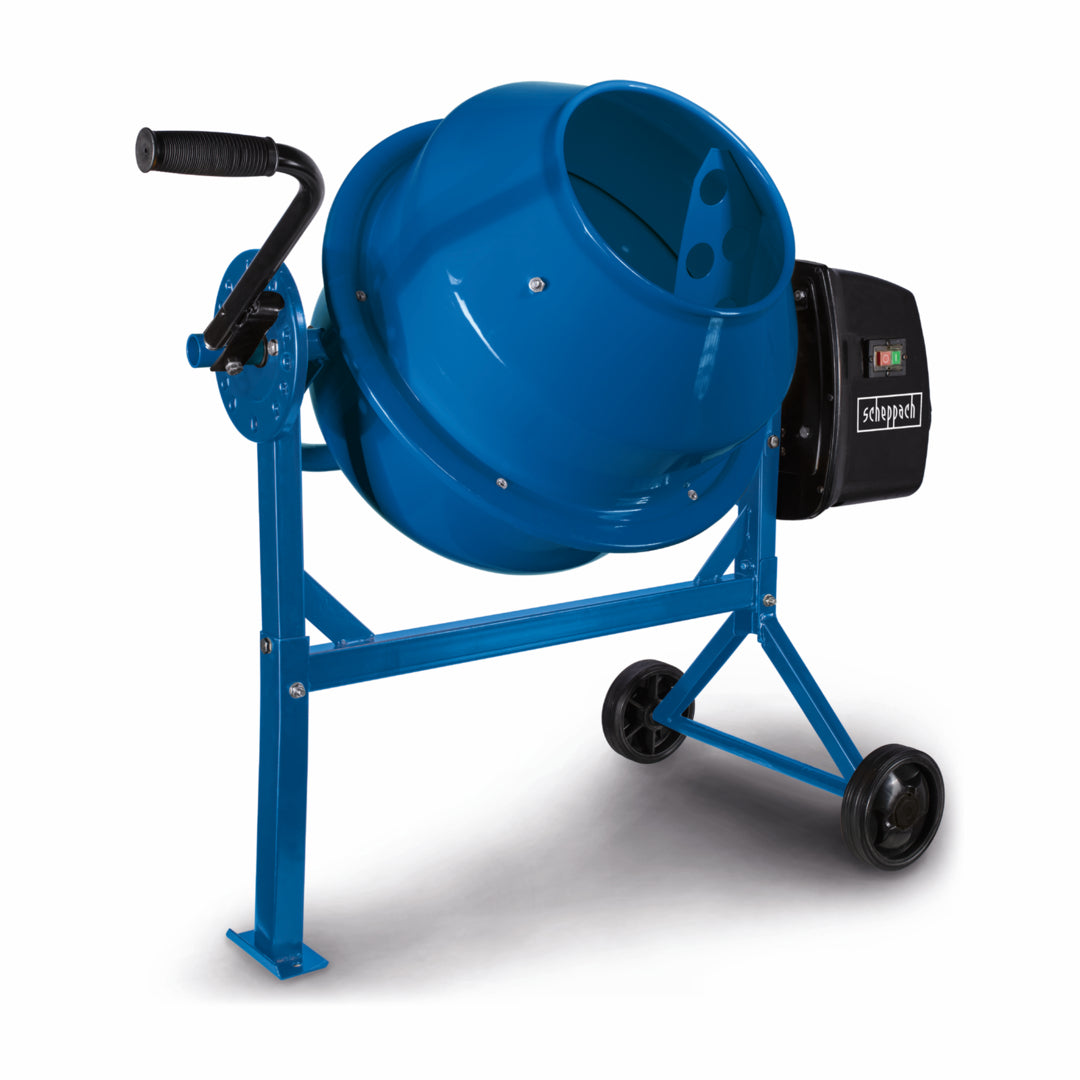

Scheppach MIX65 Cement Mixer 220W 63L Drum
Scheppach MIX65 Cement Mixer 220W 63L Drum
No reviews
Regular price
£199.00
Regular price
Sale price
£199.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Reliable, even mixing engineered for home paving, repair, and garden projects.
Combines a 220W electric motor with a compact 63-litre drum to take the hard work out of blending mortar, concrete, and screed. Easy to fill, maneuver, and tip directly into your wheelbarrow.
Features:

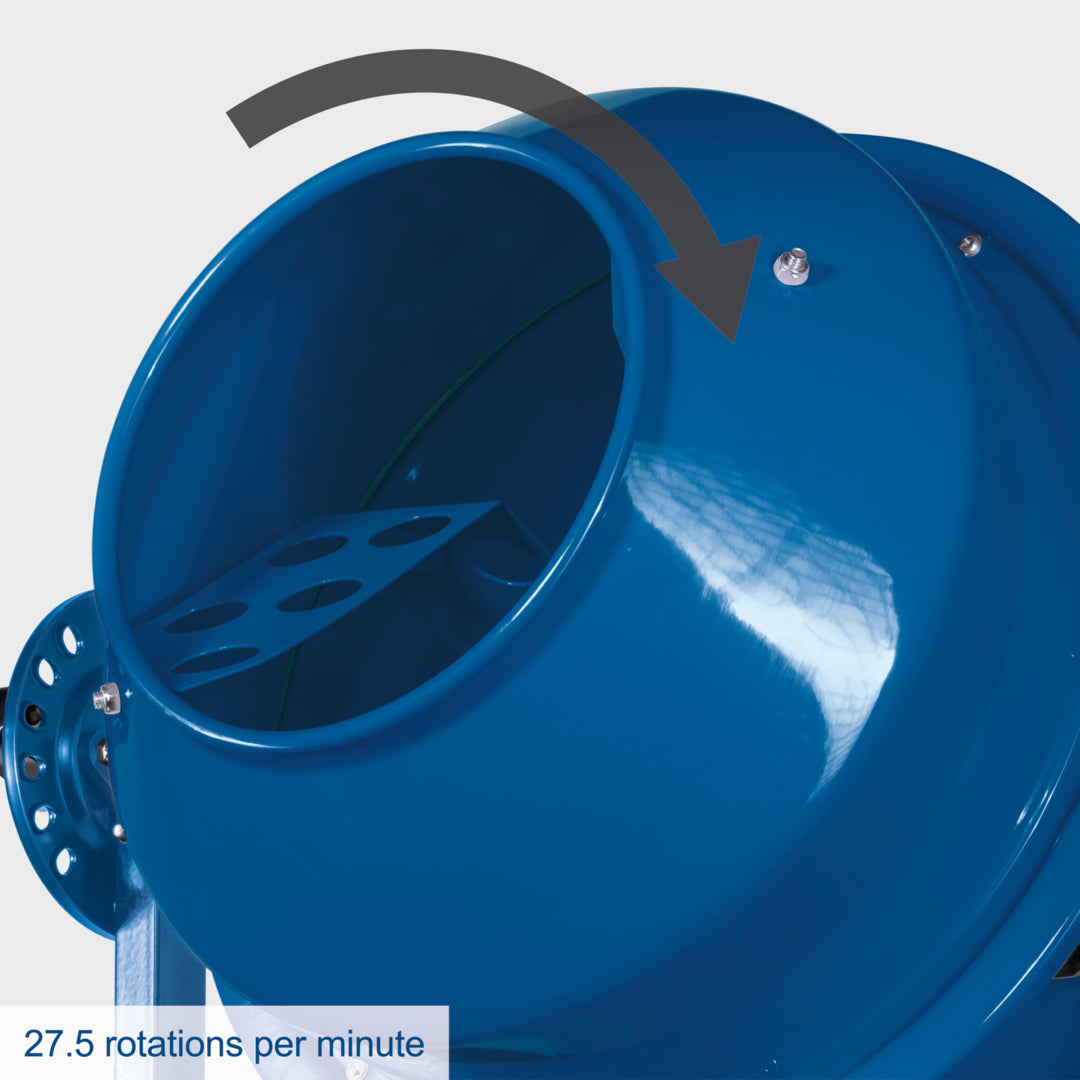

- Dependable Motor Power: Driven by a 220W electric motor rotating the drum at a steady 27.5RPM for uniform, lump-free concrete, render, and mortar mixes.
- Generous 63L Drum Capacity: Supports material loads up to 55kg, making it the ideal size for laying garden paths, pouring small foundations, and executing masonry repairs.

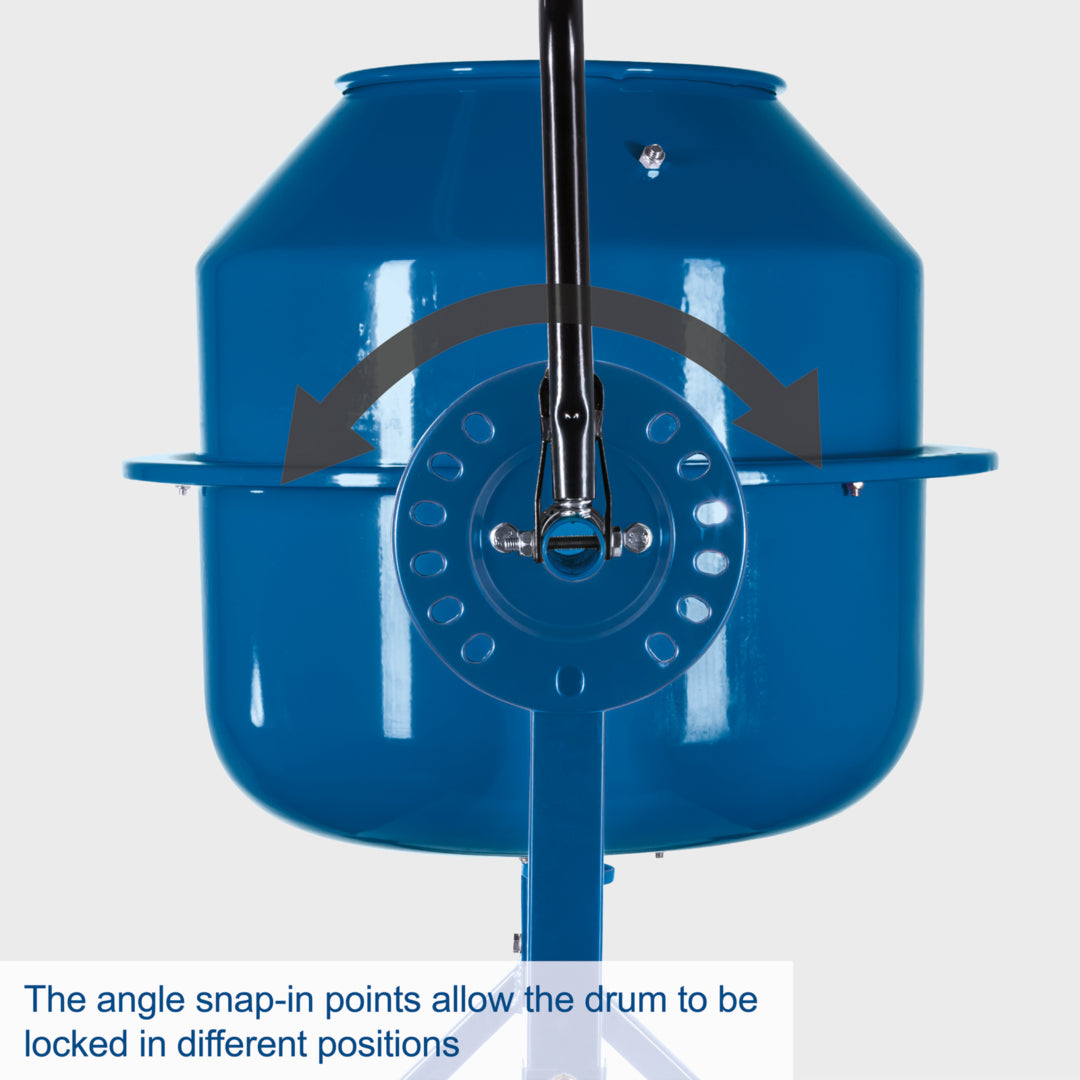

- Easy Loading and Tipping: Designed with a wide 260mm drum opening for hassle-free shovel loading and a low 620mm pivot height for controlled emptying directly into a wheelbarrow.
- Efficient Mobile Design: Weighs just 26kg and features a wide base with large transport wheels, ensuring stability during operation and easy movement around tight garden paths or sheds.
- Clean Workflow: The drum can be safely tipped while rotating, preventing material setup inside the drum and keeping mess on site to a minimum.
Technical Specification
| General Details | |
|---|---|
| Title | Concrete Mixer MIX65 Scheppach (DIY) Great Britain |
| Article Number | 5908408905 |
| Model Description | MIX65 |
| Machine Group | Concrete Mixer |
| EAN | 4046664284086 |
| Mass Gross | 29.4 kg |
| Mass Net | 25.4 kg |
| General Dimensions (L x W x H) | 1144 mm x 520 mm x 942 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Induction Motor |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Power Consumption in Operating Mode 1 | 220.0 W |
| Maximum Engine Speed | 2850.0 1/min |
| Appliance Class | Class II |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class Electro | IP 44 |
| Motor Protection | Yes |
| Cable Length | 3000 mm |
| Concrete Mixer Specifications | |
| Drum Volume | 63.0 l |
| Drum Volume Max | 55.0 kg |
| Drum Opening | 260.0 mm |
| Drum Speed Max | 27.5 1/min |
| Drum Swivel Centre Height | 620.0 mm |
| Gear Specification (Transmission Ratio) | 10,8:1 |
| Wheel Dimensions (Diameter x Width) | 145.0 mm x 45.5 mm |
| Distance Between the Wheels | 423.0 mm |
| Delivery Content | |
| Delivery Content Text | 1x Engine, 1x Drum upper section, 1x Bearing bracket, 1x Drum lower section, 1x Instruction Manual, 1x Bag provided, 1x Mixer, 1x Supporting stand with wheel axle, 1x Locking washer, 1x Frame, 1x Swivel handle, 1x Supporting stand, 1x Transport wheels |
SKU: D-SCH-5908408905
MPN: 5908408905
ID: D-SCH-5908408905
View full details
