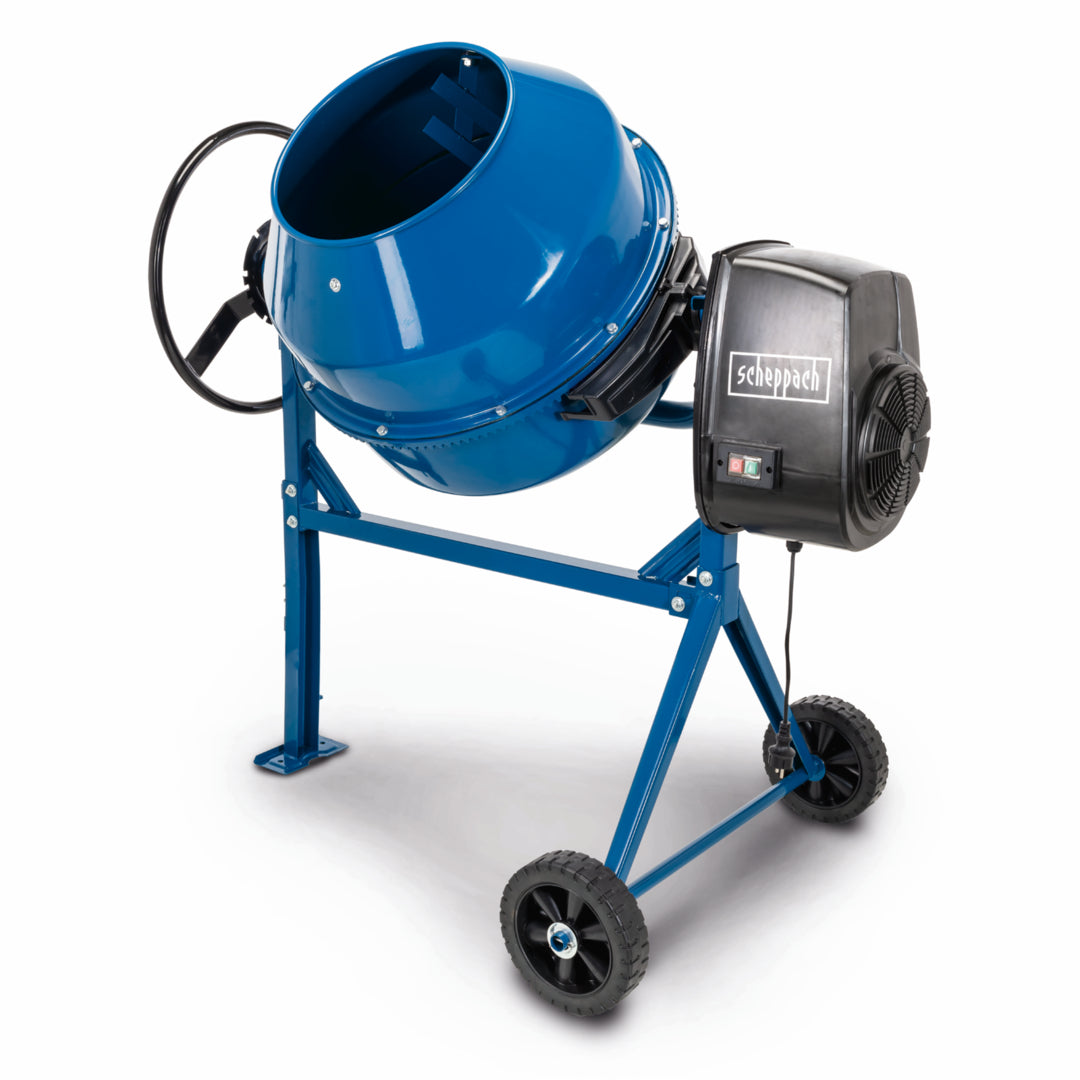

Scheppach MIX160 Cement Mixer 650W 160L Drum
Scheppach MIX160 Cement Mixer 650W 160L Drum
No reviews
Regular price
£329.00
Regular price
Sale price
£329.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

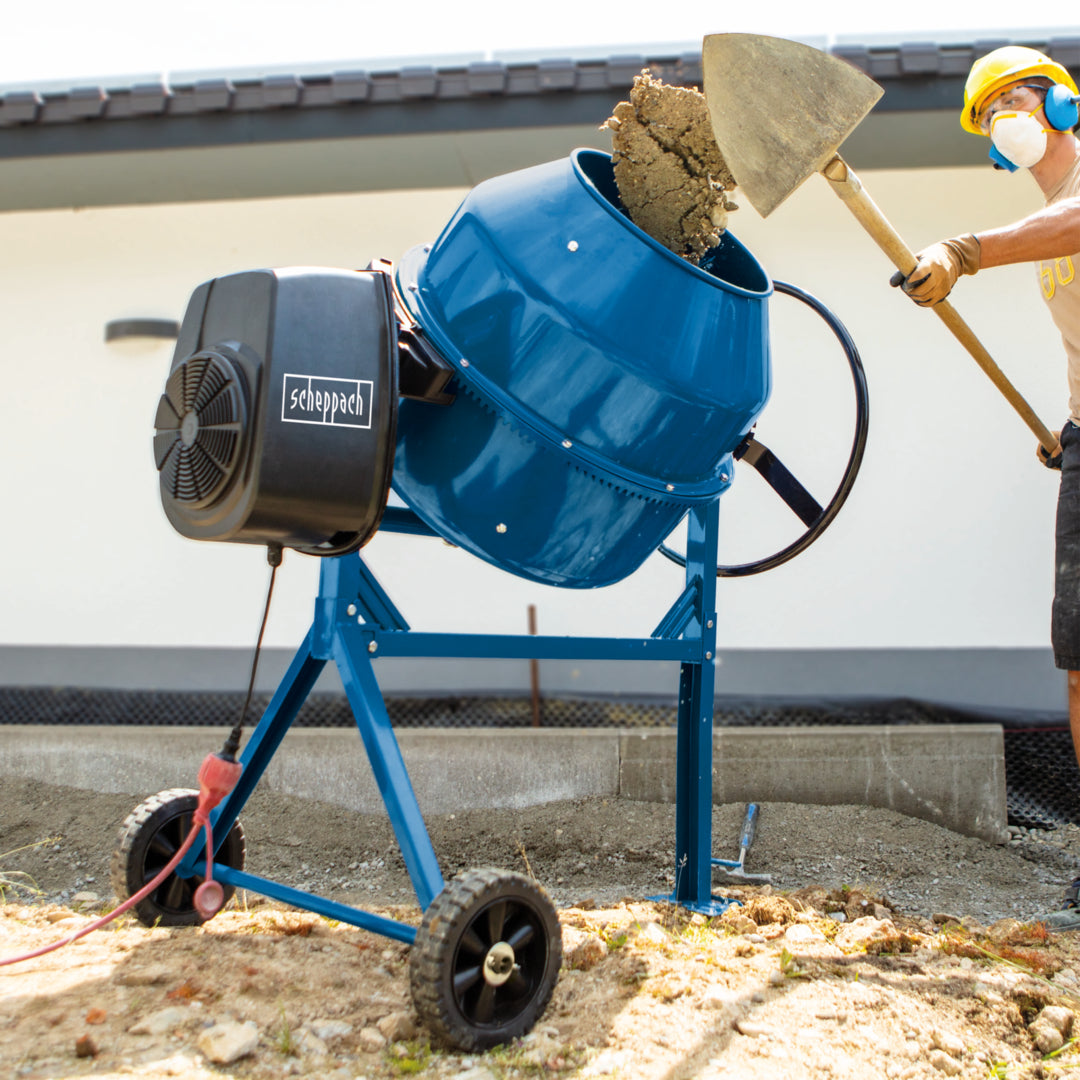

Tackle demanding site and landscaping projects with high-capacity mixing power.
This heavy-duty electric concrete mixer pairs a robust 650W motor with a generous 160-litre drum to handle larger batches of mortar, render, and concrete. Designed for trade sites and domestic build projects, it delivers consistent mixing performance with dependable stability.
Features:
- High-Capacity 160-Litre Drum: Features a welded drum base capable of holding up to 114 kg of material, allowing you to prepare bigger batches in fewer mixes.

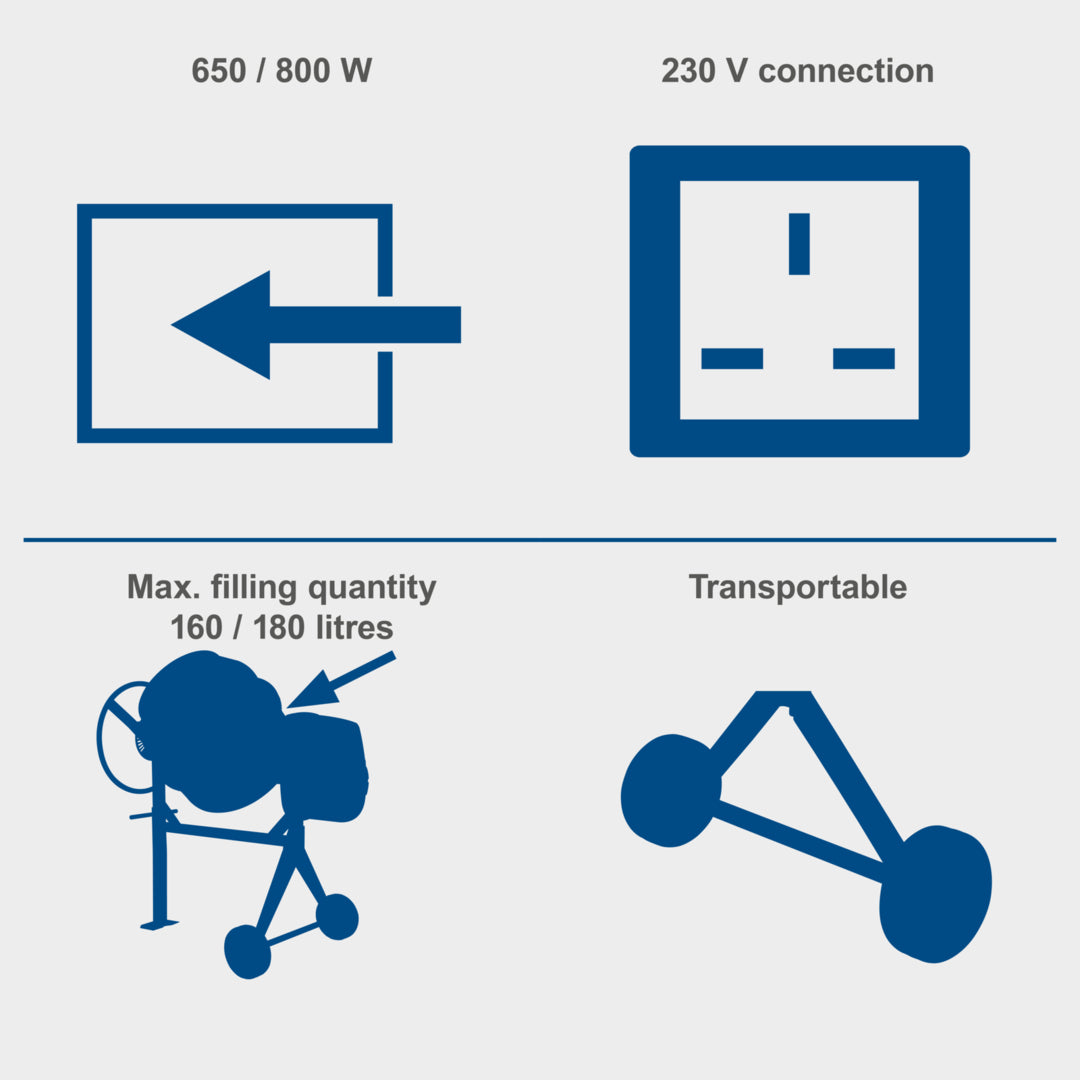

- Dependable 650W Electric Motor: Drives the drum at 29.5 rpm to produce smooth, thorough mixes across concrete, screed, mortar, and garden compost.

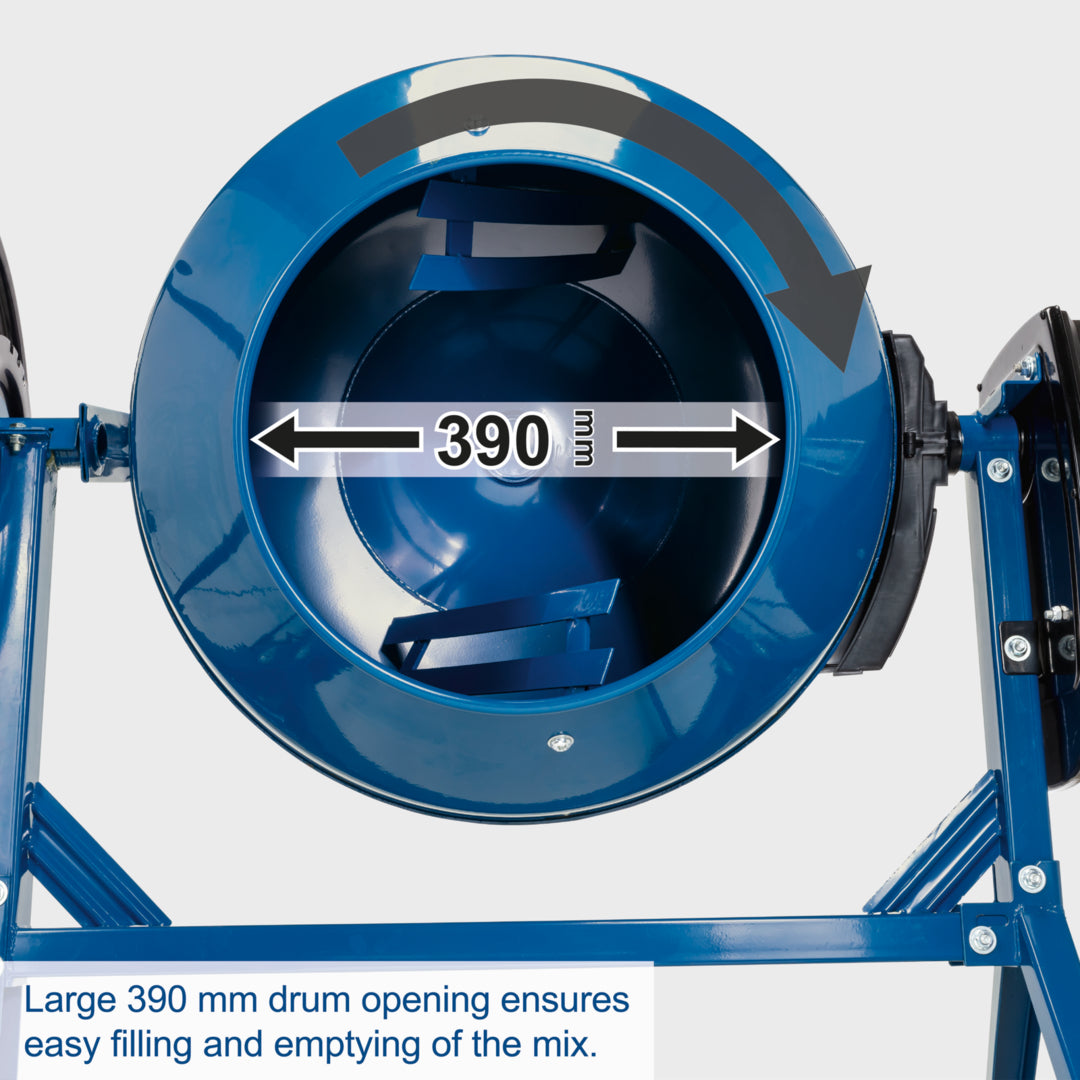

- Generous 390 mm Drum Opening: Allows quick, hassle-free loading with a shovel and provides clear visibility during the mixing process.

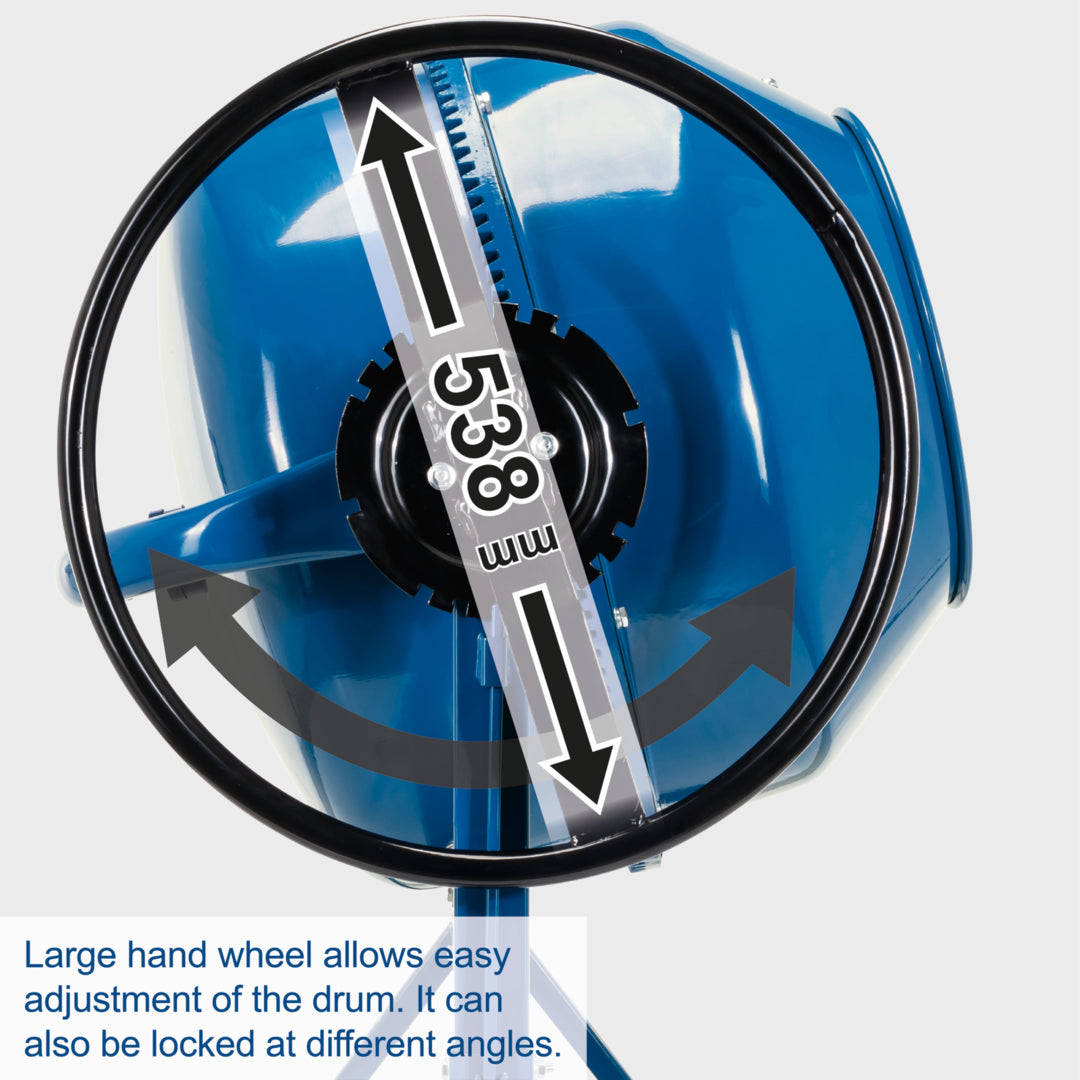

- Controlled Tipping Mechanism: Equipped with a large hand wheel for smooth tipping, enabling precise emptying directly into a wheelbarrow while the drum rotates.

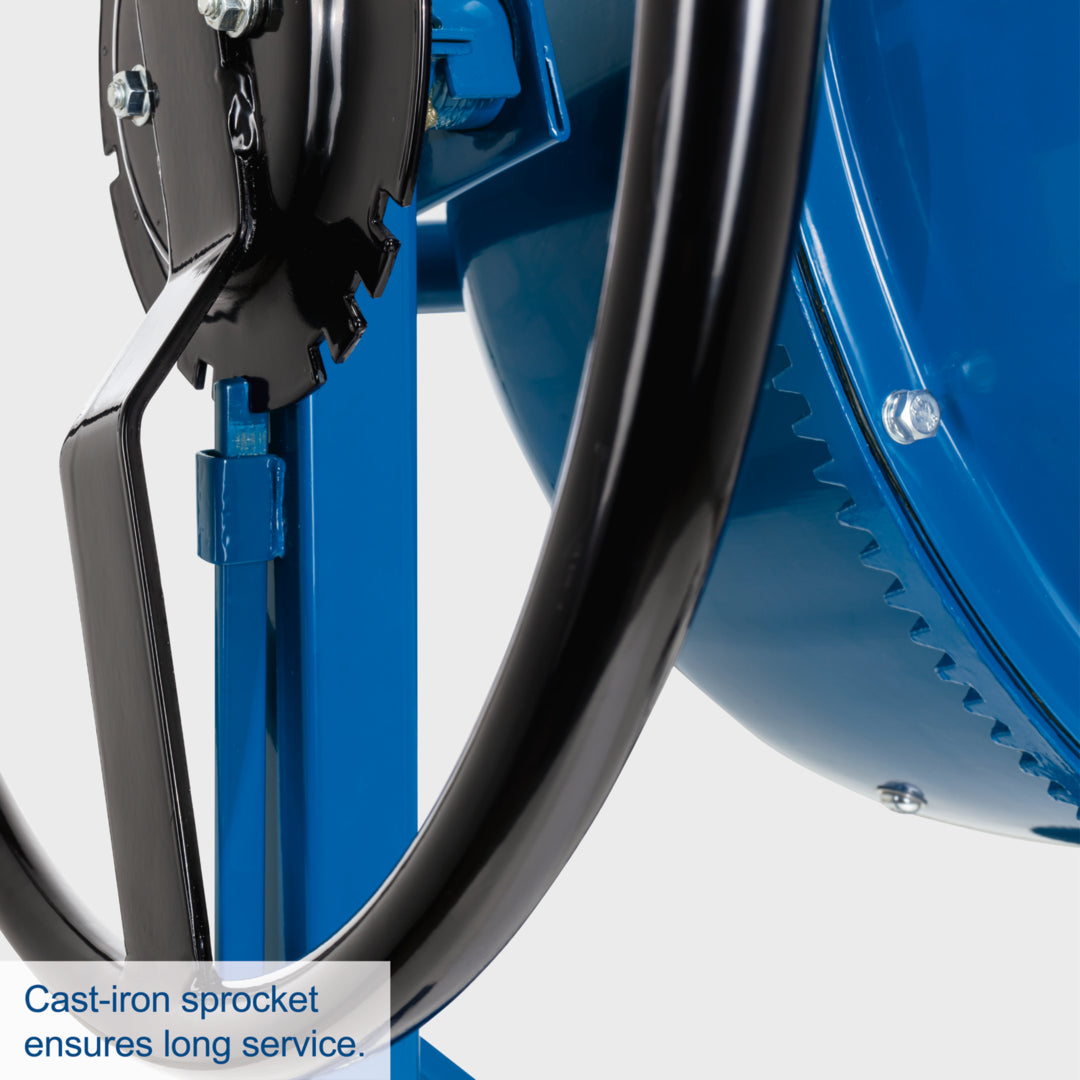

- Cast Iron Gear Transmission: Built with a durable grey cast iron ring gear and fully enclosed drive for long service life under heavy site conditions.
- Protected Motor Housing: Features a labyrinth design to shield the motor from water splashes, along with dual fan cooling to prevent overheating.
- Wide Base for Mobile Stability: Supported by a broad base plate and two large transport wheels set 708 mm apart for effortless movement across rough ground.
Technical Specification
| General Details | |
|---|---|
| Title | Concrete Mixer MIX160 Scheppach (DIY) Great Britain |
| Model Description | MIX160 |
| Machine Group | Concrete Mixer |
| Article Number | 5908405905 |
| EAN | 4046664284147 |
| Net Weight | 53.8 kg |
| Gross Weight | 58.8 kg |
| Dimensions (L x W x H) | 1260.0 mm x 846 mm x 1288 mm |
| Concrete Mixer Performance Data | |
| Drum Volume | 160.0 l |
| Drum Volume Max | 143 kg |
| Drum Opening | 390.0 mm |
| Drum Speed Max | 29.5 1/min |
| Hand Wheel Diameter | 538.0 mm |
| Gear Specification (Transmission Ratio) | 1:10 |
| Wheel Diameter | 230.0 mm |
| Distance Between Wheels | 708.0 mm |
| Drive & Electrical Specifications | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Voltage / Frequency | 230 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 650.0 W |
| Nominal Current | 2.94 A |
| Type of Motor Electro | Induction Motor |
| Maximum Engine Speed | 2750.0 1/min |
| Motor Protection | Yes |
| Degree of Protection | IP 45 |
| Cable Length | 3000 mm |
| Plug Type | UK plug (Class II) |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 92.8 dB |
| Sound Pressure Level Lp(A) | 90.01 dB |
| Uncertainty KpA / KwA | 1.3 dB / 1.3 dB |
| Delivery Content | |
| Delivery Content Text | 2x Mixing unit, 1x Engine unit, 2x Transport wheels, 1x Swivel wheel, 1x Foot, 1x Drum upper section, 1x Drum lower section, 1x Frame middle section, 1x Foot with wheel axle, 1x Locking disc, 1x Bearing support, 1x Locking plate, 1x Actuating rod, 1x Extension rod, 8x Enclosed accessories bag, 1x Operating manual |
