Scheppach HSC130 Stone Cutter

Scheppach HSC130 Stone Cutter

Online Exlusive
Regular price £249.00
Regular price Sale price £249.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Free standard delivery on this item

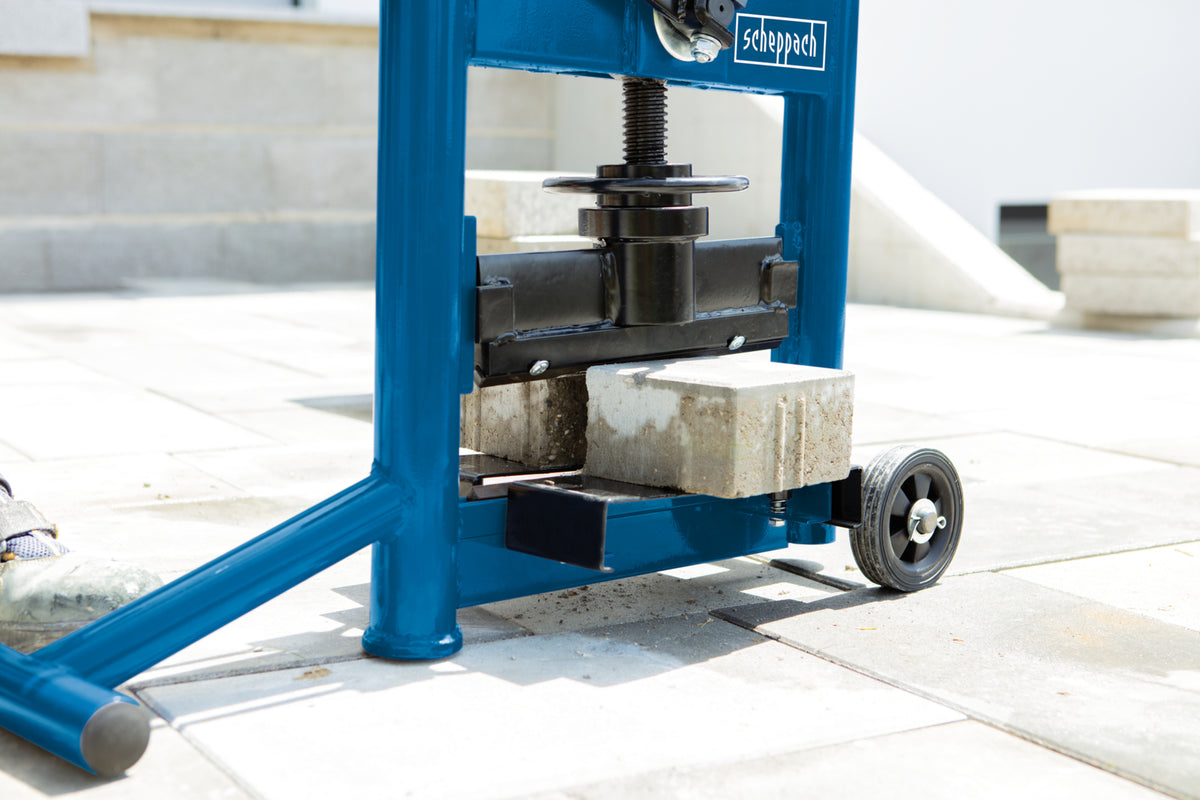

Cut paving stones, slabs, and kerbstones cleanly with low-effort mechanical power.

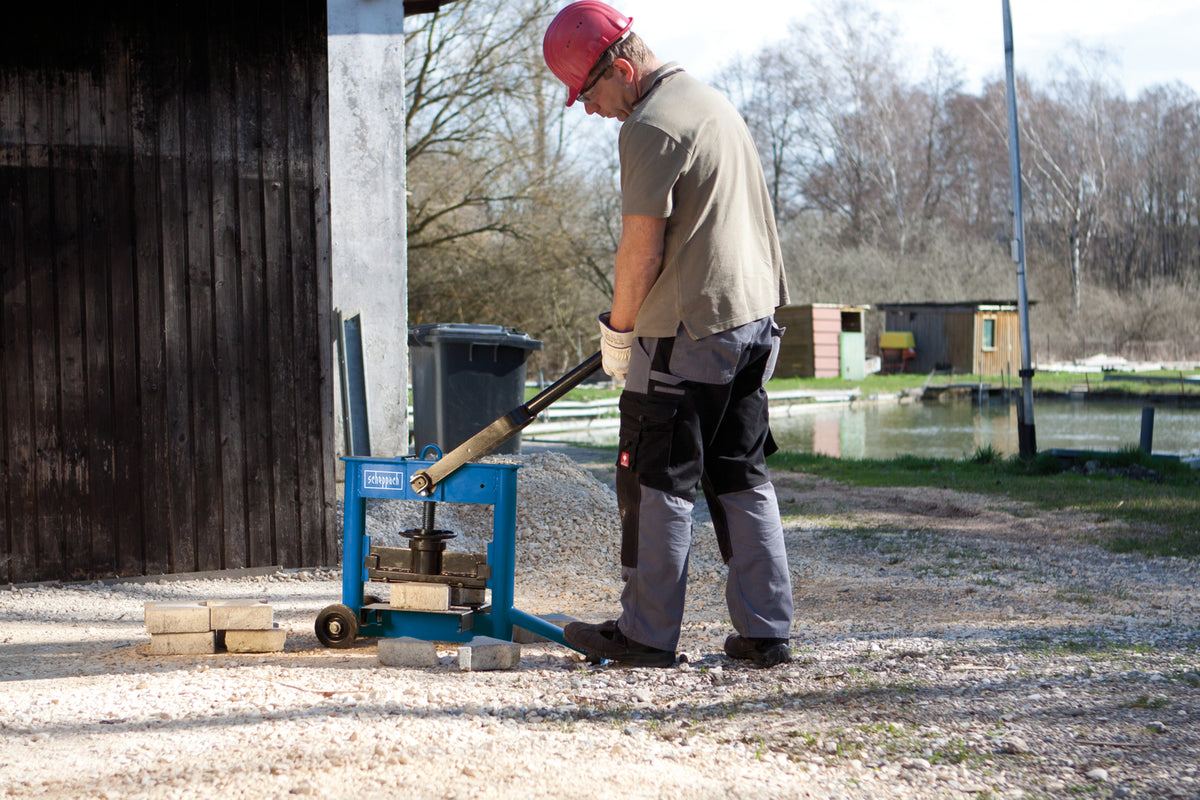

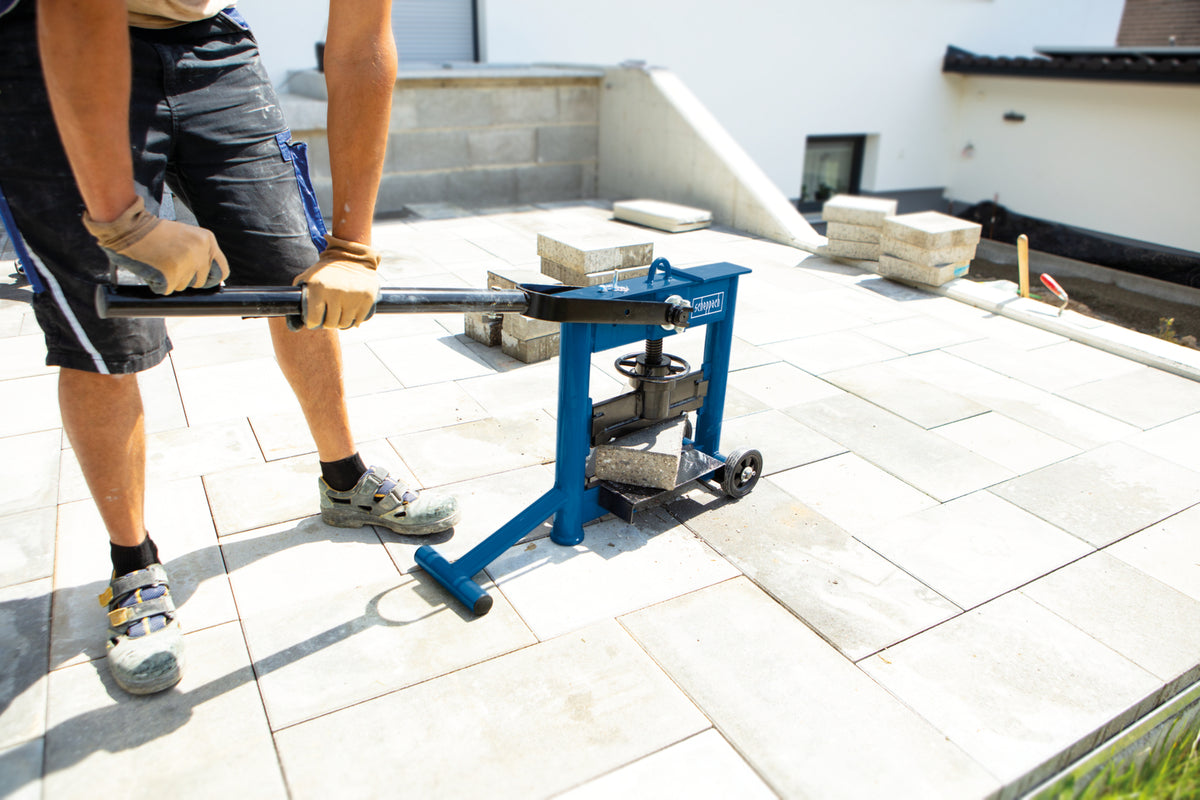

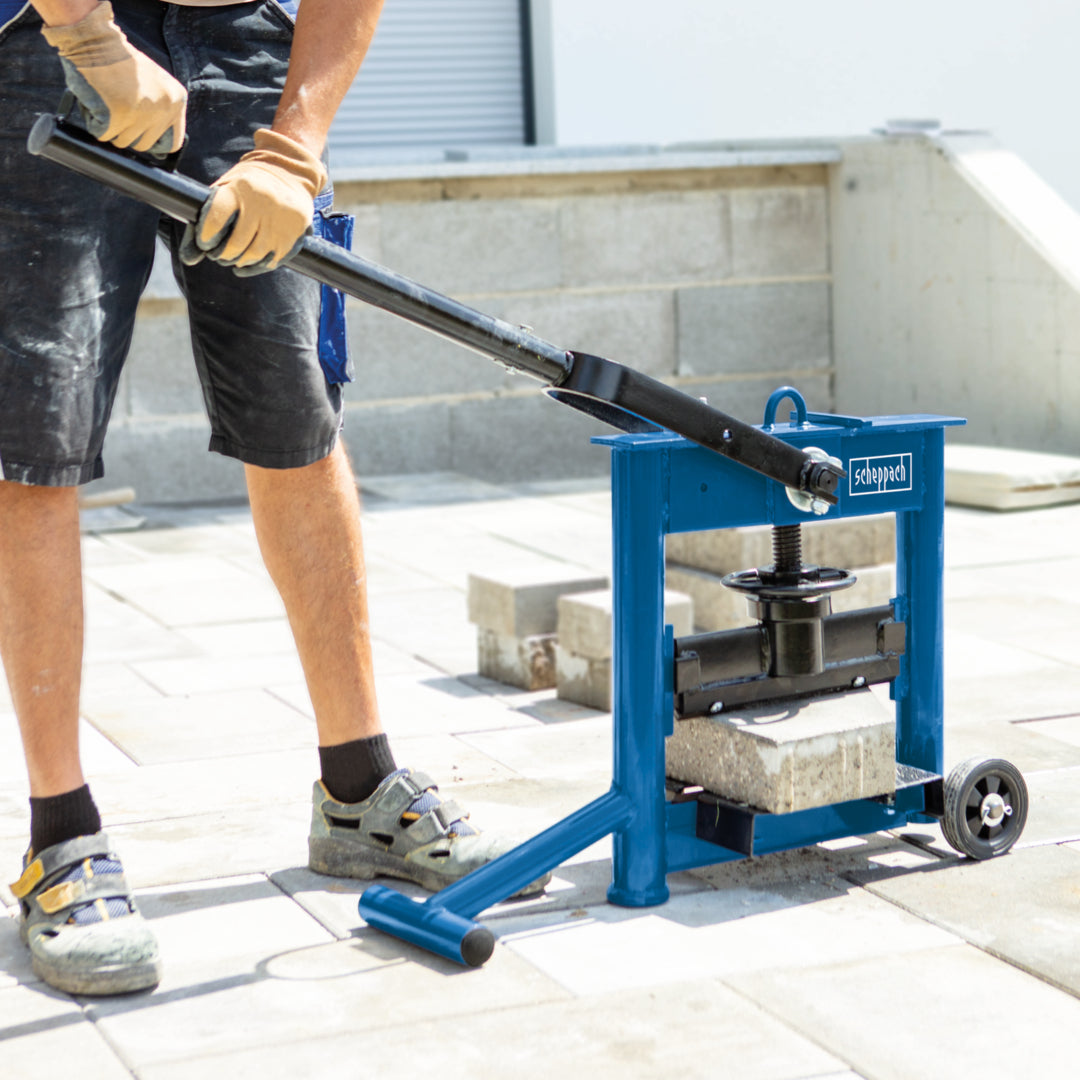

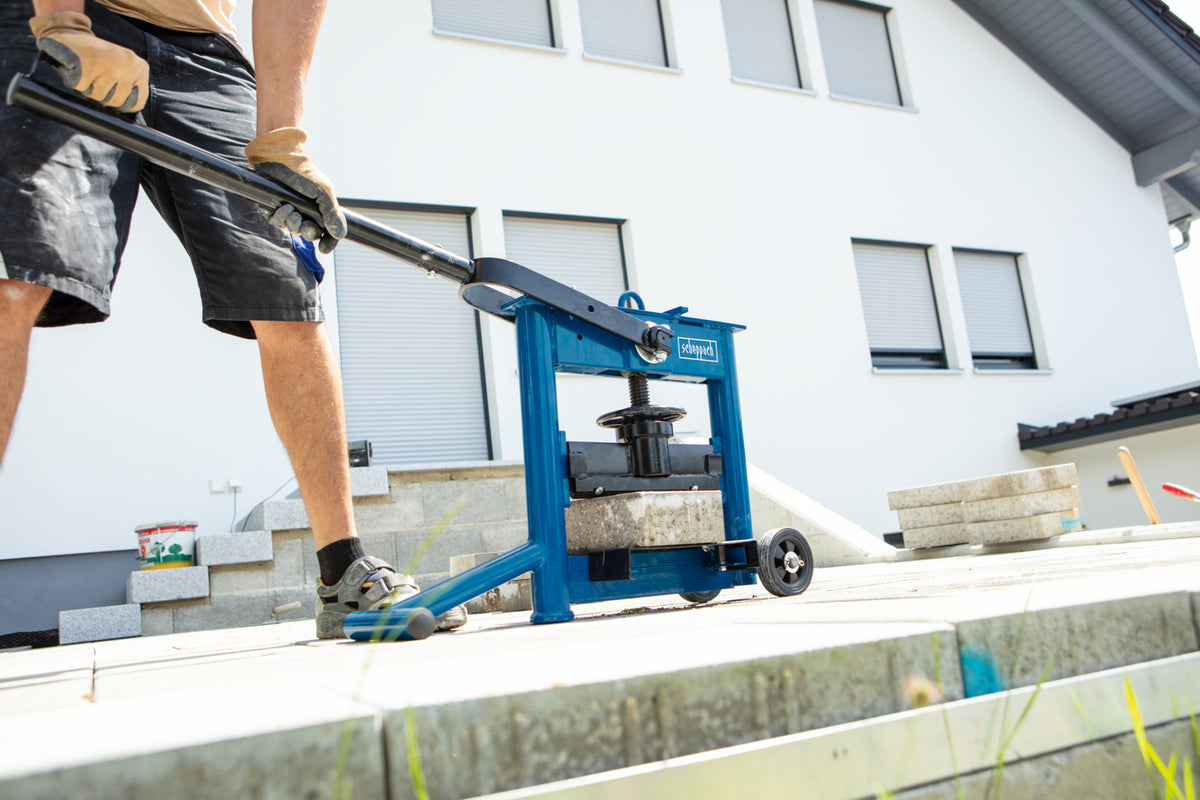

This robust manual stone splitter combines a central height-adjustment spindle with a long telescopic lever to process paving materials effortlessly. Designed with spring-loaded table supports and a wheeled frame, it delivers dust-free, silent splitting across your landscaping and building sites.

Features:

  • Dust-Free and Silent Operation: Manual lever operation eliminates hazardous airborne masonry dust and loud noise, making it ideal for residential areas and indoor projects.

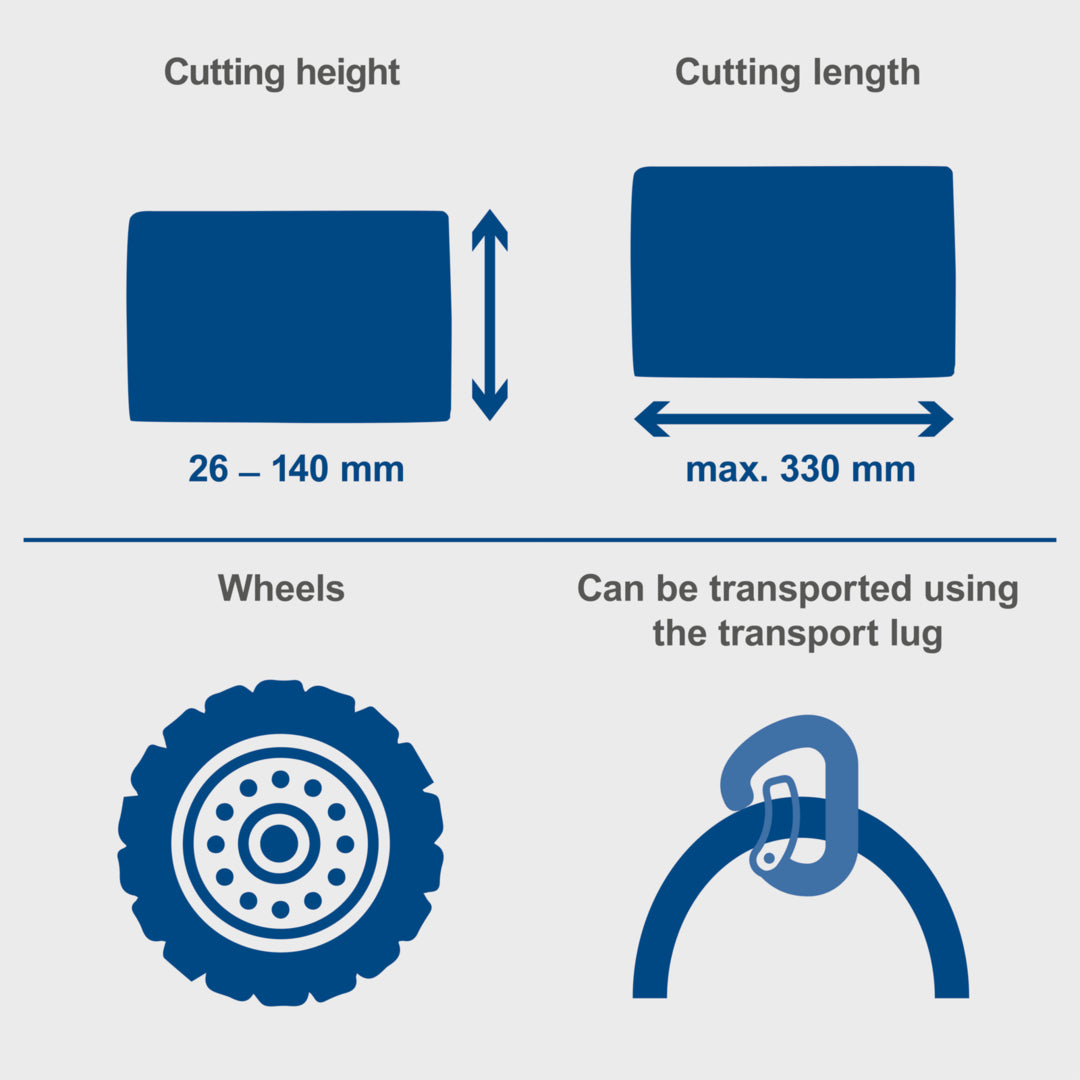

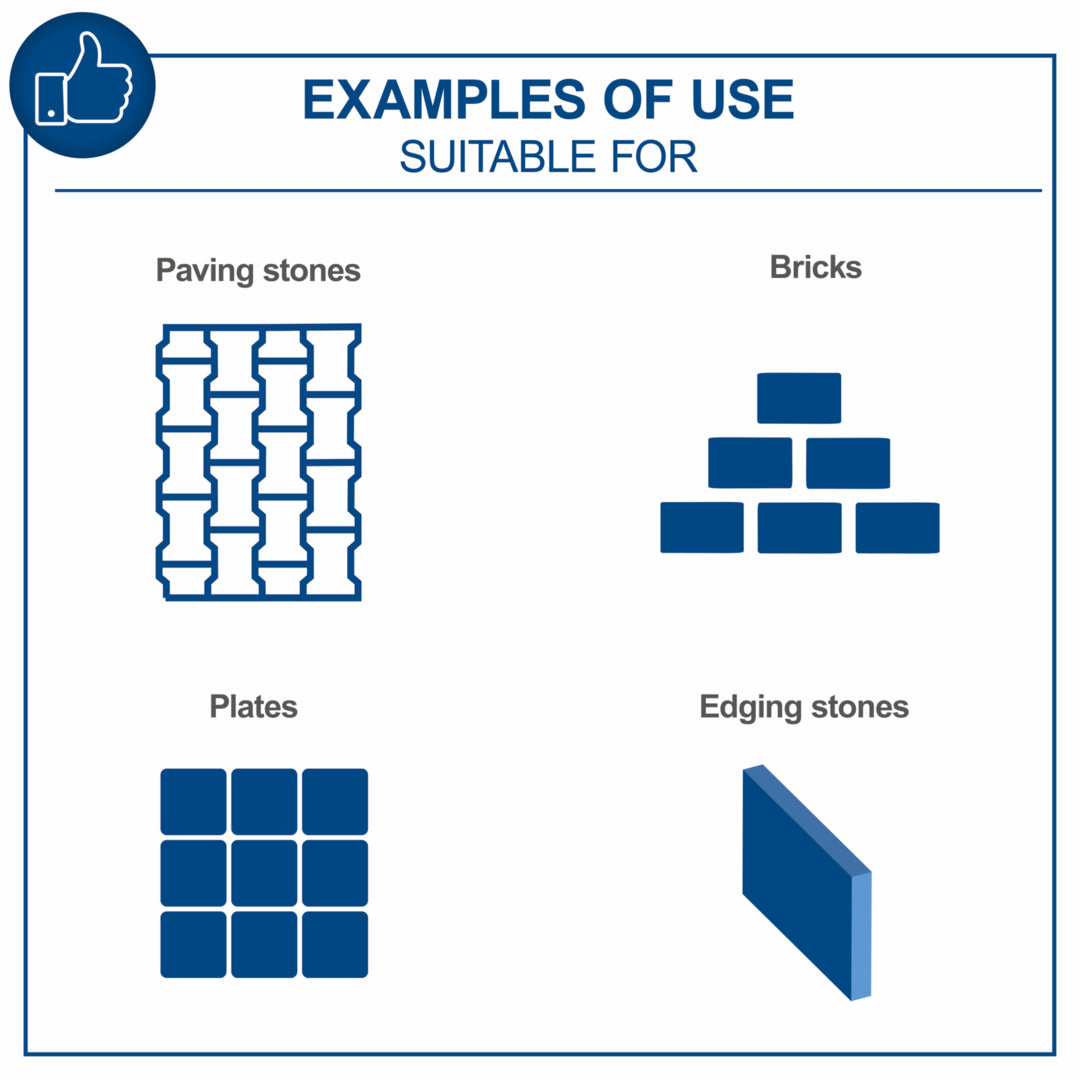

  • Generous Cutting Capacity: Handles paving stones, interlocking blocks, and kerbstones up to 330 mm in length and up to 140 mm in height.

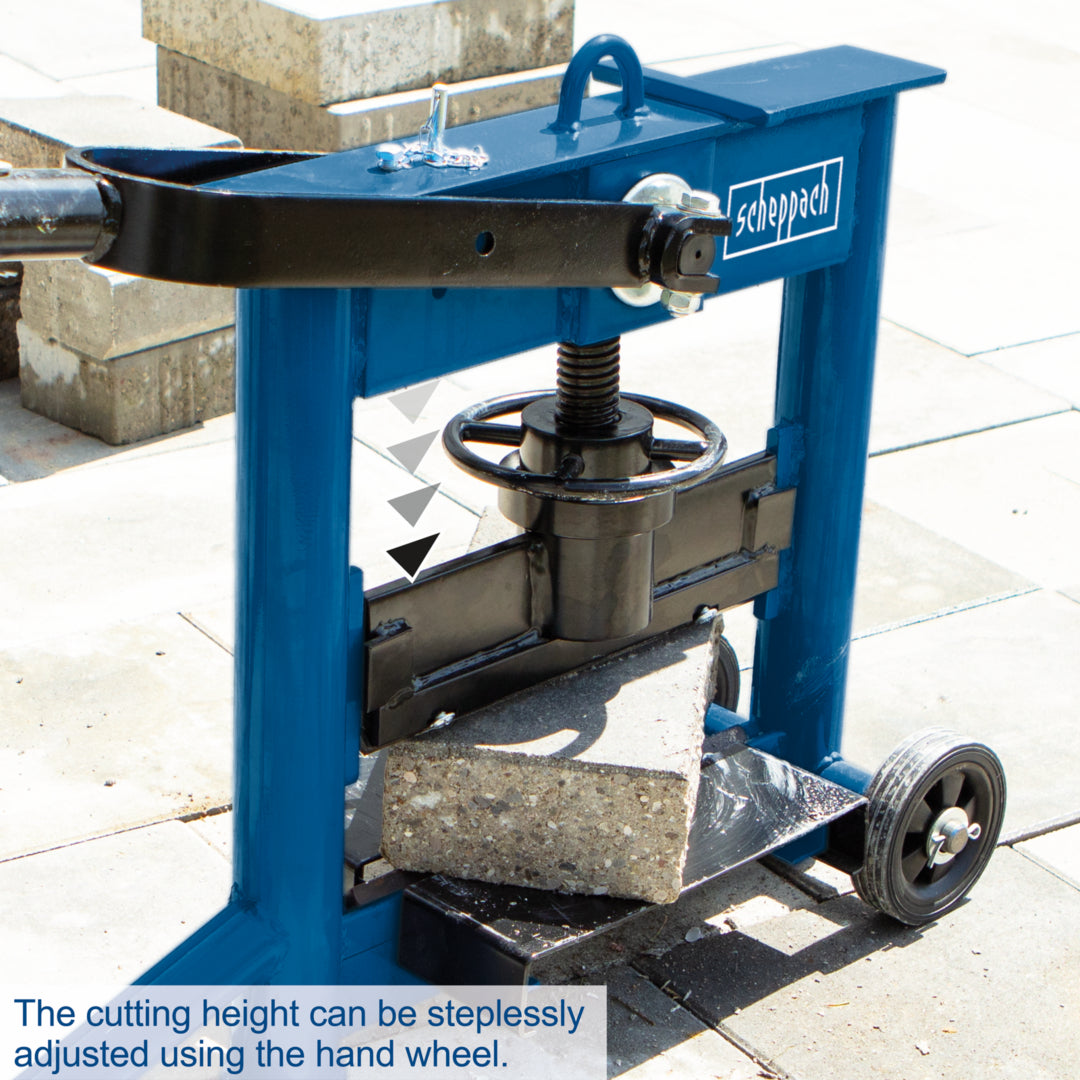

  • Central Spindle Height Adjustment: Threaded spindle adjusts the top cutting bar continuously to match varying stone thicknesses quickly and accurately.

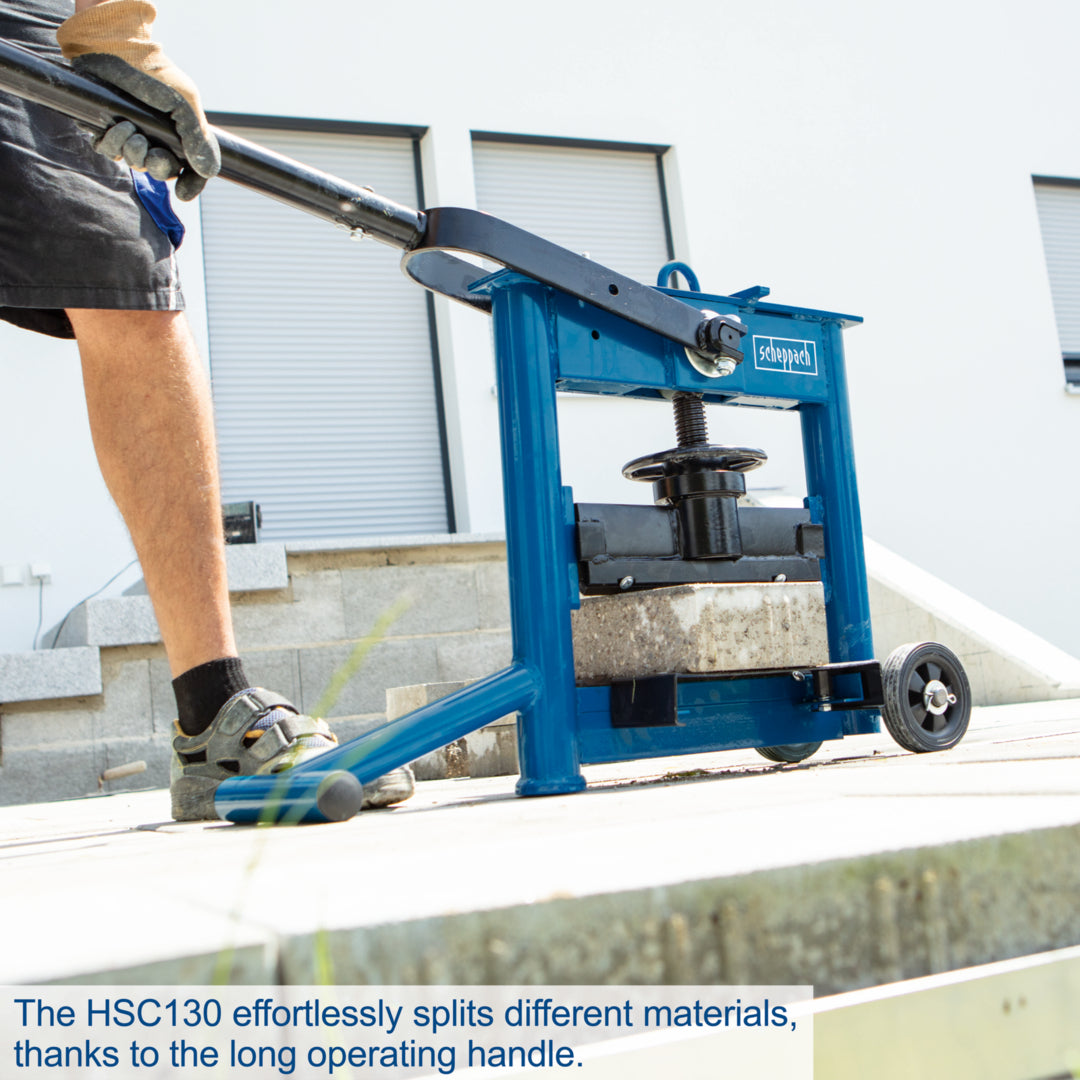

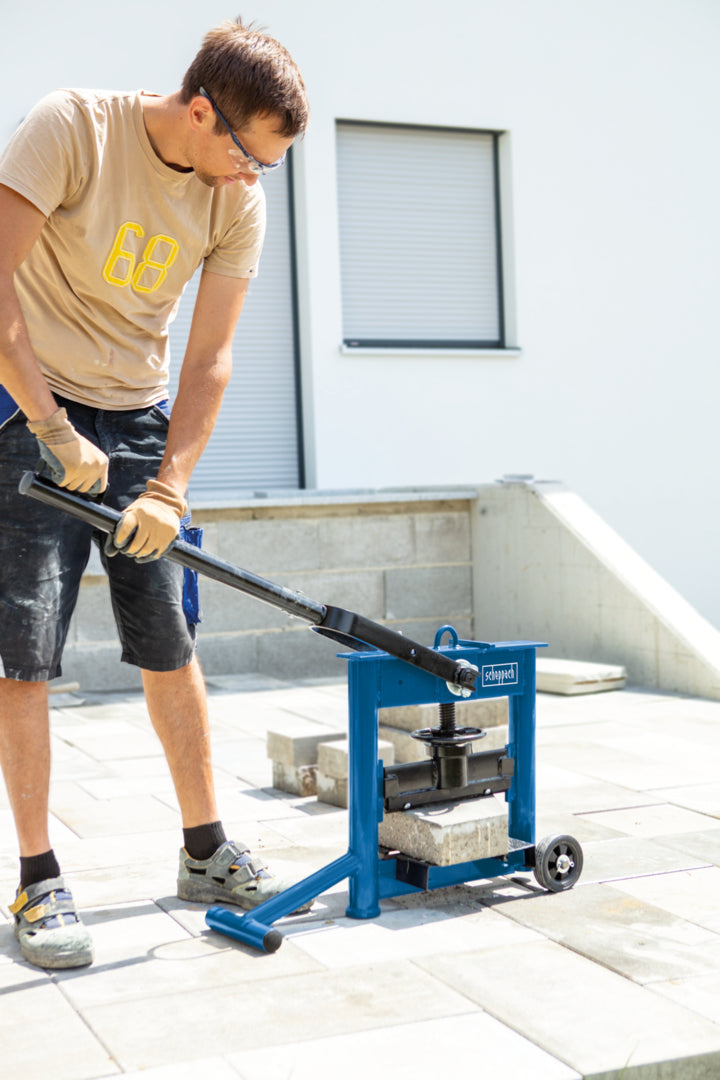

  • Long Telescopic Lever: Extended handle maximises leverage, allowing clean splits through dense concrete and natural stone with minimal physical effort.
  • Spring-Loaded Table Supports: Supporting plates cushion the stone during pressure application, helping to ensure straight, predictable splits every time.
  • Reversible 4-Edge Blades: Features hard-wearing square cutting blades with four usable edges that can be rotated easily to maintain a sharp splitting edge.
  • Stable 41 kg Steel Frame: Heavy-duty construction provides a steady base on site, ensuring accurate alignment under high splitting forces.

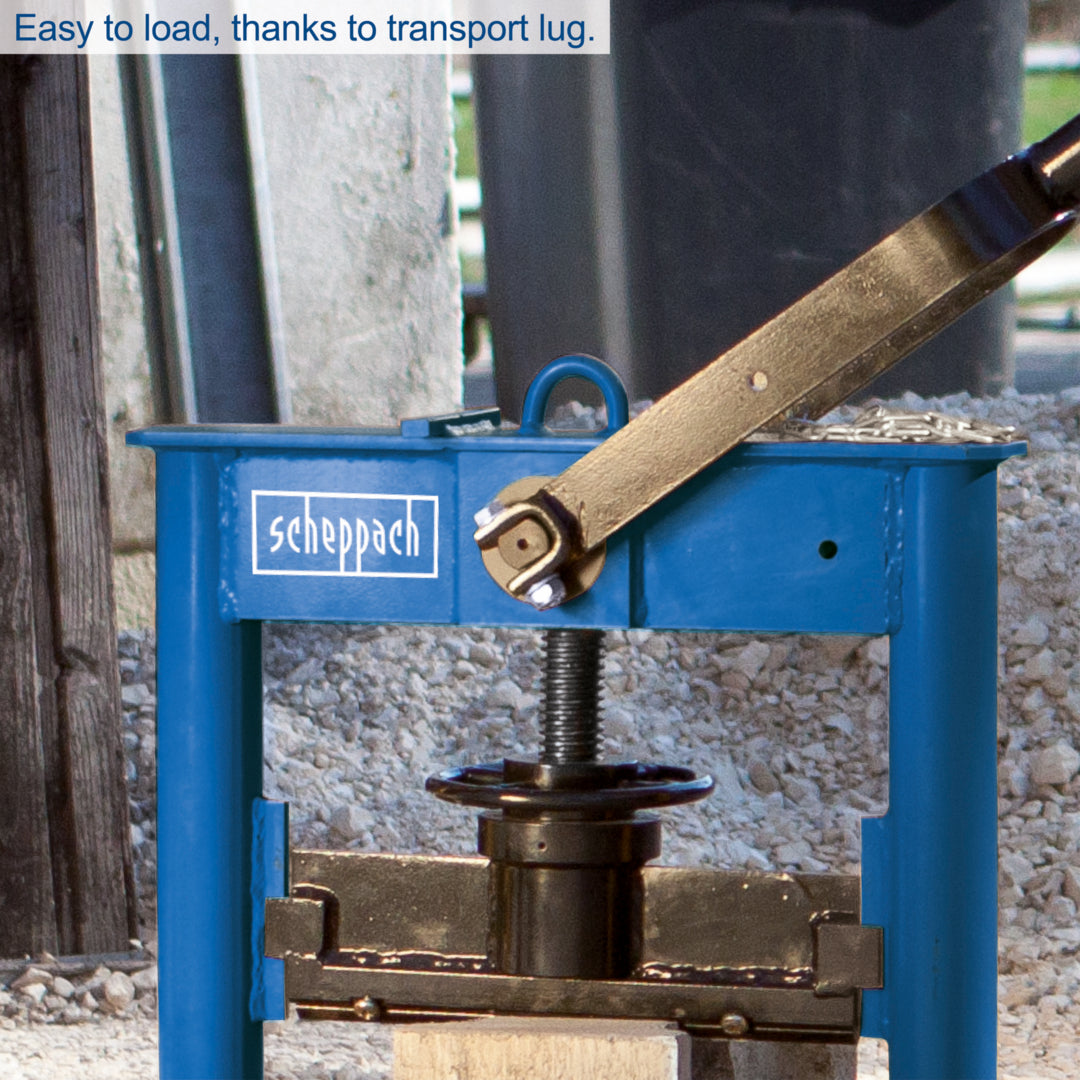

  • Integrated Transport Wheels: Built-in wheels and handle allow you to roll the machine across uneven ground to your workspace without heavy lifting.

Technical Specification

General Details
Title Stone separator HSC130 scheppach (DIY)
Model Description HSC130
Machine Group Stone divider
Article Number 5908501900
EAN 4046664024026
Net Weight 39.4 kg
Gross Weight 41.5 kg
General Dimensions (L x W x H) 1270.0 mm x 265.0 mm x 565.0 mm
Stone Cracker Performance & Cutting Specifications
Cutting Height Range (Min / Max) 25.0 mm – 140.0 mm
Maximum Cutting Length 330.0 mm
Number of Knives 2 pieces
Knife Length (Top / Bottom) 330.0 mm / 330.0 mm
Knife Dimensions (W x Thickness) 12.0 mm x 12.0 mm
Knife Material Steel Q235-A
Work Table Top Dimensions (L x W x H) 288.0 mm x 100.0 mm x 120.0 mm
Work Table Top Material Steel Q235-A
Drive Specifications
Drive Type General No drive
Subgrouping Drive Type No drive
Battery or Rechargeable Battery Included No
Scope of Delivery

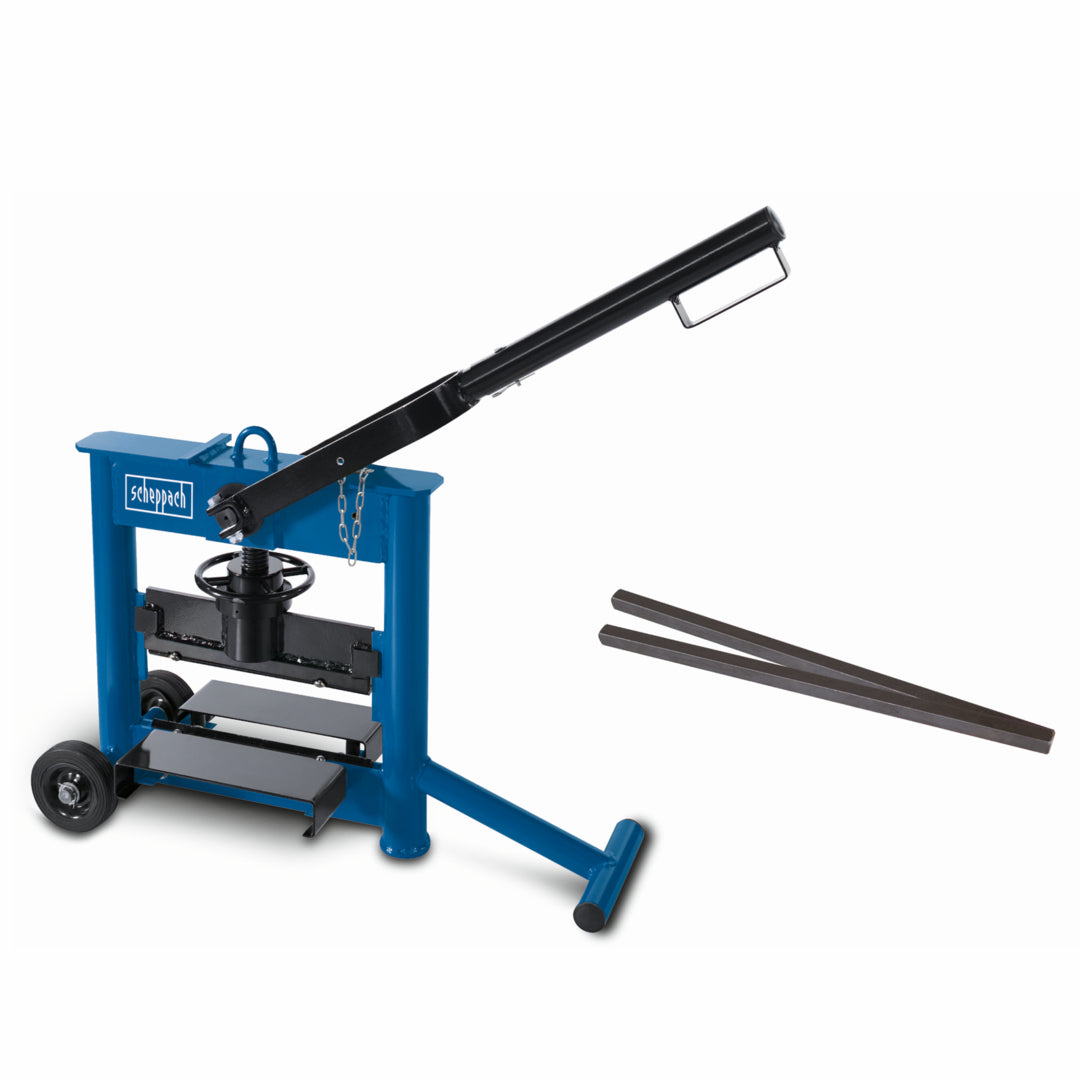

Scope of Delivery Text • Stone cutter with upper and lower blades • Extension tube for cutting lever
