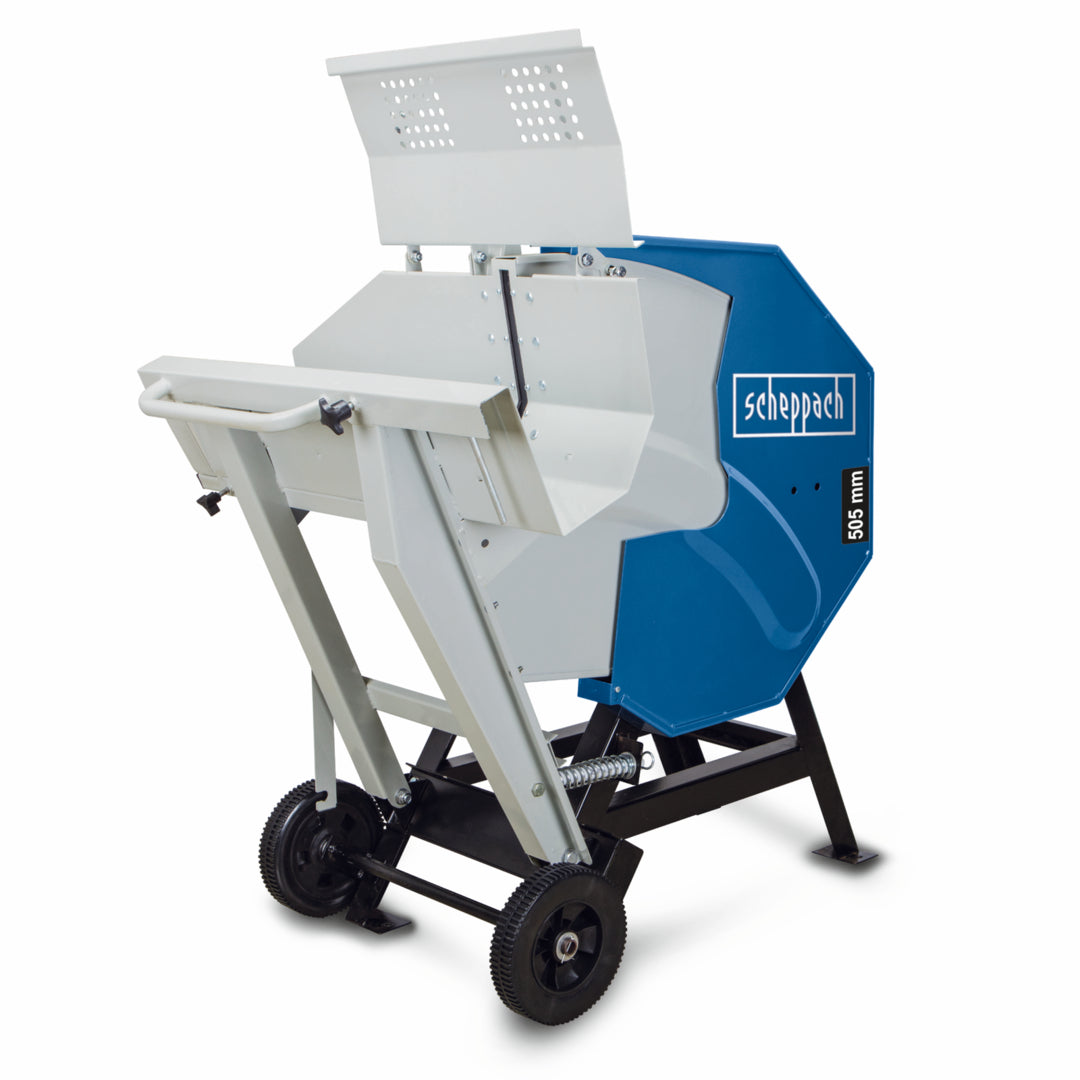

Scheppach HS510 Tilting Log Saw 3000W
Scheppach HS510 Tilting Log Saw 3000W
No reviews
Regular price
£649.00
Regular price
Sale price
£649.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Prepare firewood safely and efficiently with hard-wearing workshop power.
This heavy-duty tilting log saw combines a high-performance 3000W motor with a 505 mm tungsten carbide-tipped blade to make quick work of winter fuel preparation. Designed for home users, outdoor workspaces, and smallholdings, it brings reliable safety and speed to log processing tasks.
Features:
- High-Performance 3000W Motor: Delivers dependable cutting power to drive through dense timber without stalling during regular firewood preparation.
- 505 mm TCT Saw Blade: Fitted with a durable tungsten carbide-tipped blade that delivers clean cuts and maintains a sharp edge over extended use.

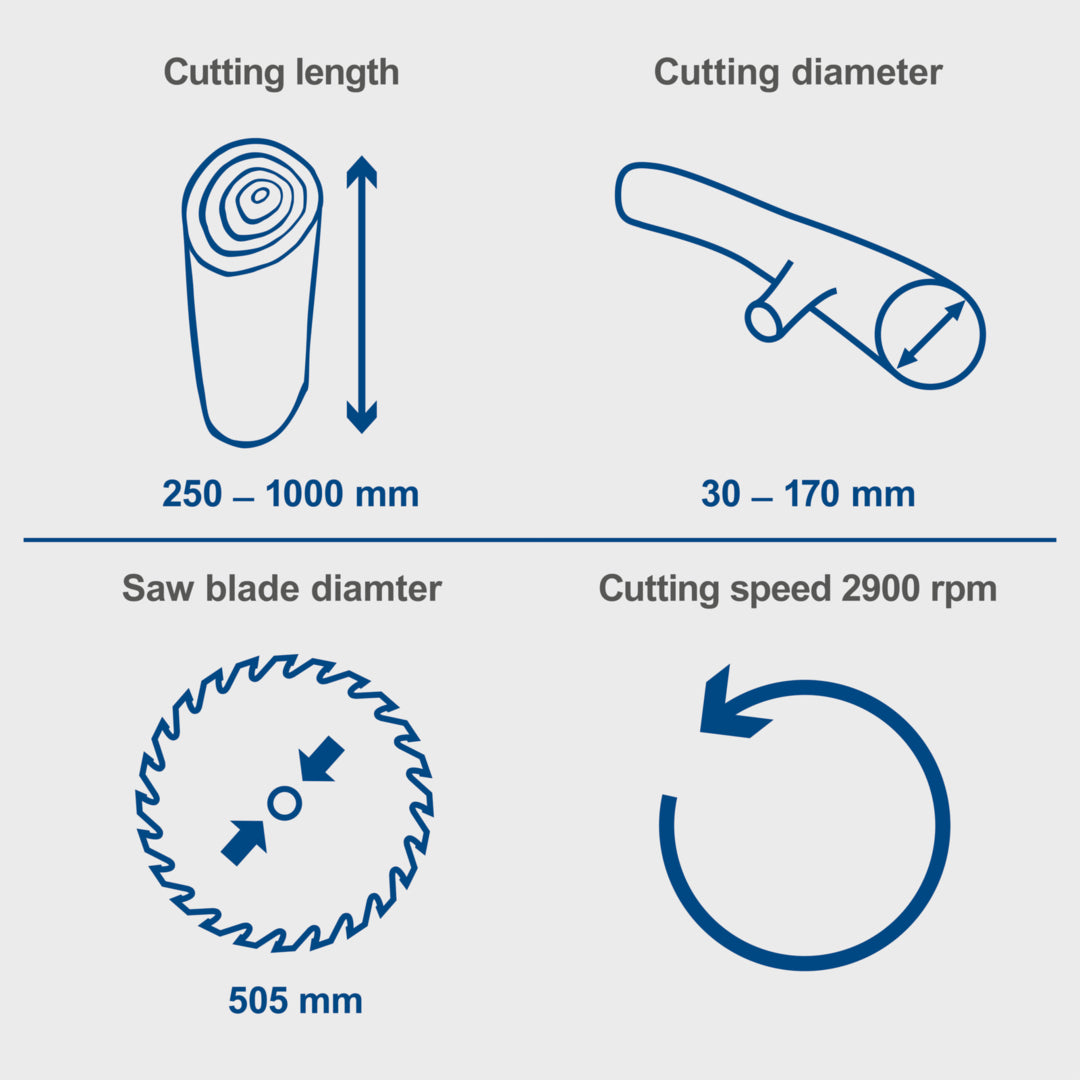

- 170 mm Cutting Diameter: Handles log diameters from 30 mm up to 170 mm and timber lengths between 250 mm and 1000 mm with ease.
- Tilting Rocker Feed System: Holds timber securely and feeds logs smoothly into the blade for faster, controlled cutting with minimal operator effort.
- Patented Protective Safety Flap: Encloses the cutting zone to safeguard the user and prevent accidental contact with the rotating blade during operation.
- Extendable Support Extension: Provides additional stability when balancing longer logs, allowing you to complete multiple cuts efficiently.
-
Heavy-Duty Welded Steel Frame: Built with a robust steel chassis that resists twisting, absorbs vibration, and ensures long service life on site or around the yard.
Technical Specification
| General Details | |
|---|---|
| Title | Rocking Log Saw HS510 Scheppach (DIY) Great Britain |
| Model Description | HS510 |
| Machine Group | Rocking Log Saw |
| Article Number | 5905113904 |
| EAN | 4046664284444 |
| Net Weight | 65.8 kg |
| Gross Weight | 85.8 kg |
| Dimensions General (L x W x H) | 1025 mm x 809.0 mm x 1015 mm |
| Rocker Circular Saw Dimensions (L max x W x H) | 790 mm x 809.0 mm x 1015 mm |
| Cutting & Operating Performance | |
| Cutting Diameter | 170.0 mm |
| Cutting Speed | 4442.2 m/sec |
| Rocker Support | 740.0 mm |
| Working Height | 680.0 mm |
| Drive & Electrical Specifications | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Voltage / Frequency | 230 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 3000.0 W |
| Nominal Current | 13.0 A |
| Efficiency | 72.8 % |
| Type of Motor Electro | Induction Motor |
| Maximum Engine Speed | 2800.0 1/min |
| Appliance Class | Class I |
| Protection Class Electro | IP 54 |
| Insulation Class | F (max. motor temp. 155°C) |
| Motor Protection | Yes |
| Motor Brake Type | Mechanical |
| Cable Length | 10000 mm |
| Plug Type | UK plug (Class II) |
| Saw Blade Accessories | |
| Saw Blade Type | HW |
| Diameter Saw Blade | 505.0 mm |
| Bore Diameter Saw Blade | 30.0 mm |
| Teeth Count | 40 Stück |
| Width Saw Blade | 2.6 mm |
| Tooth Width | 3.6 mm |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 115.0 dB |
| Measured Sound Power Level Lw(A) | 115.0 dB |
| Guaranteed Sound Power Level Lw(A) | 115.0 dB |
| Sound Pressure Level Lp(A) | 101.0 dB |
| Uncertainty KpA / KwA | 4.0 dB / 4.0 dB |
| Delivery Content | |
| Delivery Content Text | 1x Operating manual, 1x Wheel axle, 2x Wheels, 1x Rocker extension, 1x Fence, 1x Accessories kit (4 hex bolts M8 x 20 mm plus 2 washers & 1 nut per bolt / 2 spring split pins / 6 large washers), 1x Rocking log saw, 1x Assembly tools |
SKU: D-SCH-5905113904
MPN: 5905113904
ID: D-SCH-5905113904
