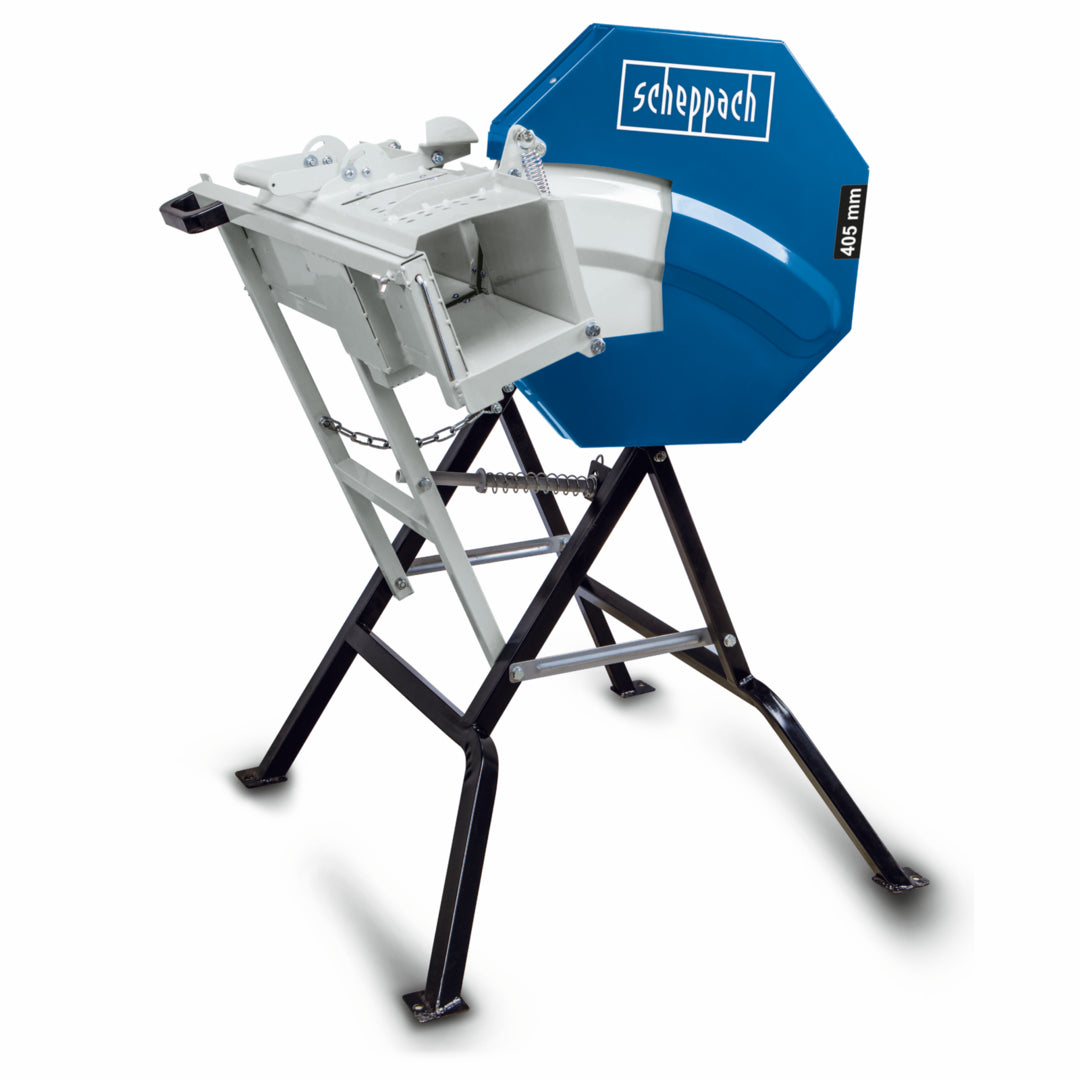

Scheppach HS410 Tilting Log Saw 2200W
Scheppach HS410 Tilting Log Saw 2200W
No reviews
Regular price
£299.00
Regular price
Sale price
£299.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability
Prepare firewood safely and quickly with robust motor-driven cutting power.

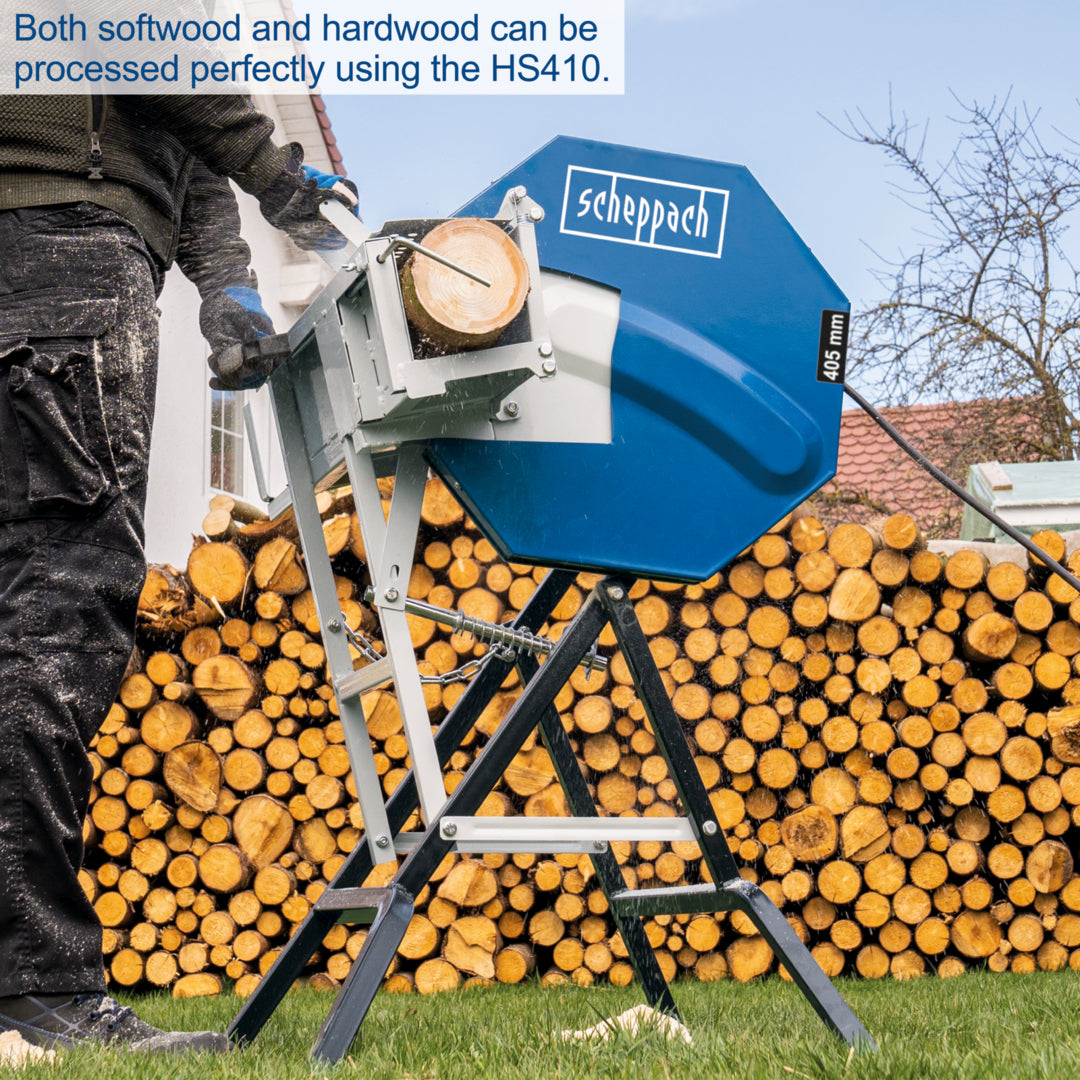

This heavy-duty tilting circular saw combines a 2200W motor with a patented safety guard to process firewood logs with complete peace of mind. Built with a hard-wearing steel frame and a 405 mm TCT blade, it offers a dependable solution for preparing logs for the winter season.
Features:
- Powerful 2200W Motor: High-torque motor plugs directly into a standard 230V socket, delivering reliable performance through tough logs and hardwoods.

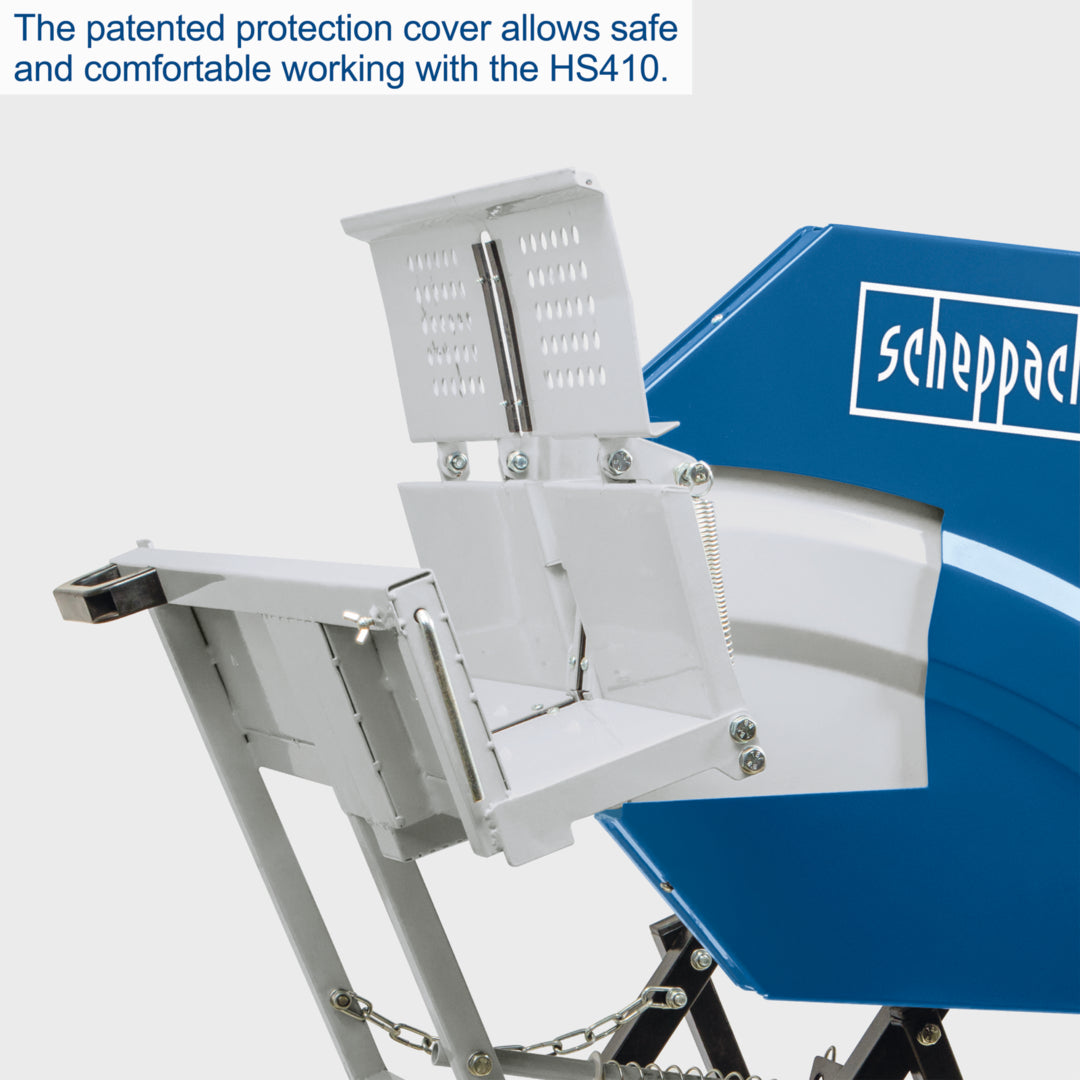

- Patented Safety Flap System: Mechanically locks the rocker feed when open and encloses the saw blade completely during the cut, preventing contact with moving parts and protecting against flying debris.
- Large 405 mm TCT Saw Blade: Hard-wearing carbide-tipped blade slices through timber diameters from 30 mm up to 140 mm and log lengths from 300 mm to 1000 mm.
- Heavy-Duty Torsion-Resistant Frame: All-steel construction keeps the machine firmly planted on the ground to provide a stable, safe cutting platform under load.

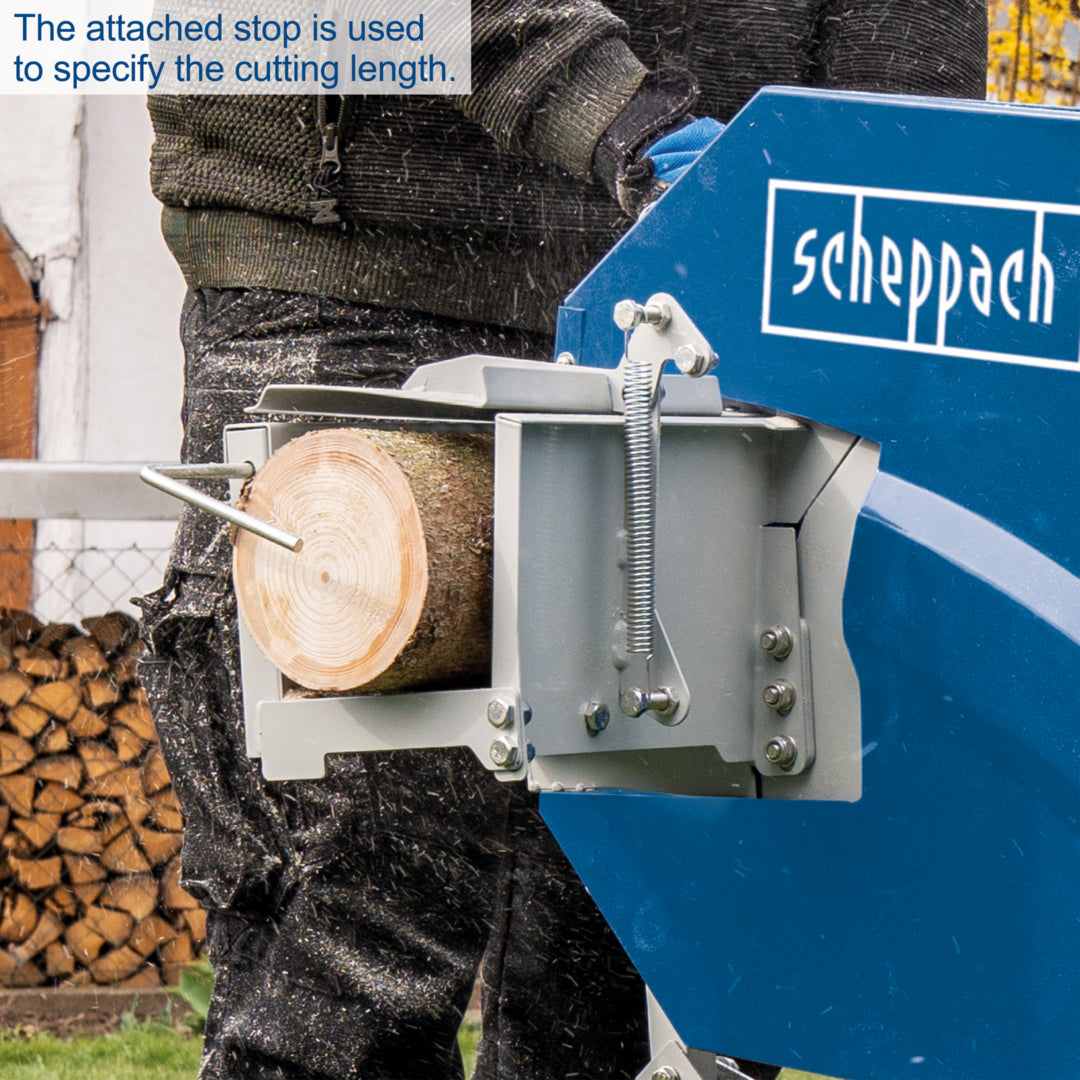

- Integrated Length Stop: Includes a practical adjustable length stop to ensure consistent log lengths for wood stoves and fireplaces.

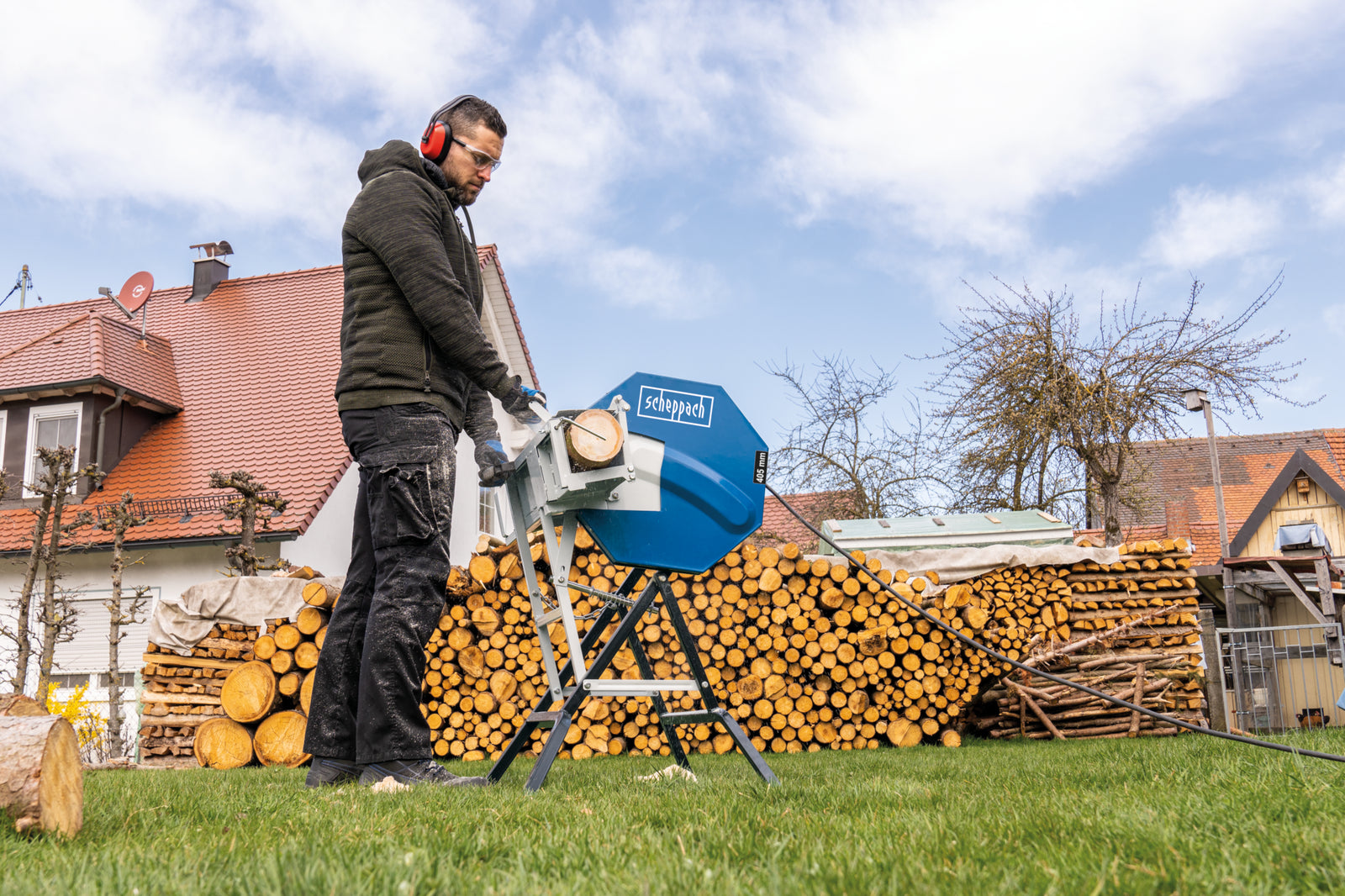

- Ergonomic Rocker Action: Designed to minimise back strain, letting you pivot timber into the blade effortlessly for hours of productive log splitting.
Technical Specification
| General Details | |
|---|---|
| Title | Rocking circular saw HS410 Scheppach (DIY) |
| Model Description | HS410 |
| Machine Group | Tilting circular saw |
| Article Number | 59051149969 |
| EAN | 4046664239550 |
| Net Weight | 40 kg |
| Gross Weight | 45.2 kg |
| General Dimensions (L x W x H) | 1002 mm x 737 mm x 1046 mm |
| Tilting Saw Cutting Performance | |

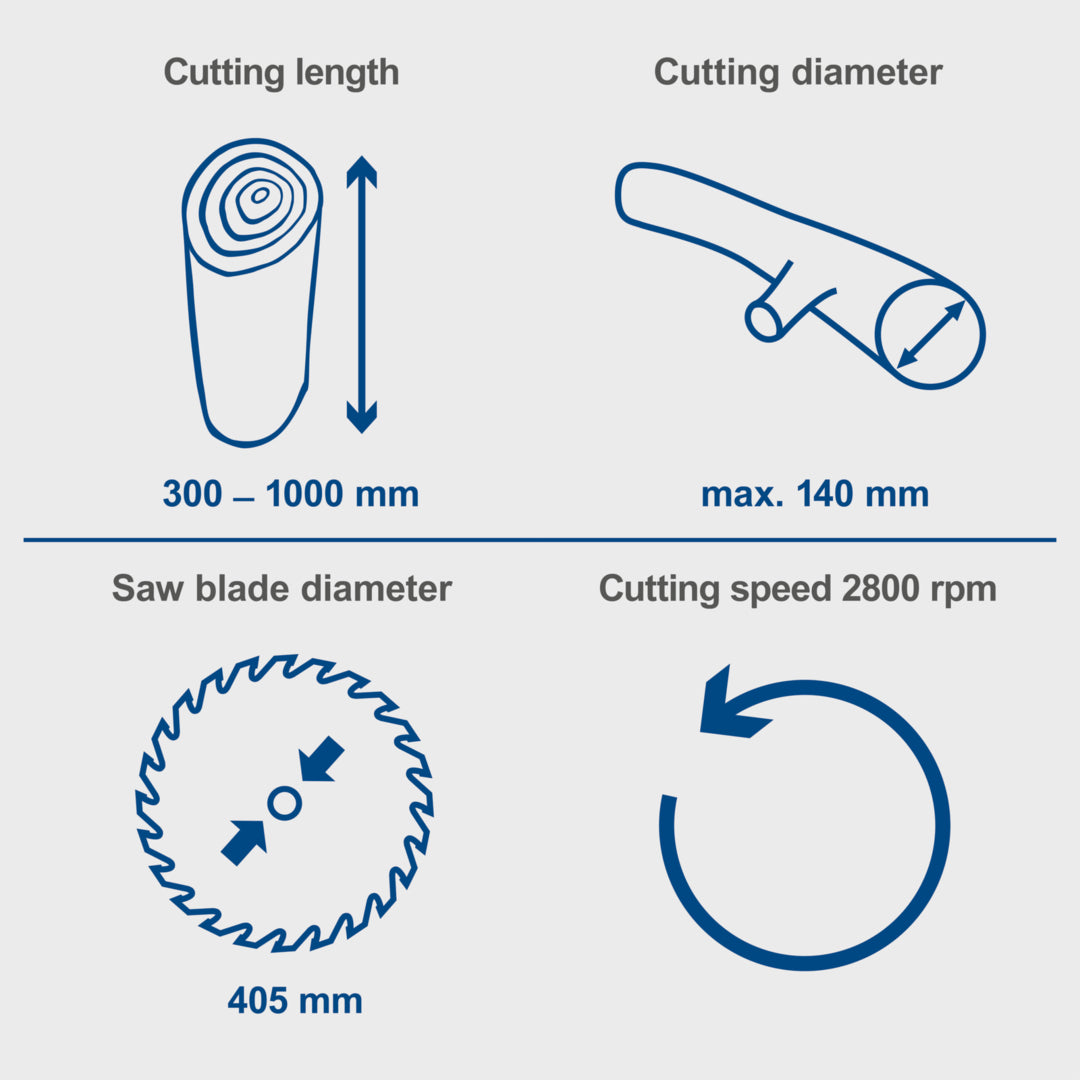

| Cutting Diameter | 140 mm |
| Cutting Length Range (Min / Max) | 300 mm – 1000 mm |
| Saw Blade Specifications | |
| Saw Blade Diameter | 405 mm (16 ") |
| Saw Blade Bore Diameter | 30 mm |
| Number of Teeth | 32 pieces |
| Blade Width / Tooth Width | 2.2 mm / 3.2 mm |
| Type of Saw Blade / Blade Type | Circular saw blade / HW |
| Maximum Saw Blade Speed | 3500 rpm |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230 V / 50 Hz |
| Continuous Power Consumption S1 | 1500 W |
| Power Consumption (Operating Mode 1) | 2200 W |
| Rated Current | 9.7 A |
| Motor Type: Electric | Induction motor |
| Maximum Engine Speed | 2800 rpm |
| Protection Class / Protection Class for Electrical | Class I / IP 54 |
| Insulation Class | F (max. motor temp. 155°C) |
| Engine Braking Type | Mechanical |
| Engine Protection (Thermoprotector) | Yes |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 115 dB |
| Sound Pressure Level Lp(A) | 101 dB |
| Uncertainty KpA / KwA | 4 dB / 4 dB |
