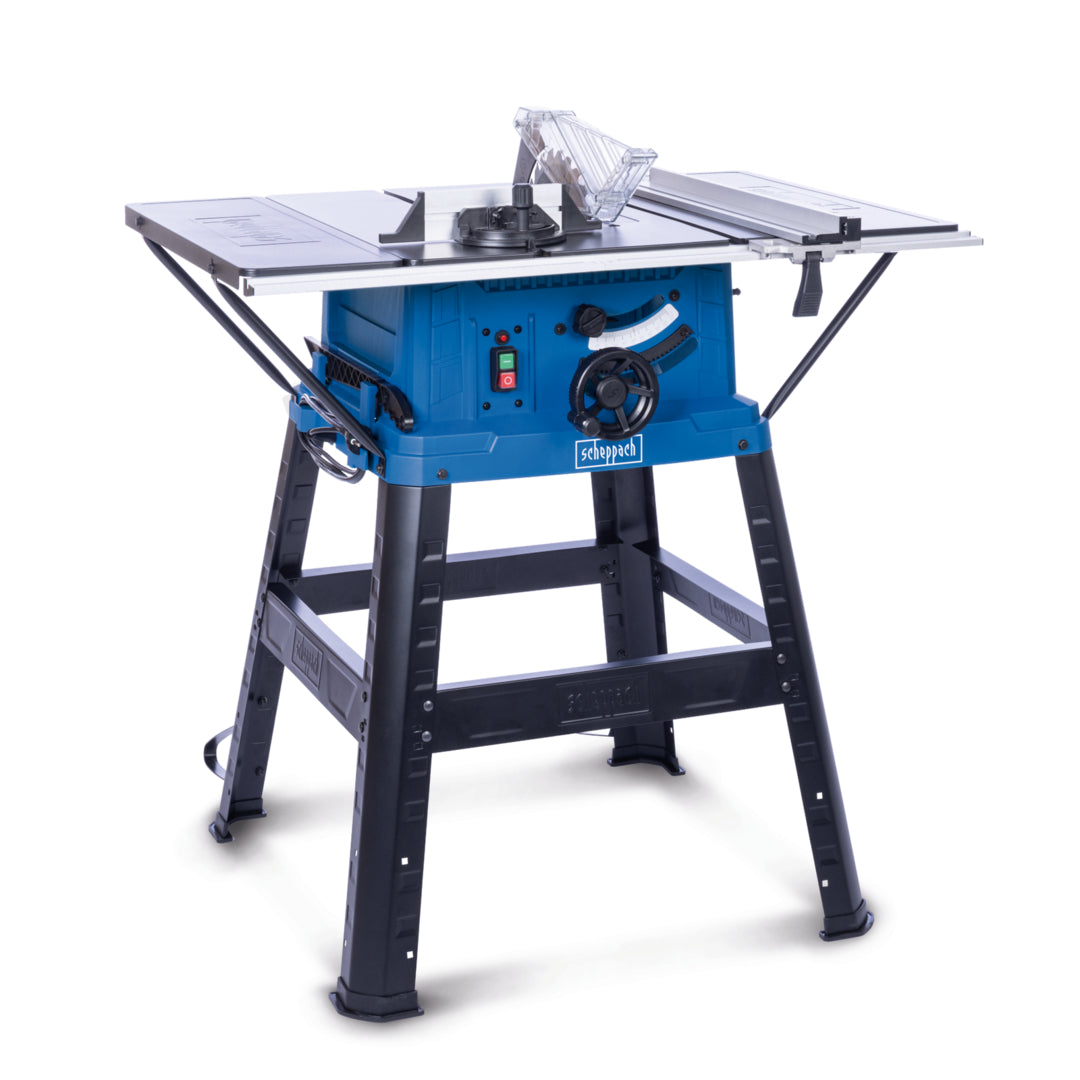

Scheppach HS254 10" Table Saw 2200W
Scheppach HS254 10" Table Saw 2200W
No reviews
Regular price
£159.00
Regular price
Sale price
£159.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Power through timber, boards, and sheet materials with complete accuracy.
A high-capacity 2200W bench circular saw featuring soft-start technology, expandable side tables, and precision fence guides designed for demanding joinery, workshop, and site applications.
Why Choose the Scheppach HS254?
- High-torque 2200W soft-start motor: Delivers smooth, controlled startups to reduce initial power surge and mechanical stress while driving the 254mm blade effortlessly at 5300 rpm.

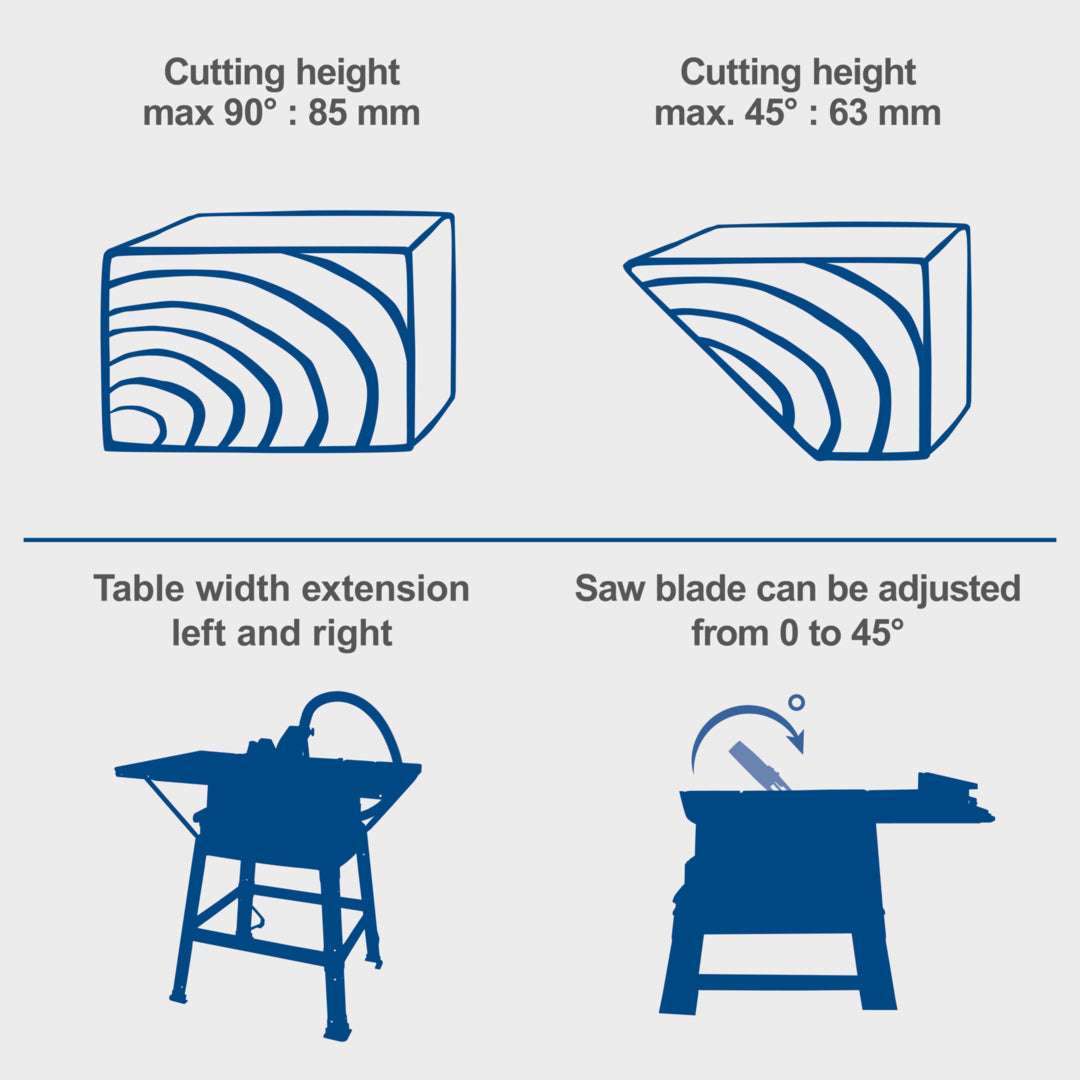

- Generous cutting depth capacity: Provides up to 85mm cutting depth at 90° and 63mm at a 45° bevel angle, making light work of thick timber sections and wide joinery materials.

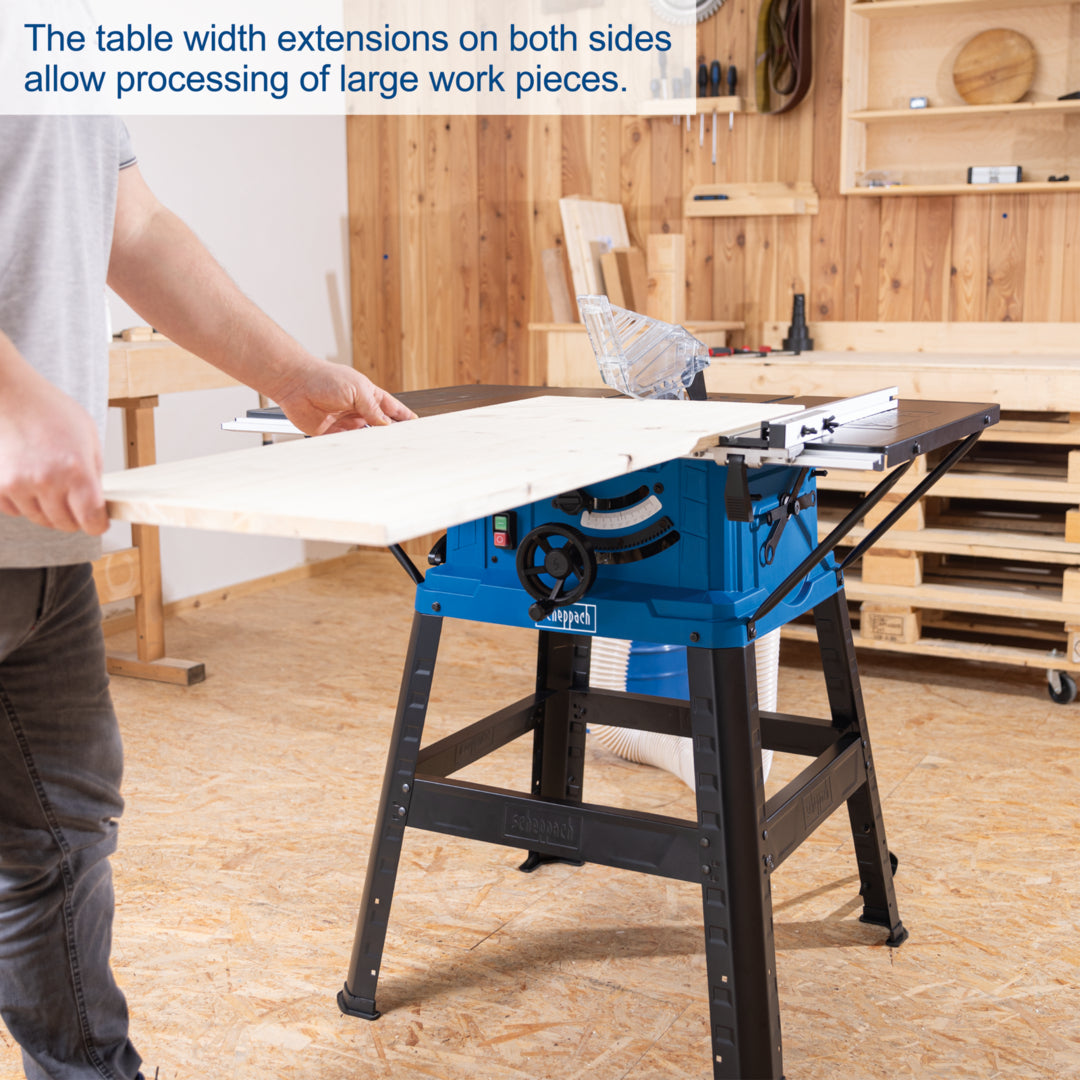

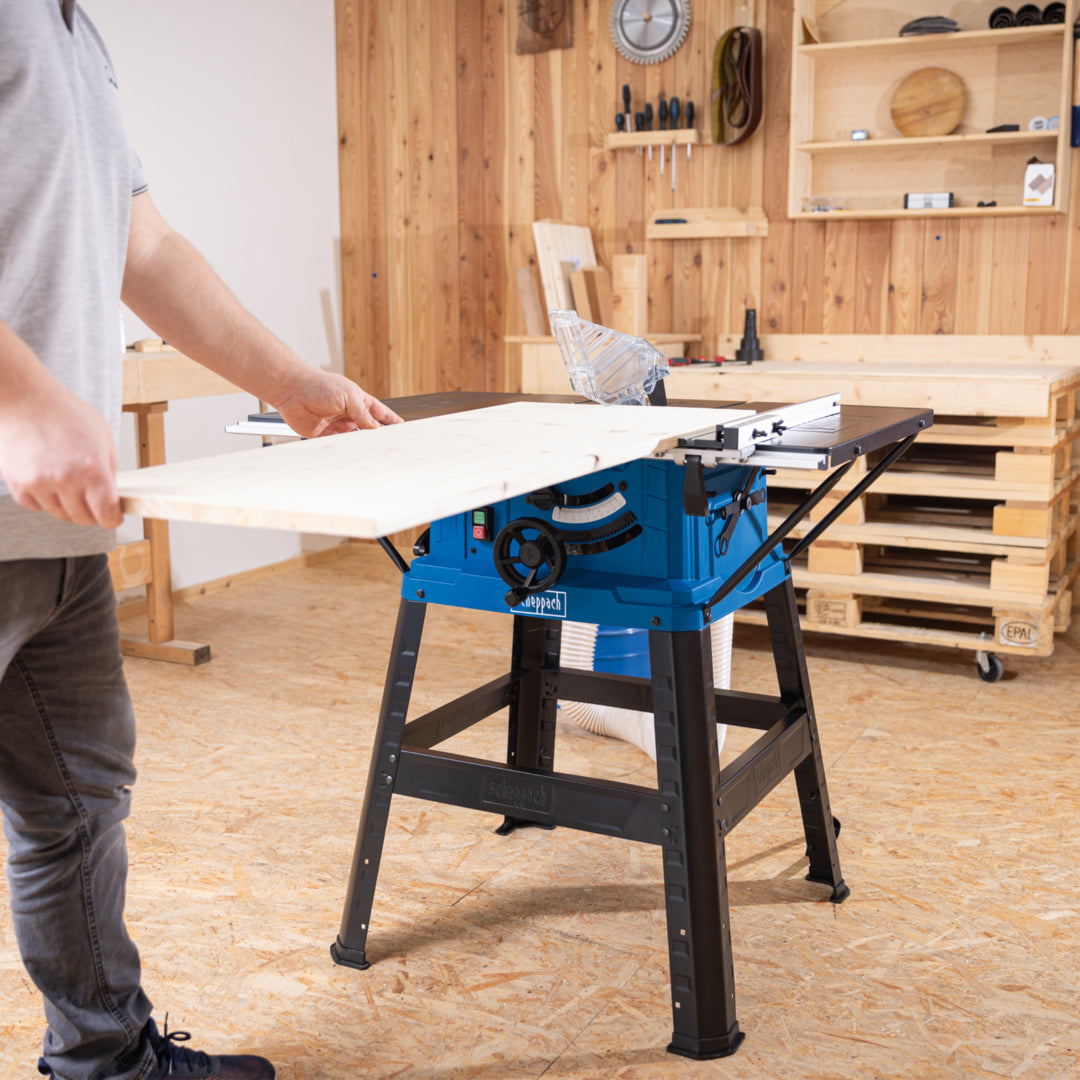

- Expandable sheet table surface: Features dual side table extensions that expand the working area to 940 x 630mm, ensuring safe, stable support for broad panels and long boards.

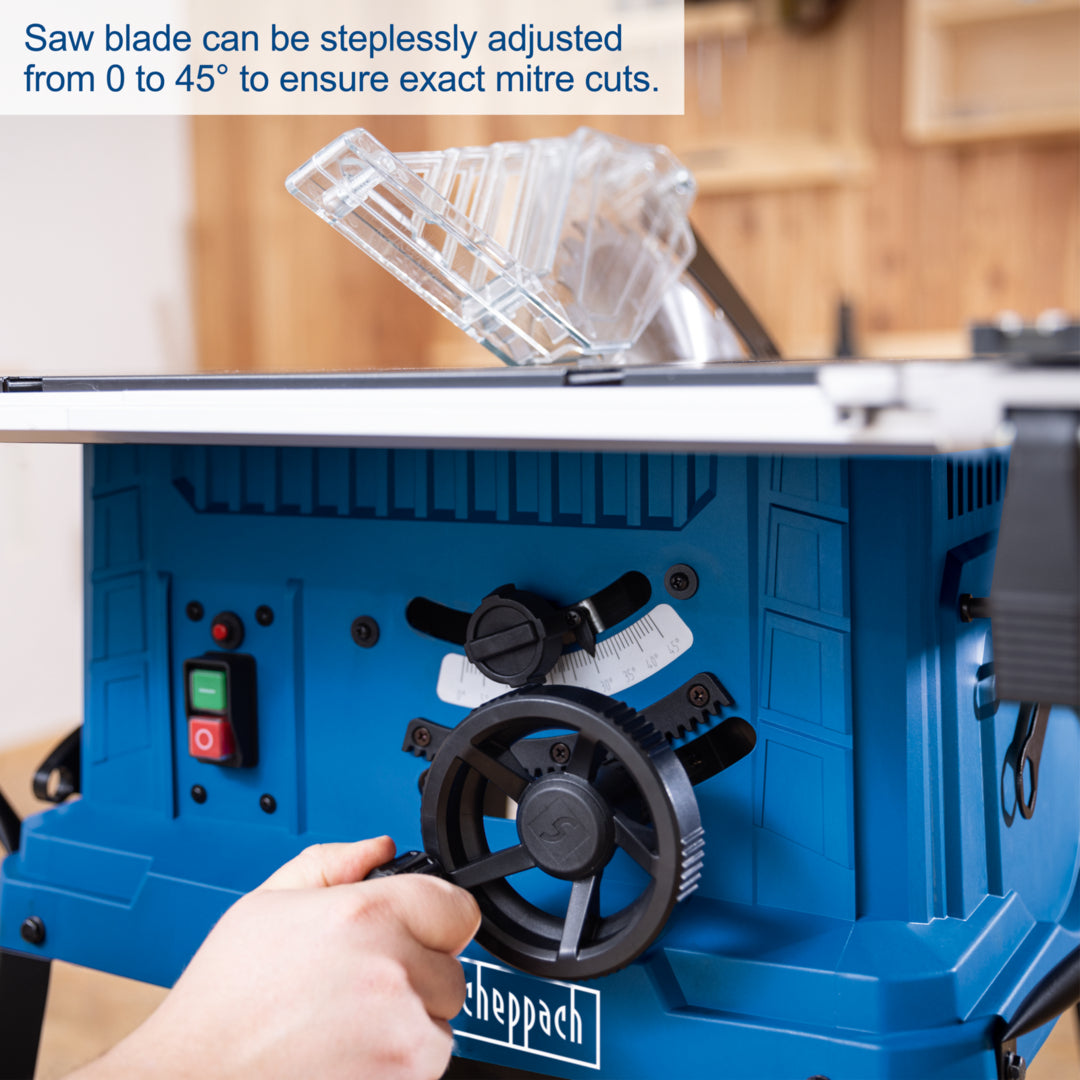

- Precision fence and bevel adjustment: Equipped with a parallel rip fence with a built-in magnifying glass, an adjustable mitre gauge, and stepless handwheel height and angle adjustment up to 45°.
- Complete, stable workshop setup: Built with a durable sheet steel undercarriage, non-slip rubber feet, anti-tip rear bars, a blade guard, and a push stick for safe, reliable operation.
Technical Specification
| Motor Power | 2200 W (Soft-start, 2000 W continuous S1) |
| Power Supply | 220-240 V / 50 Hz (UK Plug, Class II) |
| Blade Speed | 5300 rpm (Max rated speed 7000 rpm) |

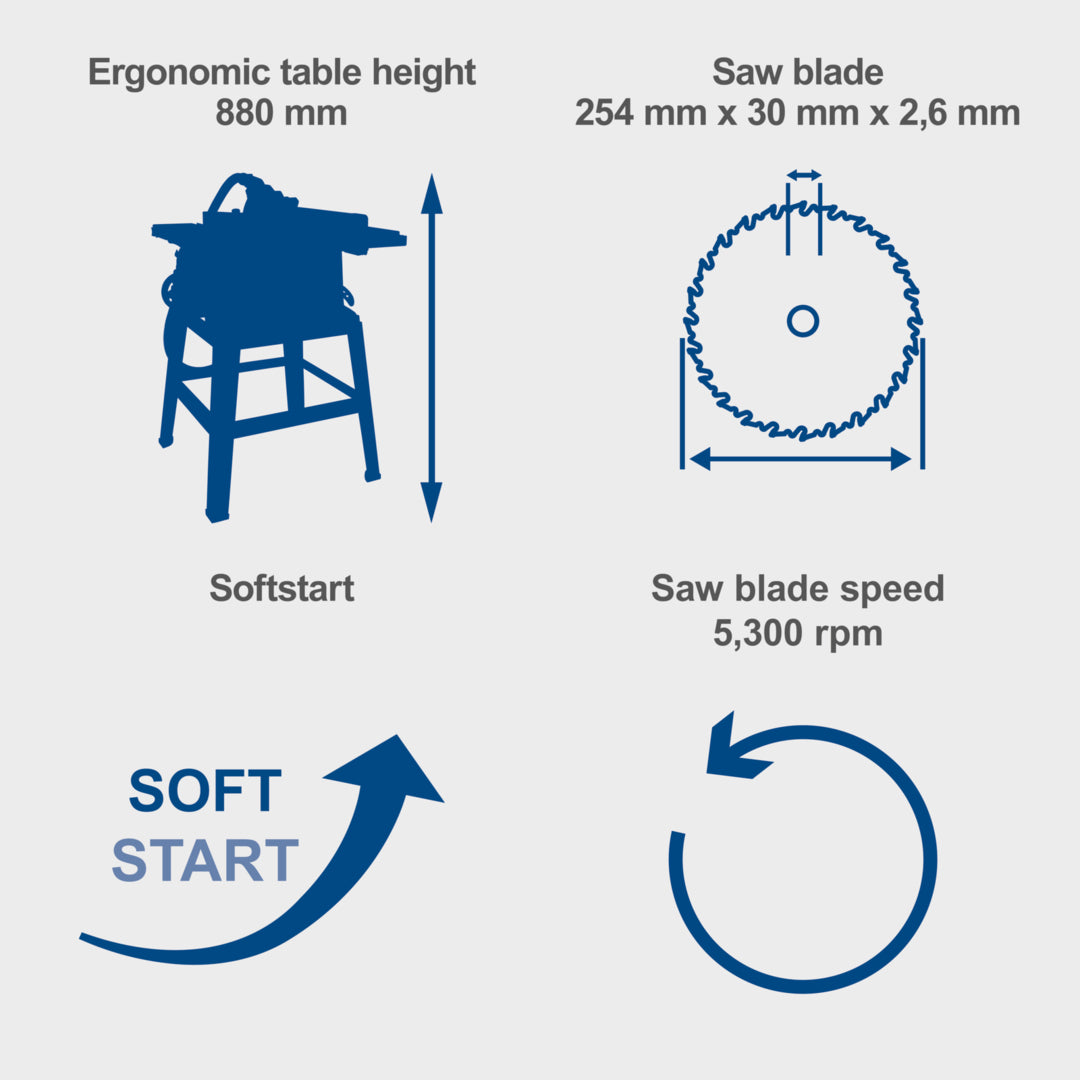

| Saw Blade Dimensions | 254 mm (10") diameter x 30 mm bore, 24T HW carbide-tipped |
| Maximum Cutting Depth at 90° | 85.0 mm |
| Maximum Cutting Depth at 45° | 63.0 mm |
| Blade Bevel Tilting Range | 0° to 45° (Adjustable via handwheel) |
| Standard Table Size | 630 x 545 mm |
| Expanded Table Size | 940 x 630 mm (Includes 2x 630 x 195 mm extensions) |
| Riving Knife Specification | 2.0 mm thickness, 65Mn hardened steel (43 HRC) |
| Stand Construction | Powder-coated sheet steel legs with rubber feet |
| Overall Dimensions (L x W x H) | 940 x 935 x 1020 mm (Table height with stand: 850 mm) |
| Power Cable Length | 3000 mm (3 metres) |
| Electrical Protection Class | IP X0 (Class II insulation) |
| Included Accessories | 254mm 24T blade, saw guard, rip fence, mitre gauge, stand assembly, anti-tip bars, ring spanners, push stick |
