Scheppach HRS250 Electric Cable Hoist
Scheppach HRS250 Electric Cable Hoist
No reviews
Regular price
£119.00
Regular price
Sale price
£119.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Dependable overhead lifting power for home, garage, and workshop tasks.
Delivers secure, controlled handling of heavy materials, tools, and machinery without manual strain. Features a flexible pulley system to double lifting capacity whenever heavy-duty tasks demand it.
Features:

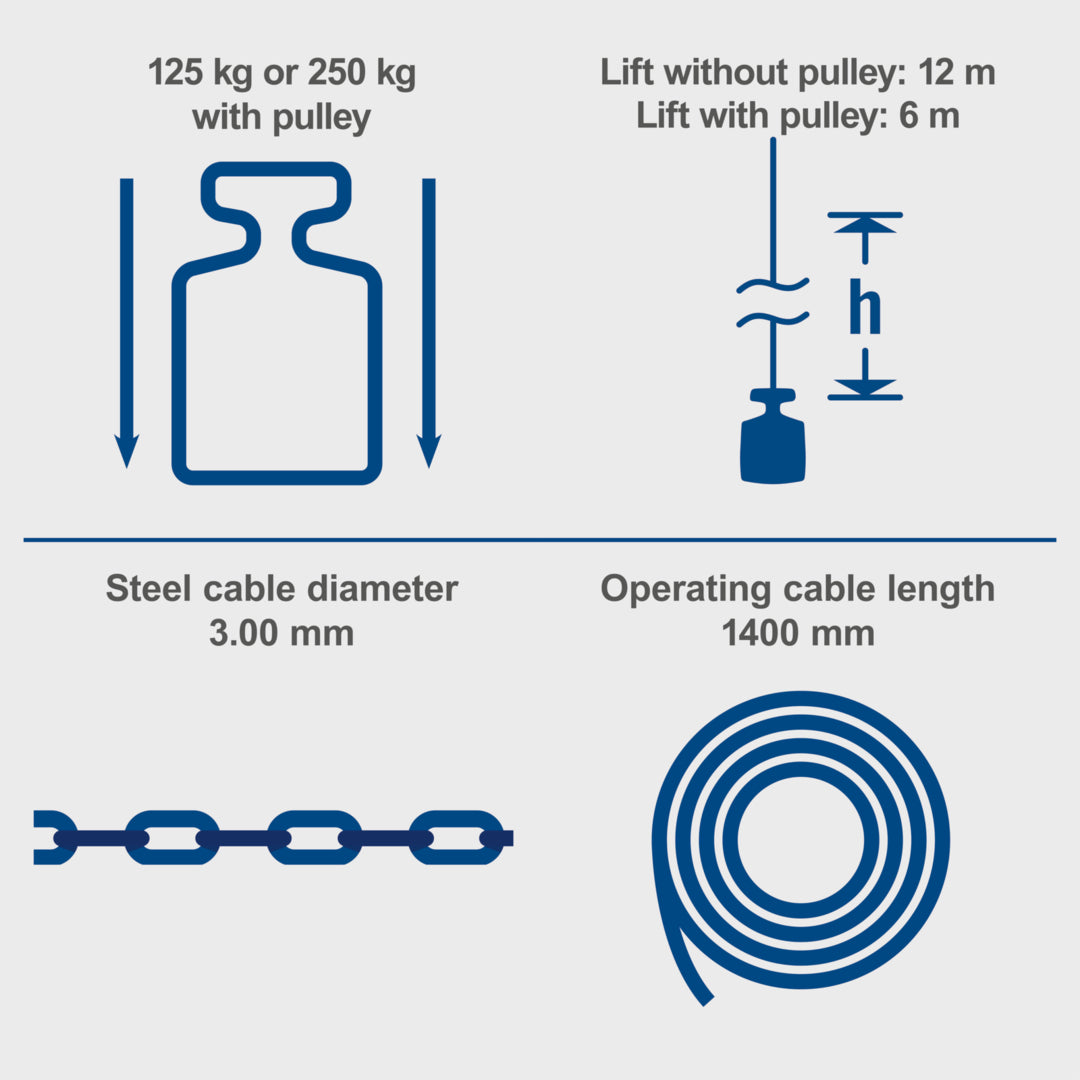

- Dual-Capacitive Lifting: Handles loads up to 125kg on a single cable run, or up to 250kg when using the included return pulley system to suit varied job requirements.
- Extended Overhead Reach: Provides a maximum lift height of 12 metres without the pulley (6 metres with the pulley engaged), giving you ample range for multi-storey, garage, or shed installations.

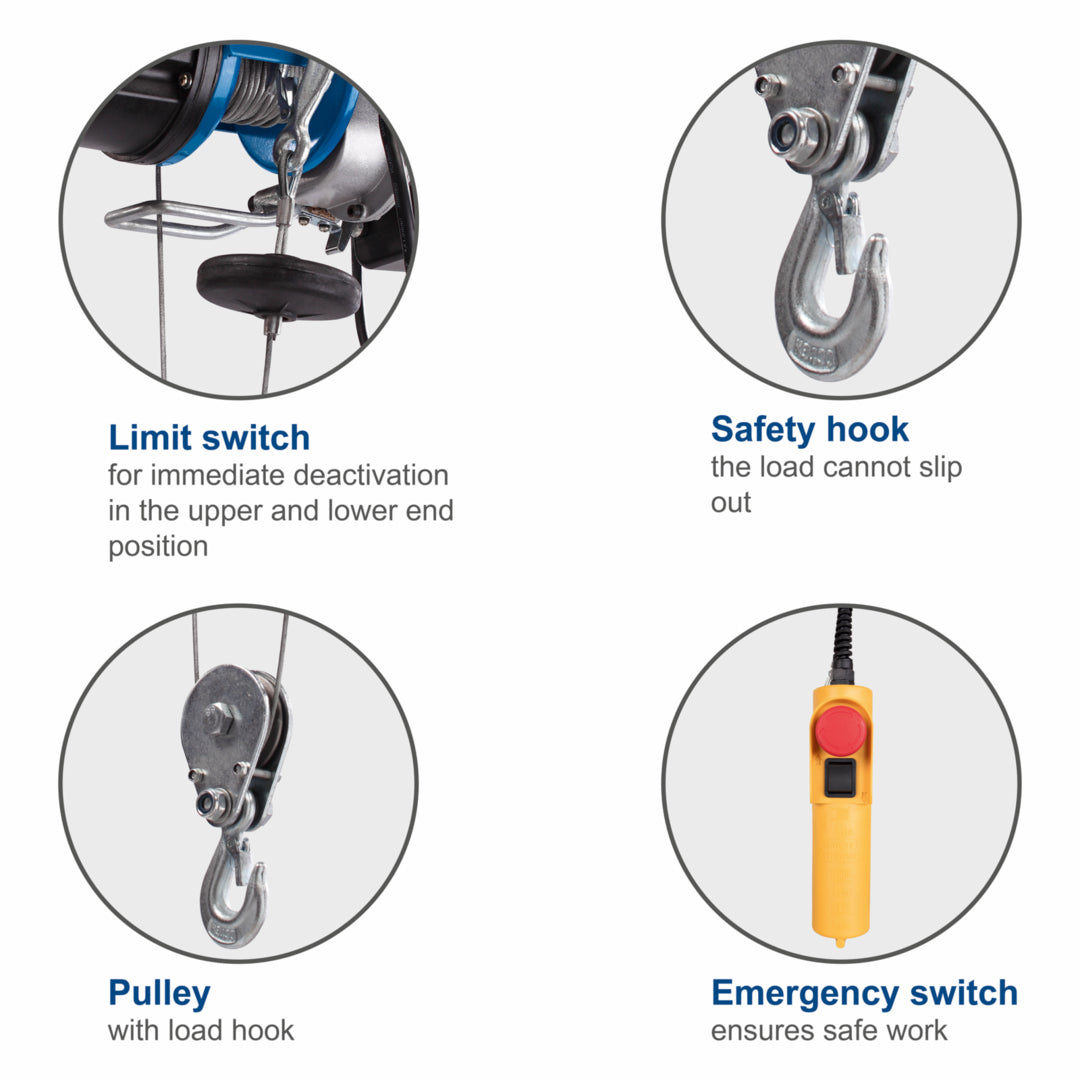

- Built-In Operational Safety: Designed with an integrated emergency stop switch for immediate shutdown, alongside a safety catch on the hook to prevent accidental load slippage.
- Robust Steel Construction: Features a hard-wearing steel cable engineered to resist twisting and support heavy, repeated loads in demanding environments.
- Simple Beam Mounting: Supplied complete with two sturdy attachment brackets, allowing quick and secure installation onto compatible overhead support beams or frames.
Technical Specification
| General Details | |
|---|---|
| Title | Electric Cable Hoist HRS250 Scheppach (DIY) |
| Article Number | 4906904000 |
| Model Description | HRS250 |
| Machine Group | Electric Cable Hoist |
| EAN | 4046664015284 |
| Mass Gross | 12.15 kg |
| Mass Net | 11.3 kg |
| General Dimensions (L x W x H) | 400.0 mm x 180.0 mm x 130.0 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Power Consumption in Operating Mode 1 | 530.0 W |
| Maximum Engine Speed | 1420.0 1/min |
| Battery Included | No |
| Protection Class Electro / Degree of Protection | IP 54 |
| Motor Protection | Yes |
| Cable Length | 2000.0 mm |
| Plug Type | EU plug (Class II) |
| Phase-Changing Switch 400 V in Plug New | No |
| Hoist Performance & Capacity | |
| Drive Mechanism | Gearbox |
| Lifting Cable Length | 12300.0 mm |
| Single Line Permissible Load | 125.0 kg |
| Single Line Lifting Height | 12000.0 mm |
| Single Line Lifting Speed | 10.0 m/min |
| Double Line Permissible Load | 250.0 kg |
| Double Line Lifting Height | 6000.0 mm |
| Double Line Lifting Speed | 5.0 m/min |
SKU: D-SCH-4906904000
MPN: 4906904000
ID: D-SCH-4906904000
