Scheppach HP3000S Petrol Reversible Plate Compactor
Scheppach HP3000S Petrol Reversible Plate Compactor
No reviews
Regular price
£1,299.00
Regular price
Sale price
£1,299.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Professional-grade ground compaction engineered for heavy groundwork.

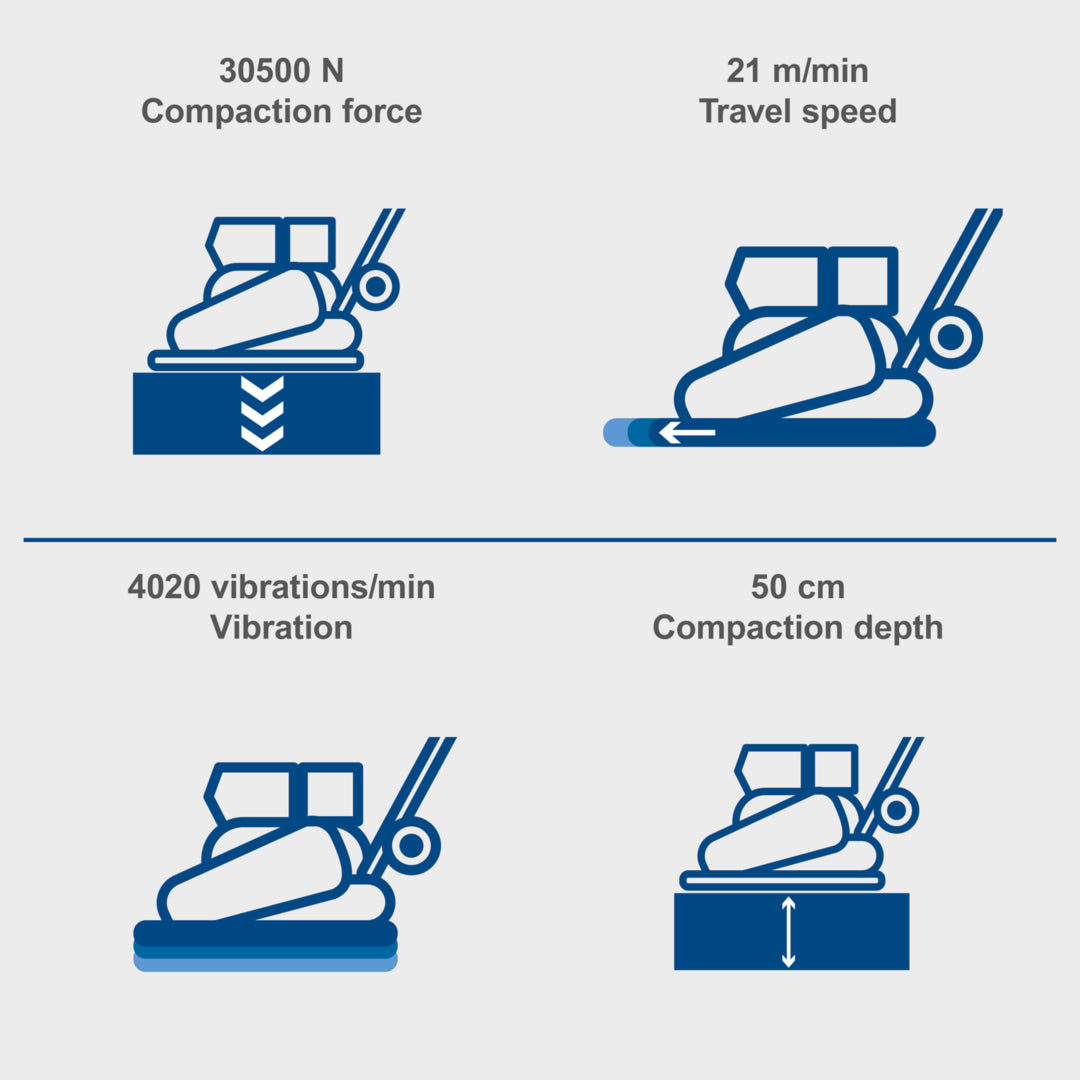

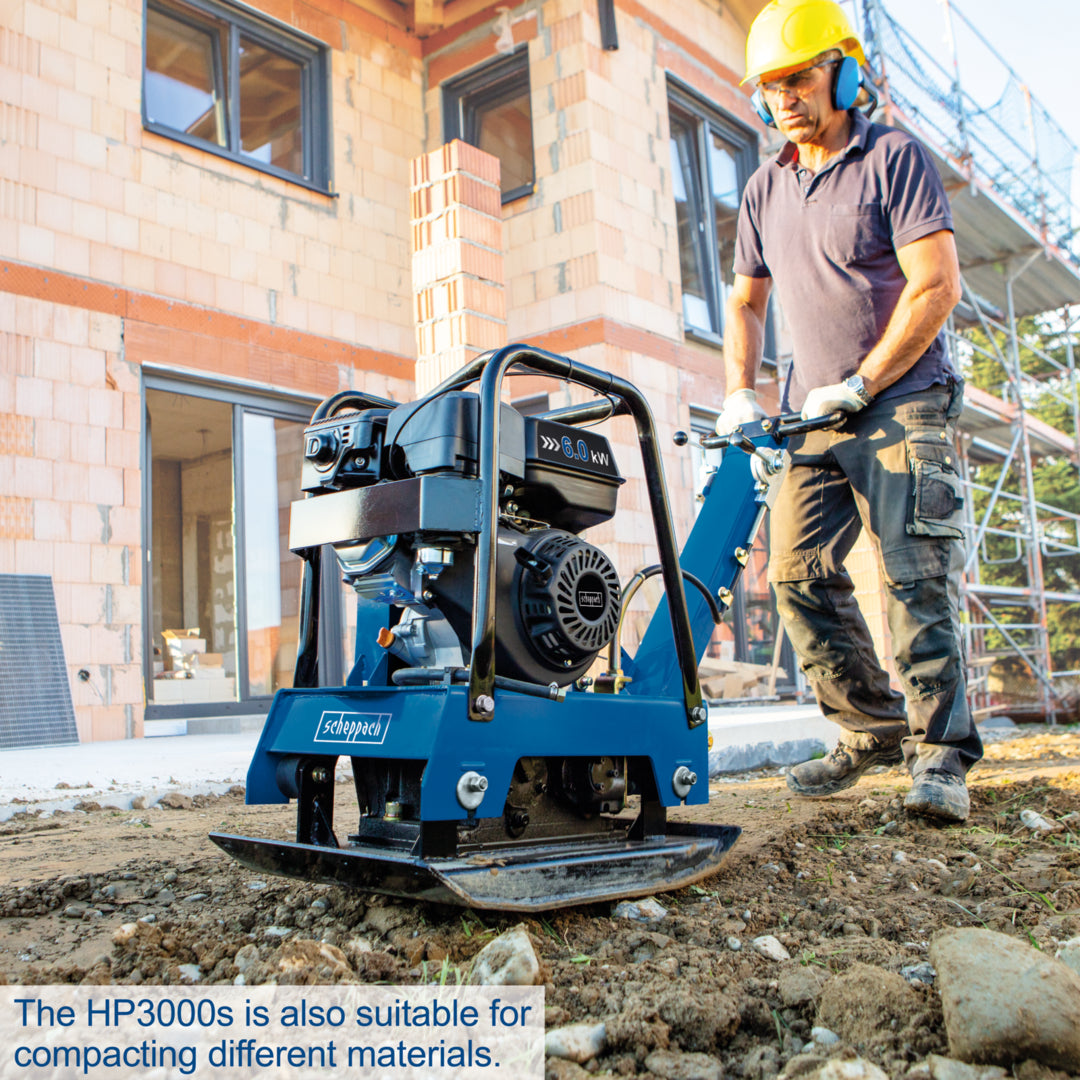

Delivers 30,500N of force to consolidate soil, sand, and sub-base materials to depths of 50cm. Features a reversible drive system and durable steel base plate for superior control and productivity on site.
Features:
- High Compaction Performance: Driven by a robust 8.2 HP 270 cc engine that produces 30,500N of compaction force, achieving deep ground consolidation up to 50cm for solid foundations.

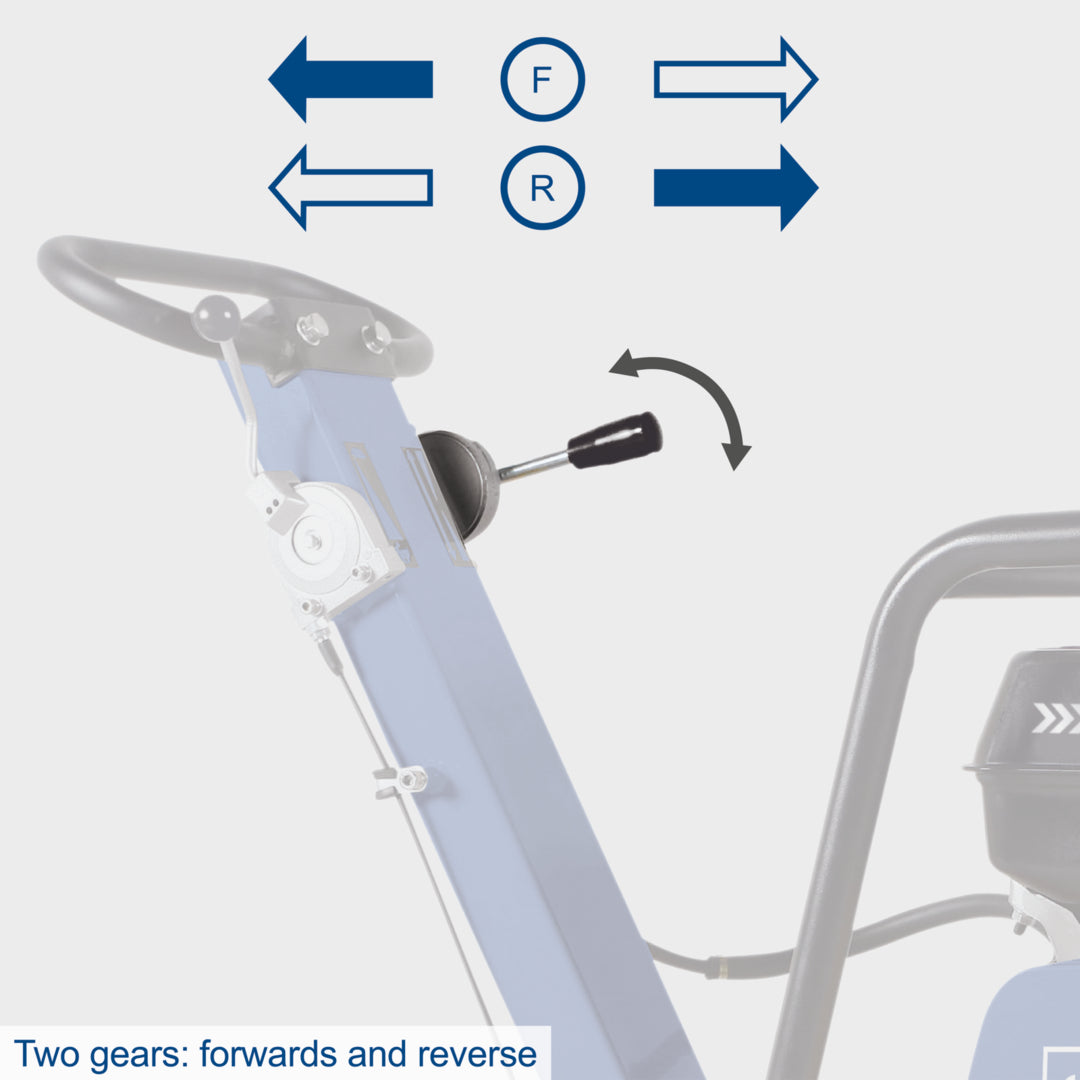

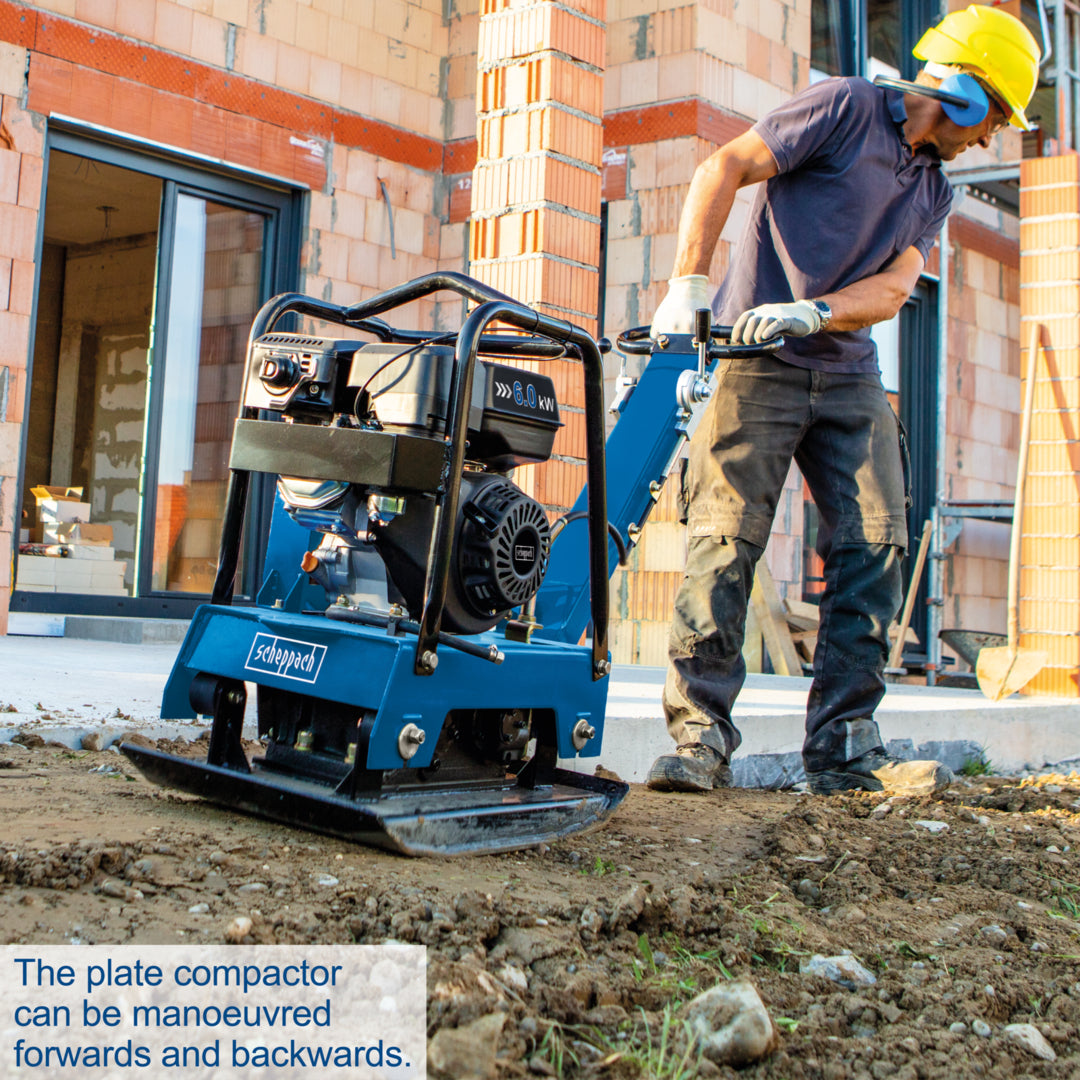

- Reversible Travel Control: The quick-shift directional lever allows seamless switching between forward and reverse travel, offering excellent manoeuvrability in tight trenches and along retaining walls.

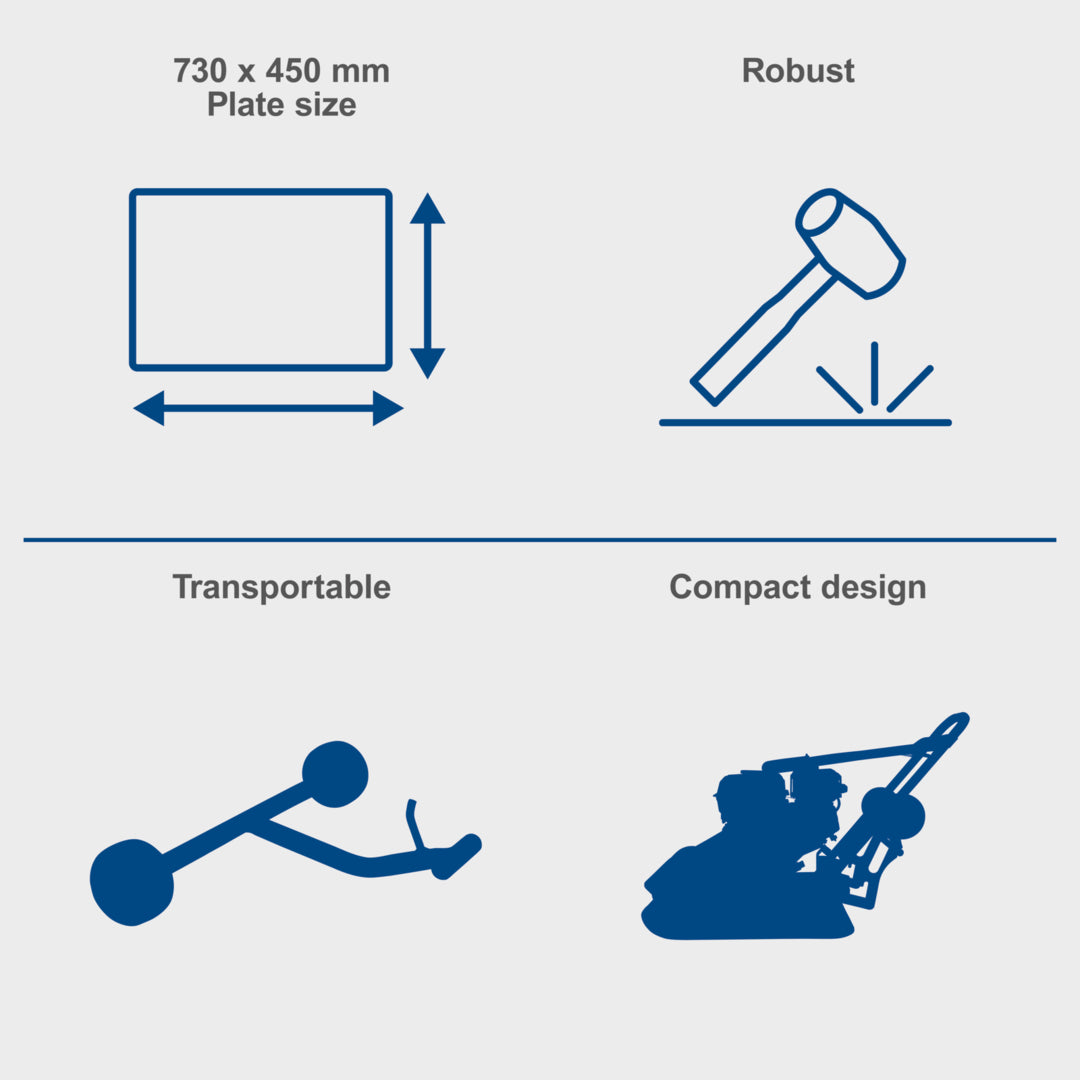

- Heavy-Duty Base Plate: Features a 730 x 450mm self-cleaning steel plate with rounded edges, built to deliver smooth passes without gouging wet aggregate or sub-base layers.
- Vibration-Damped Handlebars: Isolate operational vibration to reduce hand and arm fatigue during long shifts, keeping operation comfortable and controlled.

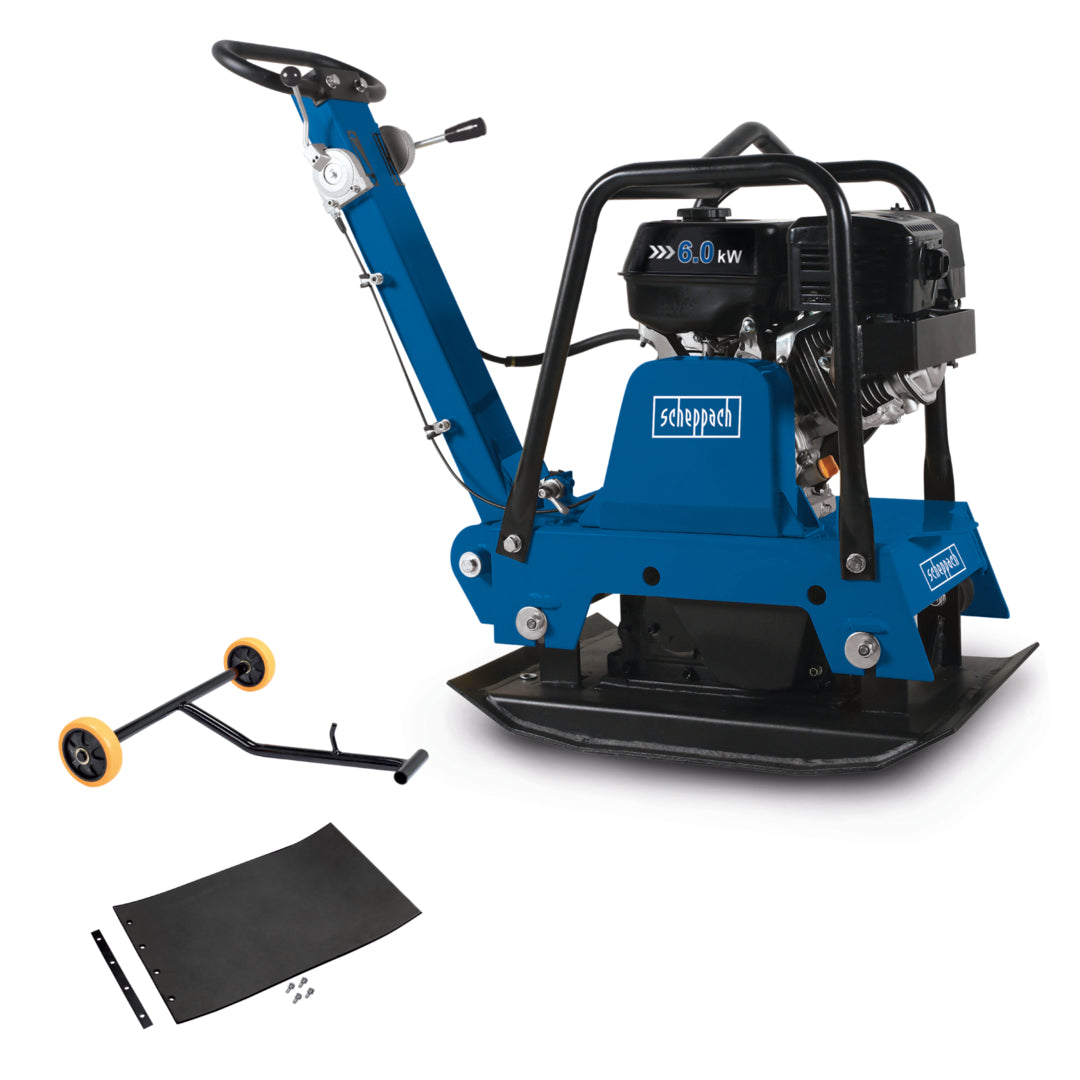

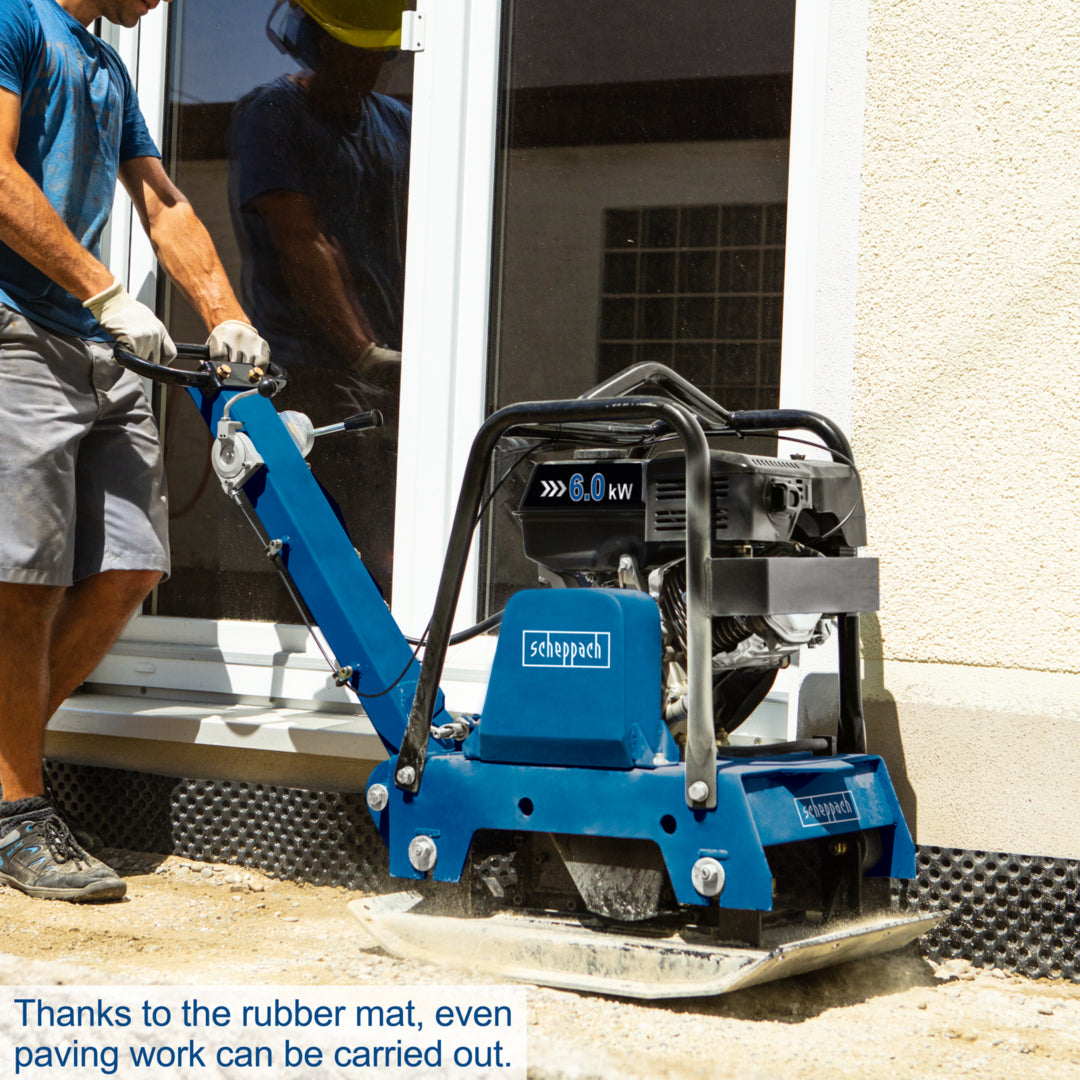

- Paving Protection & Mobility: Supplied with a heavy-duty rubber mat to cushion block paving, along with integrated transport wheels and a folding handle for easy site movement and vehicle loading.
Technical Specification
| General Details | |
|---|---|
| Title | Plate Compactor HP3000S scheppach (DIY) |
| Article Number | 5904605903 |
| Model Description | HP3000S |
| Machine Group | Plate Compactor |
| EAN | 4046664026891 |
| Standard Basic Equipment | Incl. Wheel Kit and Rubber Pad |
| Mass Gross | 173.5 kg |
| Mass Net | 160.0 kg |
| General Dimensions (L x W x H) | 1400.0 mm x 600.0 mm x 850.0 mm |
| Engine & Drive Performance | |
| General Drive Type | Combustion Engine |
| Subgrouping Drive Type | 4-Stroke Engine |
| Displacement | 270.0 cm³ |
| Crank Shaft Count | 2.0 Pieces |
| Battery Included | No |
| Fluids & Maintenance | |
| Oil Tank Capacity | 0.95 l |
| Oil Included | No |
| Vibration Exciter Oil Type | SAE90 |
| Compaction & Operational Specifications | |
| Ground Plate Dimensions (L x W) | 730.0 mm x 450.0 mm |
| Plate Thickness | 8.0 mm |
| Compression Pressure Max | 30500.0 N |
| Compacting Depth | 50.0 cm |
| Vibration Batch | 4000.0 1/min |
| Forward Speed Max | 21 m/min |
| Backward Speed Max | 21 m/min |
| Reflux Available | Yes |
| Area Activity Max | 45.0 ° |
| Features & Equipment | |
| Handle Height | 950.0 mm |
| Vibration Protected Handle | Yes |
| Rubber Mat | Yes |
| Wheel Chassis | Yes |
| Crane Fixing Point | Yes |
| Pultruded Tumbling Plate | Yes |
| Water Lubrication | No |
