Scheppach HP2300S 196cc Petrol Wacker Plate Compactor
Scheppach HP2300S 196cc Petrol Wacker Plate Compactor
Regular price
£479.00
Regular price
Sale price
£479.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Prepare solid, level foundations for patios, driveways, and groundwork with ease.
A robust 5.58HP petrol compactor plate engineered to deliver 13,000N of compaction force, ideal for firming soil, gravel, sand, and block paving on landscaping and construction projects.
Why Choose the Scheppach HP2300S?
- Powerful 196cc engine: Driven by a dependable 4.1kW (5.58HP) 4-stroke petrol engine, providing consistent, heavy-duty power to achieve compaction depths up to 30cm.

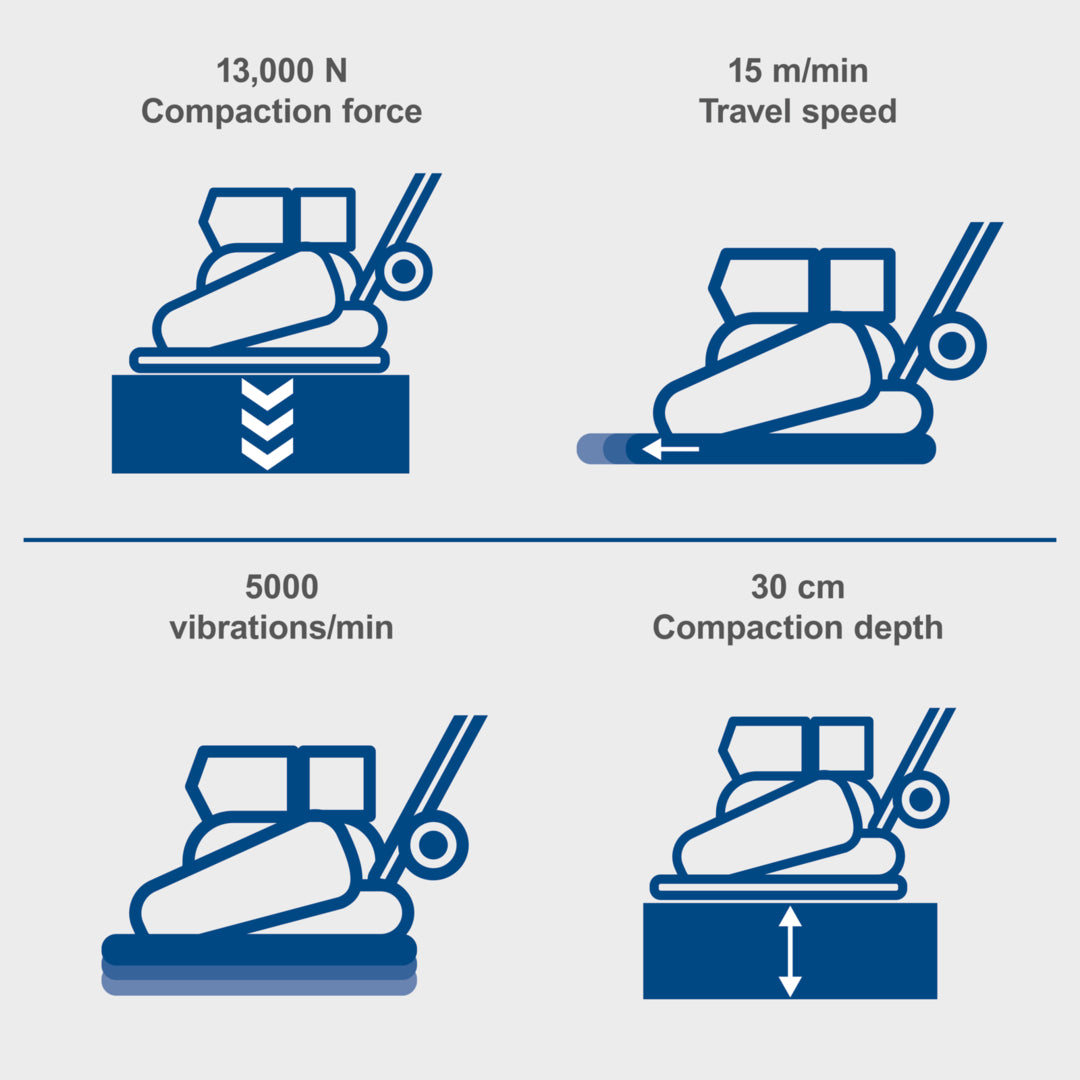

- Exceptional 13,000N compaction force: Operates at 5,500 vibrations per minute to eliminate air pockets in sub-bases, ensuring long-lasting stability under paths and driveways.

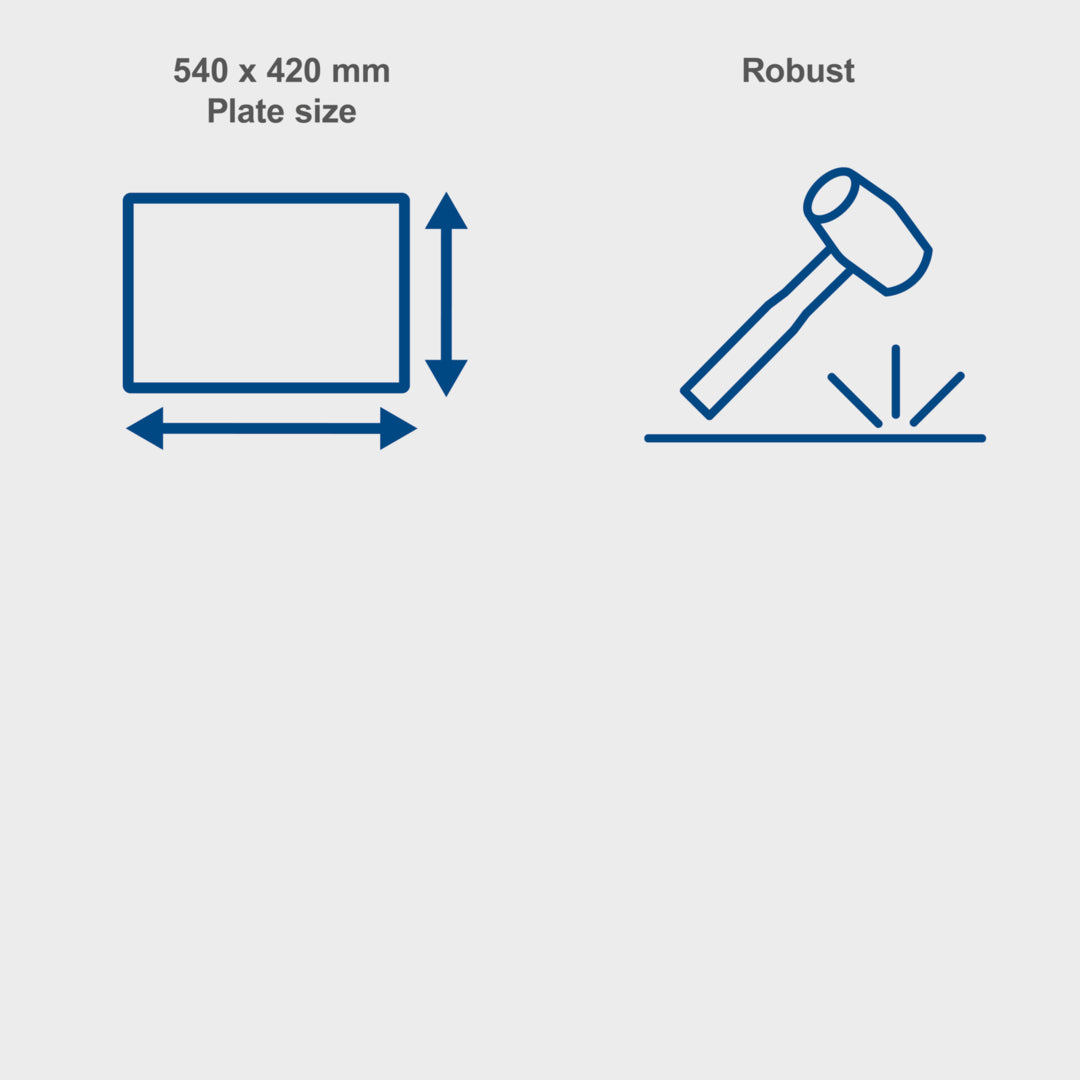

- Broad steel base plate: The heavy-duty 540x420mm pressed steel plate offers maximum surface coverage, allowing you to cover ground quickly with an automatic forward speed of 15m/min.

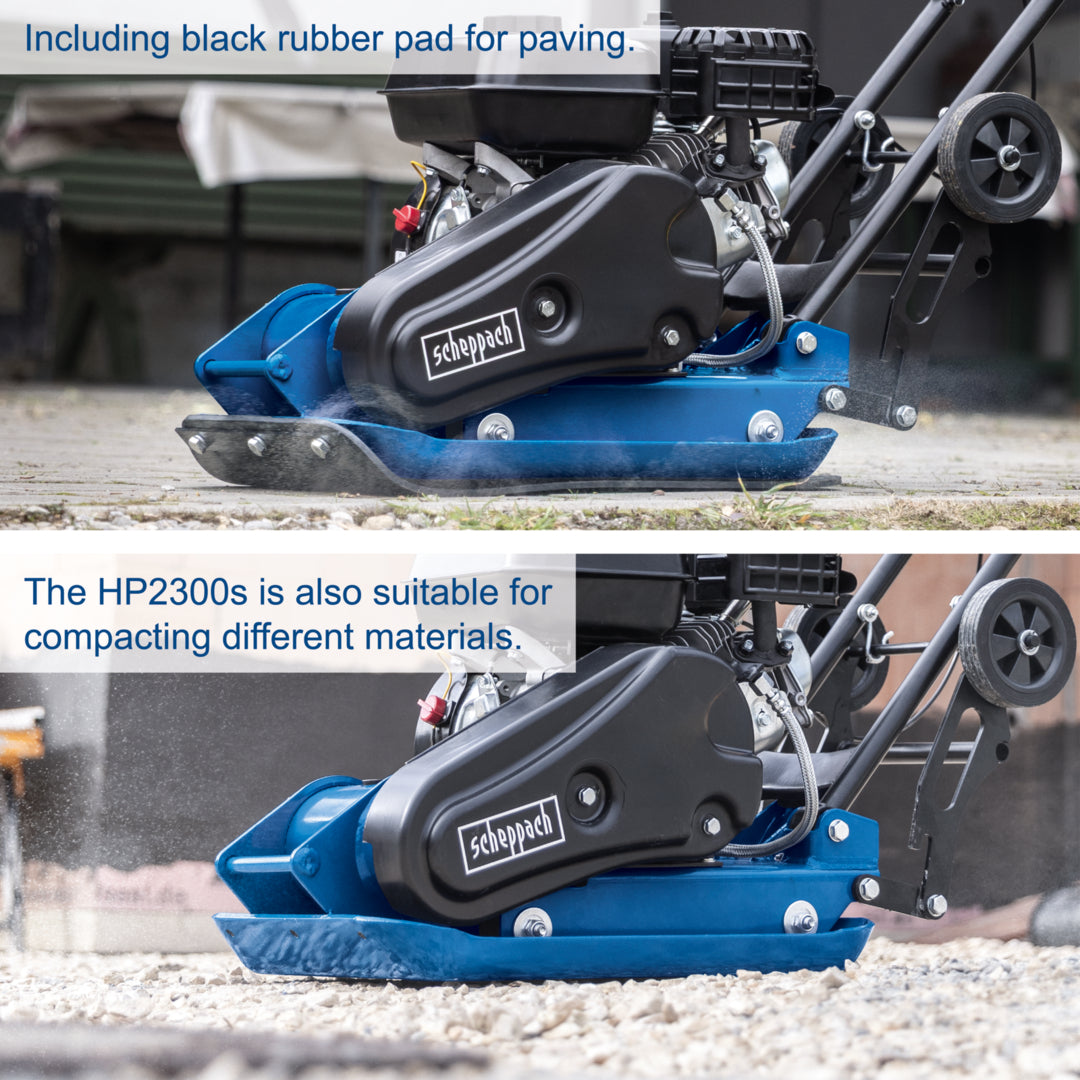

- Includes protective rubber mat: Comes complete with a durable rubber mat attachment that prevents chipping, scratching, or cracking when compacting delicate block paving and patio slabs.

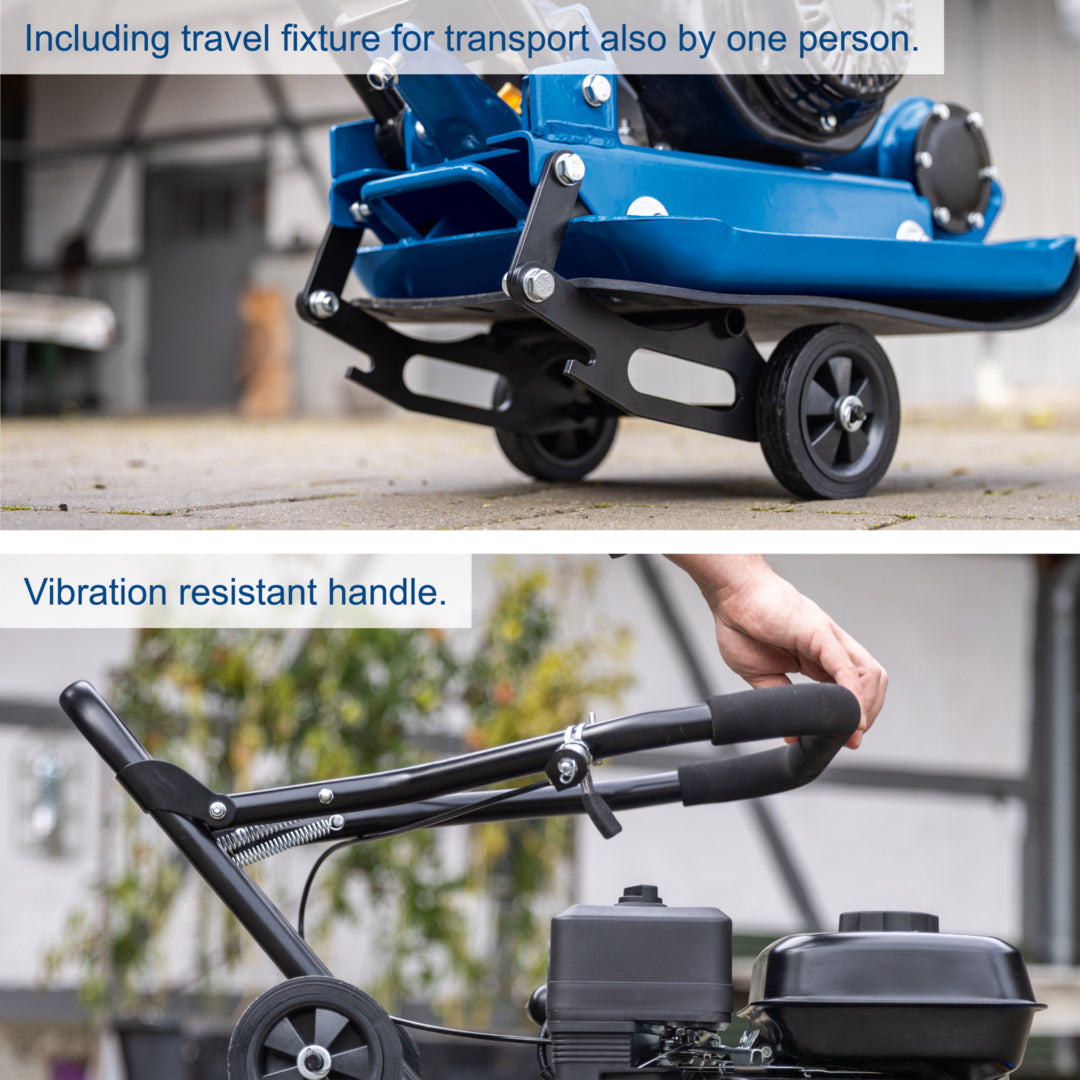

- Vibration-damped, mobile design: Features a fold-down wheel kit for smooth transport around the worksite alongside a vibration-protected handle to reduce operator fatigue during long shifts.
Technical Specification
| Engine Displacement | 196 cm³ (4-stroke petrol, Euro V) |
| Engine Power Output | 4.1 kW / 5.58 HP |
| Compaction Force | 13,000 N |
| Vibration Frequency | 5,500 vpm |
| Compaction Depth | Up to 30 cm |
| Forward Working Speed | 15 m/min |
| Base Plate Size | 540 x 420 mm (6mm plate thickness) |
| Starter Type | Recoil pull starter |
| Fuel & Oil Capacity | 3.6L fuel tank (E10 suitable), 0.6L engine oil capacity |
| Engine Safety Protection | Low oil level sensor shutdown switch |
| Exciter Oil Type | SAE 80W90 |
| Maximum Working Incline | 20° angle |
| Overall Dimensions (L x W x H) | 1105 x 430 x 855 mm |
| Sound Power Level Lw(A) | 104.1 dB (Guaranteed Lw(A) 106.0 dB) |

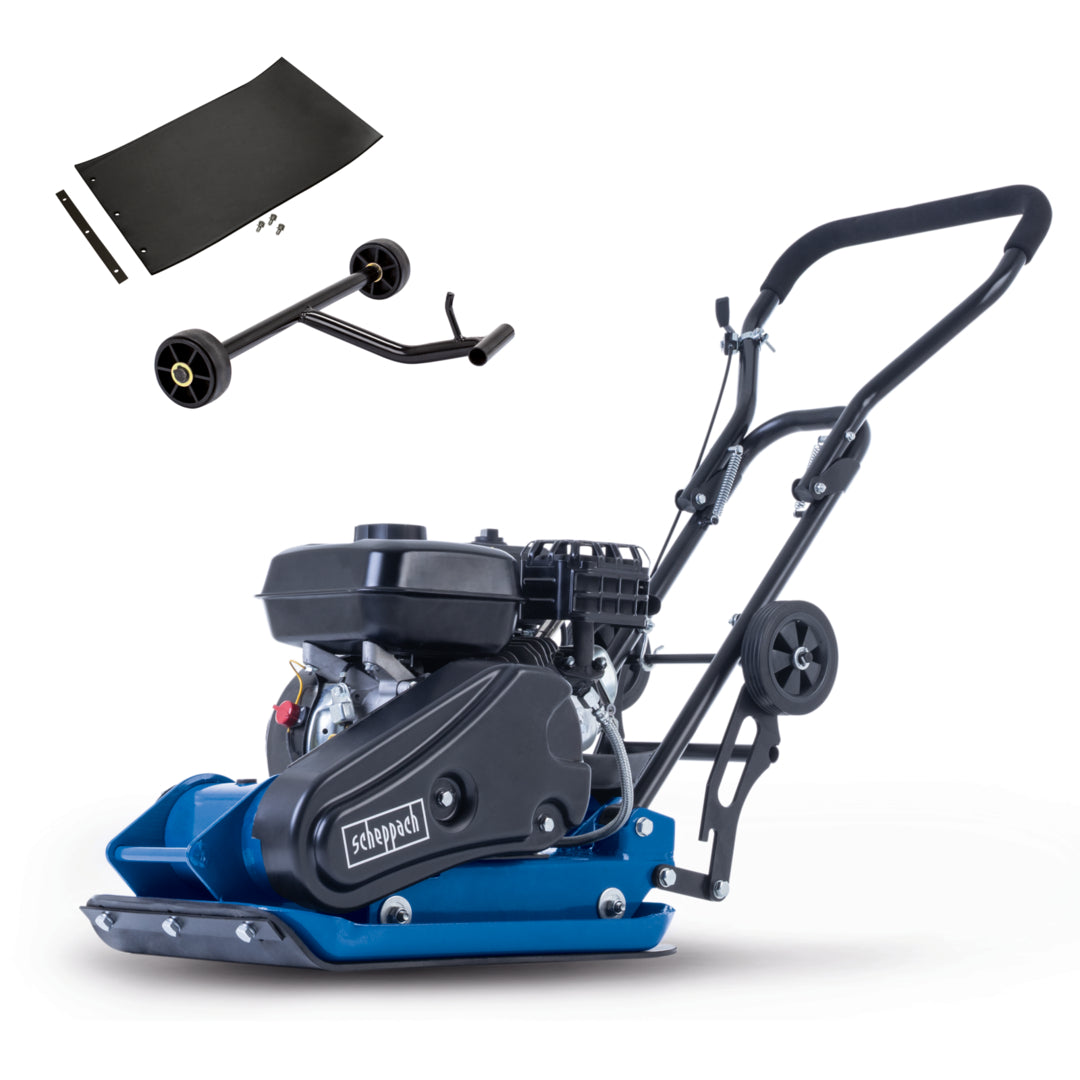

| Included Accessories | Paving rubber mat with fastening bar, folding wheel chassis, engine handle, operating manual |
