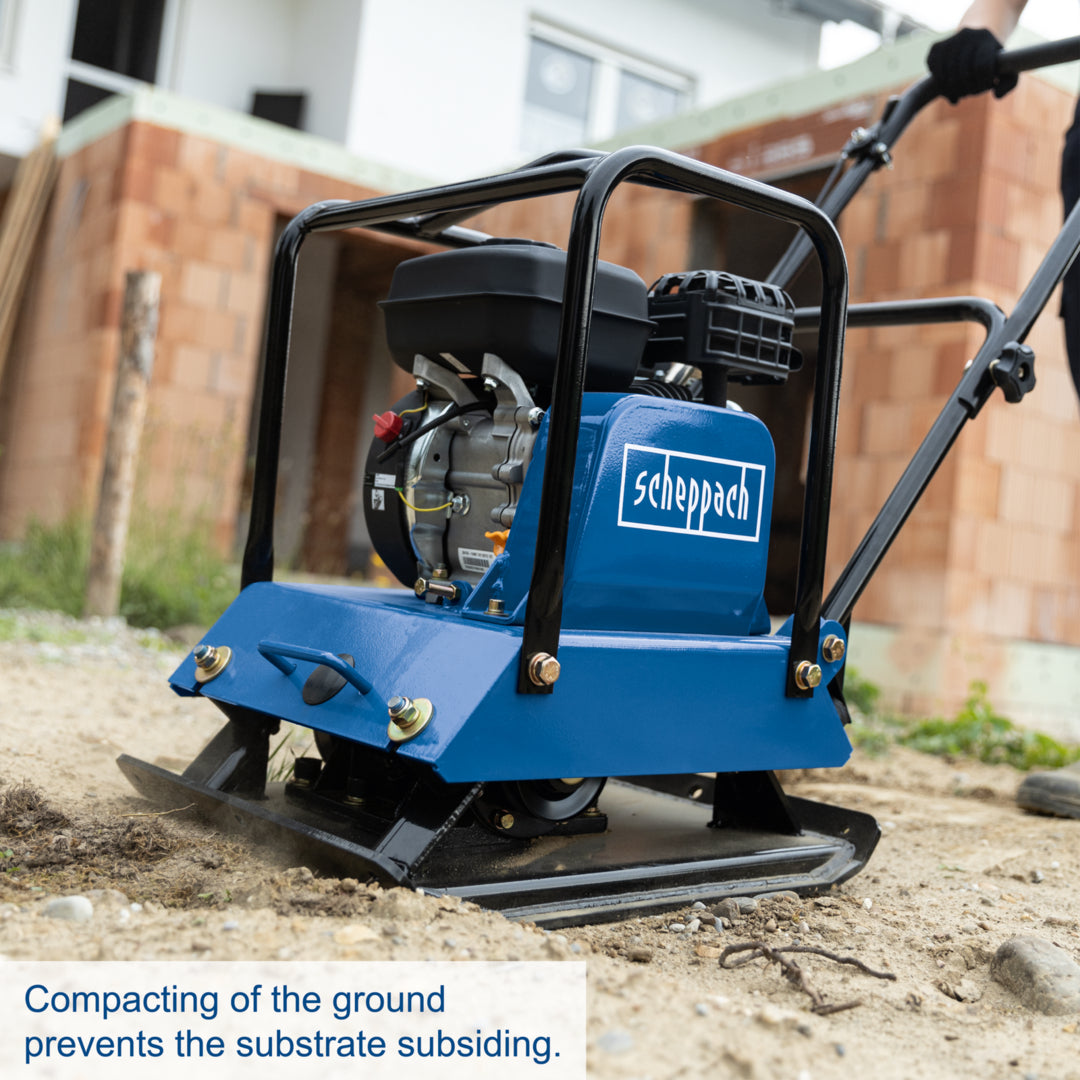

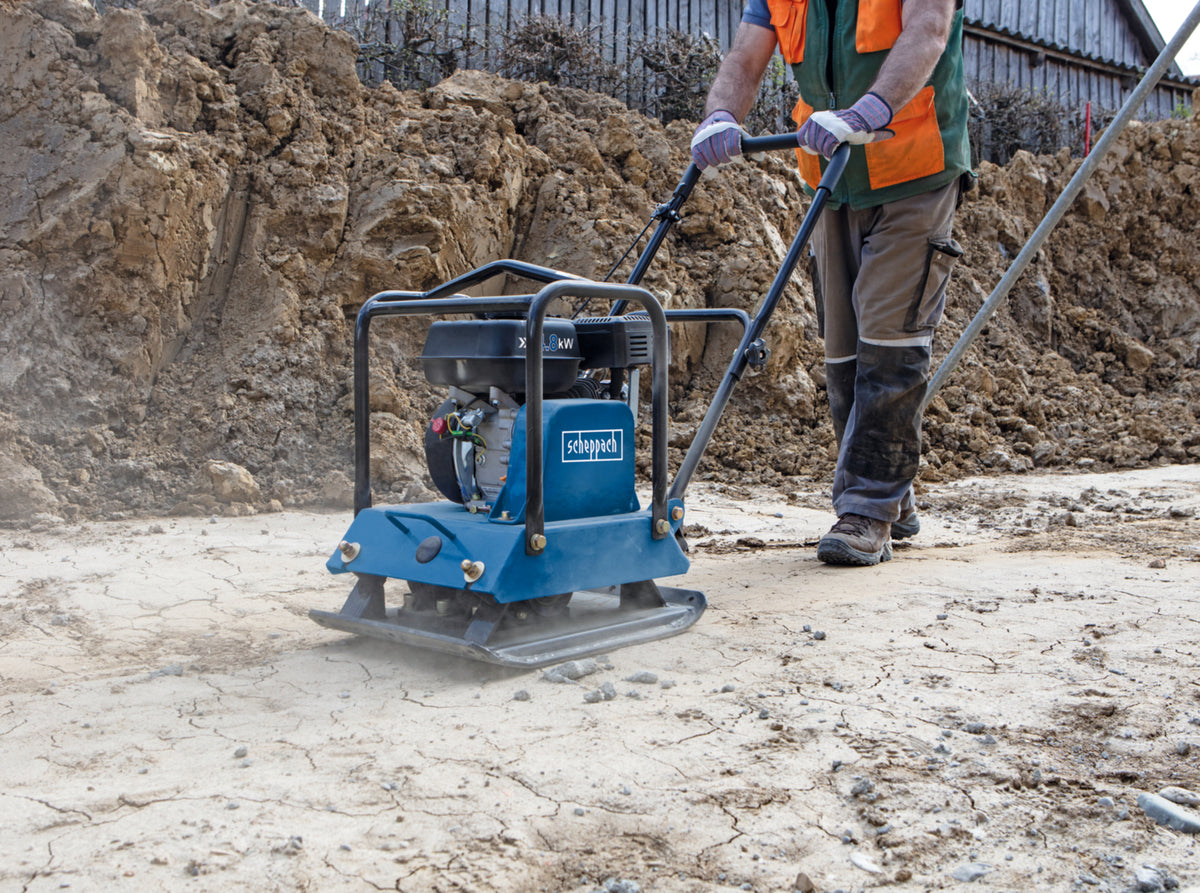

Reliable ground consolidation engineered for patio, driveway, and site preparation.

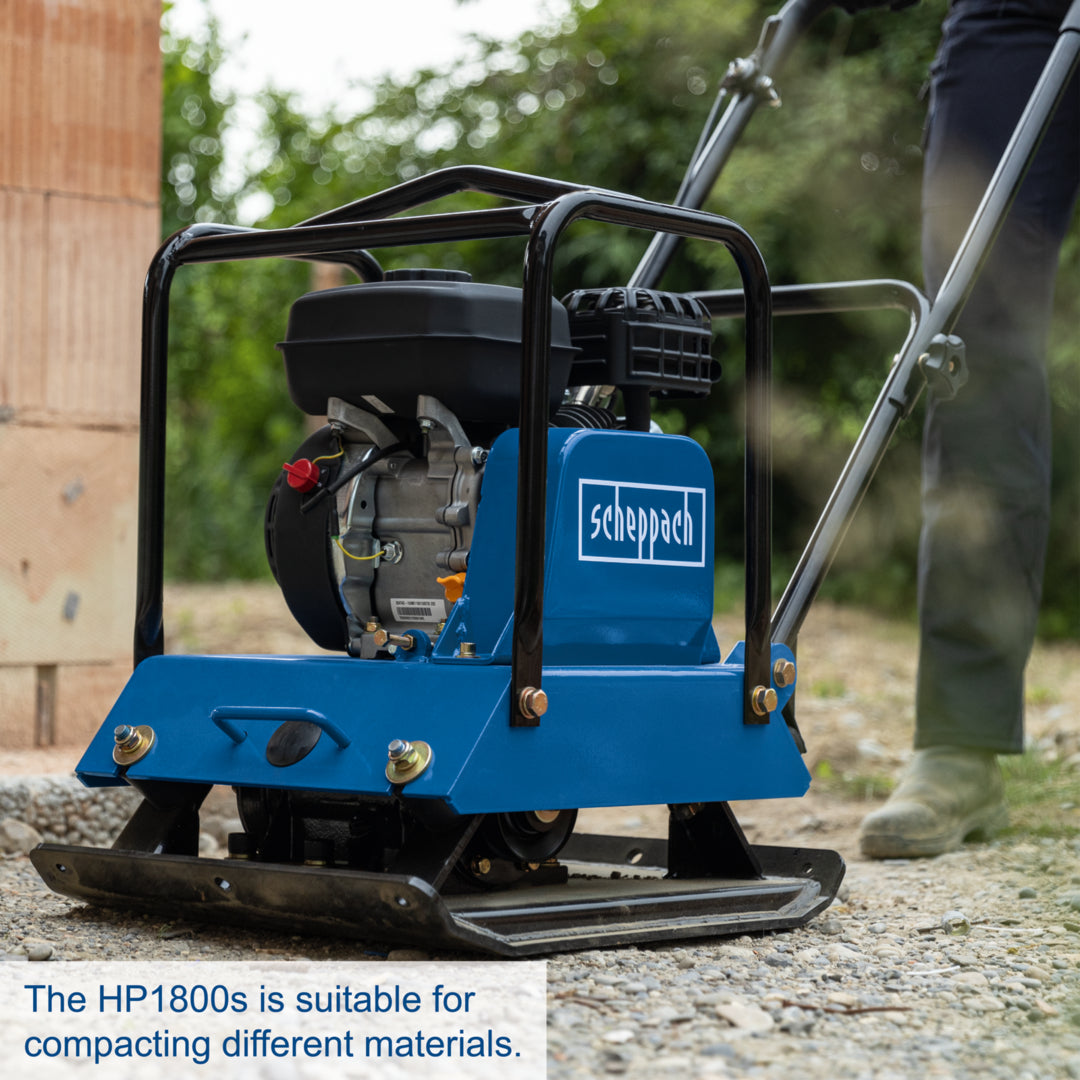

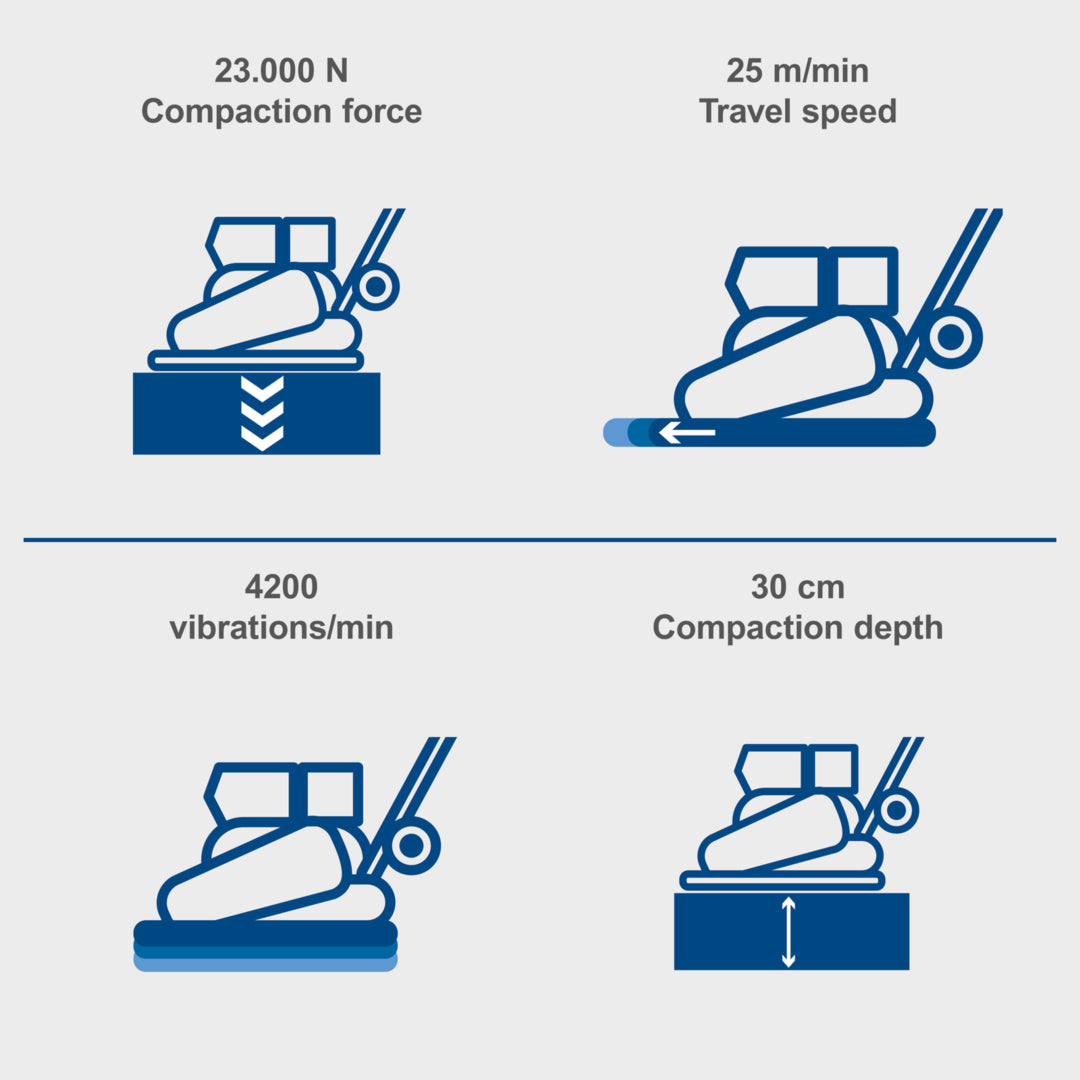

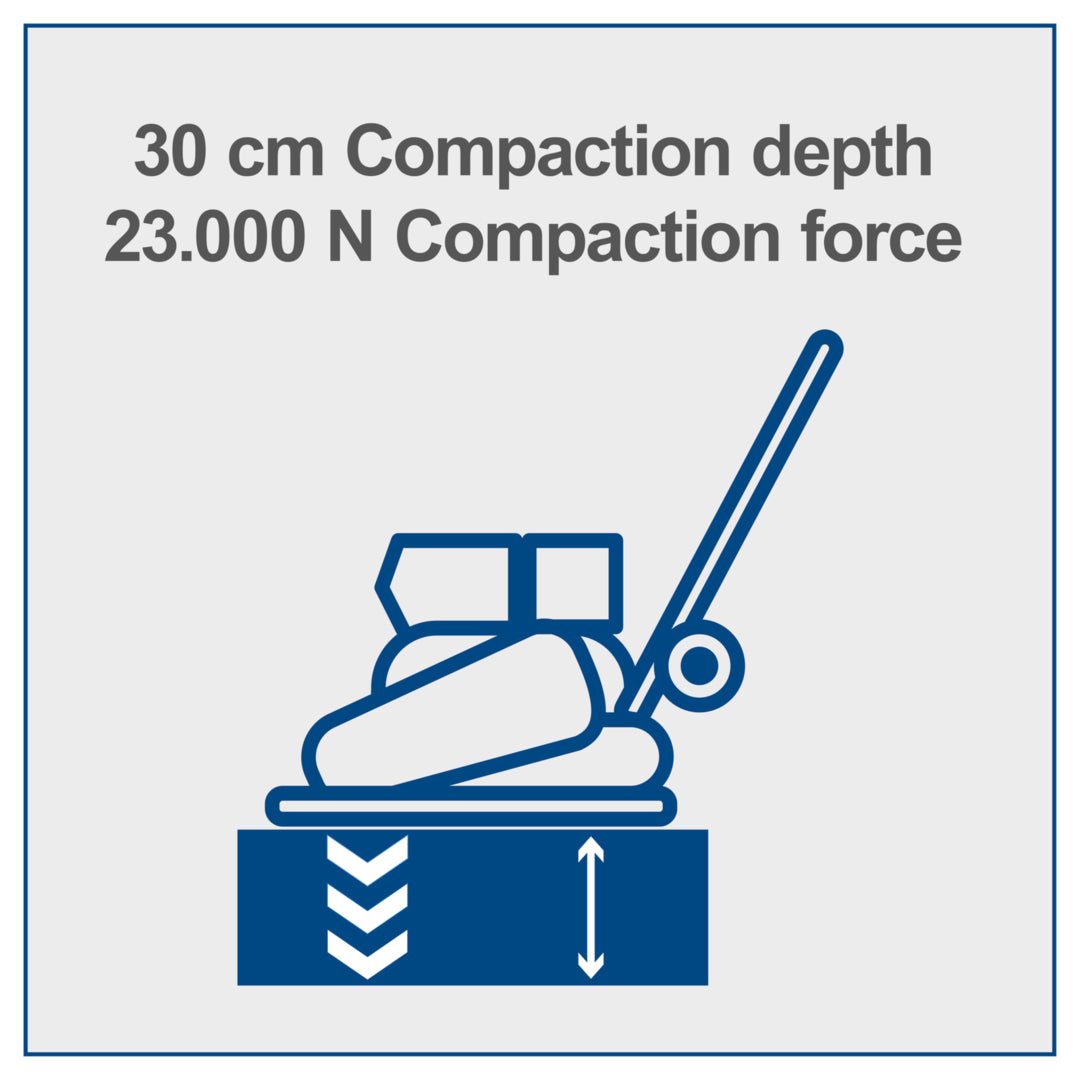

Delivers 23,000N of compaction force to settle soil, aggregate, and paving layers to depths of 30cm. Combines a high-torque 196cc petrol engine with a durable steel base plate for steady, consistent coverage across demanding jobs.
Features:
- High Compaction Performance: Driven by a 4.1 kW 196 cc 4-stroke engine generating 23,000N of force, ensuring deep, stable consolidation for sub-bases and foundations.
- Durable Steel Base Plate: Features a 544 x 440mm high-strength steel plate designed to distribute force evenly without leaving deep edge marks in loose aggregate.
- Fast Working Progress: Achieves a forward travel speed of up to 25m/min, allowing you to cover large areas quickly and increase productivity on site.
- Paving Protection Included: Supplied with a thick rubber pad that easily attaches to the base, protecting block paving and patio slabs from cracking or scratching during final levelling.

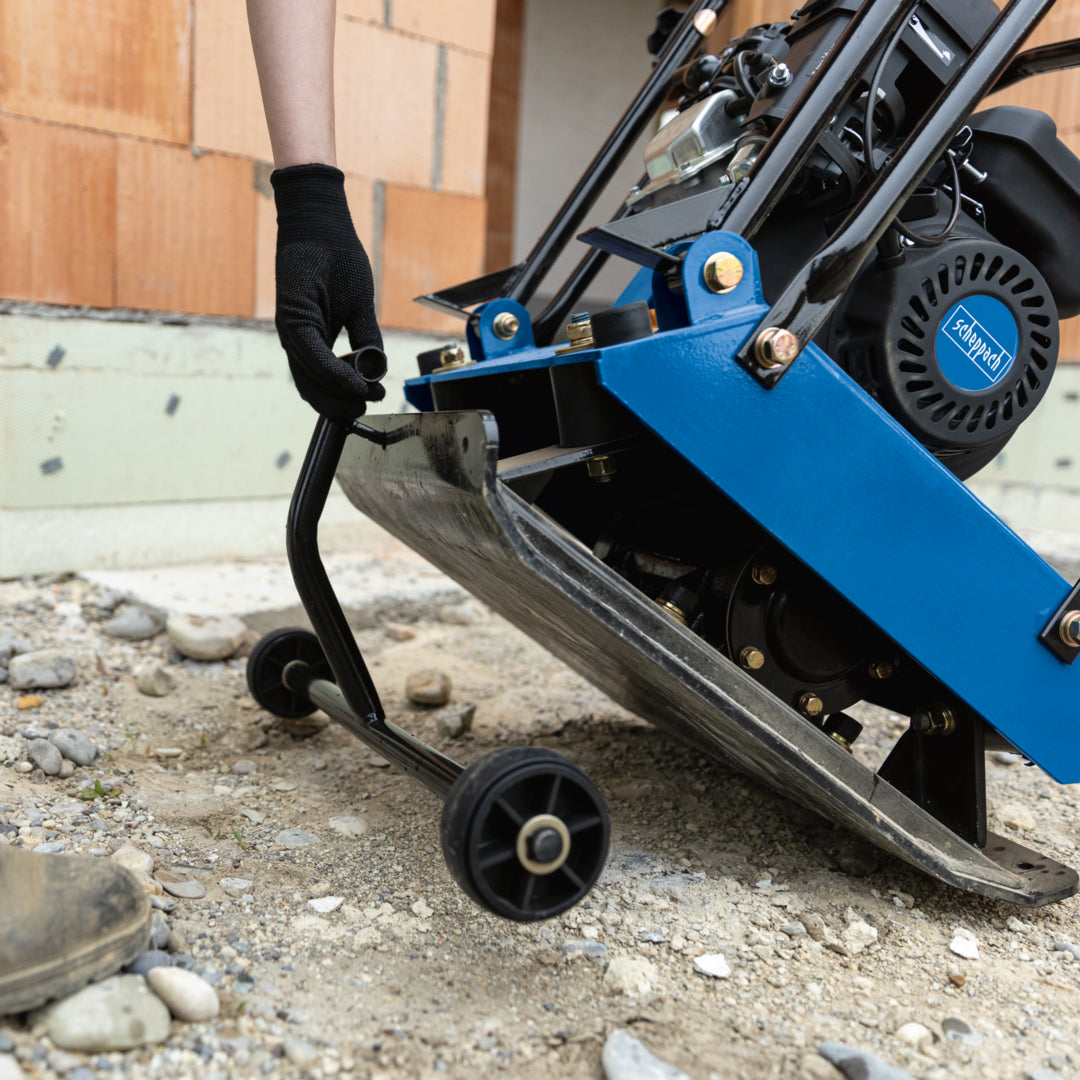

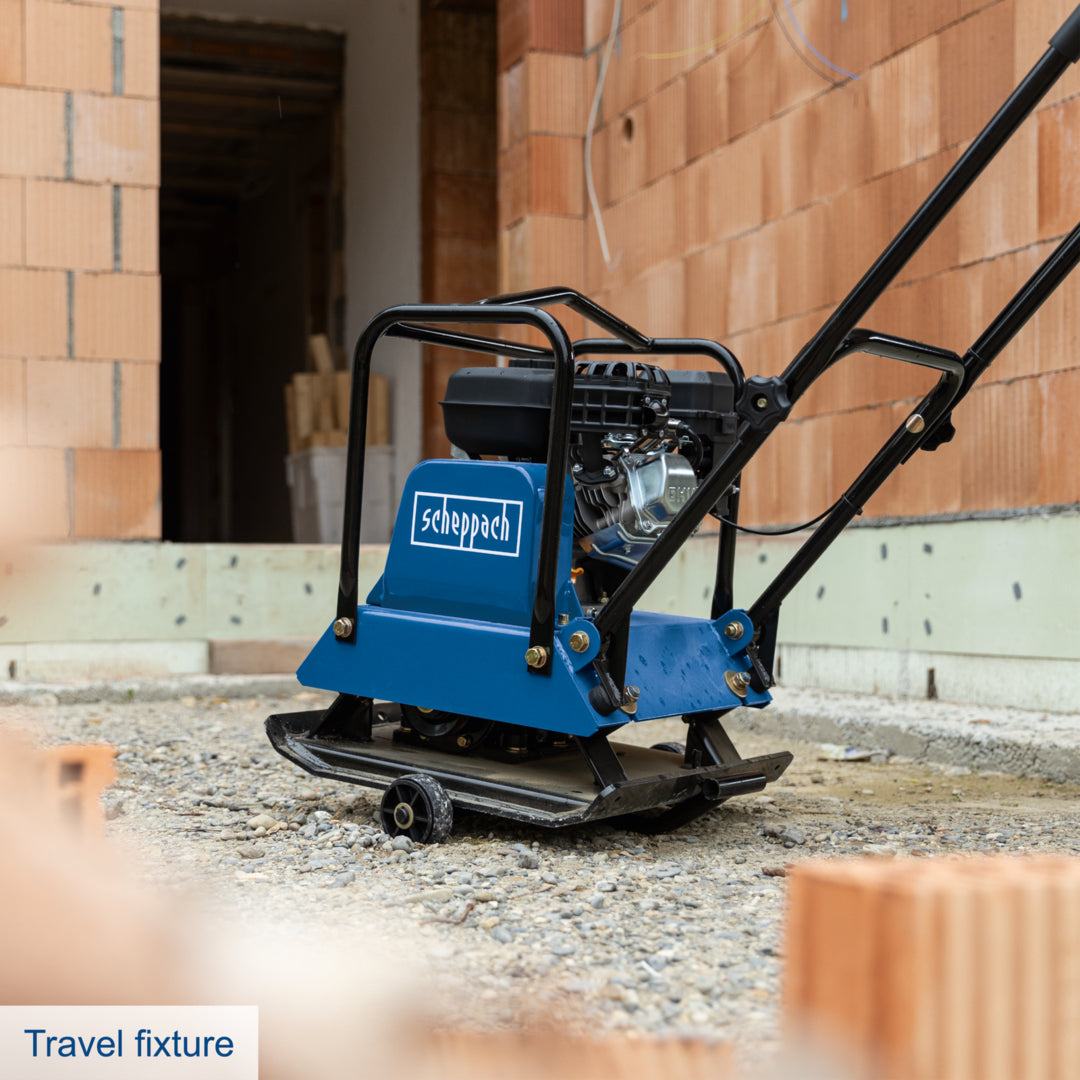

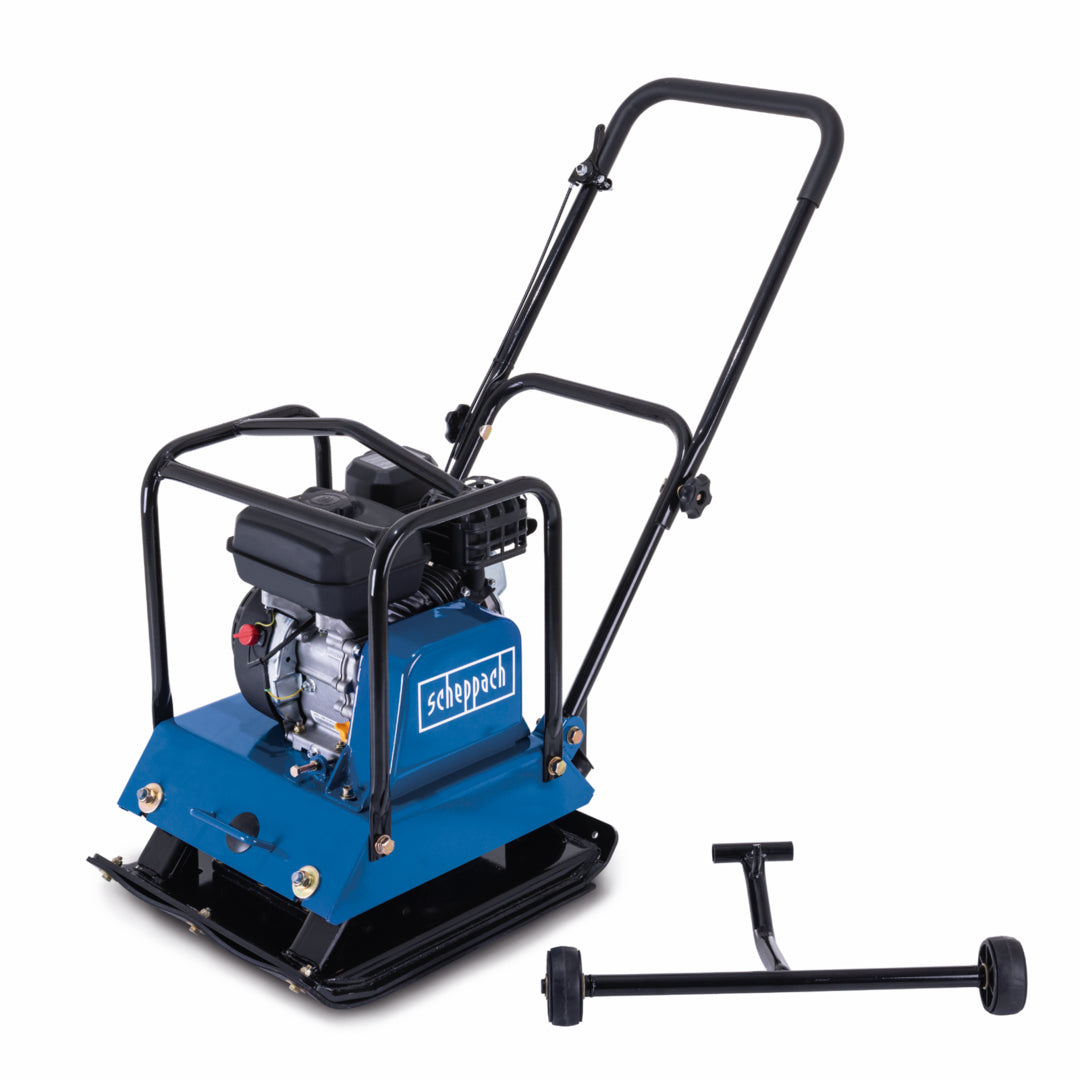

- Easy Site Transport: Equipped with a folding transport wheel kit and collapsible handle to make moving around the job site and loading into vehicles straightforward.
Technical Specification
| General Details | |
|---|---|
| Title | Plate Compactor HP1800S scheppach (DIY) |
| Article Number | 5904611903 |
| Model Description | HP1800S |
| Machine Group | Plate Compactor |
| EAN | 4046664085621 |
| Mass Gross | 92.5 kg |
| Mass Net | 87.76 kg |
| General Dimensions (L x W x H) | 1070.0 mm x 460.0 mm x 690.0 mm |
| Engine & Drive Performance | |
| General Drive Type | Combustion Engine |
| Subgrouping Drive Type / Type of Motor | 4-Stroke Engine |
| Displacement | 196.0 cm³ |
| Power Output | 4.1 kW / 5.6 PS |
| Idle Speed Engine | 1800.0 1/min |
| Speed Max | 3600.0 1/min |
| Crank Shaft Count | 1.0 Piece |

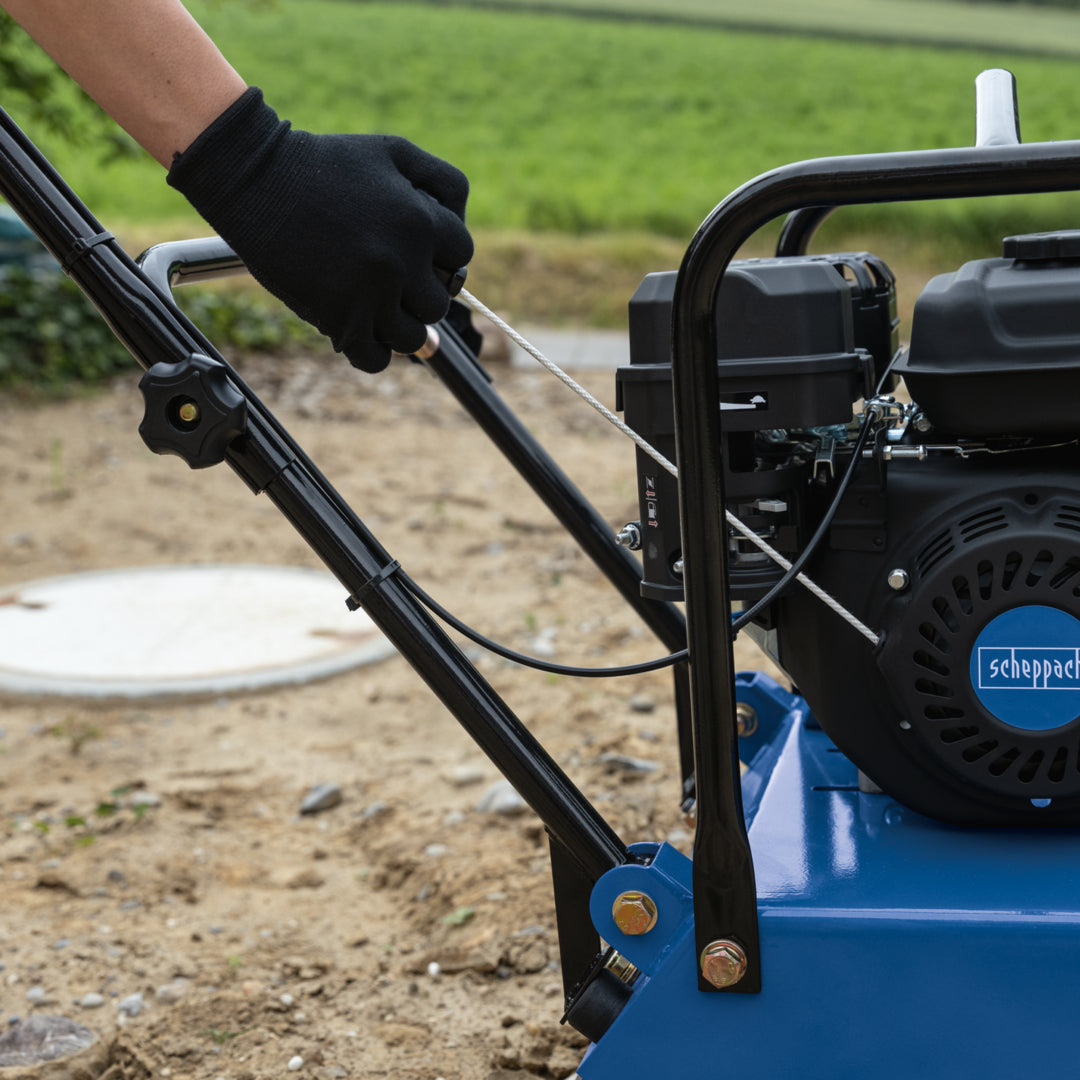

| Starter Type | Wire Rope |
| Spark Plug | F7RTC |
| Battery Included | No |
| Fluids & Fuel System | |
| Fuel Tank Volume | 3.5 l |
| E10 Suitable | Yes |
| Oil / Fuel Mixing Ratio | n/a |
| Oil Tank Capacity | 0.6 l |
| Motor Oil Quantity | 0.4 l |
| Oil Watch | Yes |
| Coolant | Air |
| Emission Class | Euro V |
| Compaction & Operational Specifications | |
| Ground Plate Dimensions (L x W) | 550.0 mm x 440.0 mm |
| Plate Thickness | 80.0 mm |
| Compression Pressure Max | 23000.0 N |
| Compacting Depth | 30.0 cm |
| Vibration Batch | 4200 VPM |
| Forward Speed Max | 25.0 m/min |
| Area Activity Max | 25.0 ° |
| Features & Equipment | |
| Handle Height | 930.0 mm |
| Vibration Protected Handle | Yes |
| Rubber Mat / Material / Hardness | Yes / Polyurethan (PU) / 70.0 hrc |
| Wheel Chassis | Yes |
| Crane Fixing Point | Yes |
| Water Tank Available / Volume / Lubrication | No / 0.0 n/a / No |
| Sound & Emissions | |
| Guaranteed Sound Power Level Lw(A) | 108.0 dB |
| Measured Sound Power Level Lw(A) | 105.0 dB |
| Sound Power Level Lw(A) | 104.6 dB |
| Sound Pressure Level Lp(A) | 84.6 dB |
| Delivery Content | |
| Delivery Content Text | • 1x Plate Compactor • 1x Handle • 2x Star-grip nut with screw • 1x Rubber pad • 3x Fastening screw with washer and nut • 1x Transport fixture • 1x Spark plug wrench • 2x Cable tie • 1x Operator’s Manual |
