Scheppach HP1400S Petrol Wacker Plate Compactor
Scheppach HP1400S Petrol Wacker Plate Compactor
Regular price
£379.00
Regular price
Sale price
£379.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Dependable ground compaction performance for landscaping and paving projects.

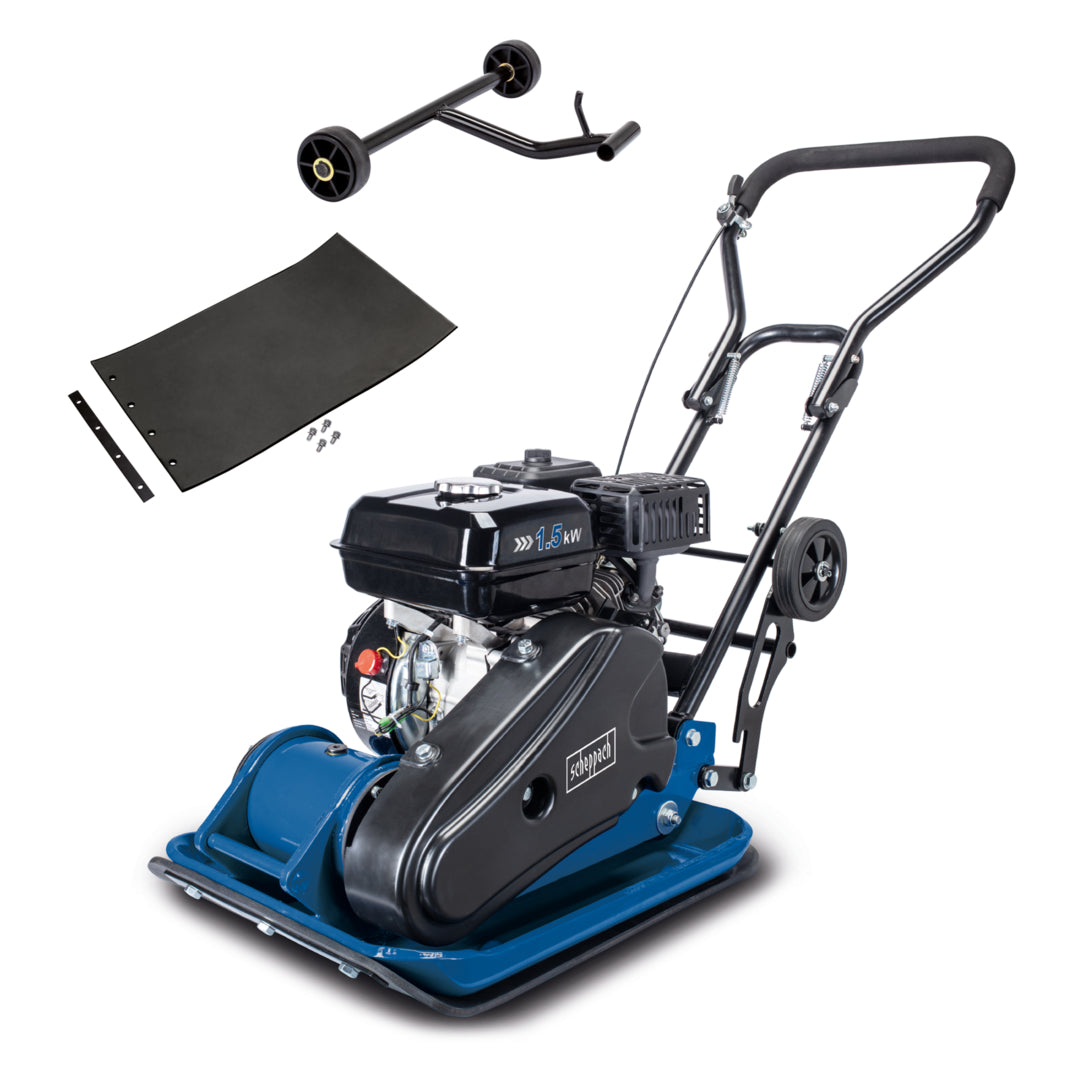

Delivers 8200N of compaction force to create firm, level foundations for patios, driveways, and pathways. Features a fold-out wheel kit and rubber mat for straightforward transport and slab protection.
Features:

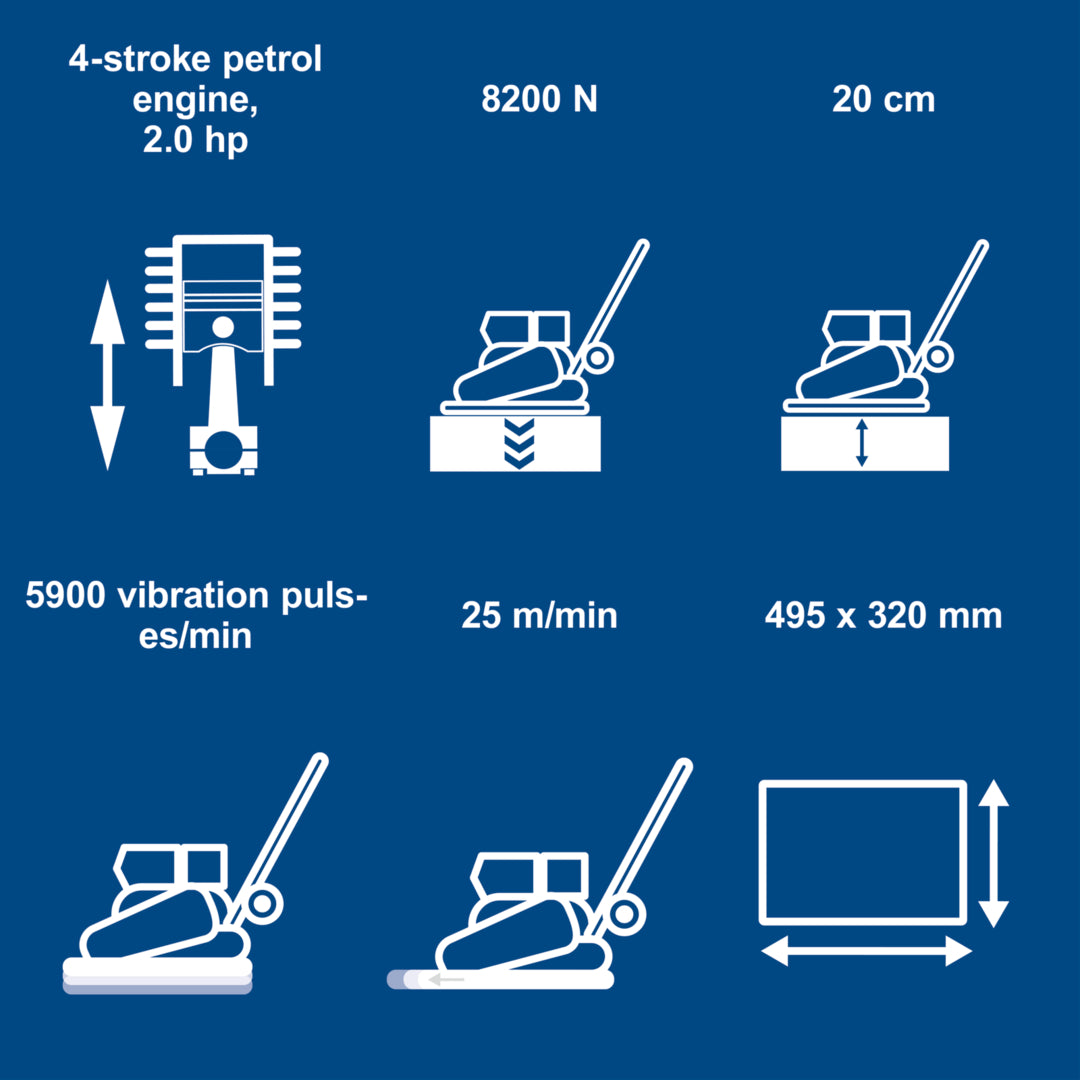

- Effective Compaction Force: Generates 8200N of force with a compaction depth up to 20cm, ensuring gravel, sand, and soil are firmly settled before laying surfaces.
- Reliable Petrol Engine: Powered by a 1.5kW 79cm³ 4-stroke petrol engine that provides consistent power for tough groundwork without relying on electric cables.

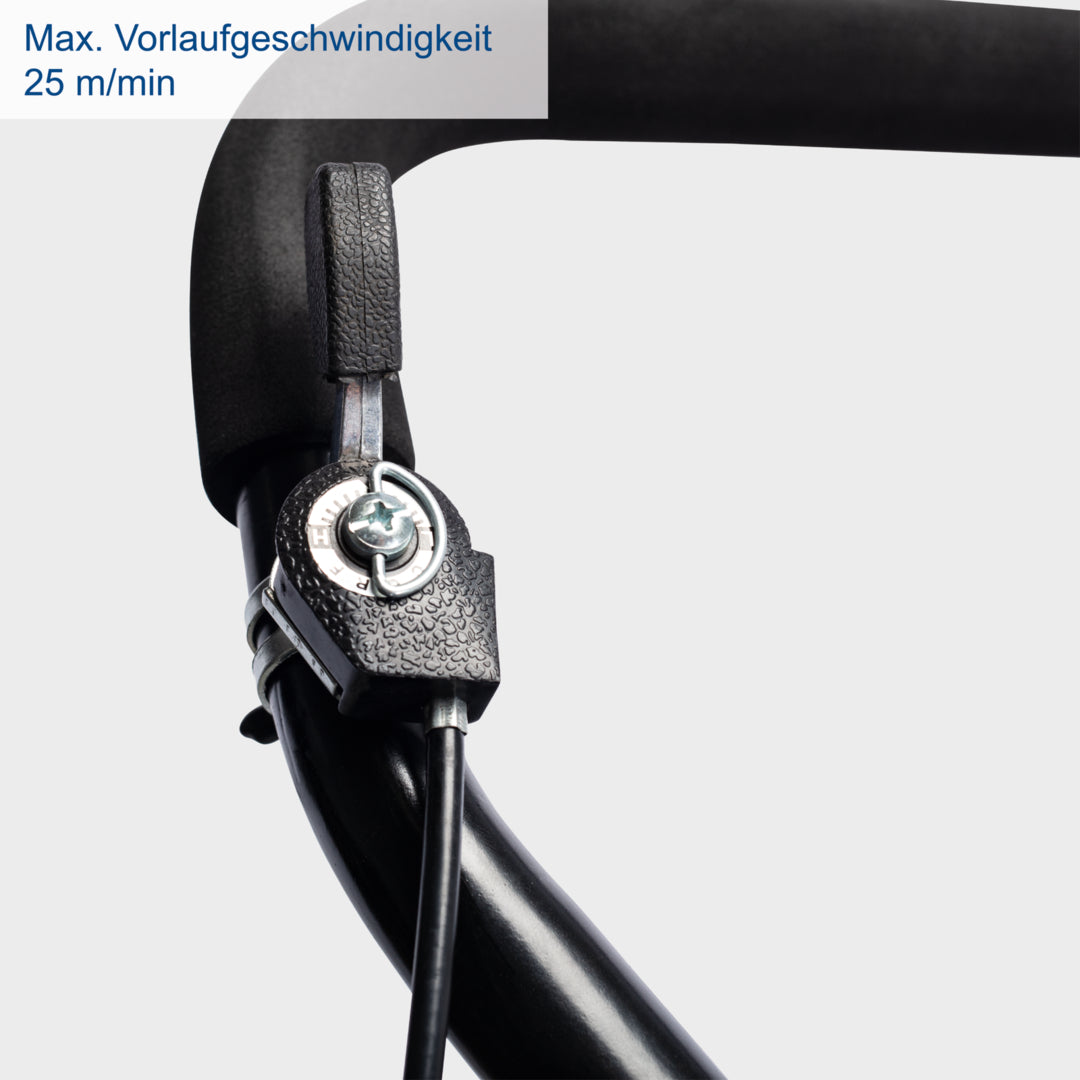

- Automatic Forward Drive: Achieves a travel speed of 25 metres per minute, covering ground quickly to save time and reduce manual effort on site.
- Paving Protection Included: Comes supplied with a thick rubber pad that attaches to the steel base plate to prevent cracking or scratching block paving and delicate slabs.

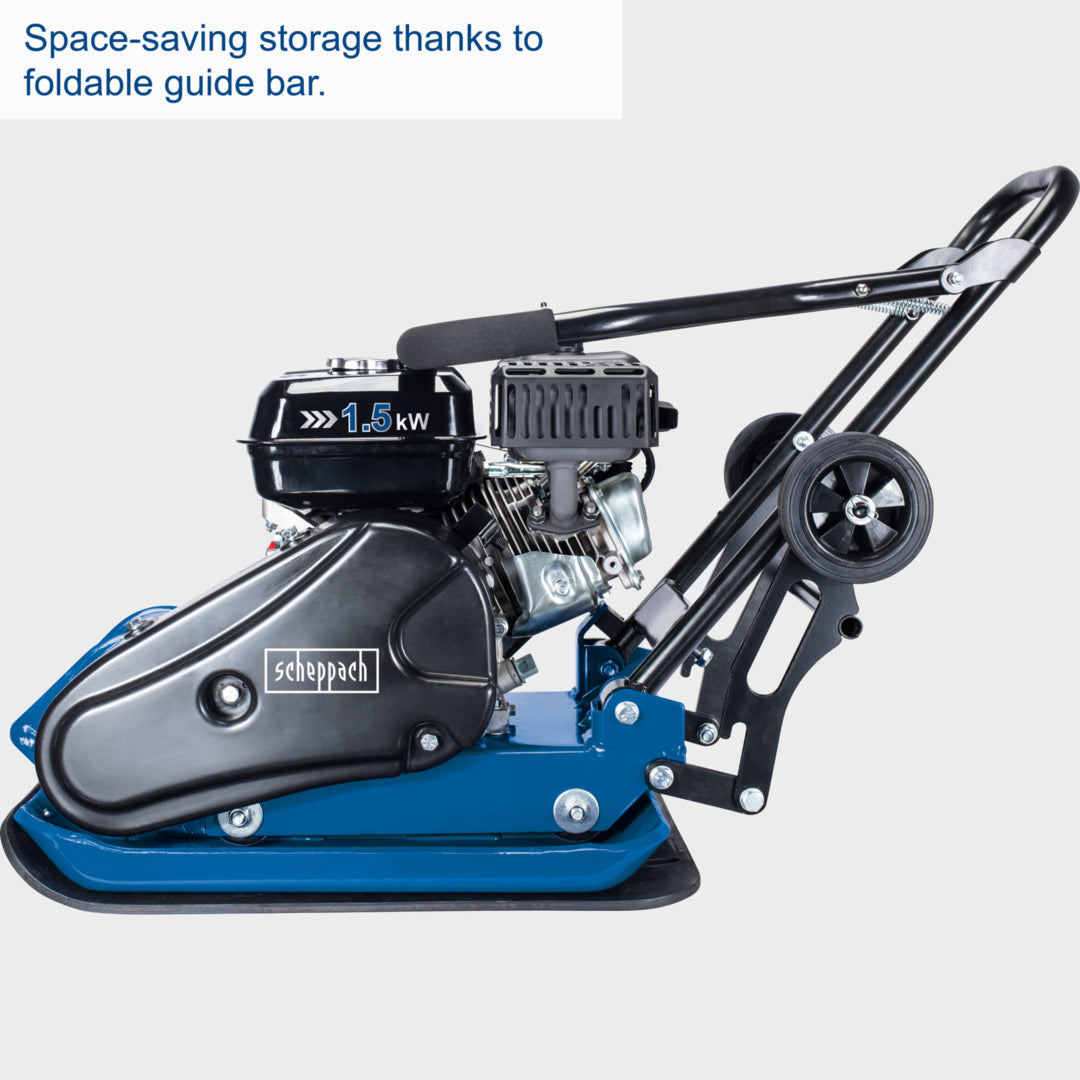

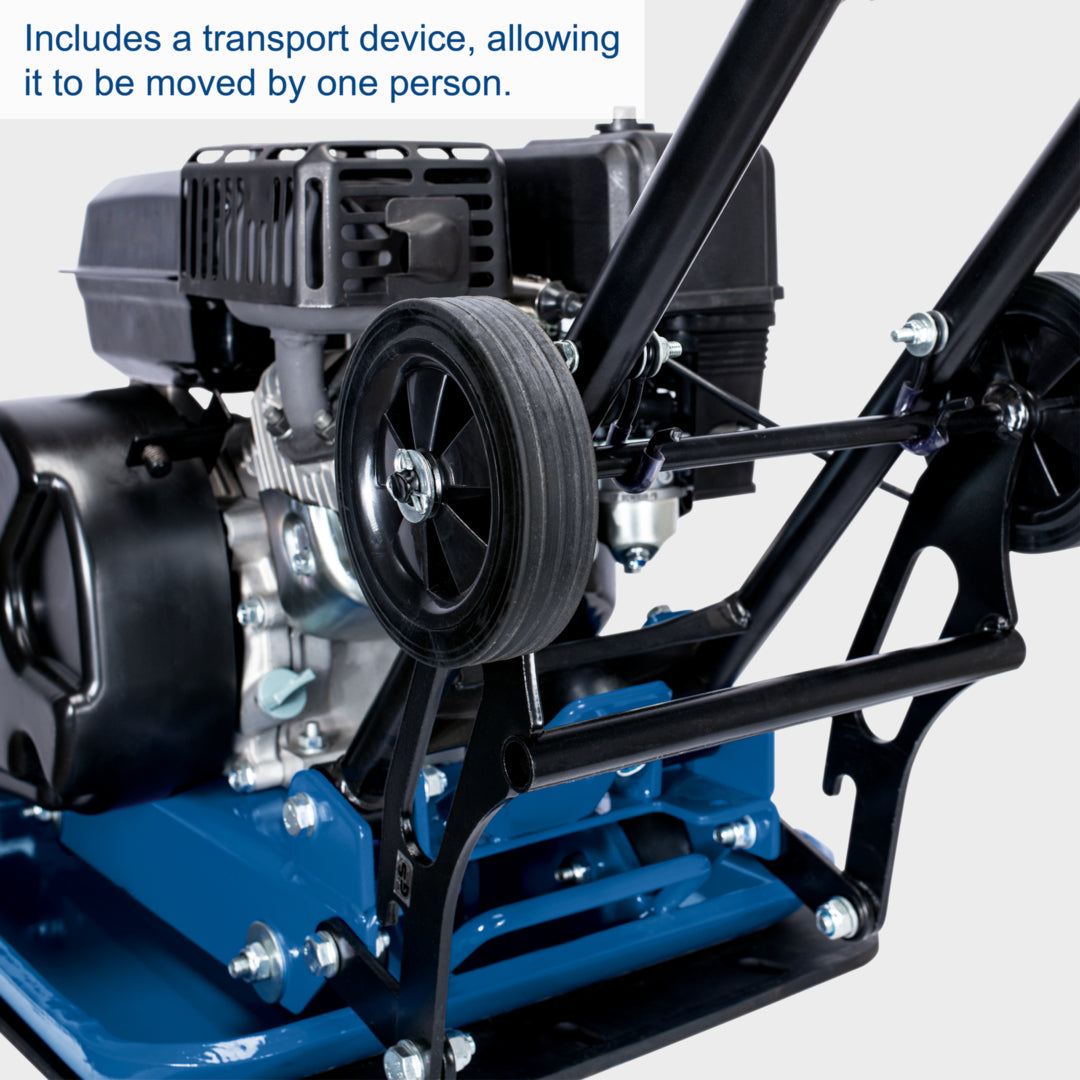

- Easy Mobility & Storage: Features integrated transport wheels for effortless movement around the job site, alongside a folding handle for compact vehicle transport and garage storage.
Technical Specification
| General Details | |
|---|---|
| Title | Plate Compactor HP1400s scheppach (DIY) |
| Article Number | 5904615903 |
| Model Description | HP1400s |
| Machine Group | Plate Compactor |
| EAN | 4014915230212 |
| Mass Gross | 50.0 kg |
| Mass Net | 48.0 kg |
| General Dimensions (L x W x H) | 1130.0 mm x 420.0 mm x 820.0 mm |
| Engine & Drive Performance | |
| General Drive Type | Combustion Engine |
| Subgrouping Drive Type | 4-Stroke Engine |
| Displacement | 79 cm³ |
| Power Output | 1.5 kW / 2.04 PS |
| Crank Shaft Count | 1 Piece |
| Starter Type | Wire Rope |
| Fluids & Emissions | |
| Fuel Tank Volume | 1.1 l |
| E10 Suitable | Yes |
| Oil Tank Capacity / Motor Oil Quantity | 0.35 l |
| Oil Included | No |
| Motor Oil Included | No |
| Oil Watch | Yes |
| Spark Plug | F7RTC |
| Emission Class | Euro V |
| CO² Emission | 1016.4 g/kWh |
| Compaction & Operational Specifications | |
| Ground Plate Dimensions (L x W) | 495 mm x 320 mm |
| Plate Thickness | 6 mm |
| Compression Pressure Max | 8200 N |
| Compacting Depth | 20 cm |
| Vibration Batch | 5900 VPM |
| Forward Speed Max | 25 m/min |
| Area Activity Max | 20 ° |
| Reflux Available | No |
| Vibration Exciter Oil Type | 80W90 |
| Vibration Exciter Oil Included | Yes - included in device |
| Features & Equipment | |
| Rubber Mat | Yes |
| Wheel Chassis | Yes |
| Crane Fixing Point | Yes |
| Pultruded Tumbling Plate | Yes |
| Vibration Protected Handle | Yes |
| Sound & Emissions | |
| Guaranteed Sound Power Level Lw(A) | 105 dB |
| Sound Power Level Lw(A) | 103.2 dB |
| Uncertainty KpA | 2.2 dB |
| Uncertainty KwA | 2.2 dB |
| Delivery Content | |
| Comes With | 1 x Guide handle, 1 x Chassis, 1 x Rubber pad, 1 x Fastening strip, 1 x Installation spanner, 1 x Plate compactor, 1 x Operating manual, 2 x Screw (M10x70 mm), 2 x Washer (M10), 1 x Locknut (M10), 2 x Screw (M10x30 mm), 2 x Washer (M10), 2 x Locknut (M10), 2 x Screw (M10x30 mm), 2 x Spring washer (M10), 2 x Nut (M10) |
SKU: D-SCH-5904615903
MPN: 5904615903
ID: D-SCH-5904615903
View full details
