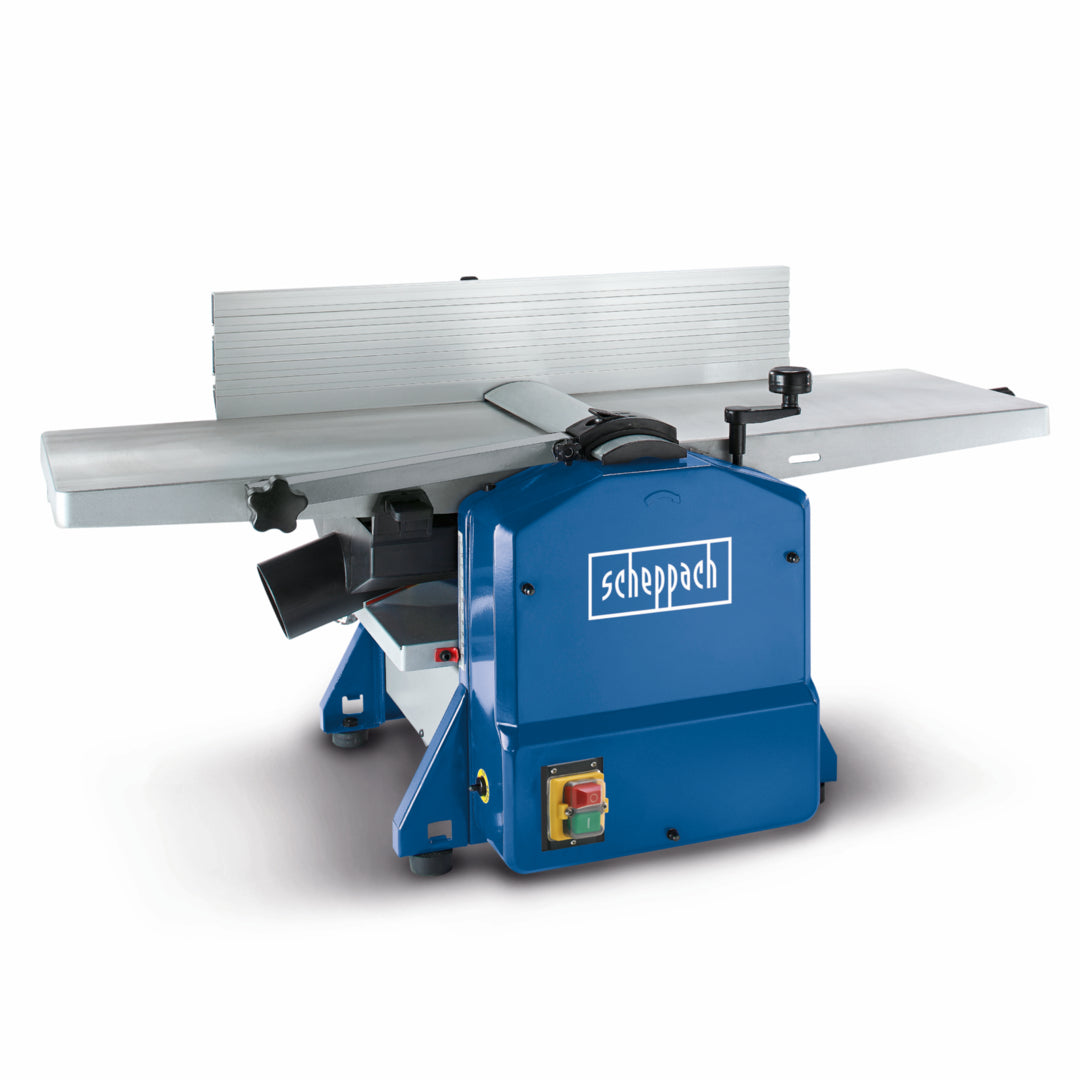

Scheppach HMS1070 Planer Thicknesser 1500W
Scheppach HMS1070 Planer Thicknesser 1500W
Regular price
£379.00
Regular price
Sale price
£379.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

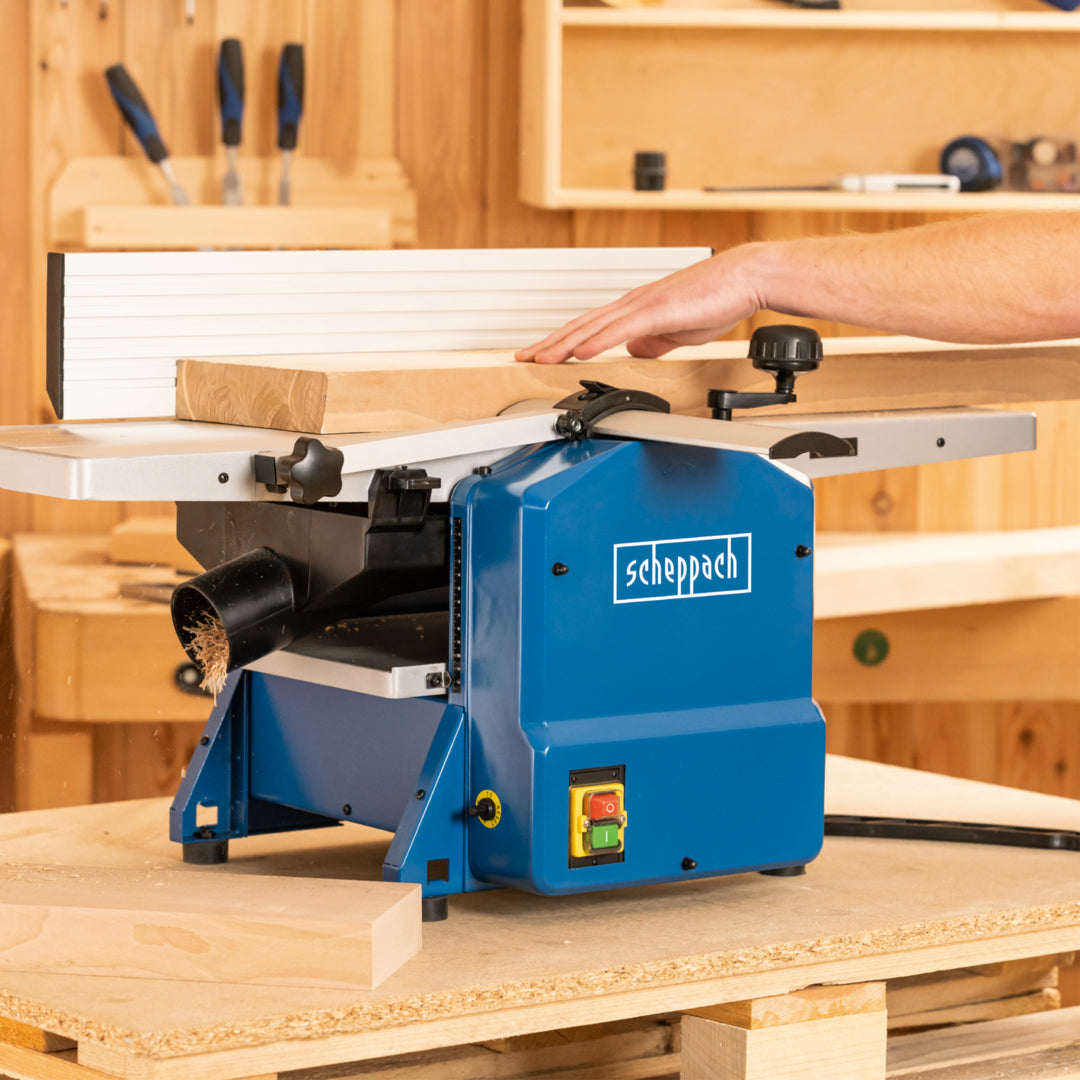

Precision timber dressing and sizing performance in a compact workshop footprint.
Combines surface dressing and thicknessing capabilities in one portable machine to deliver smooth, square timber for DIY and joinery projects. Features a solid die-cast aluminium table and automatic feed for consistent results.
Features:

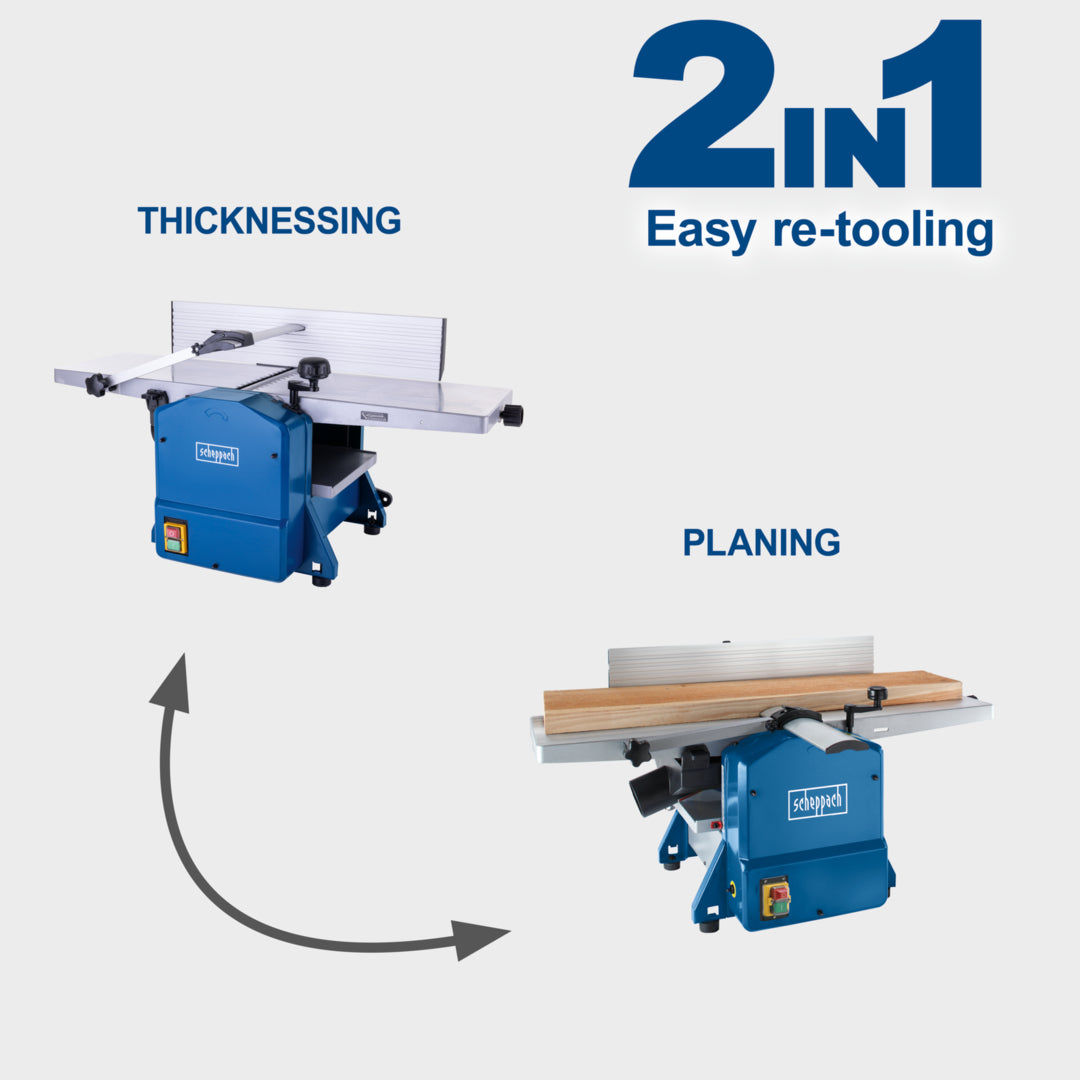

- 2-in-1 Space-Saving Design: Combines a surface planer and thicknesser into one compact unit, making it ideal for smaller workshops or trade users needing mobile timber dressing.
- High-Speed Motor: Driven by a robust 1500W motor rotating two high-speed steel knives at 8500rpm for a clean, chatter-free finish on hard and soft woods.

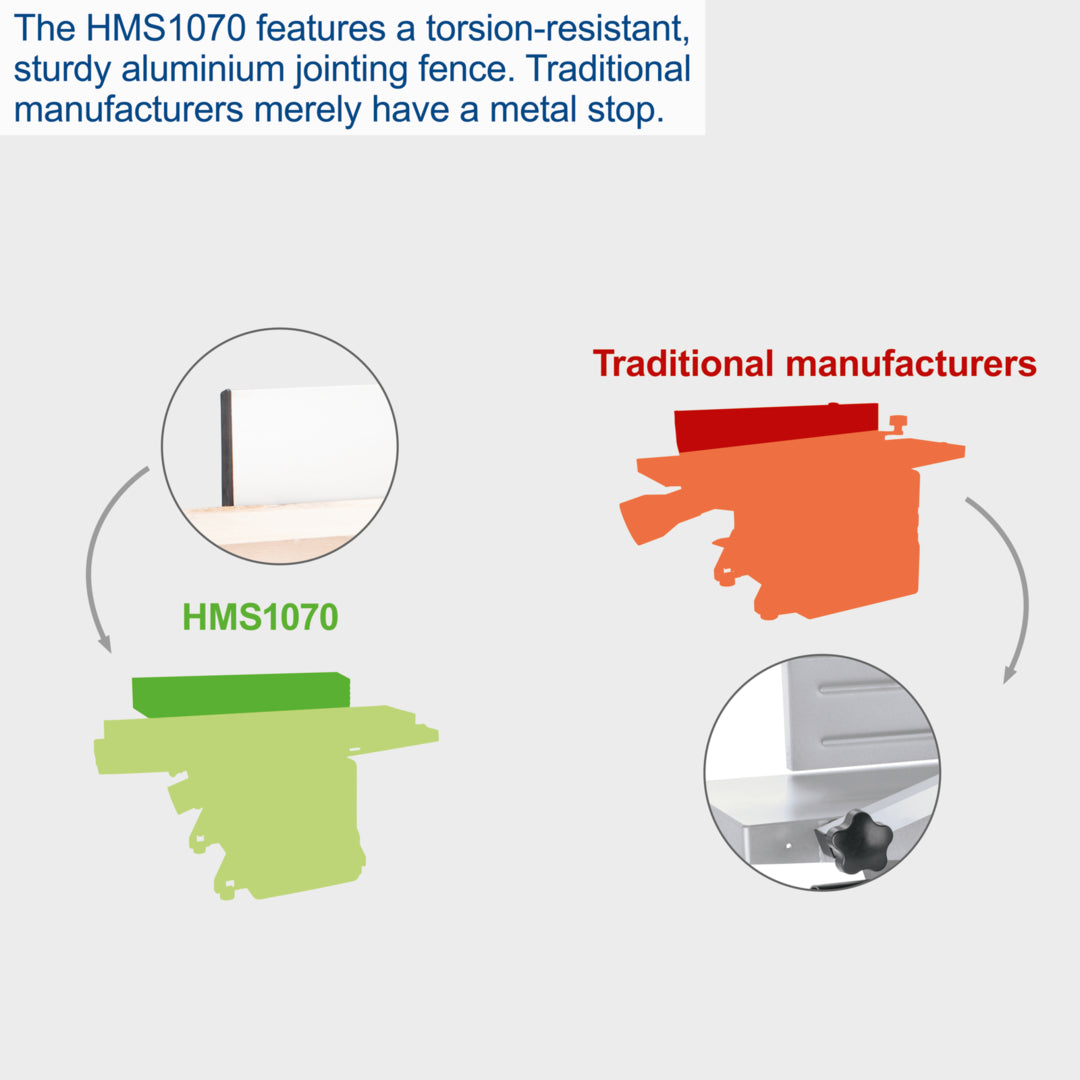

- Accurate Surface Dressing: Equipped with a 635mm die-cast aluminium table and a swivelling fence adjustable between 90° and 135° for square edges and precise bevels.
- Controlled Thicknessing: Features a manual hand crank for fine height adjustments up to 120mm, paired with a 7.2m/min automatic feed rate for smooth, even passes.
- Cleaner Working Environment: Fitted with a 76mm dust extraction port and rubber anti-vibration feet to keep work areas tidy and operating stable on the workbench.
Technical Specification
| General Details | |
|---|---|
| Title | Planer / Thicknesser HMS1070 Scheppach (DIY) Great Britain |
| Article Number | 5902206905 |
| Model Description | HMS1070 |
| Machine Group | Planer / Thicknesser |
| EAN | 4046664285069 |
| Mass Gross | 35.0 kg |
| Mass Net | 30.0 kg |
| General Dimensions (L x W x H) | 970.0 mm x 490.0 mm x 485.0 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Induction Motor |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Continuous Power Consumption S1 | 1500.0 W |
| Maximum Engine Speed | 21000.0 1/min |
| Appliance Class | Class I |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class Electro | IP 20 |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Stop Time Select | < 10 sec |
| Cable Length | 3000 mm |
| Plug Type | UK Plug (Class II) |
| Phase Changing Switch 400 V in Plug New | No |
| Switch with No Voltage Release New | Yes |
| Planer & Thicknesser Specifications | |
| Cutterblock Diameter | 50.0 mm |
| Cutterblock Length | 258.0 mm |
| Cutterblock Speed | 8500.0 m/sec |
| Cutterblock Knife Count | 2.0 Pieces |
| Knife Dimensions (L x W x H) | 258.0 mm x 2.0 mm x 22.0 mm |
| Knife Material | Steel SK5 |
| Feed Rollers Diameter | 25.4 mm |
| Feed Rollers Length | 293.0 mm |
| Feed Rollers Speed | 7.2 m/min |

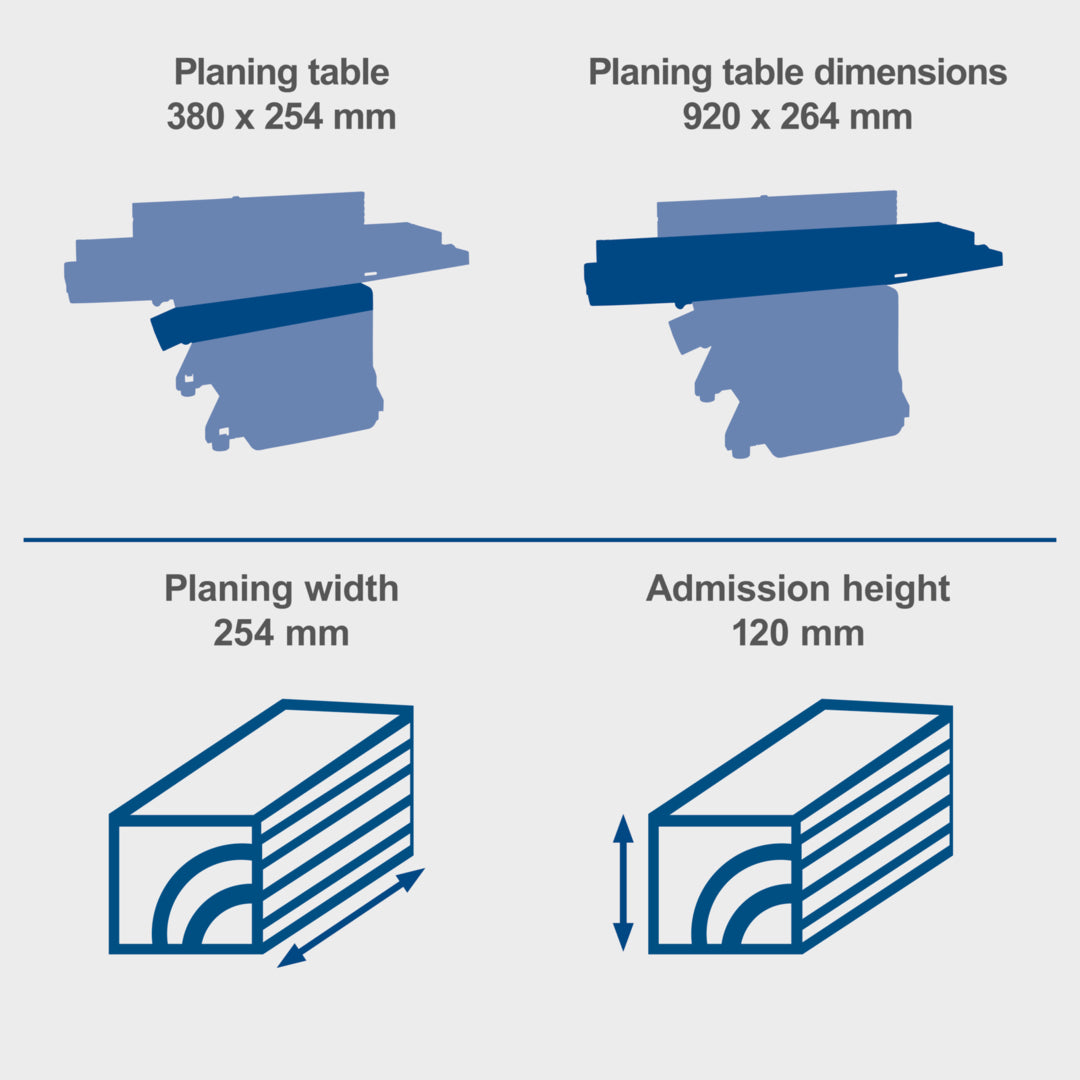

| Planer Width Max | 254.0 mm |
| Planer Cutting Depth Max | 2.0 mm |
| Planer Table Dimensions (L x W) | 920.0 mm x 264.0 mm |
| Planer Table Complete Length | 920.0 mm |
| Planer Table Evenness | 0.2 mm |
| Planer Table Material | Die Cast Aluminium |
| Planer Cutting Height Indicator | Yes |
| Parallelism Planing Shaft - Thicknesser Table | 0.2 mm |
| Thicknesser Cutting Depth Max | 2.0 mm |
| Thicknessing Height Range (Min / Max) | 6.0 mm - 120.0 mm |
| Thicknesser Table Dimensions (L x W) | 380.0 mm x 254.0 mm |
| Thicknesser Table Material | Die Cast Aluminium |
| Thicknesser Table Adjustment Via | Crank |
| Fence Dimensions (L x H) | 635.0 mm x 127.0 mm |
| Fence Angle, Tilting Range | 90° - 45° |
| Working Height | 355.0 mm |
| Suction Connector Inside Diameter | 74.0 mm |
| Dust Suction Diameter Outside | 76.0 mm |
| Sound & Emissions | |
| Sound Power Level Lw(A) | 102.0 dB |
| Sound Pressure Level Lp(A) | 89.0 dB |
| Sound Power Level Lw(A) Load | 102.0 dB |
| Sound Pressure Level Lp(A) Load | 89.0 dB |
| Uncertainty KpA | 3.0 dB |
| Uncertainty KwA | 3.0 dB |
| Delivery Content | |
| Delivery Content Text | 1x Jointer/planer/thicknesser, 1x Push stick, 2x Replacement ribbed belt, 1x Allen key, 1x Crank handle, 1x Parallel stop, 1x Chip extraction, 1x Operation manual |
