Scheppach HM254 255mm Sliding Mitre Saw 2000W
Scheppach HM254 255mm Sliding Mitre Saw 2000W
Regular price
£169.00
Regular price
Sale price
£169.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Execute broad timber cuts and accurate mitre angles with total confidence.
A high-performance 2000W sliding cross-cut saw equipped with a 255mm TCT blade, soft-start motor, and built-in laser guide engineered for joinery, workshop framing, and site work.
Why Choose the Scheppach HM254?

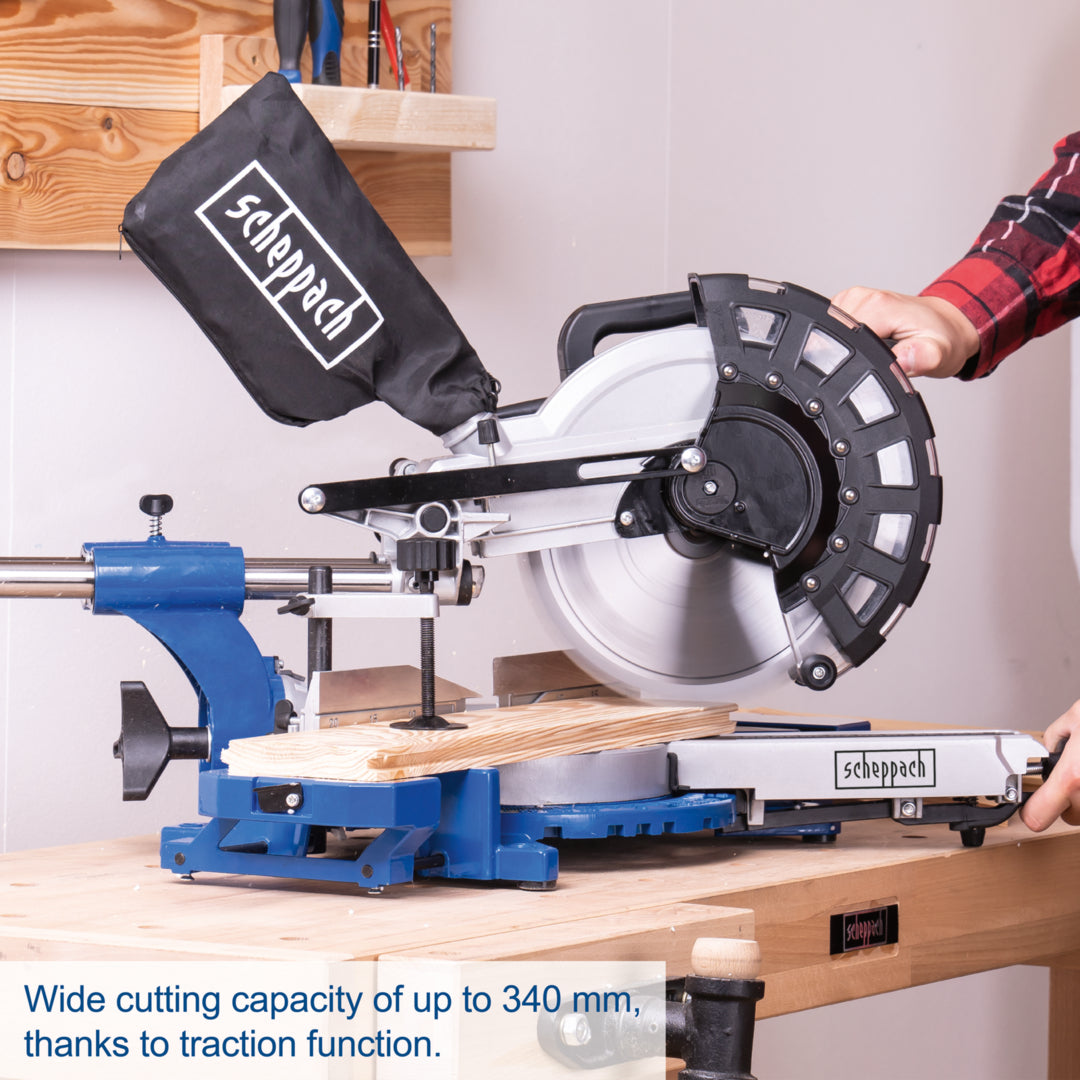

- Broad 340mm cross-cut capacity: The smooth dual-rail sliding mechanism allows you to process wide joists, floorboards, and structural timber up to 340mm wide and 90mm thick in a single pass.
- High-torque 2000W soft-start motor: Delivers rapid cutting progress at 7,000 rpm while reducing initial startup current and mechanical shock on the motor gearbox.
- Laser-guided cutting accuracy: Features an integrated laser projector that casts a clear cut line onto your material, speeding up line-up and ensuring repeatable results.

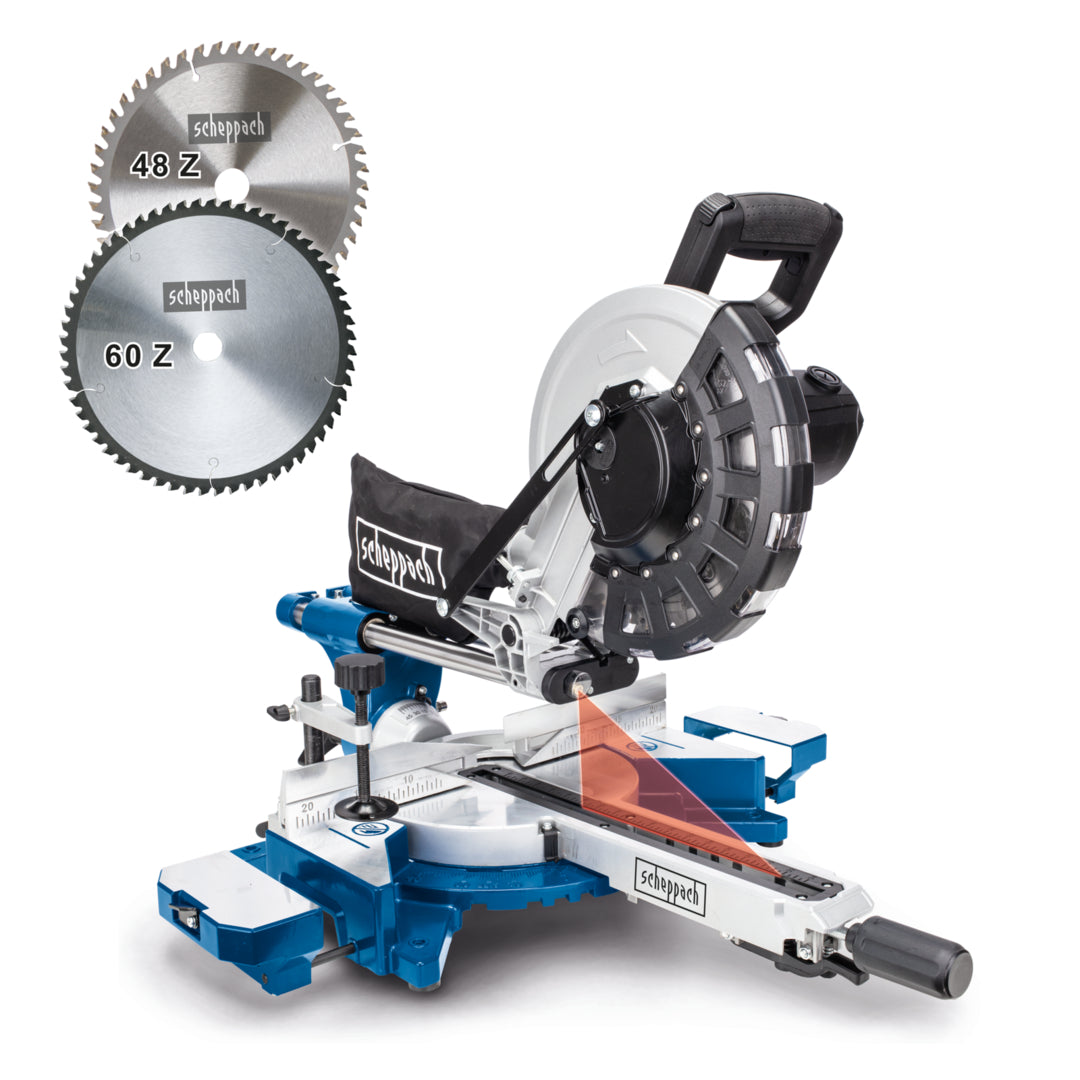

- Dual precision blades included: Supplied complete with two 255mm carbide-tipped blades (48T and 60T) to handle both fast dimensioning cuts and fine-finish joinery without splintering.
- Lightweight die-cast aluminium frame: Weighing just 14.3 kg with integrated side extensions, it provides a stable work surface while remaining easy to transport between jobsites.
Technical Specification
| Motor Power | 2000 W (Continuous S1) |
| Power Supply | 220-240 V / 50 Hz (Class II insulation) |
| No-Load Blade Speed | 7,000 rpm (Max motor speed 4,500 rpm) |
| Saw Blade Dimensions | 255 mm diameter x 30 mm bore (2.8 mm tooth width) |
| Cutting Capacity 90° / 90° | 340 x 90 mm |
| Cutting Capacity 45° / 90° | 340 x 45 mm |
| Cutting Capacity 90° / 45° | 240 x 90 mm |
| Compound Cut 45° / 45° (Left) | 240 x 45 mm |
| Mitre Angles | -45° to +45° (Preset detents at 0°, 15°, 22.5°, 30°, 45°) |
| Bevel Range | 0° to 45° left tilt |
| Dust Extraction Port | 34.5 mm inside, 43.0 mm outside |
| Overall Dimensions (L x W x H) | 790 x 585 x 580 mm |
| Power Cable Length | 2000 mm (2 metres) |
| Sound Pressure Level Lp(A) | 97.2 dB |
| Sound Power Level Lw(A) | 110.2 dB |
| Electrical Protection Class | IP 20 |
| Included Accessories | 2x 255mm TCT blades (48T & 60T), clamping device, 2x workpiece supports, sawdust bag, 6mm & 3mm Allen keys, operating manual |
SKU: D-SCH-5901216905
MPN: 5901216905
ID: D-SCH-5901216905
