Scheppach HM216 8” Sliding Mitre Saw 2000W
Scheppach HM216 8” Sliding Mitre Saw 2000W
No reviews
Regular price
£139.00
Regular price
Sale price
£139.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

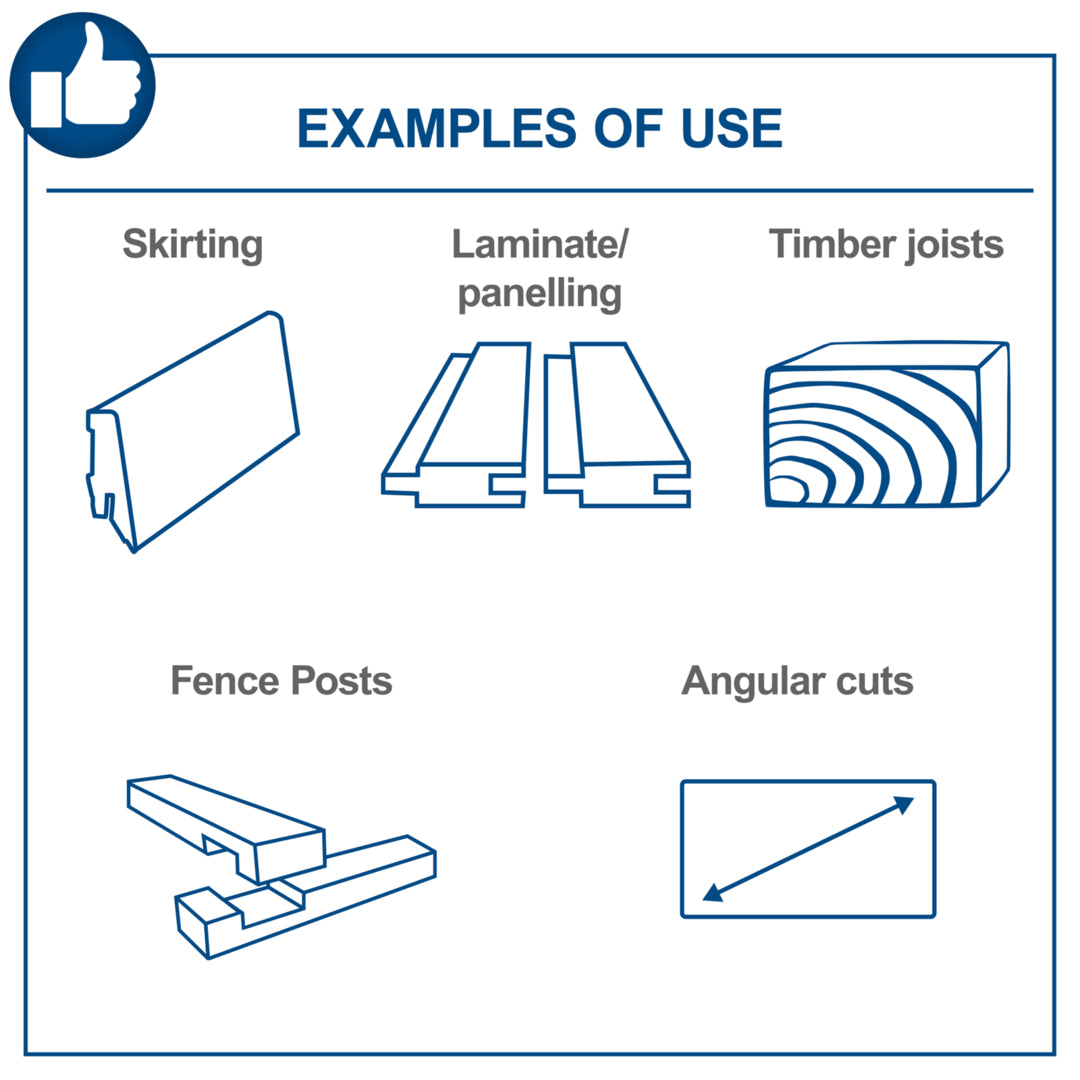

Cut wide timber boards and skirting with smooth, reliable precision.

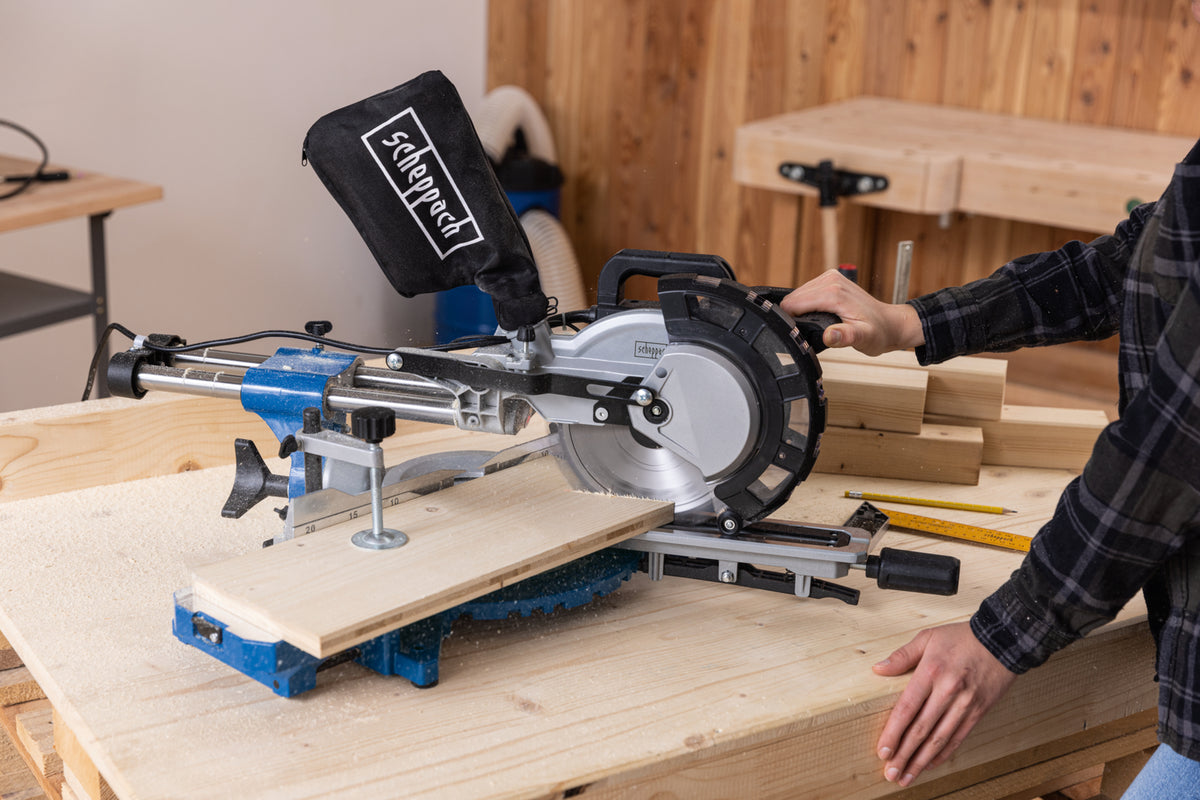

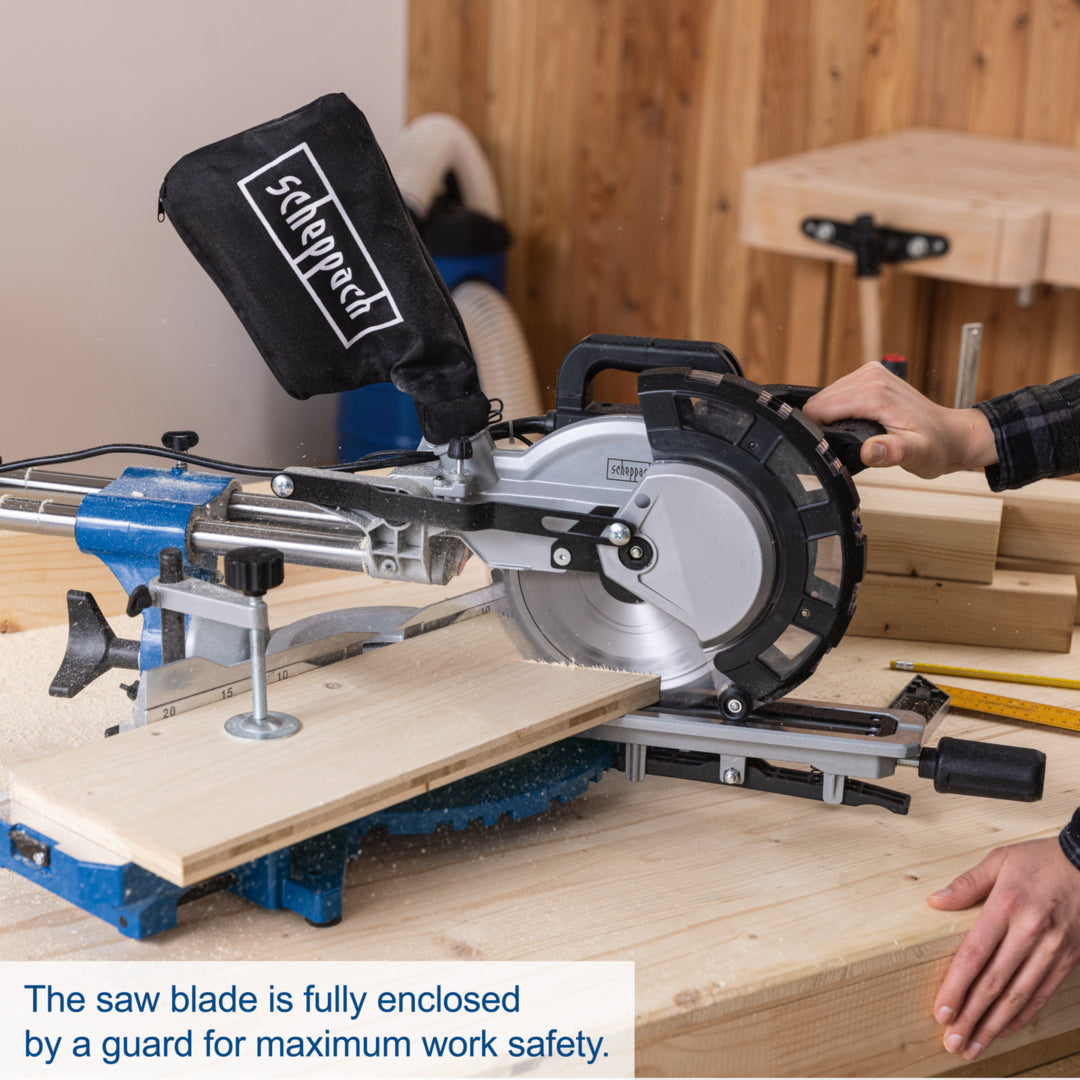

This versatile sliding compound mitre saw pairs a robust 2000W motor with an impressive 340 mm cross-cut capacity. Complete with twin TCT blades and an innovative shadow line guide, it delivers accurate, repeatable cuts across woodworking, flooring, and joinery projects.
Features:

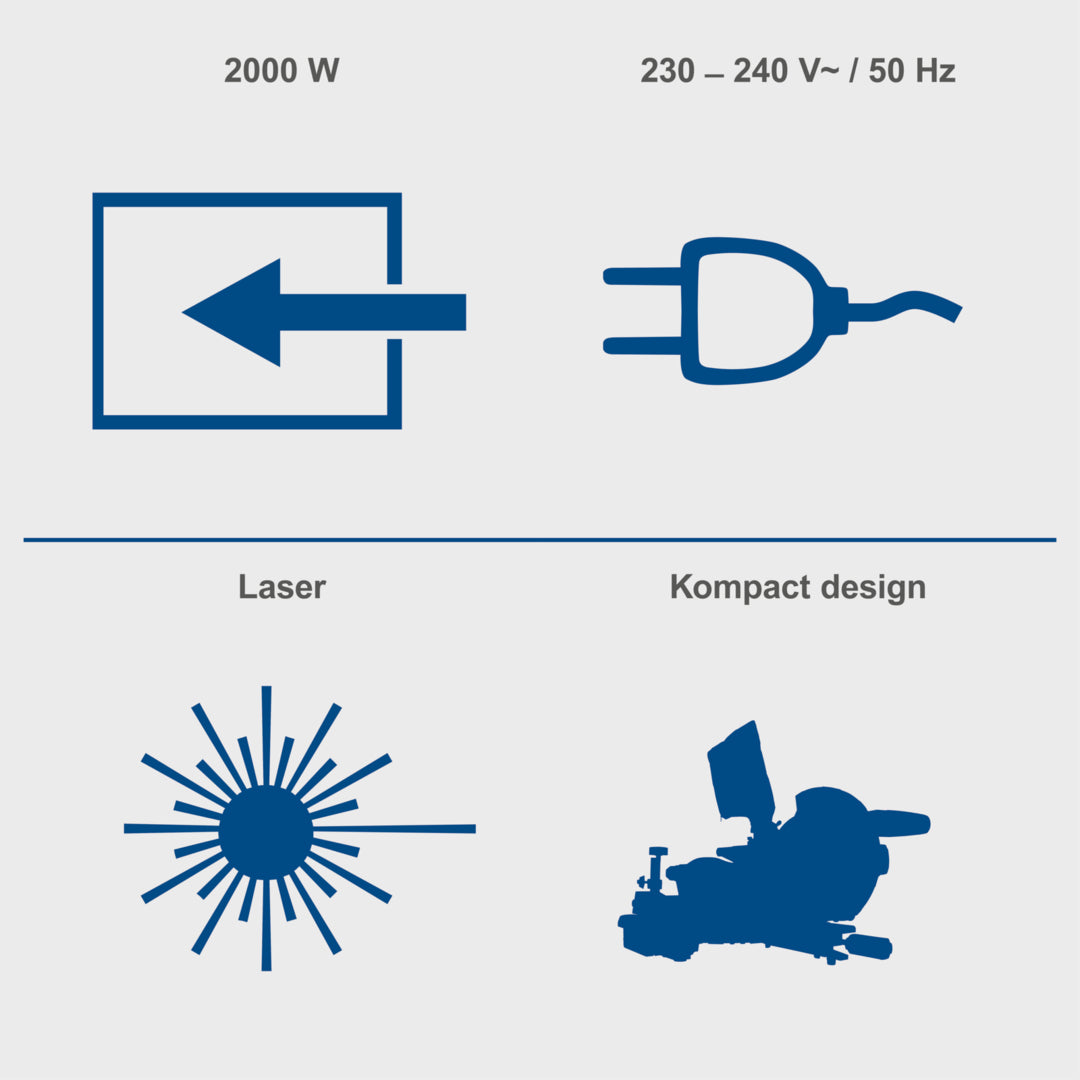

- High-Performance 2000W Motor: Operates at up to 4800 rpm to drive through hardwoods, softwoods, MDF, and composite materials without stalling.

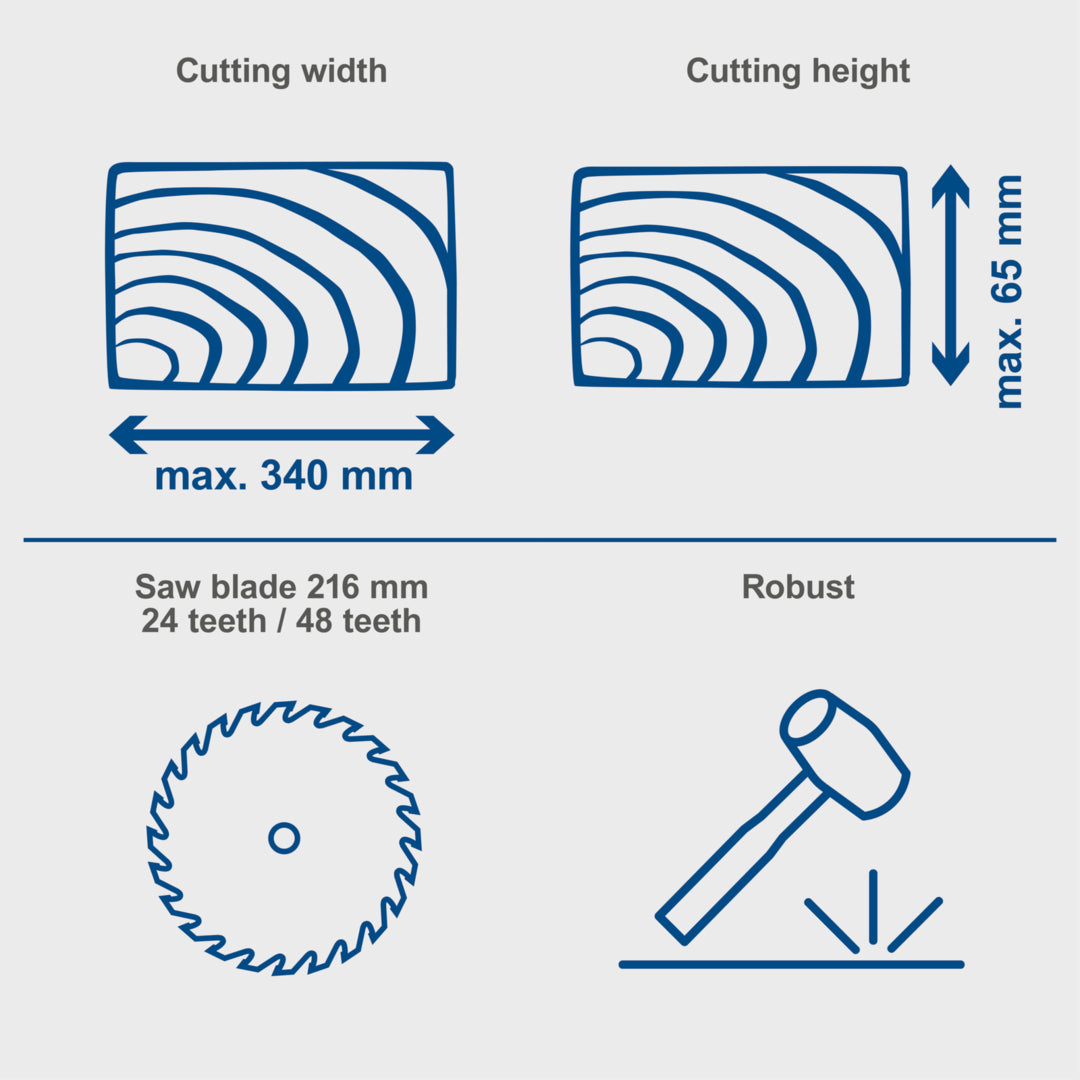

- Broad 340 mm Cross-Cut Capacity: Smooth twin-rail sliding mechanism allows you to process wide floorboards, shelving, and timber sections up to 65 mm thick.
- Precision Shadow Line System: Projects an exact blade shadow onto your workpiece for instant, highly accurate alignment in any lighting condition.

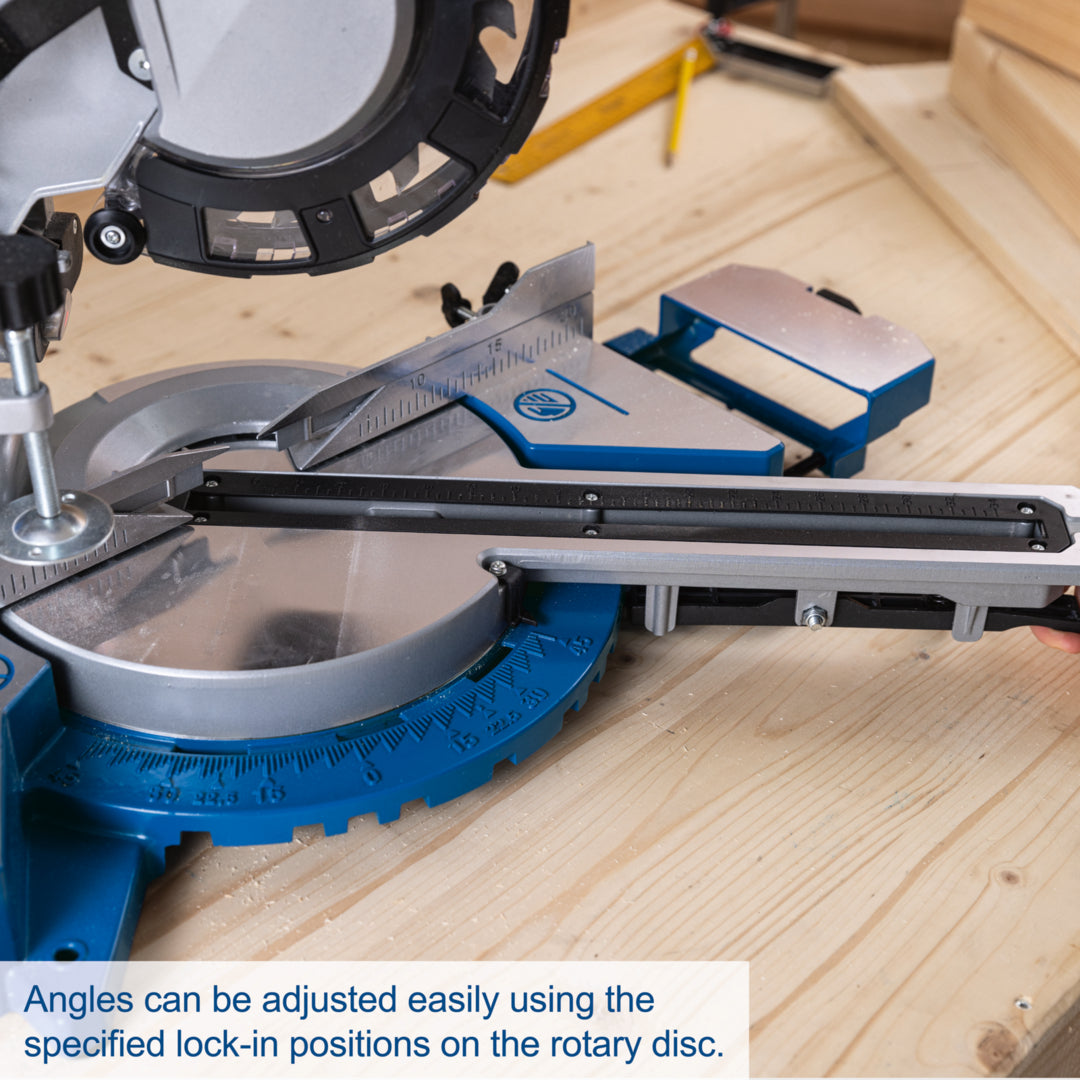

- Flexible Mitre and Bevel Angles: Features a precision turntable with left and right mitre adjustments up to 45 degrees, plus a 45-degree left bevel function for compound cuts.
- Common Angle Detents: Includes positive stops at popular angles to speed up setup time and guarantee consistent accuracy across repeated cuts.

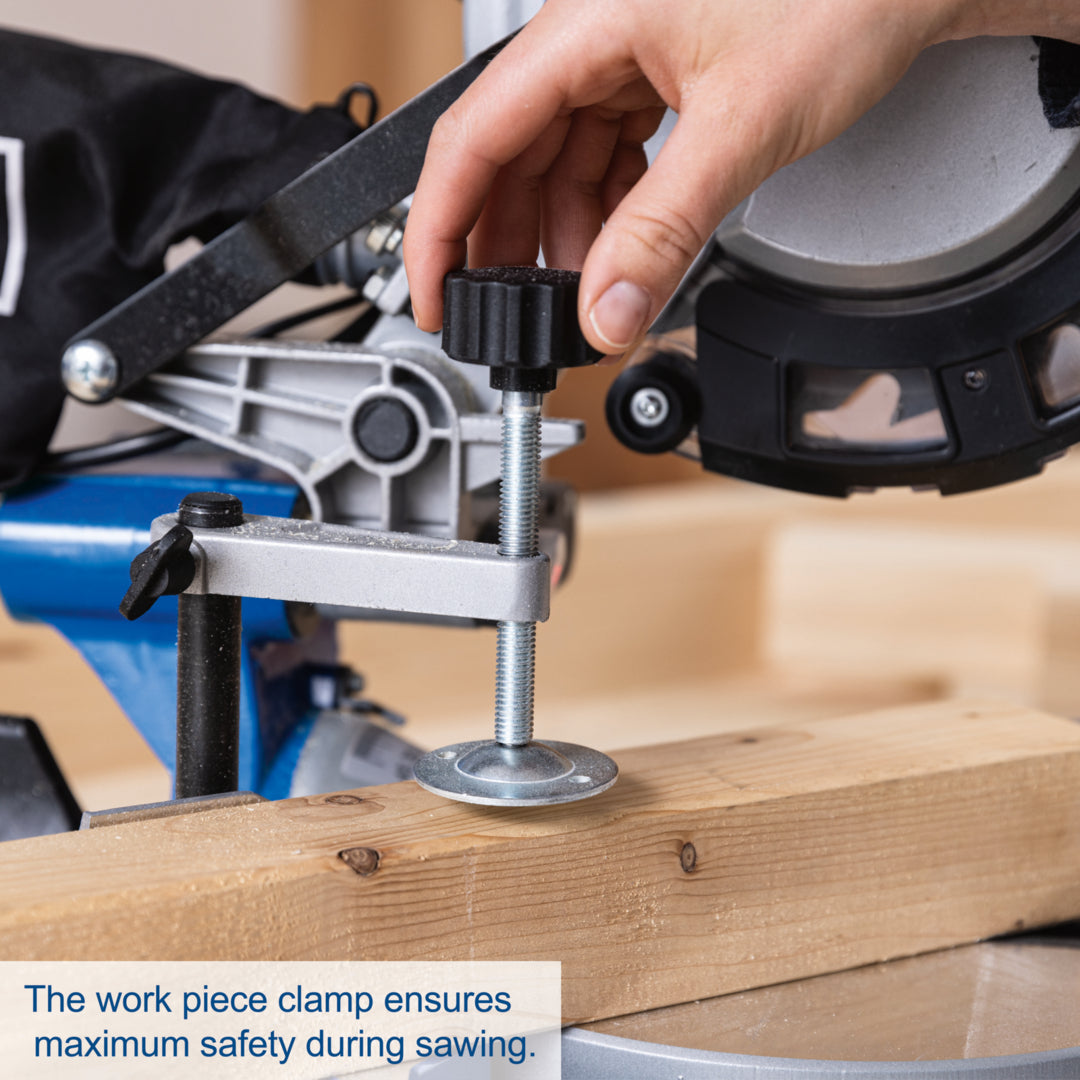

- Extendable Side Workpiece Supports: Pull-out side supports and a secure material clamp keep long boards level and stable for safer operation.

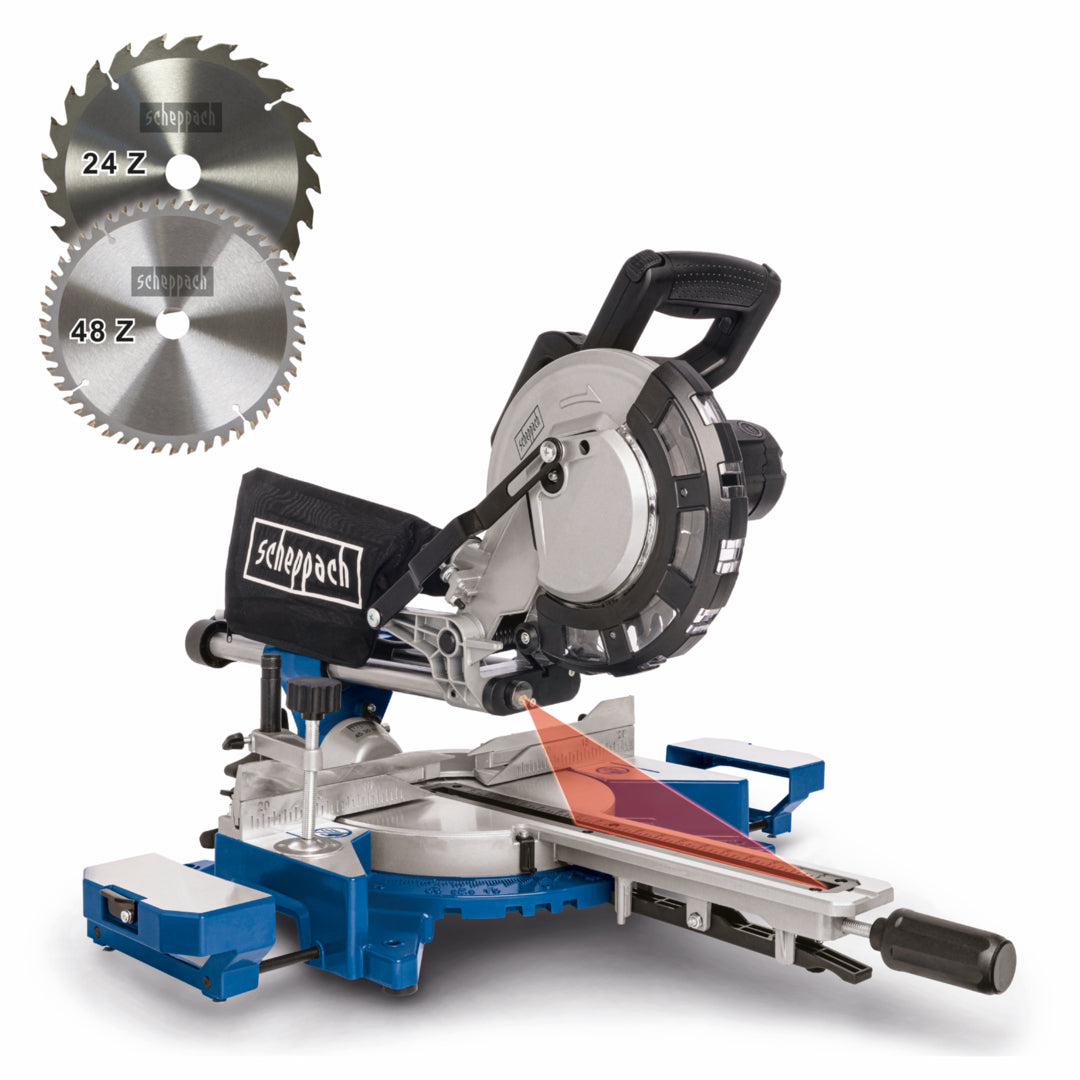

- Twin TCT Blades Included: Supplied with both a 24-tooth blade for fast rip cuts and a 48-tooth blade for smooth, clean cross-cuts in delicate laminates.
Technical Specification
| General Details | |
|---|---|
| Title | Sliding Cross-Cut Mitre Saw HM216 Scheppach (DIY) Great Britain |
| Model Description | HM216 |
| Machine Group | Sliding cross-cut mitre saw |
| Article Number | 5901215907 |
| EAN | 4046664284192 |
| Standard Basic Equipment | With second saw blade |
| Net Weight | 11.8 kg |
| Gross Weight | 14.7 kg |
| Dimensions (L x W x H) | 730 mm x 590 mm x 520 mm |
| Cutting & Table Specifications | |
| Cutting Height 90° / 90° | 65.0 mm |
| Cutting Width 90° / 90° | 340.0 mm |
| Cutting Height 45° / 90° | 38.0 mm |
| Cutting Width 45° / 90° | 340.0 mm |
| Cutting Height 90° / 45° | 38.0 mm |
| Cutting Width 90° / 45° | 240.0 mm |
| Left Cutting Height 45° / 45° | 38.0 mm |
| Cutting Width 45° / 45° (Left) | 240.0 mm |
| Mitre Stops | 0° / 15° / 22,5° / 30° / 45° |
| Tilting Range (Min - Max) | 0.0 ° – 45.0 ° |
| Scale for Tilting | Yes |
| Fence Length (Left / Right) | 306.0 mm / 306.0 mm |
| Table Dimensions (L x W) | 440.0 mm x 128.0 mm |
| Table Insert Depth Than Table Max | 0.2 mm |
| Rail Guiding | Double |
| Laser Integrated | Yes (Batteries count: 0 Stück) |
| Saw Blade Stop Time | 8.2 sec |
| Dust Extraction Connection (Inside / Outside Diameter) | 35.0 mm / 45.0 mm |
| Saw Blade Accessories | |
| Saw Blade Diameter | 216.0 mm (8.0 ") |
| Bore Diameter Saw Blade | 30.0 mm |
| Outer Flange Diameter | 44.0 mm |
| Width Saw Blade | 1.6 mm |
| Tooth Width | 2.8 mm |
| Steel Blade TCT | Yes |
| Drive & Electrical Specifications | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Voltage / Frequency | 220-240 V / 50 Hz |
| Continuous Power Consumption S1 (W) | 1700.0 W |
| Power Consumption (Operating Mode 1) | 2000.0 W |
| Maximum Engine Speed | 4700.0 1/min |
| Type of Motor Electro | Brush Motor |
| Appliance Class | Class II |
| Insulation Class | E (max. motor temp. 120°C) |
| Protection Class Electro / Degree of Protection | IP 20 |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Soft Start | No |
| Cable Length | 2000.0 mm |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 109.5 dB |
| Sound Pressure Level Lp(A) | 96.5 dB |
| Uncertainty KpA / KwA | 3.0 dB / 3.0 dB |
