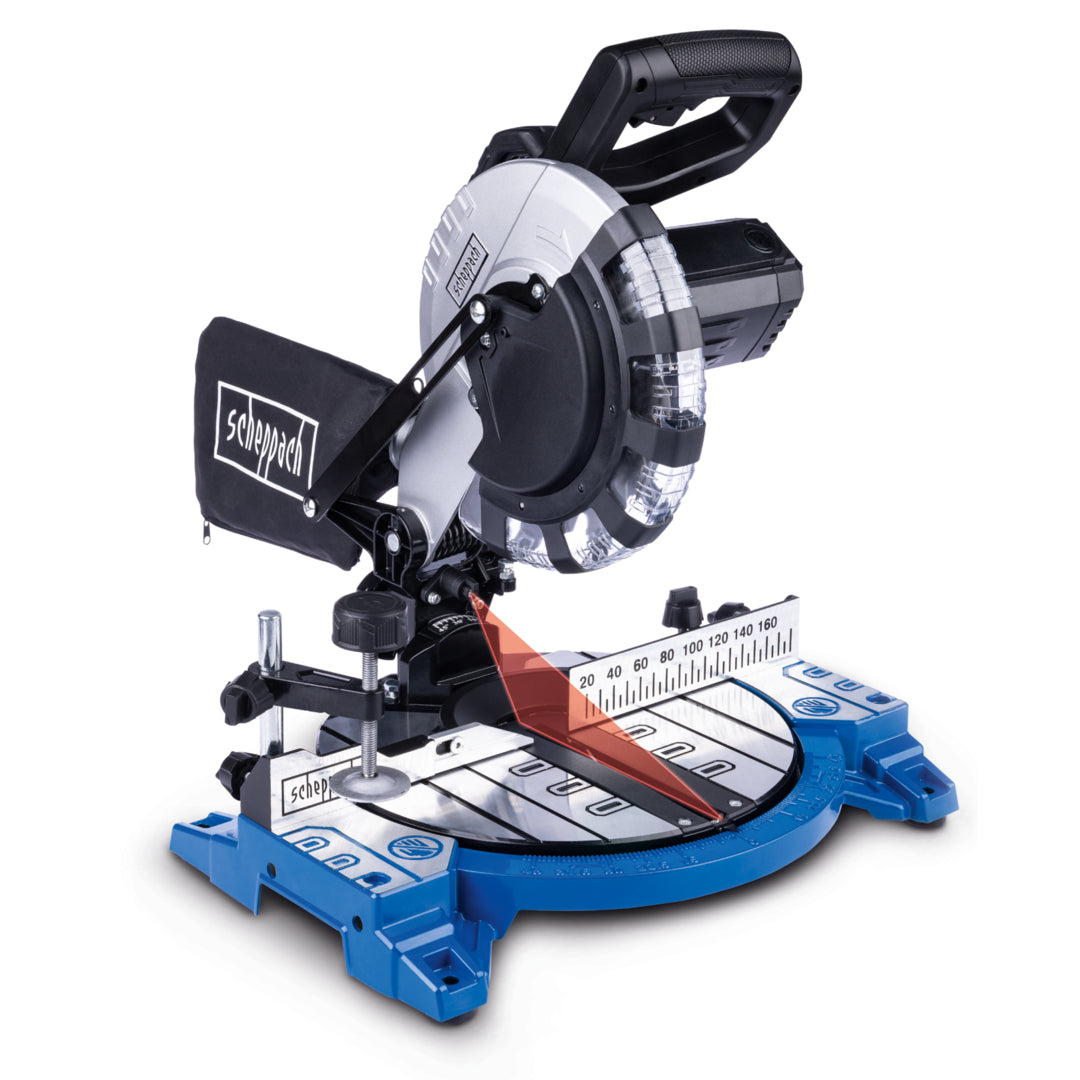

Scheppach HM210L 8" Compound Mitre Saw 1500W
Scheppach HM210L 8" Compound Mitre Saw 1500W
Regular price
£79.00
Regular price
Sale price
£79.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

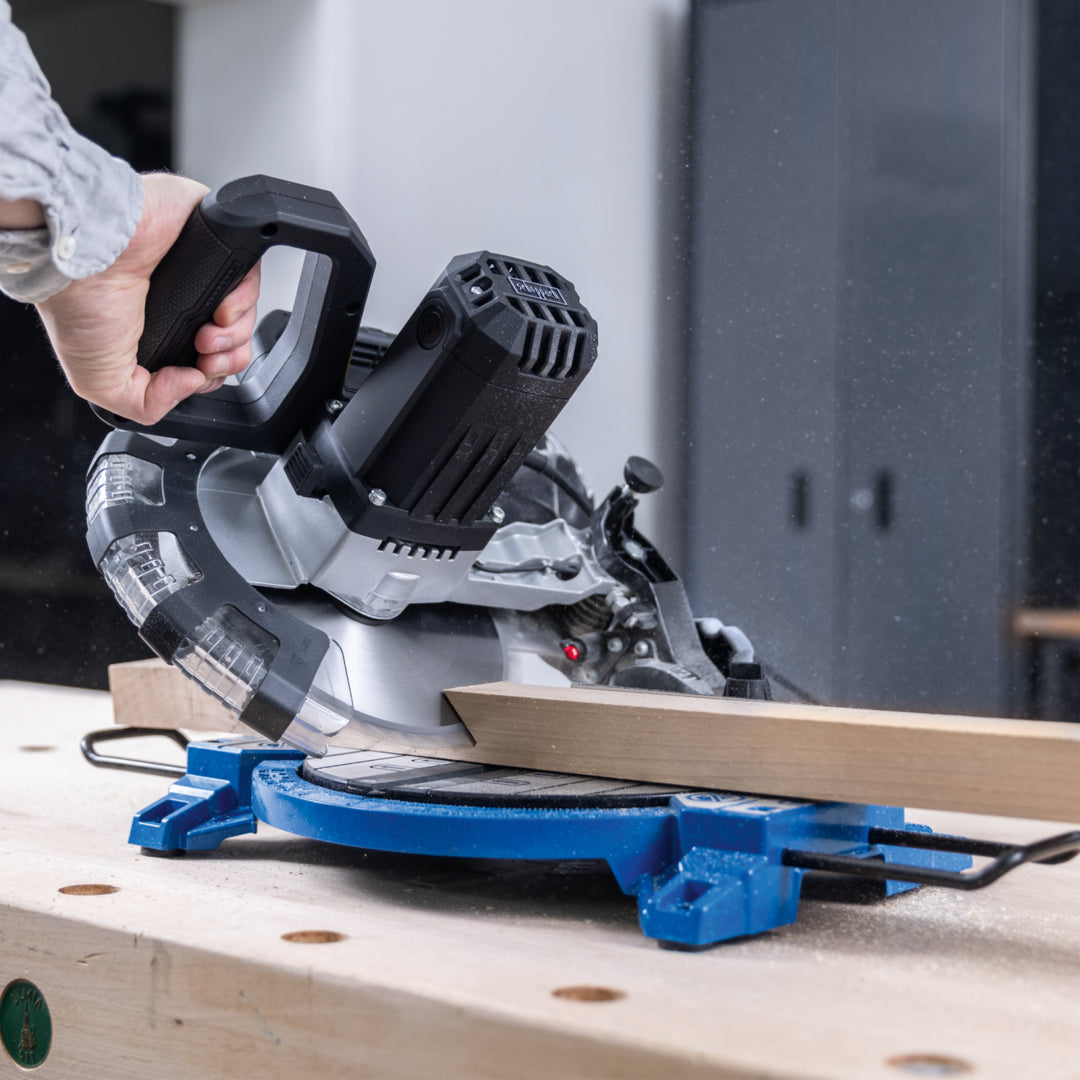

Precise and reliable cross-cutting performance engineered for workshop and site tasks.
Delivers 4900rpm of clean cutting power for timber, skirting boards, architraves, and laminate flooring. Combines an integrated laser guide with a compact frame to ensure pinpoint accuracy on every pass.
Features:
- High-Performance Motor: Driven by a robust 1500W motor rotating at 4900rpm, effortlessly powering through tough timber and wood-based composite materials.

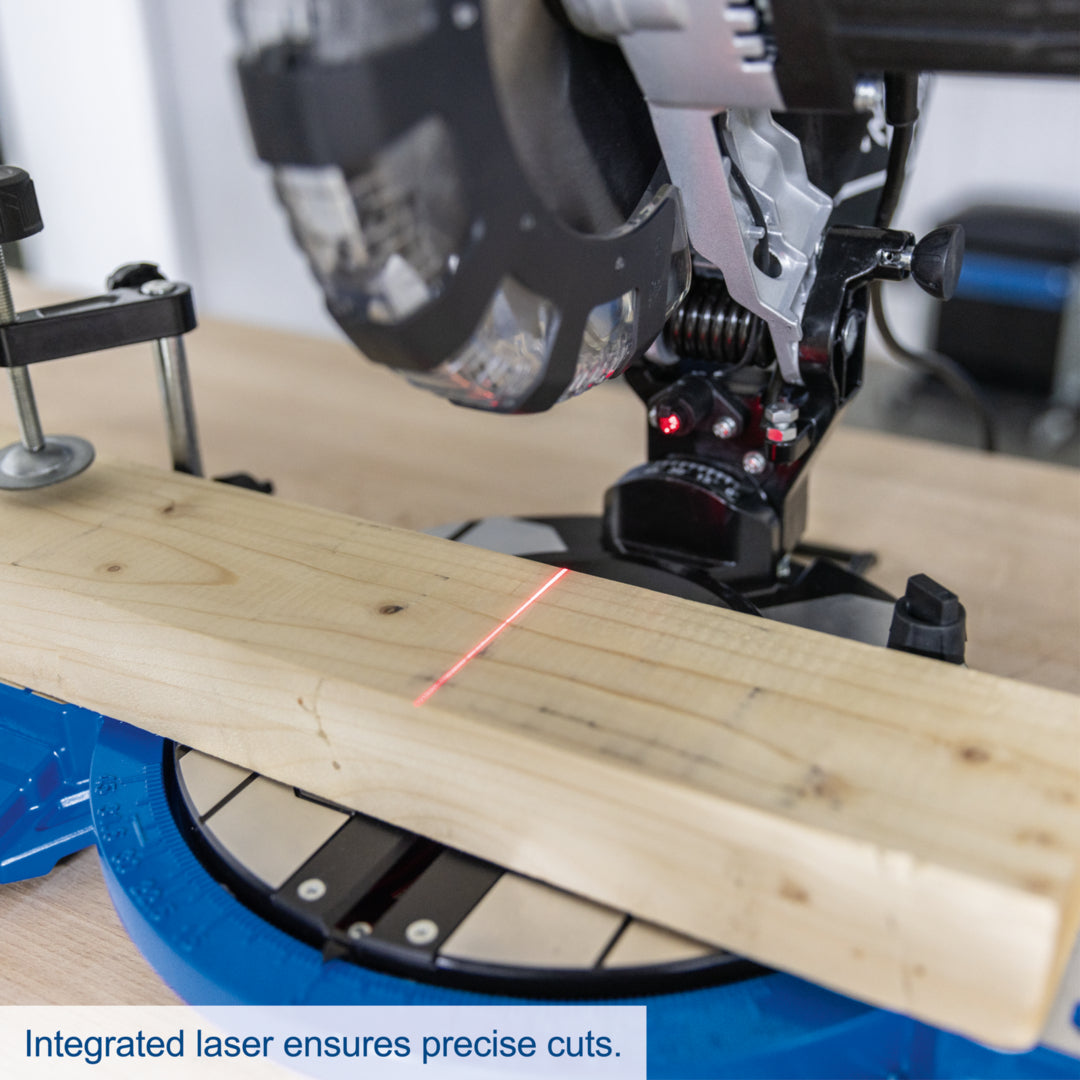

- Pinpoint Laser Accuracy: Projects an exact cutting line onto your workpiece, allowing fast, repeatable alignment for cleaner finishes and fewer material mistakes.

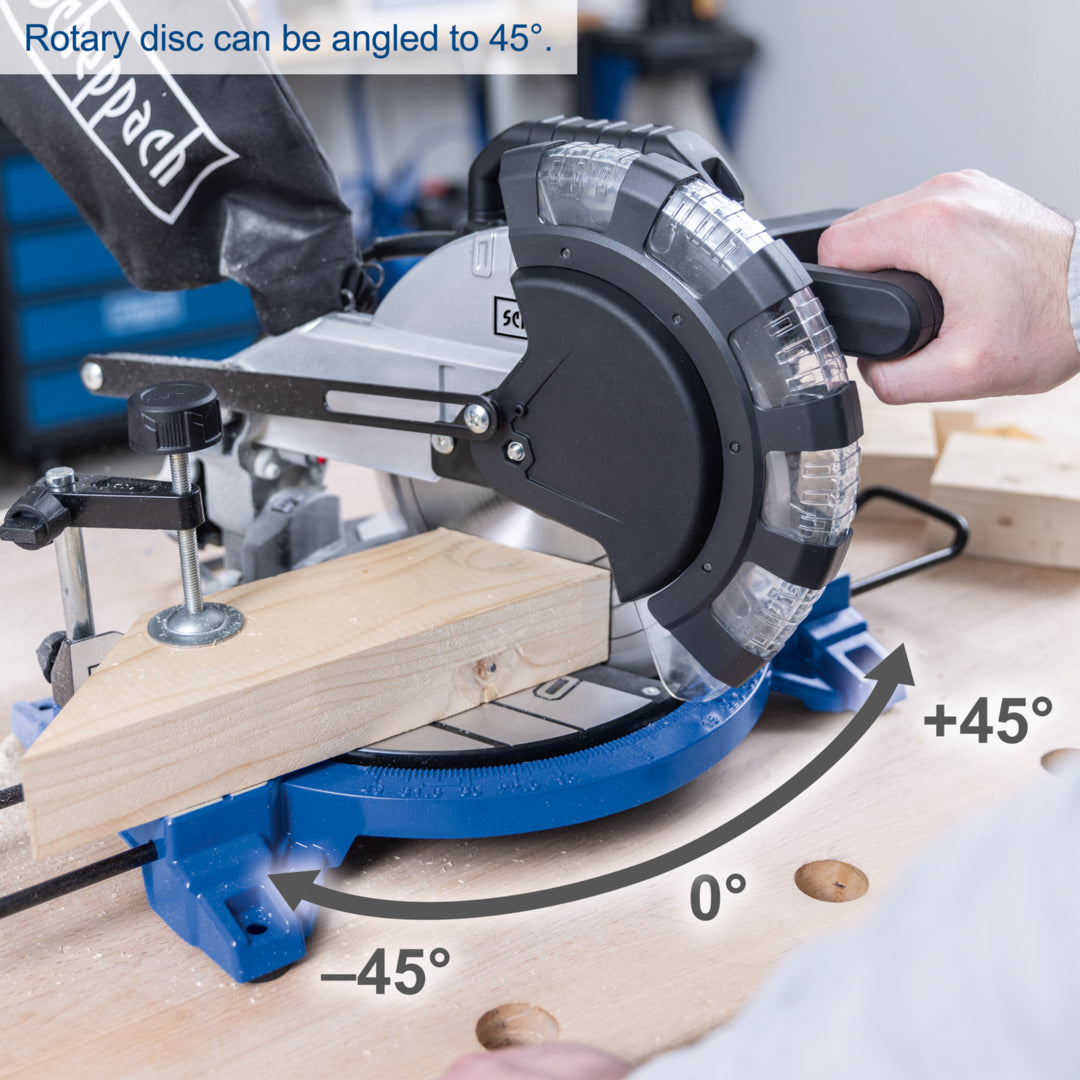

- Preset Mitre Indexing: Features a rotating turntable with quick detents at common angles, including 0°, 15°, 22.5°, 30°, 31.5°, and 45° for rapid setup.

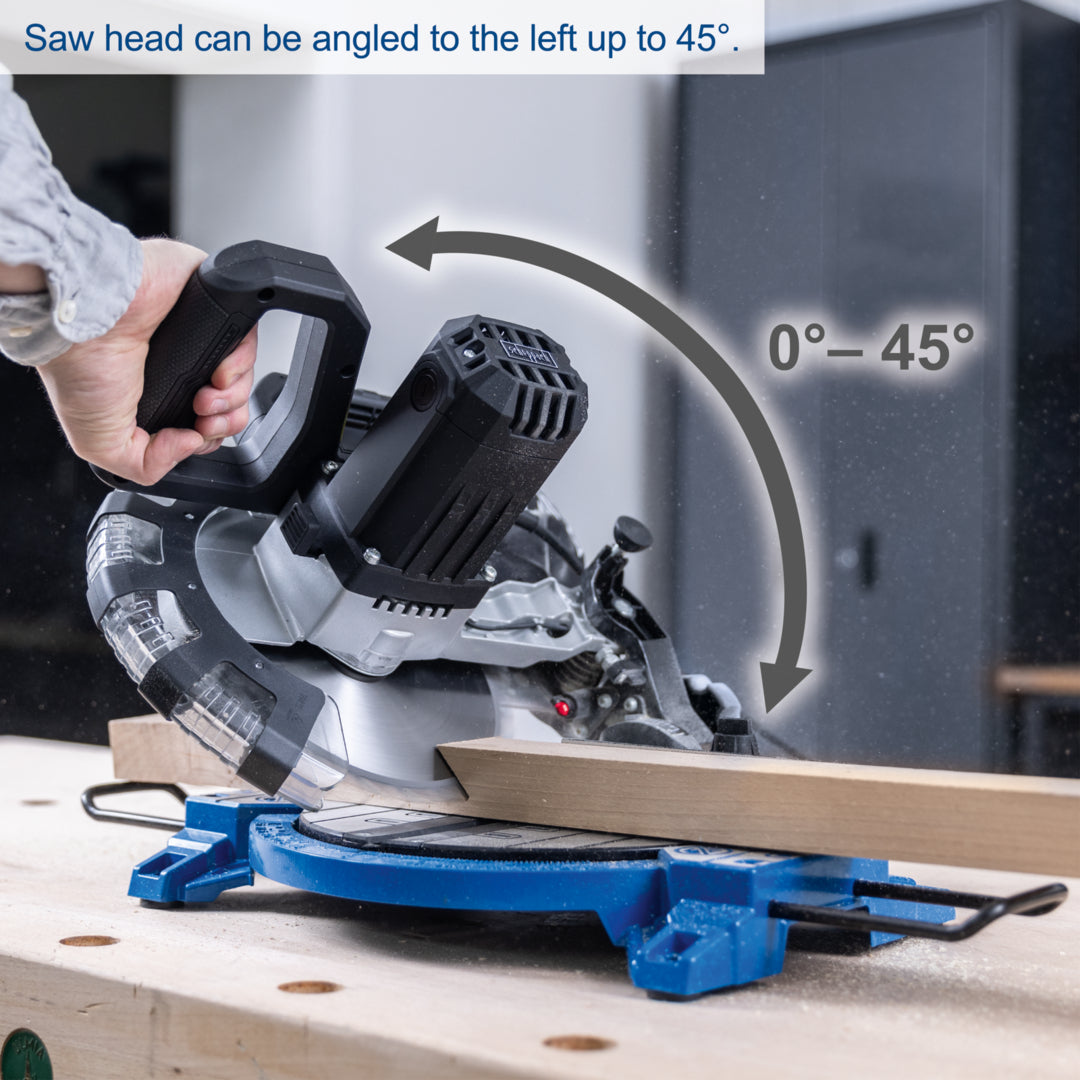

- Versatile Bevel Capability: The saw head tilts up to 45 degrees to the left, allowing accurate bevel and compound cuts on skirting boards and door frames.

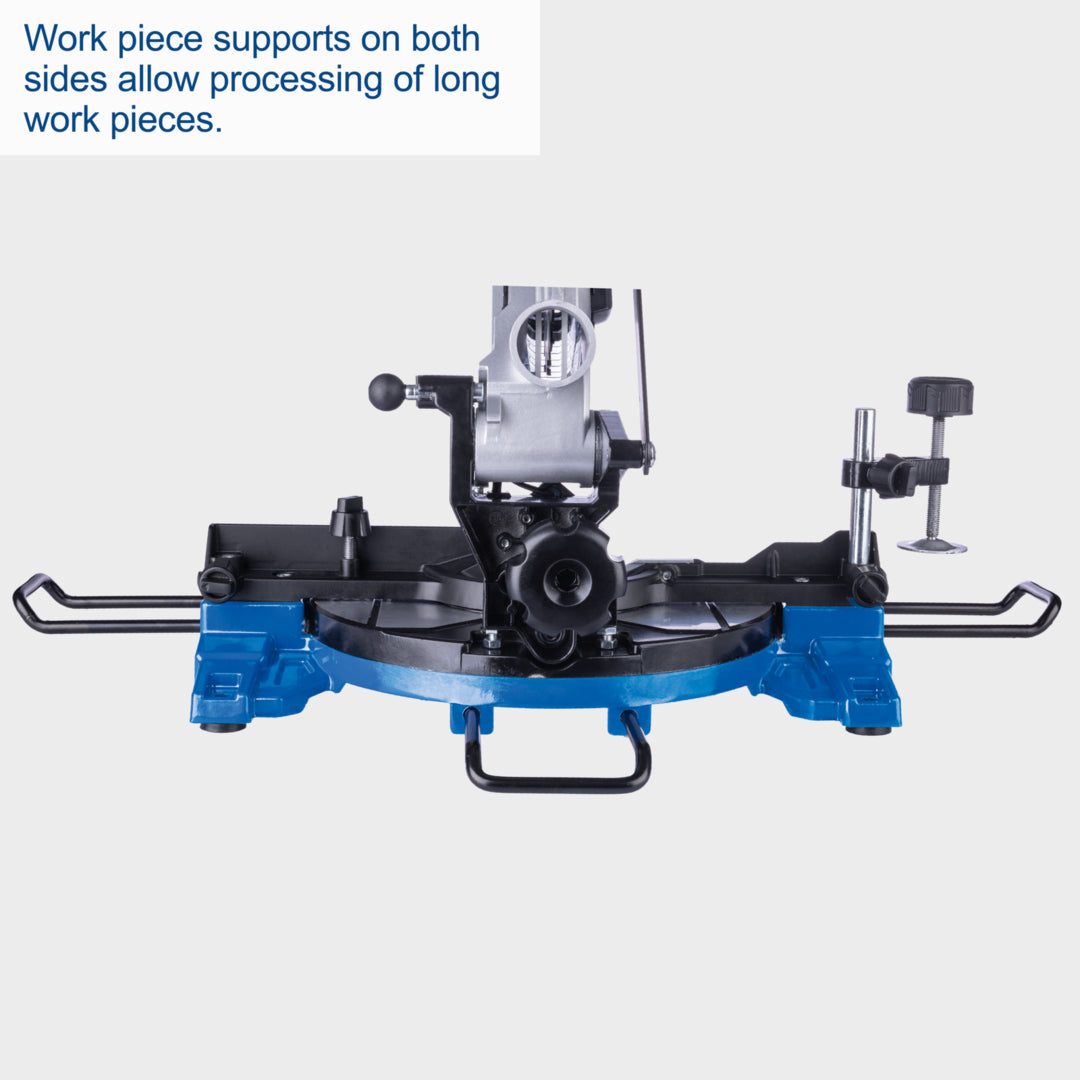

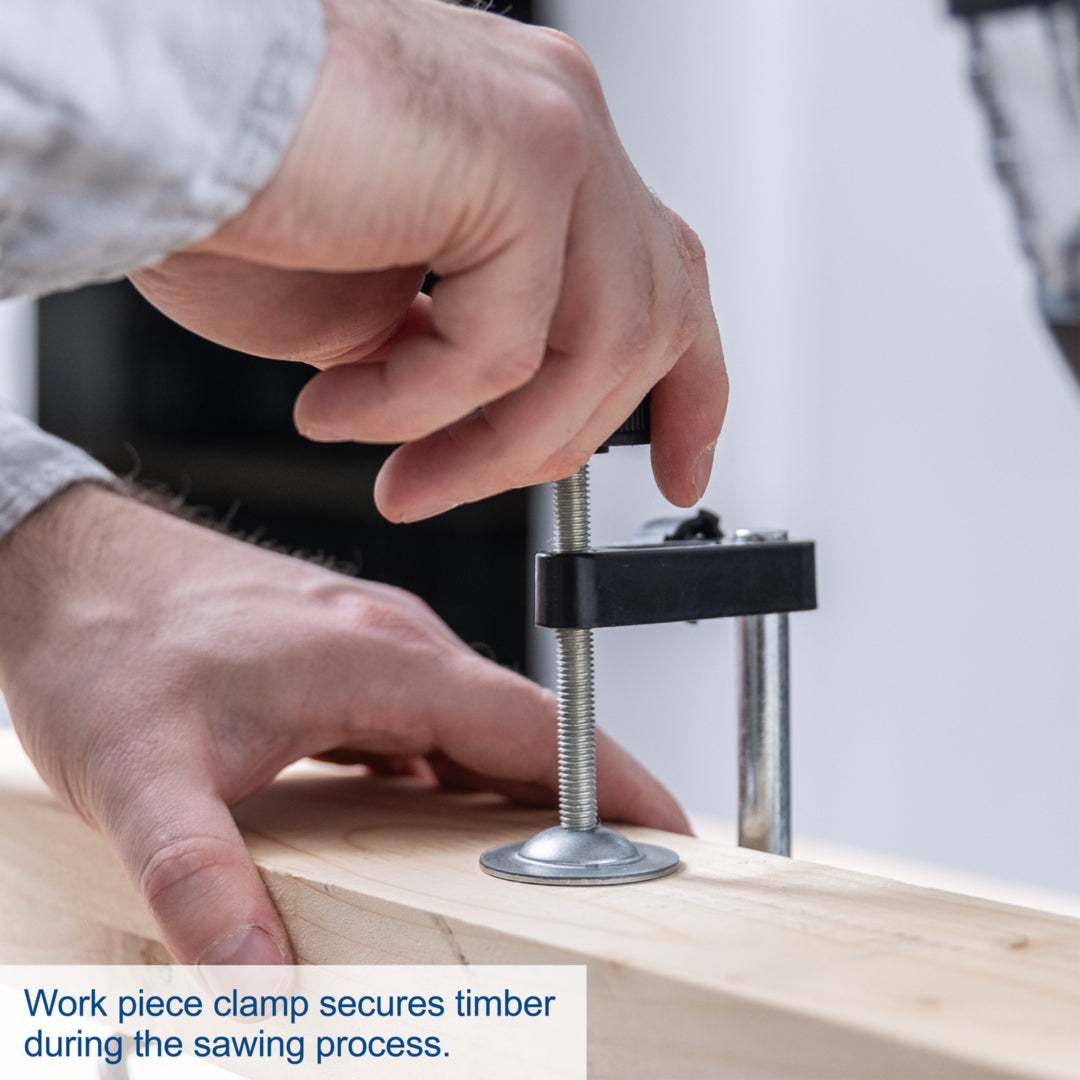

- Stable Workpiece Support: Equipped with dual side support bars and a sturdy workpiece clamp, keeping longer boards steady and safe during operation.
Technical Specification
| General Details | |
|---|---|
| Title | Cross-Cut Mitre Saw HM210L scheppach (DIY) Great Britain |
| Article Number | 5901226904 |
| Model Description | HM210L |
| Machine Group | Cross-Cut Mitre Saw |
| EAN | 4046664284239 |
| Mass Gross | 7.86 kg |
| Mass Net | 6.52 kg |
| General Dimensions (L x W x H) | 405.0 mm x 380 mm x 470 mm |
| Crosscut Saw Dimensions Range (L x W x H) | 405.0 mm x 380 - 435.0 mm x 300.0 - 470 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Brush Motor |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Continuous Power Consumption S1 | 1200.0 W |
| Maximum Engine Speed | 5000.0 1/min |
| Appliance Class | Class II |
| Insulation Class | E (max. motor temp. 120°C) |
| Protection Class Electro | IP 20 |
| Motor Protection | Yes |
| Motor Brake Type | Electrical |
| Cable Length | 2000.0 mm |
| Cutting & Mitre Saw Specifications | |

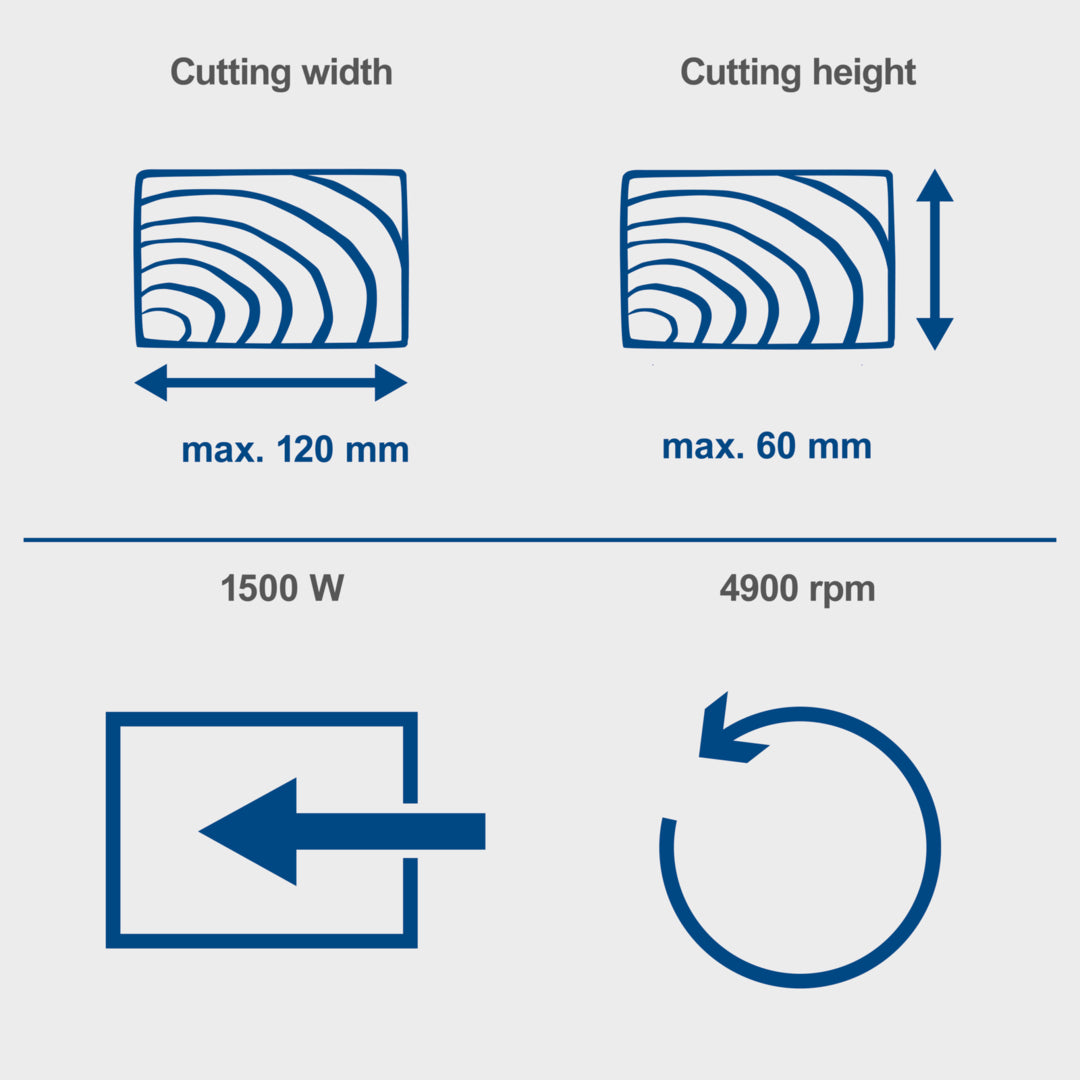

| Cutting Height & Width 90° / 90° | 60.0 mm x 120.0 mm |
| Cutting Height & Width 45° / 90° | 60.0 mm x 80.0 mm |
| Cutting Height & Width 90° / 45° | 35.0 mm x 120.0 mm |
| Cutting Height & Width 45° / 45° (Left) | 35.0 mm x 80.0 mm |
| Saw Blade Stop Time | 10.0 sec |
| Outer Flange Diameter | 45.0 mm |
| Slot Width | 10.6 mm |
| Tilting Range Max | 45.0 ° |
| Tilting End Stop Adjustable | Yes |
| Table Dimensions (L x W) | 380.0 mm x 130.0 mm |
| Table Insert Depth Than Table Max | 0.2 mm |
| Suction Connector Inside Diameter | 35.0 mm |
| Dust Suction Diameter Outside | 40.0 mm |
| Saw Blade Specifications | |
| Diameter Saw Blade | 210.0 mm |
| Bore Diameter Saw Blade | 30.0 mm |
| Width Saw Blade | 1.6 mm |
| Tooth Width | 2.6 mm |
| Teeth Count | 24 Pieces |
| Saw Blade Type | ATB |
| Solder | Silver solder foil |
| Laser & Power Details | |
| Laser Batteries Count | 2 Pieces (AAA included) |
| Sound & Vibration Emissions | |
| Sound Power Level Lw(A) | 112.6 dB |
| Sound Pressure Level Lp(A) | 99.6 dB |
| Uncertainty KpA | 3.0 dB |
| Uncertainty KwA | 3.0 dB |
| Uncertainty k | 1.5 m/sec² |
| Vibration Emission Value Ah | 4.51 m/sec² |
| Delivery Content | |
| Delivery Content Text | 1x Clamping device (workpiece clamp), 1x Dust bag, 2x Workpiece supports, 1x Stand bracket, 1x Allen key (6 mm), 1x Allen key (3 mm), 1x Compound mitre saw, 2x Carbon brushes, 2x Batteries (AAA), 1x Operating manual |
SKU: D-SCH-5901226904
MPN: 5901226904
ID: D-SCH-5901226904
