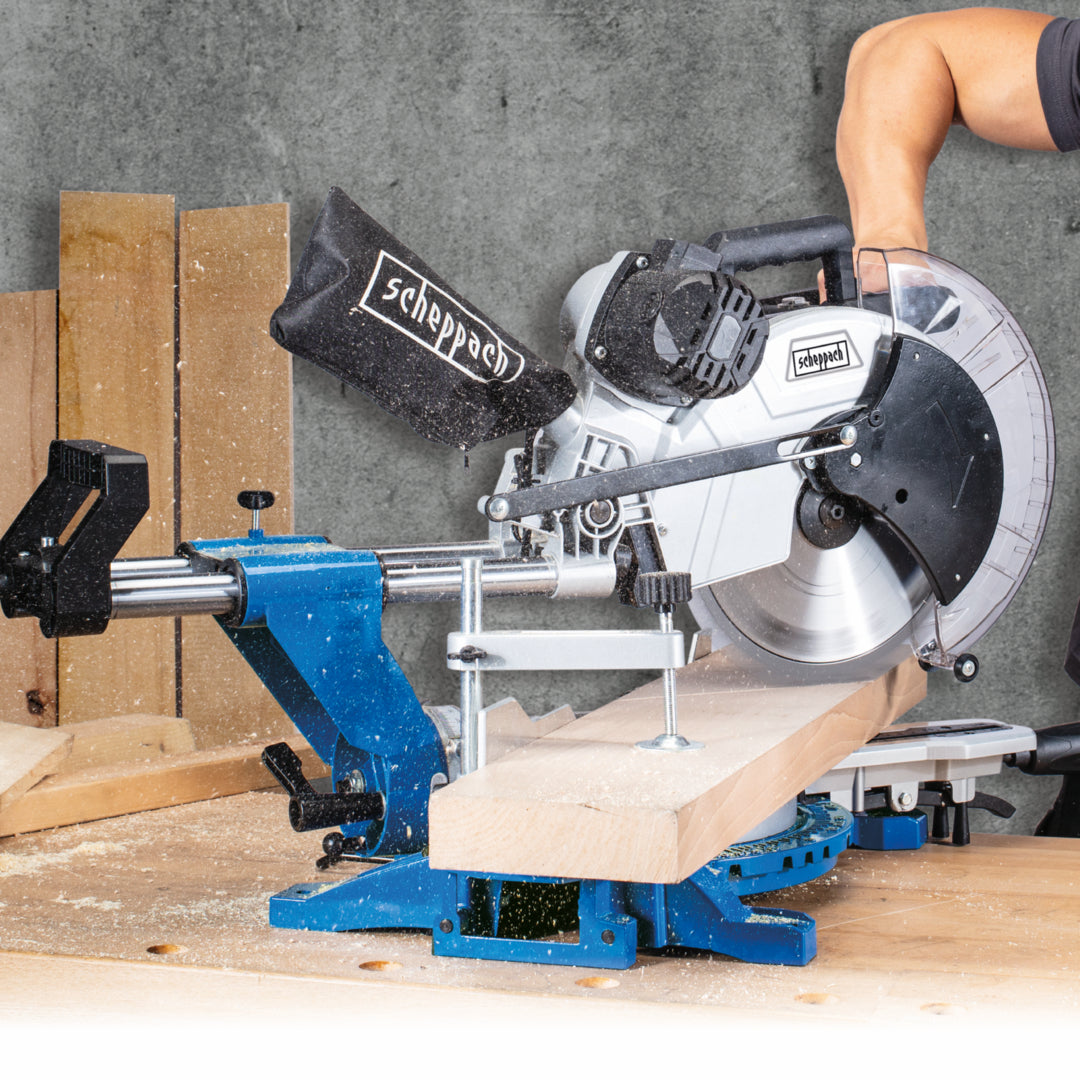

Scheppach HM140L 305mm Sliding Double Bevel Mitre Saw 2000W
Scheppach HM140L 305mm Sliding Double Bevel Mitre Saw 2000W
Regular price
£269.00
Regular price
Sale price
£269.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Execute broad timber cuts and complex angle compound mitres with ultimate accuracy.
A high-capacity 2000W sliding mitre saw equipped with a 305mm TCT blade, double bevel functionality, and an integrated laser guide engineered for heavy-duty workshop, joinery, and site work.
Why Choose the Scheppach HM140L?

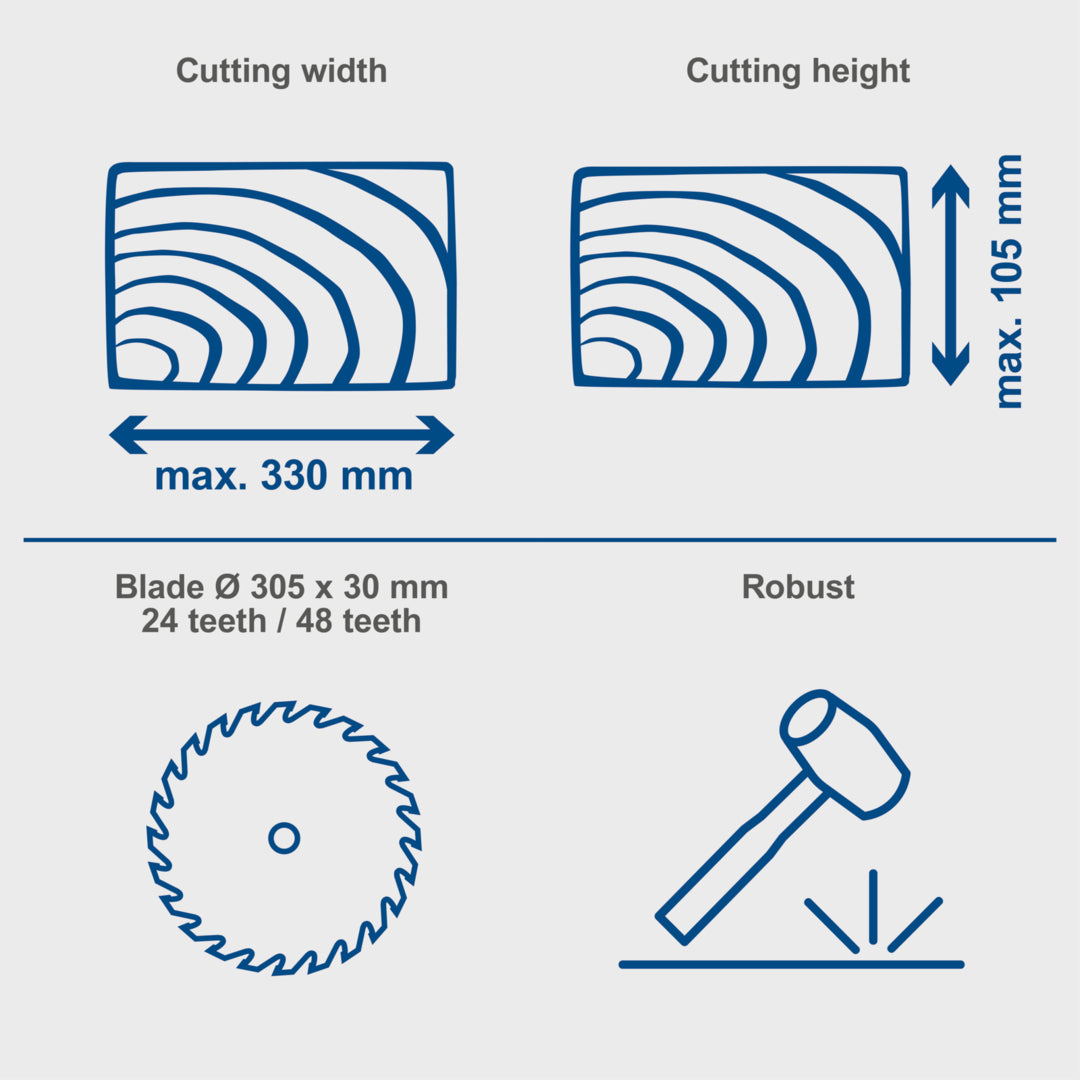

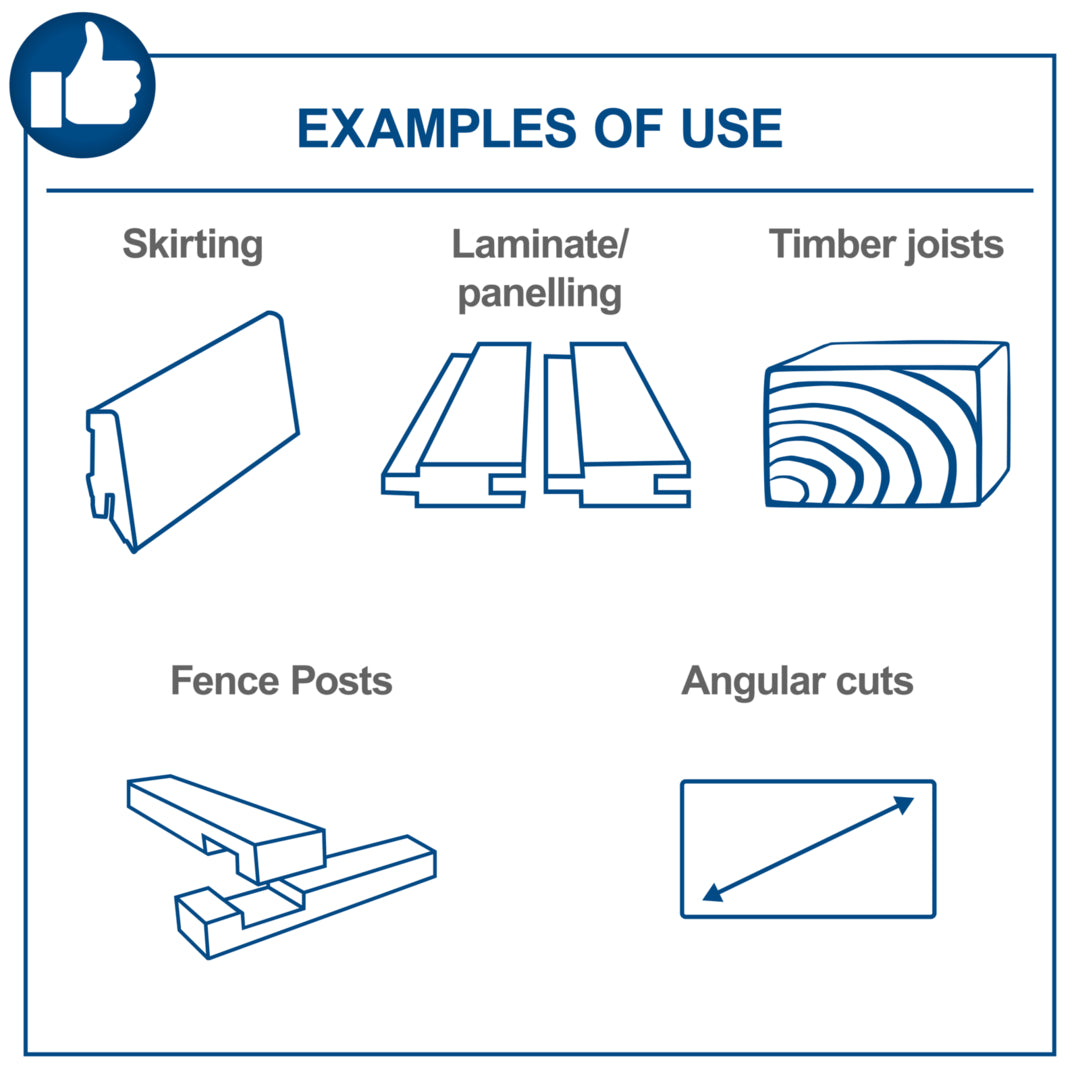

- Broad 330mm cross-cut capacity: The smooth dual-slide mechanism allows you to process wide joists, floorboards, and structural timber up to 330mm wide in a single pass.

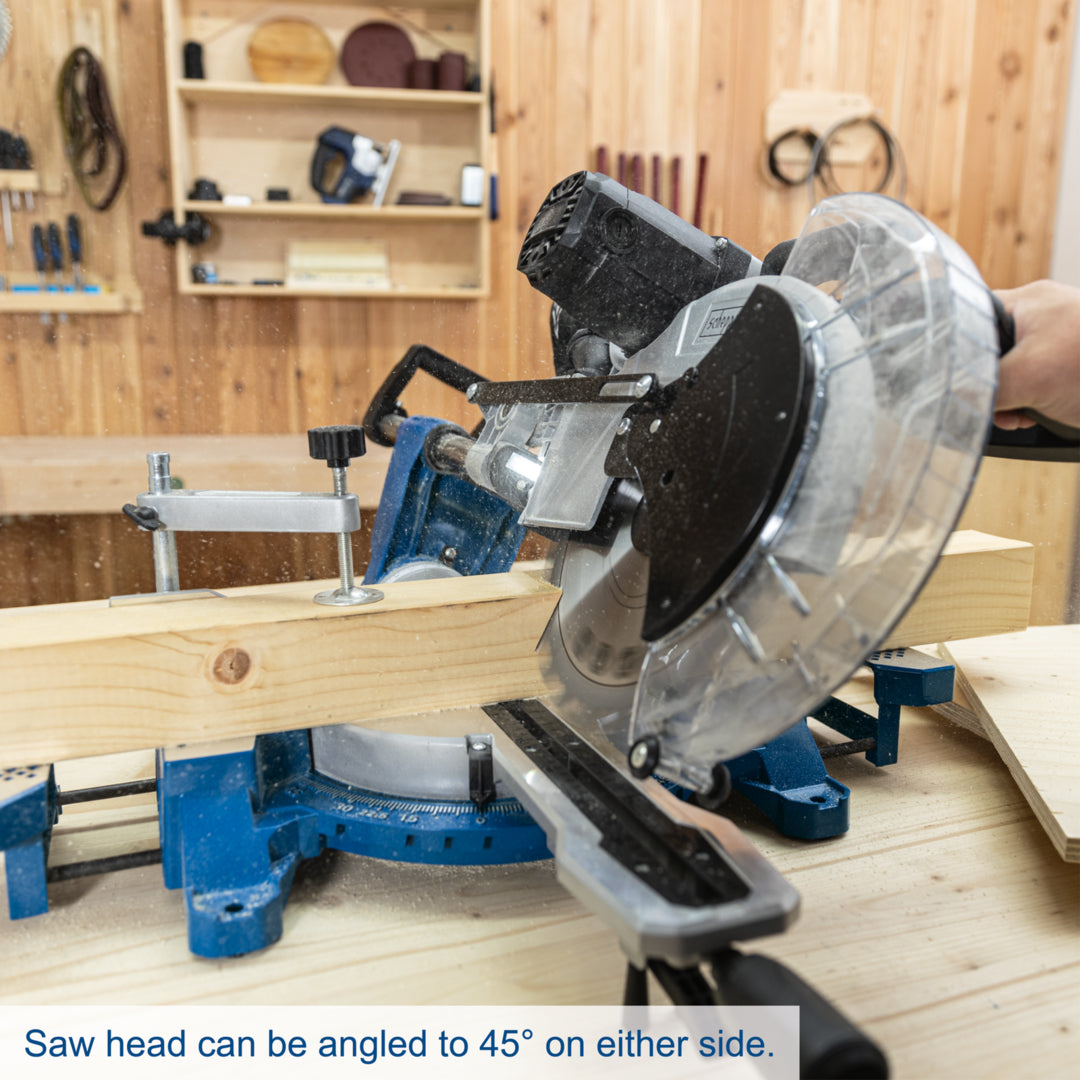

- Double bevel versatility: The saw head tilts up to 45° to both the left and the right, enabling fast compound cuts without needing to manually flip long workpieces around.
- Laser-guided cutting accuracy: Features an integrated laser guide that projects an exact cut line onto the material, speeding up alignment and ensuring repeatable results.

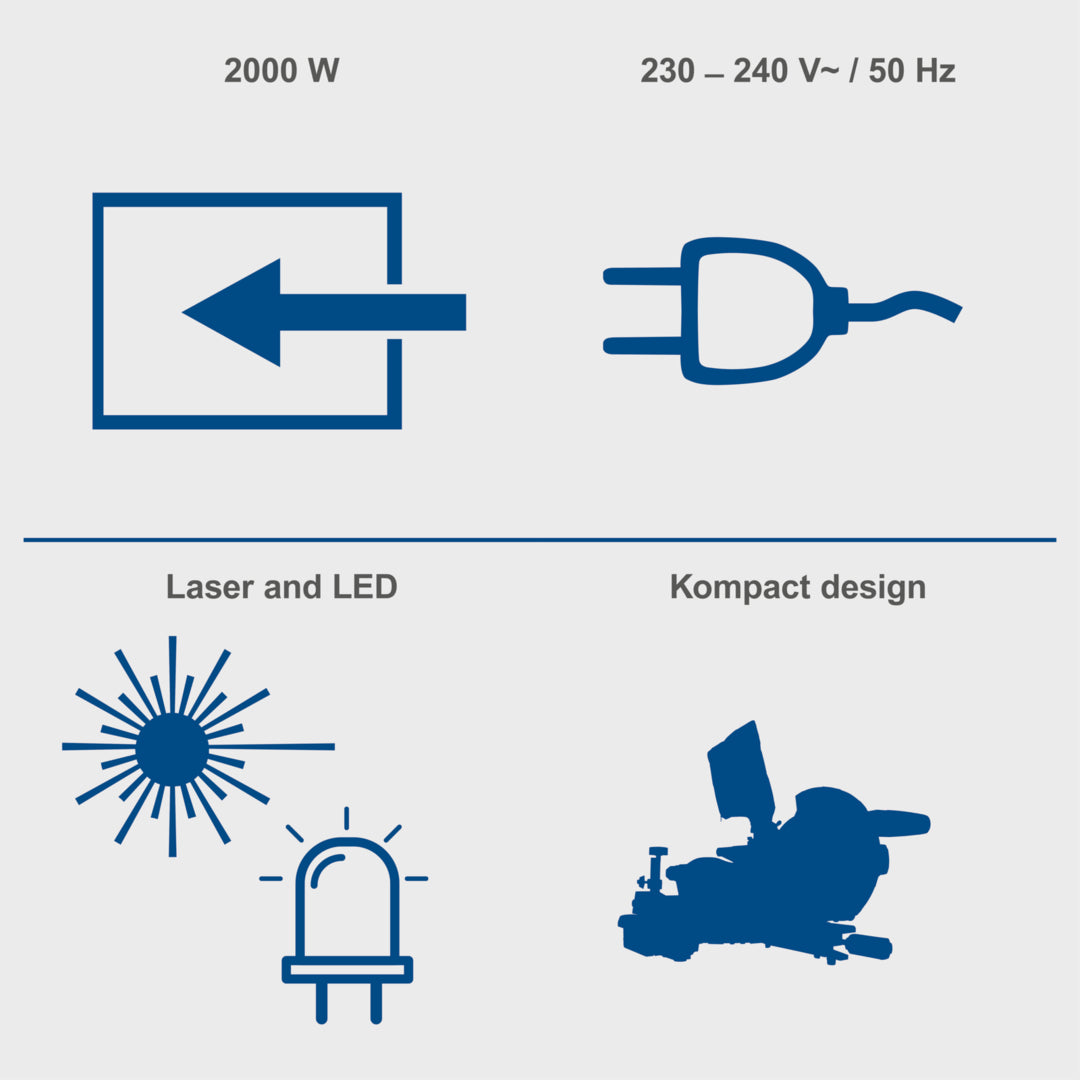

- High-torque 2000W motor: Delivers robust cutting performance at 3800 rpm, easily slicing through dense timber, laminates, and plastic profiles without stalling under load.

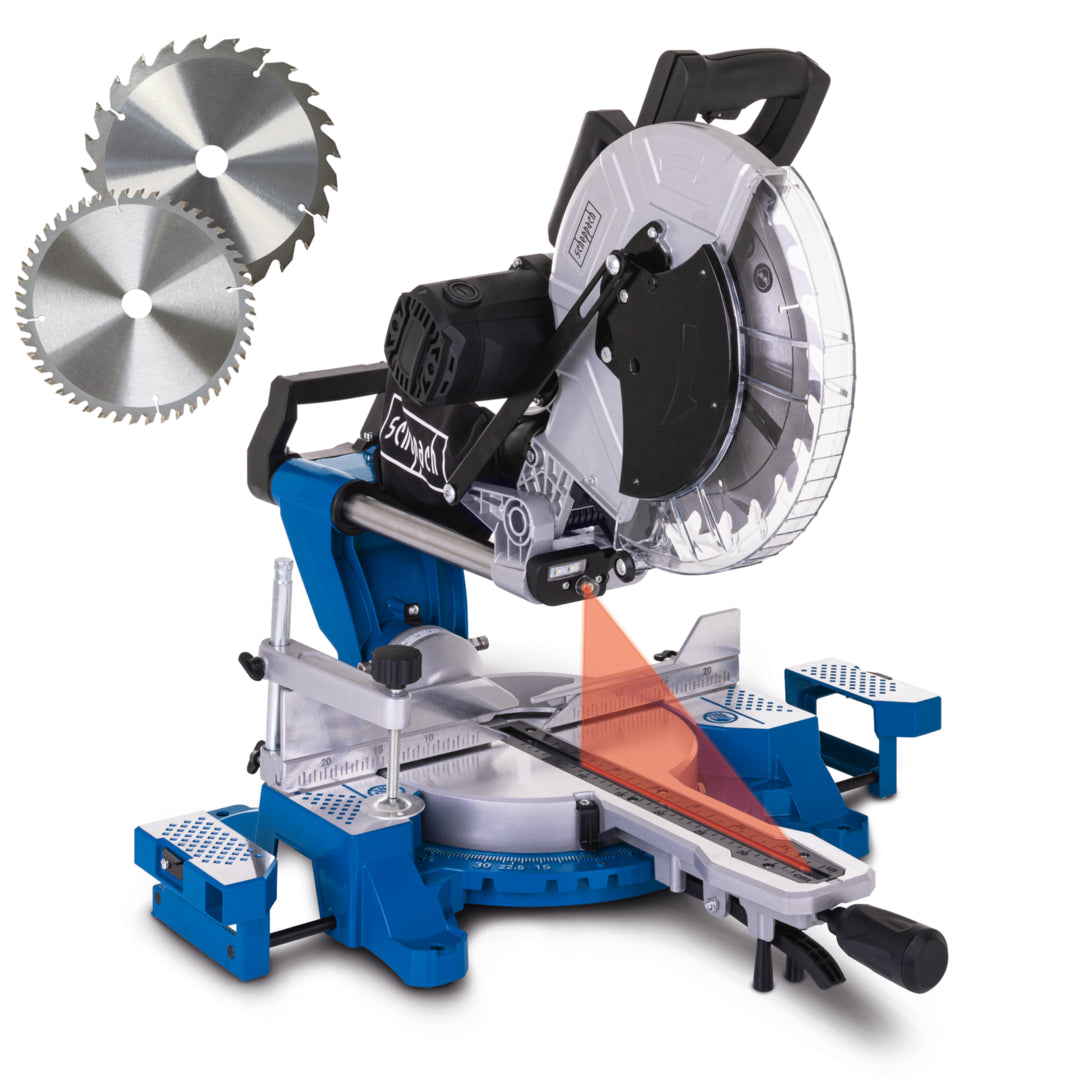

- Dual blades and material supports included: Supplied complete with 24T and 48T carbide-tipped blades for both rapid rip cuts and fine-finish crosscuts, along with extendable side supports and a workpiece clamp.
Technical Specification
| Motor Power | 2000 W (Operating) / 1800 W (Continuous S1) |
| Power Supply | 230-240 V / 50 Hz (Class II insulation) |
| No-Load Motor Speed | 3800 rpm |
| Saw Blade Diameter | 305 mm (12 inch) x 30 mm bore (3.0 mm kerf) |

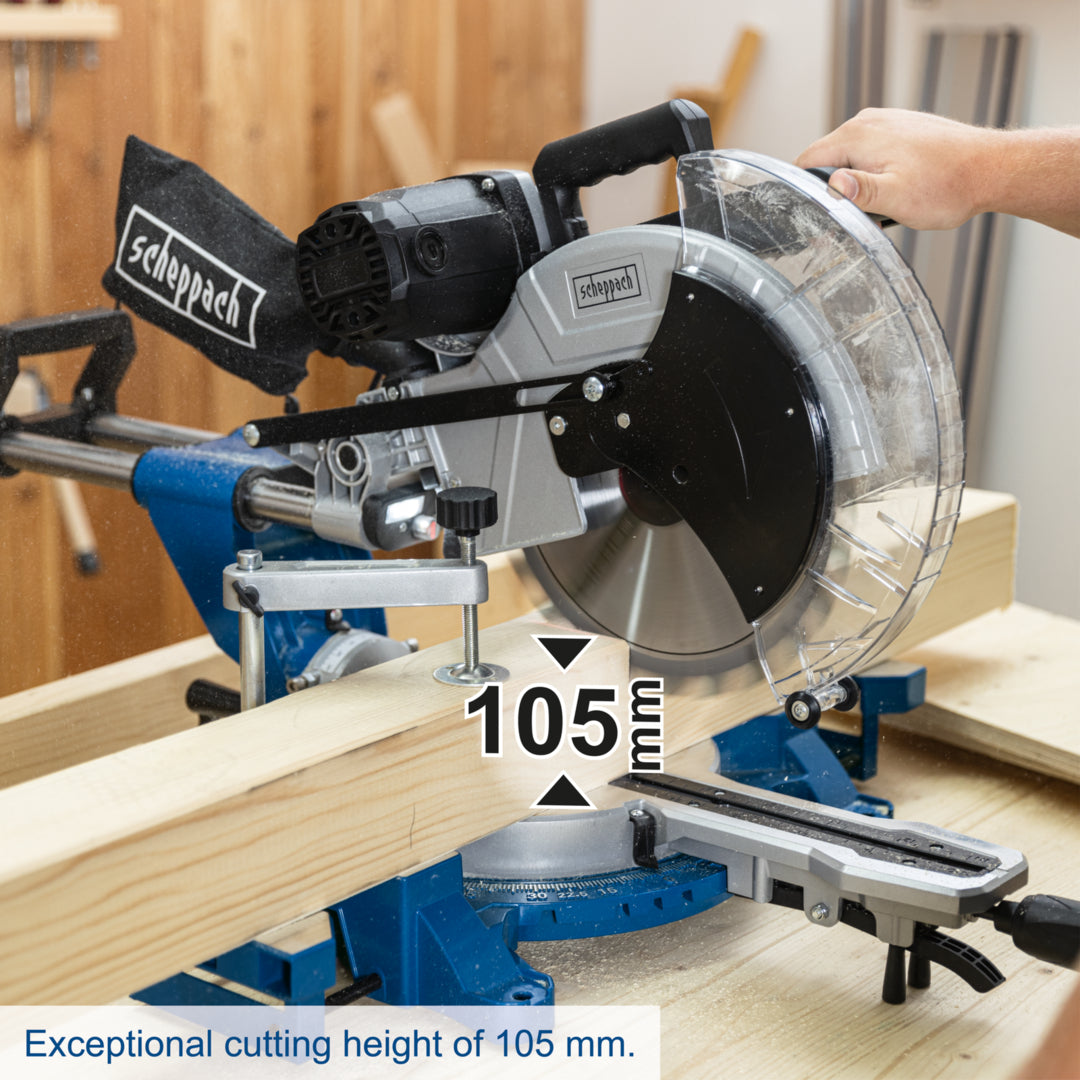

| Cutting Capacity 90° / 90° | 330 x 105 mm |
| Cutting Capacity 45° / 90° | 330 x 60 mm |
| Cutting Capacity 90° / 45° | 330 x 35 mm |
| Compound Cut 45° / 45° (Left) | 230 x 60 mm |
| Compound Cut 45° / 45° (Right) | 230 x 35 mm |

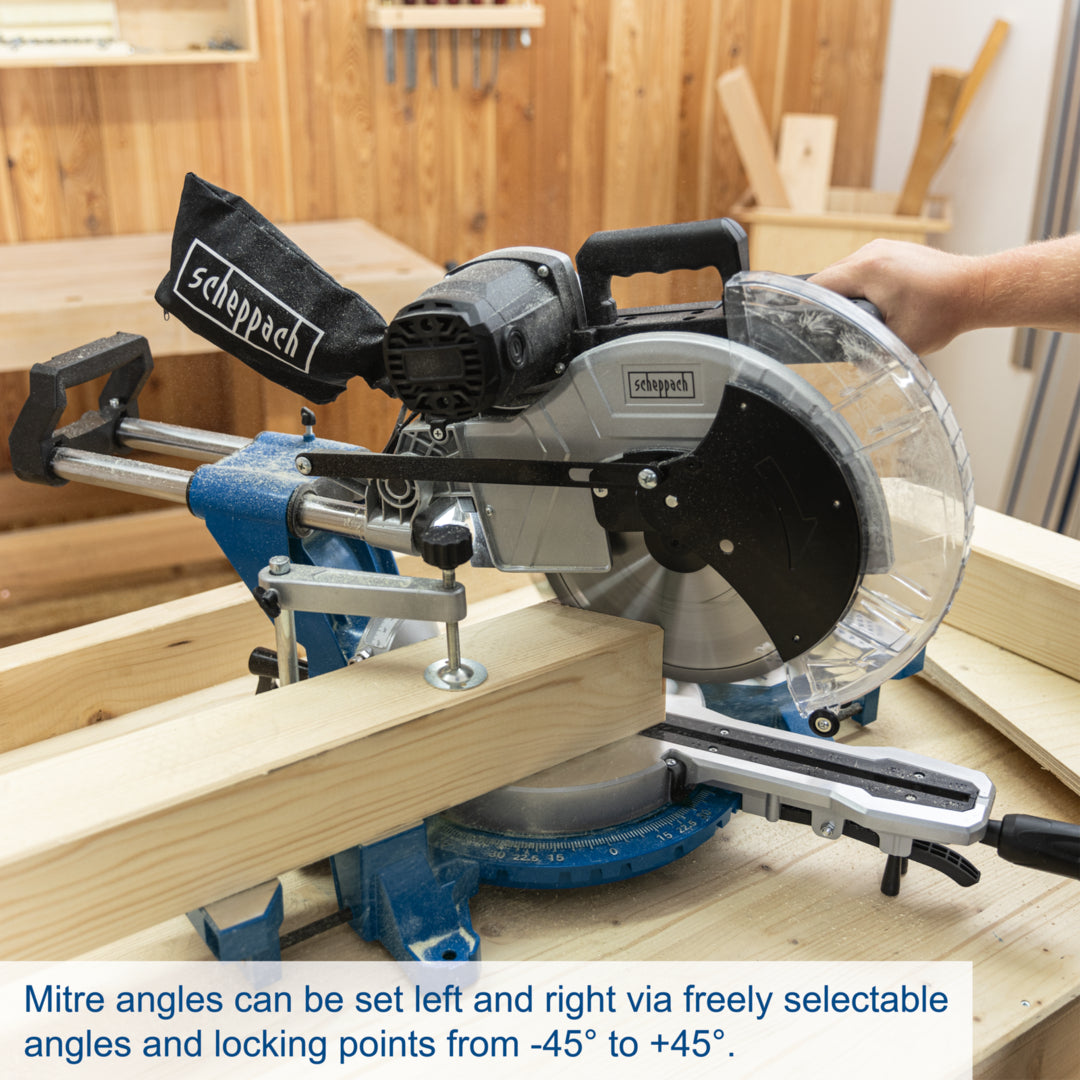

| Mitre Angles | -45° to +45° (Presets at 0°, 15°, 22.5°, 30°, 45°) |

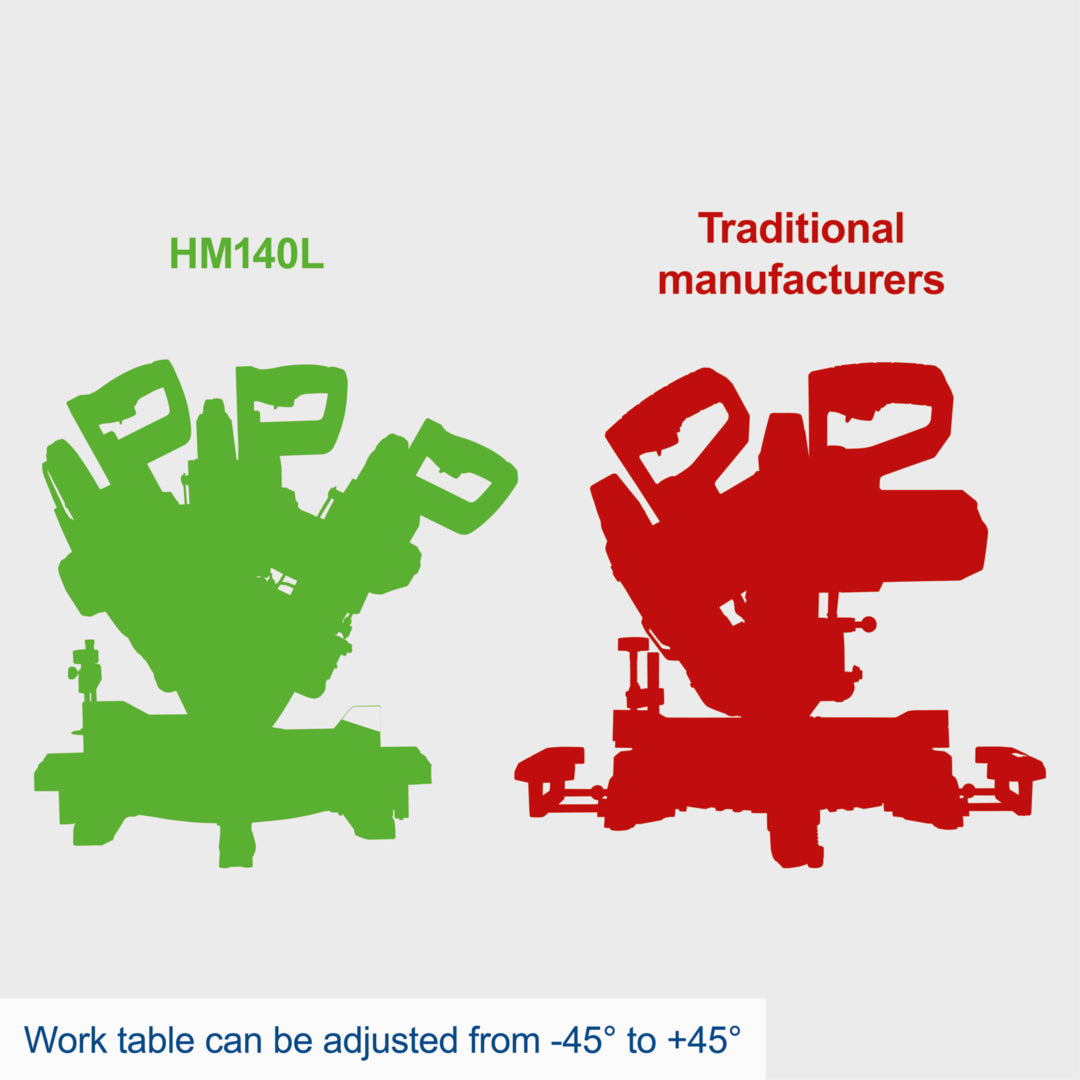

| Bevel Range | 45° left to 45° right (Double bevel) |
| Dust Extraction Port | 32.5 mm inside, 37.5 mm outside |
| Overall Dimensions (L x W x H) | 890 x 725 x 690 mm |
| Sound Pressure Level Lp(A) | 95.0 dB |
| Sound Power Level Lw(A) | 108.0 dB |
| Electrical Protection Class | IP 20 |
| Included Accessories | 2x TCT blades (24T & 48T), material clamp, 2x side supports, dust bag, hexagon spanner |
SKU: D-SCH-5901218906
MPN: 5901218906
