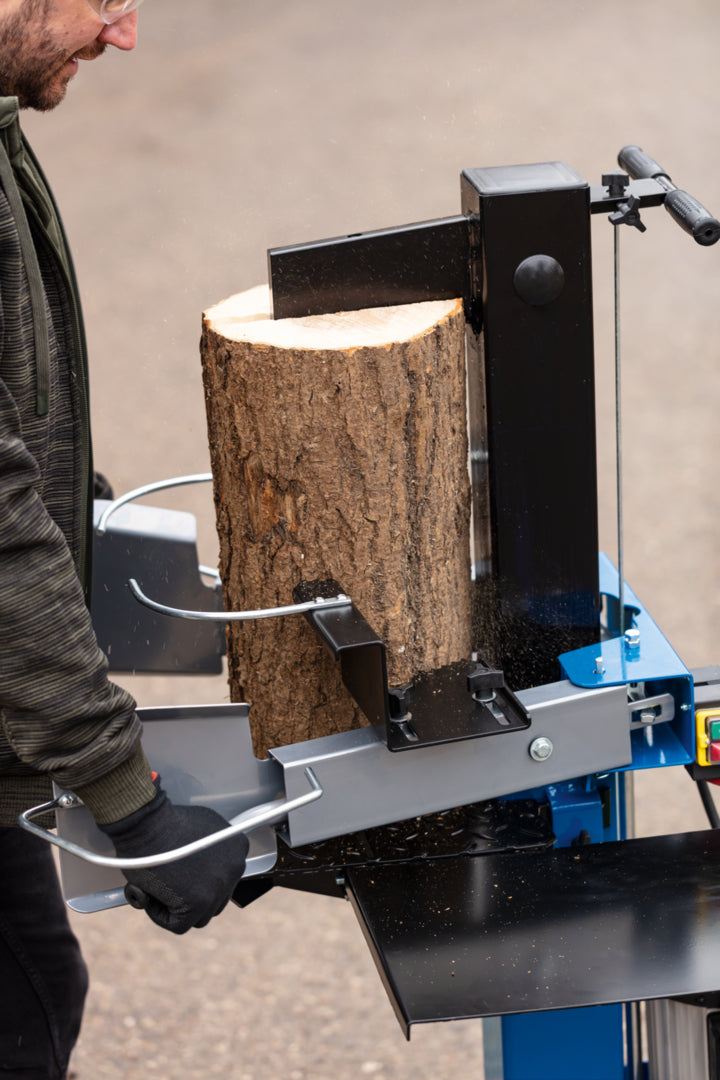

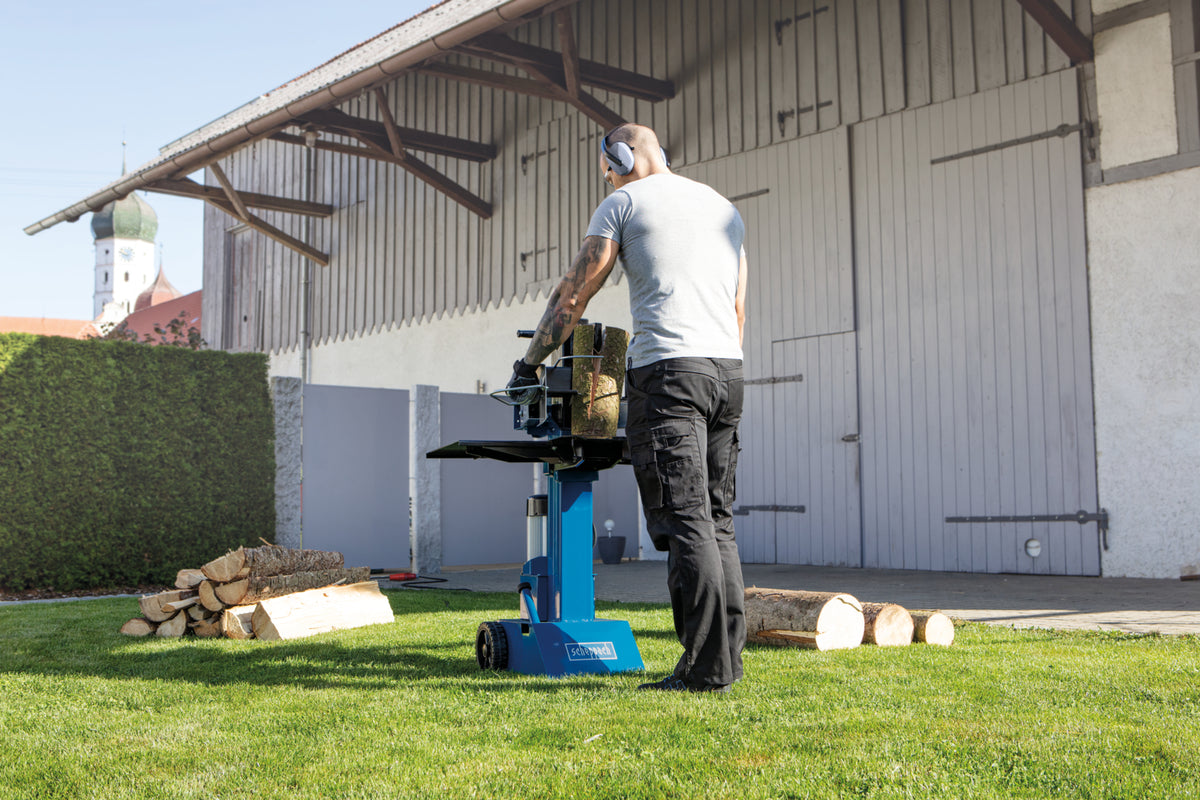

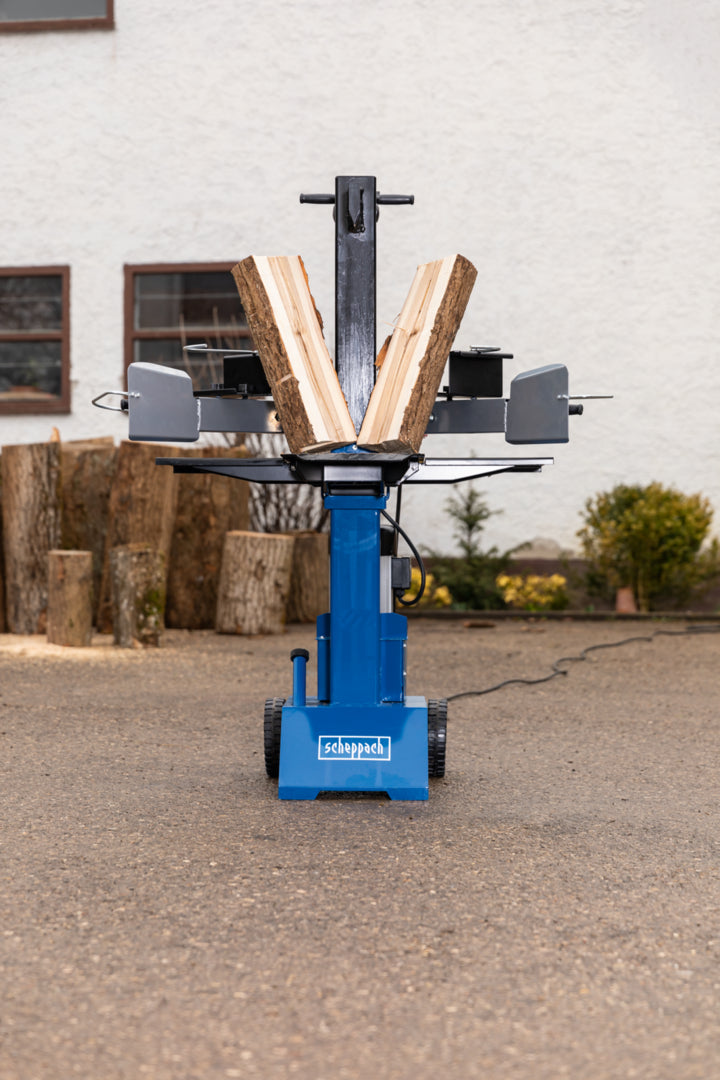

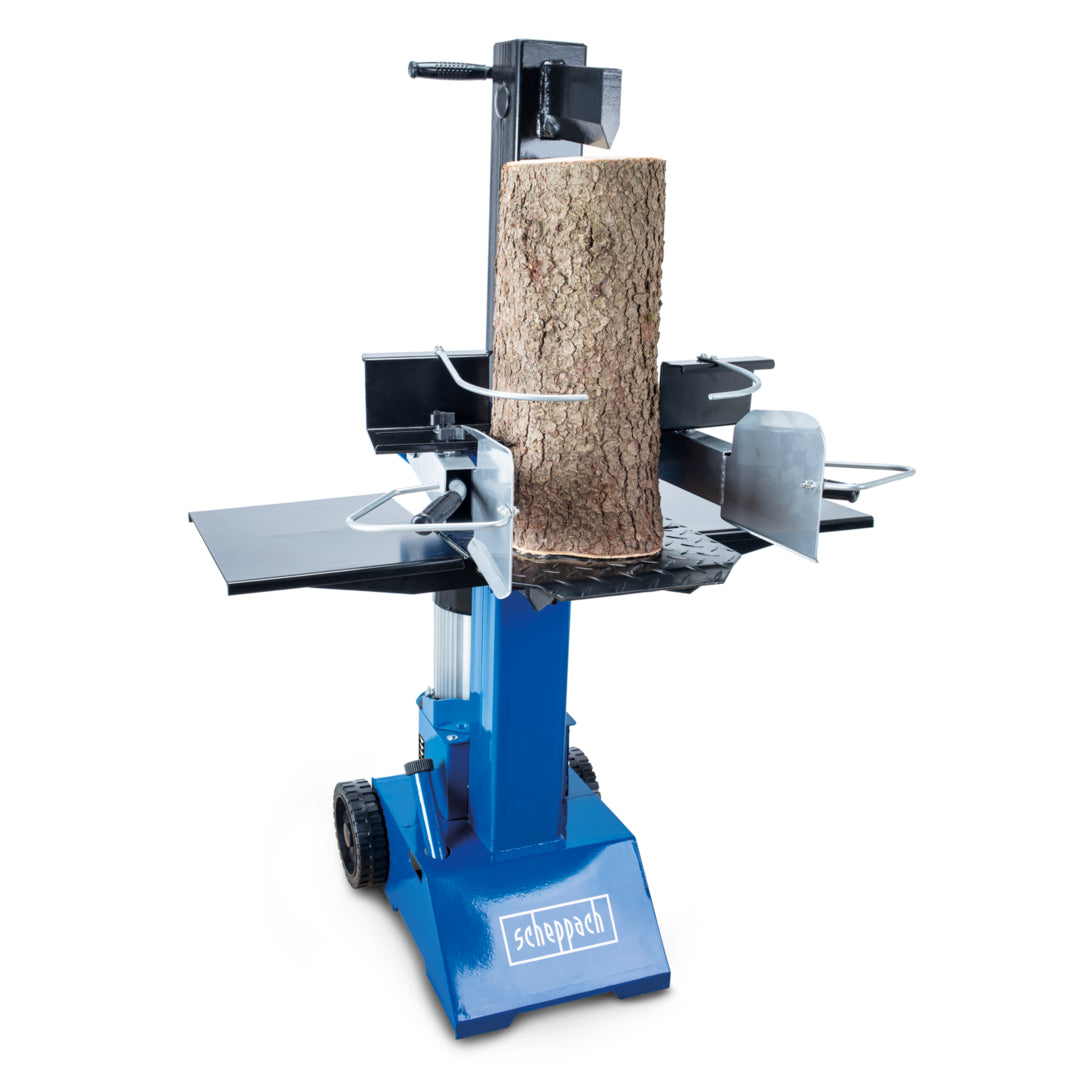

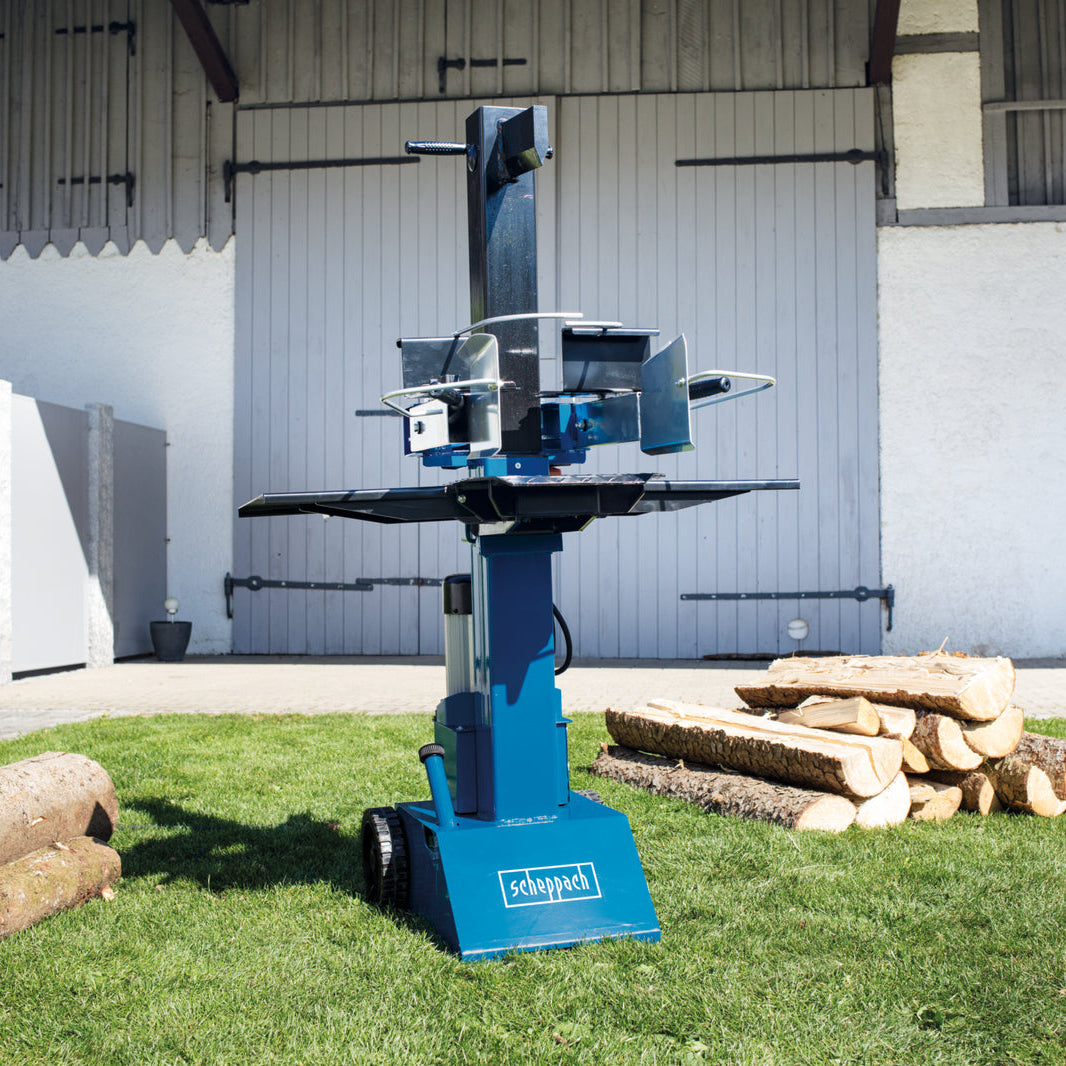

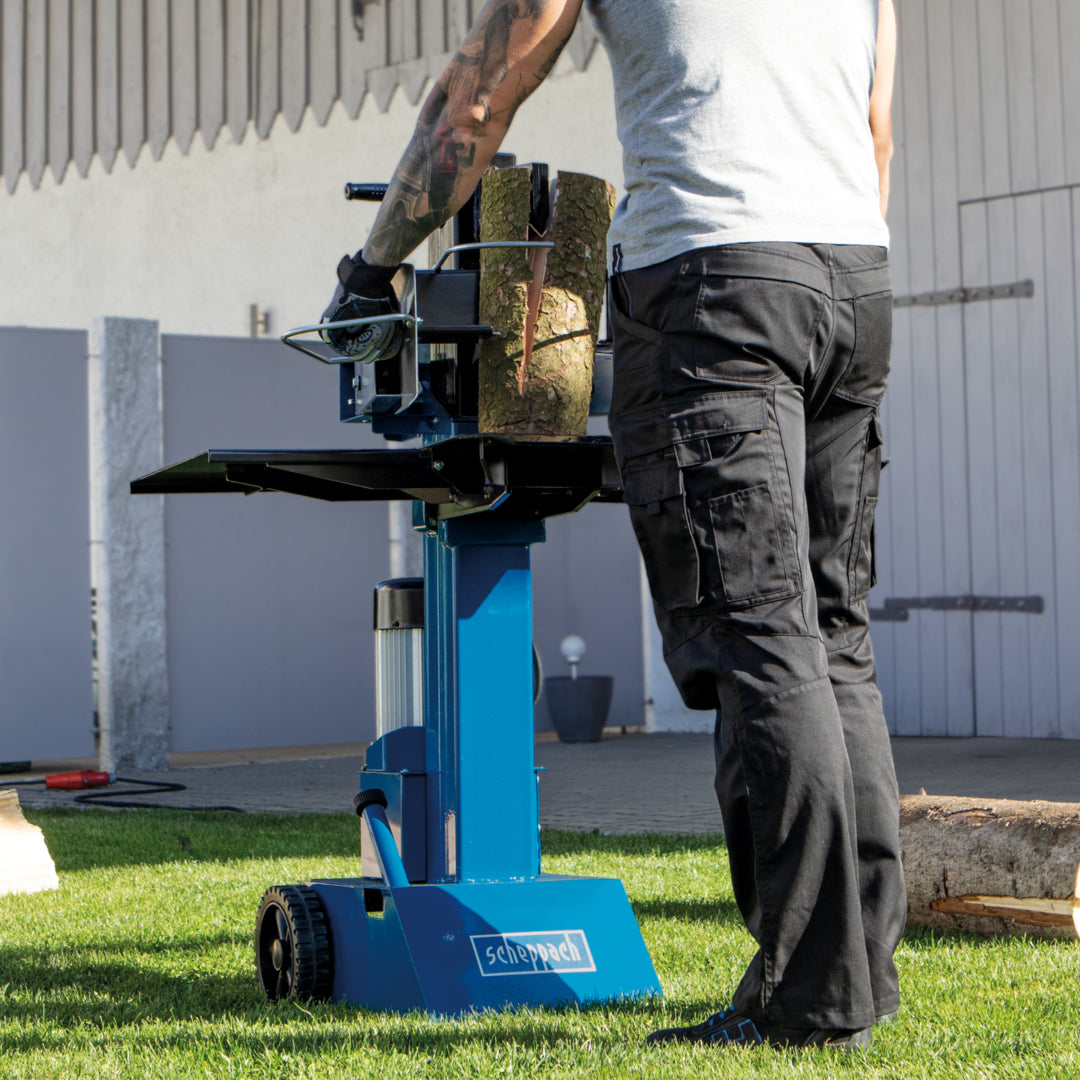

Scheppach HL810 Vertical Log Splitter 3000W 8-Tonne
Scheppach HL810 Vertical Log Splitter 3000W 8-Tonne
No reviews
Regular price
£549.00
Regular price
Sale price
£549.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Process tough firewood into stove-ready timber with heavy-duty hydraulic power.
This robust vertical log splitter combines a powerful 3500W motor with 8 tons of splitting force to tackle seasoned and green timber with ease. Designed for high efficiency and user safety, it provides a dependable wood-processing solution for home heating and workshop use.
Features:
- Powerful 8 Ton Splitting Force: Driven by a high-performance 3500W motor operating on a 400V supply, effortlessly splitting hardwoods and softwoods up to 300 mm in diameter.
- Generous Log Capacity: Accommodates log lengths up to 550 mm, making it ideal for preparing standard logs for stoves, open fires, and boilers.
- Vario Splitting System: Features an infinitely adjustable stroke length up to 550 mm, reducing travel time on shorter logs to speed up your workflow.
- Two-Handed Safety Operation: Designed with dual-hand safety controls that require simultaneous engagement, keeping hands clear of the splitting zone during operation.

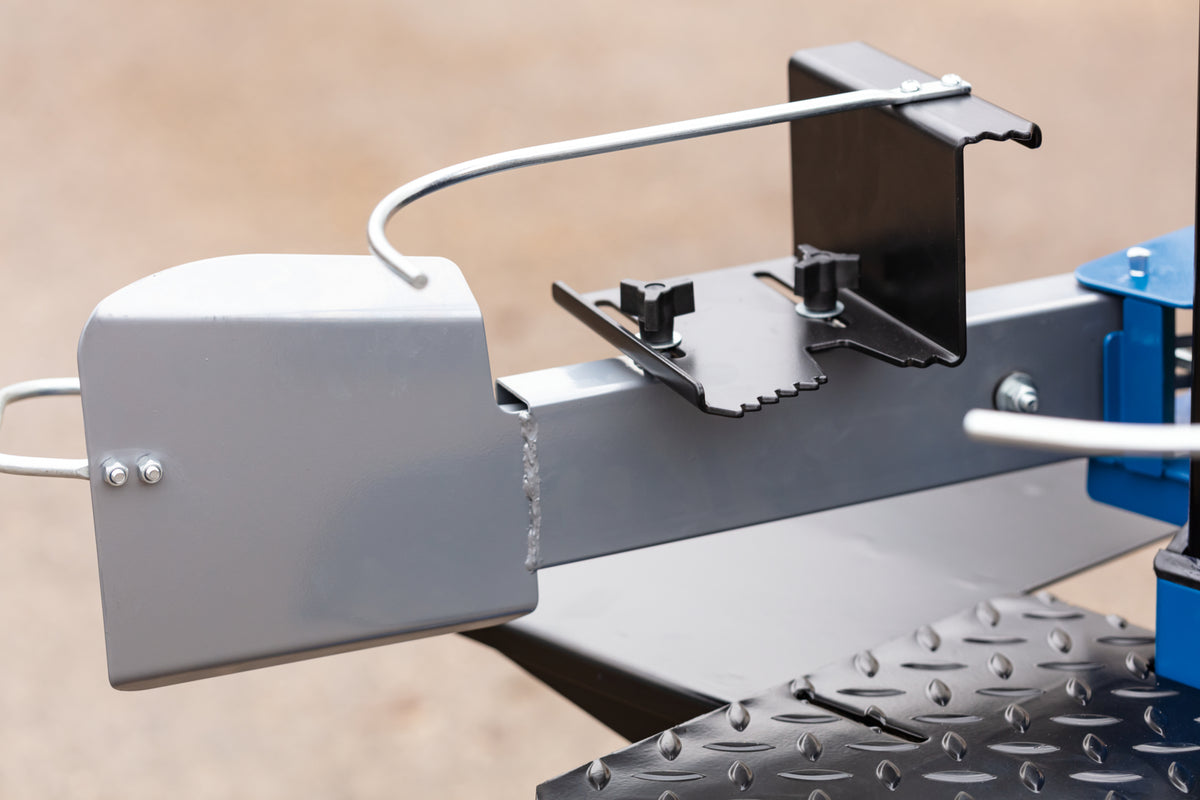

- Dual Log Supports and Catchers: Side-mounted support arms and log catchers keep split wood contained, reducing bending and improving efficiency.
- Torsionally Rigid Steel Frame: Constructed from heavy-duty, powder-coated steel to resist twisting and provide long-lasting stability under high pressure.
- Integrated Transport Wheels: Fitted with durable cargo wheels and a top handle for safe and easy movement around your yard, workshop, or storage area.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach HL810 log splitter (DIY) |
| Model Description | HL810 |
| Machine Group | Log splitter |
| Article Number | 5905310902 |
| EAN | 4046664071495 |
| Net Weight | 109.8 kg |
| Gross Weight | 117.2 kg |
| General Dimensions (L x W x H) | 935 mm x 842 mm x 1490.0 mm |
| Height with Cylinder Lowered | 1030 mm |
| Log Splitter Performance & Hydraulic Data | |
| Splitting Force | 8.0 t |
| Wood Diameter Range (Min / Max) | 10.0 mm – 300.0 mm |
| Max. Wood Length | 550.0 mm |
| Cylinder Diameter / Stroke | 70.0 mm / 485 mm |
| Forward Speed / Return Speed (Stage 1) | 60 mm/sec / 194 mm/sec |
| Hydraulic Pressure | 21.0 MPa |
| Hydraulic Oil Type / Quantity | HLP32 / 4.0 l |
| Pump Flow | 4.0 ml/flow |
| Oil Drain Plug Underside / Dipstick with Markings | Yes / Yes |
| Oil Filter | No |
| Splitting Wedge Dimensions (L x W x H) | 179 mm x 25 mm x 100 mm |
| Splitting Wedge Inclination Angle | 5.0 ° |
| Min. Distance Splitting Knife to Table | 65 mm |
| Split Pipe Dimensions (Thickness x W x L) | 4.0 mm x 100.0 mm x 100.0 mm |
| Table Dimensions (L x W x H) | 375.0 mm x 332.0 mm x 800.0 mm |
| Operating Lever Height | 940.0 mm |
| Table Lock / Pocket Table | Yes / Yes |
| Hand Protection / Wooden Support Left/Right | Yes / Yes |
| Wheels & Axle Specifications | |
| Number of Axles | 1 piece |
| Wheel Diameter / Width | 200.0 mm / 50.0 mm |
| Wheelbase Track Width | 325.0 mm |
| Wheel Material | Polyvinyl chloride (PVC) + Polypropylene (PP) |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 400V |
| Tension / Frequency | 400 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 3500.0 W |
| Rated Current | 7.1 A |
| Motor Type: Electric | Three-phase motor |
| Maximum Engine Speed | 2800.0 1/min |
| Insulation Class | B (max. motor temp. 130°C) |
| Engine Protection (Thermoprotector) | No |
| Engine Braking Type | No |
| No Voltage Release | Yes |
| Protection Class for Electrical | IP 54 |
| Battery or Rechargeable Battery Included | No |
| Scope of Delivery | |
| Scope of Delivery | • Log splitter • Operating arms • Adjustable claws • Additional brackets • Wheels • Accessory bags (A, B, C) • Instruction manual • Table including side tables |
SKU: D-SCH-5905310904
MPN: 5905310904
ID: D-SCH-5905310904
View full details
