Scheppach HL760LS Log Splitter 2200W 7-Tonne
Scheppach HL760LS Log Splitter 2200W 7-Tonne
No reviews
Regular price
£349.00
Regular price
Sale price
£349.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Transform heavy logs into stove-ready firewood with effortless hydraulic power.
This robust horizontal log splitter combines a strong 2200W motor with 7 tons of splitting force to handle seasoned and fresh timber. Complete with a raised frame and safety cage, it brings comfortable working heights and dependable efficiency to your firewood preparation.
Features:

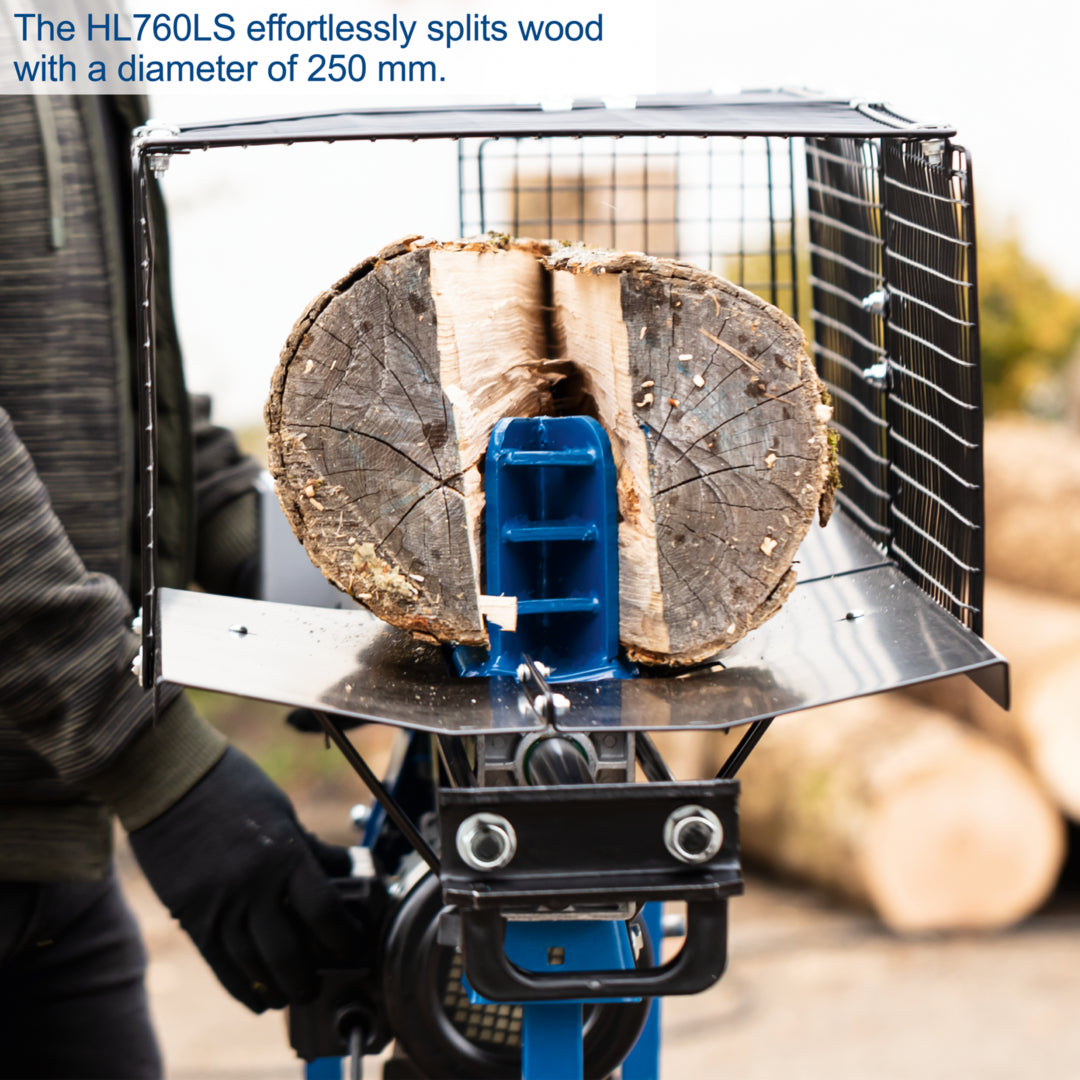

- Powerful 7 Ton Splitting Force: Driven by a 2200W motor that effortlessly splits logs up to 52 cm long and 25 cm in diameter.
- High-Efficiency Hydraulic Return: Features an automatic cylinder return with a fast 52.9 mm/s return speed, allowing you to process up to 100 logs per hour.

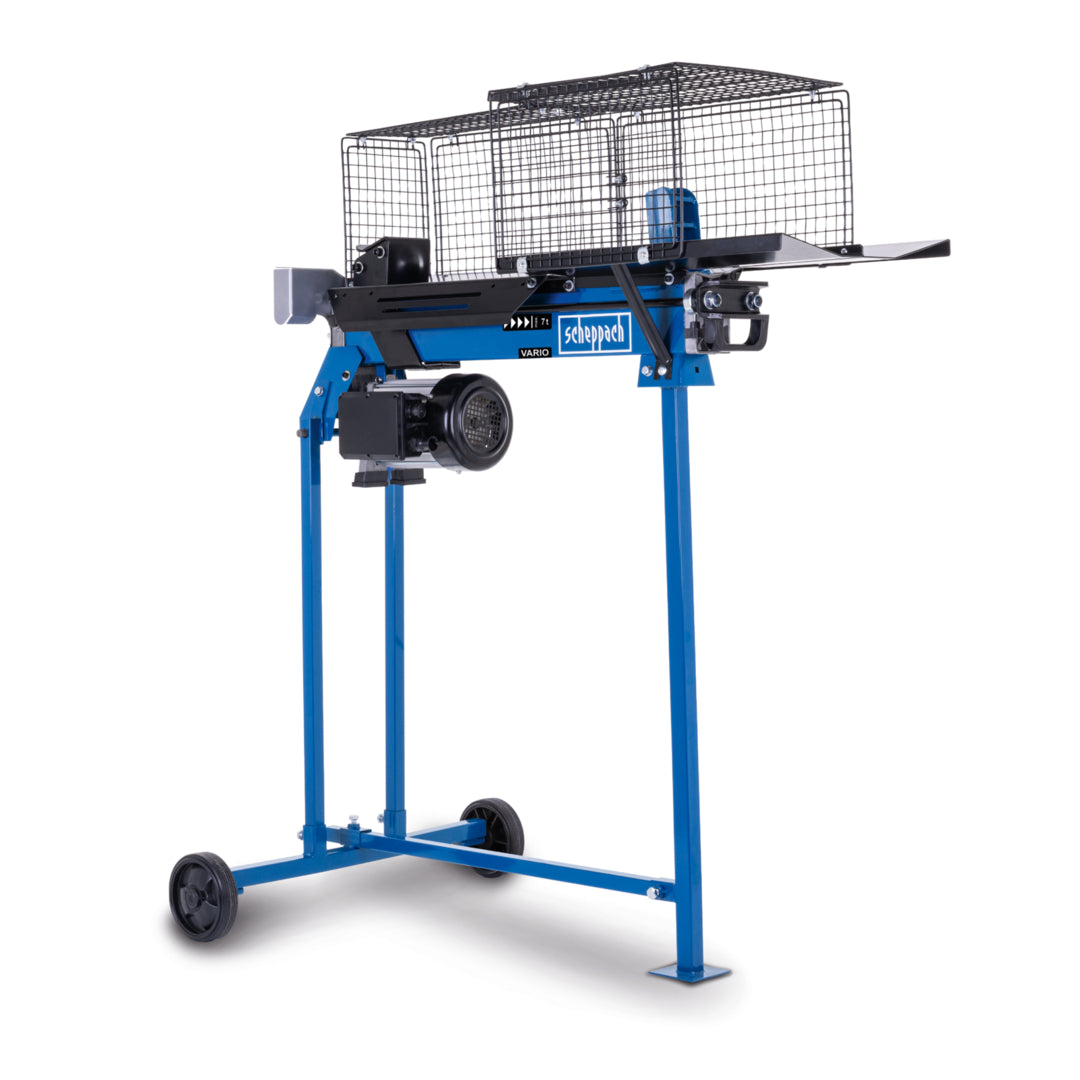

- Ergonomic Base Stand Included: Raises the working height to a comfortable 110 cm, allowing you to load logs directly without constant bending or back strain.

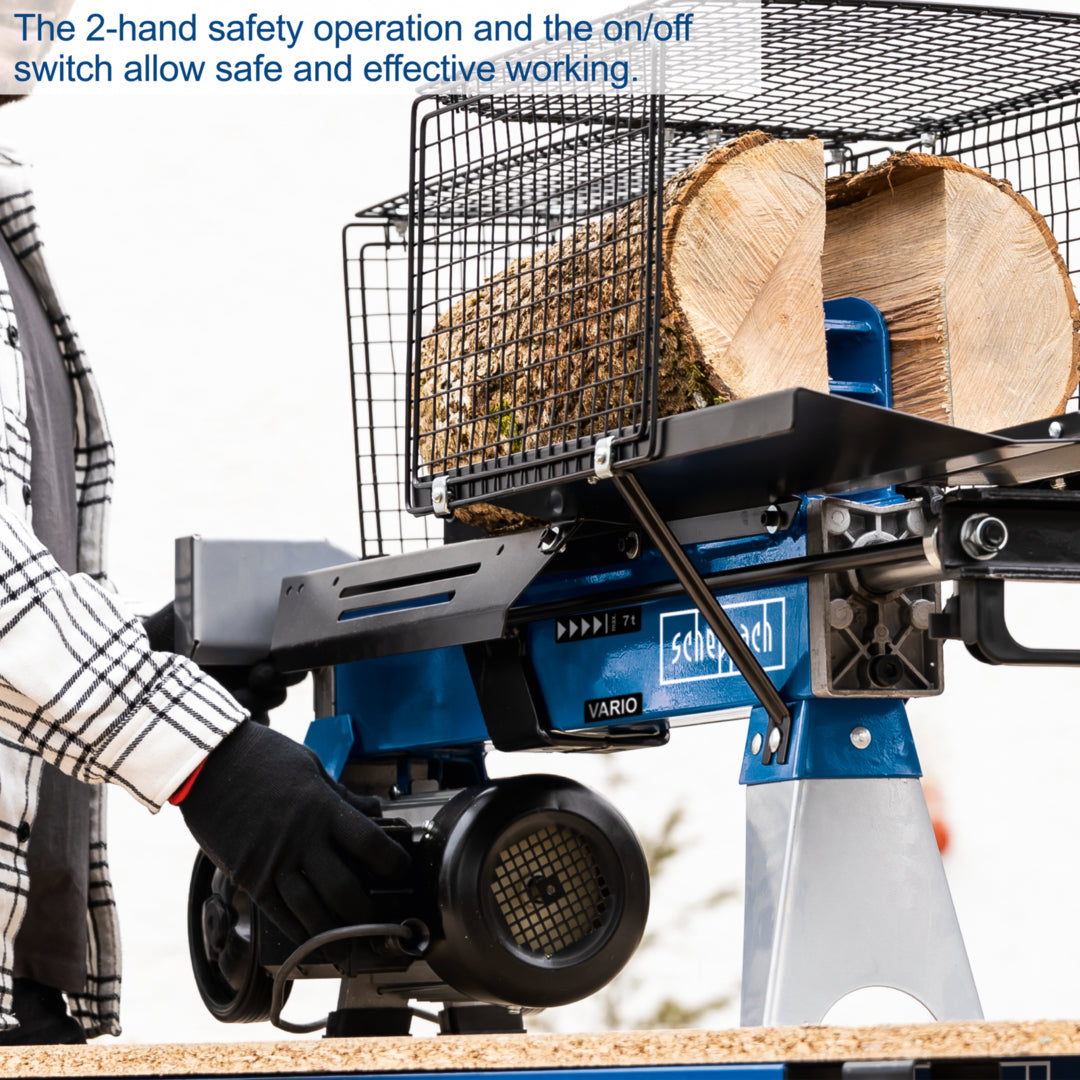

- Two-Handed Safety Operation: Requires simultaneous dual-control input to operate, instantly stopping the pressure plate if either control is released.
- Protective Safety Enclosure: Fitted with a protective cage around the splitting zone to keep wood splinters contained during operation.

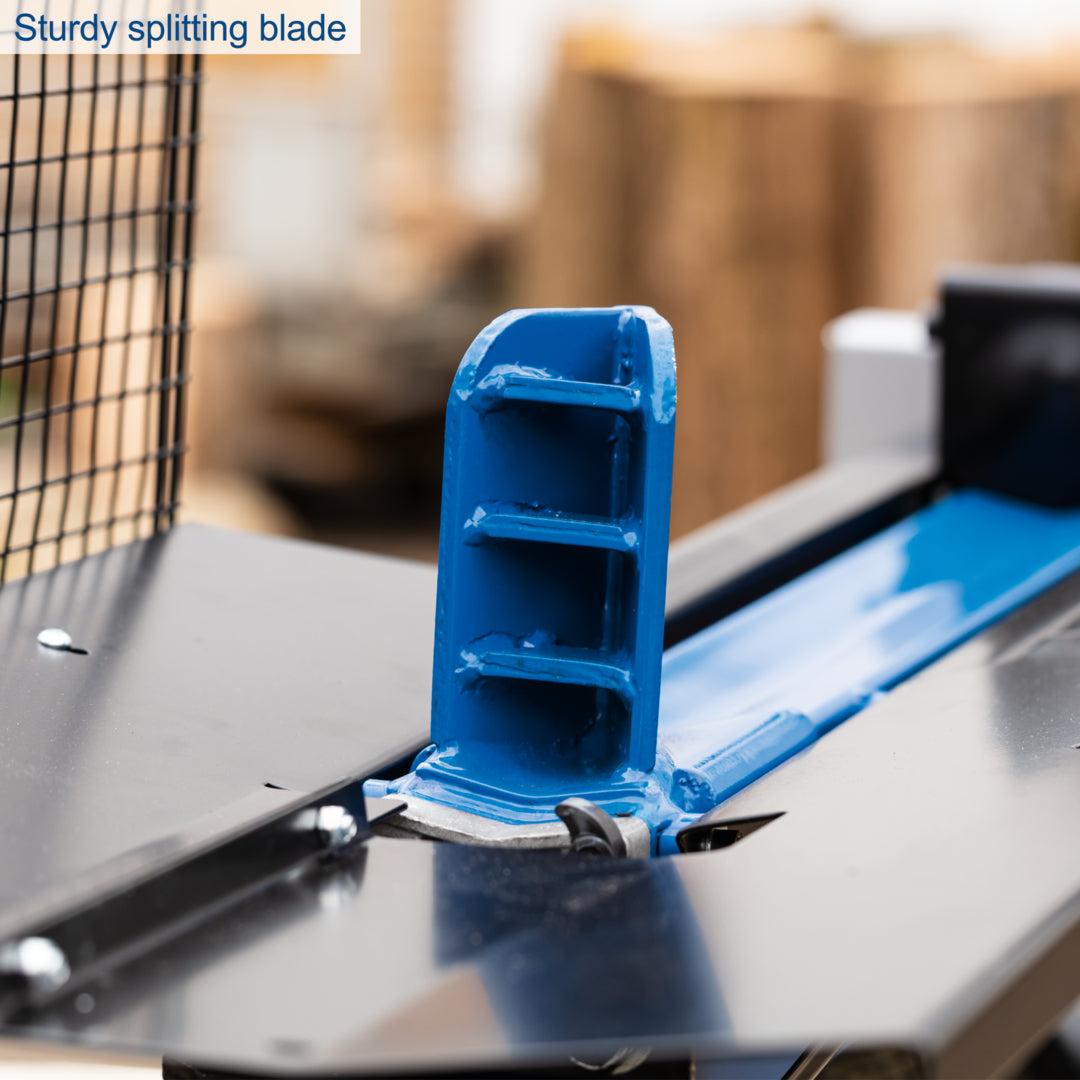

- Torsion-Rigid Steel Construction: Built with a durable powder-coated steel frame and a robust wedge designed to withstand heavy continuous use.

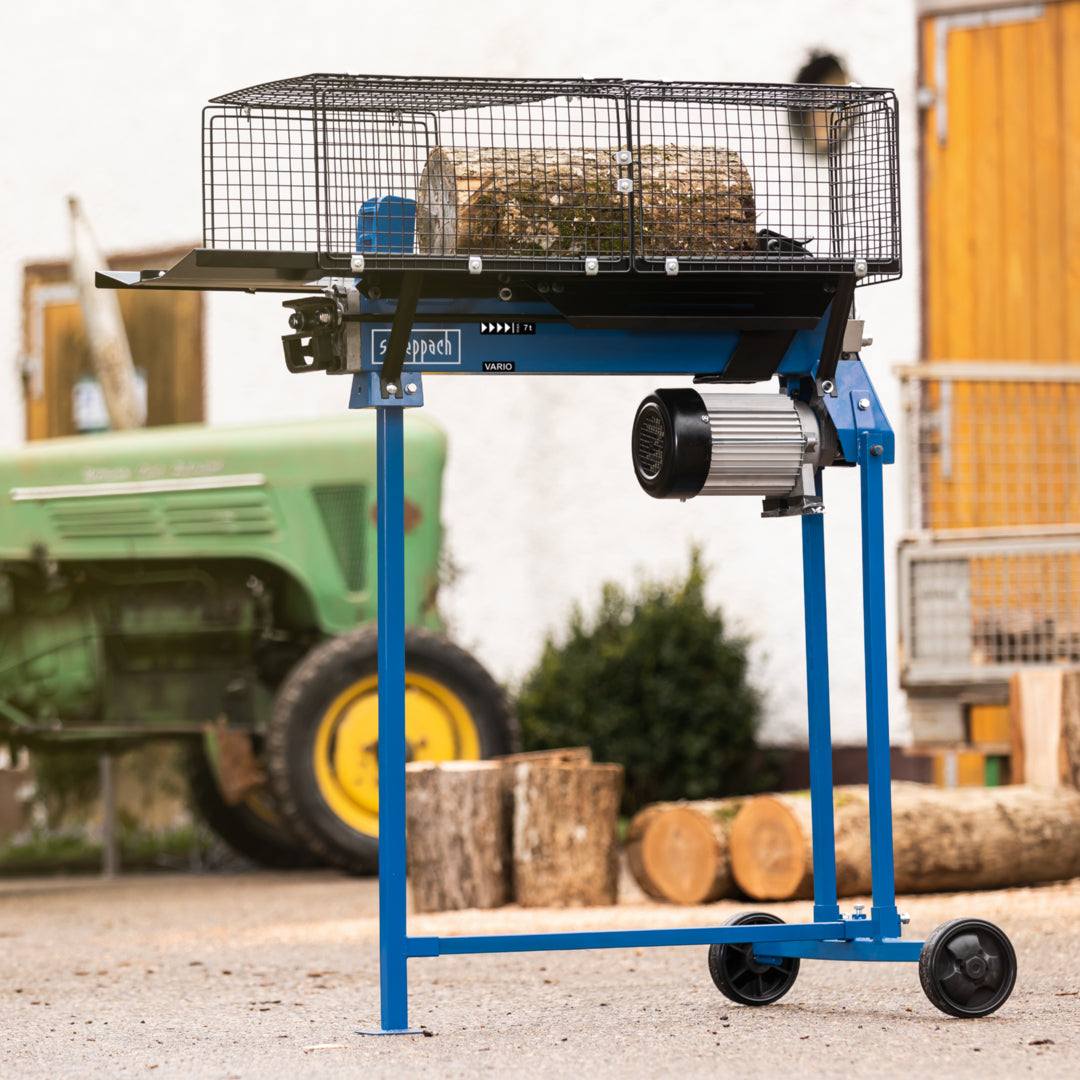

- Convenient Transport Wheels: Features smooth-rolling transport wheels and an integrated handle for easy movement around your driveway or outdoor workspace.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach HL760LS log splitter (DIY) |
| Model Description | HL760LS |
| Machine Group | Log splitter |
| Article Number | 5905211934 |
| EAN | 4046664120698 |
| Net Weight | 57 kg |
| Gross Weight | 60.6 kg |
| General Dimensions (L x W x H) | 1151 mm x 725.0 mm x 615.0 mm |
| Log Splitter Dimensions (Min - Max L x W x H) | 1160.0 mm – 1295.0 mm x 725.0 mm x 615.0 mm |
| Log Splitter Performance & Hydraulic Data | |
| Splitting Force | 7.0 t |

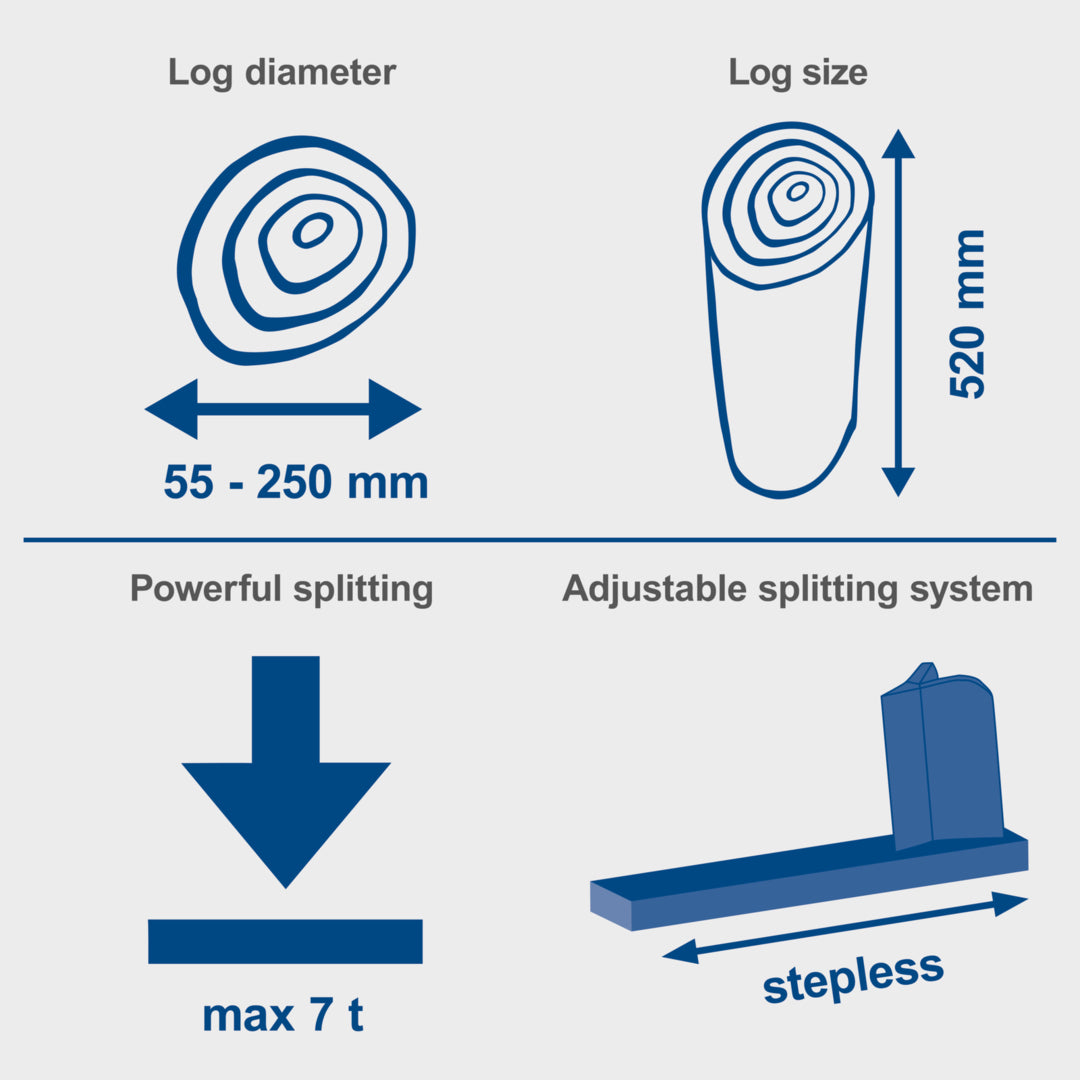

| Wood Diameter Range (Min / Max) | 50 mm – 250.0 mm |
| Wood Length Range (Min / Max) | 200.0 mm – 520.0 mm |
| Working Height with Base Frame | 1355 mm |
| Cylinder Stroke | 370.0 mm |
| Forward Speed (Stage 1) / Return Speed | 30.8 mm/sec / 52.9 mm/sec |
| Hydraulic Pressure | 20.8 MPa |
| Oil Quantity / Filter | 3.5 l / No |
| Oil Dipstick with Markings | Yes |
| Printing Plate Dimensions (L x W) | 105.0 mm x 95.0 mm |
| Adjustable Pressure Plate | No |
| Splitting Wedge Dimensions (L x W x H) | 80.0 mm x 70.0 mm x 126.0 mm |
| Splitting Wedge Inclination Angle | 4.0 ° |
| Wheels & Axle Specifications | |
| Number of Axles | 1 |
| Wheel Diameter / Width | 150.0 mm / 35.0 mm |
| Wheelbase Track Width | 240.0 mm |
| Wheel Material | Polypropylene (PP) + Polyurethane (PU) |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |

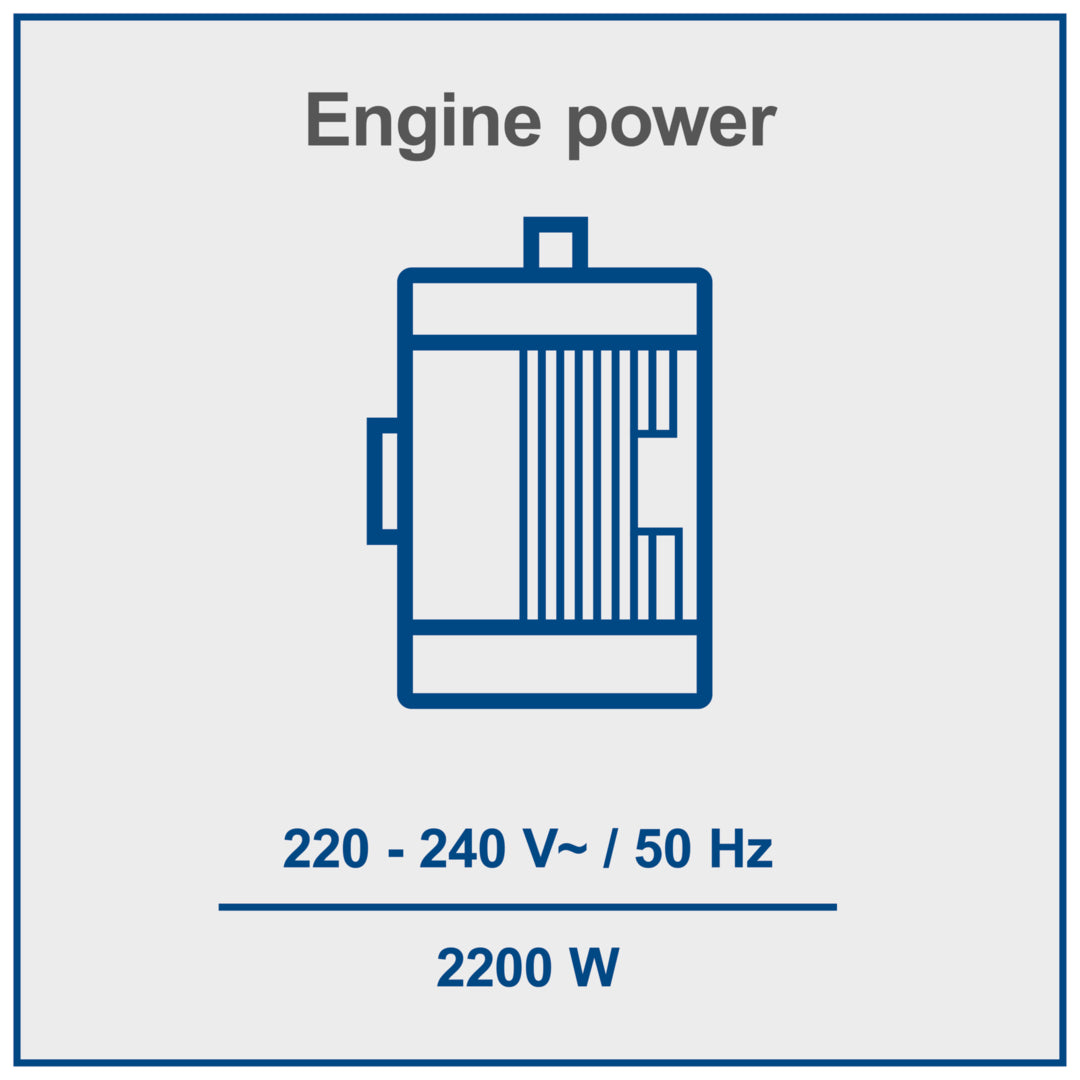

| Tension / Frequency | 220-240 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 2200.0 W |
| Continuous Power Consumption S1 (W / hp) | 0.0 n/a / 0.0 n/a |
| Power Consumption (Operating Mode 2) | 0.0 n/a (Operating mode 2: n/a) |
| Rated Current | 9.6 A |
| Motor Type: Electric | Induction Motor |
| Maximum Engine Speed | 2800.0 1/min |
| Capacitor Type Voltage | 450 V~ |
| Insulation Class | B (max. motor temp. 130°C) |
| Engine Protection (Thermoprotector) | Yes |
| Engine Braking Type | No |
| Soft Start | No |
| Protection Class for Electrical / Protection Class | IP 54 |
| Cable Length | 1600 mm |
| Battery or Rechargeable Battery Included | No |
| Emissions & Noise Levels | |
| Sound Pressure Level Lp(A) | 78.8 dB |
| Packaging Specifications | |
| Packaging Type | Multiple packages |
| Package 1 Description | Log splitter |
| Package 1 Dimensions (L x W x H) | 950.0 mm x 325.0 mm x 510.0 mm |
| Package 1 Weight | 55.4 kg |
| Package 2 Description | Status |
| Package 2 Dimensions (L x W x H) | 965.0 mm x 130.0 mm x 120.0 mm |
| Package 2 Weight | 5.4 kg |
| Scope of Delivery | |
| Scope of Delivery Text | - Operating instructions - Accessory bag (a, b, c, d, e, f) - Handle - Log splitter - Top guard 1 - Top guard 2 - Left guard - Rear guard 1 - Rear guard 2 - Front guard - Support table 1 - Protective plate - Support table 2 - Support braces (2x) - Support brace |
