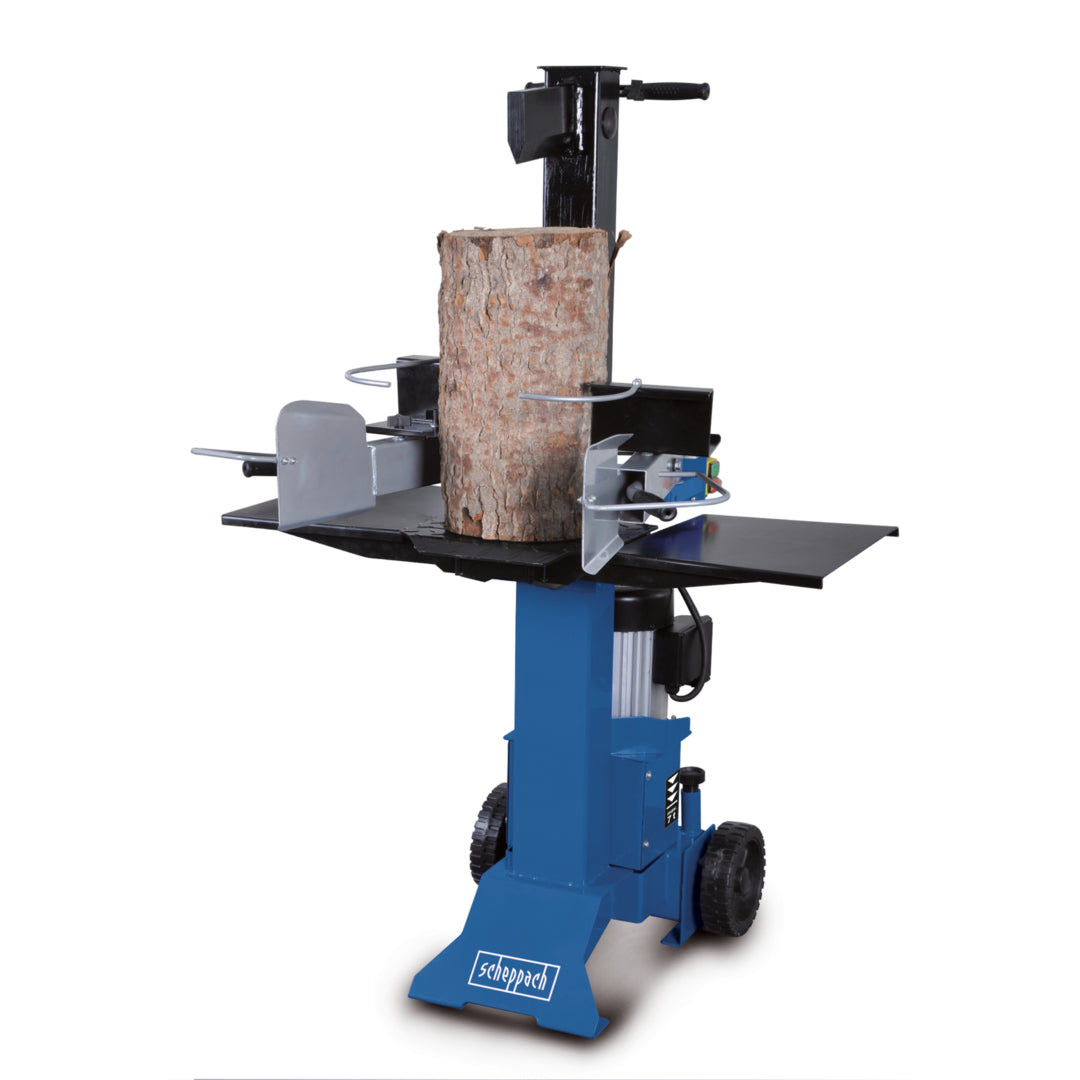

Scheppach HL730 Vertical Log Splitter 3000W 7-Tonne
Scheppach HL730 Vertical Log Splitter 3000W 7-Tonne
Regular price
£529.00
Regular price
Sale price
£529.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Effortless firewood preparation engineered for reliable, heavy-duty timber splitting.

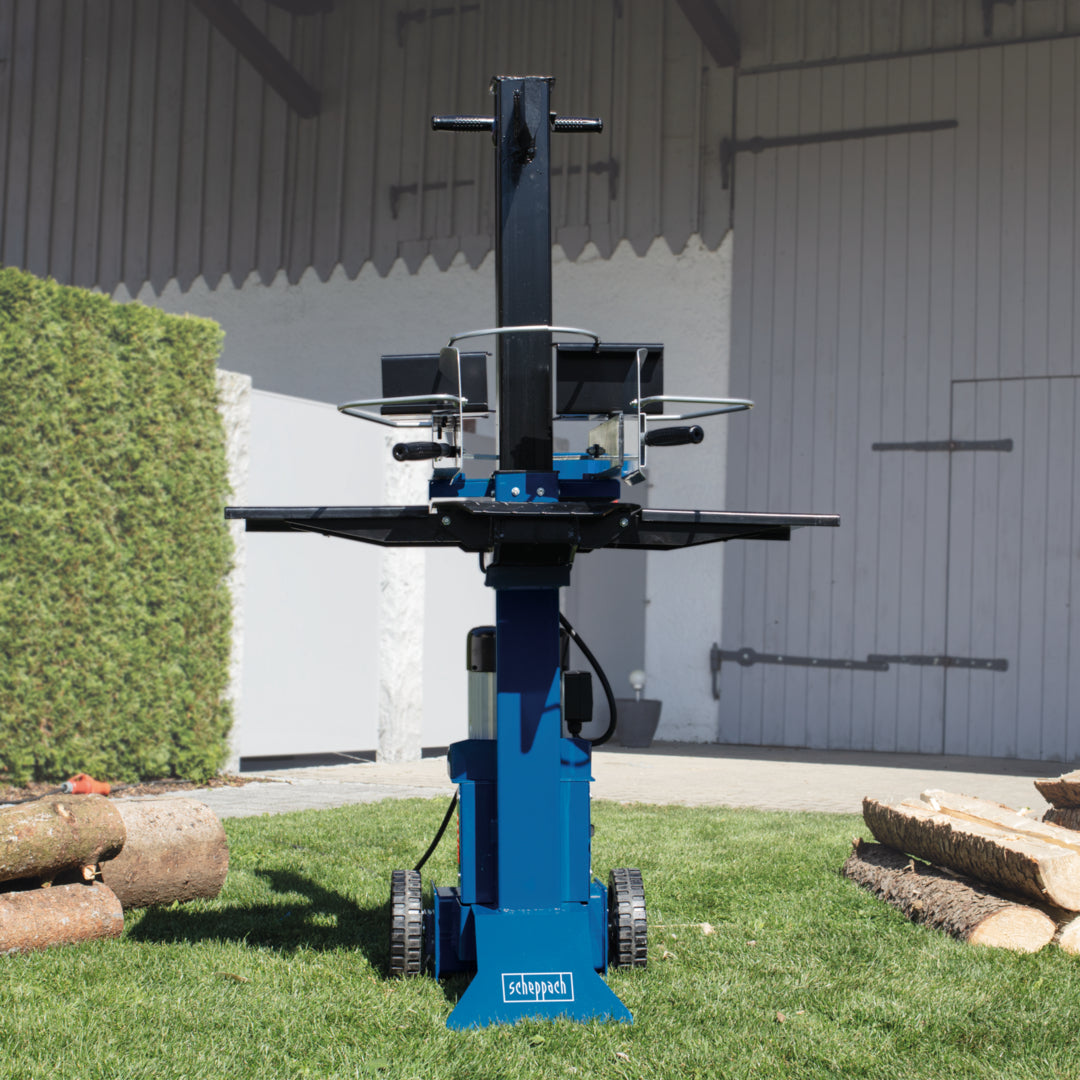

Delivers a powerful 7-tonne hydraulic force to process both softwoods and dense hardwoods like oak and beech. Features a stable vertical design and dual-hand safety controls to make winter fuel preparation safe and efficient.
Features:
- High-Output Splitting Force: Driven by a high-performance 3000W electric motor that generates 7 tonnes of hydraulic pressure, making light work of stubborn, knotty timber.

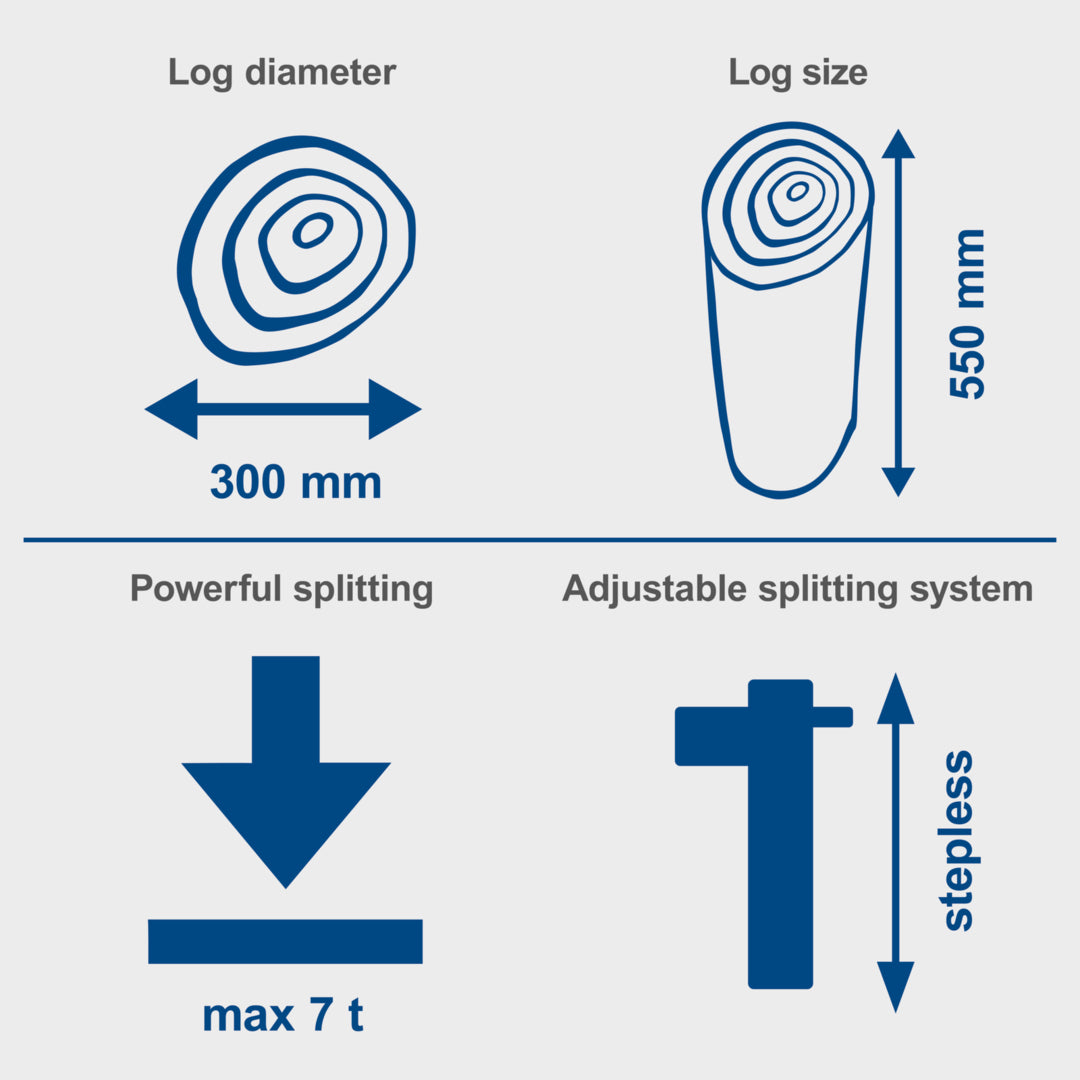

- Generous Log Capacity: Accommodates log lengths from 250mm up to 550mm and diameters between 100mm and 300mm, perfect for standard stove fuel preparation.

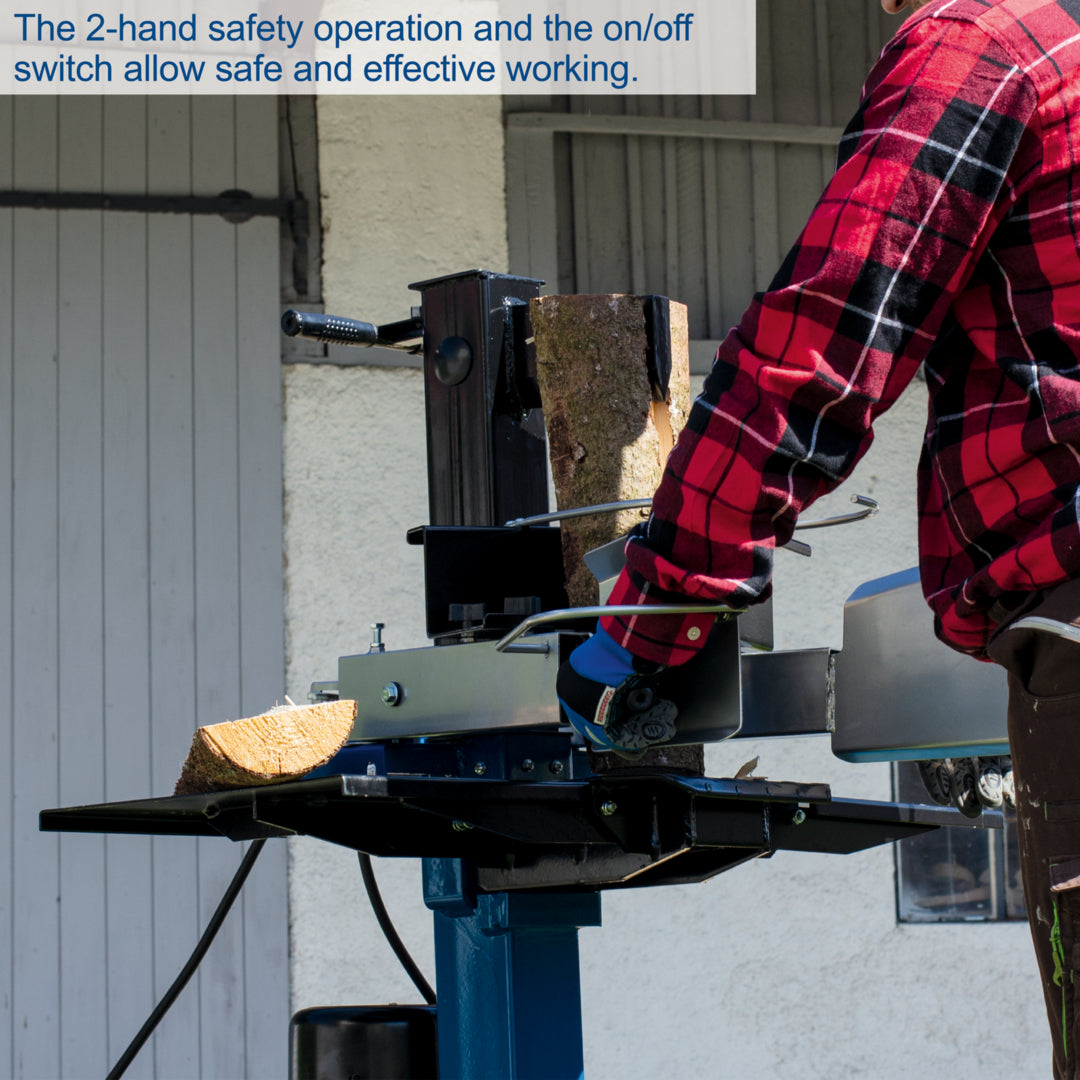

- Enhanced Operator Safety: Built with a dual-hand control system that requires two-handed operation, keeping hands safely away from the splitting area during use.
- Rapid Hydraulic Return: Designed with an automated, fast cylinder return stroke to significantly reduce cycle times between logs and speed up processing.
- Heavy-Duty Construction: Built on a rigid steel frame with a 495mm cylinder stroke for deep, complete splitting through tough wood grain.
Technical Specification
| General Details | |
|---|---|
| Title | Log Splitter HL730 Scheppach (DIY) Great Britain |
| Article Number | 5905309904 |
| Model Description | HL730 |
| Machine Group | Log Splitter |
| EAN | 4046664283744 |
| Mass Gross | 104 kg |
| Mass Net | 98 kg |
| General Dimensions (L x W x H) | 850 mm x 915.0 mm x 1500 mm |
| Motor & Electrical Specifications | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Induction Motor |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Nominal Current | 13.0 A |

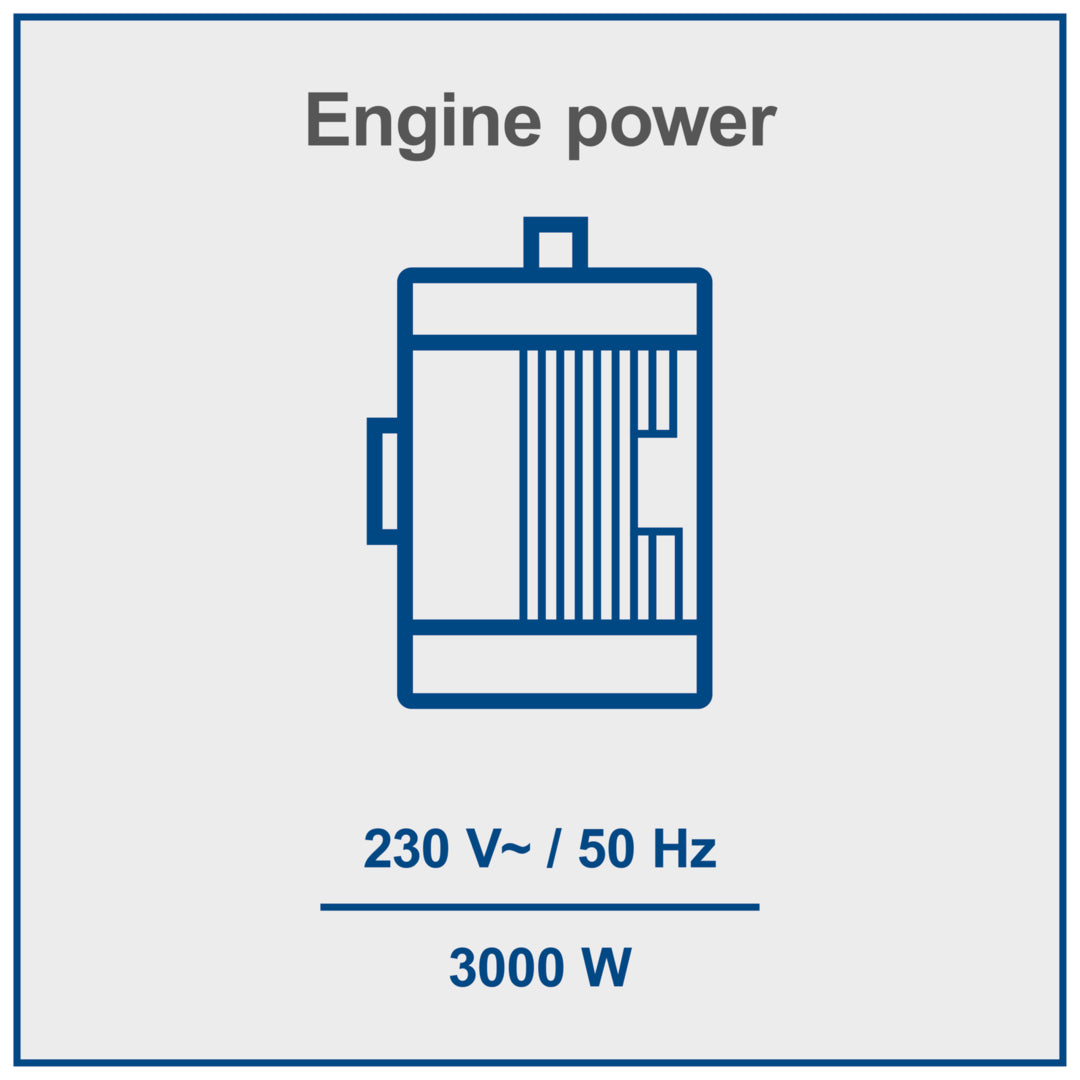

| Power Consumption in Operating Mode 1 | 3000.0 W |
| Maximum Engine Speed | 2800.0 1/min |
| Battery Included | No |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class Electro / Degree of Protection | IP 54 / IP 44 |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Cable Length | 5000 mm |
| Log Splitter & Hydraulic Performance | |
| Splitting Power | 7.0 t |

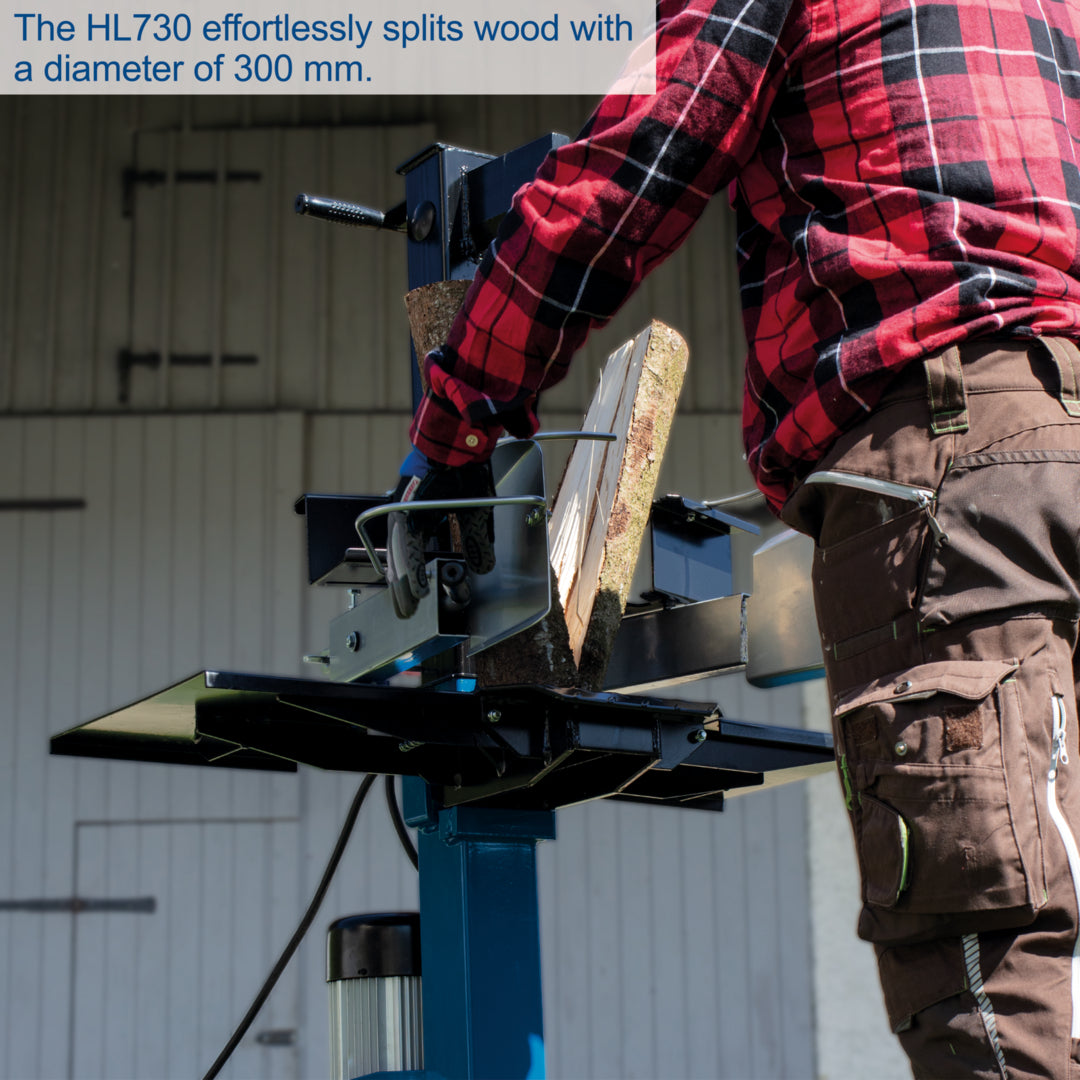

| Wood Diameter Range (Min / Max) | 10.0 mm - 300.0 mm |
| Wood Length Max | 550.0 mm |
| Hydraulic Pressure Actual | 25.2 MPa |
| Hydraulic Oil Type / Quantity | HLP32 / 3.5 l |
| Pump Capacity | 1.8 ml/Durchlauf |
| Cylinder Diameter x Riser | 60.0 mm x 495.0 mm |
| Cylinder Speed Fast Forward | 36.0 mm/sec |
| Cylinder Speed Fast Backwards | 165.0 mm/sec |
| Cutting Tube Dimensions (L x W x Thickness) | 85.0 mm x 85.0 mm x 4.0 mm |
| Splitting Knife Dimensions (L x W x H) | 175.0 mm x 25.0 mm x 100.0 mm |
| Splitter Knife Tilt Angle | 5.0 ° |
| Distance Riving Knife - Table Min | 55 mm |
| Features, Table & Hardware | |
| Standing Dimensions (L x W x H) | 850 mm x 915.0 mm x 1500 mm |
| Height with Lower Cylinder Position | 1050 mm |
| Table Dimensions (L x W x H) | 310.0 mm x 270.0 mm x 800.0 mm |
| Adjustable Table / Table Lock | Yes / Yes |
| Supporting Plate Right/Left | Yes |
| Operating Handle Height | 920.0 mm |
| Handle Guard for Knee | Yes |
| Extra Oil Screw for Oil Change at Bottom | Yes |
| Oil Tank Screw with Indicator & Mark | Yes |
| Oil Filter | No |
| Wheel Dimensions (Diameter x Width x Distance) | 200.0 mm x 50.0 mm x 325.0 mm |
| Wheel Material / Axle Count | Polyvinyl chloride (PVC) + Polypropylene (PP) / 1 Piece |
| Sound & Emissions | |
| Sound Power Level Lw(A) | 97.4 dB |
| Sound Pressure Level Lp(A) | 89.8 dB |
| Uncertainty KwA | 3 dB |
| Delivery Content | |
| Delivery Content Text | 1x Splitter, 1x Control arms, 1x Adjustable claws, 1x Additional retainers, 1x Wheels, 1x Enclosed accessories bag (A, B, C), 1x Operating manual, 1x Table including tray tables |
