Scheppach HF50 Router Table 1500W
Scheppach HF50 Router Table 1500W
No reviews
Regular price
£249.00
Regular price
Sale price
£249.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability

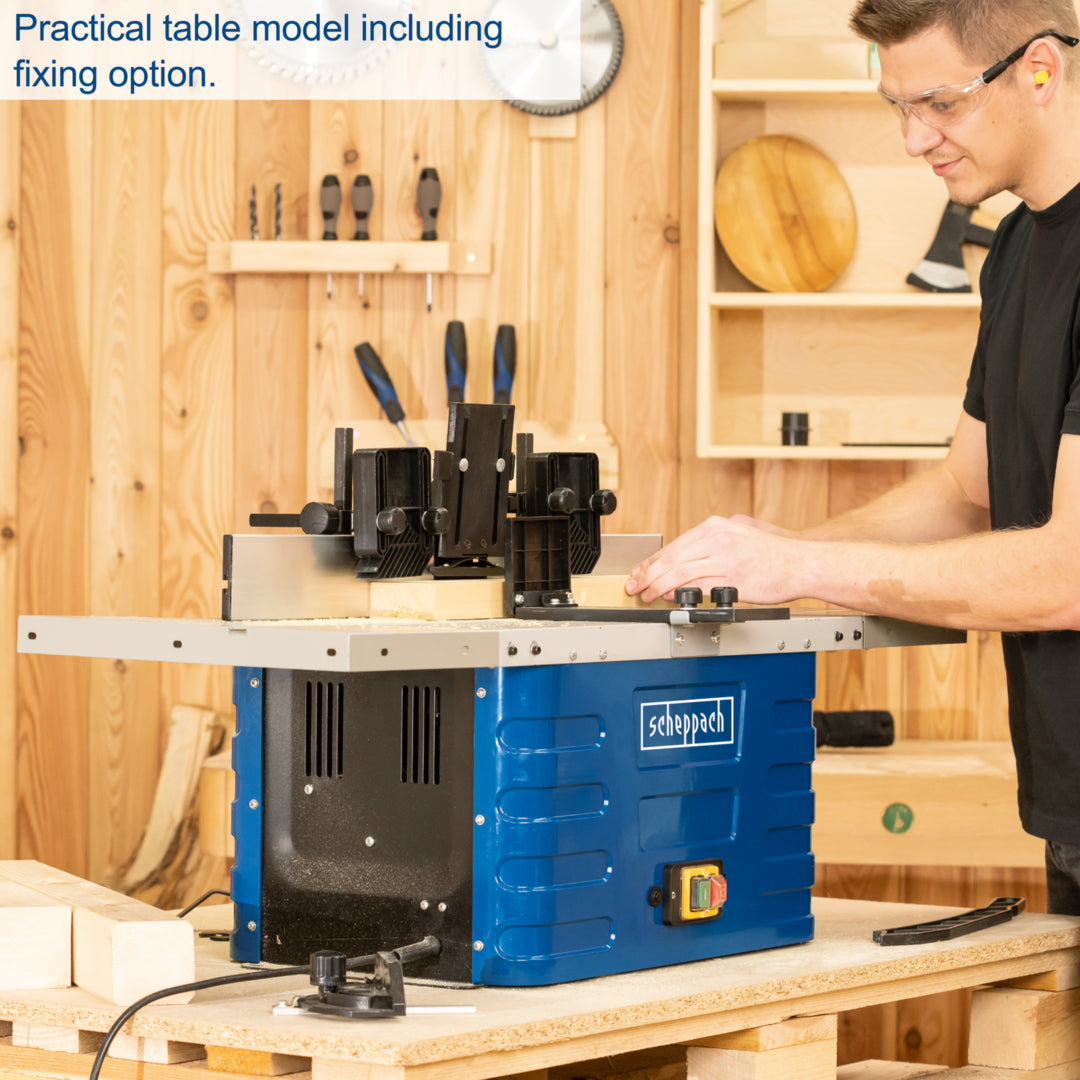

Precision routing made simple and accessible for any home workshop.

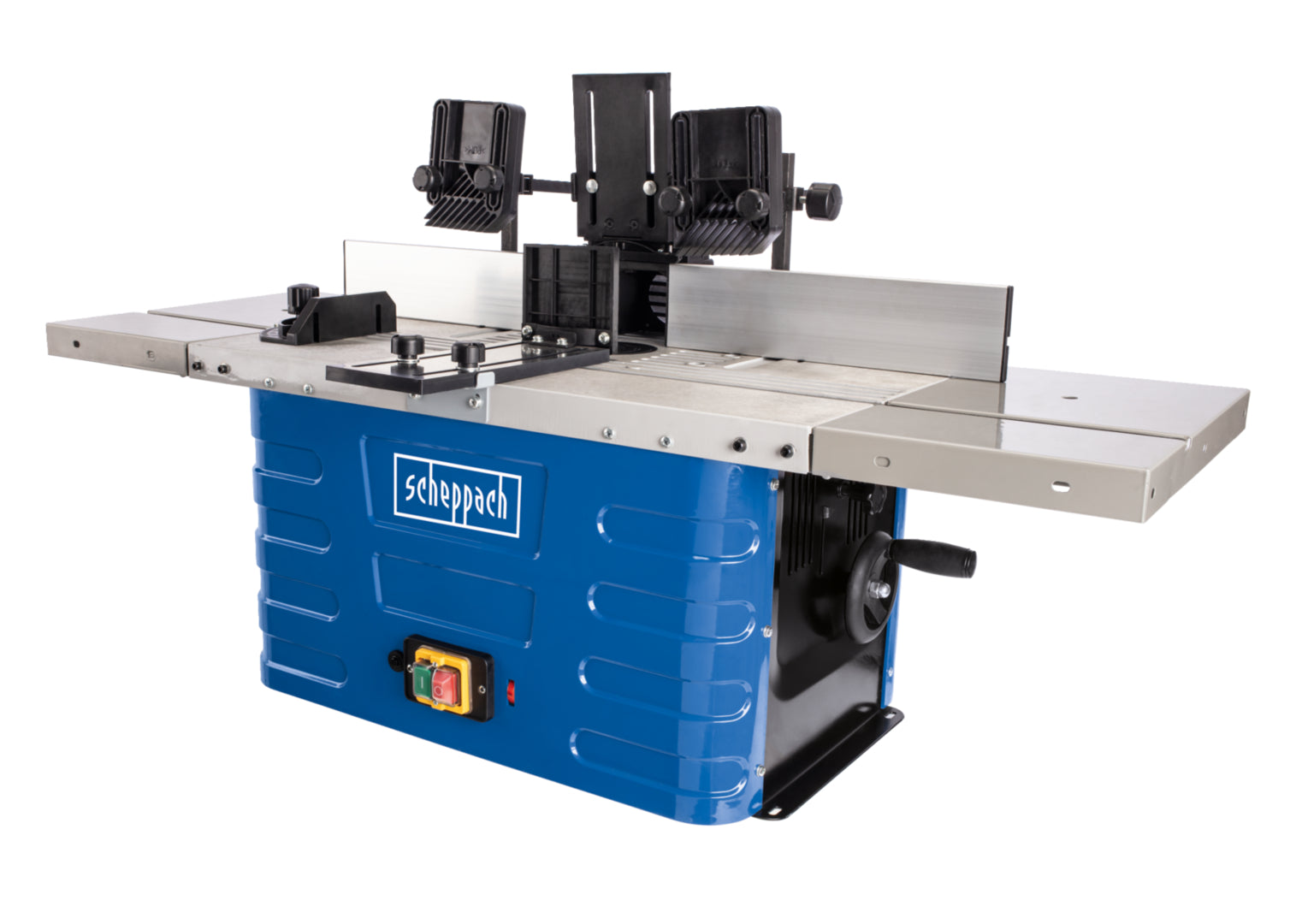

This compact benchtop router table combines a powerful 1500W motor with variable speed control, giving you accurate shaping, grooving, and profiling capabilities. It provides a stable, dependable workstation for woodworkers seeking professional joinery results without the footprint of a floor-standing machine.
Features:
- Powerful 1500W Motor: Delivers smooth, consistent power to handle tough timber moulding, rebating, and jointing tasks effortlessly.

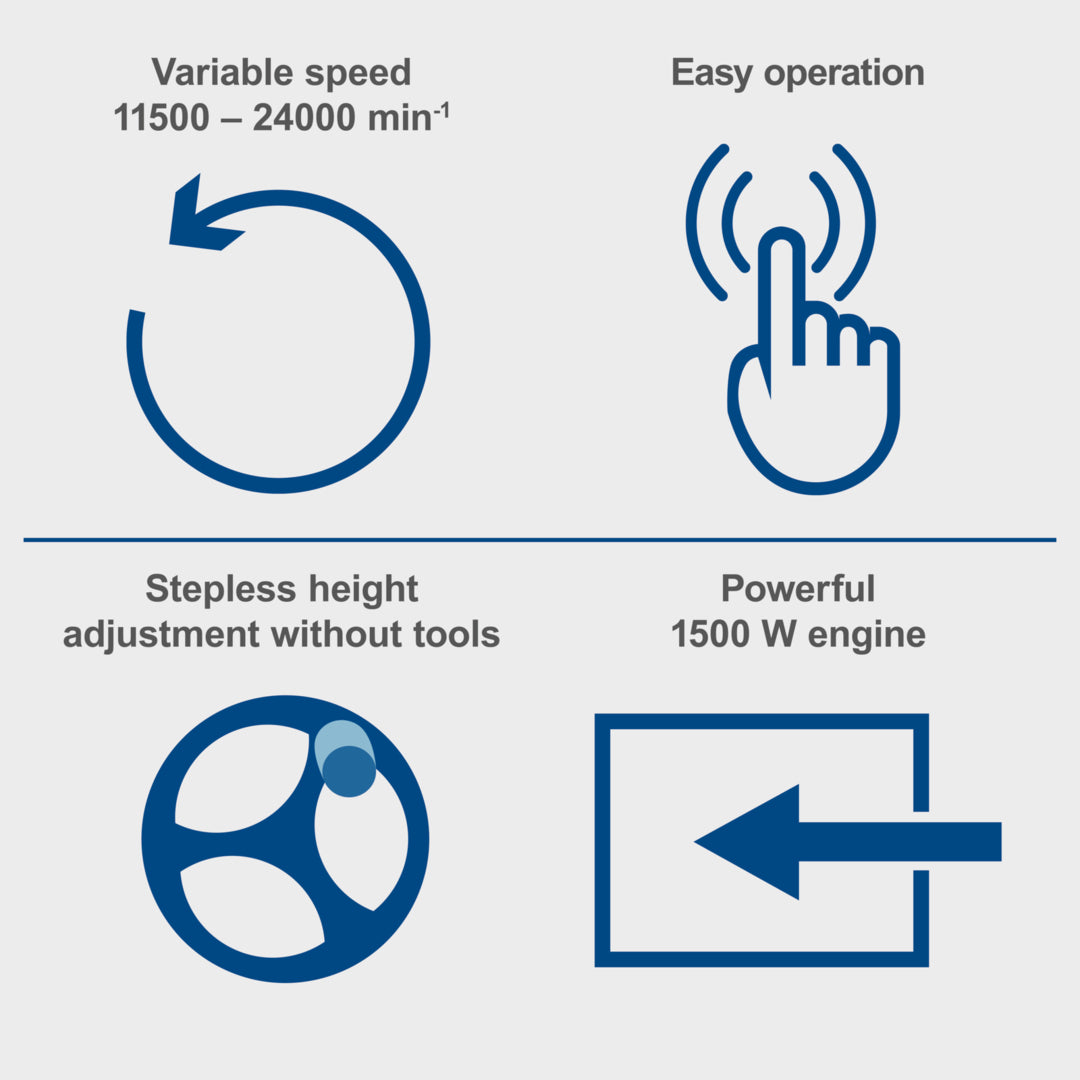

- Variable Speed Control: Operates between 11,500 and 24,000 rpm, allowing you to match the cutter speed precisely to the material and router bit diameter.

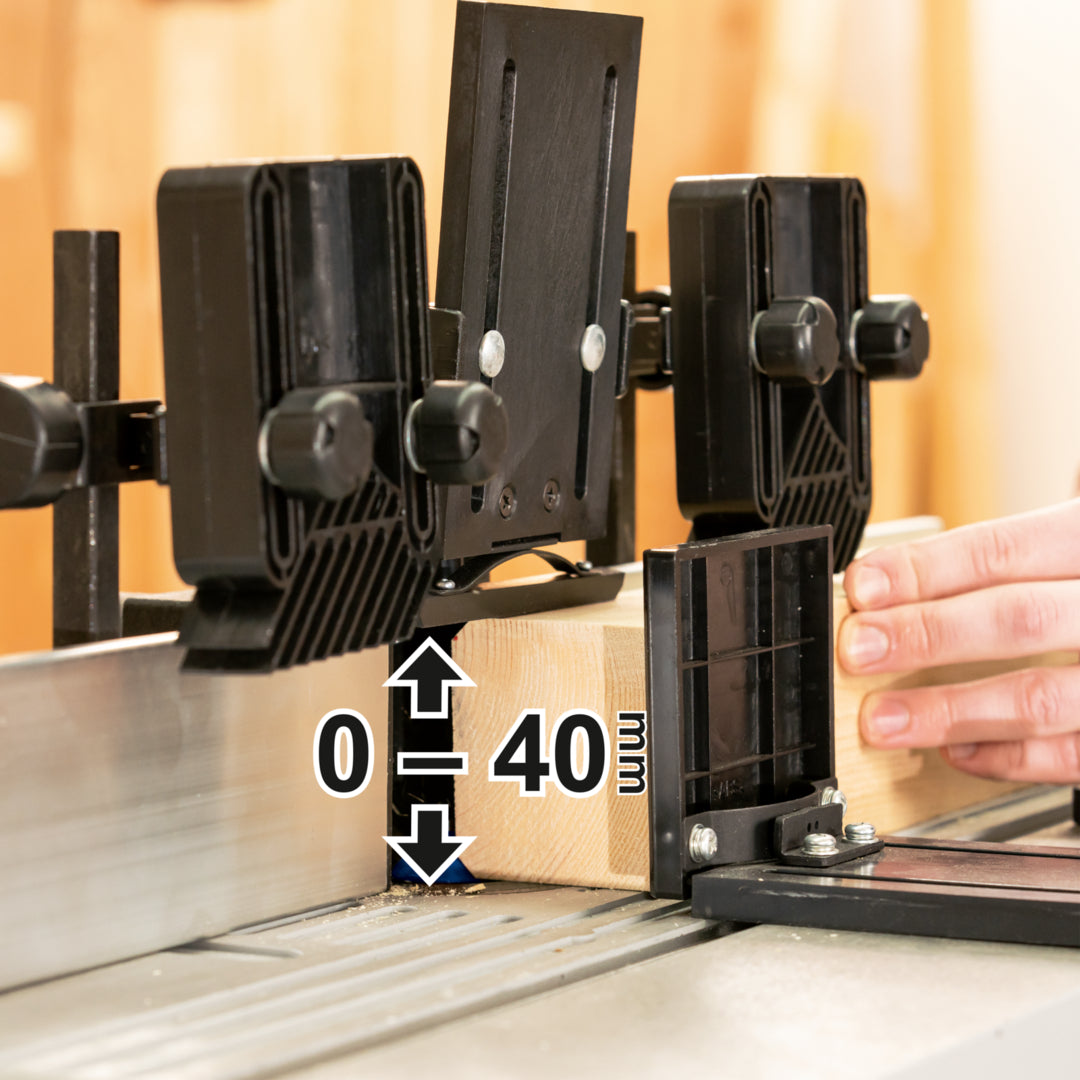

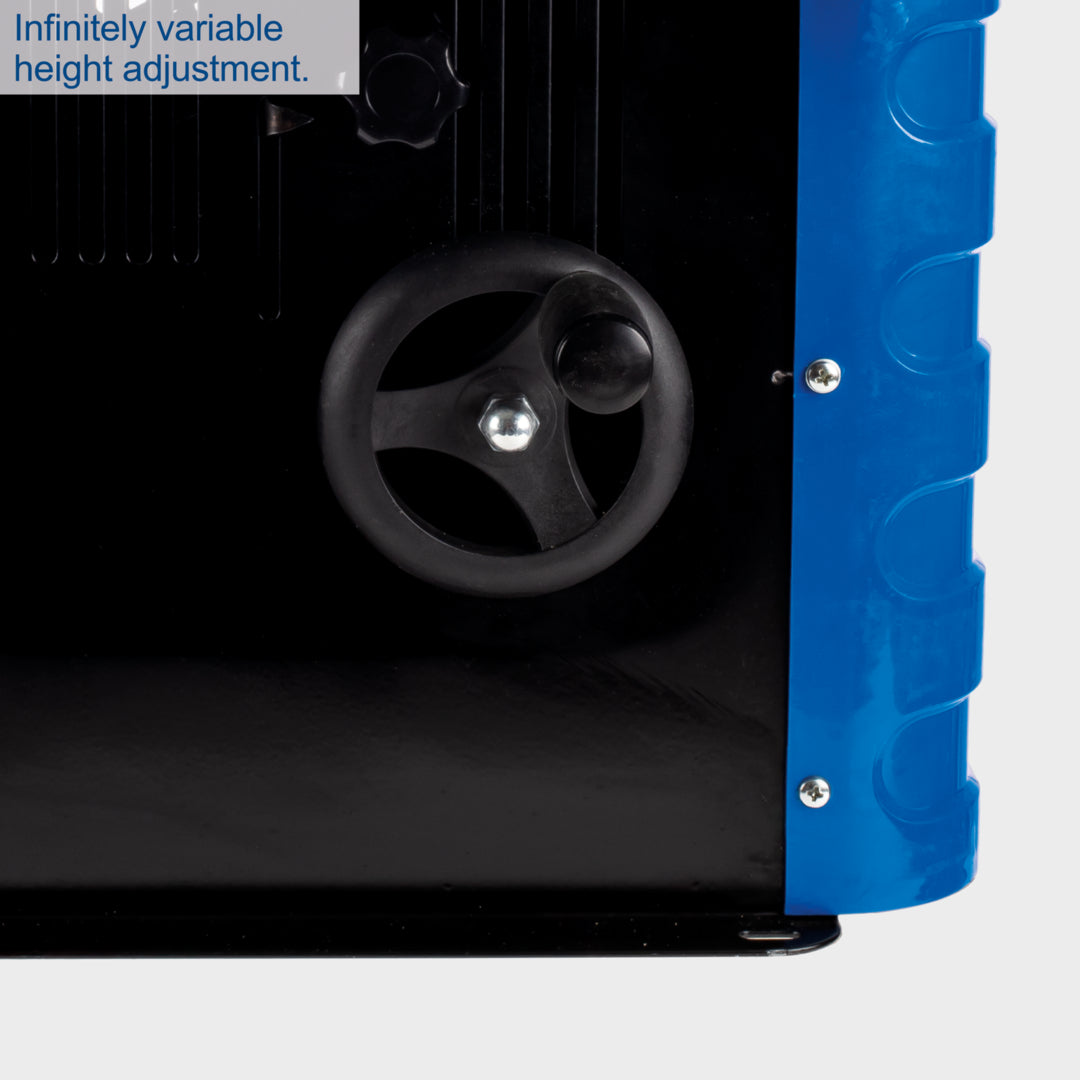

- Adjustable Spindle Height: Features a convenient hand crank to adjust cutter height accurately from 0 to 40 mm for consistent profiling.

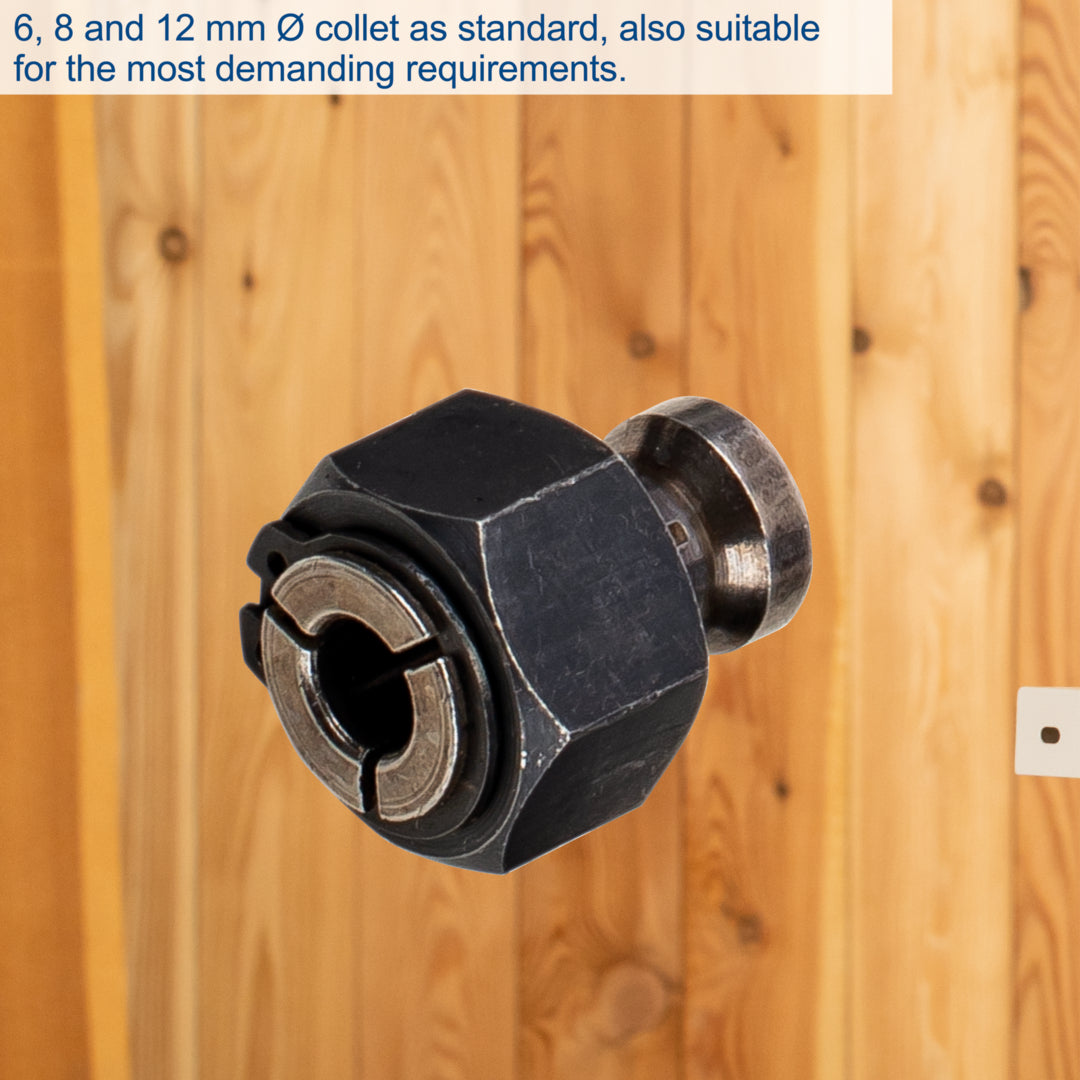

- Versatile Collet Options: Includes 6 mm, 8 mm, and 12 mm collet adaptors (or 1/4 inch and 1/2 inch equivalent sets), accommodating a wide range of standard router bits.

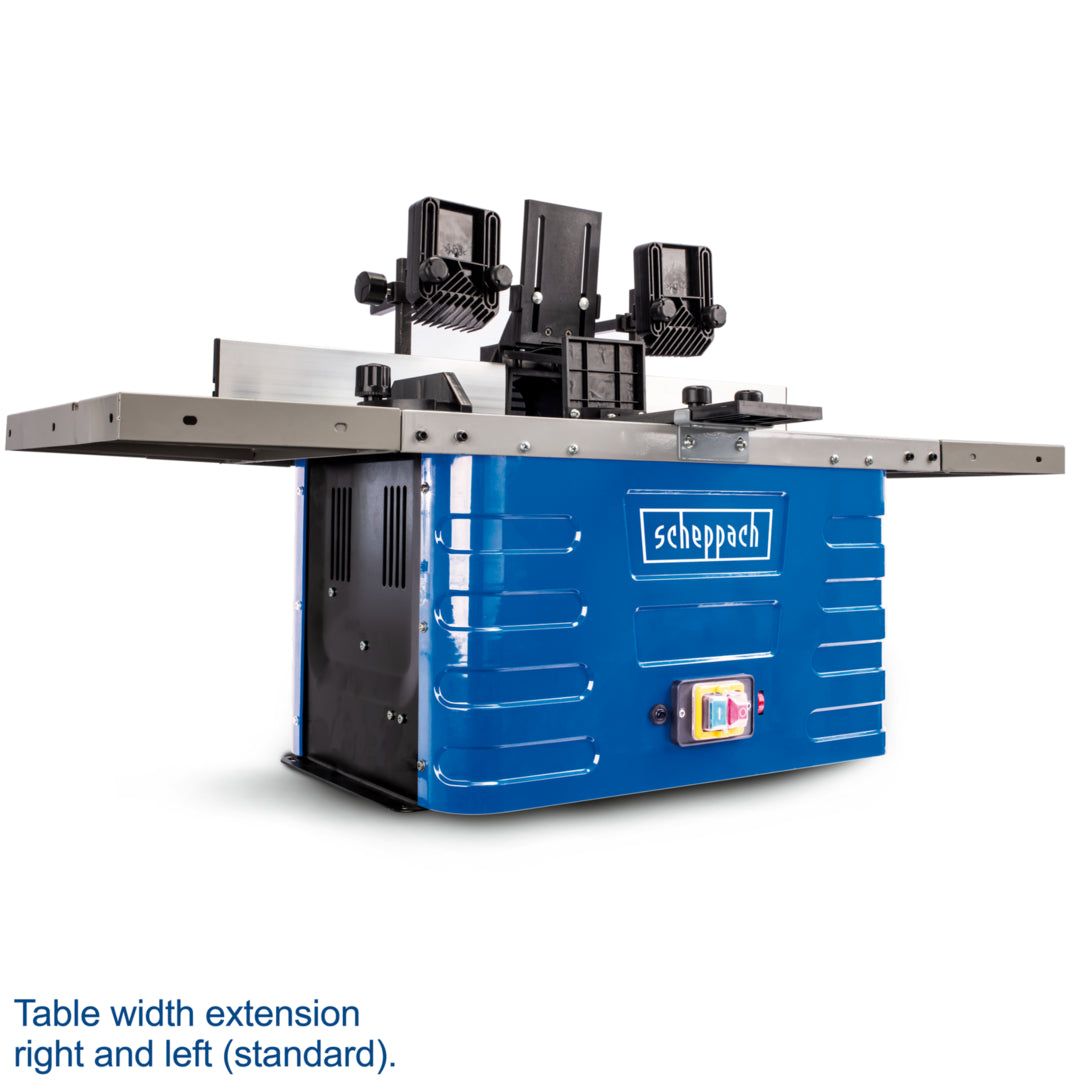

- Twin Table Extensions: Fitted with sturdy side extension tables that broaden the working area to support longer boards and larger workpieces.
- Robust Aluminium Fence: Includes guide fences and pressure feathers to hold workpieces firmly against the table for safe, repeatable routing.

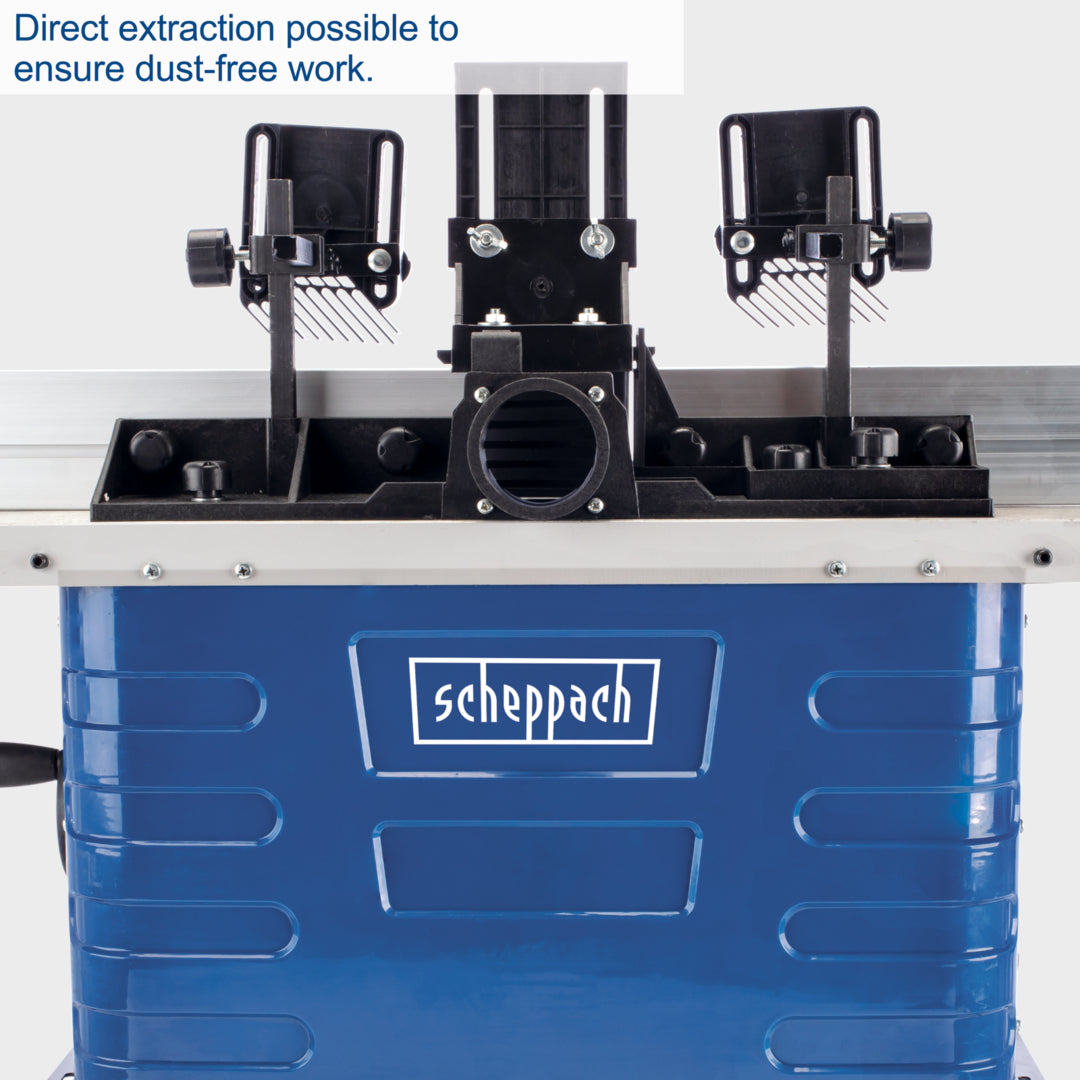

- Integrated Extraction Port: Connects easily to a workshop vacuum or dust extractor to maintain clear sightlines and keep fine wood dust to a minimum.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach HF50 table milling machine (DIY) Great Britain |
| Model Description | HF50 |
| Machine Group | Table milling machine |
| Article Number | 5902107904 |
| EAN | 4046664312666 |
| Net Weight | 20.25 kg |
| Gross Weight | 23.0 kg |
| Machine Dimensions (L x W x H) | 1035 mm x 360.0 mm x 310 mm |
| Battery or Rechargeable Battery Included | No |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230-240 V / 50 Hz |
| Continuous Power Consumption S1 (W) | 1500.0 W |
| Continuous Power Consumption S1 (hp) | 0.0 n/a |
| Efficiency | 61.0% |
| Rated Current | 6.7 A |
| Motor Type: Electric | Brushed Motor |
| Maximum Engine Speed / Spindle Speed | 24000.0 1/min |
| Engine Speed Min / Spindle Speed Min | 11500.0 1/min |
| Power Consumption in Operating Mode 1 / 2 | 0.0 n/a / 0.0 n/a (Operating mode 2: n/a) |
| Insulation Class | B (max. motor temp. 130°C) |
| Engine Braking Type | No |
| Engine Protection (Thermoprotector) | No |
| Protection Class for Electrical | IP 20 |
| Milling Performance & Table Data | |
| Spindle Diameter | 20.0 mm |
| Table Dimensions (L x W x H) | 610.0 mm x 360.0 mm x 311.0 mm |
| Table Insert Deeper Than Table Max. | 0.4 mm |
| Table Inserts, Diameter 3 | 91.0 mm |
| Suction Nozzle Diameter (Inner / Outer) | 93.6 mm / 100.0 mm |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 102.0 dB |
| Guaranteed Sound Power Lw(A) | 0.0 n/a |
| Measured Sound Power Lw(A) | 0.0 n/a |
| Sound Pressure Level Lp(A) | 89.0 dB |
| Uncertainty K / KpA / KwA | 0.0 n/a / 3.0 dB / 3.0 dB |
| Vibration Emission Value ah | 0.0 n/a |
| Power Connection & Switches | |
| Cable Length | 1800.0 mm |
| Motor Cable Entry | Yes |
| Phase Changeover Switch 400V in the Plug, New | No |
| Protection Class | IP 20 |
| Switches Without Voltage Release (New) | Yes |
| Scope of Delivery | |
| Scope of Delivery Text | 1x Table milling machine, 1x Table extension left, 1x Table extension right, 2x Stop rail, 2x Hold-downs, 2x Vertical support, 2x Mounting clamp, 1x Pressure bar, 1x Pressure bar bracket, 2x Horizontal support, 1x Movable stop, 1x Stop base, 1x Front pressure bar, 1x Front pressure bar bracket with screws, 1x Dust extraction adapter, 2x Push sticks, 1x Crosscut gauge, 1x Protective hood with dowel pin, 8x Socket head cap screws M5 x 20, 6x Socket head cap screws M5 x 12, 2x Socket head cap screws M6 x 16, 2x Hex head screws M6 x 40, 7x Carriage bolts M6 x 20, 3x Carriage bolts M6 x 25, 5x Carriage bolts M6 x 35, 2x Knurled screws M6, 17x Washers Ø 6, 14x Washers Ø 5, 13x Knurled nuts, 2x M6 wing nuts, 2x M6 nuts, 8x M5 nuts, 1x 4mm Allen key, 1x 18mm open-end wrench, 1x 24mm open-end wrench, 1x table extension mounting bracket, 1x tool holder Ø 6 / 8 / 12 (5902107901 / 5902106901 / 3902106901 / 5902106910), 1x 1/2" and 1/4" tool holder (5902106910 / 5902107904), 1x instruction manual, 1x 5mm Allen key |
SKU: D-SCH-5902107904
MPN: 5902107904
ID: D-SCH-5902107904
