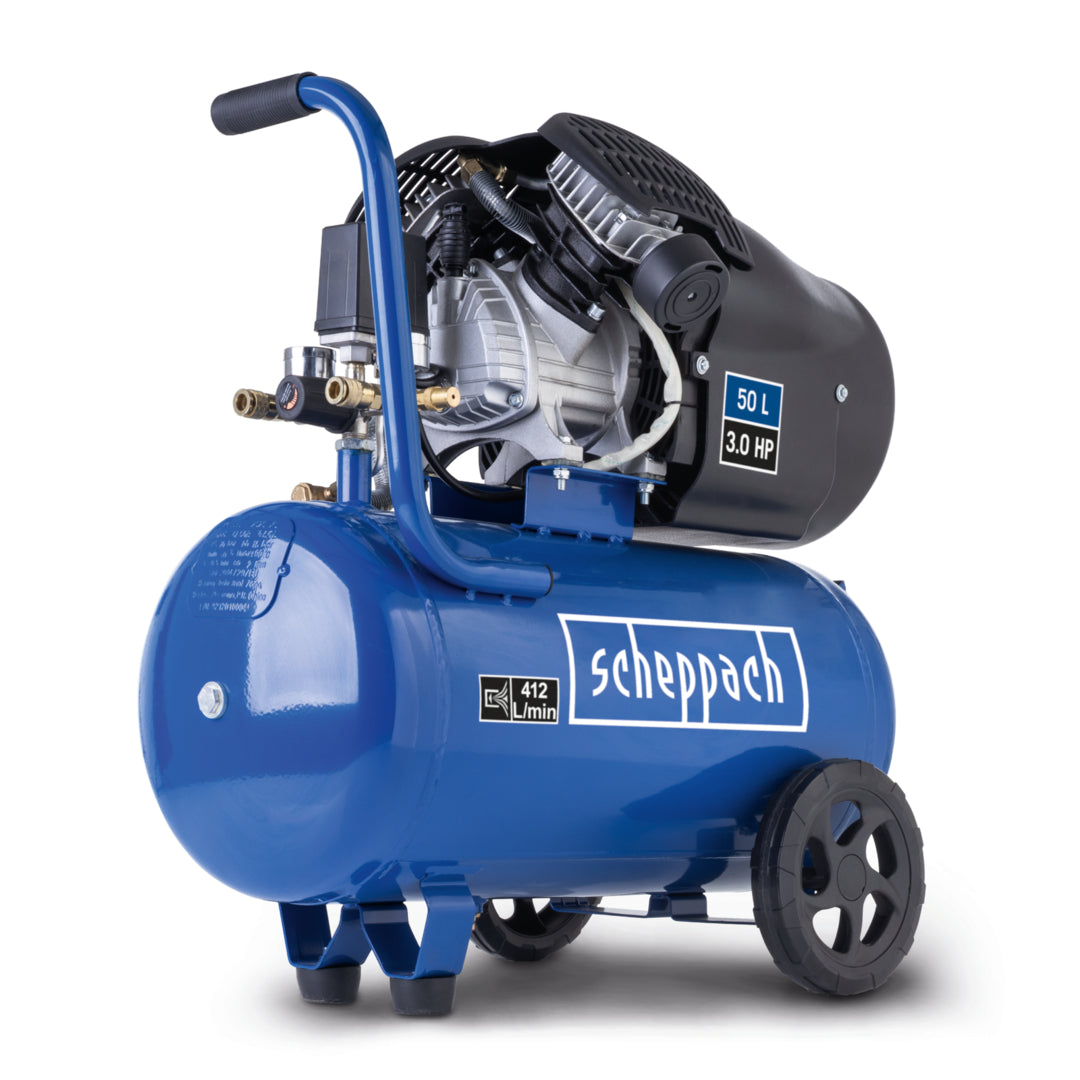

Scheppach HC53DC 50L 3.0HP Twin Cylinder Air Compressor 10bar
Scheppach HC53DC 50L 3.0HP Twin Cylinder Air Compressor 10bar
Regular price
£299.00
Regular price
Sale price
£299.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability
High-output compressed air performance for demanding workshop and garage tasks.

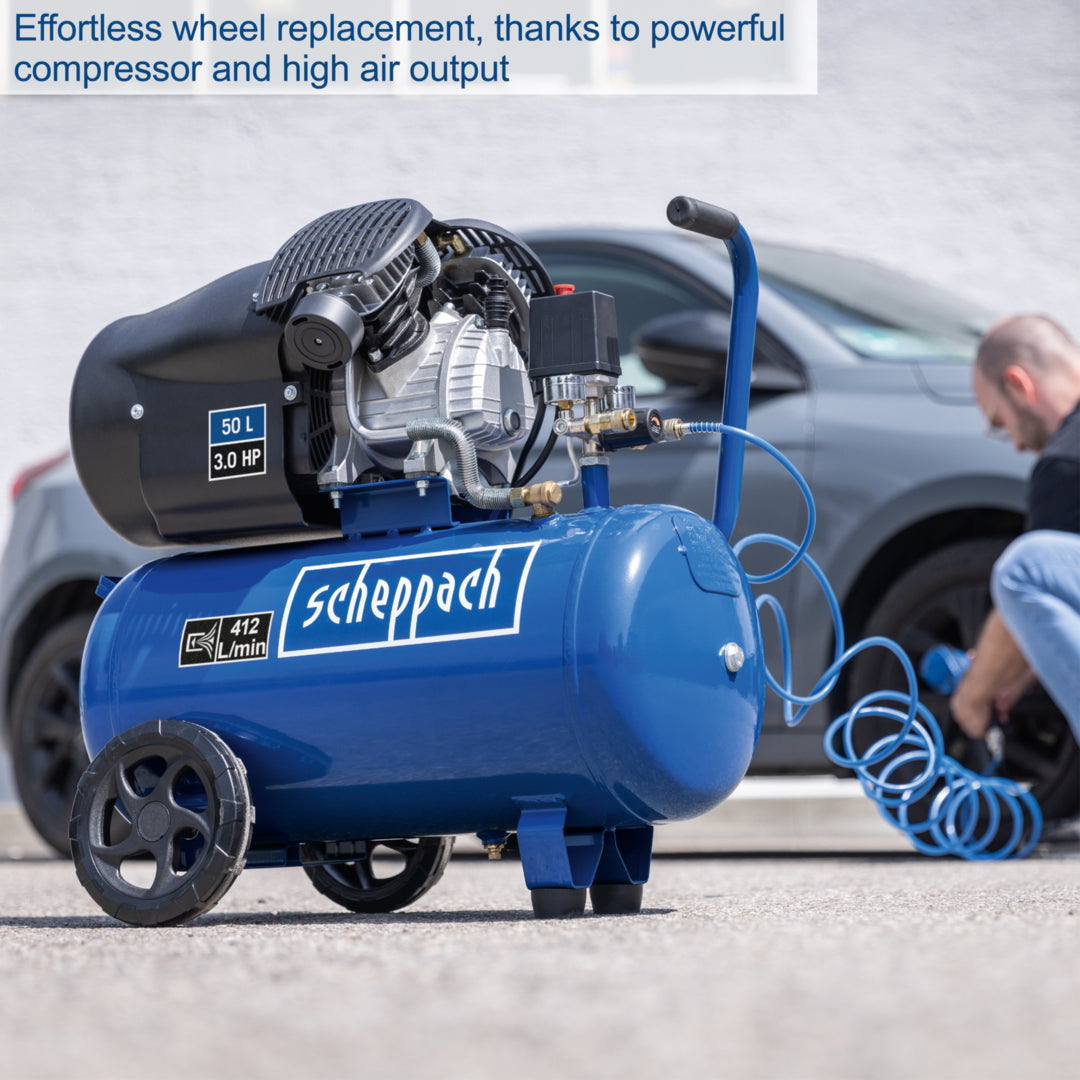

A robust twin-cylinder direct-drive compressor engineered to deliver rapid tank fills and reliable air supply for heavy-duty pneumatic tools.
Why Choose the Scheppach HC53DC?
- Twin-cylinder power: Driven by a 3.0HP (2200W) induction motor, delivering an impressive 412L/min intake capacity to fill the 50-litre tank in just 120 seconds.

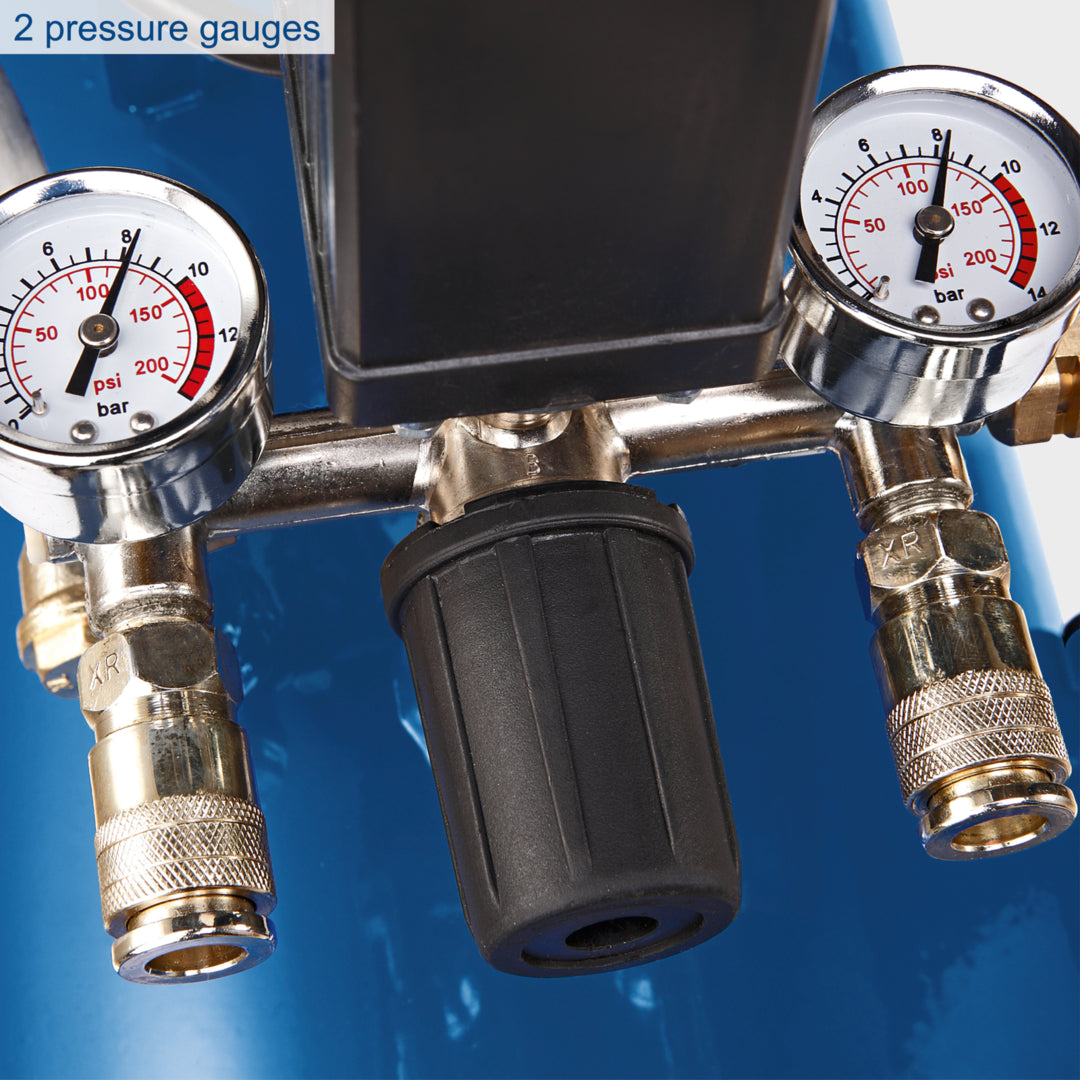

- Simultaneous operation: Fitted with two NW7.2 quick-connect couplings and dual pressure gauges, allowing you to run two air tools at once or switch lines without delay.

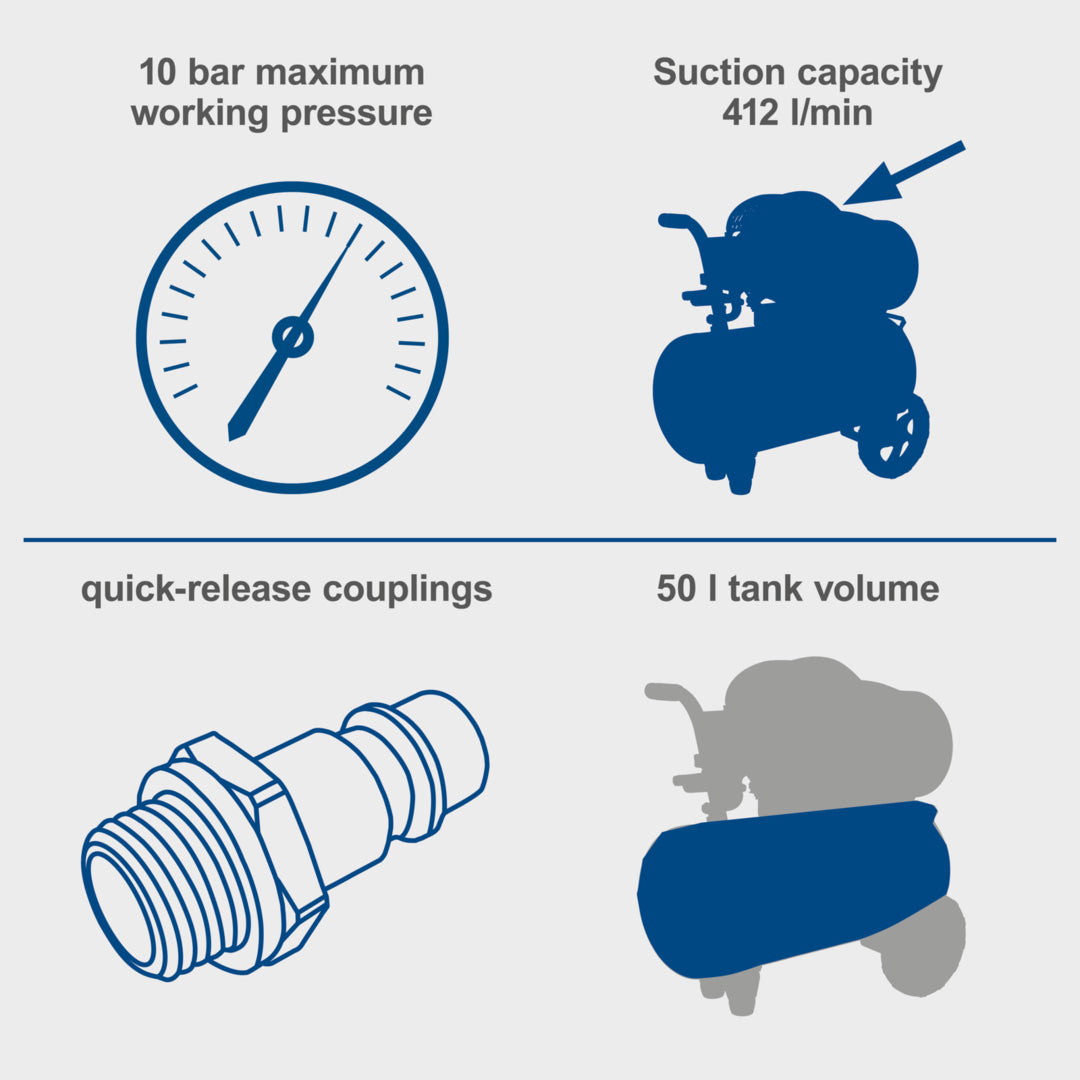

- Precise pressure control: Operates at up to 10bar maximum working pressure with an integrated pressure regulator, letting you adjust airflow accurately to match your specific tool requirements.
- Built for longevity: Features durable aluminium pressure pipes, a hard-wearing direct drive, and an oil-lubricated pump system to ensure cool running and extended service life.
- Workshop mobility: Designed with large 204mm wheels with rubber treads, a sturdy transport handle, and vibration-damping rubber feet for easy positioning and steady operation.
Technical Specification
| Motor Power | 3.0 HP (2200 W) |
| Power Supply | 230 V / 50 Hz (UK Plug, Class I) |
| Motor Type | Induction motor (2850 rpm) |
| Tank Capacity | 50.0 Litres |
| Air Intake Capacity | 412.0 L/min |
| Maximum Working Pressure | 10.0 bar |
| Tank Filling Time | 120.0 seconds |
| Number of Cylinders | 2 |
| Drive Type | Direct drive |
| Quick Couplers | 2x NW7.2 alloyed steel (German Standard) |
| Pressure Gauges | 2x Manometers |
| Free Air Delivery Rate | 272 L/min @ 1 bar, 186 L/min @ 5 bar, 111 L/min @ 10 bar |
| Oil Capacity | 0.25 Litres |
| Dimensions (L x W x H) | 910 x 390 x 670 mm |
| Wheel Diameter | 204.0 mm (Rubber tread) |
| Sound Pressure Level Lp(A) | 71.2 dB |
| Guaranteed Sound Power Lw(A) | 97.0 dB |
| Cable Length | 2000 mm (2 metres) |
| Protection Class | IP 20 (Class I) |
SKU: D-SCH-5906102946
MPN: 5906102946
ID: D-SCH-5906102946
