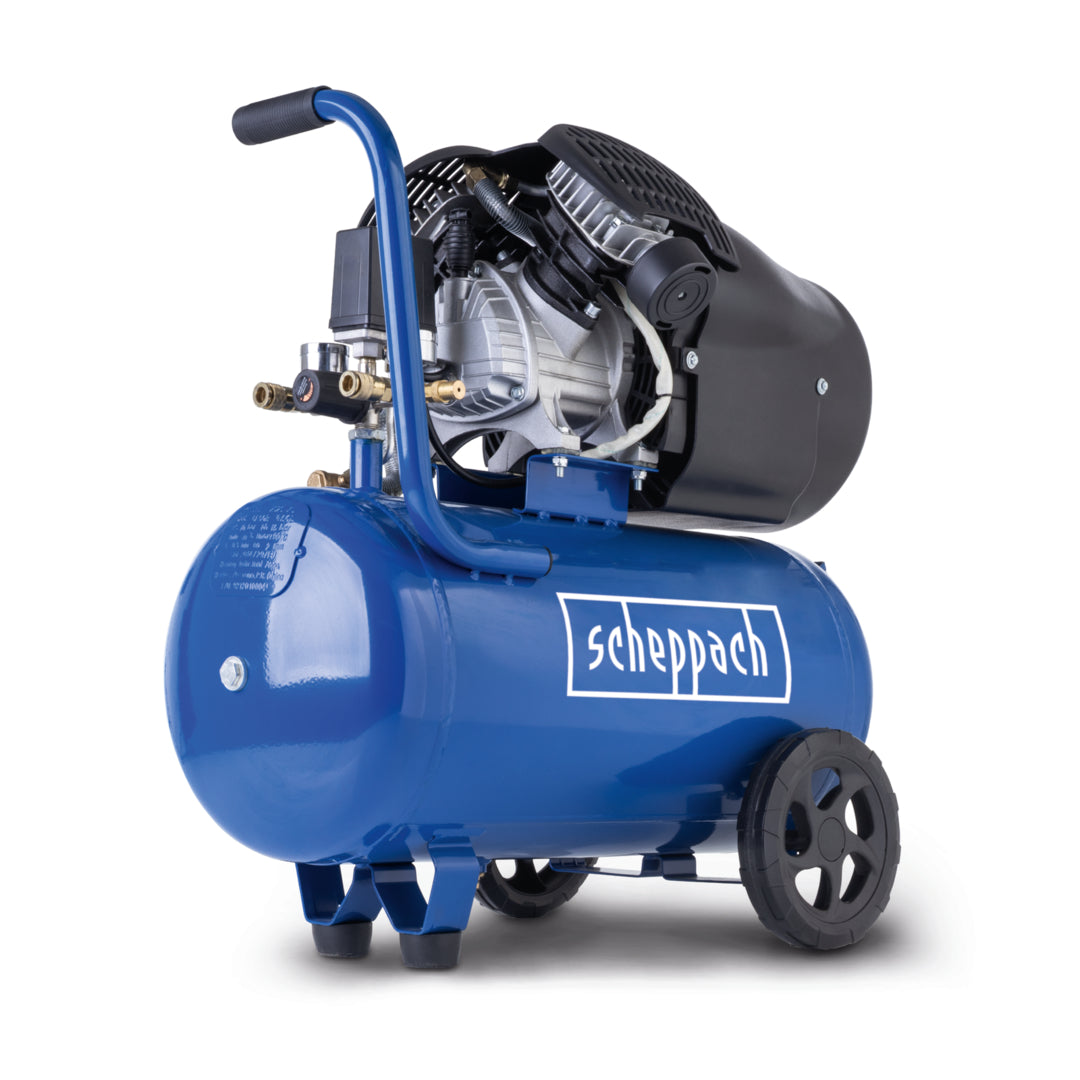

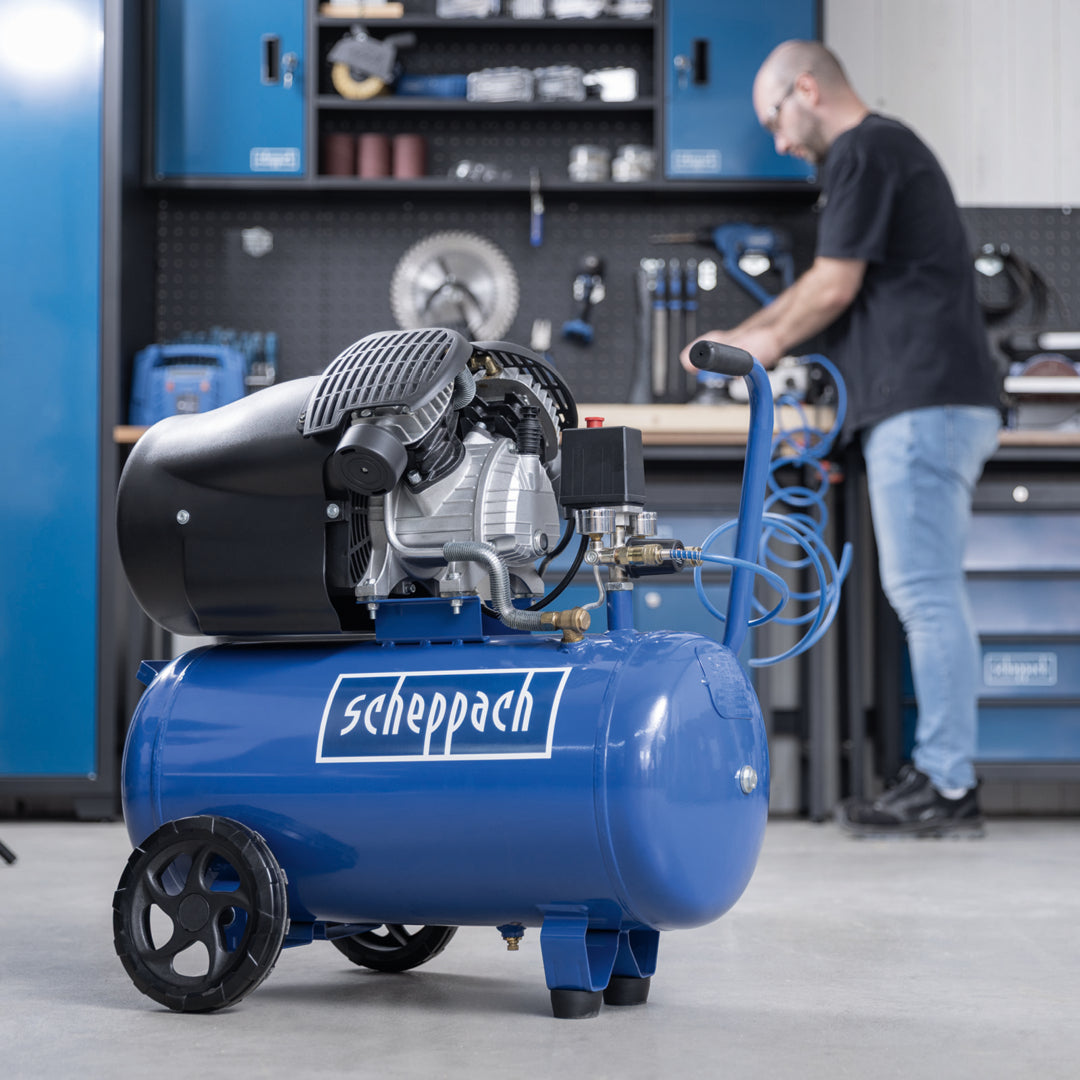

Scheppach HC52DC 50L 3.0HP Double Cylinder Air Compressor 2200W
Scheppach HC52DC 50L 3.0HP Double Cylinder Air Compressor 2200W
No reviews
Regular price
£299.00
Regular price
Sale price
£299.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Power high-demand air tools and complete workshop maintenance with ease.

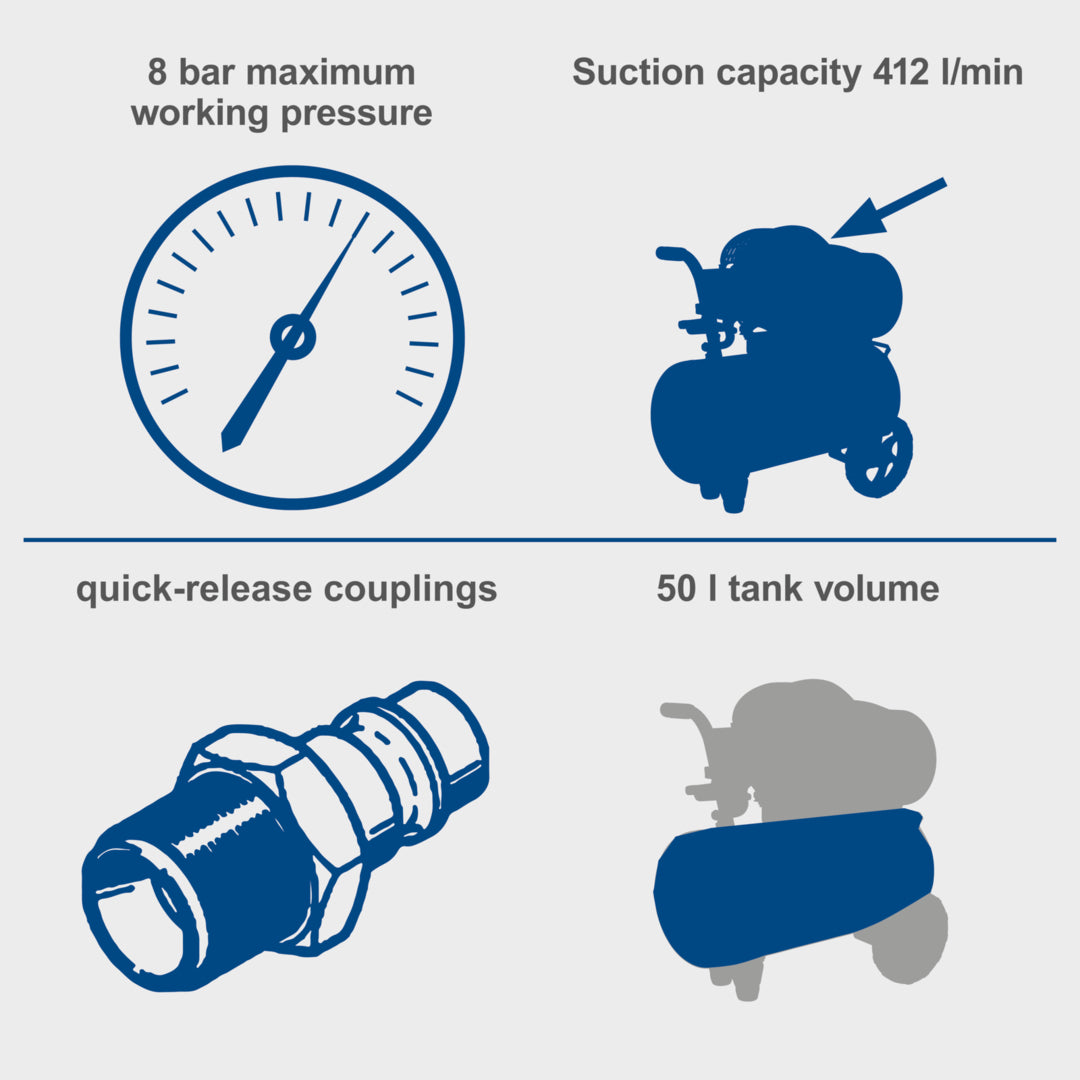

A high-output 2200W double-cylinder compressor featuring a generous 50-litre receiver, rapid 412L/min intake capacity, and dual quick-release couplings designed for demanding garage and site applications.
Why Choose the Scheppach HC52DC?
- High-performance double-cylinder pump: The twin-cylinder oil-lubricated design generates an impressive 412L/min intake capacity, providing fast tank refilling and consistent air delivery for heavy-duty pneumatic equipment.
- Powerful 3.0HP induction motor: Driven by a durable 2200W motor operating on standard 230V mains, delivering dependable power without overheating during continuous workshop tasks.

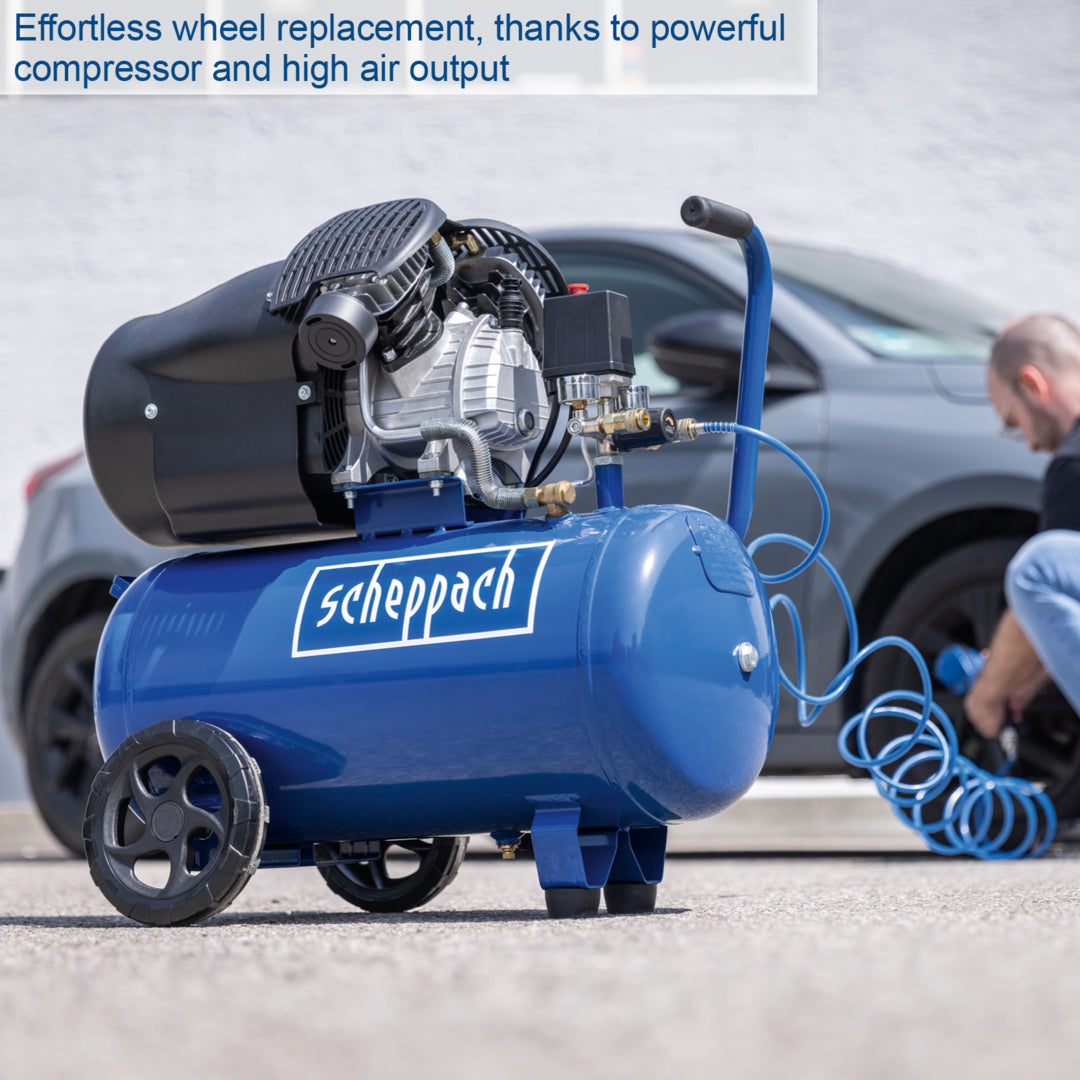

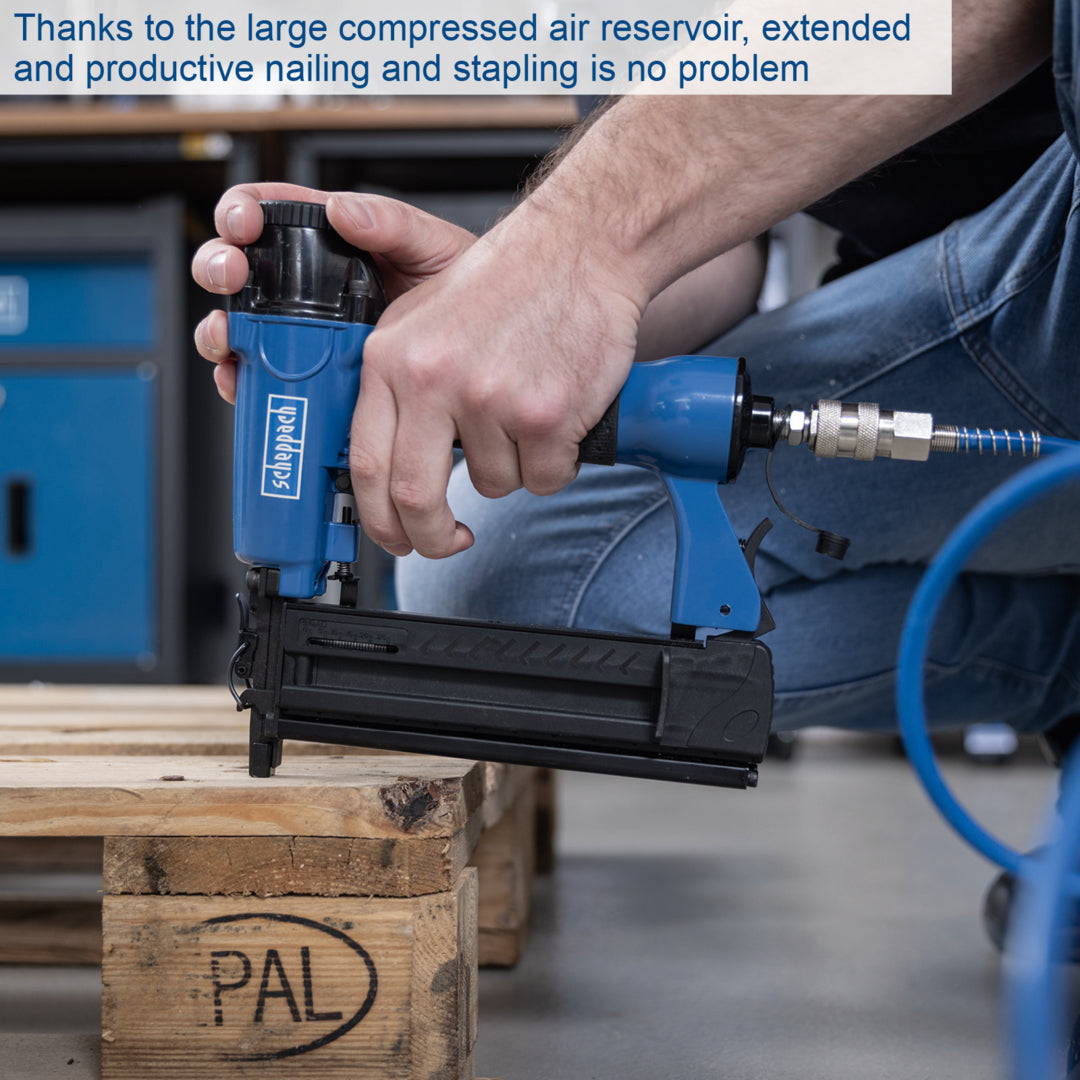

- Large 50-litre compressed air reserve: Stores ample air volume to support extended operation of impact wrenches, spray guns, nailers, and grinding tools with fewer motor restart cycles.
- Dual quick-release brass couplings: Features two German-standard (NW7.2) brass outlets with integrated pressure regulation, allowing you to connect two tools simultaneously and monitor regulated vs. tank pressure on twin manometers.
- Stable and mobile construction: Built with robust 204mm wheels, an integrated tubular transport handle, and vibration-dampening rubber feet for secure placement and smooth movement across workshop floors.
Technical Specification
| Motor Power | 2200 W (3.0 HP) |
| Power Supply | 230 V / 50 Hz (Class I insulation) |
| Motor Type | Induction motor (2850 rpm max speed) |
| Pump Type | Double-cylinder, oil-lubricated (0.25L oil capacity) |
| Receiver Capacity | 50.0 Litres (Fills in 120 seconds) |
| Air Intake Capacity | 412.0 L/min |
| Free Air Delivery (FAD) @ 1 Bar | 294.0 L/min |
| Free Air Delivery (FAD) @ 8 Bar | 145.0 L/min |
| Maximum Working Pressure | 8.0 Bar |
| Quick Couplers | 2x Brass quick couplers, NW7.2 German standard |
| Pressure Gauges | 2x Pressure manometers (Vessel pressure & output pressure) |
| Wheel Specification | 204 mm diameter plastic wheels |
| Overall Dimensions (L x W x H) | 725 x 410 x 725 mm |
| Power Cable Length | 2000 mm (2 metres) |
| Sound Pressure Level Lp(A) | 71.2 dB |
| Guaranteed Sound Power Lw(A) | 97.0 dB |
| Protection Class | IP 20 |
| Included Accessories | 2x Air filters, 2x support feet, 2x transport wheels, mounting hardware, oil sealing plug, oil bottle, operating manual |
SKU: D-SCH-5906101901
MPN: 5906101901
ID: D-SCH-5906101901
