Scheppach HC51V Air Compressor 50L 10 Bar
Scheppach HC51V Air Compressor 50L 10 Bar
Regular price
£179.00
Regular price
Sale price
£179.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Space-saving vertical compressed air performance engineered for compact workshops.
Delivers a high 10 bar working pressure with a maintenance-free pump system to save floor space while powering pneumatic tools. Comes complete with an 8m spiral hose and a 13-piece accessory kit to tackle tasks straight out of the box.
Features:

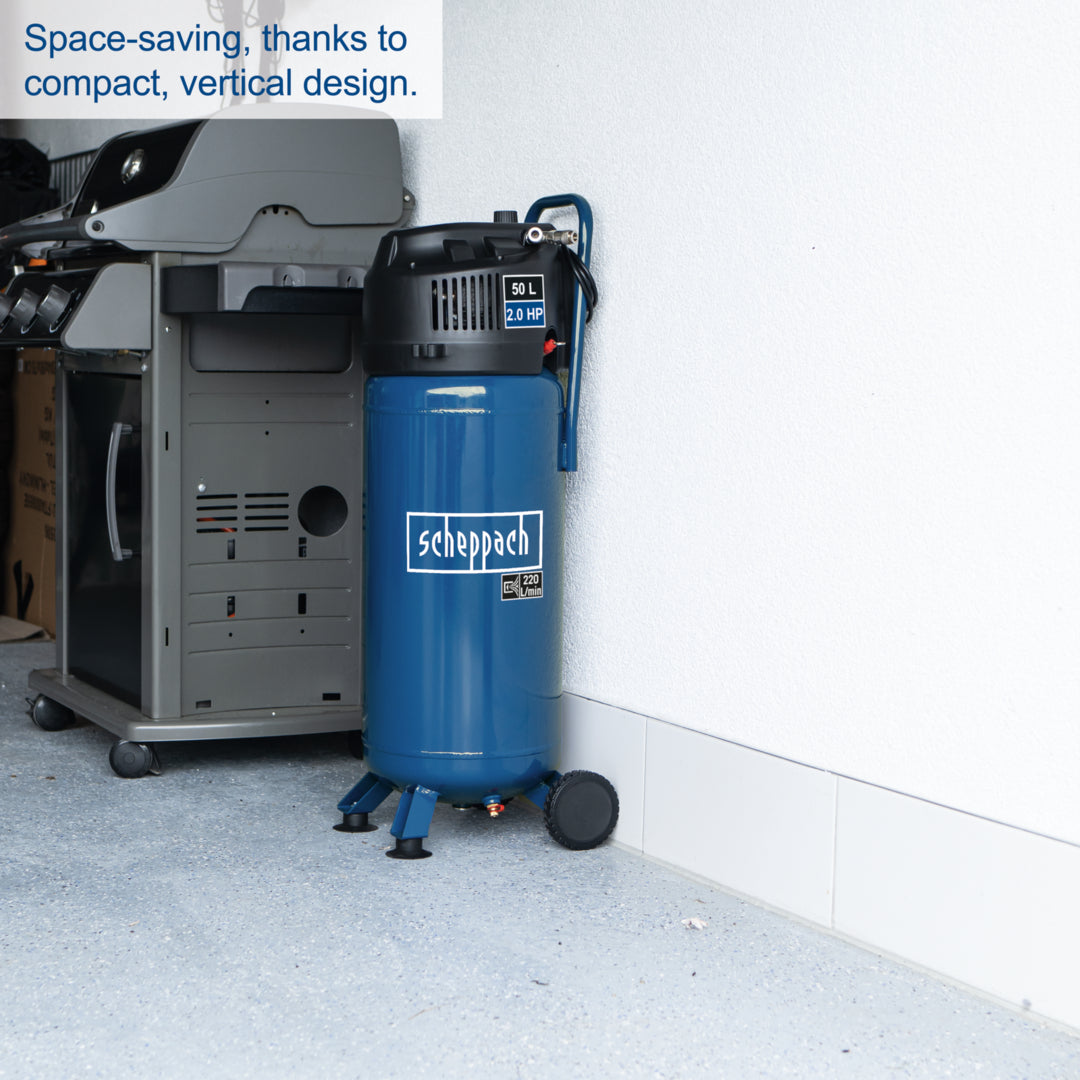

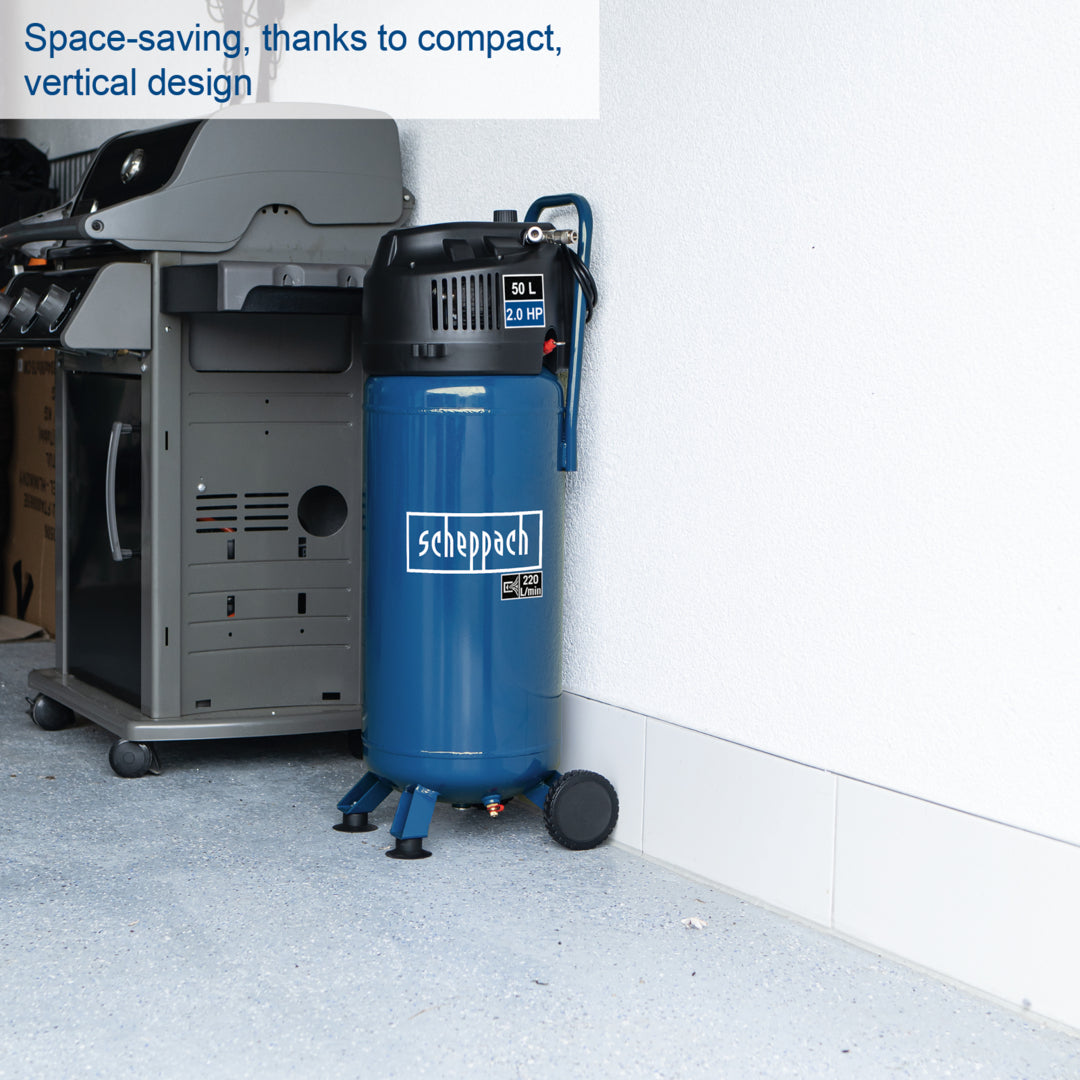

- Space-Saving Vertical Receiver: The slim upright 50-litre tank footprint maximises floor space in small garages and busy workshops without compromising on air storage capacity.

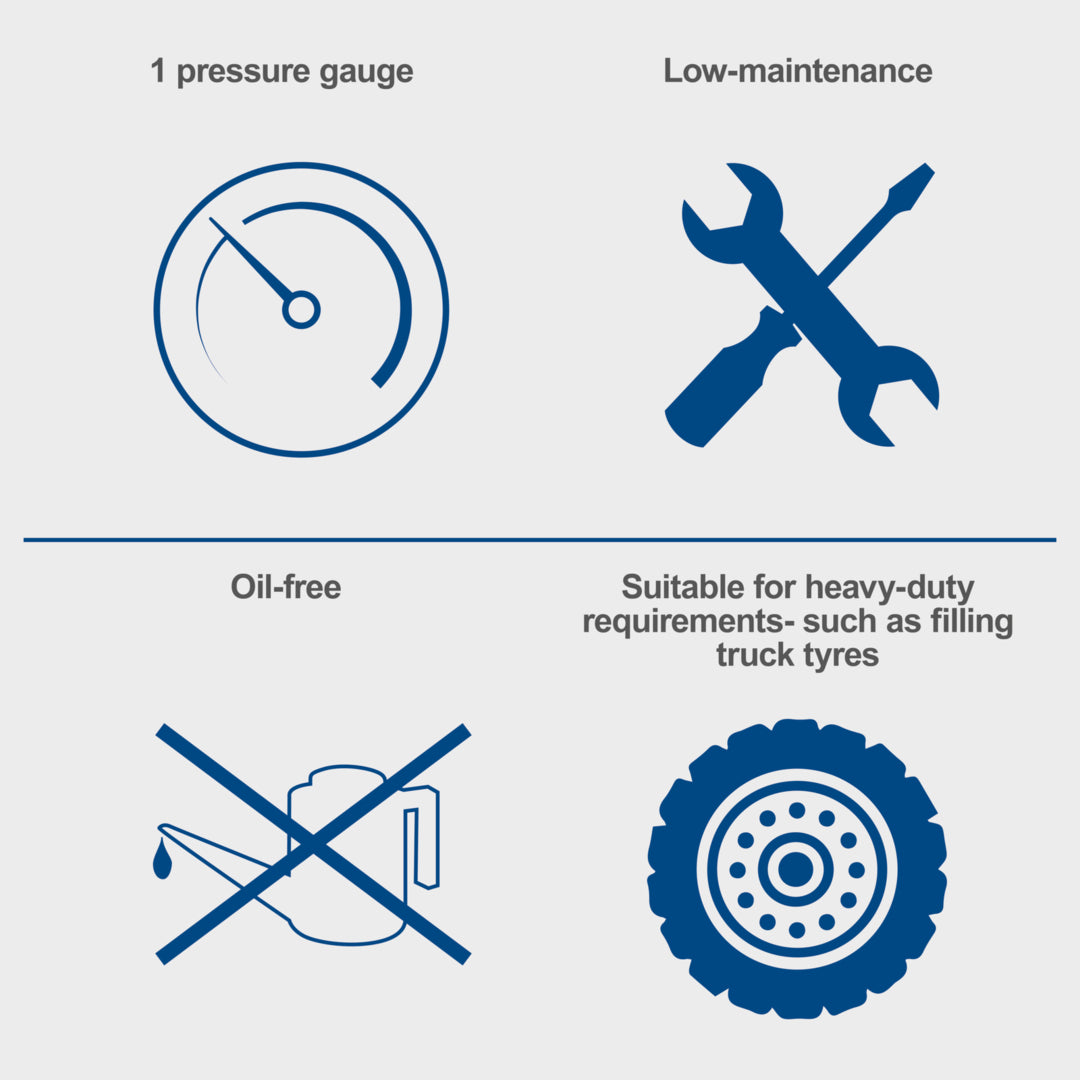

- Maintenance-Free Oil-Free Pump: Powered by a dependable 1500W motor that eliminates routine oil changes, reduces servicing requirements, and provides clean air free of oil contaminants.

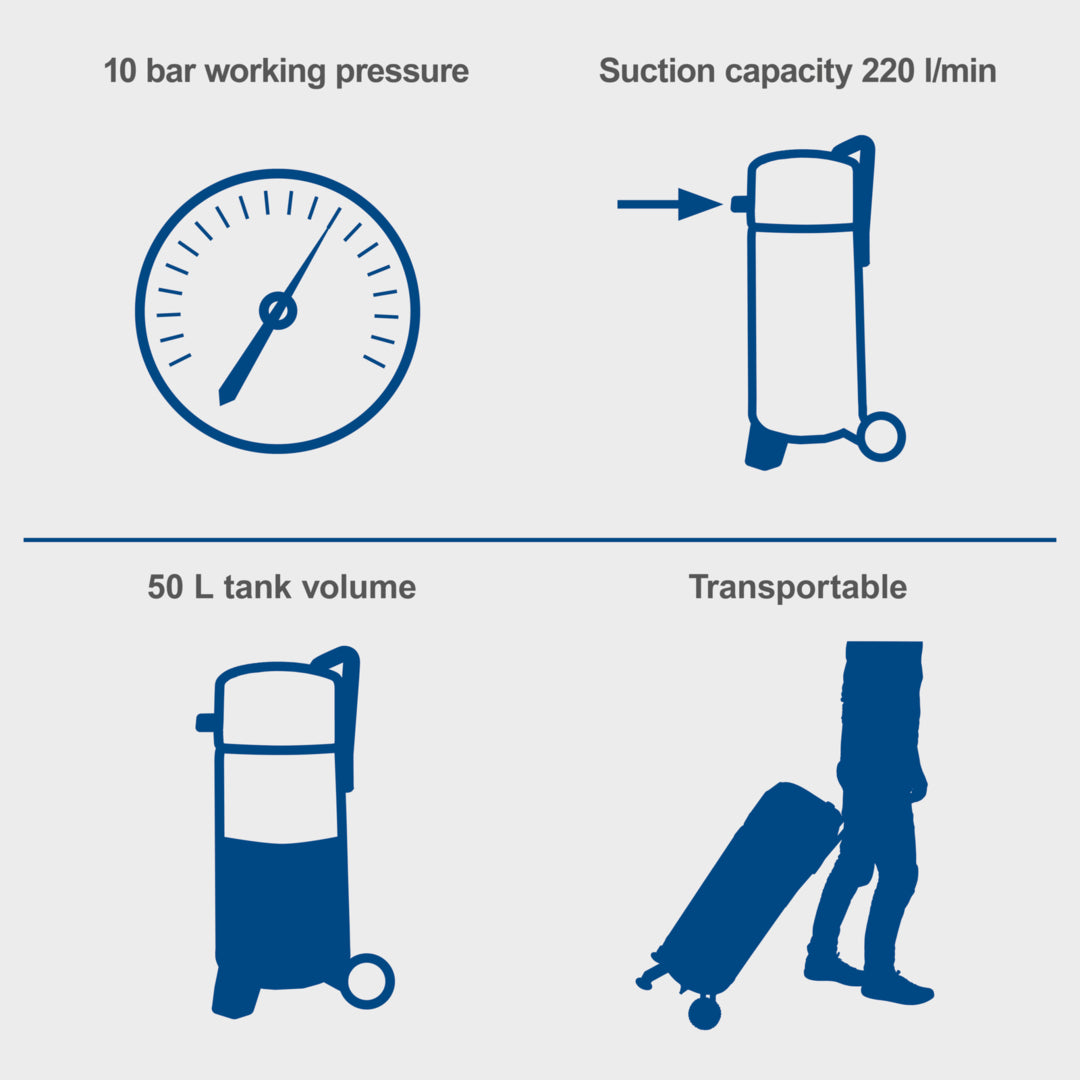

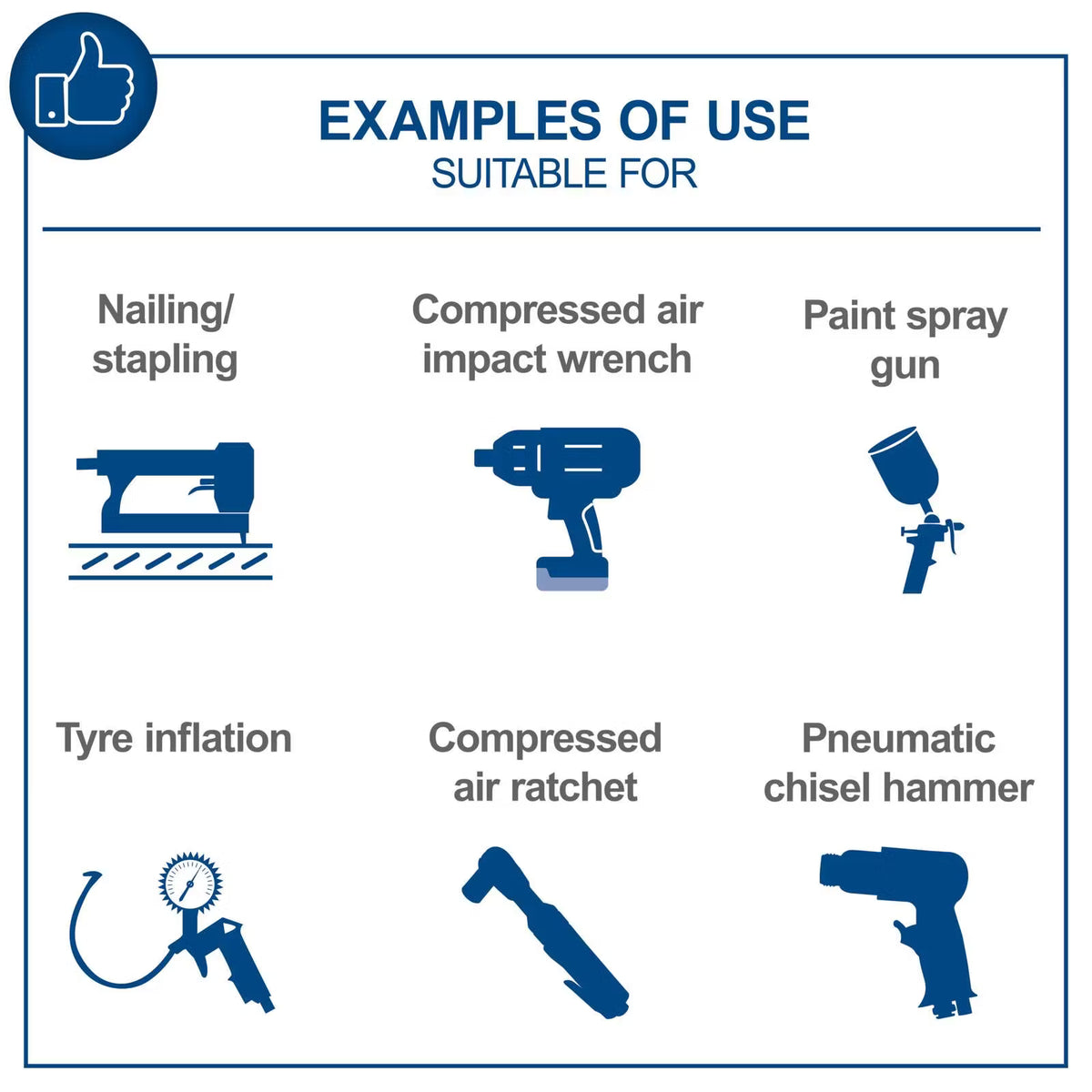

- High 10 Bar Pressure Output: Delivers up to 10 bar maximum working pressure with a 220L/min intake capacity, making light work of inflating tyres, blowing clean, and operating air tools.

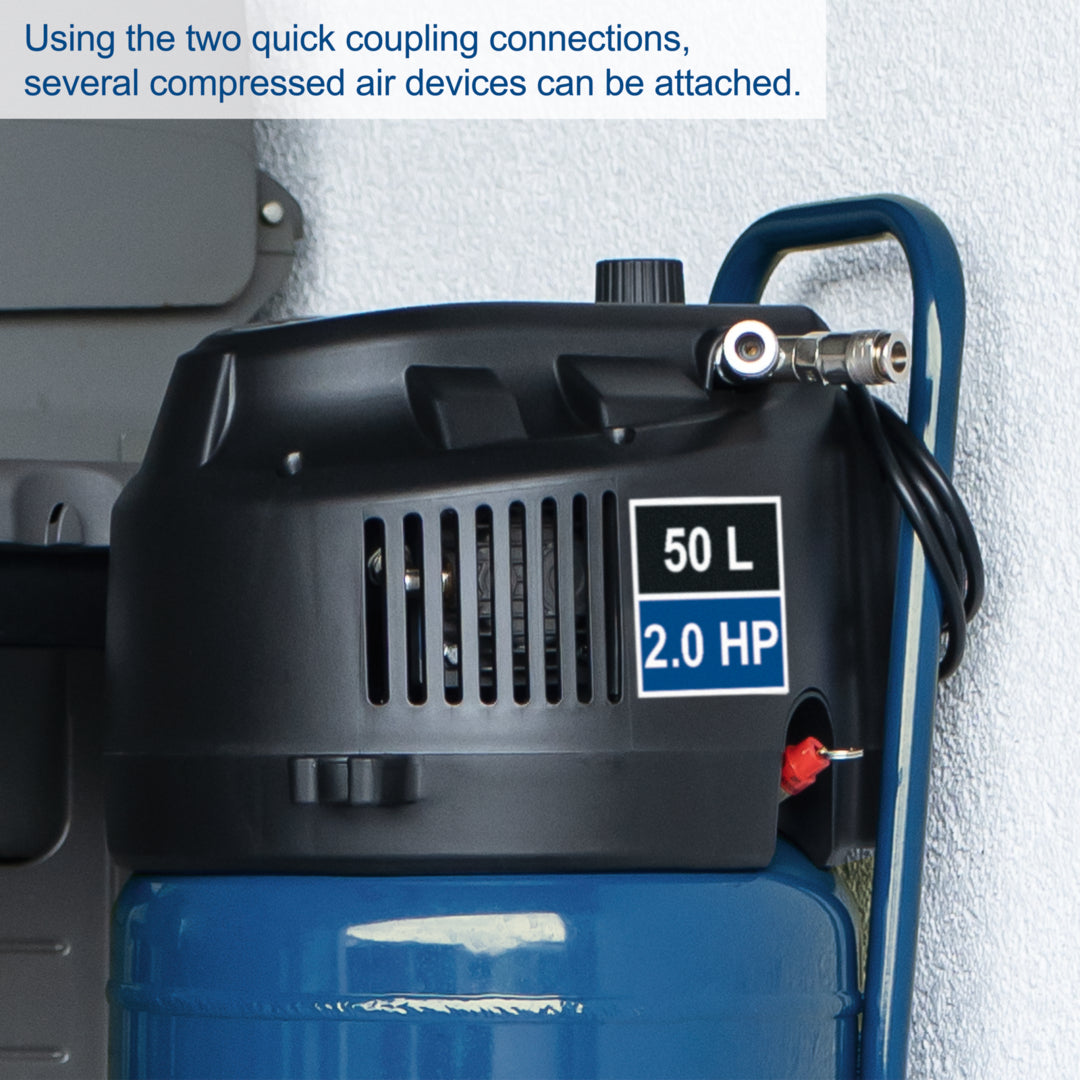

- Dual Quick-Connect Couplings: Features two independent outlets paired with a pressure regulator and clear gauges, allowing you to run two tools or swap fittings quickly.

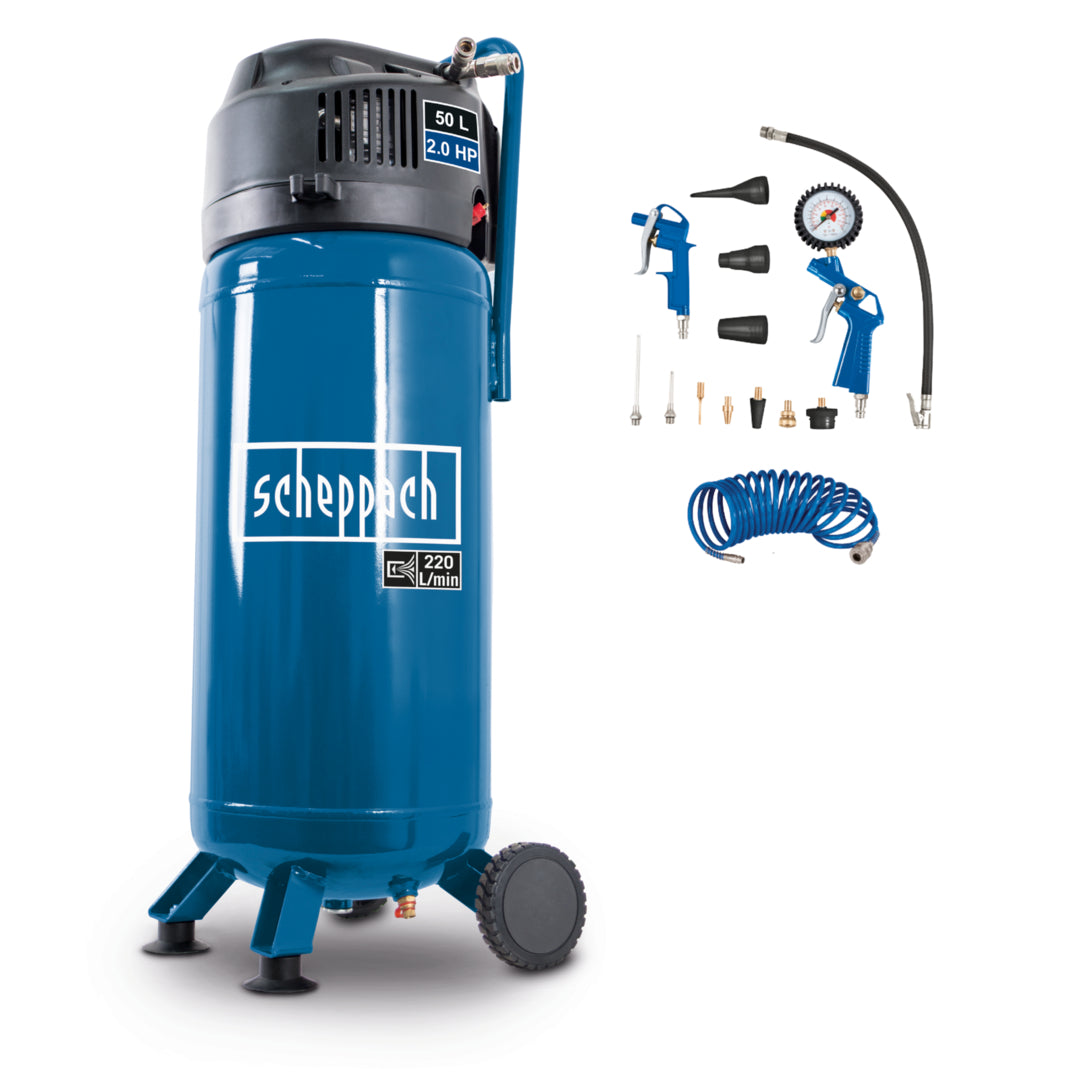

- Complete Accessory Starter Set: Housed on a mobile frame with large wheels and a transport handle, and supplied with an 8m spiral hose and a 13-piece tool accessory kit.
Technical Specification
| General Details | |
|---|---|
| Title | Compressor HC51V Scheppach (DIY) |
| Article Number | 5906125903 |
| Model Description | HC51V |
| Machine Group | Compressor |
| EAN | 4046664069713 |
| Standard Basic Equipment | Incl. 13 pcs. accessory set and 15m hose, Tireinflator TY-20 Scheppach (Art.Nr. 7906101711) |
| Mass Gross | 28.12 kg |
| Mass Net | 22.74 kg |
| General Dimensions (L x W x H) | 350.0 mm x 350.0 mm x 980.0 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Brush Motor |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Nominal Current | 6.7 A |
| Continuous Power Consumption S1 | 1420.0 W |
| Power Consumption in Operating Mode 1 | 1500.0 W |
| Efficiency | 0.95 % |
| Maximum Engine Speed | 4000.0 1/min |
| Battery Included | No |
| Appliance Class | Class I |
| Insulation Class | F (max. motor temp. 155°C) |
| Protection Class Electro / Degree of Protection | IP 20 |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Cable Length | 2000.0 mm |
| Motor Cable Inlet | Yes |
| Plug Type | Sonderstecker-Typ E+F |
| Phase Changing Switch 400 V in Plug New | No |
| Switch with No Voltage Release New | No |
| Compressor Performance & Air Flow | |
| Working Pressure Bar Max | 10.0 bar |
| Air Intake Capacity | 220.0 l/min |
| Tank Capacity | 50.0 l |
| Tank Filling Time | 360.0 sec |
| Air Flow Rate at 1 bar | 130.0 l/min |
| Air Flow Rate at 2 bar | 115.0 l/min |
| Air Flow Rate at 3 bar | 100.0 l/min |
| Air Flow Rate at 4 bar | 90.0 l/min |
| Air Flow Rate at 5 bar | 82.0 l/min |
| Air Flow Rate at 6 bar | 75.0 l/min |
| Air Flow Rate at 7 bar | 65.0 l/min |
| Air Flow Rate at 8 bar | 55.0 l/min |
| Air Flow Rate at 9 bar | 50.0 l/min |
| Air Flow Rate at 10 bar | 40.0 l/min |
| Build & Hardware Components | |
| Drive Type | Belt |
| Belt Type | 5PJ373 |
| Cylinders Count | 1 |
| Pressure Manometer Count | 1 |
| Pressure Pipe Material | Aluminium |
| Air Filters Count / Material | 1 / Plastic |
| Quick Couplers Count | 2 |
| Quick Coupler Material | Nickel Plated Brass |
| Quick Coupler Type | NW7.2 (German Standard) |
| Wheel Diameter | 118.0 mm |
| Wheel Material | Plastic with Rubber Tread |
| Sound & Emissions | |
| Guaranteed Sound Power Level Lw(A) | 97.0 dB |
| Measured Sound Power Level Lw(A) | 97.43 dB |
| Sound Power Level Lw(A) | 95.83 dB |
| Sound Pressure Level Lp(A) | 75.82 dB |
| Uncertainty KpA | 2.92 dB |
| Uncertainty KwA | 2.92 dB |
| Delivery Content | |
| Delivery Content Text | 1x Tyre inflater, 1x Hose with valve plug connector, 1x Air blow gun, 2x Extension nozzles, 1x Adapter set (8 pcs.), 1x Operating manual |
SKU: D-SCH-5906125908
MPN: 5906125908
ID: D-SCH-5906125908
View full details
