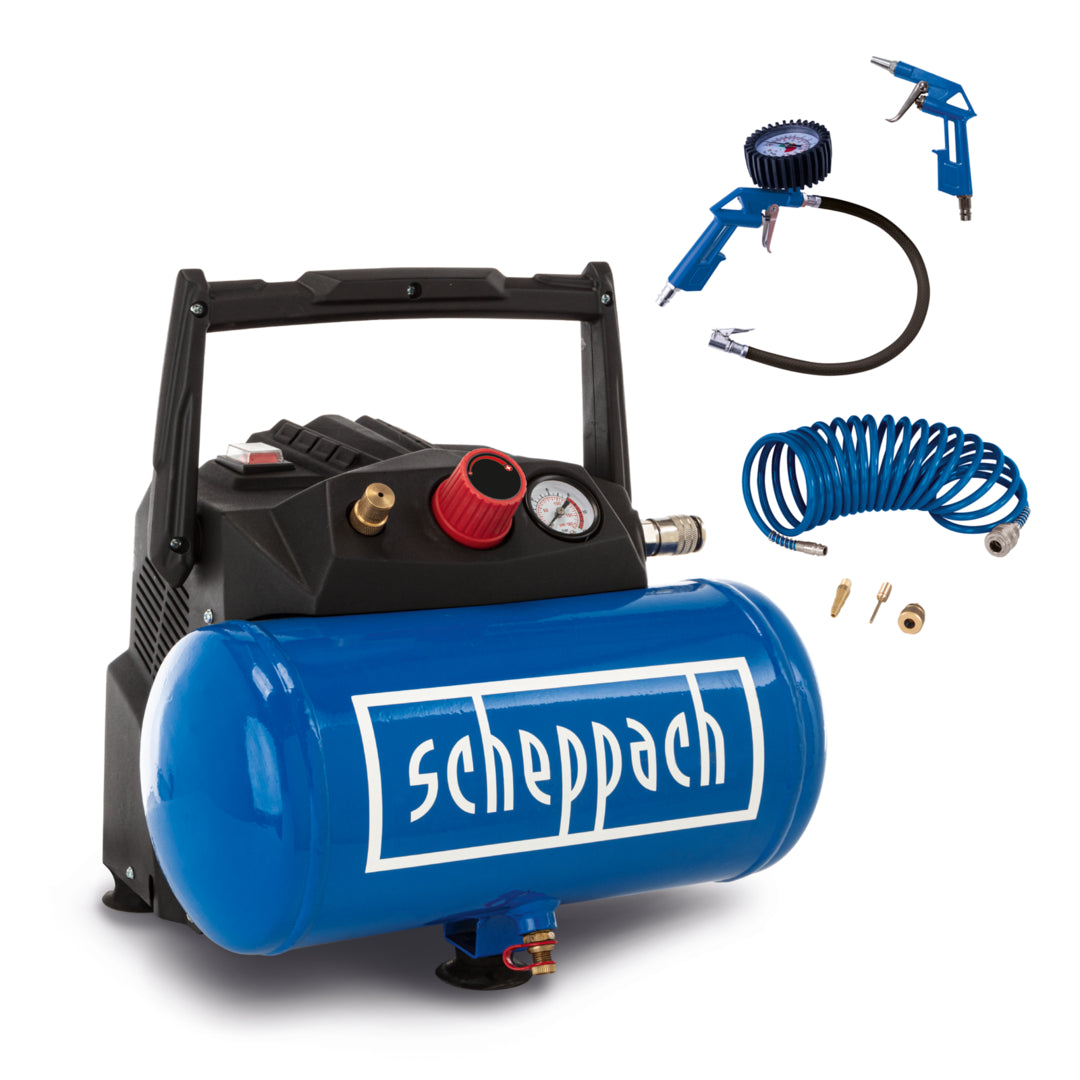

Scheppach HC06 Air Compressor 6L 8 Bar
Scheppach HC06 Air Compressor 6L 8 Bar
No reviews
Regular price
£119.00
Regular price
Sale price
£119.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Drive your pneumatic tools with a compact, low-maintenance air solution.

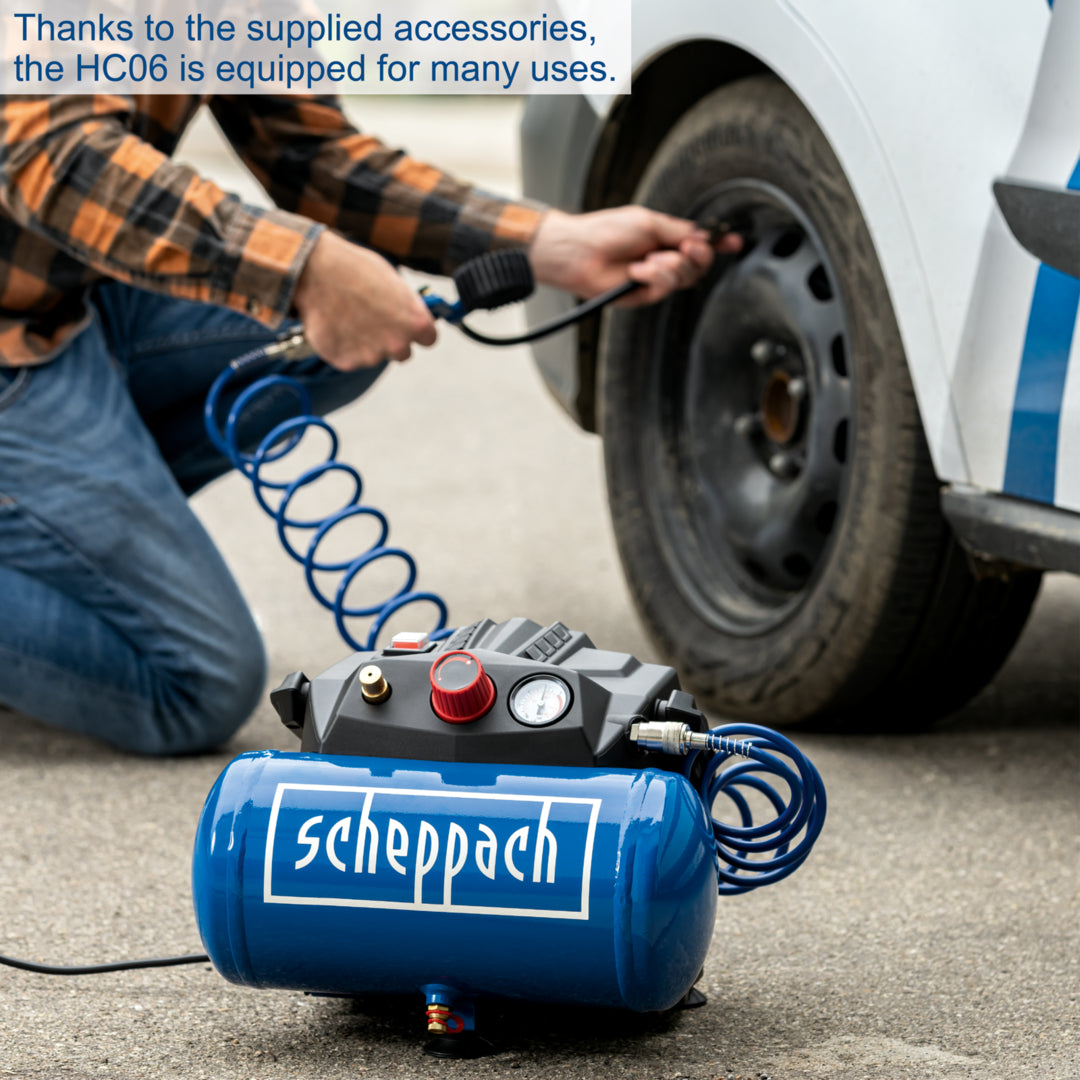

This lightweight air compressor pairs a 1200W oil-free motor with an 8 bar maximum pressure capacity, delivering dependable performance across garage and workshop tasks. Complete with an included accessory kit, it provides immediate utility for tyre inflation, blow cleaning, and small air-powered applications.
Features:
- 1200W Oil-Free Motor: Provides clean, oil-free operation requiring minimal maintenance, meaning no risk of oil leaks during transport or storage.
- 6-Litre Air Receiver: Features a fast-filling 6L tank that maintains a steady air supply for quick cleaning and inflation tasks.
- 8 Bar Maximum Working Pressure: Generates up to 8 bar pressure with an intake capacity of 200 L/min, making it suitable for a wide variety of domestic and workshop pneumatic tools.
- Integrated Regulator and Pressure Gauge: Allows clear monitoring and exact output pressure adjustments to match the needs of your specific tool.
- Automatic Pressure Control: Re-engages the motor automatically when tank pressure drops, keeping continuous operation smooth and uninterrupted.
- Anti-Vibration Rubber Feet: Dampens operational vibration to keep the unit stable on workshop floors and reduce unnecessary noise.

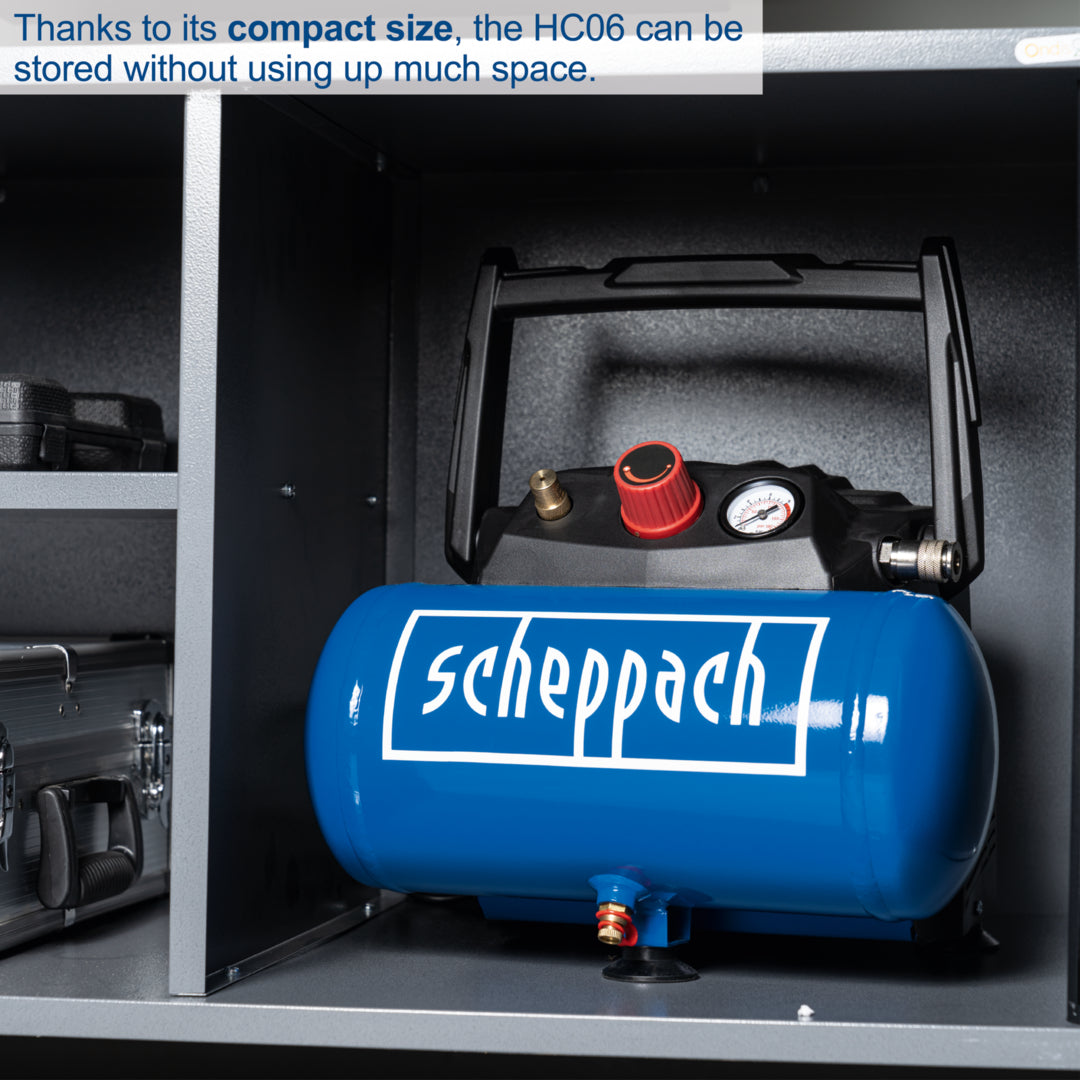

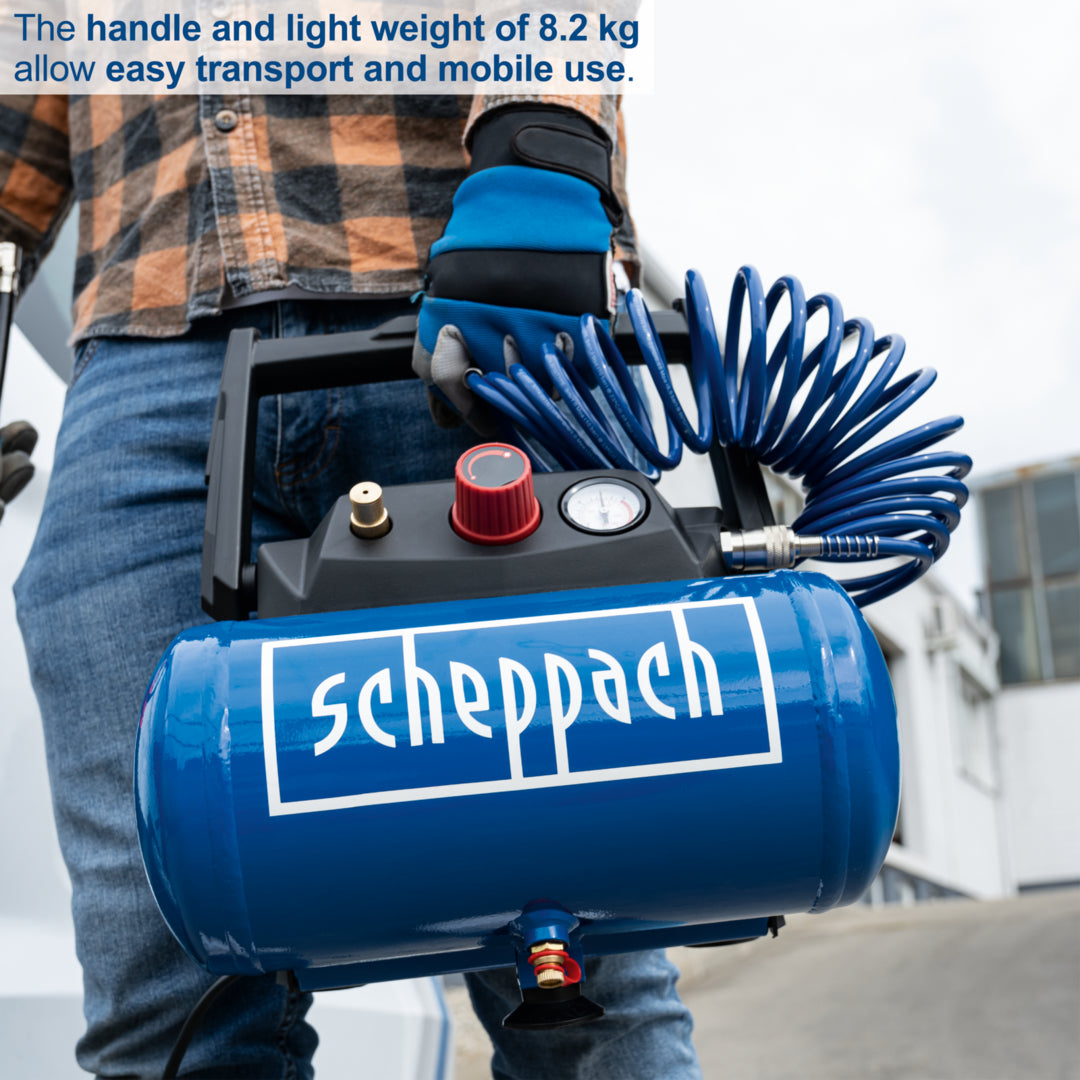

- Highly Portable Construction: Designed with an ergonomic top handle and a compact footprint, making it easy to carry around the job site or store in tight spaces.
-
Complete Accessory Kit Included: Supplied with an air hose and accessory set so you can start working straight out of the box.
Technical Specification
| General Details | |
|---|---|
| Title | Compressor HC06 scheppach (DIY) Great Britain |
| Model Description | HC06 |
| Machine Group | Compressor |
| Article Number | 5906153904 |
| EAN | 4046664315889 |
| Standard Basic Equipment | Compressed air accessory set 6 pcs. included, Tireinflator TG-4 (Art.Nr. 7906101708) |
| Net Weight | 8.6 kg |
| Gross Weight | 9.9 kg |
| Dimensions (L x W x H) | 345 mm x 314 mm x 269 mm |
| Compressor Performance Data | |
| Air Intake Capacity | 200.0 l/min |
| Air Flow Rate at 1 bar | 90.0 l/min |
| Air Flow Rate at 4 bar | 55.0 l/min |
| Air Flow Rate at 7 bar | 40.0 l/min |
| Working Pressure Bar Max | 8.0 |
| Tank Capacity | 6.0 l |
| Tank Filling Time | 45 sec |
| Cylinders Count | 1 |
| Drive Type | Belt |
| Pressure Manometer | 1 |

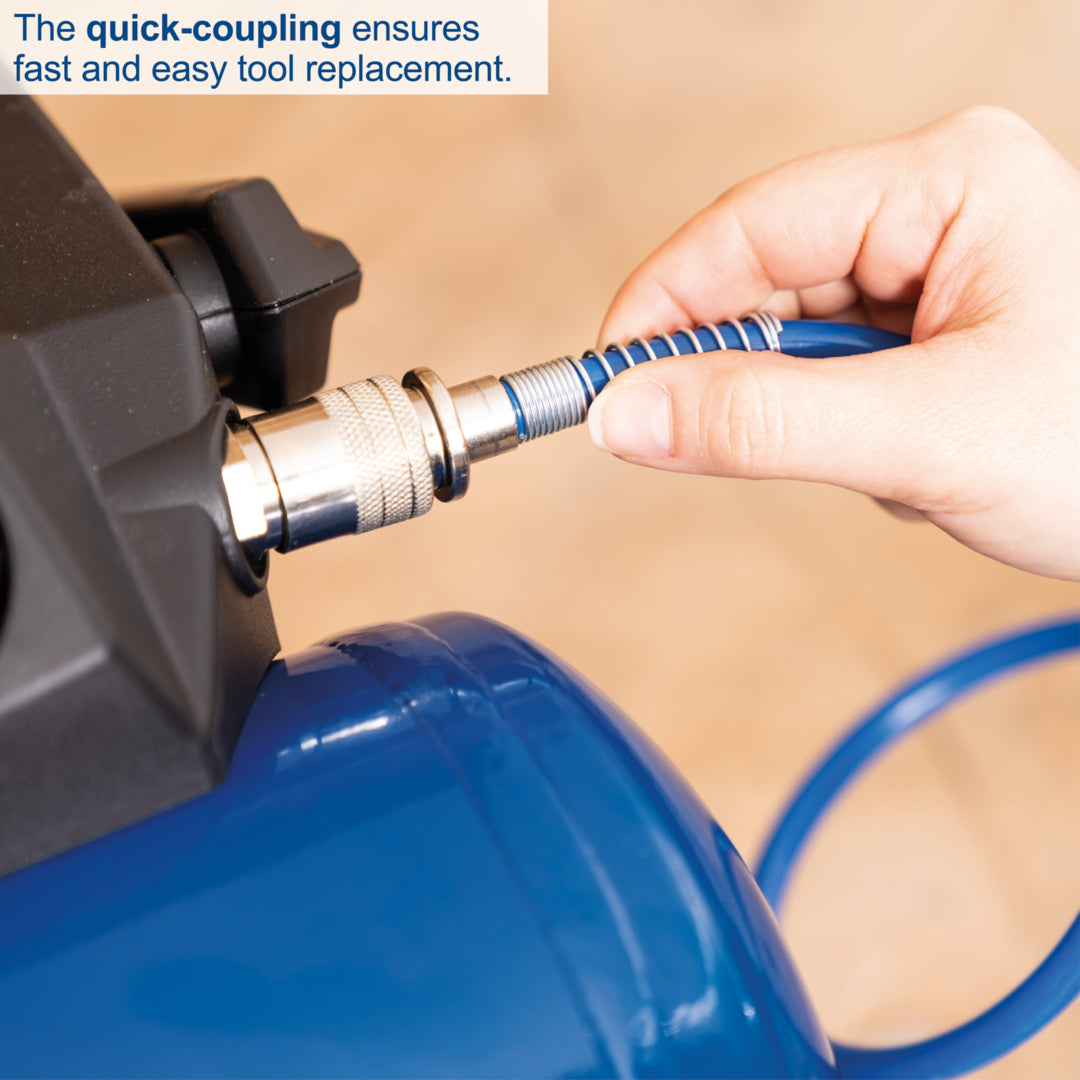

| Quick Couplers Count / Type | 1 / NW7.2 (German Standard) |
| Quick Coupler Material | Nickel plated brass |
| Air Filters Count | n/a |
| Oil Quantity / Included | 0.0 n/a / No |
| Wheel Diameter / Material | 0.0 n/a / n/a |
| Drive & Electrical Specifications | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Voltage / Frequency | 220-240 V / 50 Hz |
| Power Consumption (Operating Mode 1) | 1200.0 W |
| Maximum Engine Speed | 3800.0 1/min |
| Type of Motor Electro | Brush Motor |
| Appliance Class | Class I |
| Protection Class Electro | IP 30 |
| Insulation Class | F (max. motor temp. 155°C) |
| Motor Protection | Yes |
| Motor Brake Type | None |
| Cable Length | 2000.0 mm |
| Plug Type | Stecker-Typ C Eurostecker |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 95.9 dB |
| Measured Sound Power Level Lw(A) | 95.9 dB |
| Guaranteed Sound Power Level Lw(A) | 97.0 dB |
| Uncertainty KwA | 0.35 dB |
| Uncertainty k | 0.0 n/a |
| Vibration Emission Value Ah | 0.0 n/a |
| Delivery Content | |
| Delivery Content Text | 1x compressor, 1x 5 set Accessories set, 1x 5m spiral hose, 1x operating manual |
