Scheppach HBS30 Benchtop Bandsaw 350W
Scheppach HBS30 Benchtop Bandsaw 350W
Regular price
£149.00
Regular price
Sale price
£149.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Accurate and versatile cutting performance designed for compact workshops.
Combines dependable German engineering with a smooth-running motor to deliver precise woodworking results. Compact dimensions make it an ideal choice for garages and home workshops where space is limited.
Features:
- Quiet, Reliable Motor: The smooth-running 350W motor operates with minimal vibration, providing consistent power for accurate cuts across softwoods, hardwoods, and plastics.

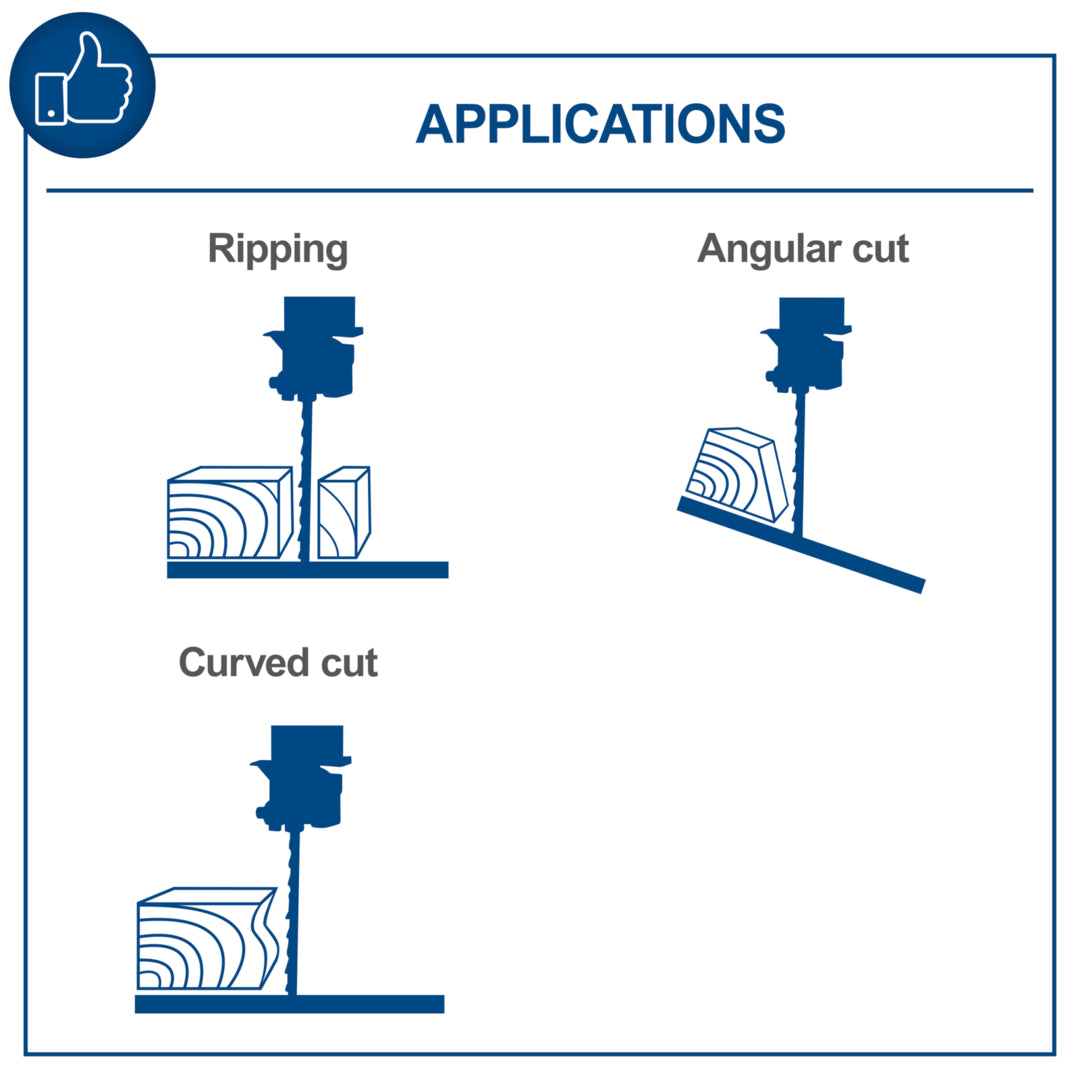

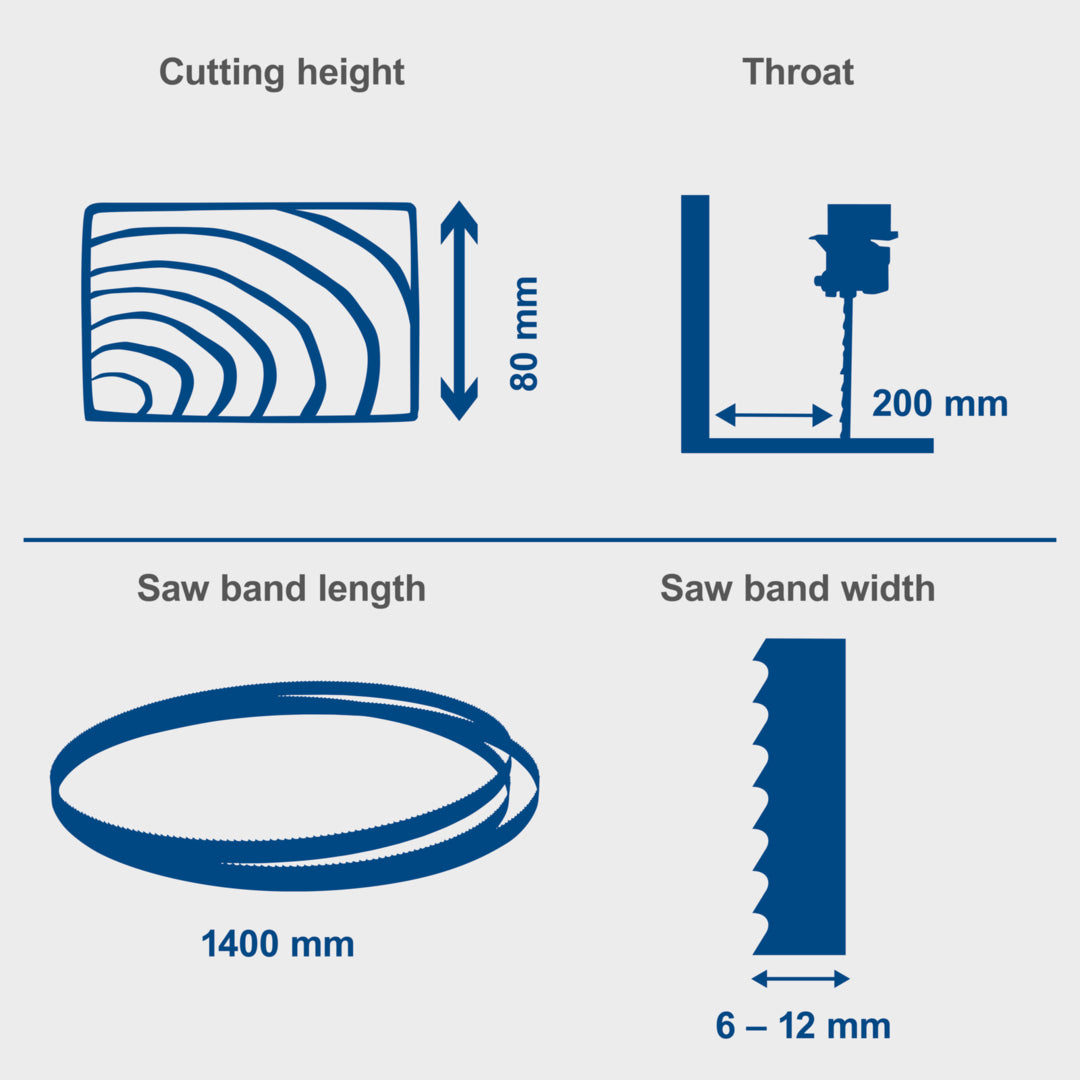

- Versatile Capacity: Features an 80mm maximum cutting height and a 200mm throat depth, making it well-suited for straight rips, smooth curves, and intricate crafting tasks.

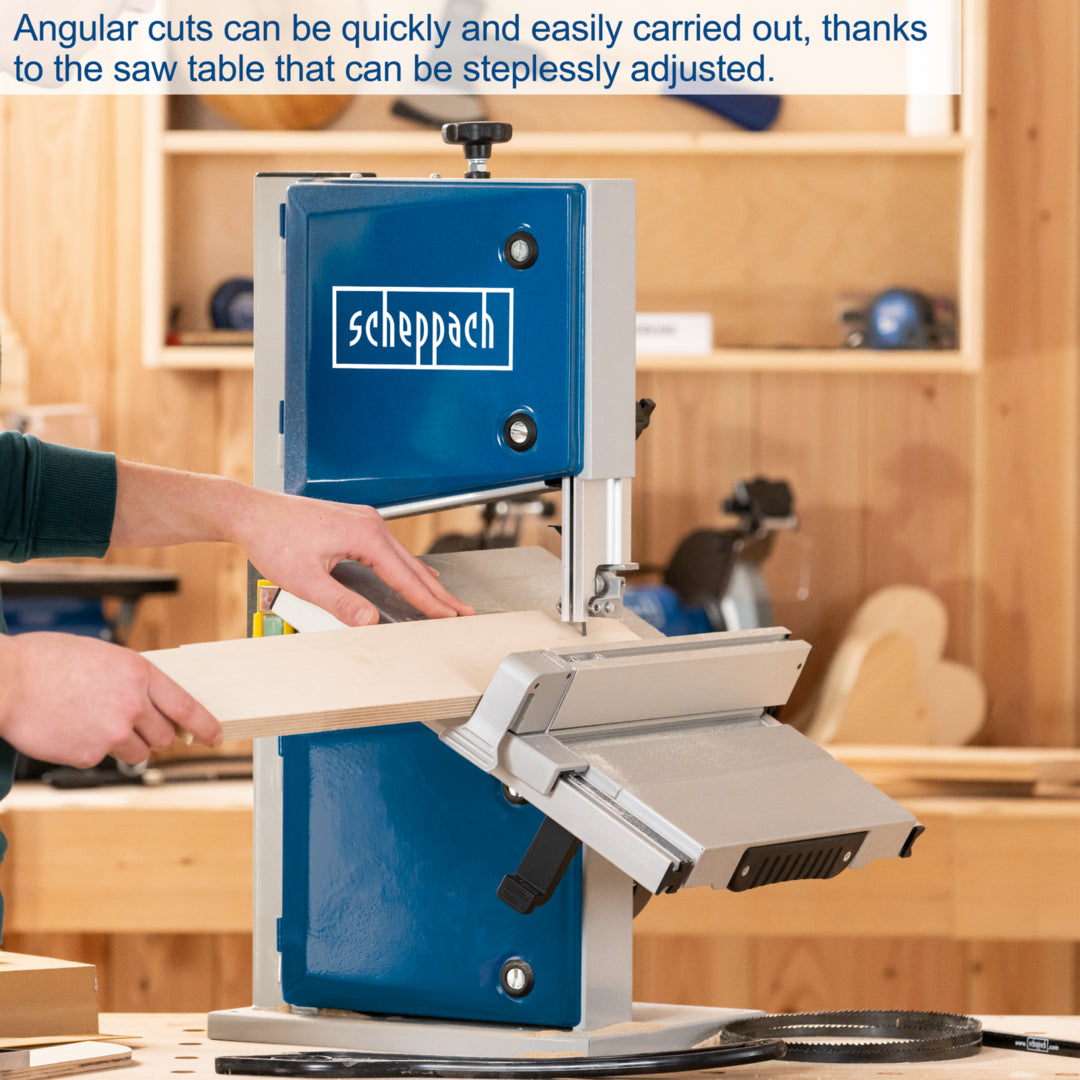

- Tilting Work Table: Equipped with a sturdy 300 x 300mm steel work surface that tilts continuously up to 45 degrees for accurate bevel cuts and angled joinery.

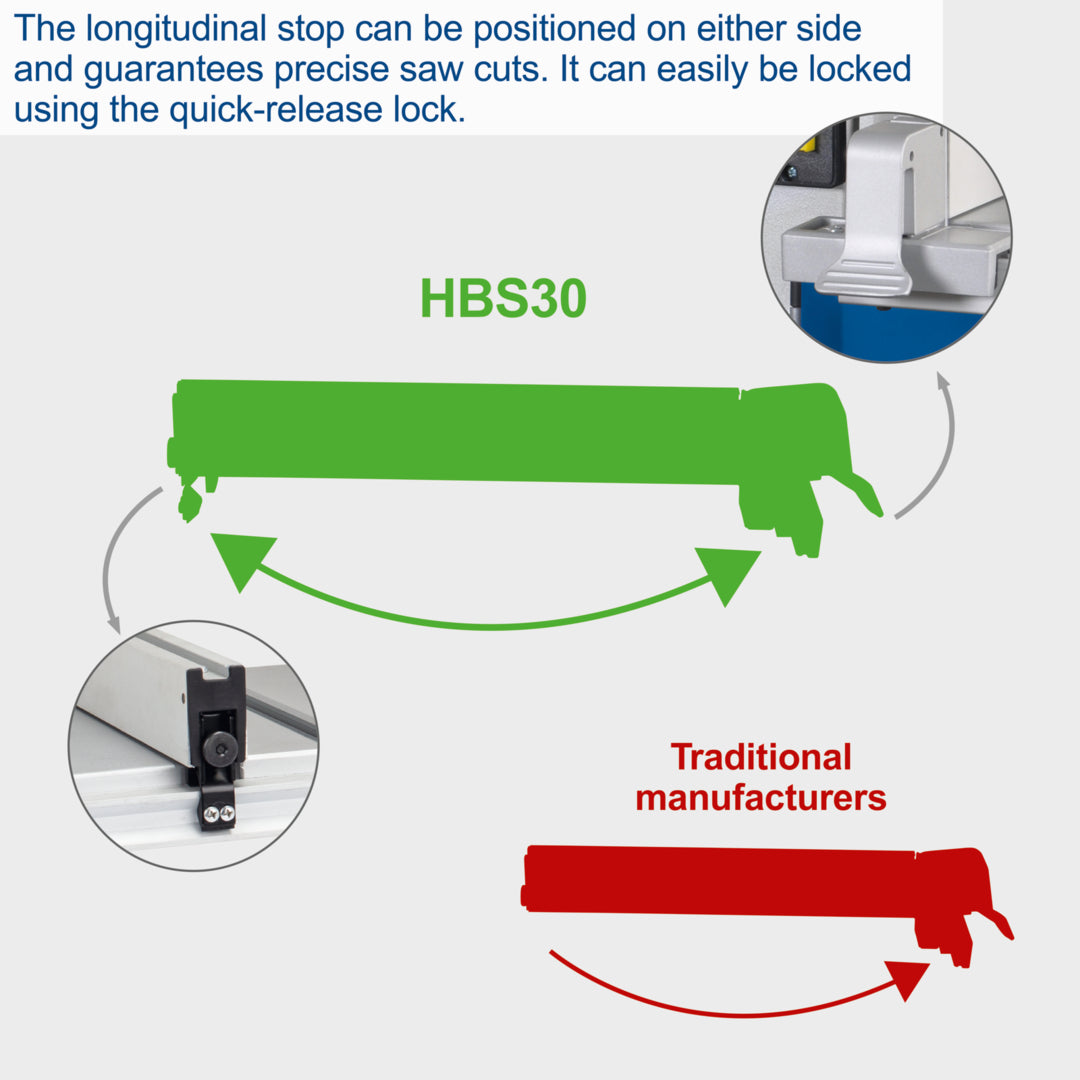

- Precision Blade Support: Includes a sturdy rip fence with a quick-release lock alongside a precision blade guide to ensure straight, repeatable, and chatter-free cuts.
- Complete with Safety Accessories: Comes supplied with a cross-cutting mitre gauge and a dedicated push stick to keep hands safely clear of the blade during operation.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach HBS30 bandsaw (DIY) Great Britain |
| Article Number | 5901501908 |
| Model Description | HBS30 |
| Machine Group | Band saw |
| EAN | 4046664303497 |

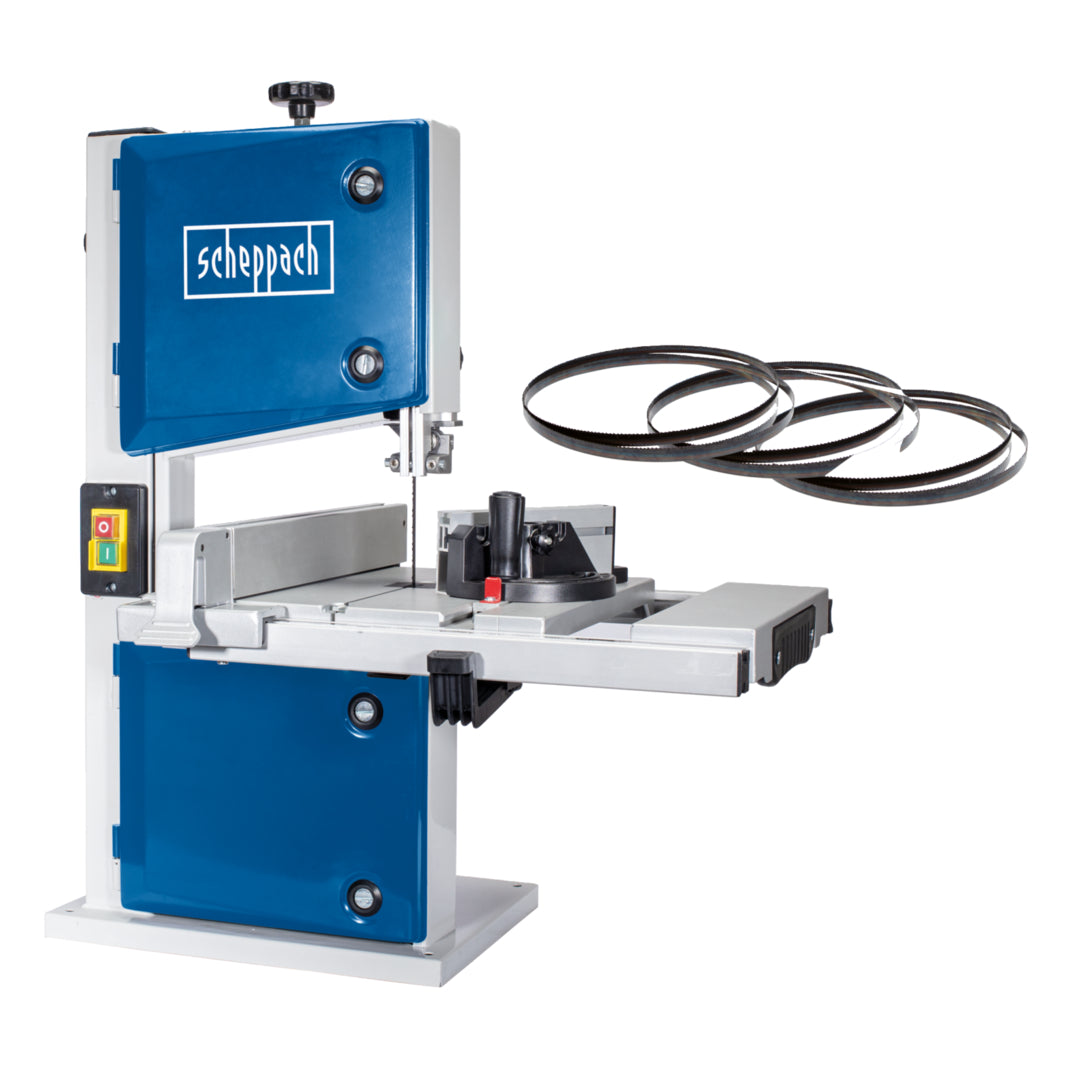

| Standard Basic Equipment | With 2 additional saw blades |
| Gross Weight | 20.46 kg |
| Net Weight | 17.9 kg |
| General Dimensions (L x W x H) | 450 mm x 380 mm x 650 mm |
| Housing Material | Metal |
| Motor & Power Performance | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Motor Type: Electric | Induction Motor |
| Tension / Voltage | 230-240 V |
| Frequency | 50 Hz |
| Rated Current | 1.2 A |
| Continuous Power Consumption S1 | 250.0 W |
| Power Consumption in Operating Mode 1 | 350.0 W |
| Efficiency | 0.99% |
| Maximum Engine Speed | 1400.0 1/min |
| Battery or Rechargeable Battery Included | No |
| Protection Class | Class I |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class for Electrical | IP 20 |
| Engine Protection (Thermoprotector) | Yes |
| Engine Braking Type | No |
| Cable Length | 2000.0 mm |
| Motor Cable Entry | Yes |
| Phase Changeover Switch 400V in the Plug, New | No |
| Switches Without Voltage Release (New) | Yes |
| Cutting & Sawing Specifications | |
| Cutting Height 90° | 80.0 mm |
| Cutting Height Adjustable Via | Handle |
| Max. Cutting Width | 200.0 mm |
| Saw Speed Is Adjustable | No |
| Saw Blade Drive | Direct |
| Saw Blade Length | 1400.0 mm |
| Saw Blade Thickness Max. | 0.35 mm |
| Saw Blade Width (Min / Max) | 6.0 mm / 12.0 mm |
| Saw Blade (Min / Max Range) | 3 mm / 12.0 mm |
| Number of Teeth Per Inch | 6 pieces |
| Quick-Release Lever for Saw Blade | No |
| Diameter of Band Wheel | 200.0 mm |
| Material Bandwheel | Aluminum |
| Material of the Band Wheel Covering | Rubber |
| Height of the Stop / Length of the Attack | 50.0 mm / 310.0 mm |
| Table & Frame Features | |
| Tabletop Material | Steel Q235-A |
| Table Dimensions (L x W x H) | 300.0 mm x 300.0 mm x 295.0 mm |
| Table Thickness | 20.0 mm |

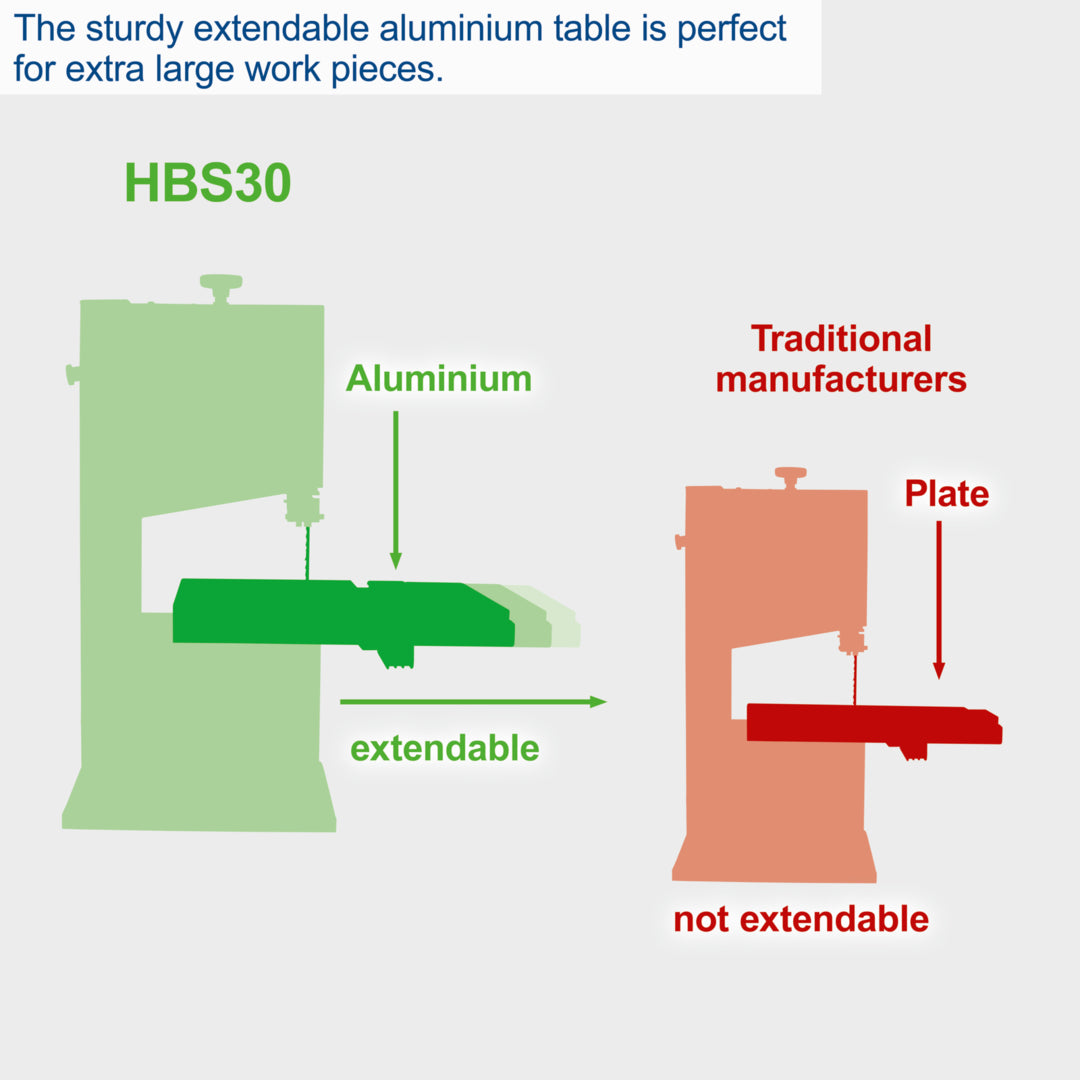

| Table Extension | Yes |
| Table Dimensions With Extension (L x W) | 300.0 mm x 380.0 mm |
| Swivel Range of the Tabletop (Min / Max) | 0.0 ° to 45.0 ° |
| Adjustable End Stop for Tabletop | Yes |
| Table Flatness Lengthwise / Crosswise | 0.6 mm / 0.6 mm |
| Max. Working Height | 295.0 mm |
| Suction Nozzle Diameter (Inner / Outer) | 36.0 mm / 40.0 mm |
| Cargo Bikes | No |
| Sound & Emissions | |
| Sound Power Level Lw(A) | 90.4 dB |
| Sound Pressure Level Lp(A) | 77.4 dB |
| Uncertainty KpA | 3.0 dB |
| Uncertainty KwA | 3.0 dB |
| Scope of Delivery | |
| Scope of Delivery Text | 1x band saw, 1x saw table, 1x table extension with guide rail, 1x parallel fence, 1x push stick, 1x open-end wrench SW 10/13, 3x Allen wrenches 3mm (32)/4mm (31)/5mm, 1x screw M6x35, 1x washer M6, 1x nut M6, 2x screws M5x7, 2x fan washers M5, 1x original instruction manual |
