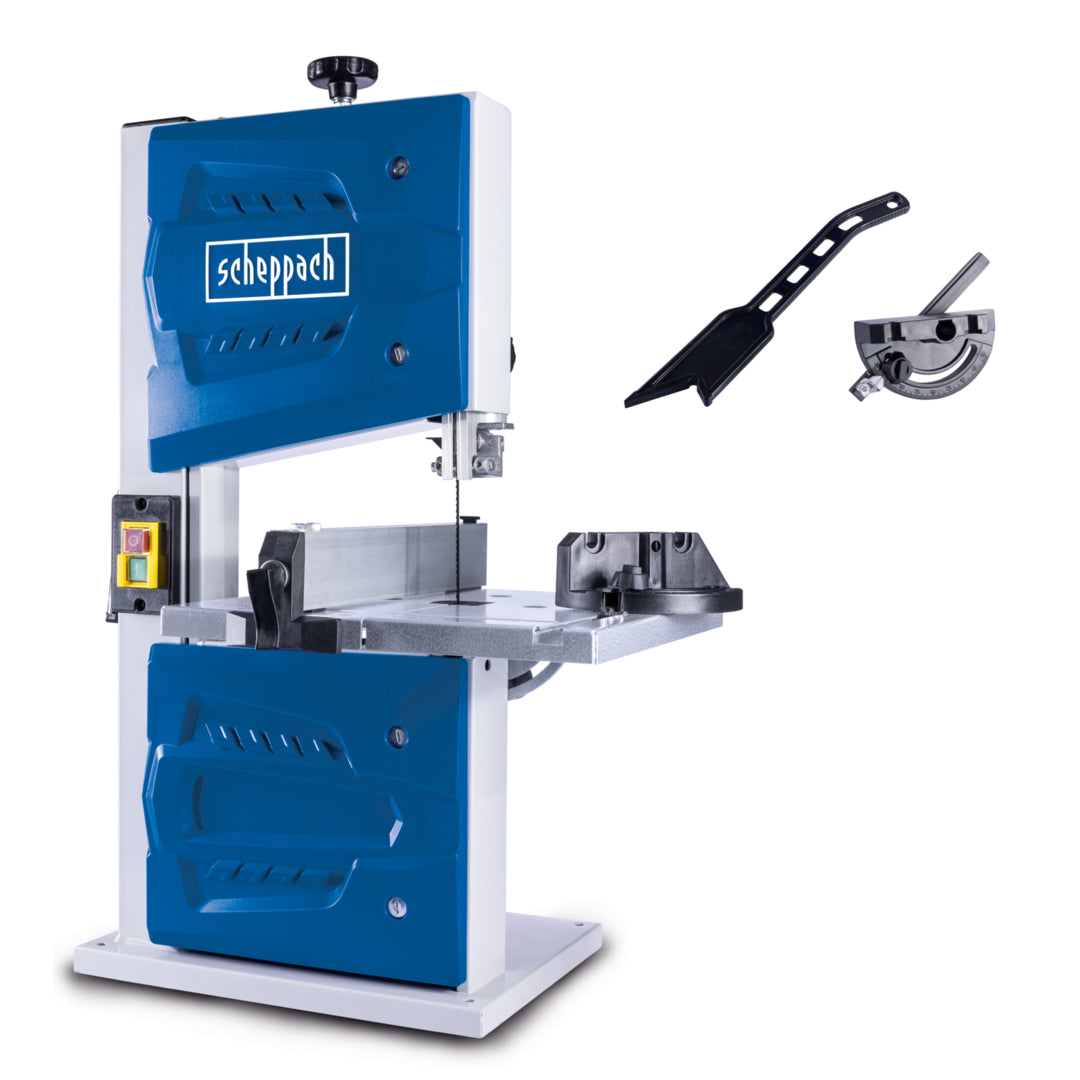

Scheppach HBS25 Benchtop Bandsaw 350W

Name: Scheppach HBS25 Benchtop Bandsaw 350W
Brand: Scheppach
SKU: D-SCH-5901513904
Price: 119.0 GBP
Availability: InStock

Scheppach HBS25 Benchtop Bandsaw 350W

£119.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Free standard delivery on this item

Accurate and versatile cutting performance designed for compact workshops.

Combines German engineering with a smooth-running motor to deliver dependable precision for hobbyists and woodworkers. Compact dimensions make it an ideal choice for garages and small workshops where space is limited.

Features:

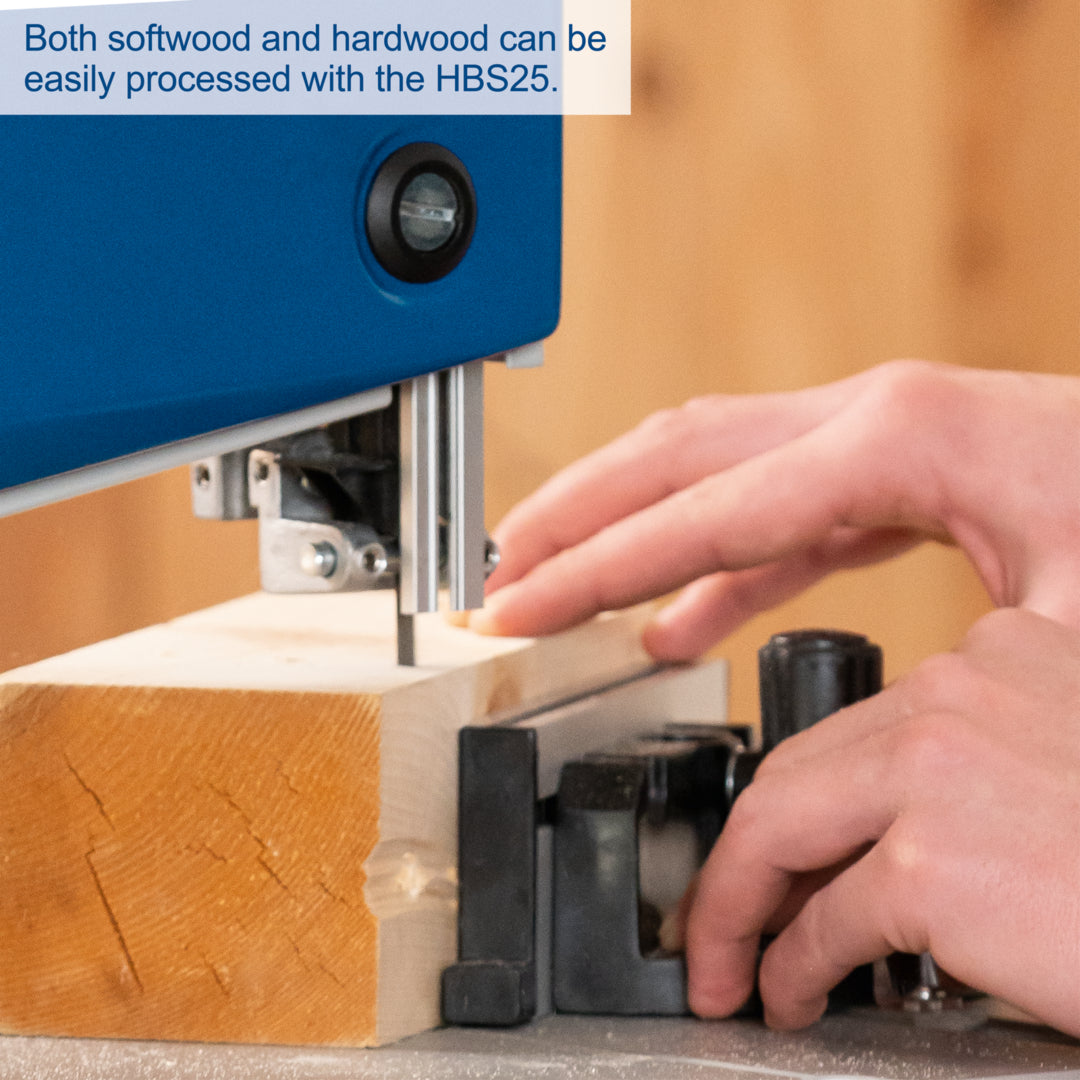

Quiet, Reliable Induction Motor: The 350W motor operates at a steady 1400rpm, providing smooth, low-vibration power for consistent cuts across hard and soft woods.

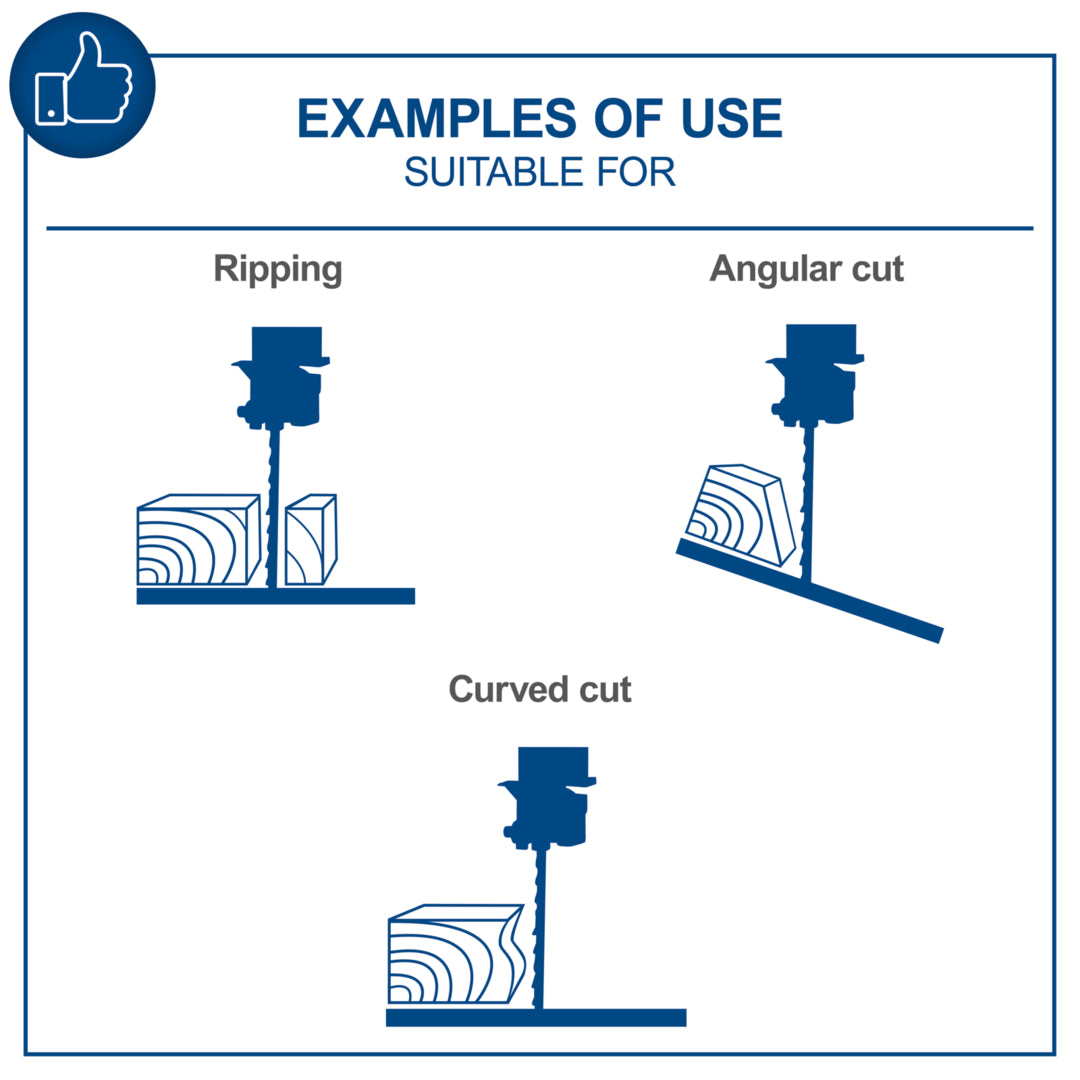

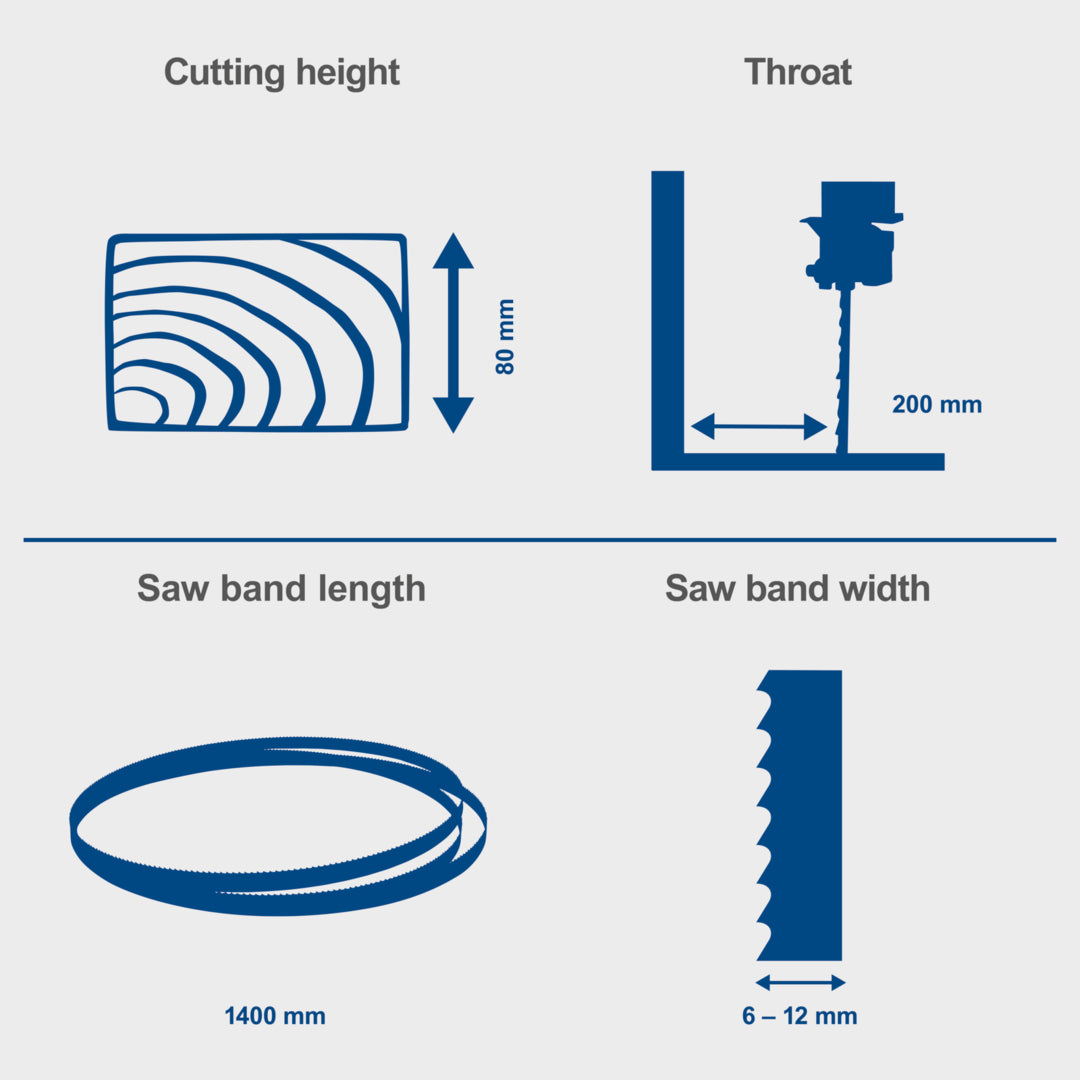

Versatile Cutting Range: Offers an 80mm maximum cutting height and a 200mm throat depth, making it well-suited for straight cuts, intricate curves, and delicate woodworking tasks.

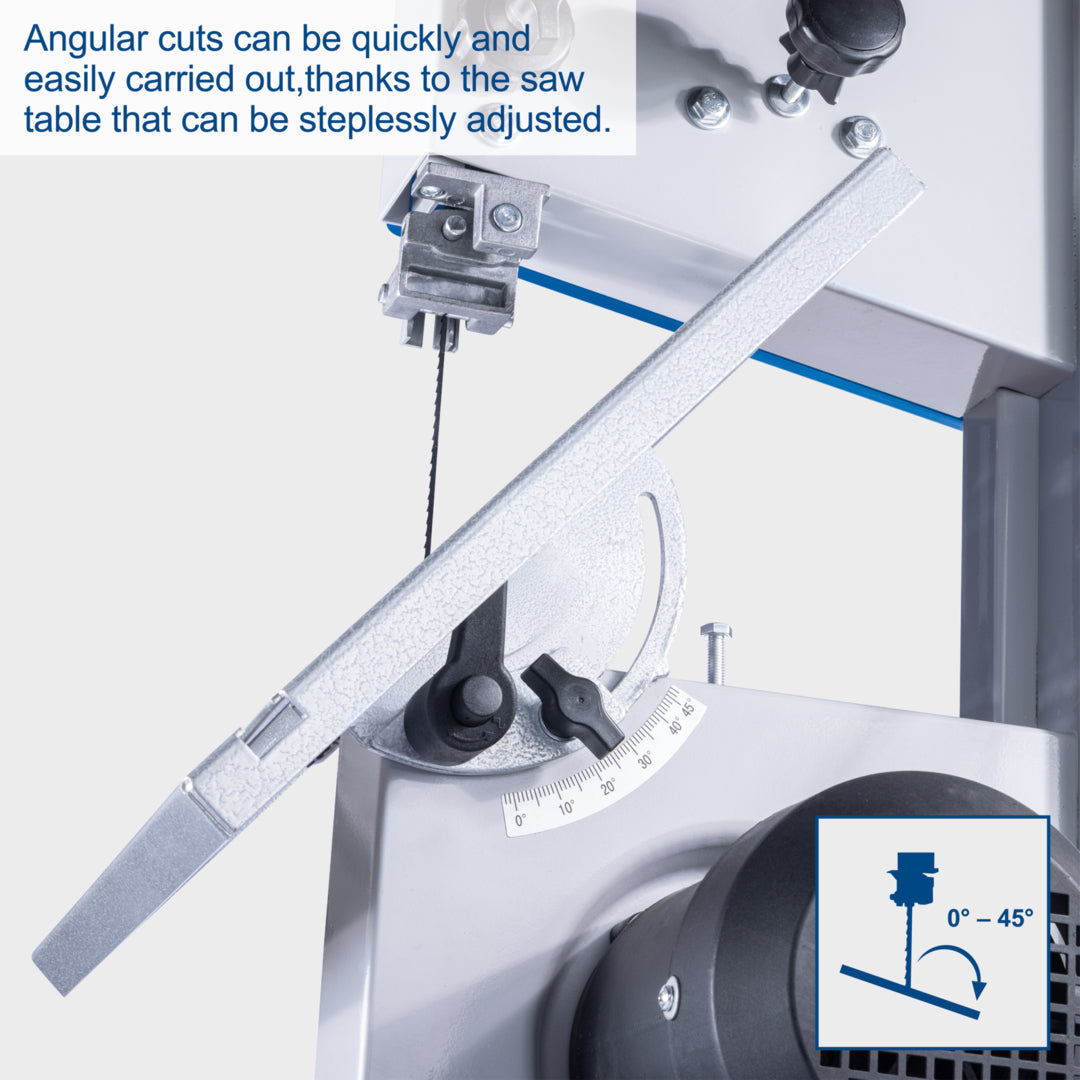

Tilting Cast Table: Features a generous 300 x 300mm work surface that tilts continuously up to 45 degrees for accurate bevel and mitre cuts on complex workpieces.

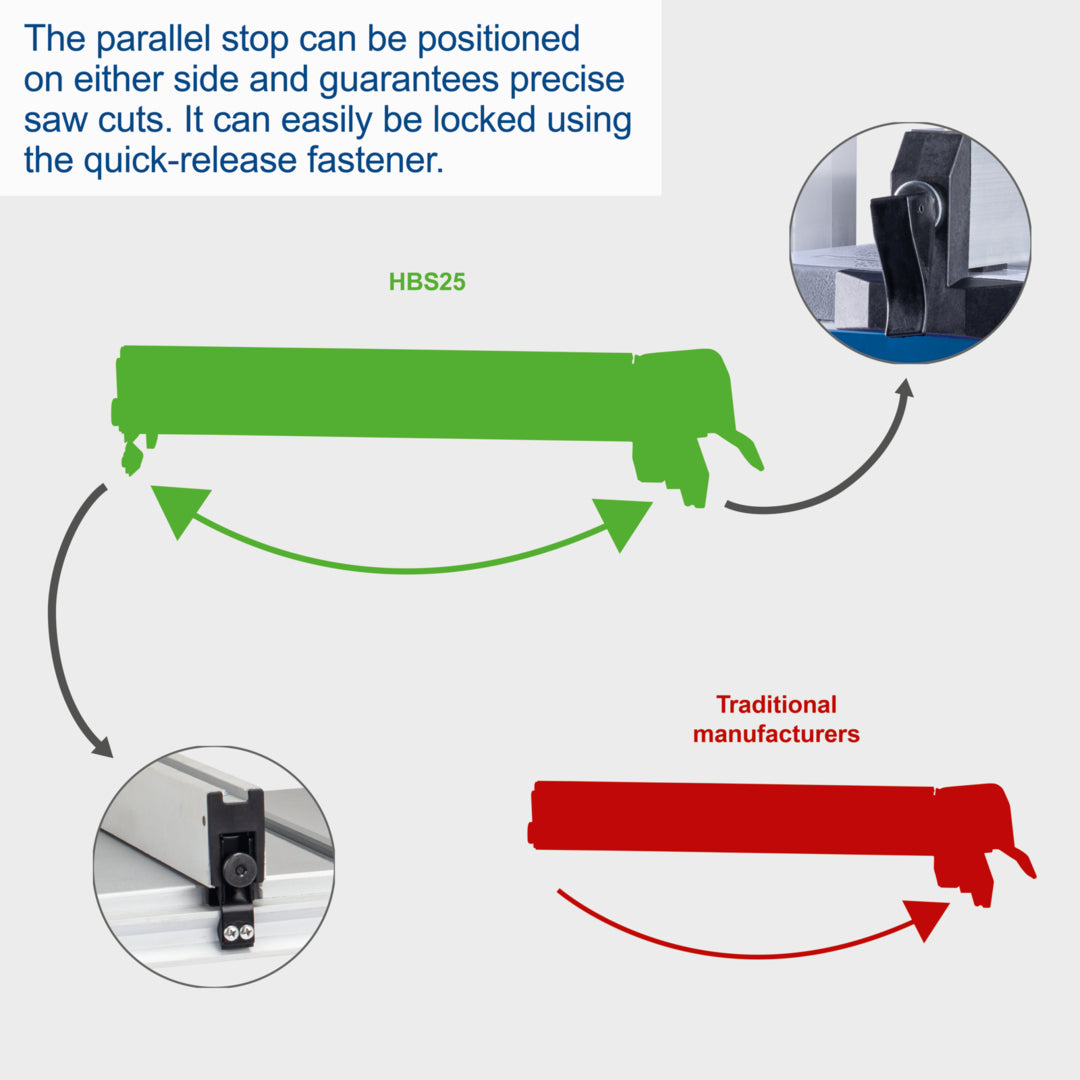

Enhanced Blade Support: Equipped with a ball-bearing blade guide and a double-clamped rip fence with quick-release adjustment, ensuring straight, repeatable, and chatter-free cuts.
Ready for Safe Operation: Comes complete with a mitre gauge for angled crosscuts and a dedicated push stick to keep hands safely clear of the blade during operation.

Technical Specification

General Details
Title	Bandsaw HBS25 Scheppach (DIY) Great Britain
Article Number	5901513904
Model Description	HBS25
Machine Group	Bandsaw
EAN	4046664285090
Mass Gross	16.6 kg
Mass Net	14.75 kg
General Dimensions (L x W x H)	380 mm x 440 mm x 685 mm
Housing Material	Steel
Motor & Power Performance
General Drive Type	Electro
Subgrouping Drive Type	230V
Type of Motor	Induction Motor
Voltage	230-240 V
Frequency	50 Hz
Continuous Power Consumption S1 (W)	350 W
Continuous Power Consumption S1 (hp)	0 n/a
Power Consumption Operating Mode 1	0 n/a
Power Consumption Operating Mode 2	450 W
Operating Mode 2	S2 20 min
Maximum Engine Speed	1400 1/min
Motor Speed Min	0 n/a
Battery Included	No
Appliance Class	Class 0
Insulation Class	B (max. motor temp. 130°C)
Protection Class Electro	IP 54
Motor Protection	Yes
Motor Brake Type	None
Soft Start	No
Cable Length	2000 mm
Plug Type	UK Plug (Class II)
Cutting & Sawing Specifications
Cutting Height 45°	80 mm
Cutting Height 90°	80 mm
Cutting Height Adjustment Via	Handle
Cutting Width Max	200 mm
Cutting Width With Mitre Gauge Max	200 mm

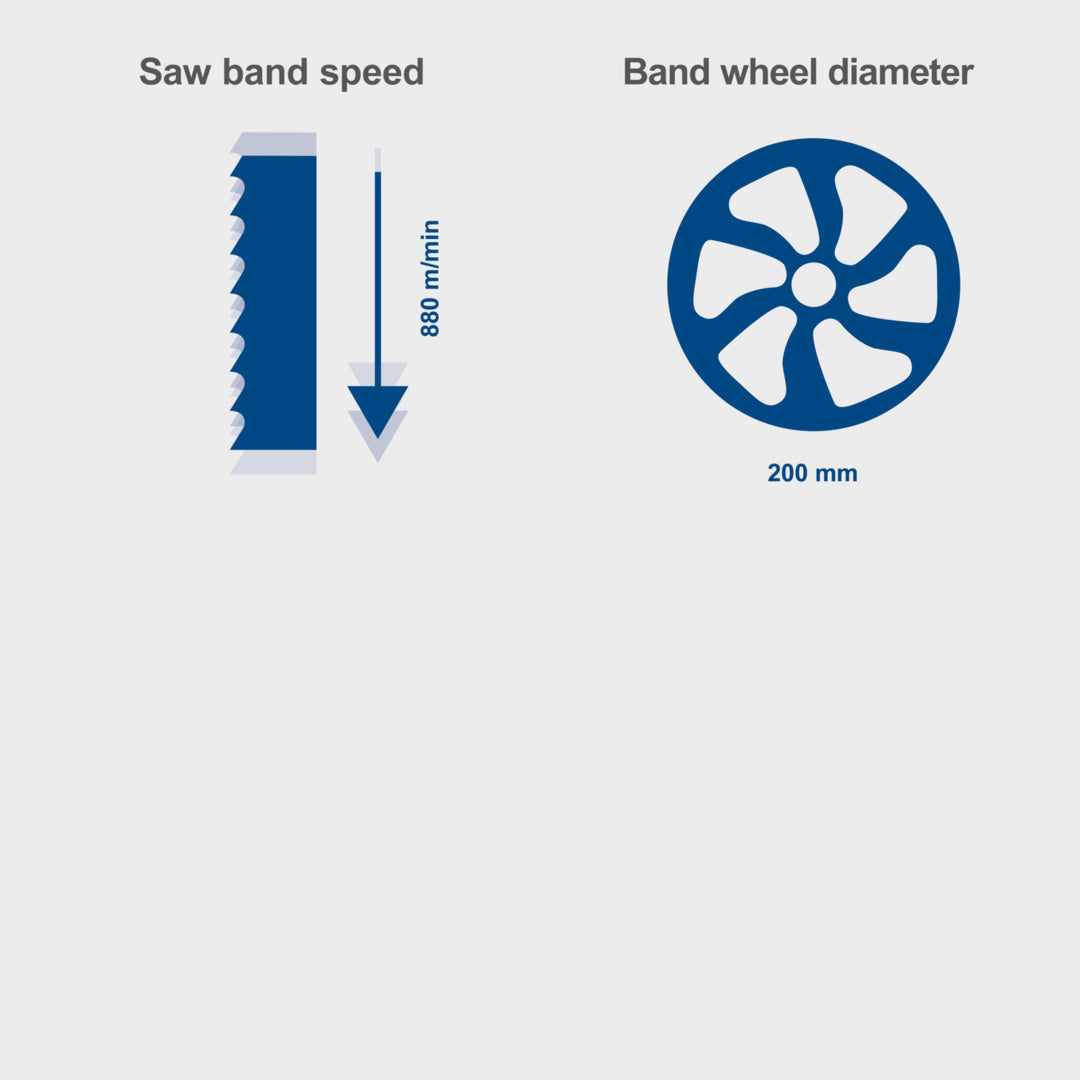

Cutting Speed Max	14.6667 m/sec
Cutting Speed Min	0 m/sec
Cutting Speed Adjustable	No
Speed Adjustable With Steps 1	14.6667 m/sec
Speed Adjustable With Steps 2	14.6667 m/sec
Speed Infinitely Variable	0 n/a
Saw Band Length	1400 mm
Saw Band Thickness Min	0.3 mm
Saw Band Width (Min / Max)	6 mm / 12 mm
Teeth Per Inch	6
Saw Blade Drive	Belt
Belt Size Length	0 n/a
Belt Name / Type	n/a
Bandwheel Diameter	200 mm
Bandwheel Material	Aluminium
Bandwheel Facing Material	Rubber
Table & Frame Features
Table Dimensions (L x W)	300 mm x 300 mm
Table Height	290 mm
Table Thickness	20 mm
Table Top Material	Metal Sheet
Table Tilting Range	0 ° to 45 °
Adjustable Tilting Stop	Yes
Table Extension	No
Table Length / Width With Extension	0 n/a
Table Evenness Along / Crosswise	0.6 mm / 0.6 mm
Suction Connector Inside Diameter	35 mm
Dust Suction Diameter Outside	40 mm
Stand Dimensions (L x W x H)	0 n/a
Working Height Max / With Stand	0 n/a
Under Carriage Material	n/a
Transport Wheels	No
Delivery Content
Delivery Content Text	1x Saw table, 1x Band saw blade (pre-assembled), 1x Parallel stop, 1x Push stick, 1x Slotted screwdriver, 1x Open-ended spanner (size 10/13), 1x Allen key (3 mm), 1x Allen key (4 mm), 1x Allen key (5 mm), 1x Band saw, 1x Operating manual
