Scheppach DP60 Bench Pillar Drill 710W

Name: Scheppach DP60 Bench Pillar Drill 710W
Brand: Scheppach
SKU: D-SCH-5906821905
Price: 159.0 GBP
Availability: InStock

Scheppach DP60 Bench Pillar Drill 710W

£159.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Free standard delivery on this item

Precision digital drilling performance for accurate workshop results.

Combines a powerful 710W motor with an intuitive digital display for exact speed and depth control. Designed to deliver stable, wobble-free drilling in wood, metal, plastic, and tiles.

Features:

2-Speed Gearbox: First gear delivers high torque at lower speeds (170–880 rpm) for hard materials, while second gear provides high speeds (490–2600 rpm) for quick, clean drilling in softer timber.

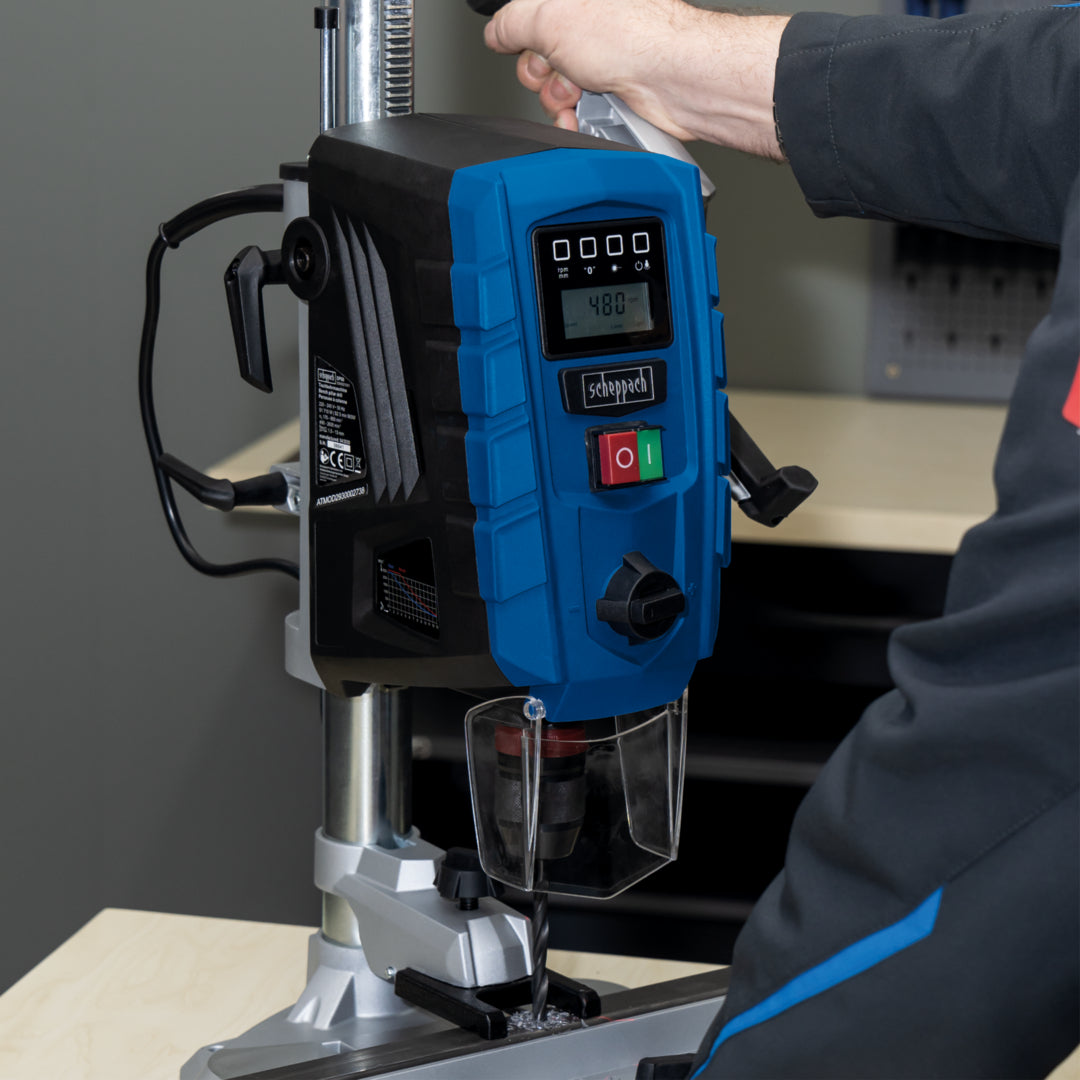

Digital Speed & Depth Display: Allows real-time monitoring and exact adjustment of operational speed and drilling depth up to 100mm, ensuring repeatable accuracy across multi-hole projects.

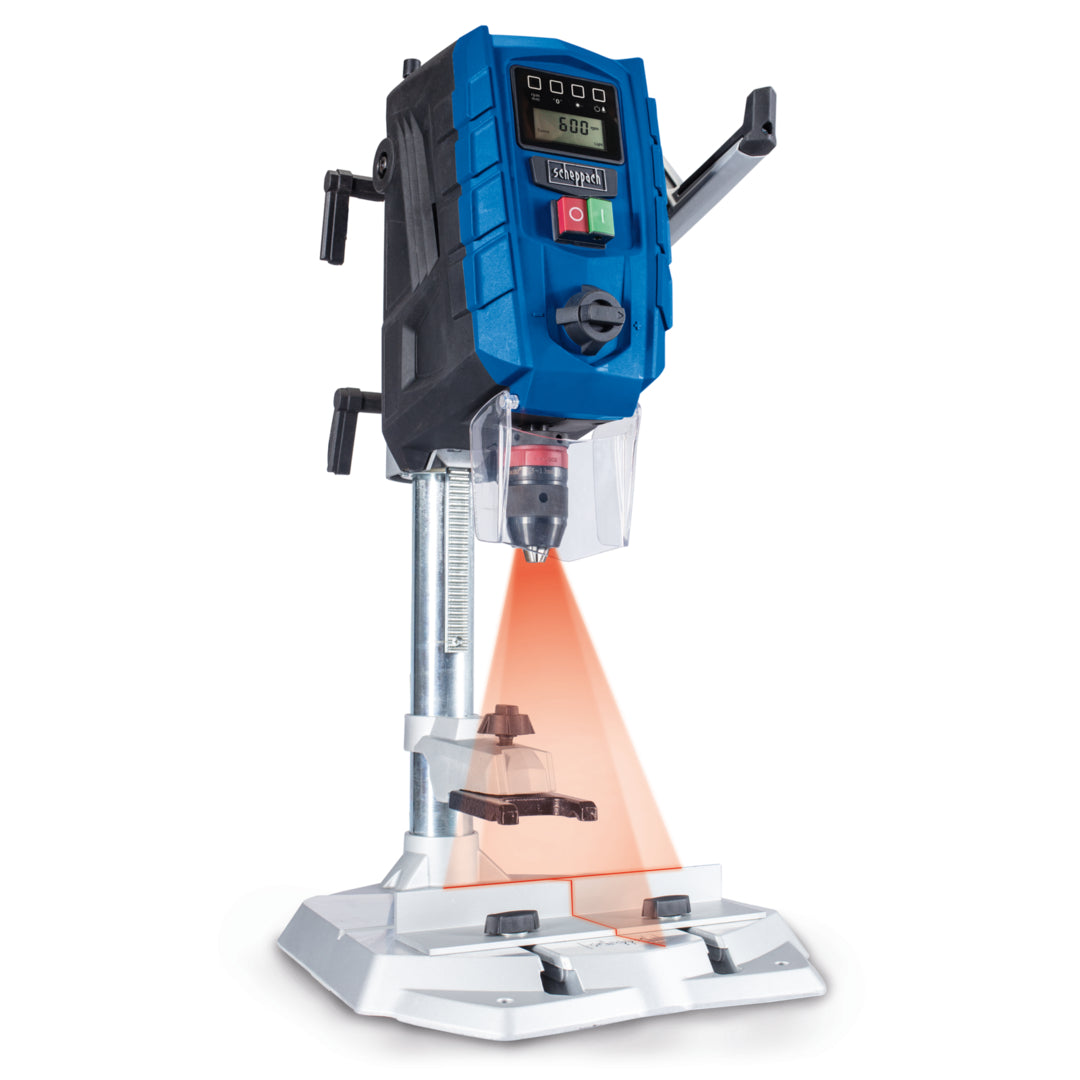

Laser Positioning & LED Light: Features an integrated cross-line laser for pinpoint drill point alignment, alongside a bright LED light to illuminate dark workshop surfaces.
Quick-Release Keyless Chuck: Accepts bit sizes from 1.5mm to 13mm, enabling tool-free bit changes while ensuring firm clamping force during high-torque applications.

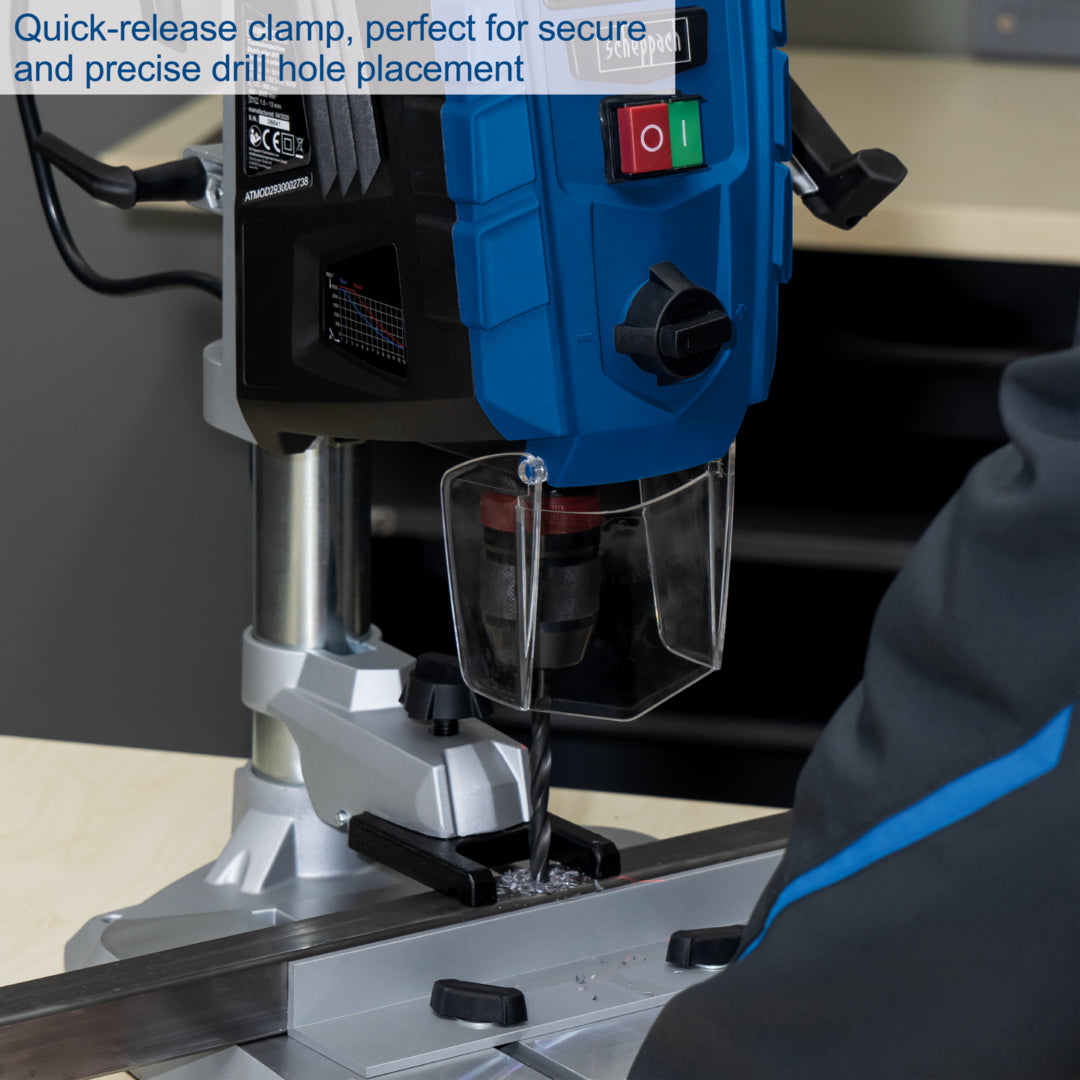

Stable Cast Base & Clamp: Built on a heavy-duty 350 x 300mm base plate with a quick-release clamp that securely holds both flat and round workpieces in position.

Technical Specification

General Details
Title	Bench Drill DP60 Scheppach (DIY) Great Britain
Article Number	5906821905
Model Description	DP60
Machine Group	Bench Drill
EAN	4046664284468
Mass Gross	11.54 kg
Mass Net	9.4 kg
General Dimensions (L x W x H)	400.0 mm x 300.0 mm x 660.0 mm
Motor & Power Performance
General Drive Type	Electro
Subgrouping Drive Type	230V
Type of Motor	Brush Motor
Voltage	220-240 V
Frequency	50 Hz
Nominal Current	4.0 A
Continuous Power Consumption S1 (W)	710.0 W
Continuous Power Consumption S1 (hp)	1.0 PS
Power Consumption in Operating Mode 1	900.0 W
Power Consumption in Operating Mode 2	0.0 n/a
Operating Mode 2	n/a
Efficiency	50.0 %
Motor Speed (Min / Max)	170.0 1/min / 2600.0 1/min
Battery Included	No
Appliance Class	Class II
Insulation Class	B (max. motor temp. 130°C)
Protection Class Electro / Degree of Protection	IP 20
Motor Protection	Yes
Motor Brake Type	None
Soft Start	Yes
Cable Length	2000.0 mm
Phase Changing Switch 400 V in Plug New	No
Switch with No Voltage Release New	Yes
Bench Drill Specifications
Baseplate Dimensions (L x W)	330 mm x 300 mm
Floor Plate Material	Aluminium
Floor Plate T-Slots Width	8.5 mm / 13.0 mm
Chuck Taper	B16
Quick Release Chuck	Yes
Drill Diameter With Chuck (Min / Max)	1.5 mm / 13.0 mm
Drill Diameter Without Chuck Max	0.0 n/a
Drilling Depth Max	100.0 mm
Distance Chuck Column	125.0 mm
Column Dimensions (Diameter x Length)	46.0 mm x 640.0 mm
Height Adjustment Via	Handwheel
Table Dimensions (Length x Width)	0.0 n/a x 0.0 n/a
Table Material	Aluminium
Table T-Slots Dimensions (L x W)	260.0 mm x 10.0 mm
Table Tilting Range	n/a
Belt Name / Belt Type	n/a
Chip Guard Foldable With End Switch	No
Laser Features
Wavelength of Laser	650.0 nm
Nominal Voltage Laser	3 V
Laser Batteries Count	0 n/a
Laser Battery Voltage	0.0 n/a
Protection Class Laser	Protection Class II / protection by double or reinforced insulation
Sound & Vibration Emissions
Sound Power Level Lw(A)	102.6 dB
Sound Pressure Level Lp(A)	89.6 dB
Guaranteed Sound Power Level Lw(A)	0.0 n/a
Measured Sound Power Level Lw(A)	0.0 n/a
Uncertainty KpA	3.0 dB
Uncertainty KwA	3.0 dB
Uncertainty k	0.0 dB
Vibration Emission Value Ah	0.0 m/sec²
Delivery Content
Delivery Content Text	1x drilling machine, 1x quick clamp, 1x base plate, 1x parallel stop, 1x handle, 1x chuck guard, 2x screws 3.0 x 12, 1x clamping lever, 1x depth stop, 1x Allen key (4 mm), 1x open-ended spanner (flat, 16 mm), 1x screw bag (4 screws M8 x 50, 4 nuts M8, 8 washers), 1x operating manual
