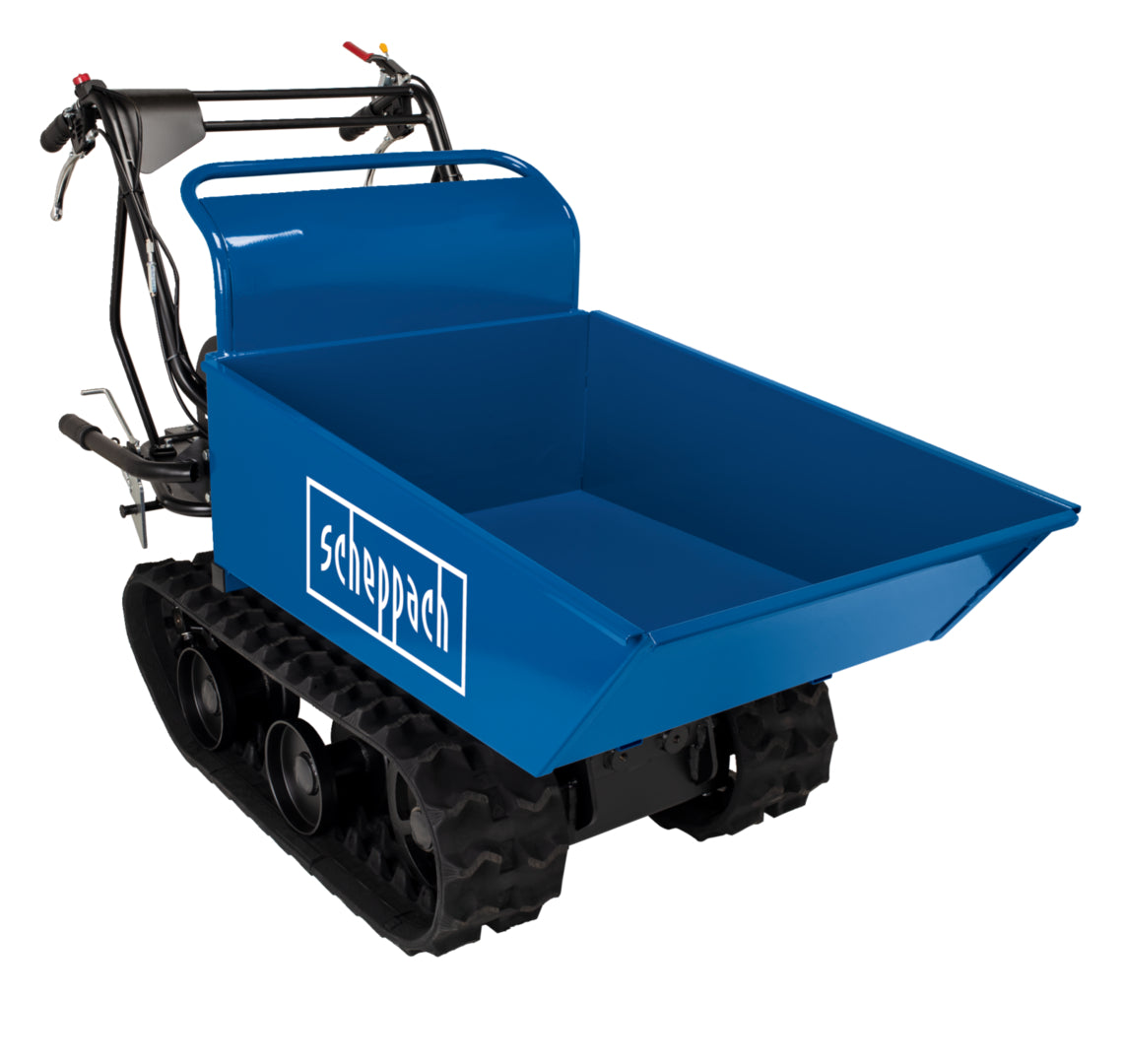

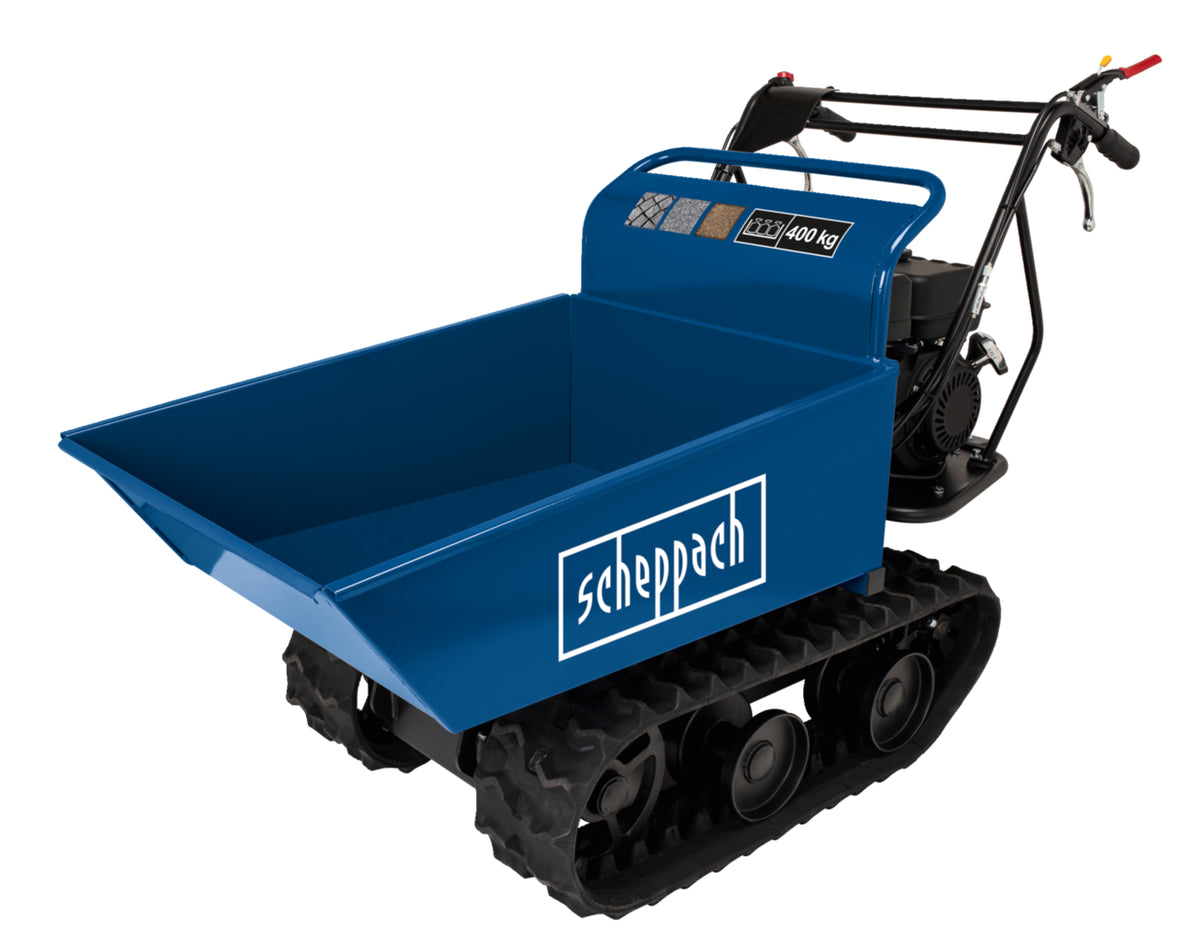

Scheppach DP4500 Petrol Dumper - 300kg Payload

Scheppach DP4500 Petrol Dumper - 300kg Payload

Online Exlusive
Regular price £1,699.00
Regular price Sale price £1,699.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Free standard delivery on this item

Transport heavy building materials, soil, and gravel across difficult terrain with ease.

This robust tracked mini dumper combines a powerful 5.6 hp petrol engine with a 300 kg payload capacity. Designed to tackle slippery, muddy, and uneven ground, it provides a dependable transport solution for construction sites, agriculture, and landscaping tasks.

Features:

  • Powerful 5.6 hp Petrol Engine: Driven by a robust 4.1 kW 4-stroke petrol engine that provides reliable drive to haul heavy payloads across demanding sites.

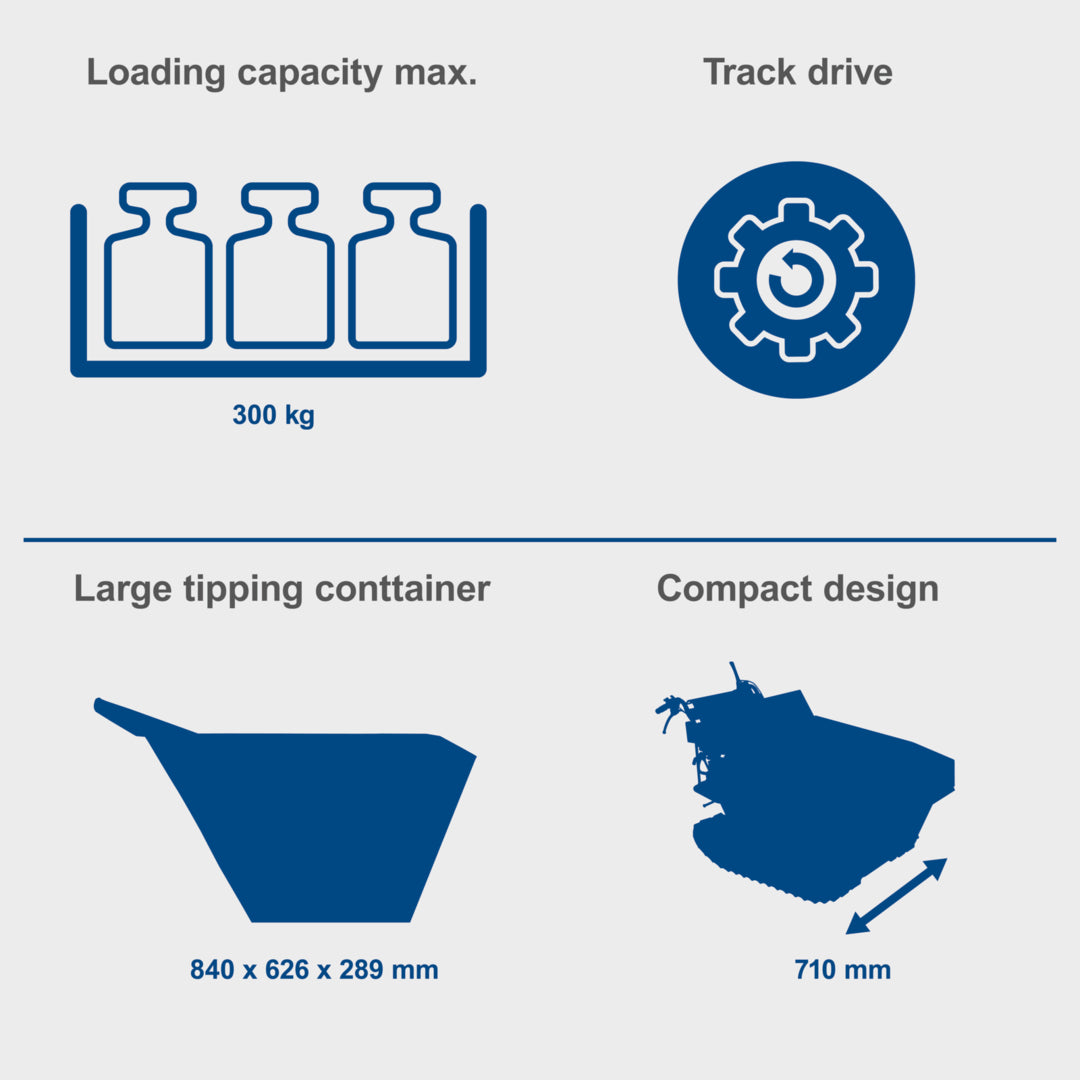

  • Heavy-Duty 300 kg Payload: Large steel tipping container with a 115.8-litre capacity easily handles heavy building rubble, wet soil, gravel, and timber logs.
  • All-Terrain Track Drive System: Continuous rubber tracks distribute weight evenly, delivering superior traction and stability on muddy, smooth, or inclined ground.

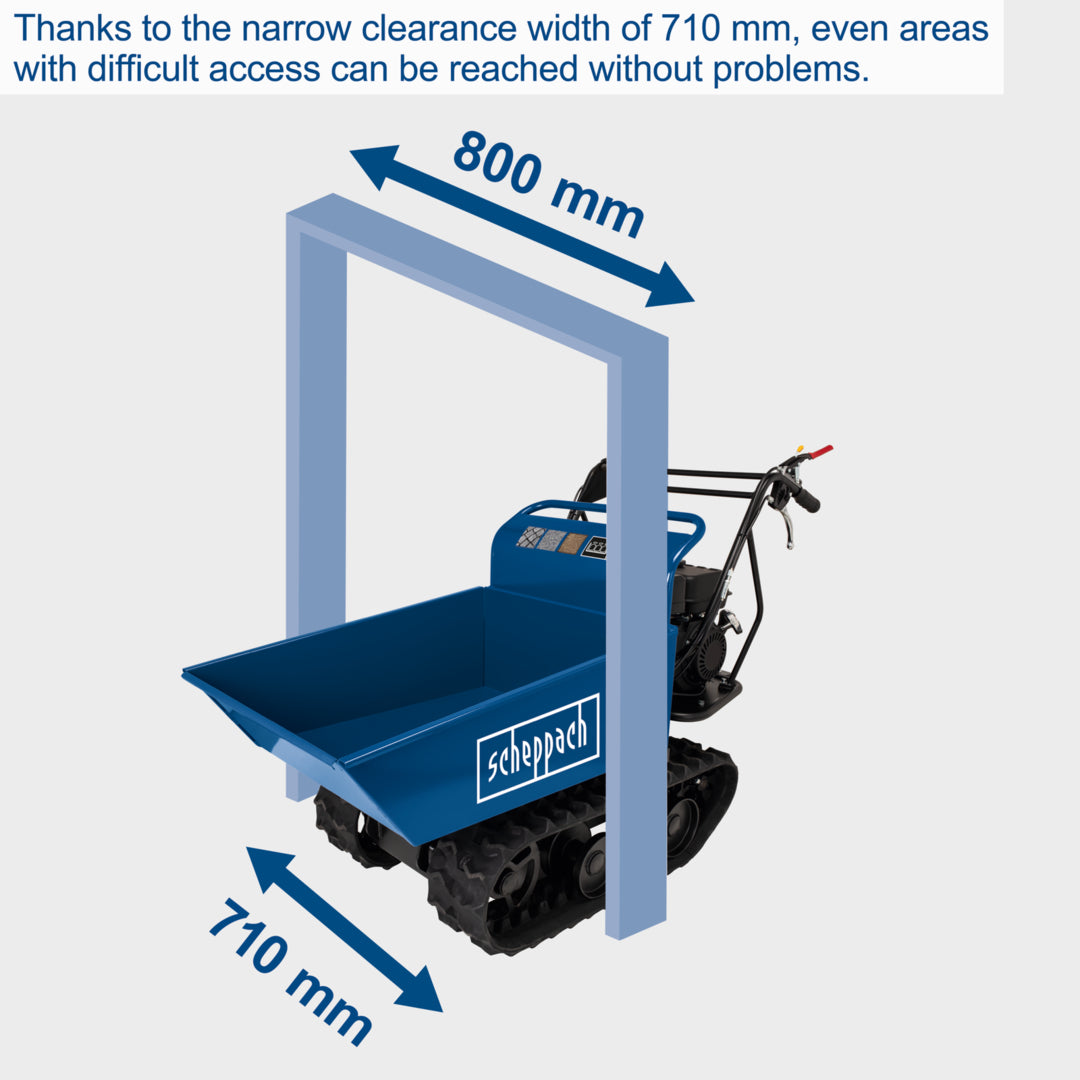

  • Narrow 710 mm Passage Width: Compact frame allows the dumper to navigate through standard garden gates, narrow alleyways, and restricted work sites with ease.

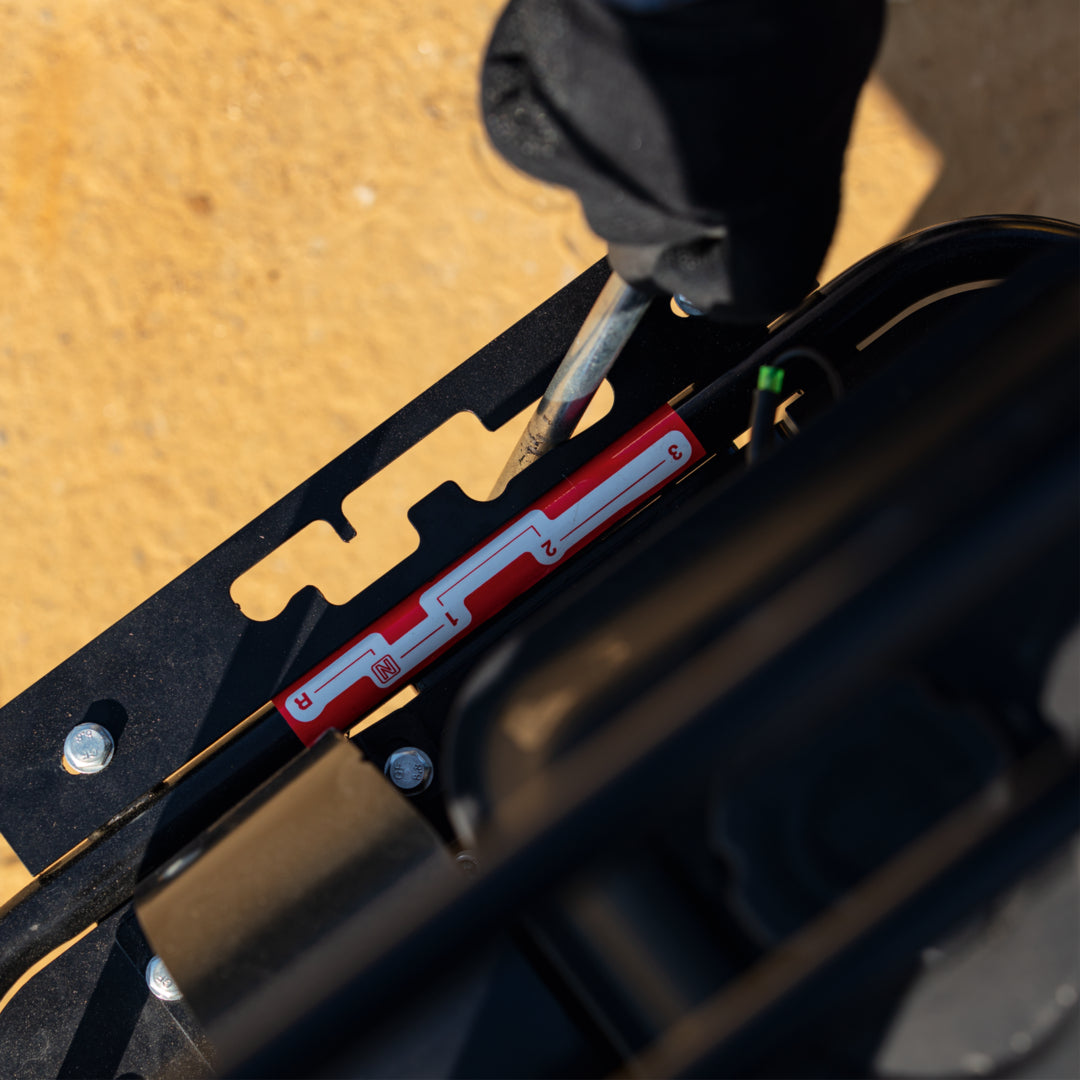

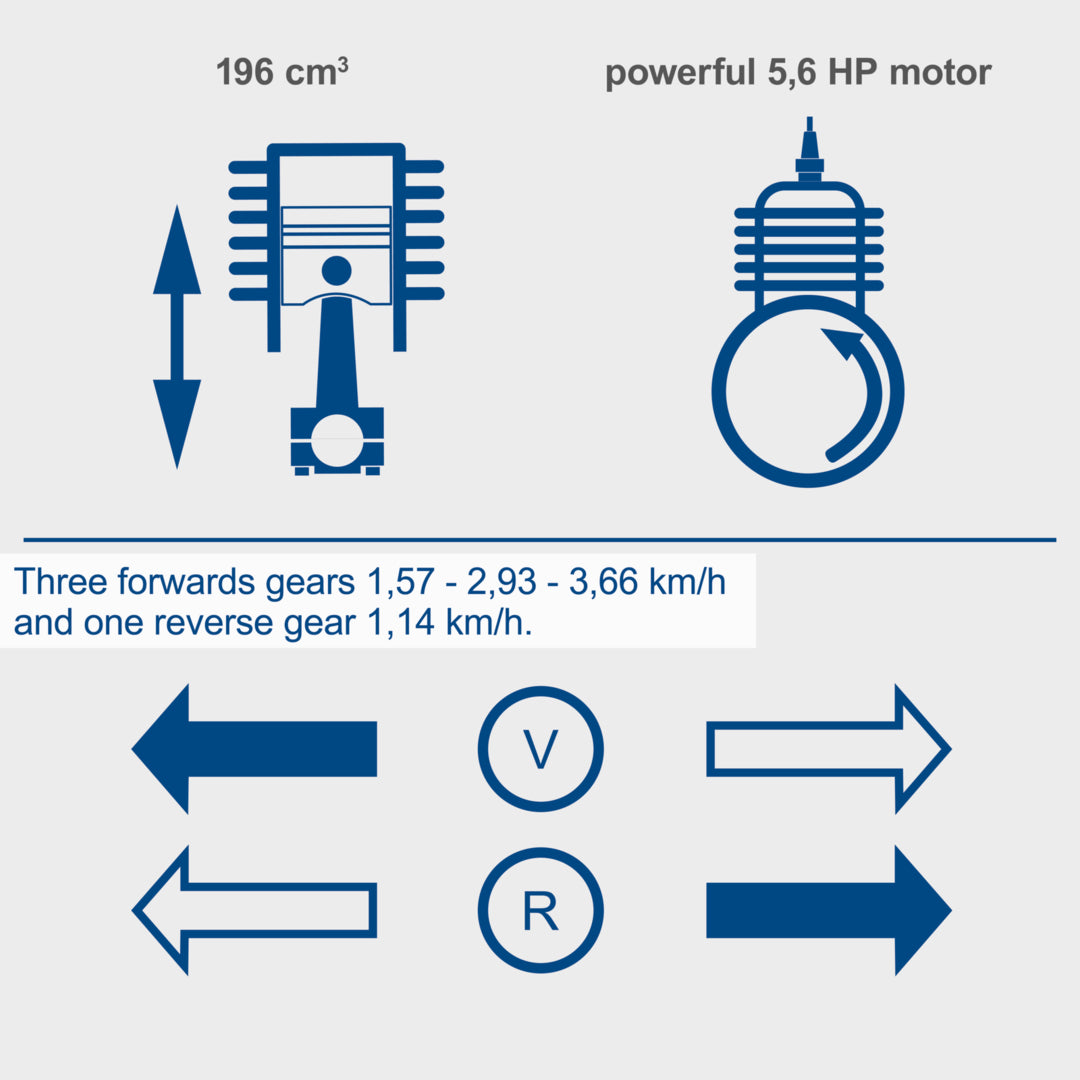

  • Multi-Speed Gearbox: Features three forward gears reaching up to 3.66 km/h and one reverse gear up to 1.14 km/h for complete control in tight spots.

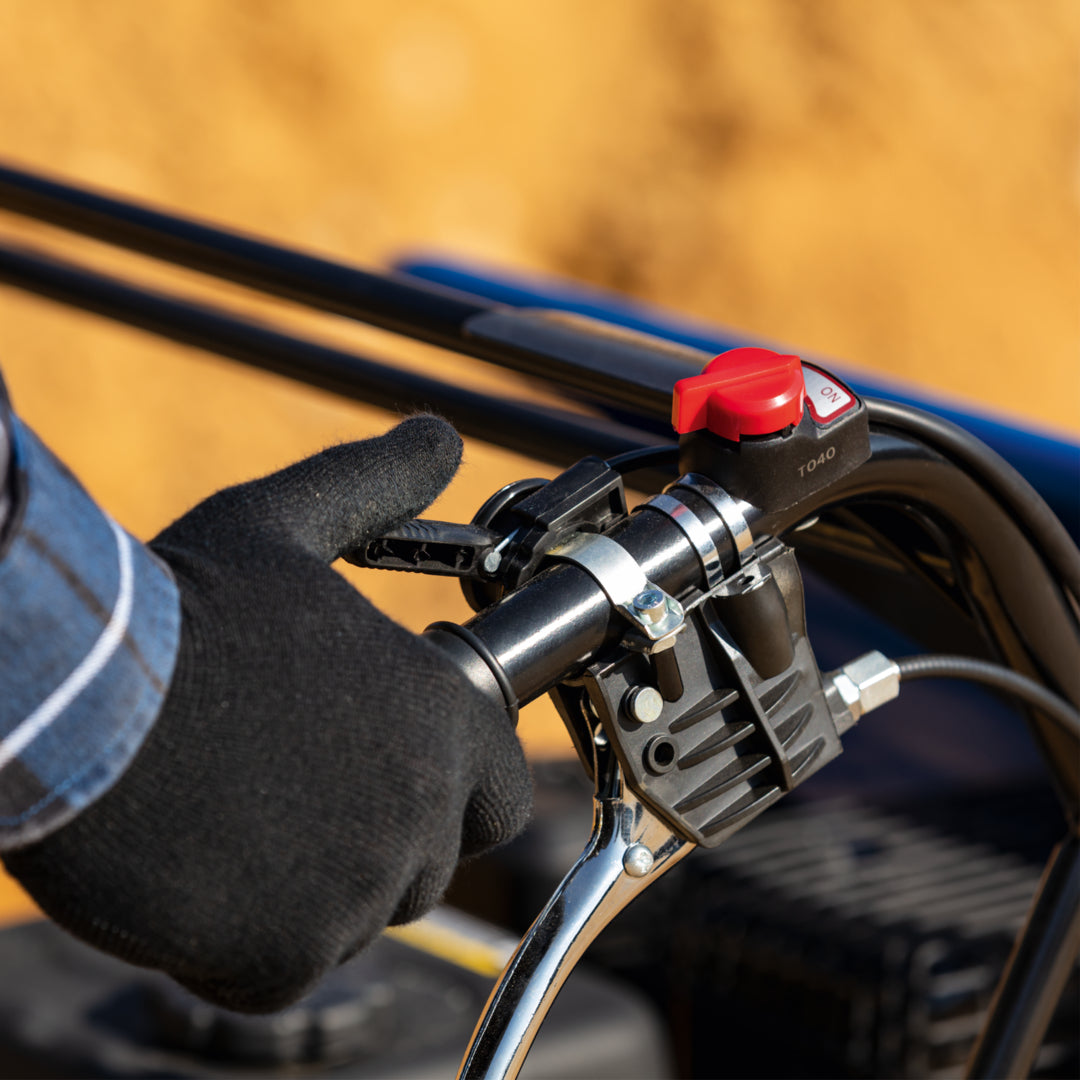

  • Ergonomic Handle Navigation: Steering and travel direction are controlled via intuitive handle levers, giving you precise, responsive handling when fully loaded.

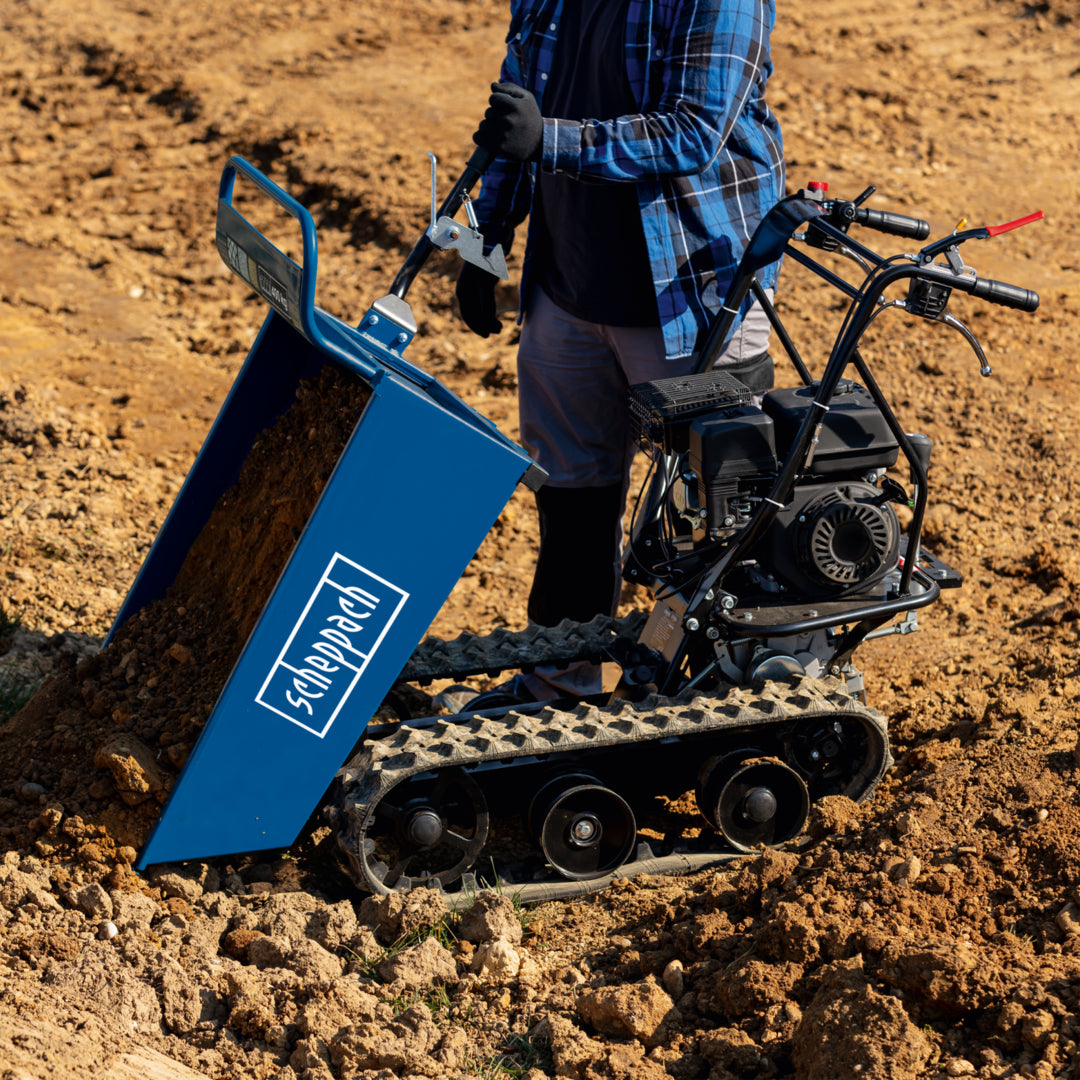

  • Manual Tipping Container: Sturdy 840 x 626 x 289 mm skip features an easy-to-operate tipping mechanism for controlled, efficient unloading of loose goods.
  • Stable Tip-Proof Chassis: Weighs 176 kg when empty, maintaining a low centre of gravity to prevent tipping over uneven ground.

Technical Specification

General Details
Title Scheppach DP4500 dumper (DIY)
Model Description DP4500
Machine Group Dumper
Article Number 5908805904
EAN 4046664134336
Net Weight 172.0 kg
Gross Weight 210.0 kg
General Dimensions (L x W x H) 1530.0 mm x 710.0 mm x 1050.0 mm
Dumper Performance & Capacity
Maximum Load Weight 400 kg
Tub Volume 115.8 l
Tub Dimensions (L x W x H) 840.0 mm x 626.0 mm x 289.0 mm
Tiltable / Incline Angle By hand / 20°
Forward Speeds (1 / 2 / 3) 1.57 km/h / 2.93 km/h / 3.66 km/h
Reverse Speed 1 1.14 km/h
Track Width 180.0 mm
Grip Distance / Handle Height 562.0 mm / 880 mm
Engine & Drive Specifications
Drive Type General Internal combustion engine
Engine Type / Subgrouping Drive Type 4-stroke engine
Engine Displacement 196.0 cm³
Power Output 4.1 kW / 5.6 hp
Maximum Speed / Engine Idle Speed 4000.0 1/min / 1700.0 1/min
Starter Type Cable pull
Coolant Air
Fuel Tank Capacity 3.6 l
Octane Rating Min 92
Engine Oil Quantity / Motor Oil Included 0.6 l / No
Spark Plug Type F7RTC
Emission Class Euro V
Emissions & Noise Levels
Sound Power Level Lw(A) 99.4 dB
Measured Sound Power Lw(A) 99.4 dB
Guaranteed Sound Power Lw(A) 101.0 dB
Sound Pressure Level Lp(A) 79.4 dB
Uncertainty K / KpA / KwA 1.5 dB / 2.0 dB / 2.0 dB
Vibration Emission Value ah 10.5 m/sec²
Scope of Delivery
Scope of Delivery Text 1x DP4500 dumper, 1x spark plug wrench, 1x accessory bag, 1x instruction manual
