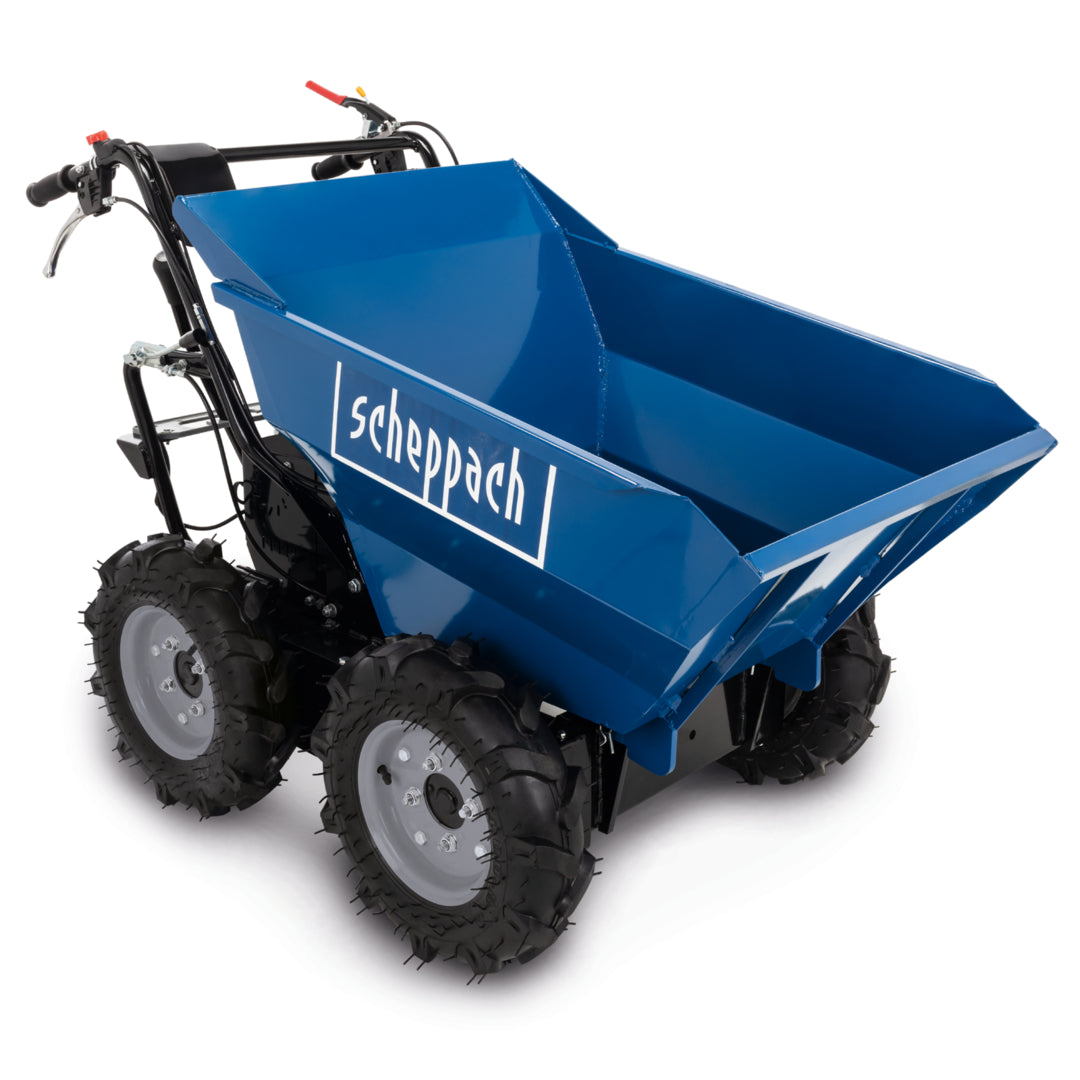

Scheppach DP3000 AWD Petrol Dumper
Scheppach DP3000 AWD Petrol Dumper
No reviews
Regular price
£1,199.00
Regular price
Sale price
£1,199.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

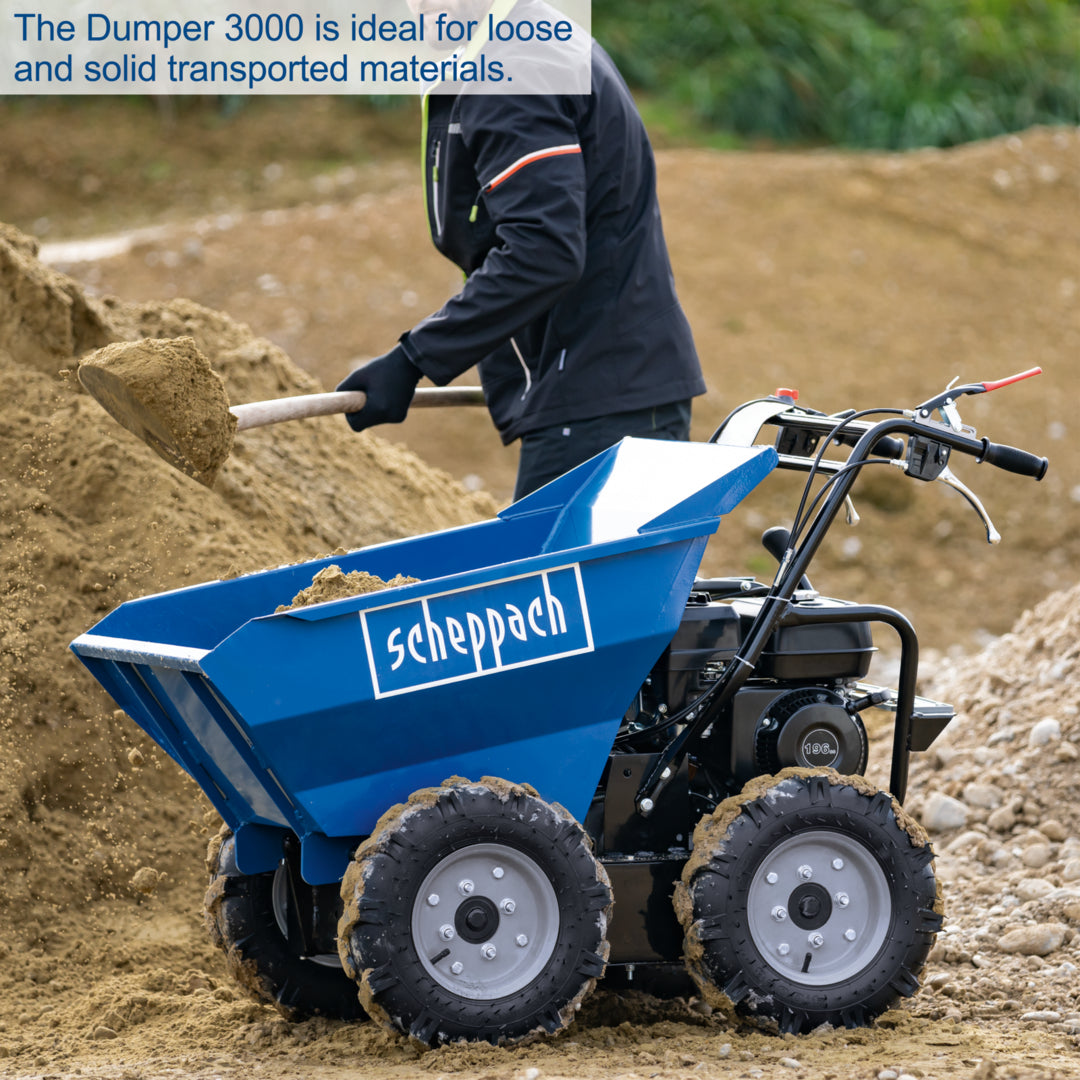

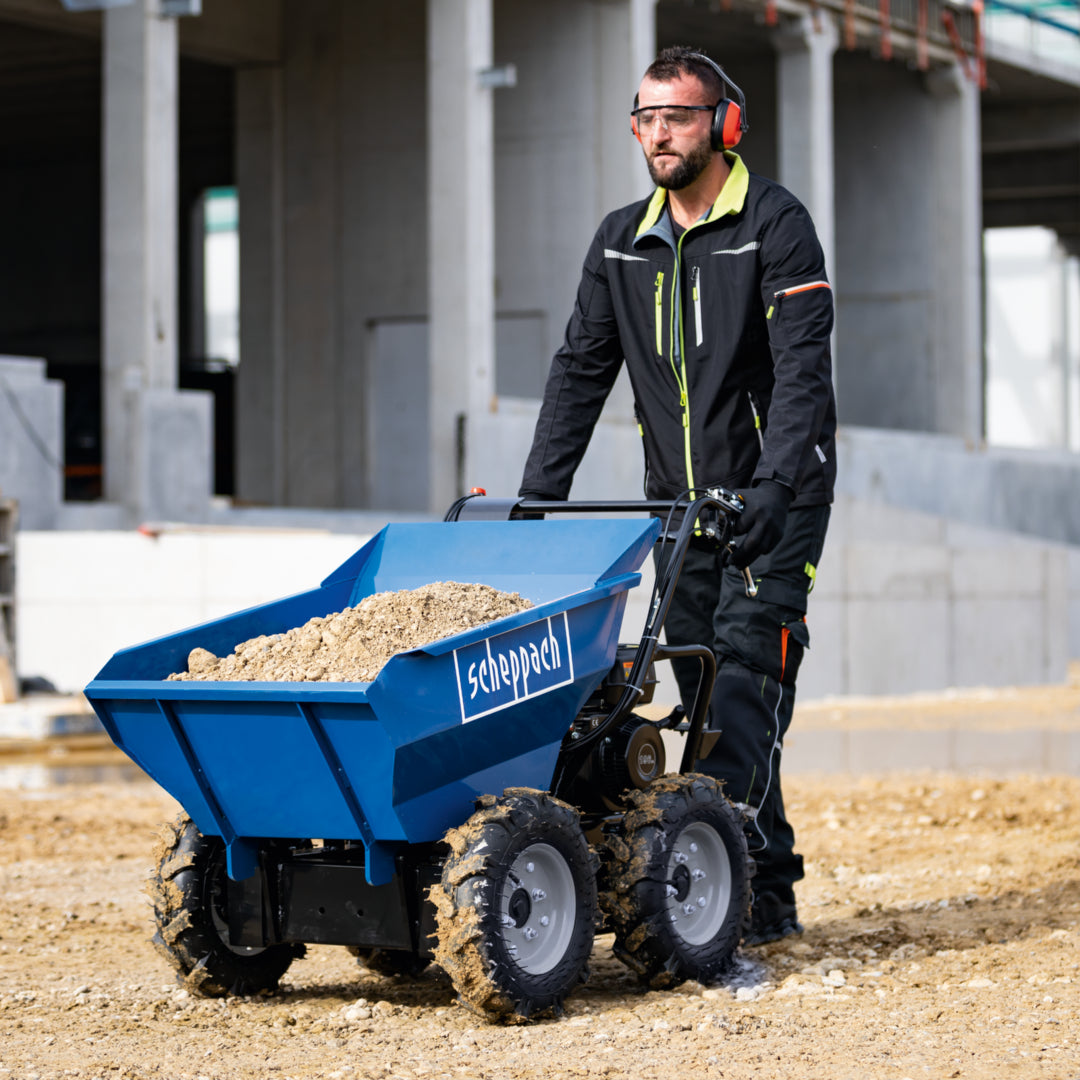

Transport heavy building materials, soil, and aggregate across rough ground with ease.
This robust four-wheel drive mini dumper pairs a powerful 5.6 hp petrol engine with pneumatic off-road tyres to tackle uneven, muddy, and sloped terrain. Designed for site work, agriculture, and landscaping tasks, it provides a dependable, highly manoeuvrable hauling solution.

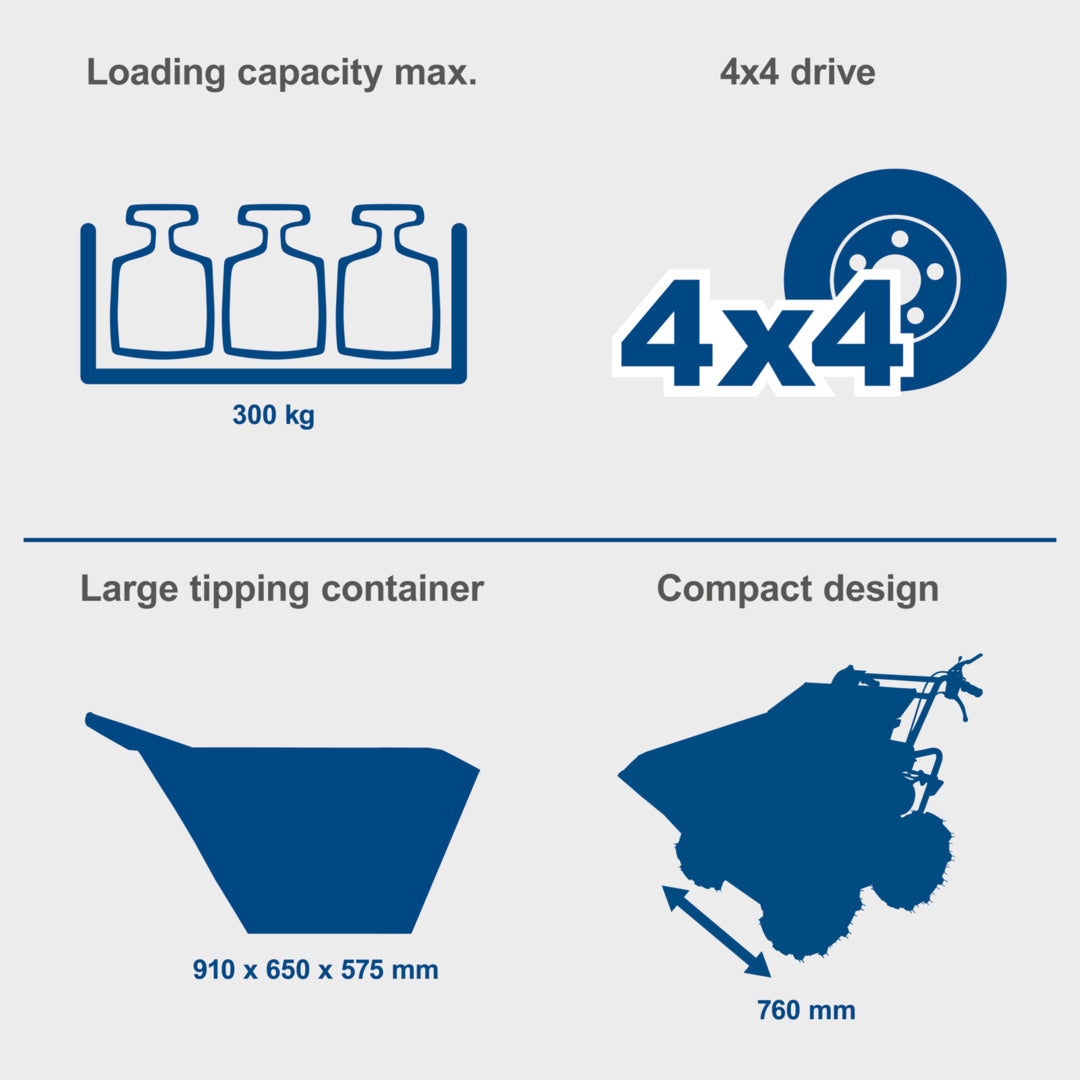

Features:
- Powerful 5.6 hp Petrol Engine: Driven by a robust 4.1 kW 4-stroke engine that supplies consistent power to move heavy loads with minimal operator effort.
- Four-Wheel Drive Traction: All-wheel drive mechanism combined with air-filled, deep-tread off-road tyres ensures maximum grip on slippery, smooth, or muddy surfaces.
- Heavy-Duty 300 kg Payload: Large steel tipping container measuring 912 x 650 x 560 mm easily handles rubble, gravel, soil, timber, and bagged materials.
- Slim 70 cm Chassis Width: Compact profile allows the dumper to navigate narrow pathways, standard garden gates, and restricted work sites without difficulty.

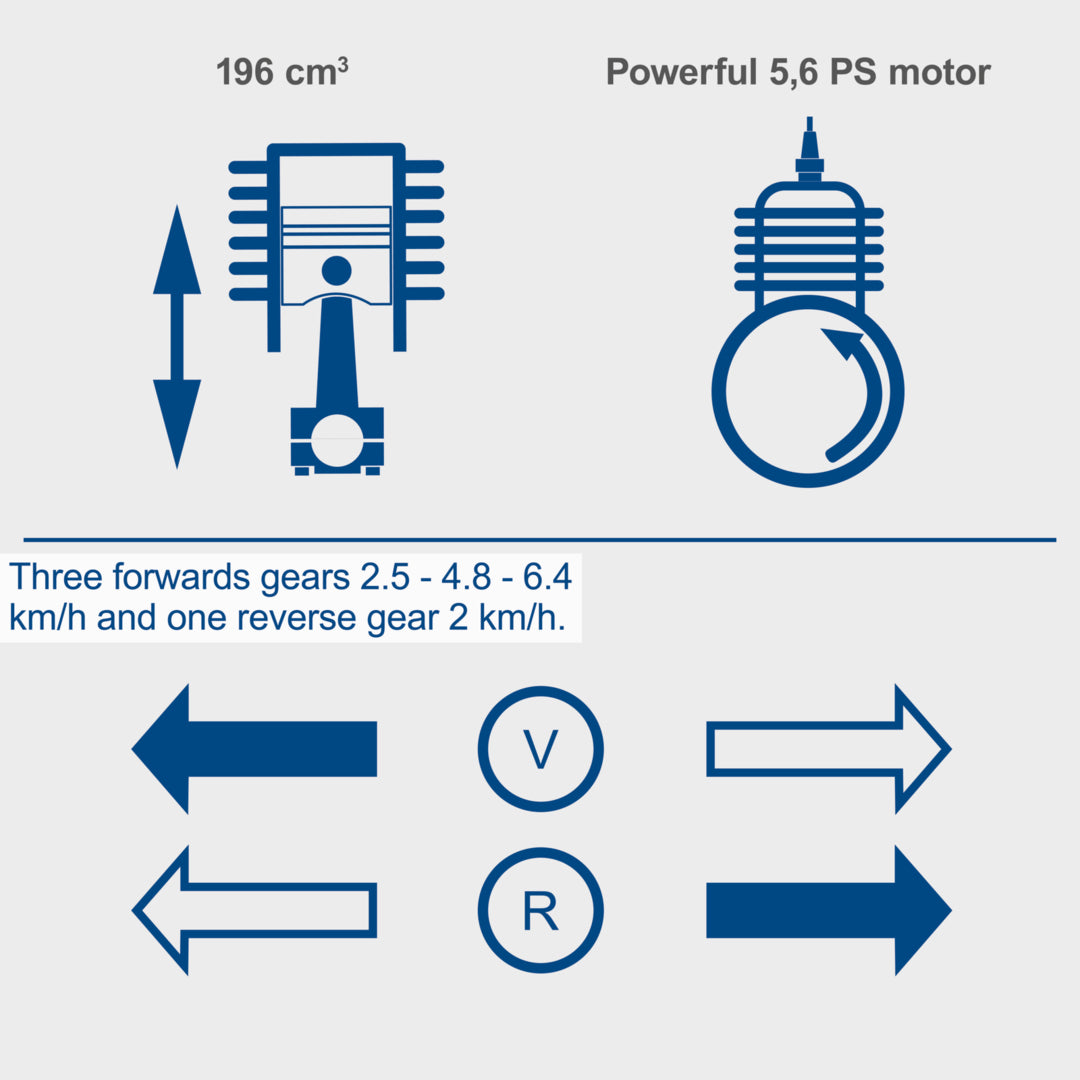

- Versatile Multi-Speed Gearbox: Features three forward gears reaching speeds up to 6.4 km/h and one reverse gear up to 2 km/h for total control in tight areas.
- Intuitive Handlebar Controls: Travel direction, gear selection, and steering are conveniently controlled right from the handles for responsive operation.

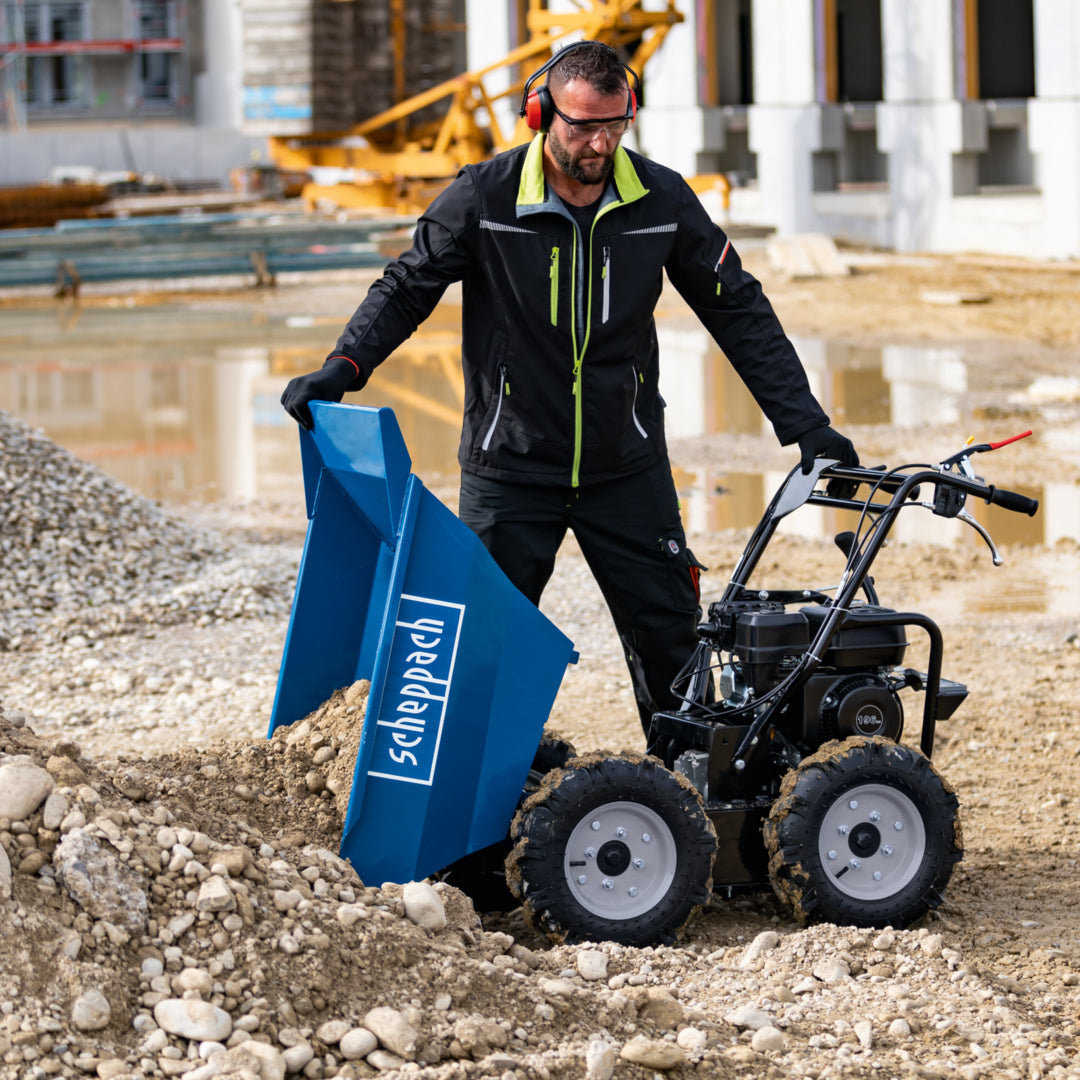

- Manual Tipping Container: Simple, mechanical tipping mechanism enables quick, controlled unloading of loose materials exactly where they are needed.
- Stable Tip-Proof Construction: Weighs 143 kg when unladen, maintaining a low centre of gravity for superior stability across uneven ground.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach DP3100 dumper (DIY) |
| Model Description | DP3100 |
| Machine Group | Dumper |
| Article Number | 59088029942 |
| EAN | 4046664111863 |
| Net Weight | 145.8 kg |
| Gross Weight | 167.6 kg |
| General Dimensions (L x W x H) | 1380 mm x 760 mm x 985 mm |
| Dumper Performance & Capacity | |
| Maximum Load Weight | 300.0 kg |
| Tub Volume | 125.0 l |
| Tub Dimensions (L x W x H) | 912.0 mm x 650.0 mm x 560.0 mm |
| Tiltable / Incline Angle | By hand / 20° |
| Promotion By | Wheels |
| Wheel Diameter / Track Width | 400.0 mm / 700.0 mm |
| Number of Forward Speeds | 3 |
| Forward Speeds (1 / 2 / 3) | 2.5 km/h / 4.8 km/h / 6.4 km/h |
| Number of Reverse Speeds / Speed | 1 / 2.0 km/h |
| Cylinder Stroke | 0.0 n/a |
| Grip Distance / Handle Height | 570.0 mm / 890.0 mm |
| Engine & Drive Specifications | |
| Drive Type General | Internal Combustion Engine |
| Engine Type / Subgrouping Drive Type | 4-Stroke Engine |
| Engine Displacement | 196.0 cm³ |
| Power Output | 4.1 kW / 5.6 hp |
| Maximum Speed / Engine Idle Speed | 3600.0 1/min / 3000.0 1/min |
| Starter Type | Cable Pull |
| Coolant | Air |
| Fuel Tank Capacity | 3.6 l |
| Octane Rating Min / E10 Suitable | 90 / No |
| Engine Oil Type / Quantity / Oil Included | 10W30 / 0.6 l / No |
| Oil/Petrol Mixture Ratio | n/a |
| Spark Plug Type | F7RTC |
| Battery Included | No |
| Emission Class / CO² Emissions | Euro V / 811.46 g/kWh |
| Emissions & Noise Levels | |
| Guaranteed Sound Power Lw(A) | 98.0 dB |
| Measured Sound Power Lw(A) | 95.8 dB |
| Sound Power Level Lw(A) | 0.0 n/a |
| Sound Pressure Level Lp(A) | 84.7 dB |
| Uncertainty KwA / KpA / K | 1.97 dB / 3.0 dB / 1.5 m/sec² |
| Vibration Emission Value ah (Left / Right Hand) | 3.92 m/sec² / 3.92 m/sec² |
| Scope of Delivery | |
| Scope of Delivery Text | • 1x Dumper • 1x Transport tub • 1x Wheels • 1x Gear selector lever • 1x Linkage • 1x Bag of mounting hardware • 1x Spark plug wrench • 1x Operating instructions |
SKU: D-SCH-5908802903
MPN: 5908802903
ID: D-SCH-5908802903
