Scheppach DP16SL 550W Bench Drill Press 13mm 230V
Scheppach DP16SL 550W Bench Drill Press 13mm 230V
Regular price
£179.00
Regular price
Sale price
£179.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

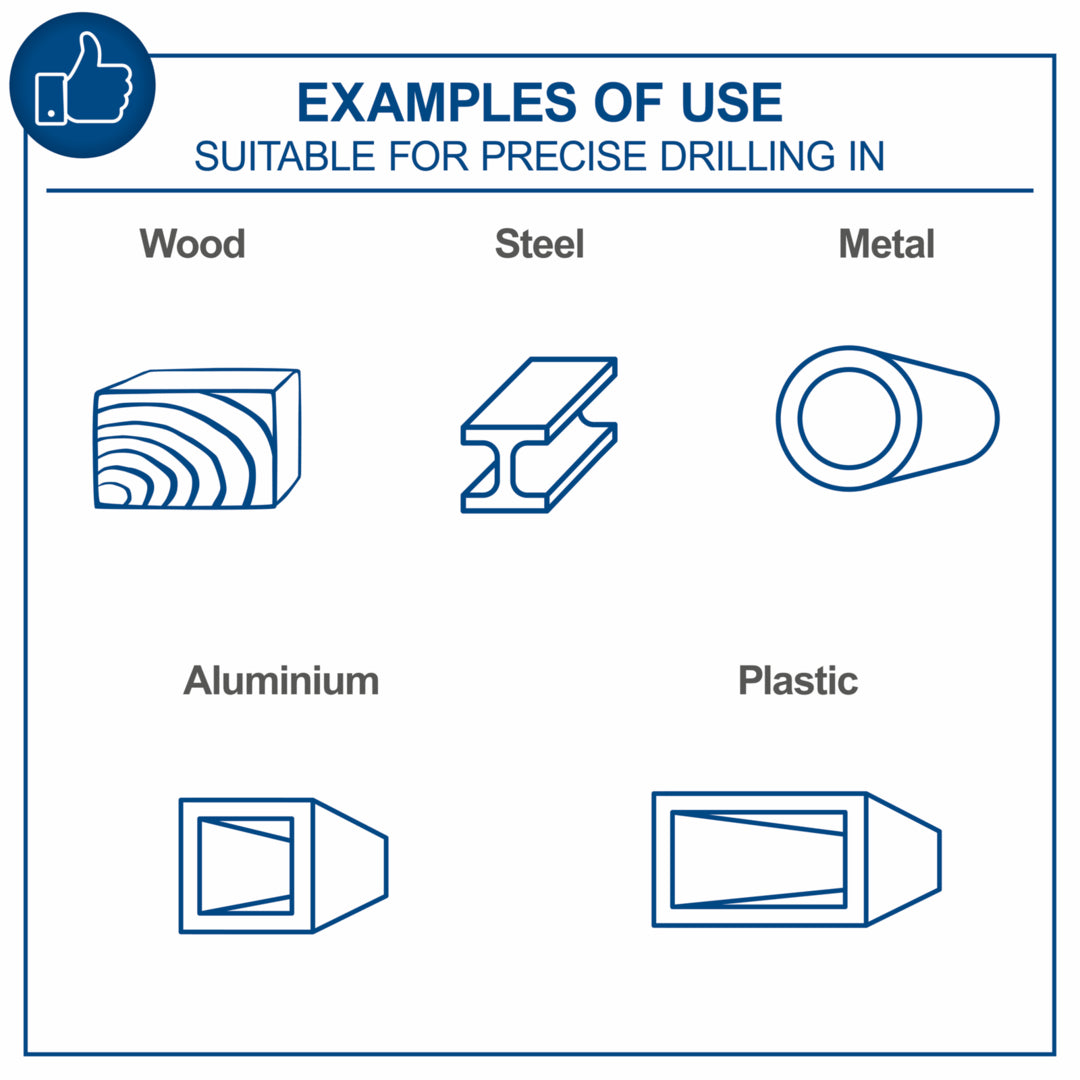

Achieve pinpoint accuracy and controlled drilling across timber, metal, and plastics.

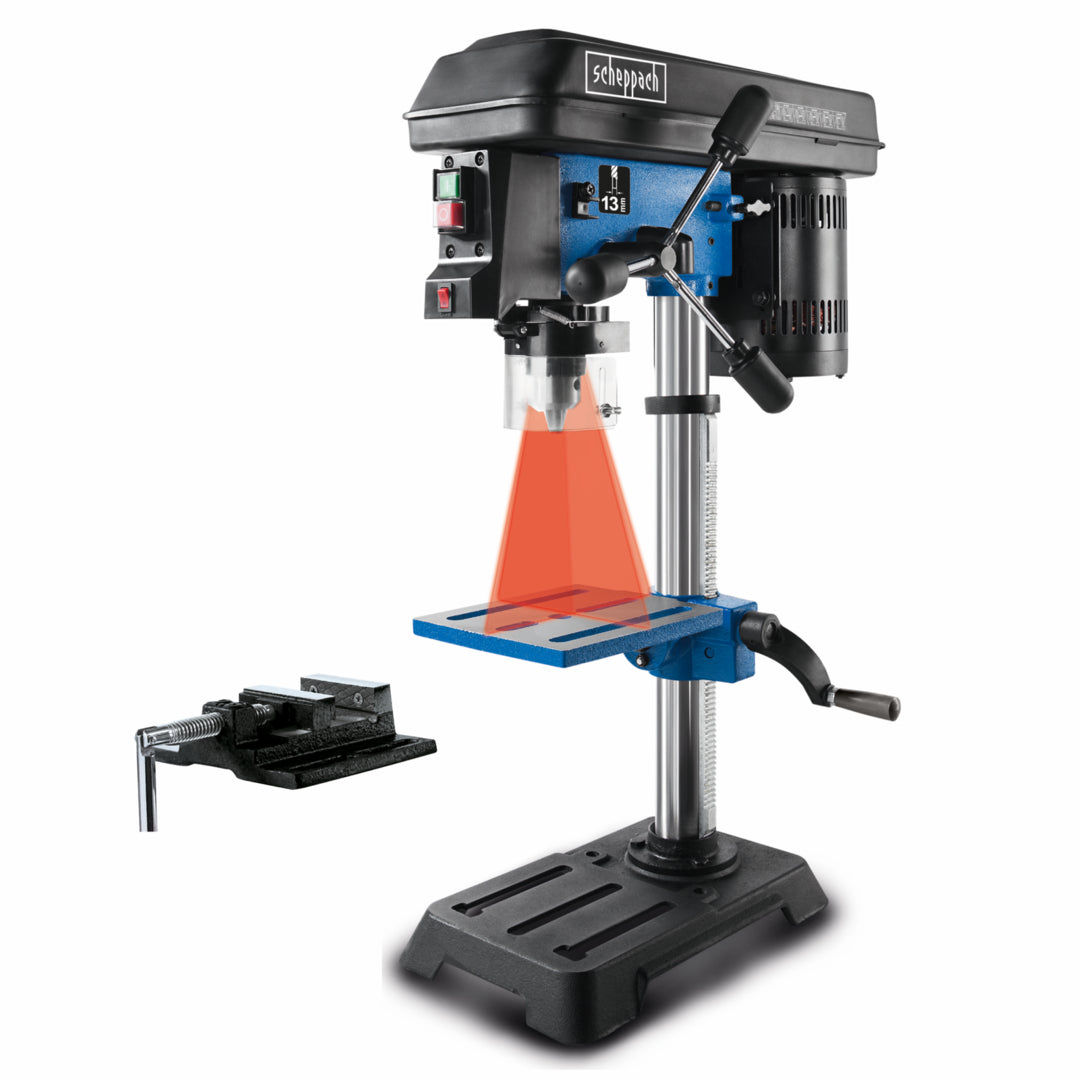

A reliable 550W belt-driven bench pillar drill equipped with a laser crosshair, 5 selectable speed settings, and a tilting cast iron worktable for home workshops and light trade work.
Why Choose the Scheppach DP16SL?
- Dependable 550W induction motor: Operates smoothly and quietly, driving a durable 5-step pulley belt system to match speed and torque to the workpiece material.

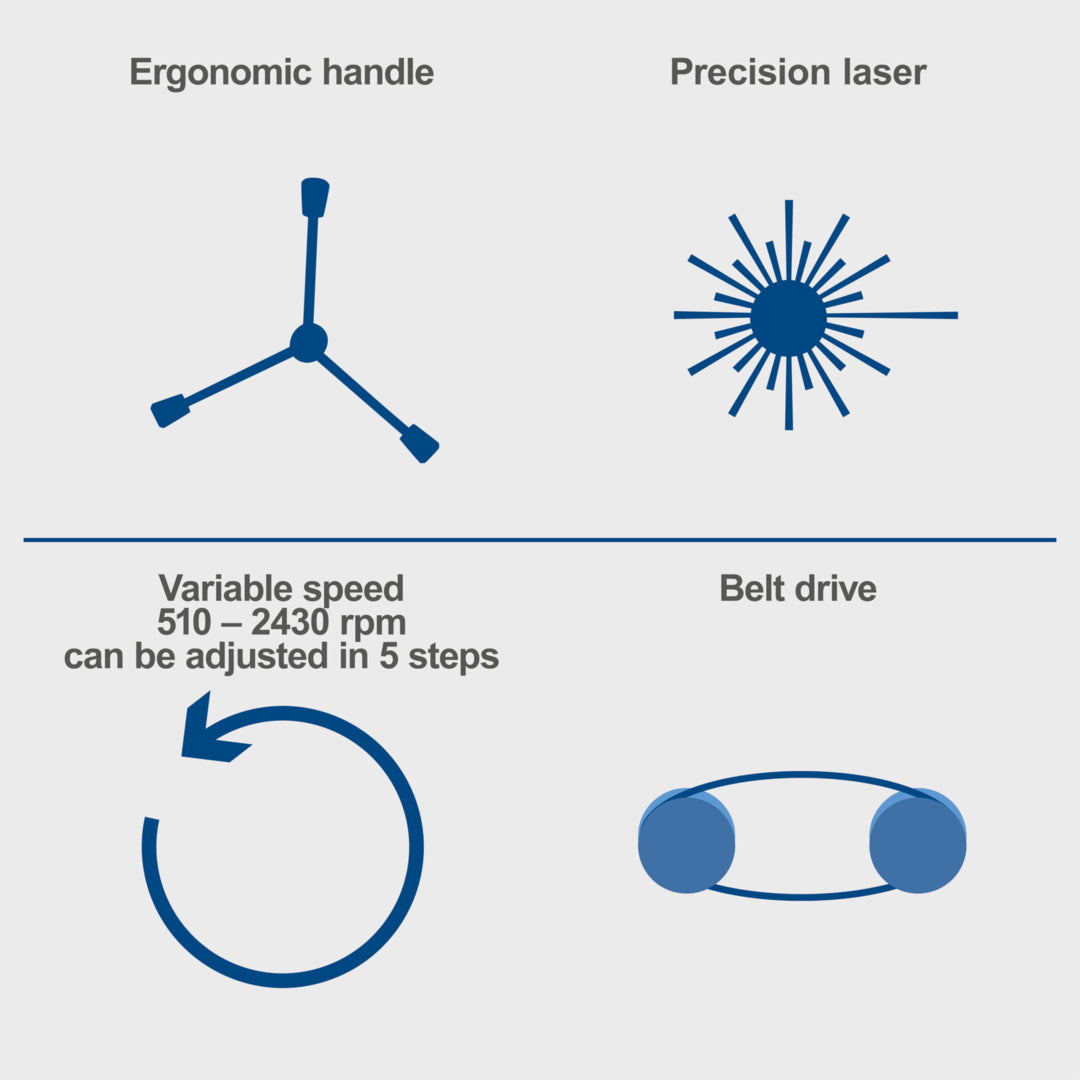

- 5 selectable speed settings: Easily switch between 510, 800, 1300, 1800, and 2430 rpm to ensure clean, accurate holes without overheating drill bits or burning timber.

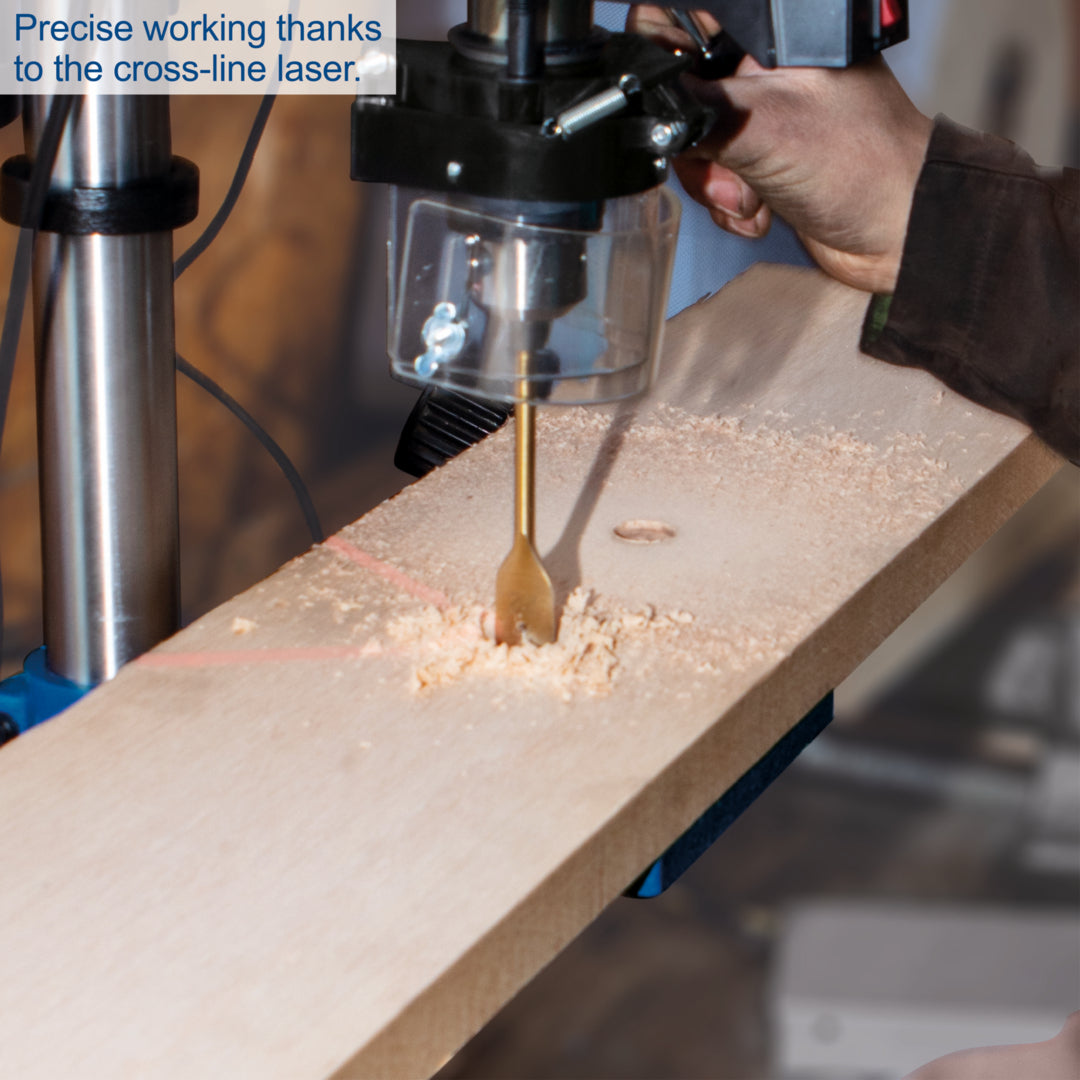

- Integrated laser crosshair: Projects a precise alignment point onto your material, eliminating guesswork and speeding up batch drilling tasks.

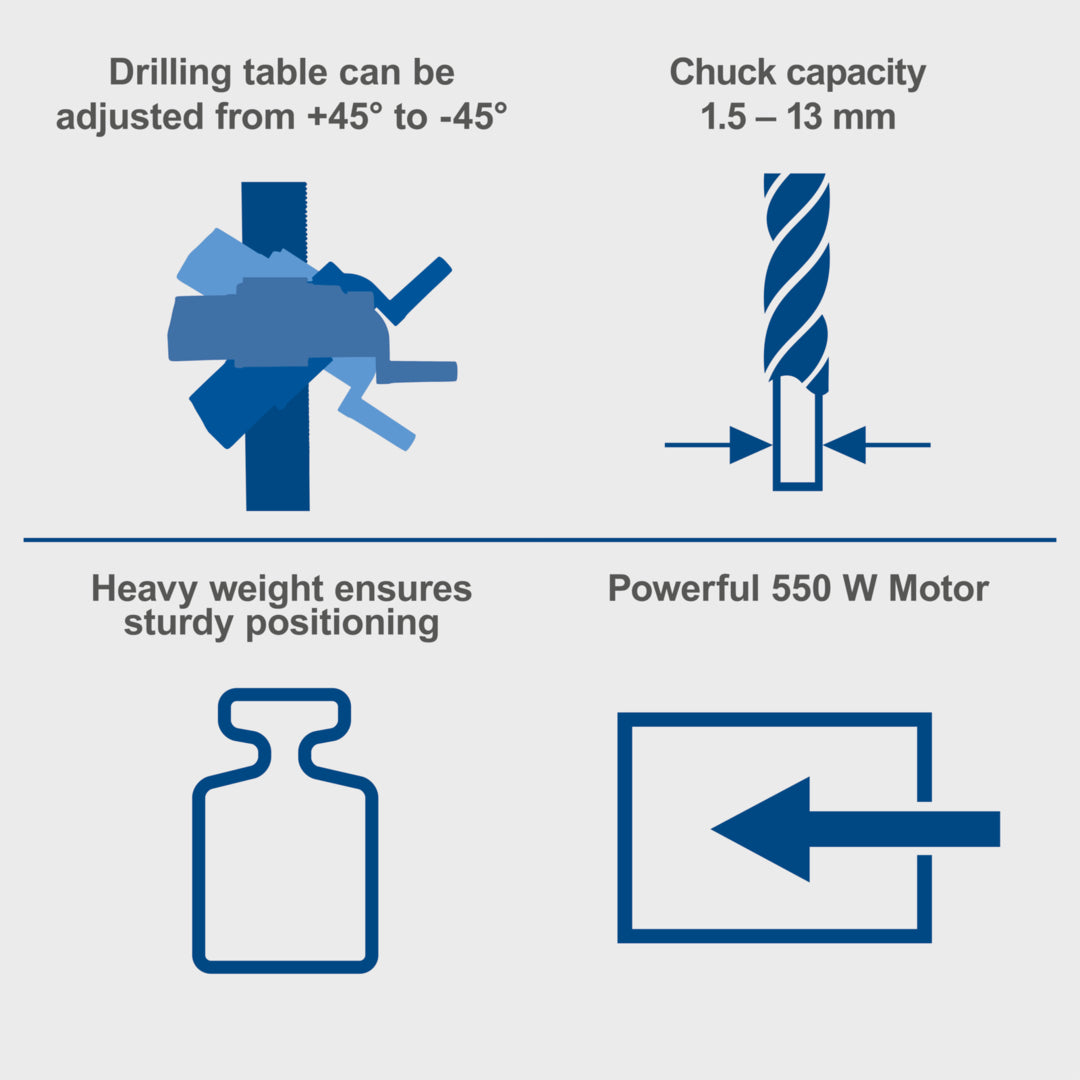

- Tilting cast iron table: Features a sturdy 194 x 165 mm grey cast iron work surface that tilts from -45° to +45° left and right for accurate angled drilling operations.

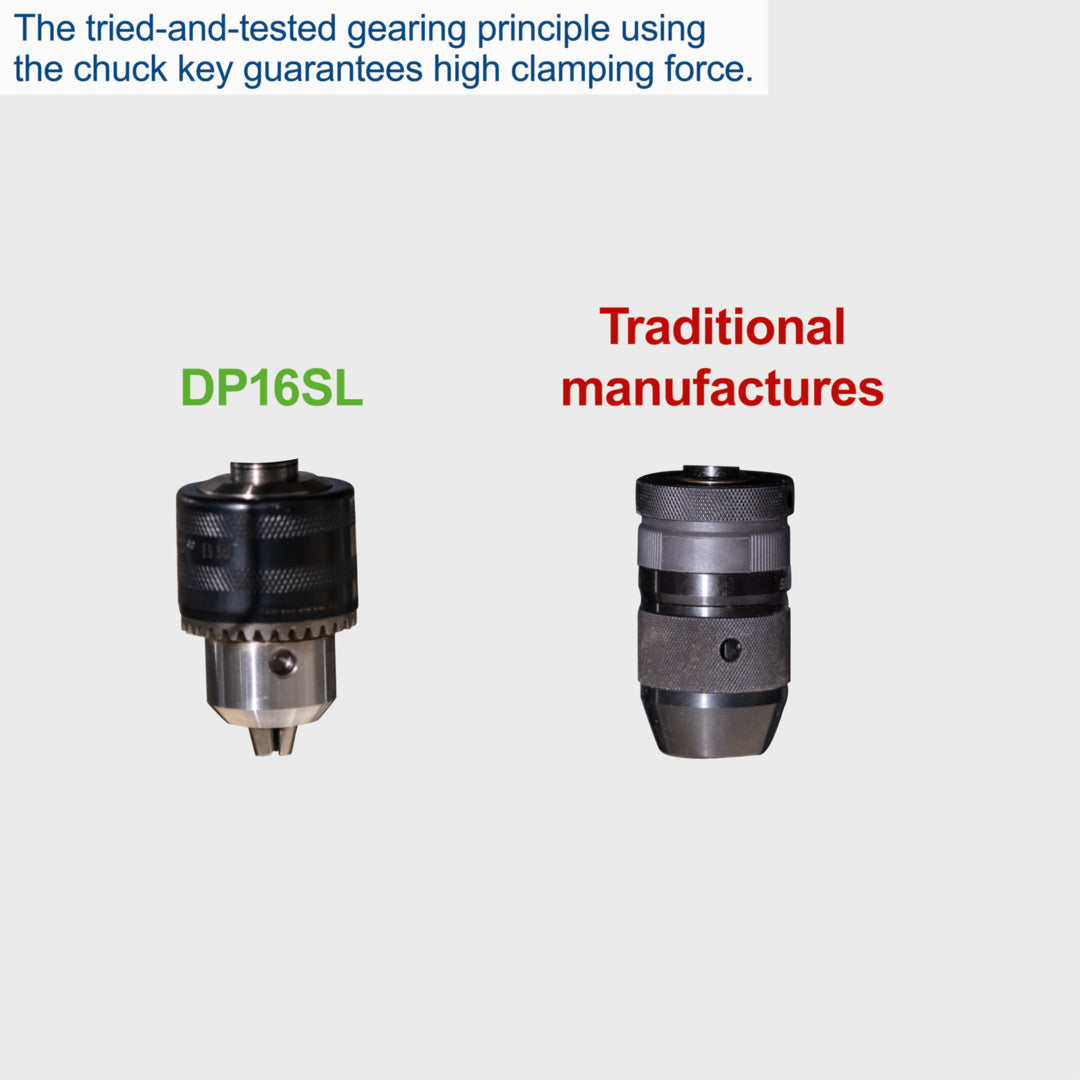

- Versatile 13mm keyed chuck: Accommodates standard drill bit shanks from 1.5mm up to 13mm with a 50mm drilling stroke, supplied complete with a vice to secure workpieces safely.
Technical Specification
| Motor Power | 550 W (350 W continuous S1) |
| Power Supply | 230 V / 50 Hz (UK Plug, Class I) |
| Motor Type | Induction motor (1450 rpm max engine speed) |
| Speed Range | 510 / 800 / 1300 / 1800 / 2430 rpm (5 belt steps) |
| Chuck Capacity & Taper | 1.5 mm to 13.0 mm (Keyed chuck, B16 taper) |
| Maximum Drilling Stroke | 50.0 mm |

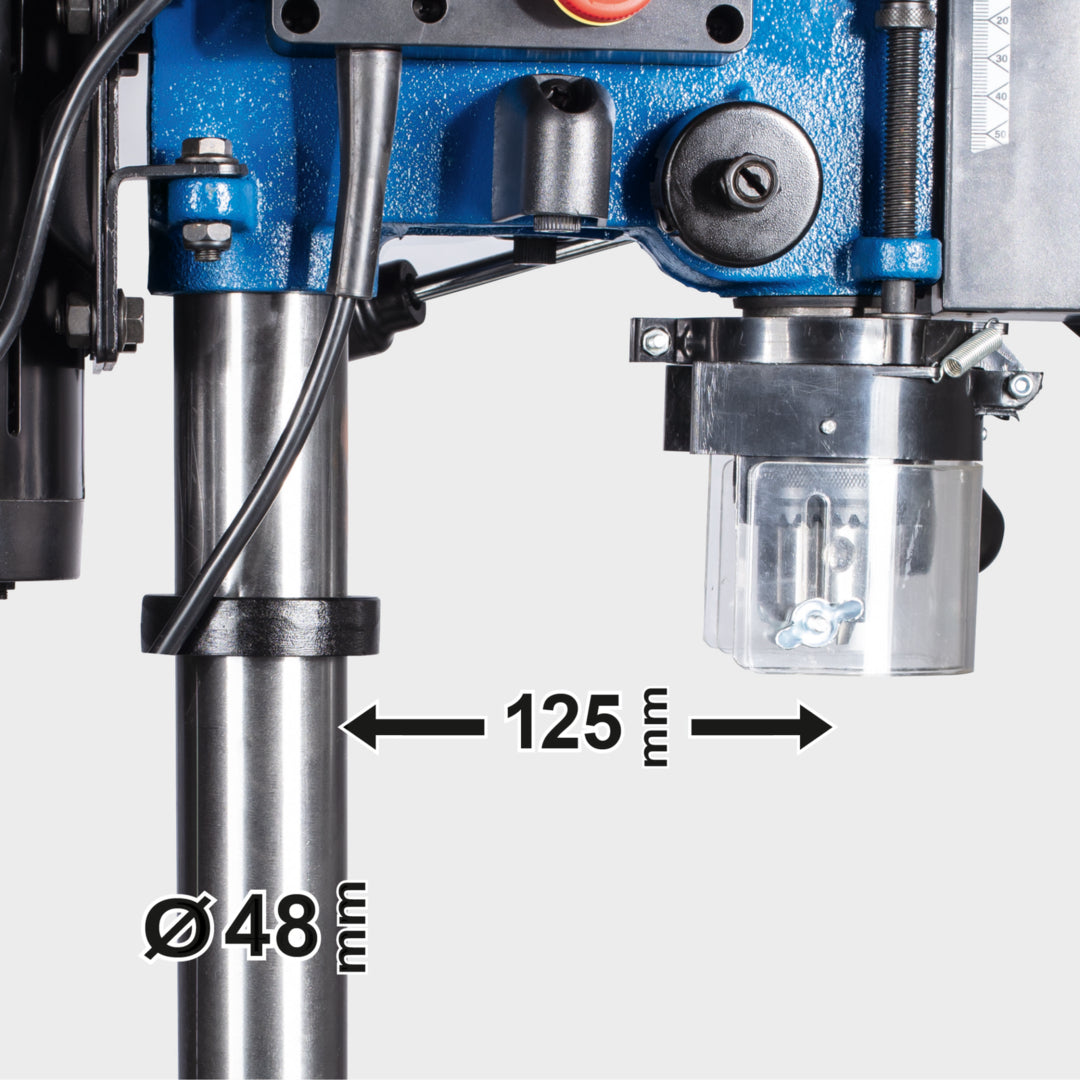

| Distance Chuck to Column | 125.0 mm |
| Distance Chuck to Table / Base | 305 mm max to table, 405 mm max to baseplate |
| Table Dimensions & Material | 194 x 165 mm (Grey cast iron) |
| Table Tilting Range | -45° to +45° |
| Baseplate Dimensions & Material | 341 x 208 mm (Grey cast iron) |
| Column Dimensions | 48.0 mm diameter x 544.0 mm length |
| Overall Dimensions (L x W x H) | 220 x 490 x 735 mm |
| Power Cable Length | 1830 mm (1.83 metres) |
| Sound Pressure Level Lp(A) | 57.0 dB |
| Sound Power Level Lw(A) | 70.5 dB |
| Vibration Level Ah | 15.0 m/s² |
SKU: D-SCH-5906804904
MPN: 5906804904
ID: D-SCH-5906804904
View full details
