Scheppach DH1500PLUS SDS-Plus Hammer Drill 1500W - 32mm Concrete Drilling
Scheppach DH1500PLUS SDS-Plus Hammer Drill 1500W - 32mm Concrete Drilling
No reviews
Regular price
£99.00
Regular price
Sale price
£99.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

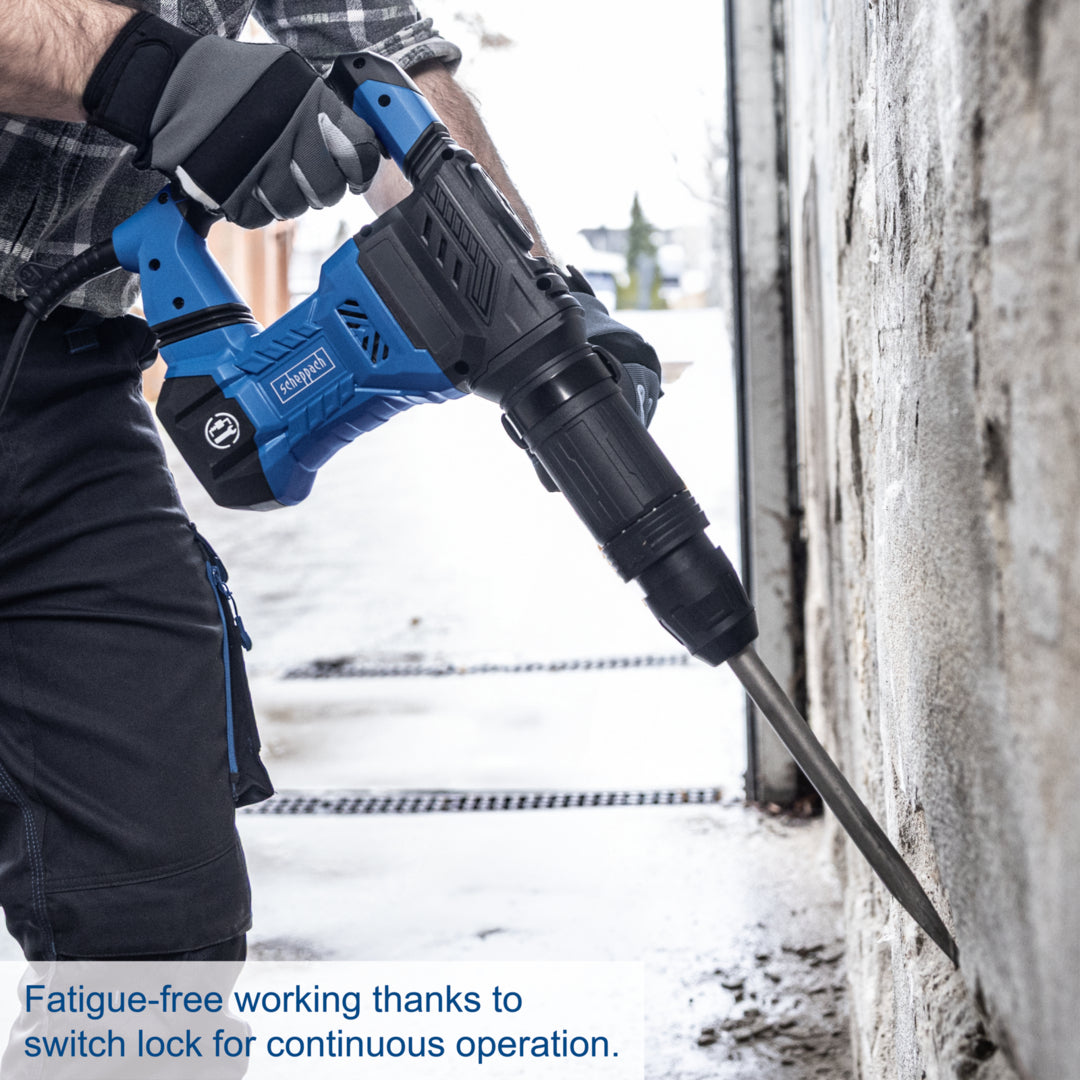

Drill, hammer, and chisel through tough concrete and masonry with high-impact power.

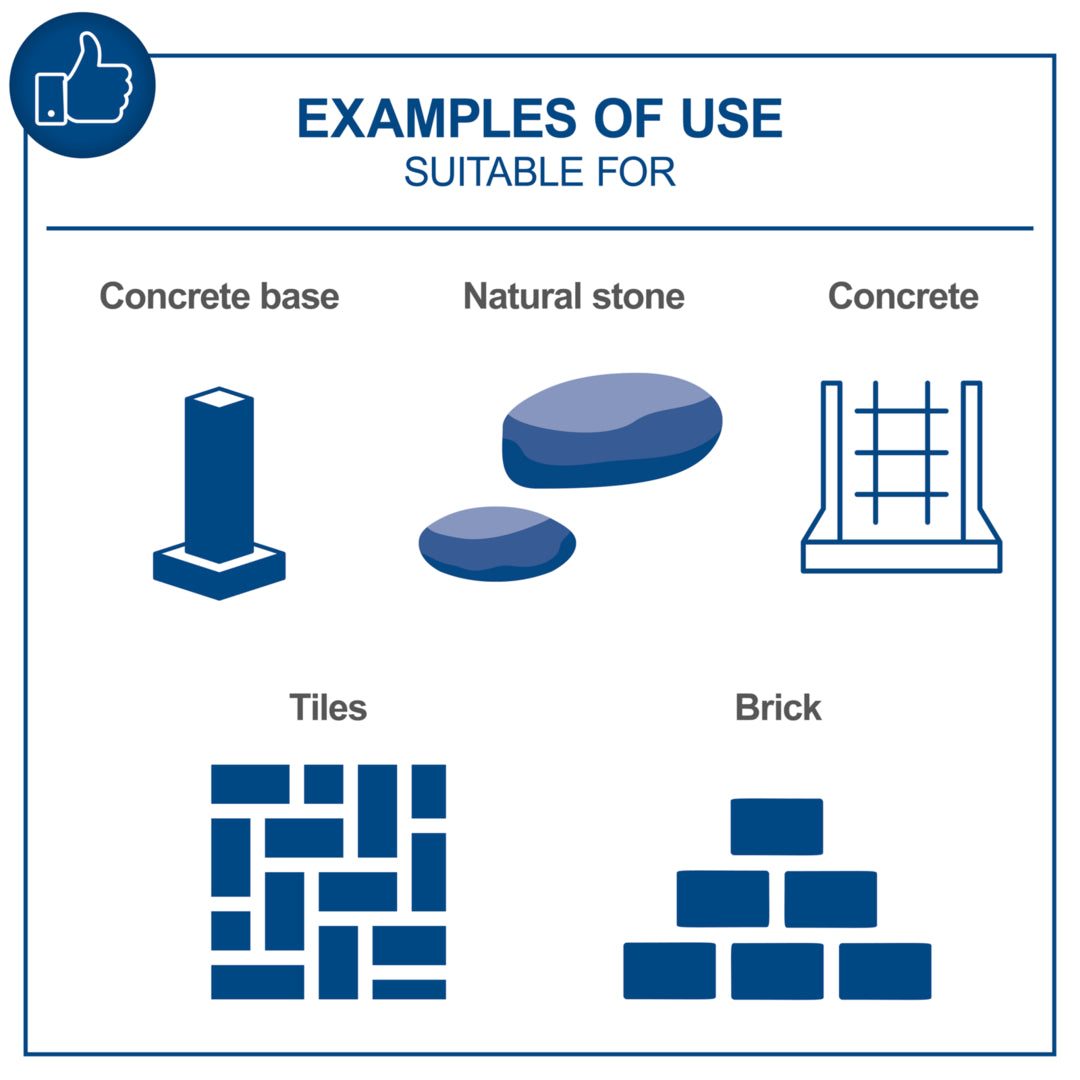

This versatile rotary hammer pairs a high-performance 1500W motor with 7 Joules of impact energy to take on demanding restoration tasks. Designed with an anti-vibration handle and speed control dial, it delivers controlled performance across stone, brickwork, and tiled surfaces.
Features:

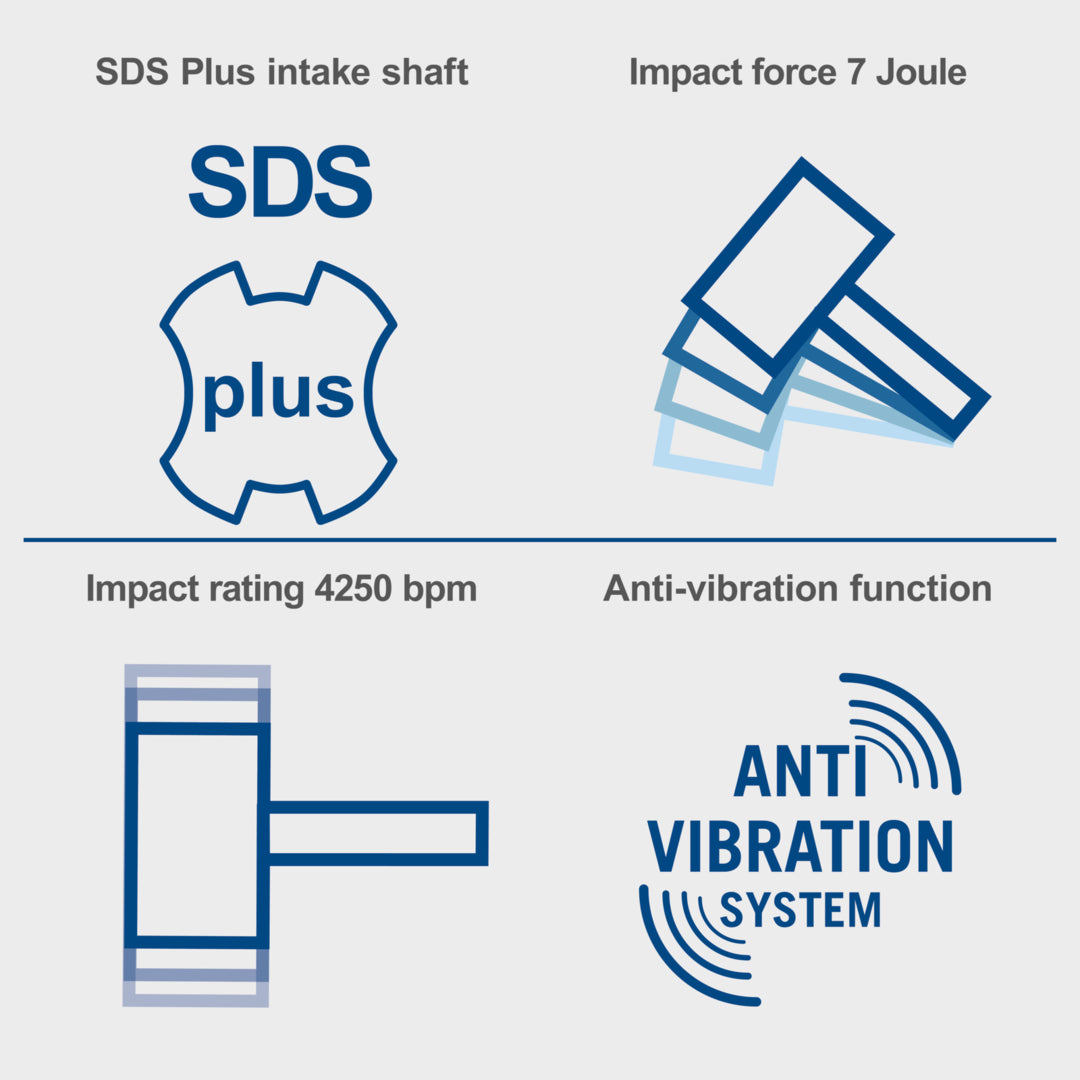

- High-Impact 1500W Motor: Delivers up to 4,250 blows per minute and 7 Joules of striking force to break through hard concrete, stone, and brick effortlessly.

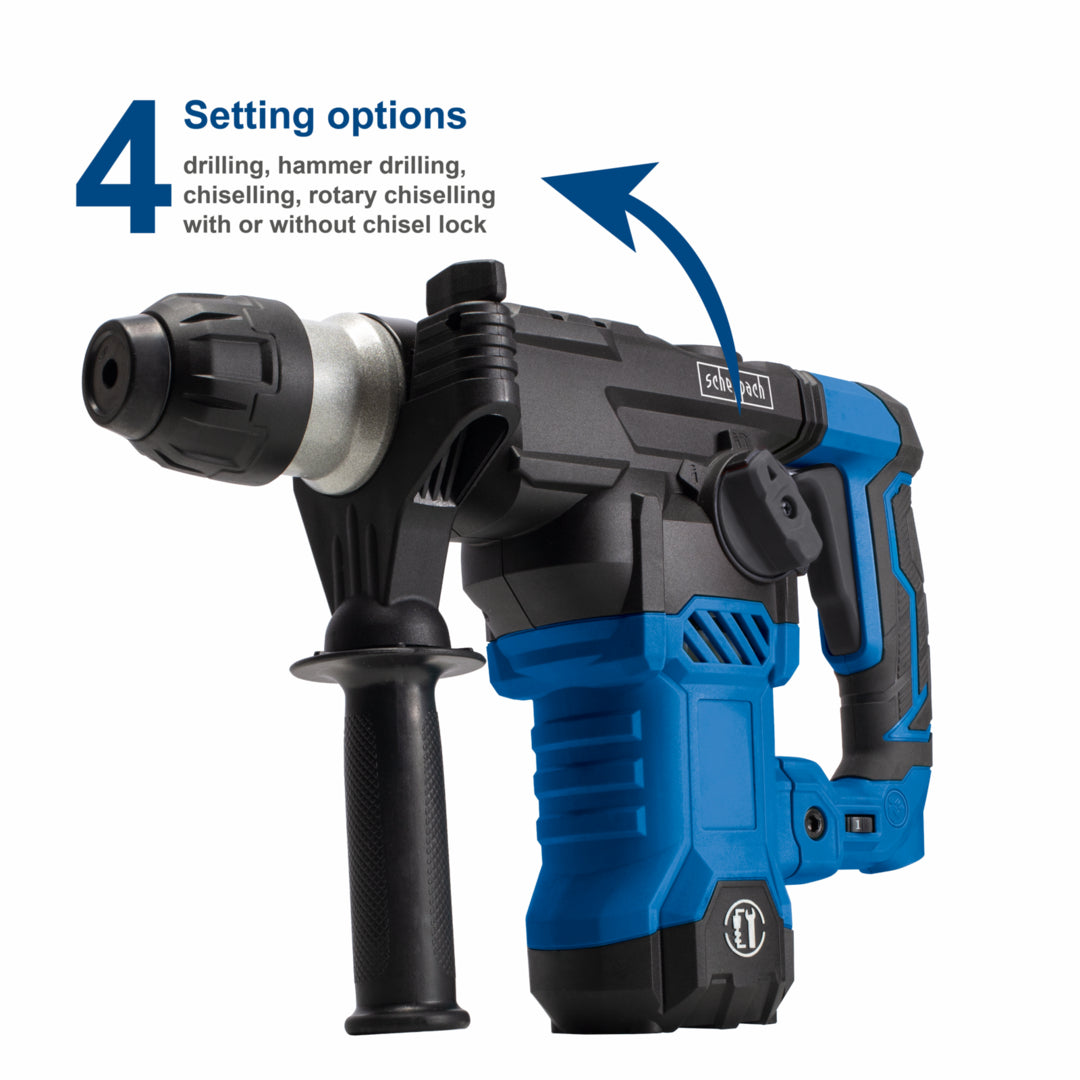

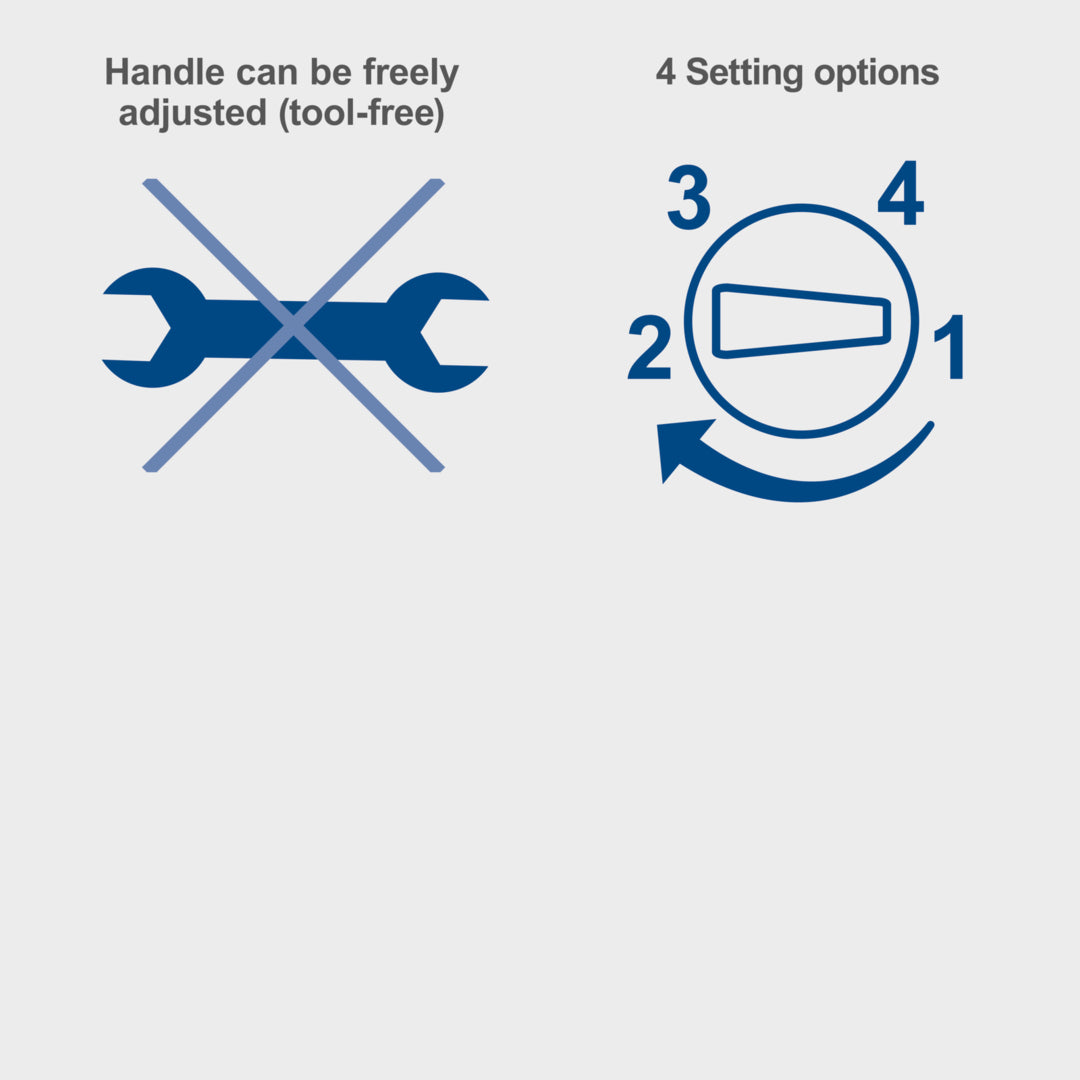

- Versatile 4-in-1 Functionality: Features a central switch to select drilling, hammer drilling, or chiselling with and without rotation lock for tailored tool control.
- Tool-Free SDS-Plus Chuck: Allows rapid, tool-free bit changes while ensuring maximum torque and impact energy transfer to the working tip.
- 6-Speed Variable Adjustment: Easily adjust motor speed between 0 and 920 rpm using the integrated dial to suit different drill diameters and material densities.

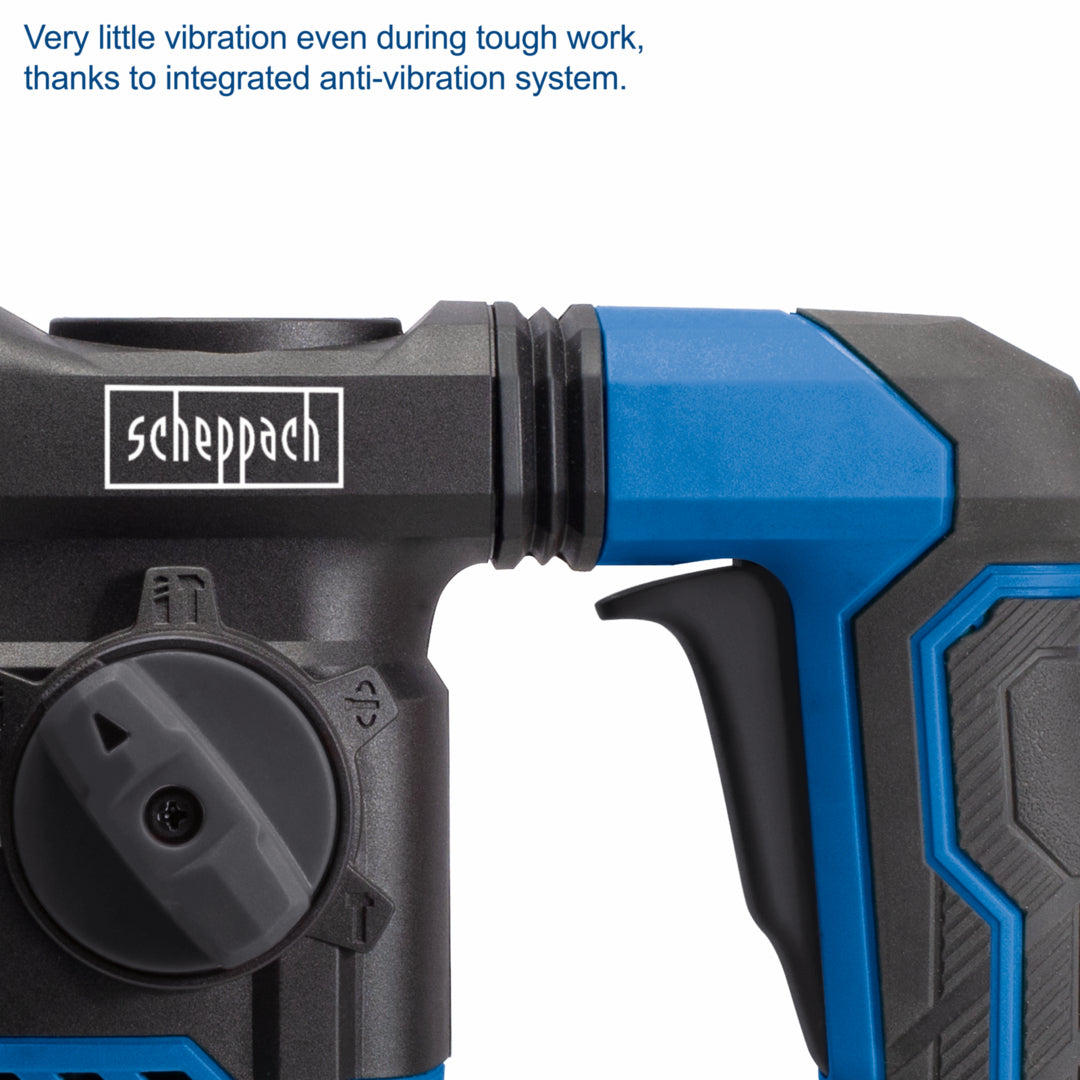

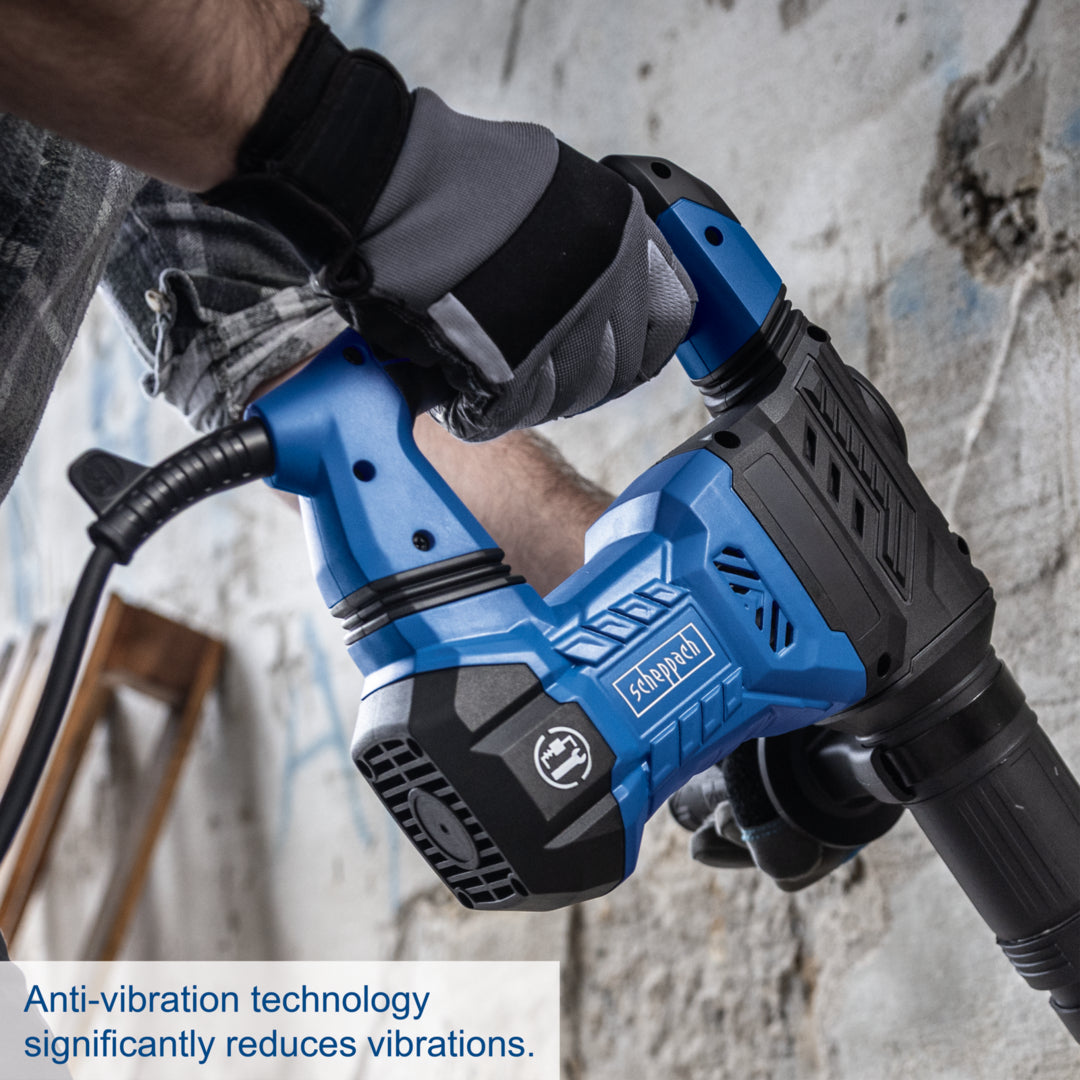

- Integrated Anti-Vibration Control: Reduces handle vibration during heavy drilling, helping to minimise user fatigue and improve comfort over long working periods.
- Adjustable Auxiliary Handle: Features a tool-free positionable handle and an included depth stop to maintain a secure grip and accurate drill depths.

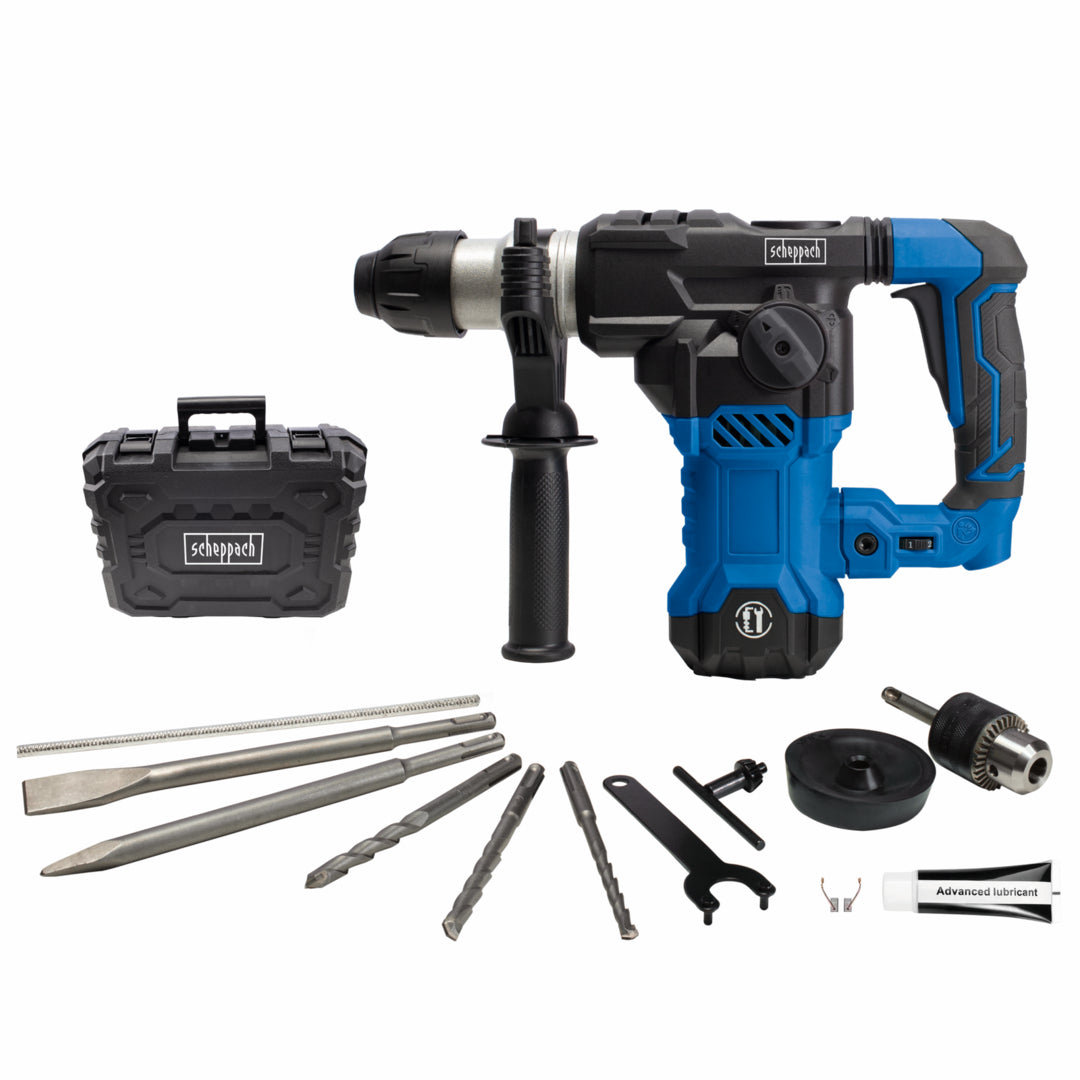

- Comprehensive Accessory Set: Supplied complete with flat and pointed chisels, three SDS drill bits, keyed chuck, dust collector, grease, and a sturdy storage case.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach DH1500 Plus electric hammer drill (DIY) |
| Model Description | DH1500 Plus |
| Machine Group | Electric Hammer Drill |
| Article Number | 5907905901 |
| EAN | 4046664240181 |
| Net Weight | 5.4 kg |
| Gross Weight | 8.25 kg |
| Machine Dimensions (L x W x H) | 390 mm x 90.0 mm x 260.0 mm |
| Rotary Hammer Performance | |
| Drilling Capacity (Concrete) | 32 mm |
| Chisel Length | 250 mm |
| Stroke Rate | 4250 rpm |
| Maximum Idle Speed | 920 rpm |
| Impact | 6 J |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 230 V / 50 Hz |
| Continuous Power Consumption S1 | 1500 W |
| Rated Current | 6.8 A |
| Motor Type: Electric | Brushed Motor |
| Engine Speed Range (Min / Max) | 0 1/min – 920 rpm |
| Protection Class | Class II |
| Protection Class for Electrical | IP 20 |
| Insulation Class | C (max. motor temp. >180°C) |
| Engine Protection (Thermoprotector) | No |
| Engine Braking Type | n/a |
| Emissions & Noise Levels | |
| Sound Power Level Lw(A) | 99 dB |
| Guaranteed Sound Power Lw(A) | 99 dB |
| Sound Pressure Level Lp(A) | 91 dB |
| Uncertainty KpA / KwA | 3 dB / 3 dB |
| Vibration Emission Value ah | 1.5 m/sec² |
SKU: D-SCH-5907905904
MPN: 5907905904
ID: D-SCH-5907905904
