Scheppach DC500 Dust Extractor 550W 75L
Scheppach DC500 Dust Extractor 550W 75L
No reviews
Regular price
£169.00
Regular price
Sale price
£169.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Out of stock
Free standard delivery on this item
Couldn't load pickup availability

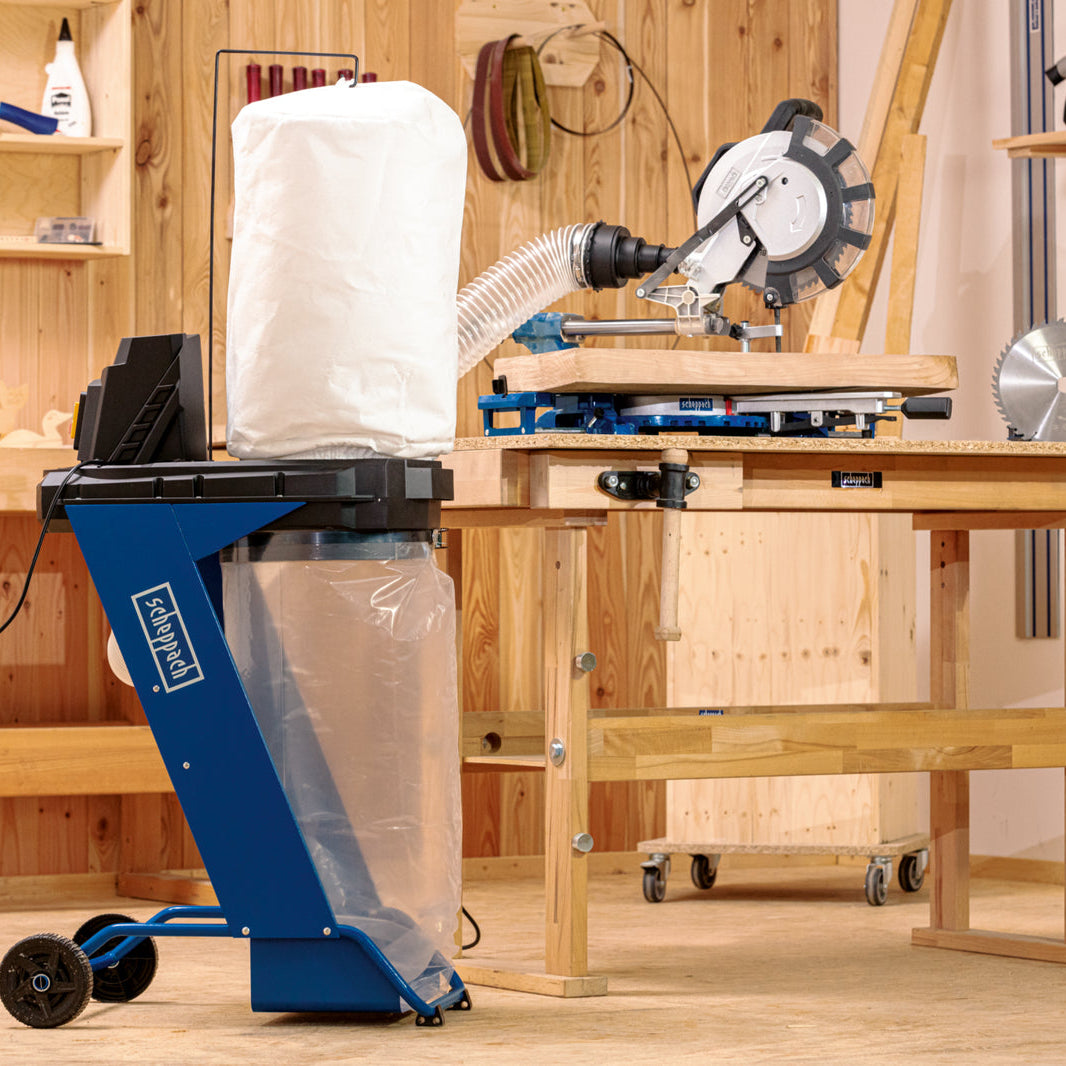

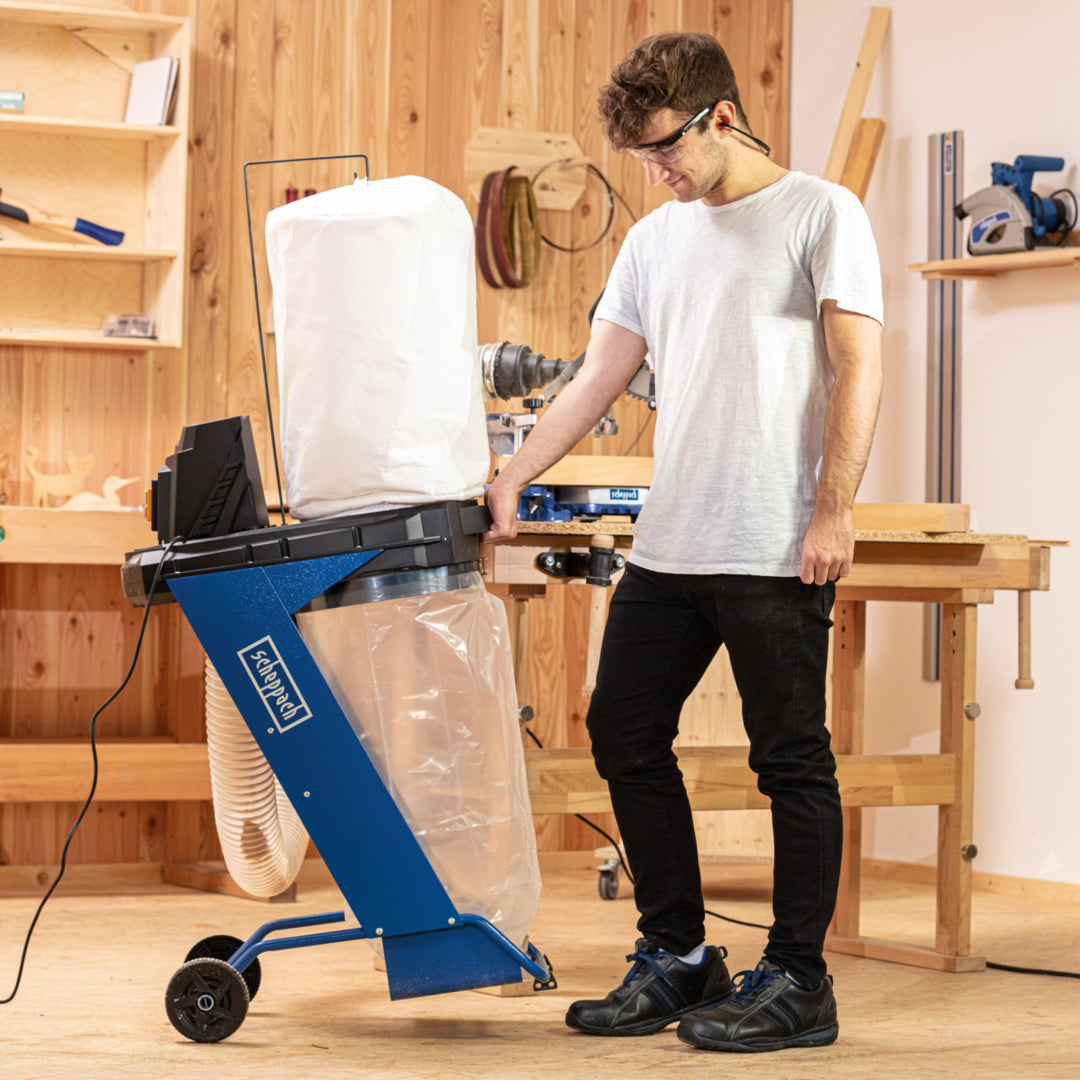

Keep your workshop clean and clear of airborne dust and timber shavings.
This robust workshop extractor combines a powerful airflow with a large collection bag to clear dust from sawing, sanding, and planing machines. Supplied with a multi-piece adapter set, it provides a versatile suction solution for home workshops and timber joineries.
Features:

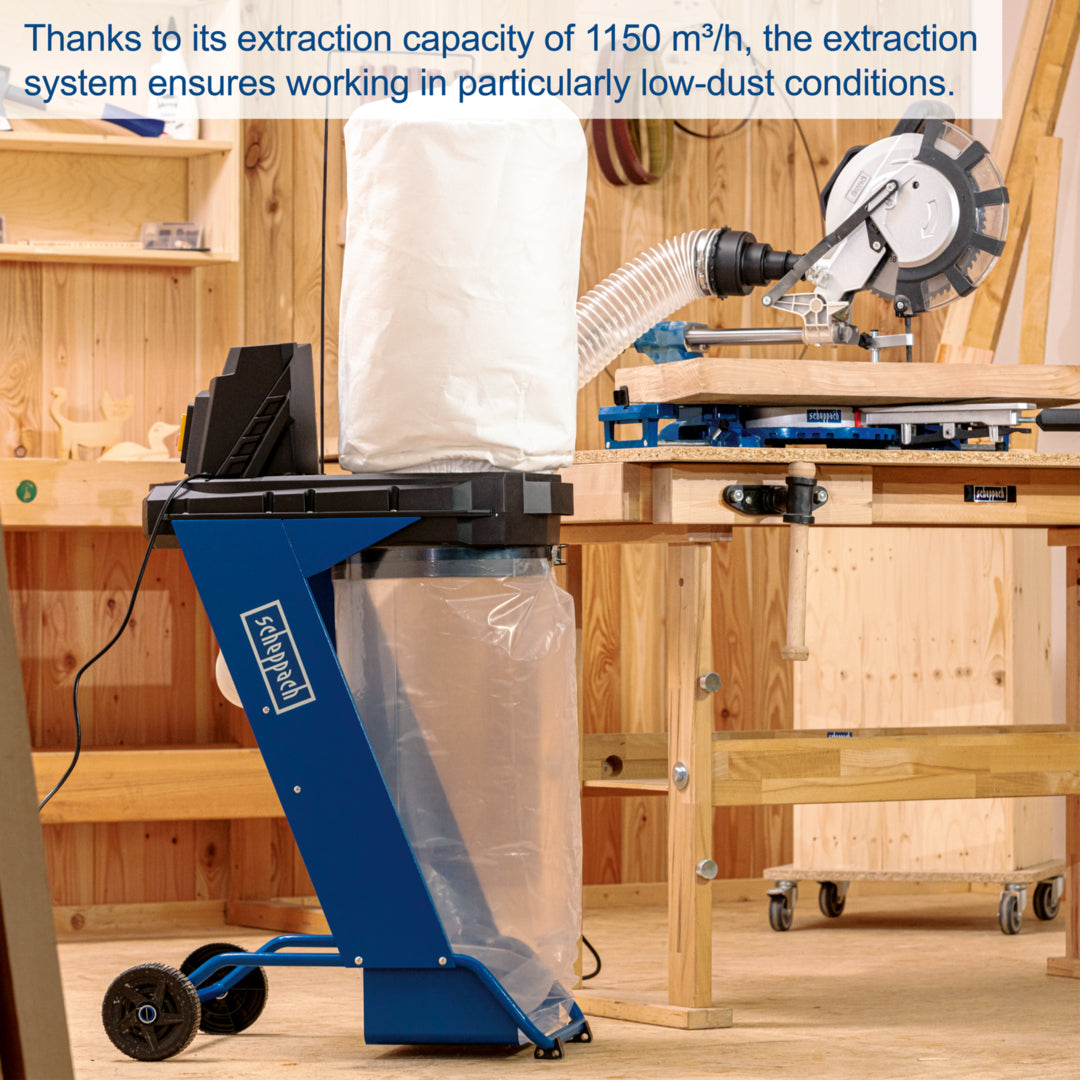

- High Suction Performance: Delivers an impressive 1,150 m³/h suction capacity to pull large volumes of wood chips, sawdust, and shavings away from active machinery.

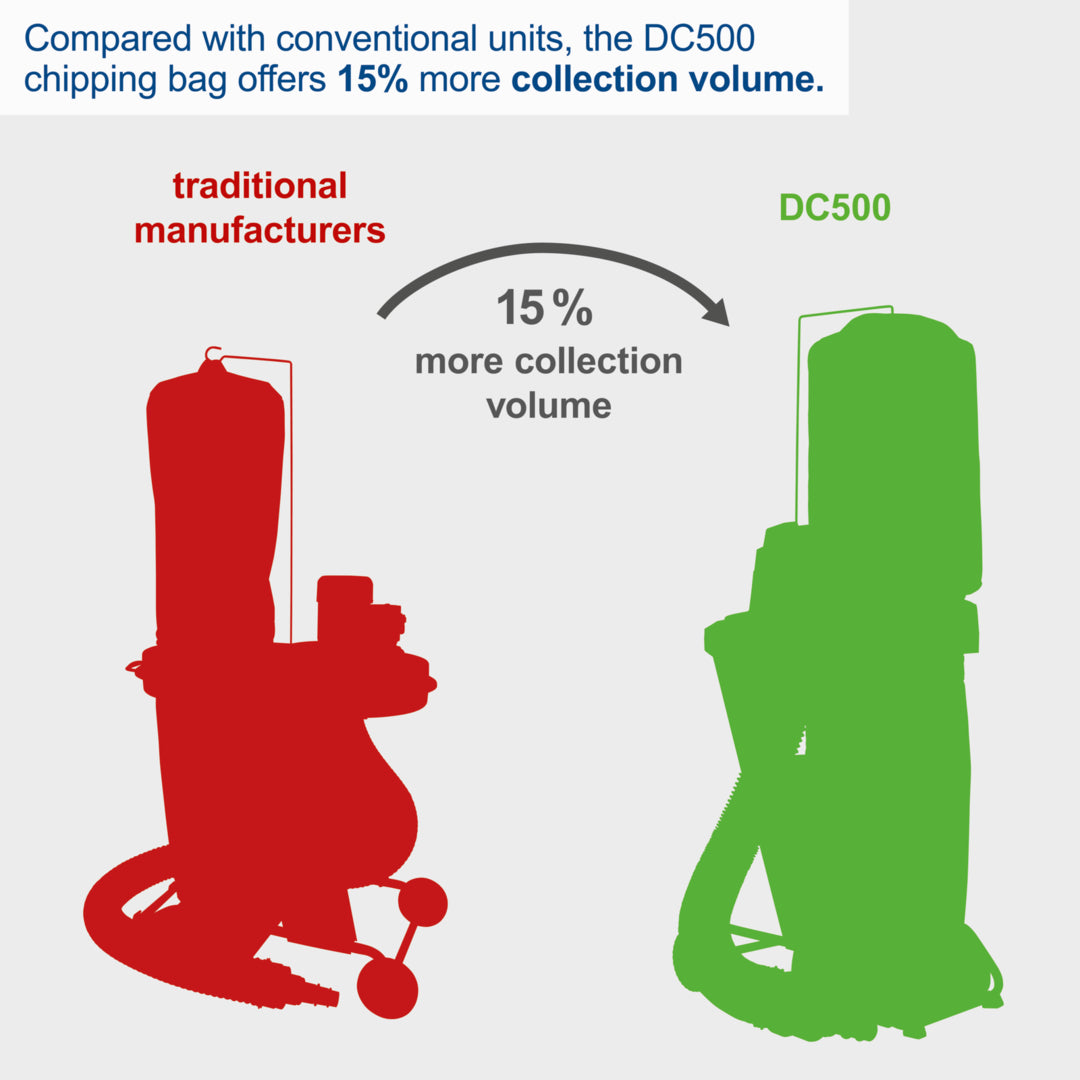

- Generous 75-Litre Collection Bag: Heavy-duty collection bag capacity minimises emptying intervals, allowing you to focus on extended woodworking projects.

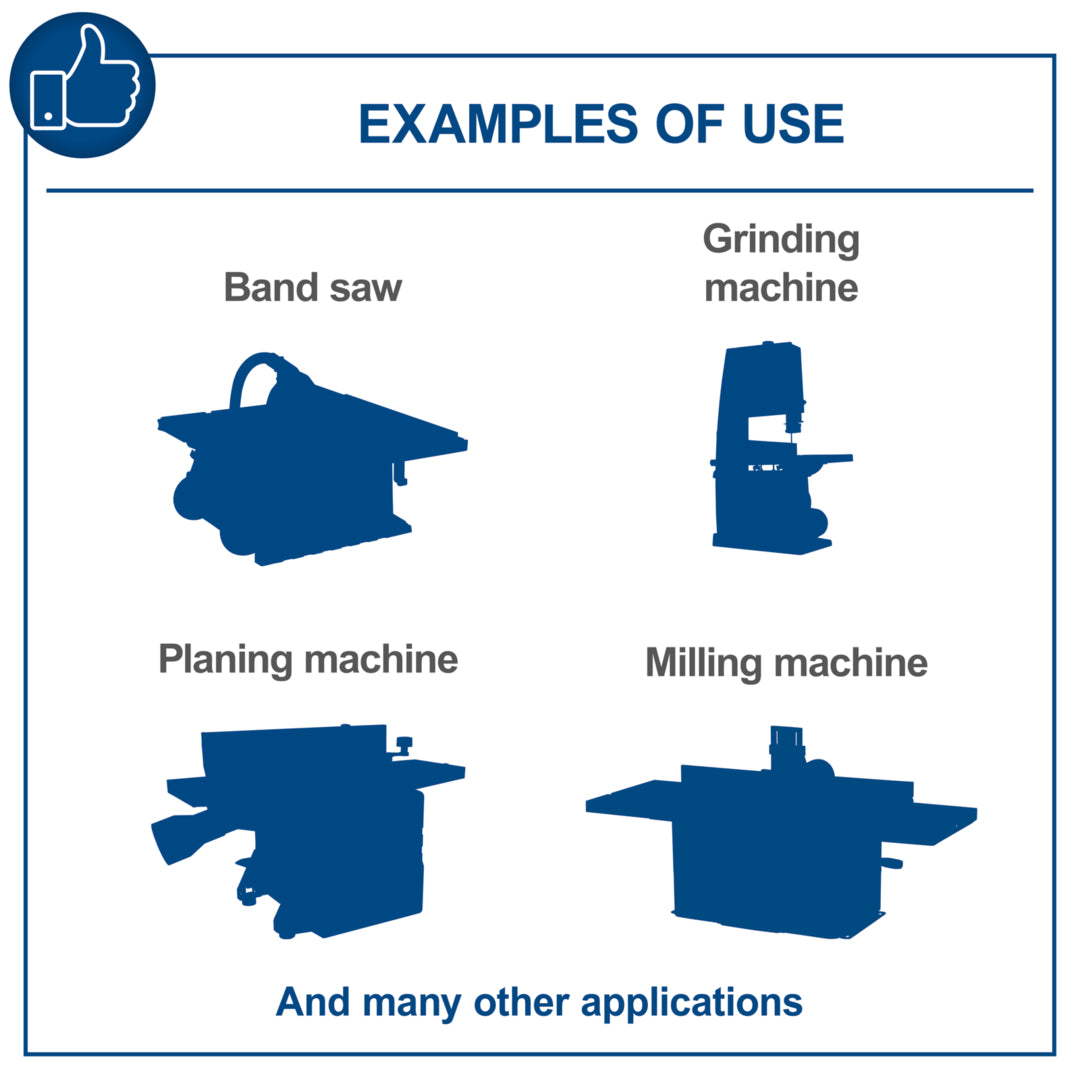

- Flexible 2-Metre Suction Hose: Fitted with a standard 100 mm hose connection that provides ample reach and airflow for table saws, bandsaws, and thickness planers.

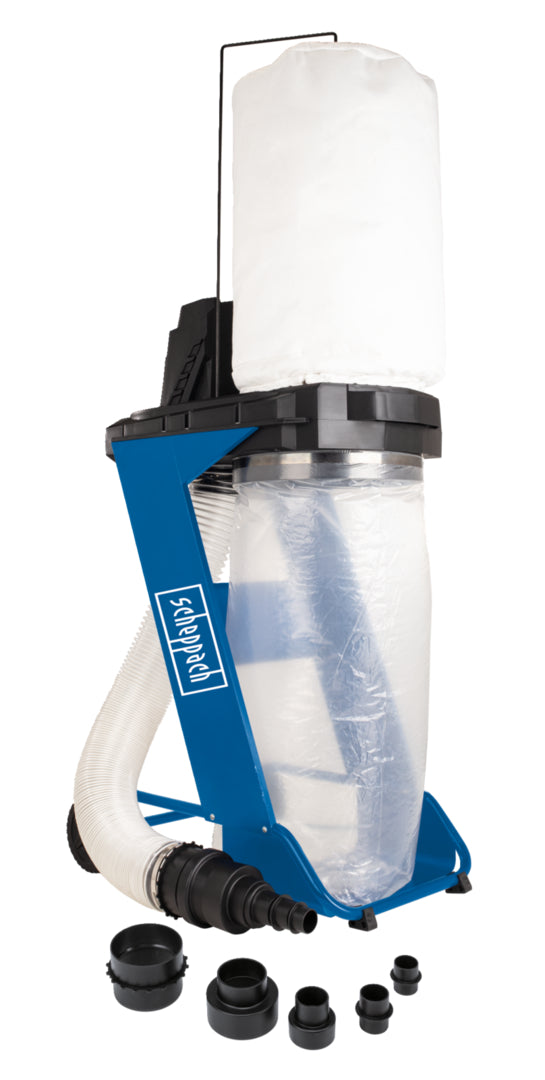

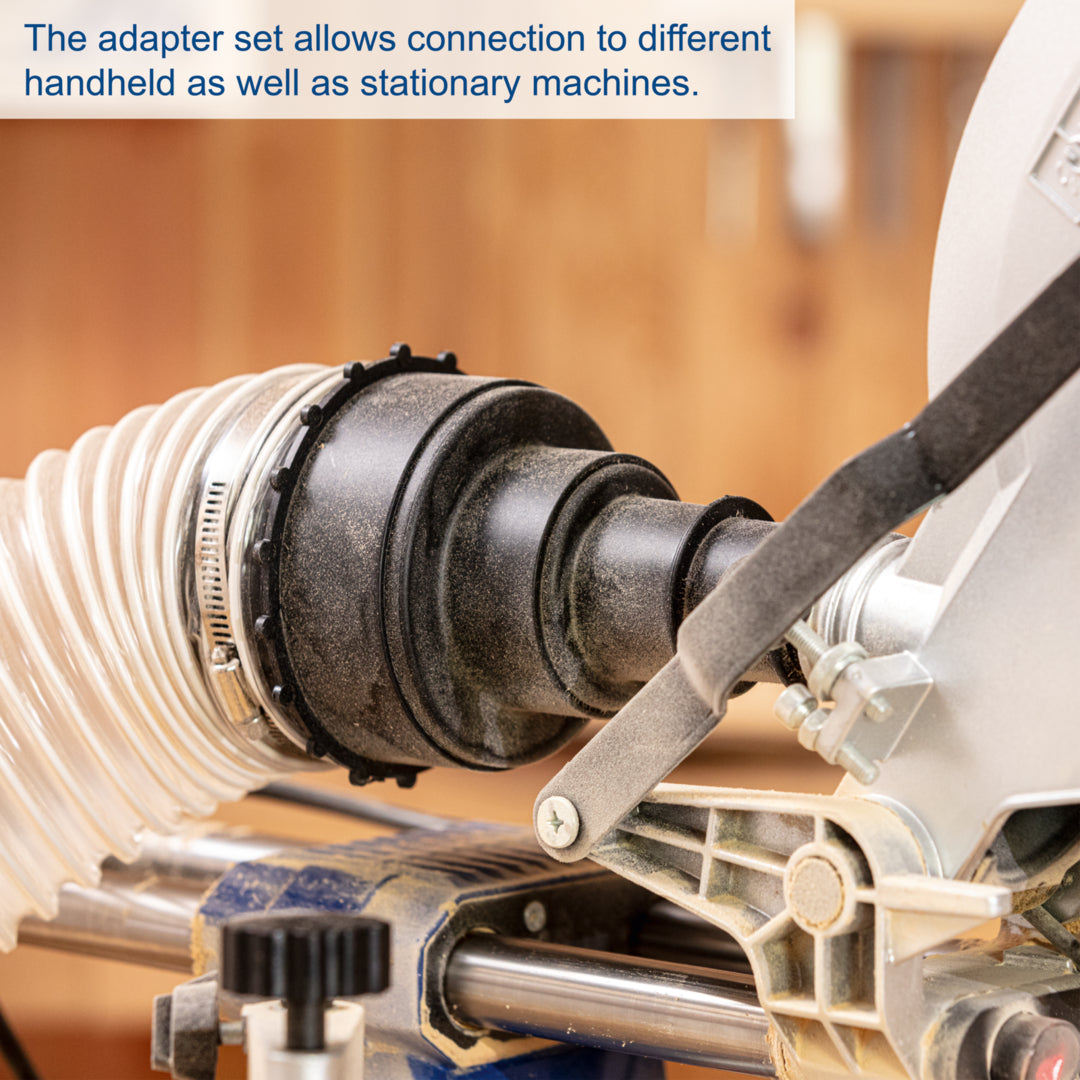

- Comprehensive Adapter Set Included: Comes equipped with a multi-piece adapter kit to connect smaller power tools and specialised dust ports easily.

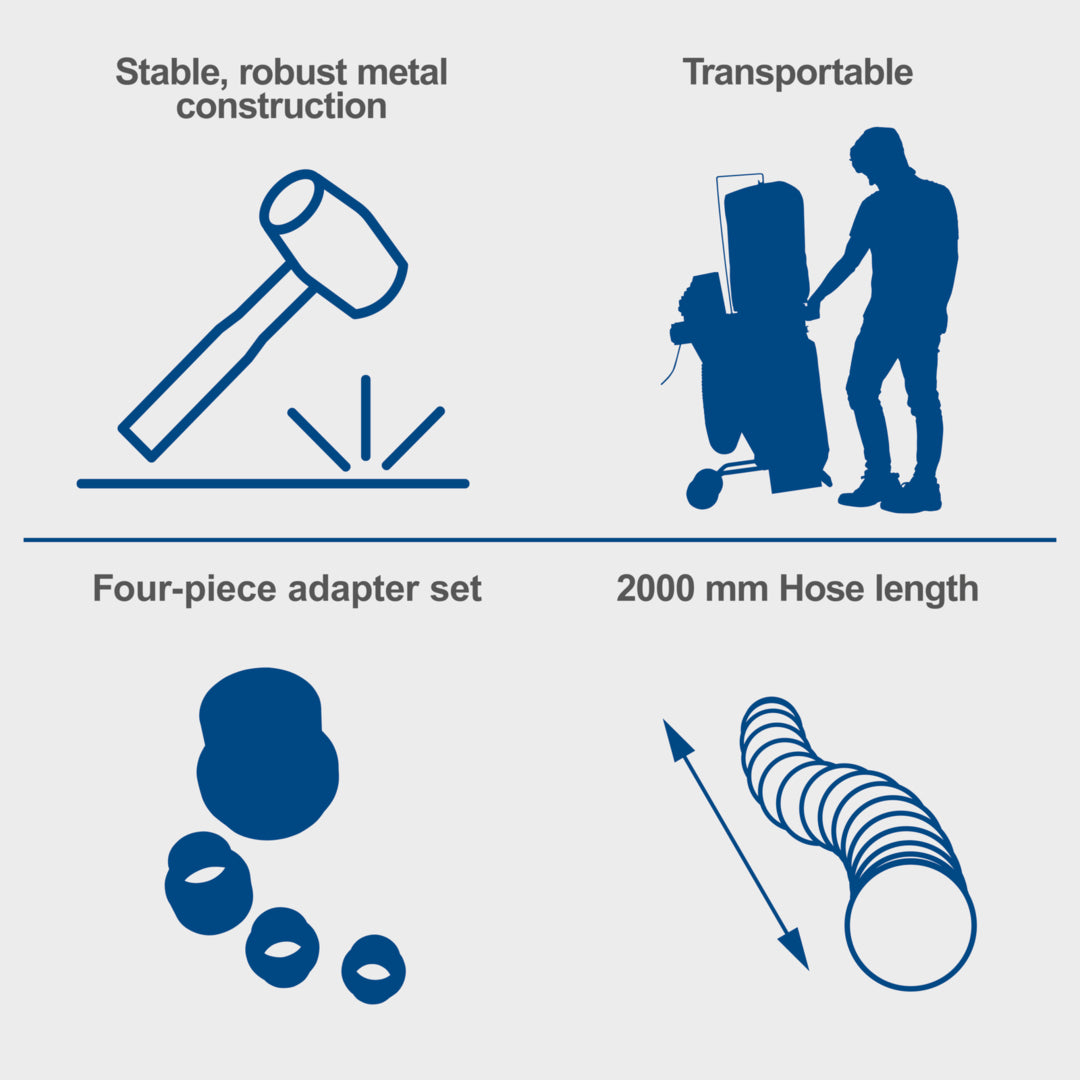

- Sturdy Metal Frame: Built with a durable metal base and integrated filter bag bracket to ensure stability during high-volume extraction.
- Integrated Transport Wheels: Smooth-rolling wheels allow you to move the extractor effortlessly between different woodworking machines across your workshop floor.
Technical Specification
| General Details | |
|---|---|
| Title | Scheppach DC500 dust extraction system (DIY) |
| Model Description | DC500 |
| Machine Group | Extraction system |
| Article Number | 5906307901 |
| EAN | 4046664127413 |
| Net Weight | 15.0 kg |
| Gross Weight | 16.0 kg |
| General Dimensions (L x W x H) | 650.0 mm x 446.0 mm x 1430.0 mm |
| Housing Material | Plastic |
| Extraction System Performance | |

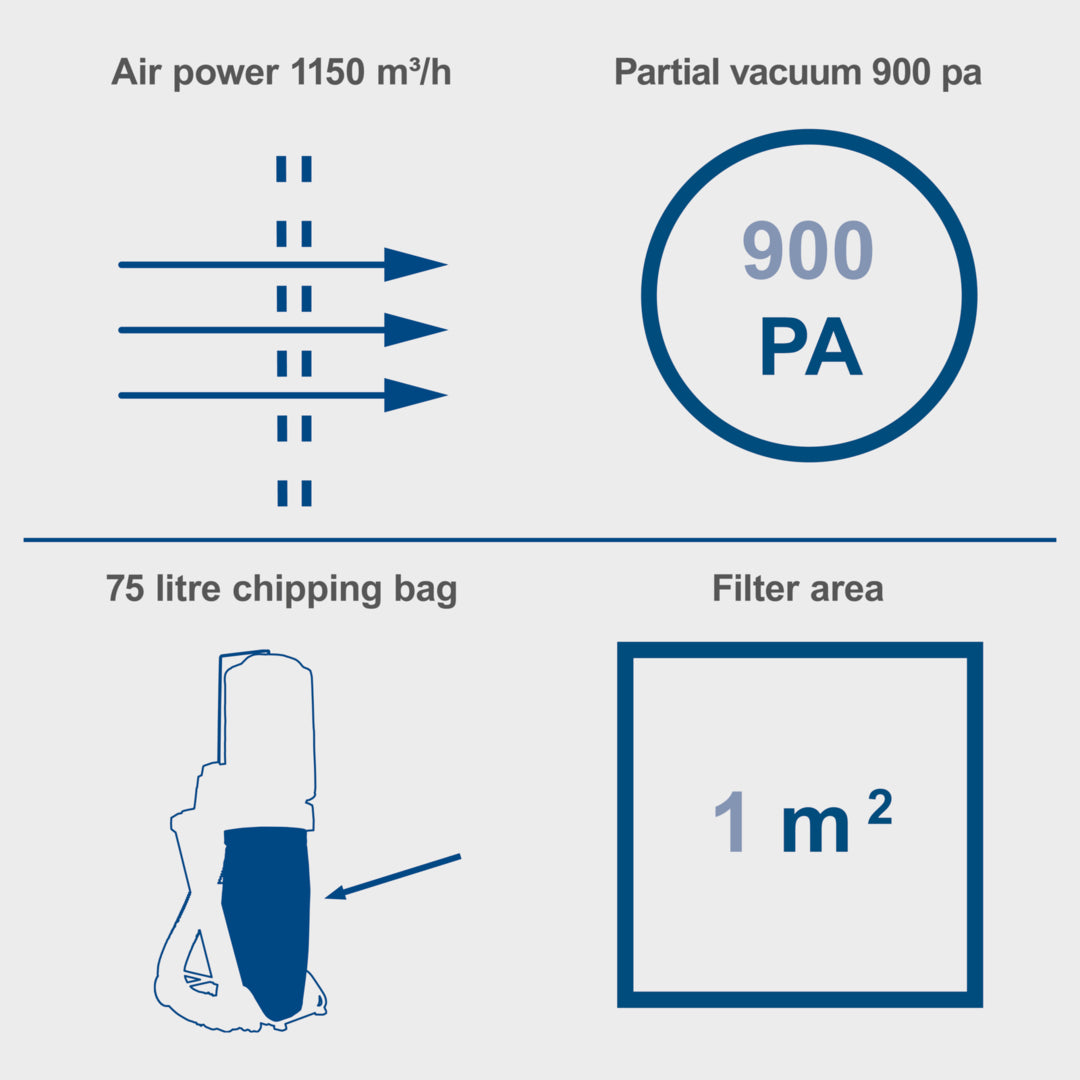

| Air Performance | 1150.0 m³/h |
| Maximum Fill Quantity | 75.0 l |
| Filter Surface | 1.0 m² |
| Filter Material / Filter Cartridge Material | n/a / n/a |
| Material: Chip Bag | Polyethylene (PE) |
| Hose Diameter / Length | 100.0 mm / 2000.0 mm |
| Material Extraction Hose | Polyvinyl chloride (PVC) |
| Suction Nozzle Diameter (Inner / Outer) | 90.0 mm / 96.0 mm |
| Electric Drive & Motor Specifications | |
| Drive Type General | Electric |
| Subgrouping Drive Type | 230V |
| Tension / Frequency | 220-240 V / 50 Hz |
| Continuous Power Consumption S1 | 550.0 W |
| Rated Current | 2.33 A |
| Motor Type: Electric | Induction motor |
| Maximum Engine Speed | 2900.0 1/min |
| Capacitor Type Voltage | 450.0 V~ |
| Protection Class / Protection Class for Electrical | Class II / IP 20 |
| Insulation Class | F (max. motor temp. 155°C) |
| Power Connection | |
| Cable Length | 2000.0 mm |
| Protection Class | IP 20 |
| Plug Type | EU plug (Class II) |
