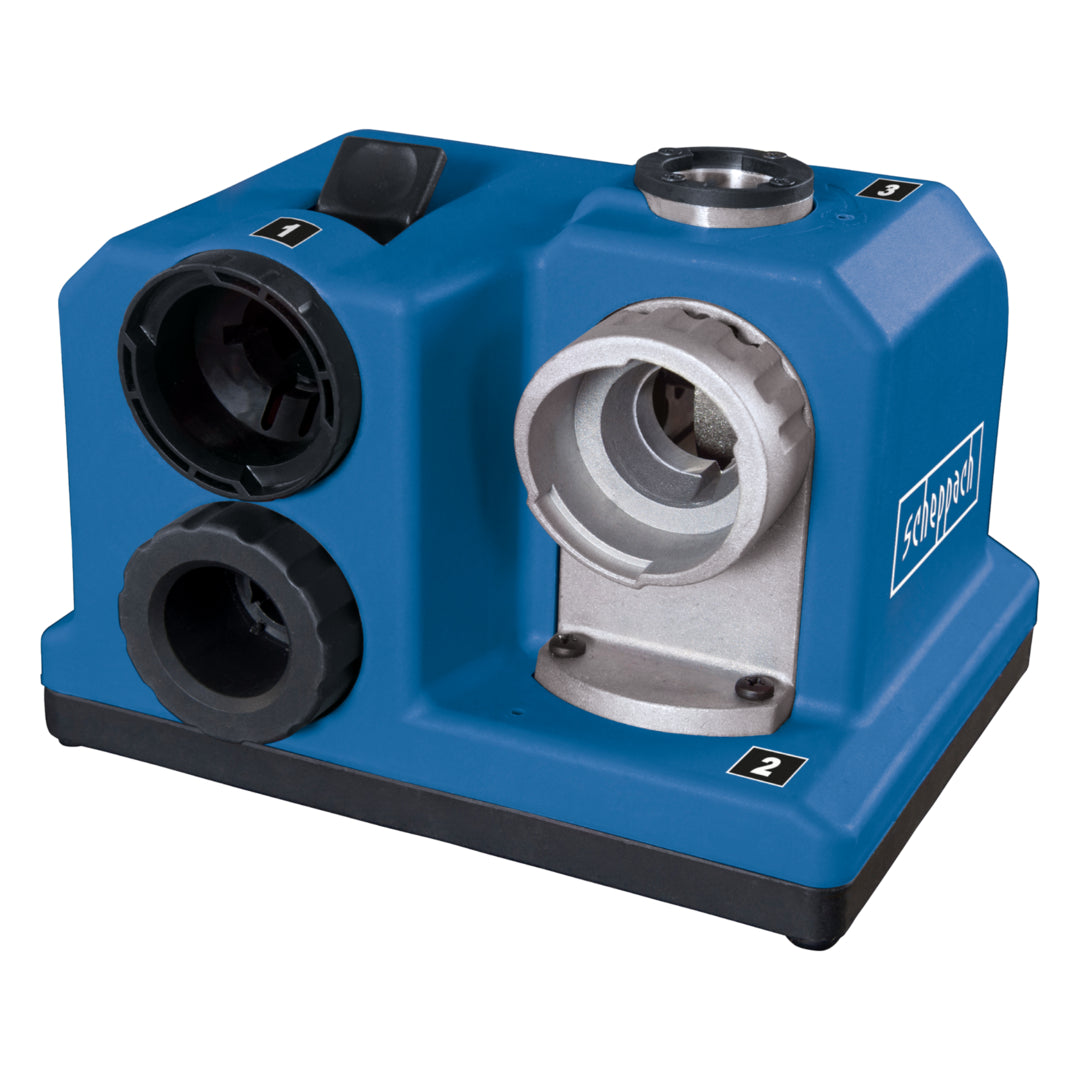

Scheppach DBS800 Drill Bit Sharpener 80W

Name: Scheppach DBS800 Drill Bit Sharpener 80W
Brand: Scheppach
SKU: D-SCH-5903404901
Price: 59.0 GBP
Availability: InStock

£59.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Free standard delivery on this item

Restore blunt drill bits to optimal cutting performance in seconds.

Extends drill bit life: Quickly resharpens worn and blunt metal twist drill bits, saving you the expense of constantly purchasing replacement sets.
Durable diamond grinding wheel: Fitted with a 79mm diamond-coated grinding wheel that delivers consistent, precise sharpening results and long service life.
Wide 3mm to 13mm capacity: Compatible with HSS and metal drill bits from 3mm up to 13mm in diameter, covering the most frequently used sizes in home garages and workshops.

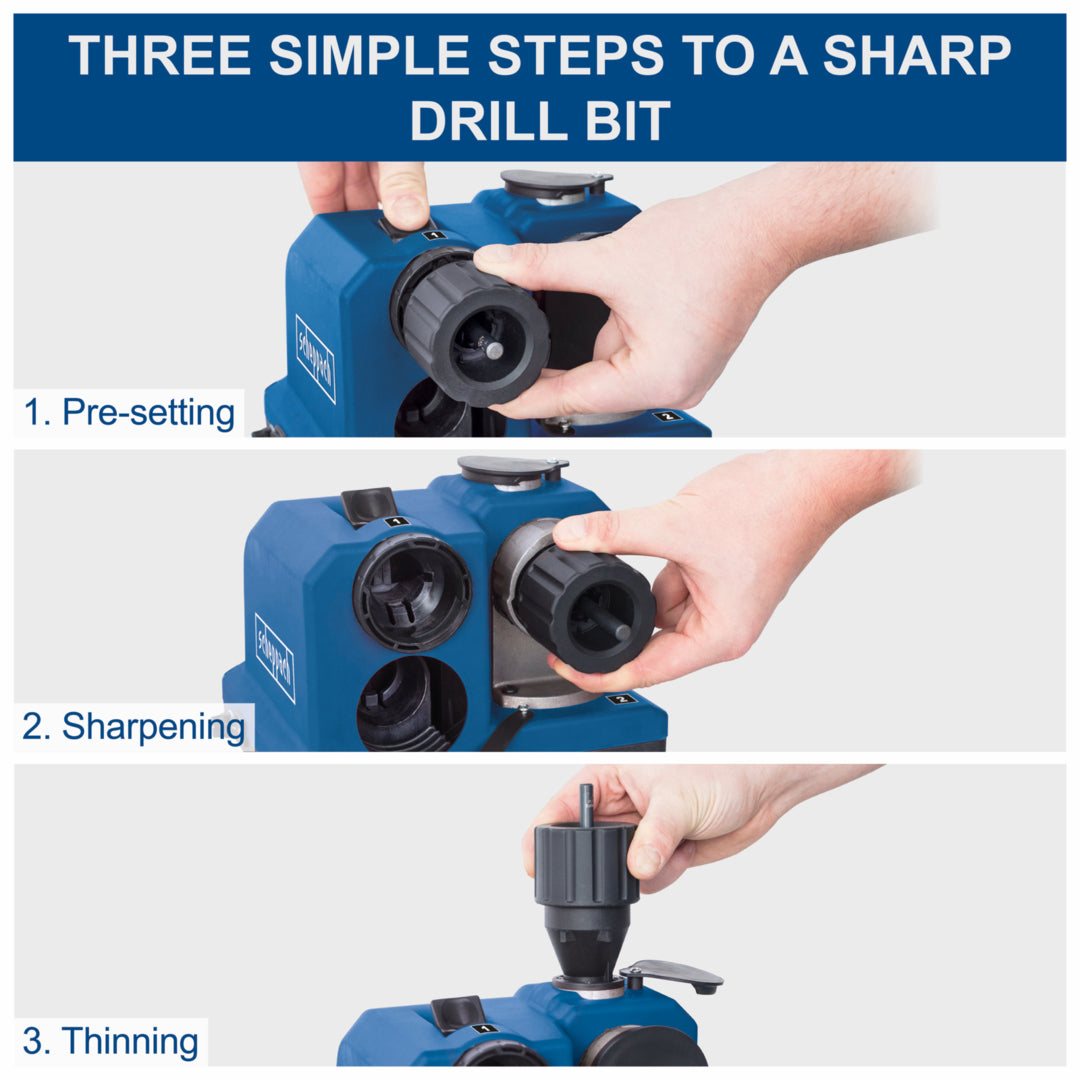

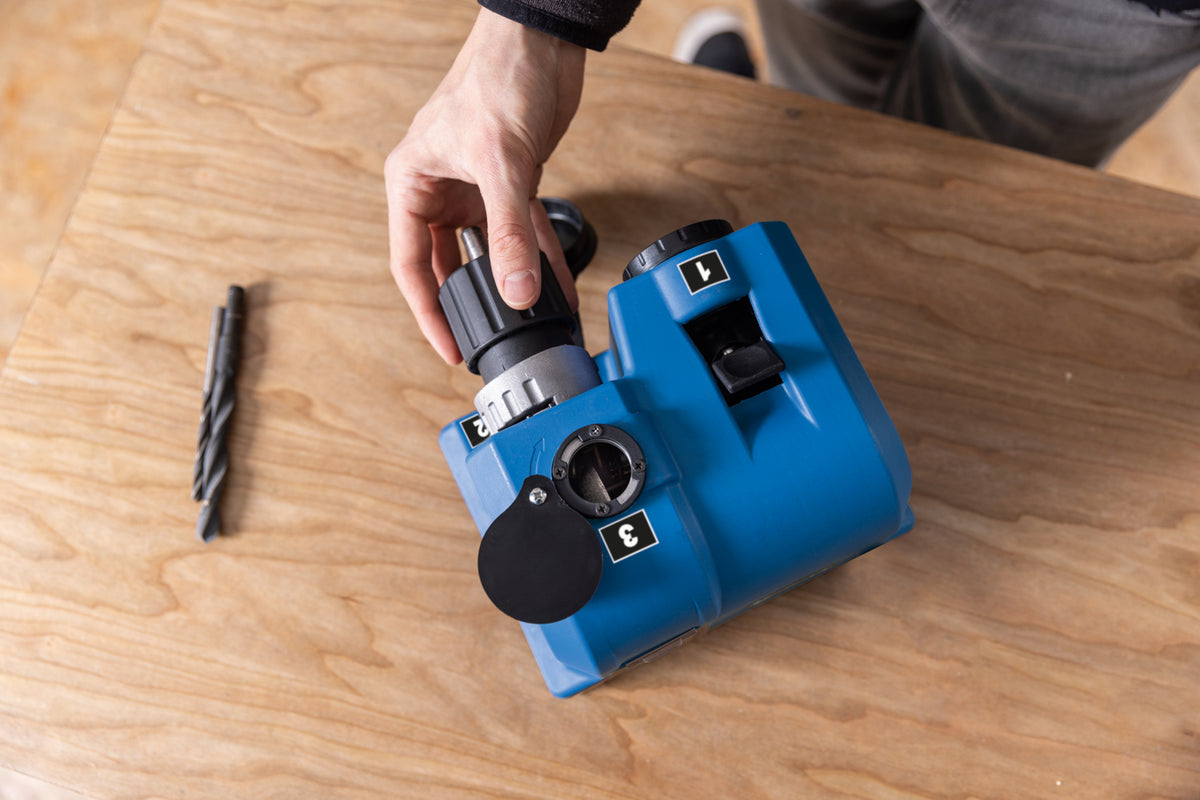

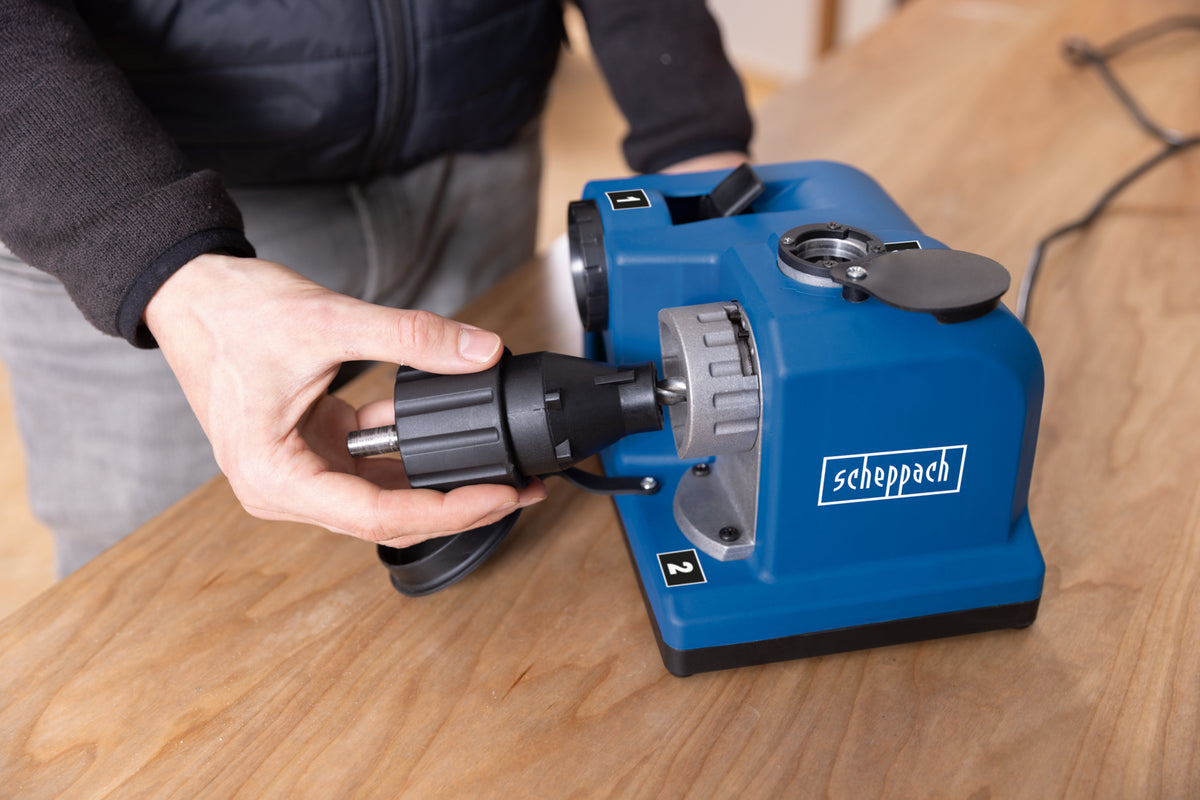

Simple three-step sharpening process: Guided chuck system ensures accurate 118° point angles with minimal effort, providing consistent, repeatable results every time.
Compact workshop footprint: Space-saving design fits neatly onto workbench tops or shelves, making it easy to store and access whenever a bit grows dull.

Motor Power	80 W (30 W continuous S1)
Power Supply	230 V / 50 Hz (Class II insulation)
Maximum Speed	4200 rpm
Drill Bit Capacity	3.0 mm to 13.0 mm diameter
Sharpening Angle	118° point angle
Grinding Wheel Type	Diamond-coated (Grit 80)
Grinding Wheel Dimensions	79.0 mm diameter x 10 mm width (18 mm bore)
Maximum Cutting Speed	40.0 m/sec
Overall Dimensions (L x W x H)	220 x 185 x 170 mm
Power Cable Length	1.8 metres
Electrical Protection	IP 20
Included Accessories	Drill bit sharpener unit, clamping chuck, top end cap, front end cap, grinding dust cover
