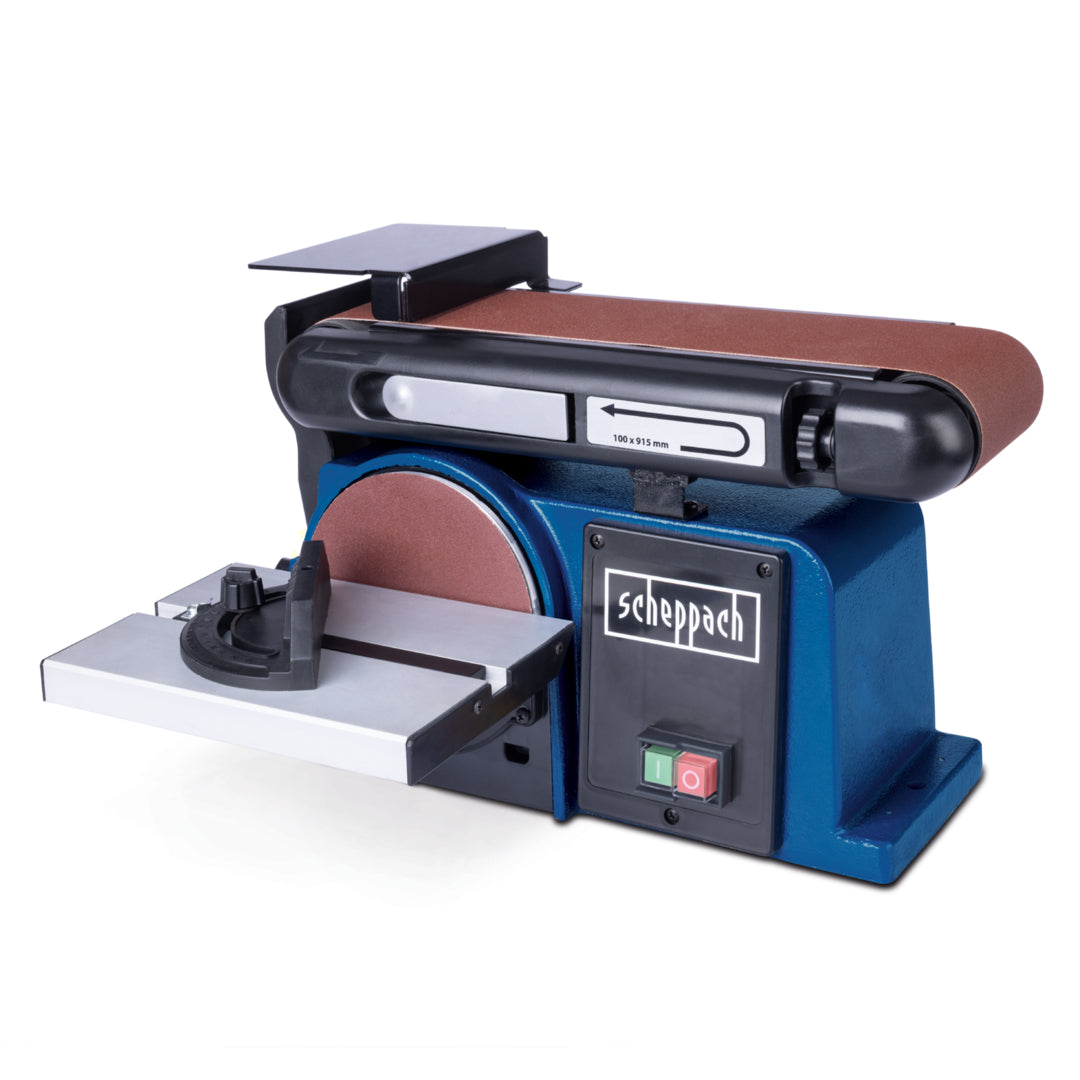

Scheppach BTS800 2-in-1 Belt & Disc Sander 370W
Scheppach BTS800 2-in-1 Belt & Disc Sander 370W
No reviews
Regular price
£139.00
Regular price
Sale price
£139.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability
Dual-function benchtop sanding performance built for precise workshop finishing.

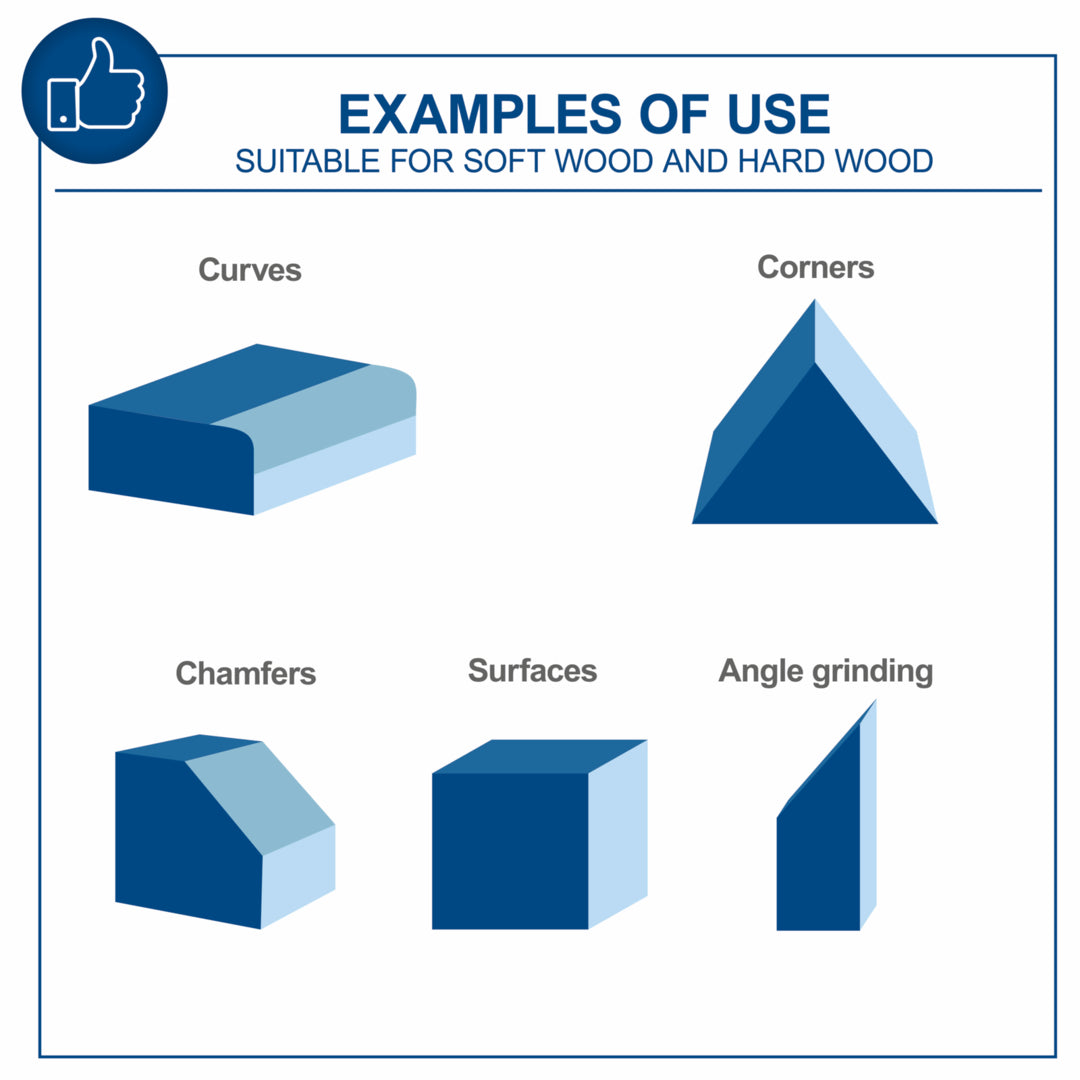

Combines a flexible belt sander with a high-speed sanding disc to smooth straight edges, curves, and angles. Driven by a quiet induction motor for stable, low-vibration operation across all woodworking tasks.
Features:

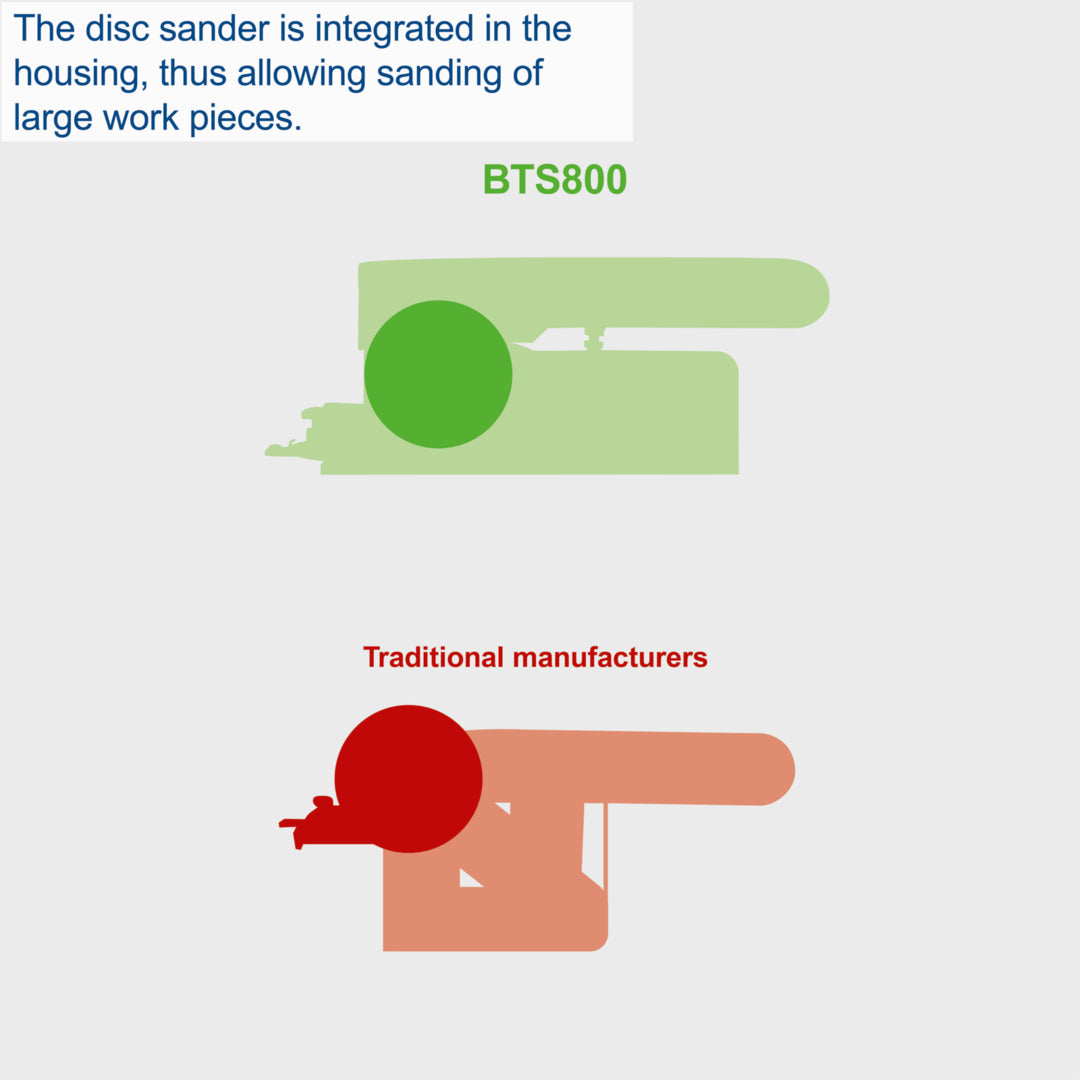

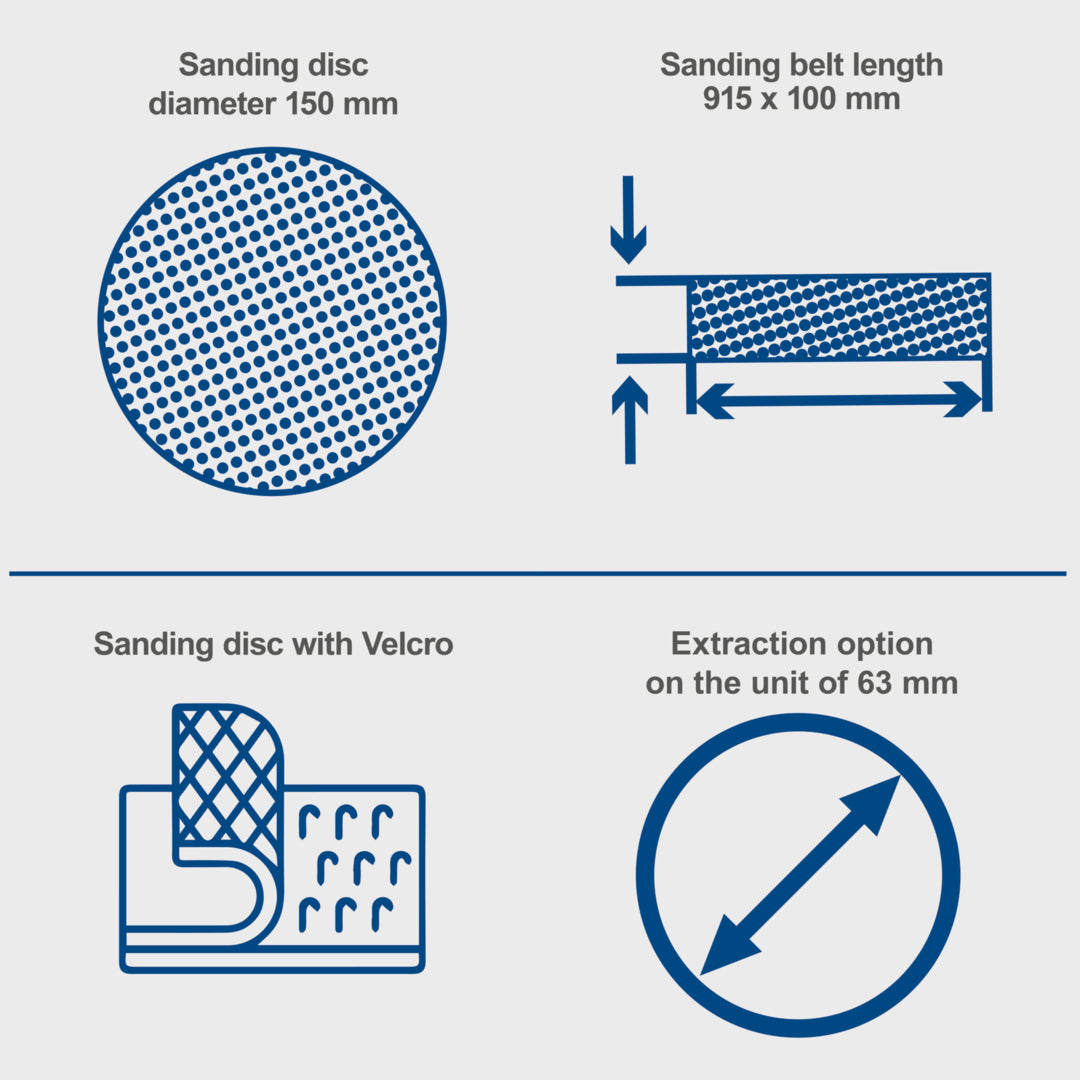

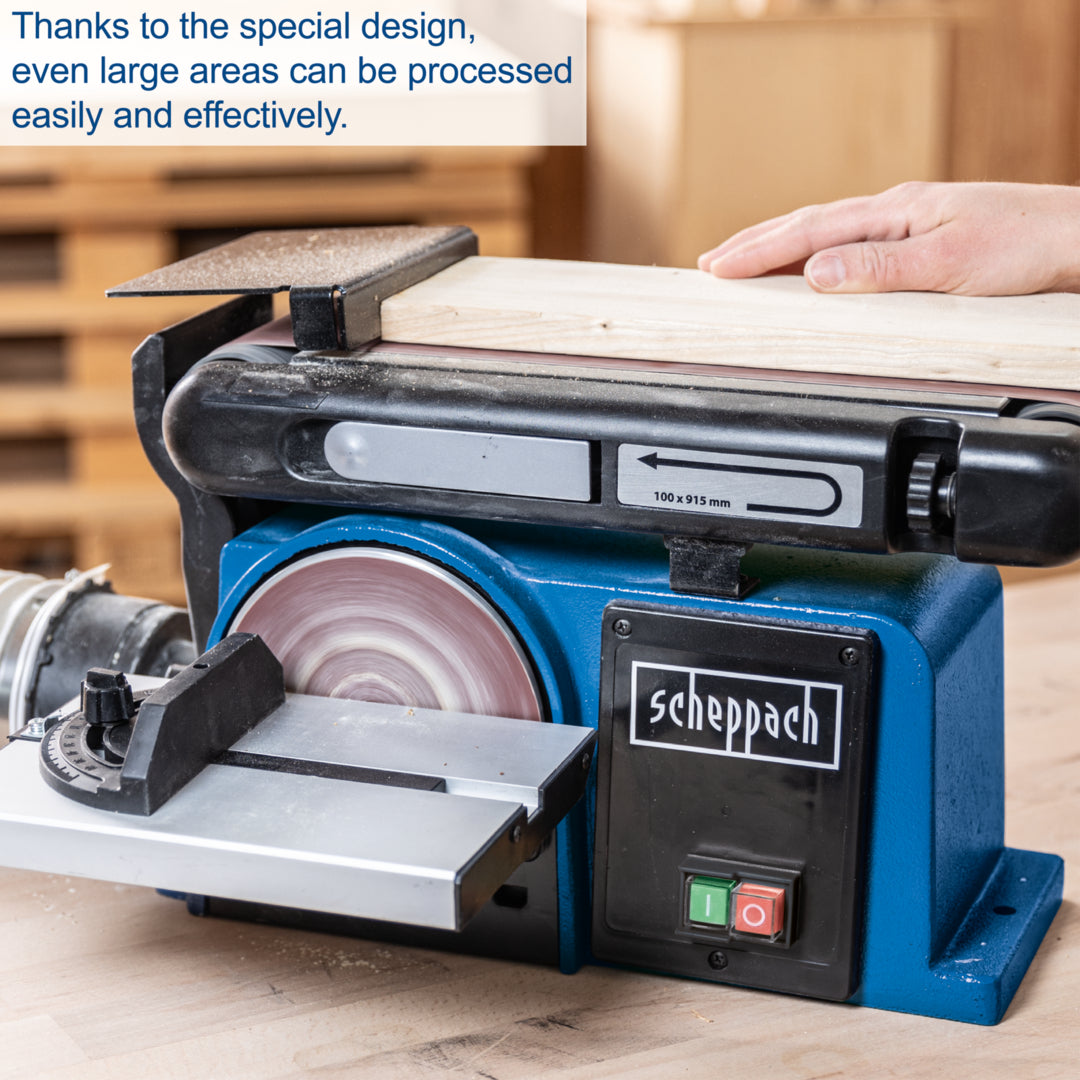

- 2-in-1 Dual Functionality: Integrates a 100 x 280mm sanding belt and a 150mm disc sander in one compact benchtop unit to tackle flat surfaces, end-grain, and tight contours.
- Quiet Induction Motor: The dependable 370W induction motor operates with minimal vibration, delivering consistent power and a smooth finish without excessive workshop noise.

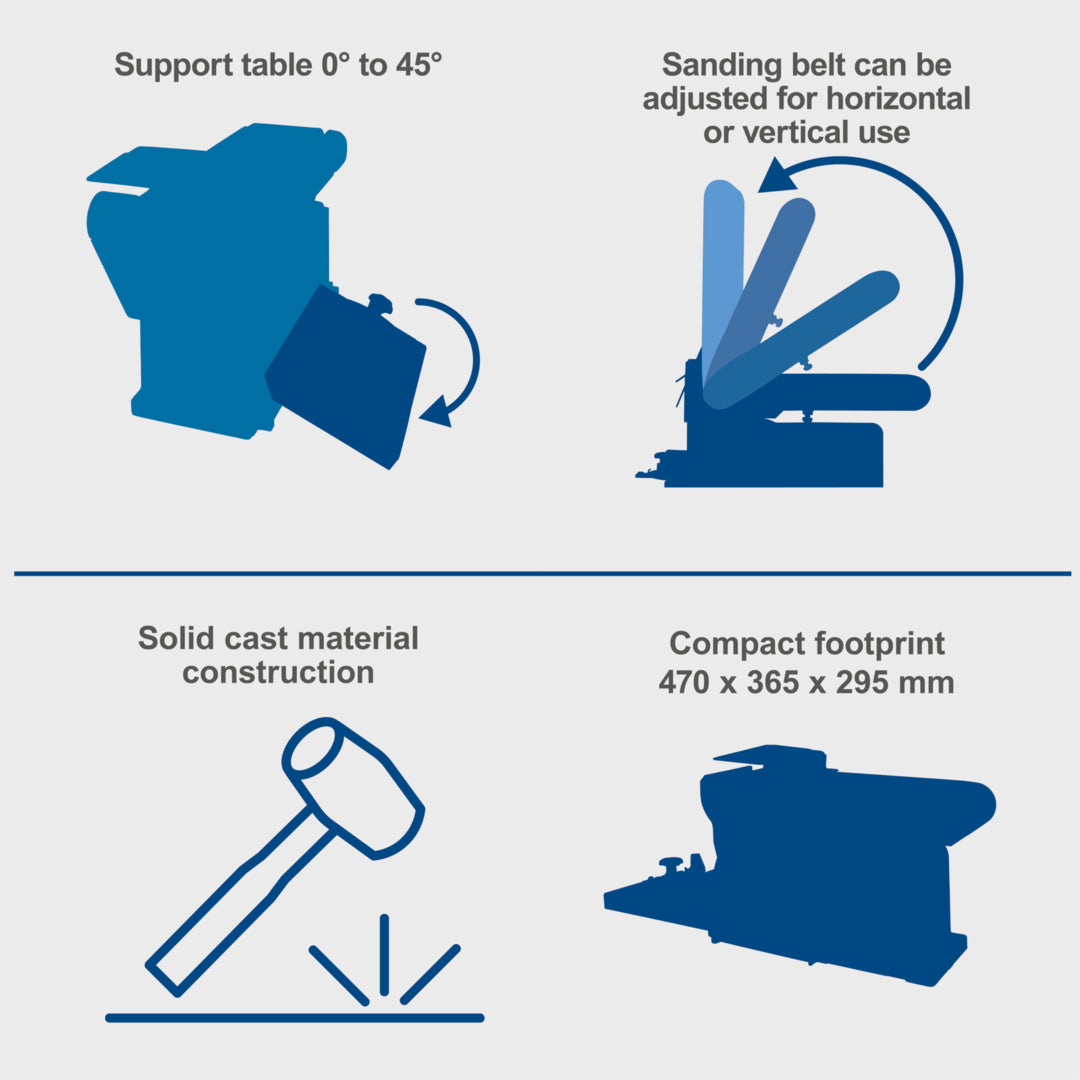

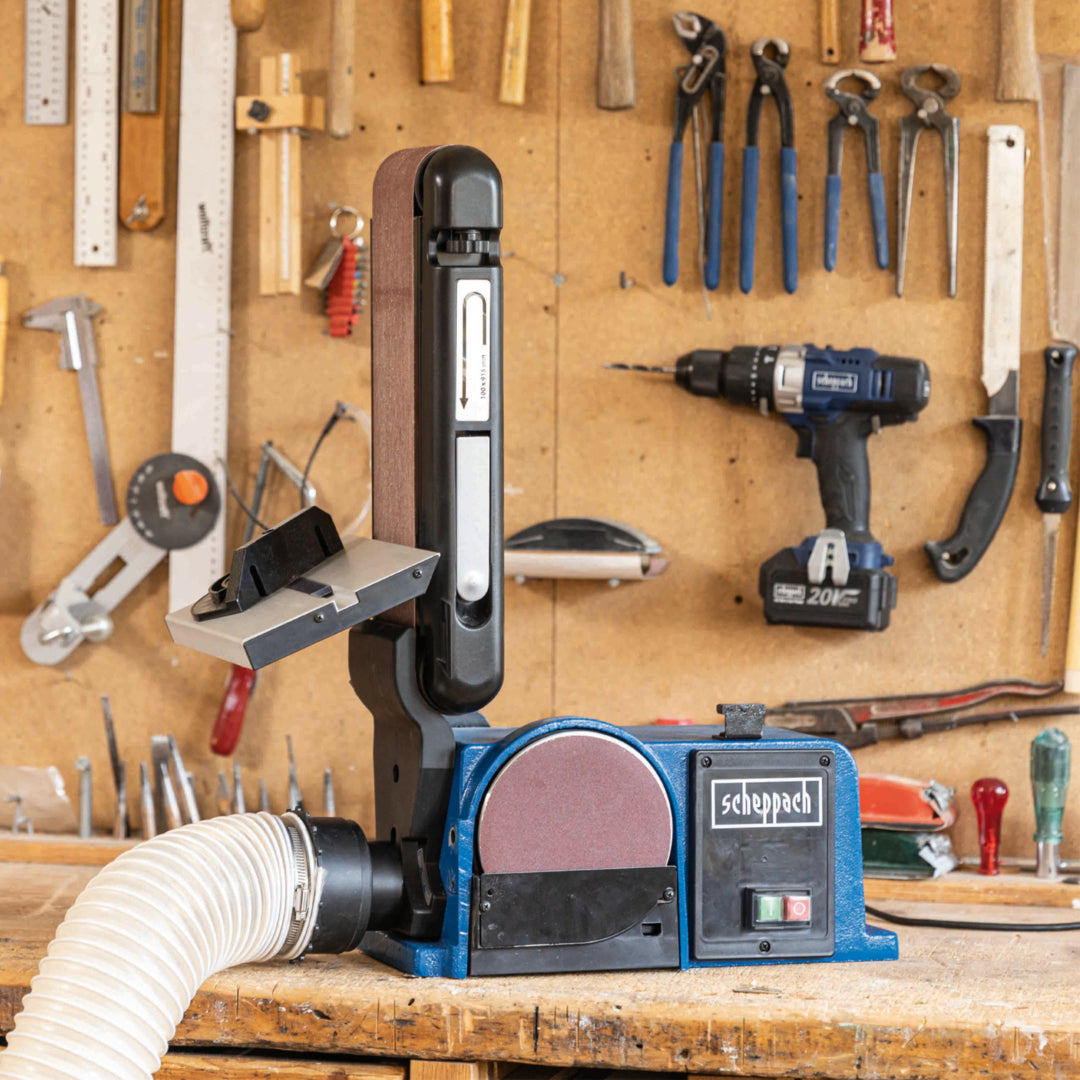

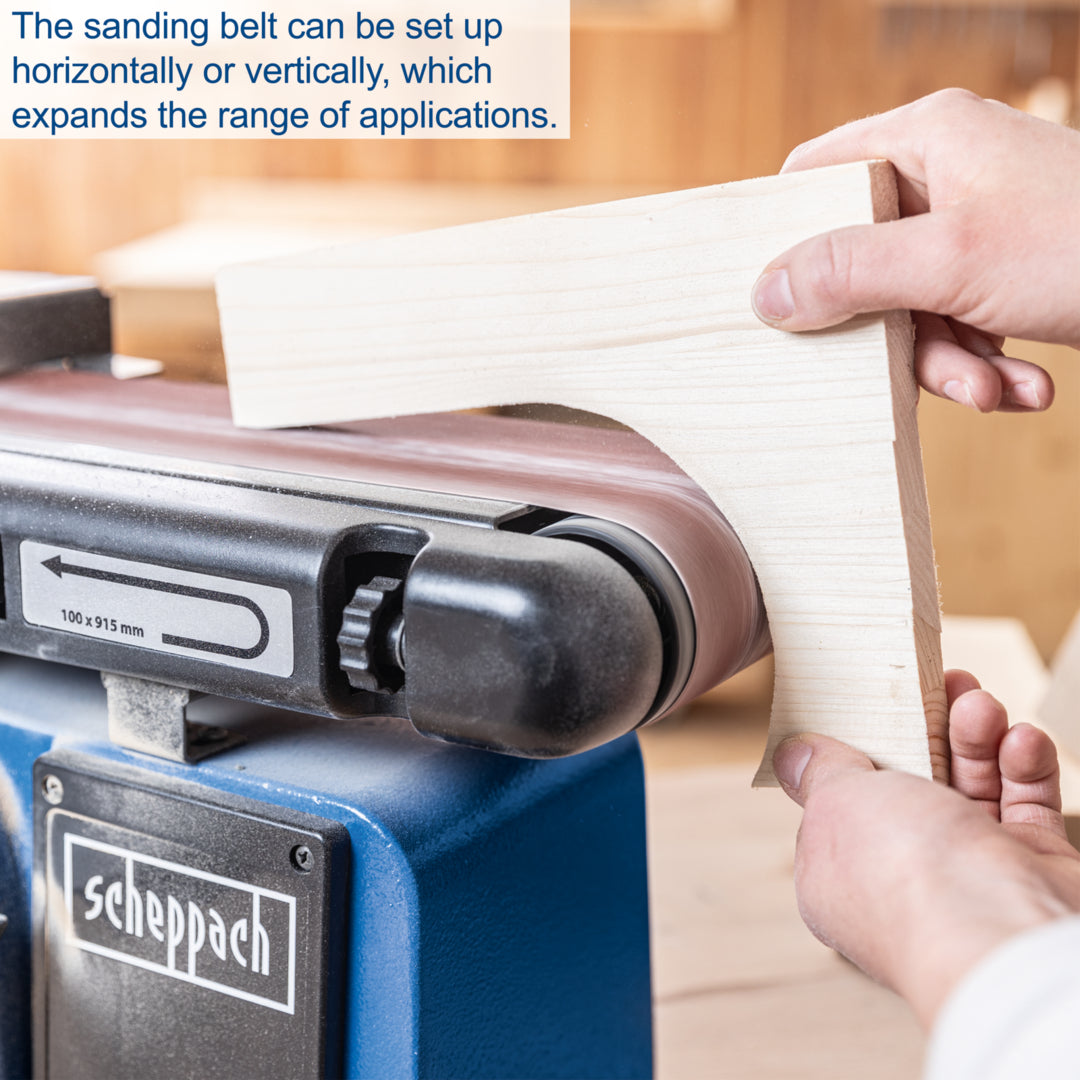

- Adjustable Belt Arm: The sanding belt swivels seamlessly from horizontal to vertical (0° to 90°), allowing you to adapt the working angle to suit the size and shape of your workpiece.

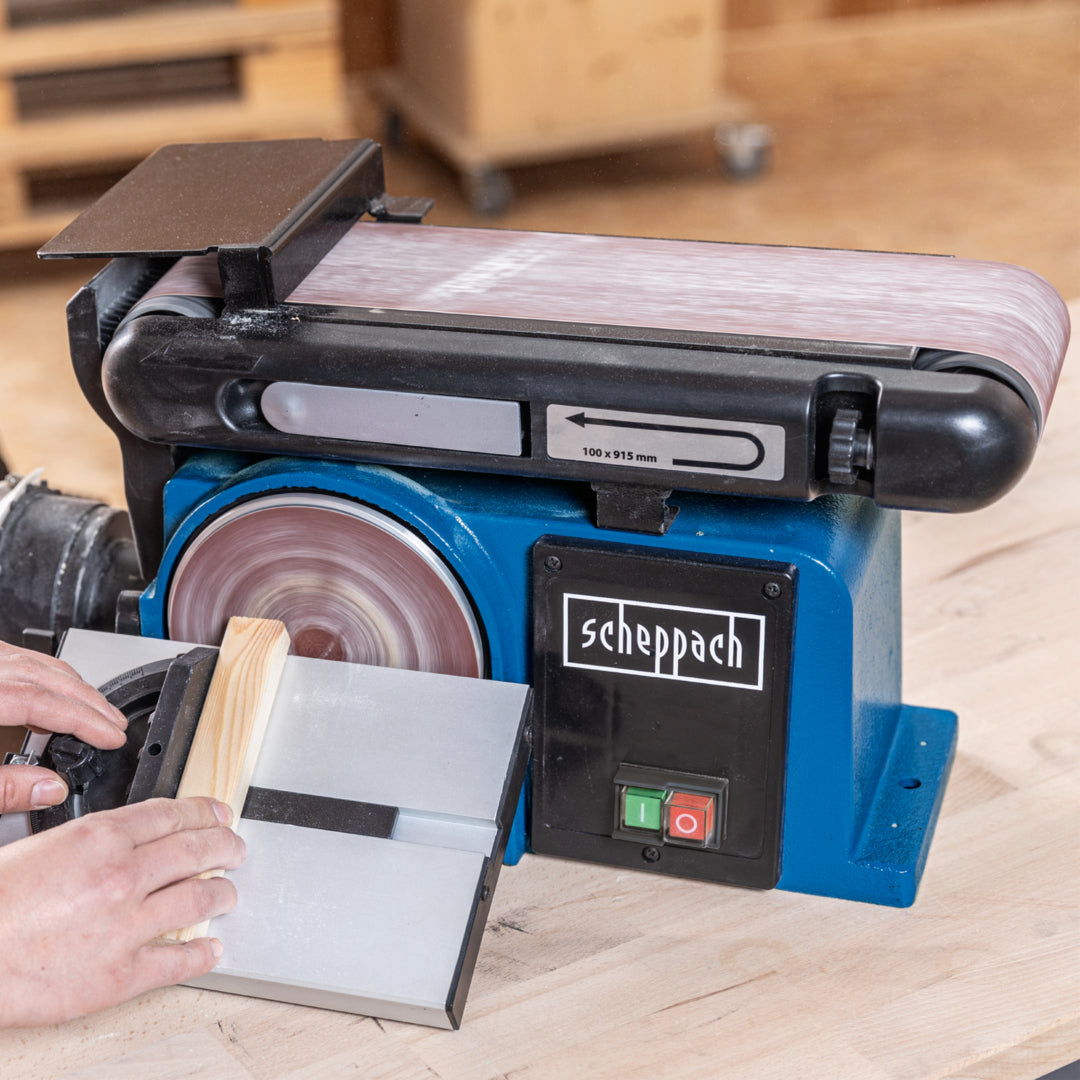

- Tilting Table & Mitre Guide: Features a 215 x 145mm aluminium work table that tilts up to 45°, complete with a mitre fence adjustable from -60° to +60° for precise bevels and compound angles.

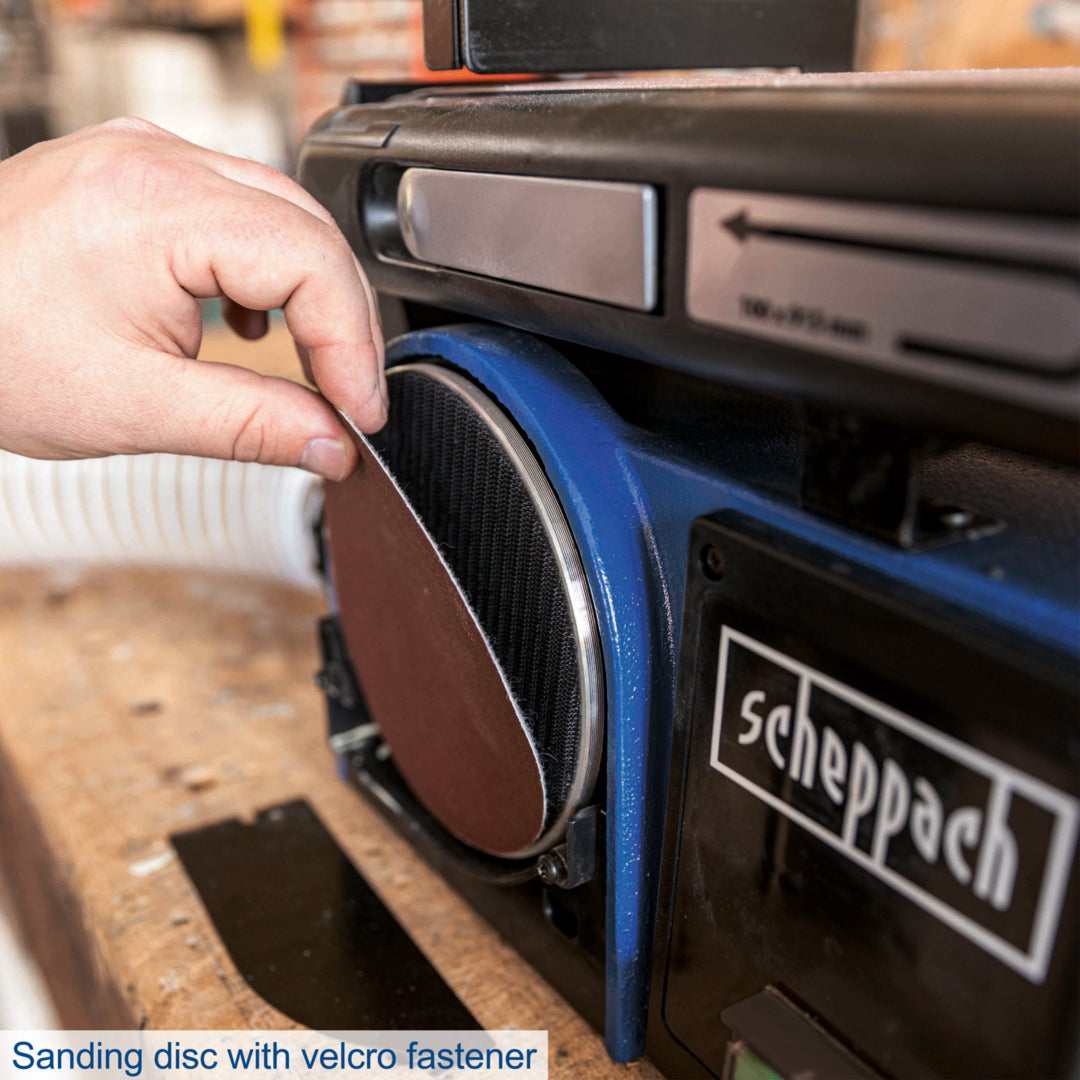

- Fast Hook-and-Loop Setup: The sanding disc uses a Velcro-backed system for quick, tool-free abrasive changes, while an integrated dust port connects to external extractors to keep work areas clean.
Technical Specification
| General Details | |
|---|---|
| Title | Belt and Disc Sander BTS800 Scheppach (DIY) Great Britain |
| Article Number | 5903301905 |
| Model Description | BTS800 |
| Machine Group | Belt and Disc Sander |
| EAN | 4046664285038 |
| Mass Gross | 17.85 kg |
| Mass Net | 16.55 kg |
| General Dimensions (L x W x H) | 465 mm x 370.0 mm x 287 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Induction Motor |
| Voltage | 230-240 V |
| Frequency | 50 Hz |
| Continuous Power Consumption S1 | 370.0 W |
| Power Consumption Operating Mode 1 | 370.0 W |
| Maximum Engine Speed | 2980.0 1/min |
| Appliance Class | Class I |
| Protection Class Electro | IP 23 |
| Degree of Protection | IP 54 |
| Motor Protection | No |
| Motor Brake Type | None |
| Cable Length | 2000 mm |
| Plug Type | UK plug (Class II) |
| Phase Changing Switch 400 V in Plug New | No |
| Switch with No Voltage Release New | Yes |
| Sanding & Grinding Performance | |
| Grinding Wheel Grain Size | 80 Körnung |
| Grinding Wheel Speed | 2980.0 1/min |
| Sanding Disc Diameter | 150.0 mm |
| Sanding Paper Type Attachment | Velcro fastener |
| Grinding Belt Grit Size | 80 |
| Grinding Belt Speed | 7.5 m/sec |
| Sanding Belt Length | 915.0 mm / 280.0 mm |
| Sanding Belt Width | 145.0 mm |
| Belt Type | 150XL037 |
| Grinding Plate Dimensions (L x W) | 280.0 mm x 100.0 mm |
| Grinding Plate Tilting Range | 0.0 ° to 90.0 ° |
| Fence Dimensions (L x H) | 155.0 mm x 28.0 mm |
| Table & Accessories | |
| Sanding Table Dimensions (L x W) | 215.0 mm x 145.0 mm |
| Grinding Table Tilting Range | 0.0 ° to 45.0 ° |
| Sanding Table Material | Aluminium |
| Mitre Gauge / Tilting Range | Yes / -60.0 ° to 60.0 ° |
| Suction Connector Inside Diameter | 57.0 mm |
| Dust Suction Diameter Outside | 63.0 mm |
| Sound & Vibration Emissions | |
| Sound Power Level Lw(A) | 91.1 dB |
| Sound Pressure Level Lp(A) | 79.9 dB |
| Uncertainty KpA | 3.0 dB |
| Uncertainty KwA | 3.0 dB |
| Uncertainty k | 0.0 dB |
| Vibration Emission Value Ah | 0.0 m/sec² |
| Delivery Content | |
| Delivery Content Text | 1x Belt and disc grinding machine, 1x Transverse stop, 1x Grinding table, 1x Grinding belt, 1x Grinding disc, 1x Original operating manual |
SKU: D-SCH-5903301905
MPN: 5903301905
ID: D-SCH-5903301905
