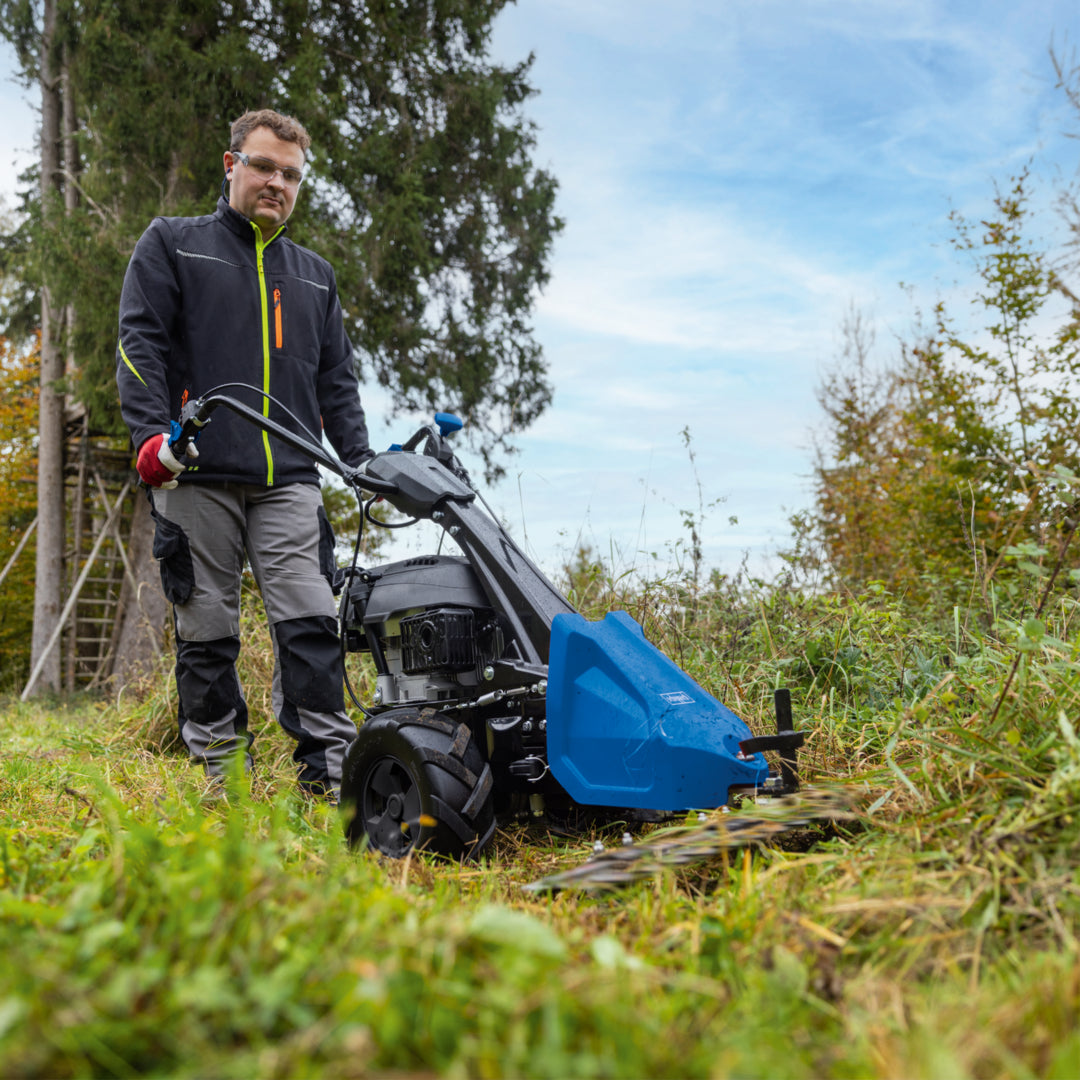

Mow rough terrain and dense meadow grass with heavy-duty petrol power.

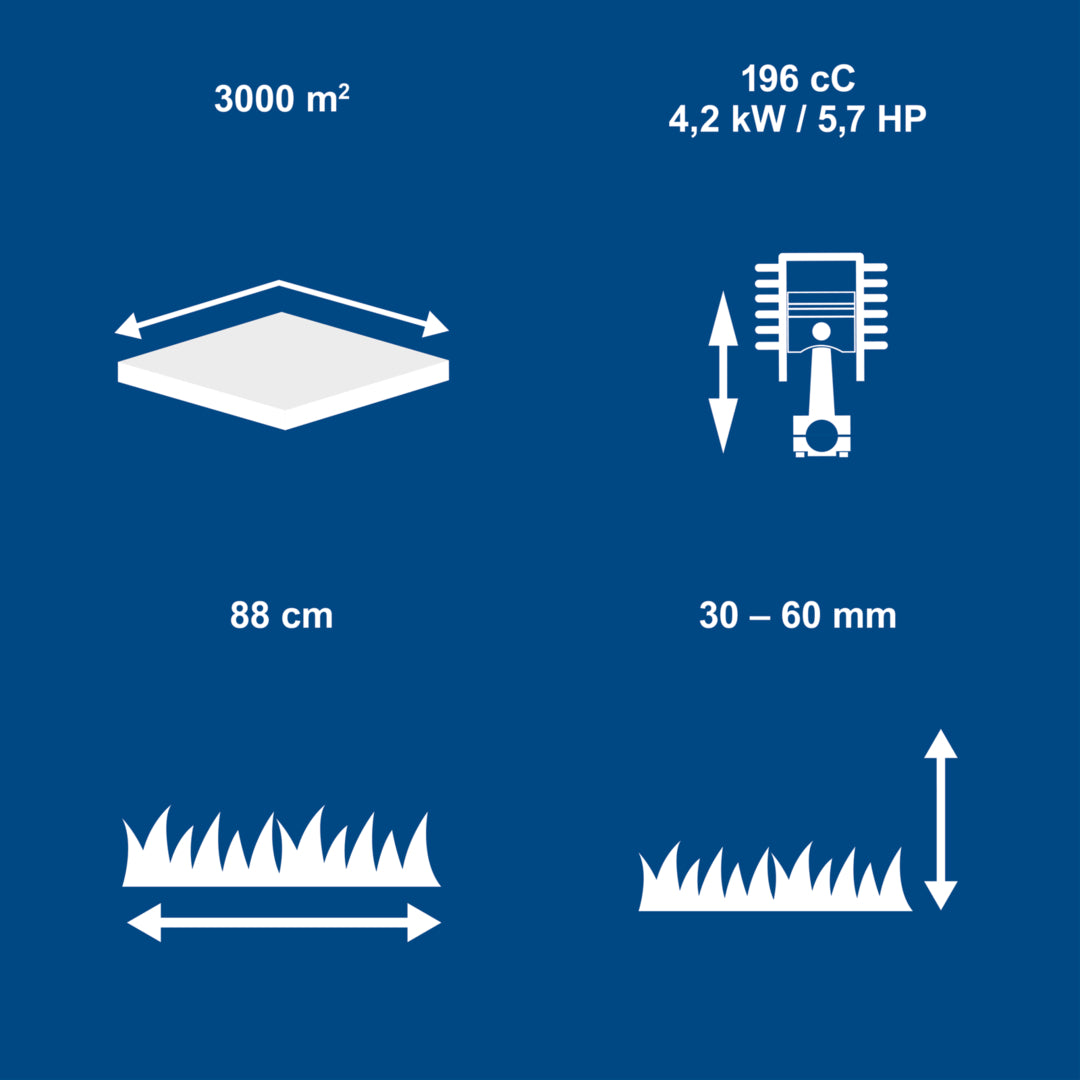

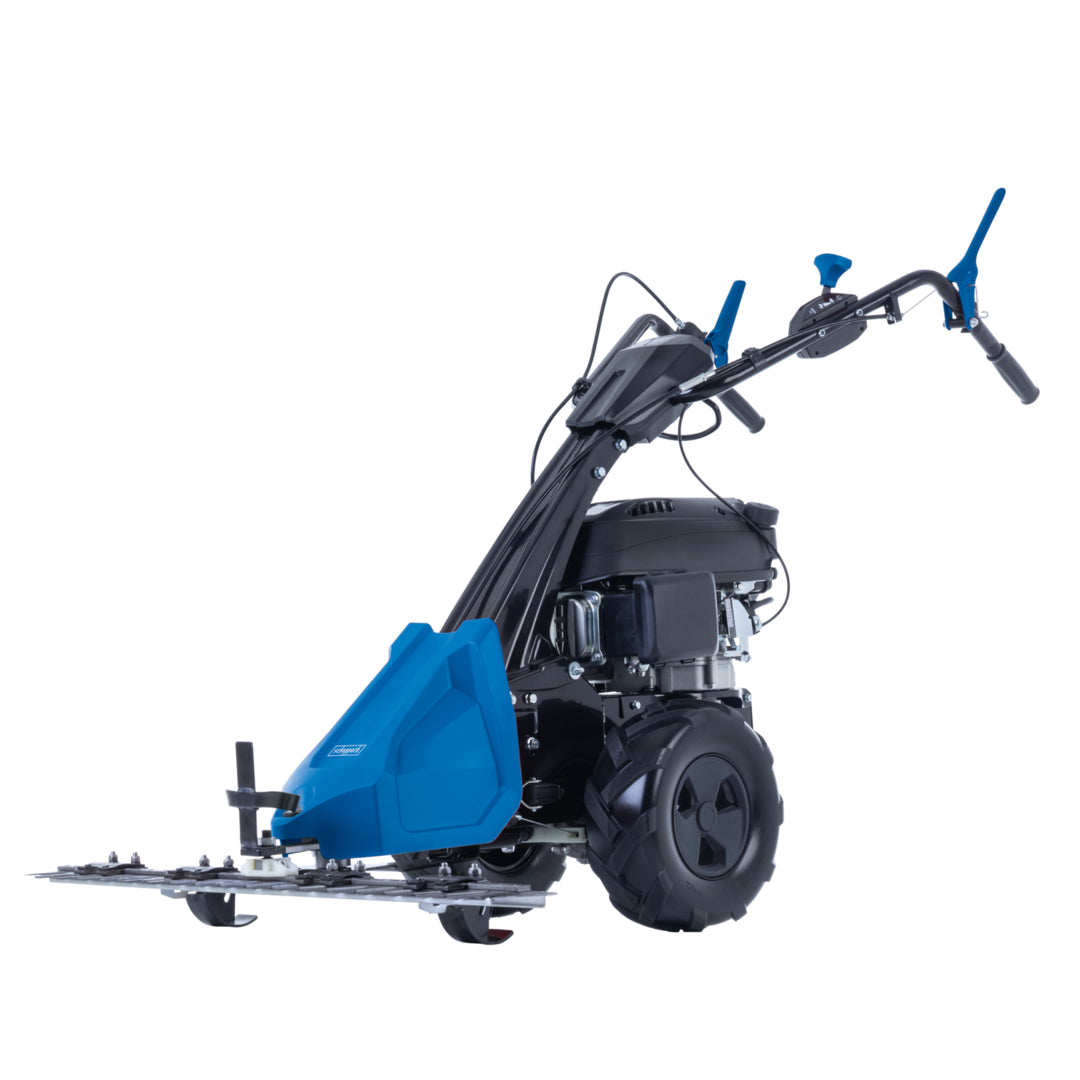

This robust sickle bar mower combines a powerful 196 cc engine with an extra-wide 88 cm cutter bar to manage overgrown fields and orchards up to 3,000 square metres. Built with deep-tread off-road tyres and an adjustable vibration-damped handle, it offers stable, comfortable control across challenging slopes.
Features:
- Powerful 196 cc Petrol Engine: Driven by a 5.7 hp (4.2 kW) 4-stroke petrol motor that provides strong torque to cut through thick brush, tall grass, and dense weeds without clogging.

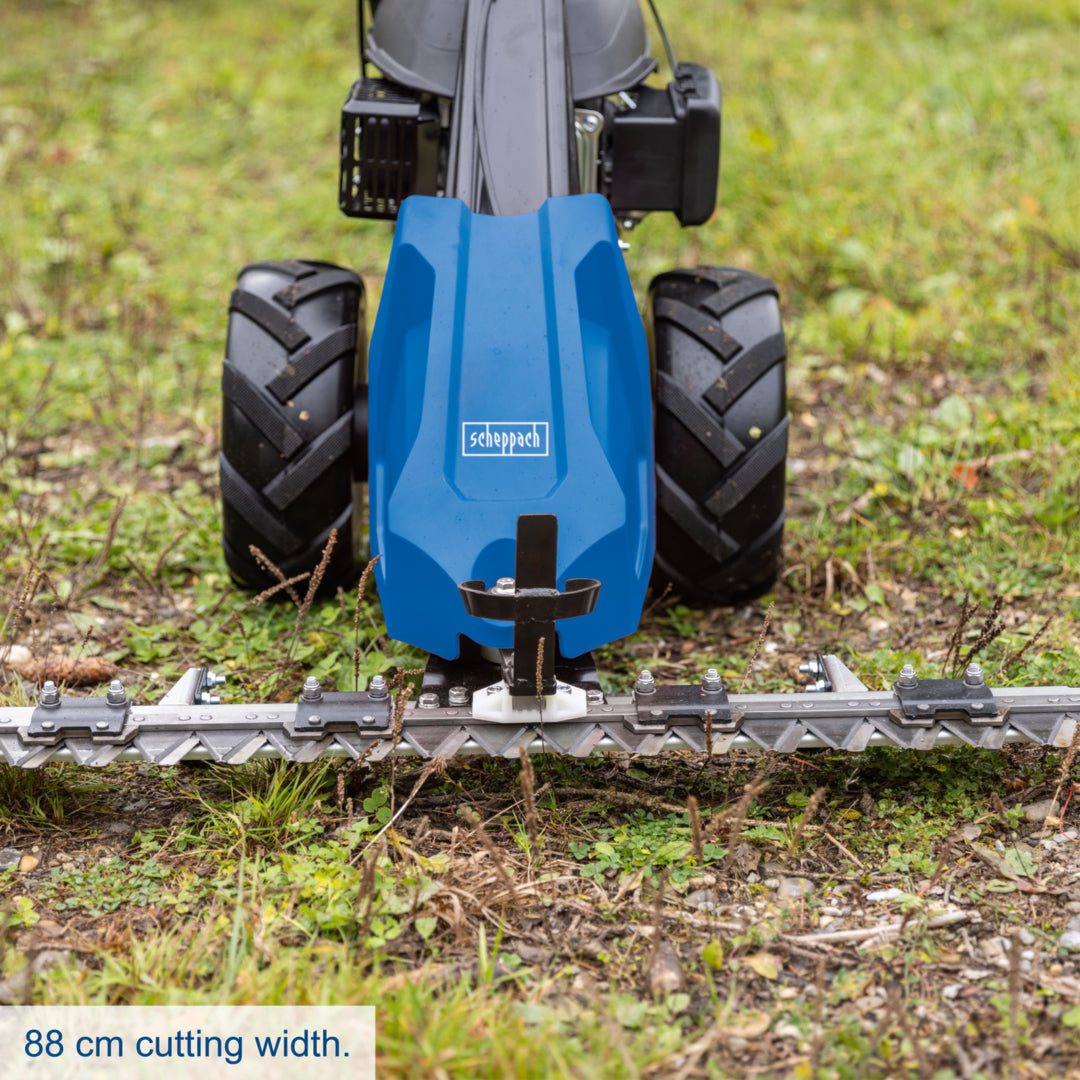

- Extra-Wide 88 cm Cutting Width: Wide cutter bar covers large acreage quickly, making light work of wild meadows, pastures, and natural gardens.

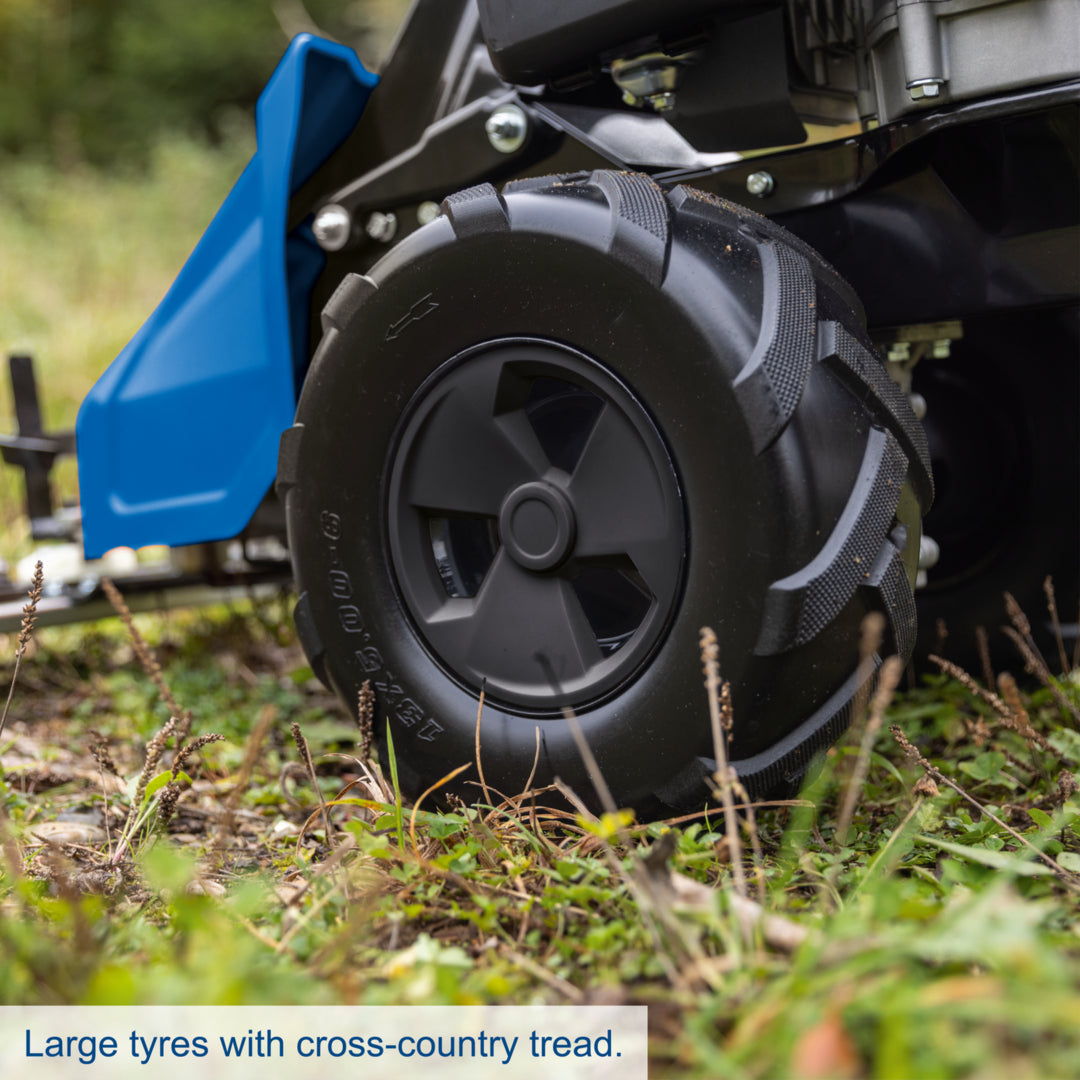

- Off-Road All-Terrain Tyres: Large air-filled tyres with aggressive deep treads ensure exceptional grip and stability on wet grass, steep inclines, and uneven ground.

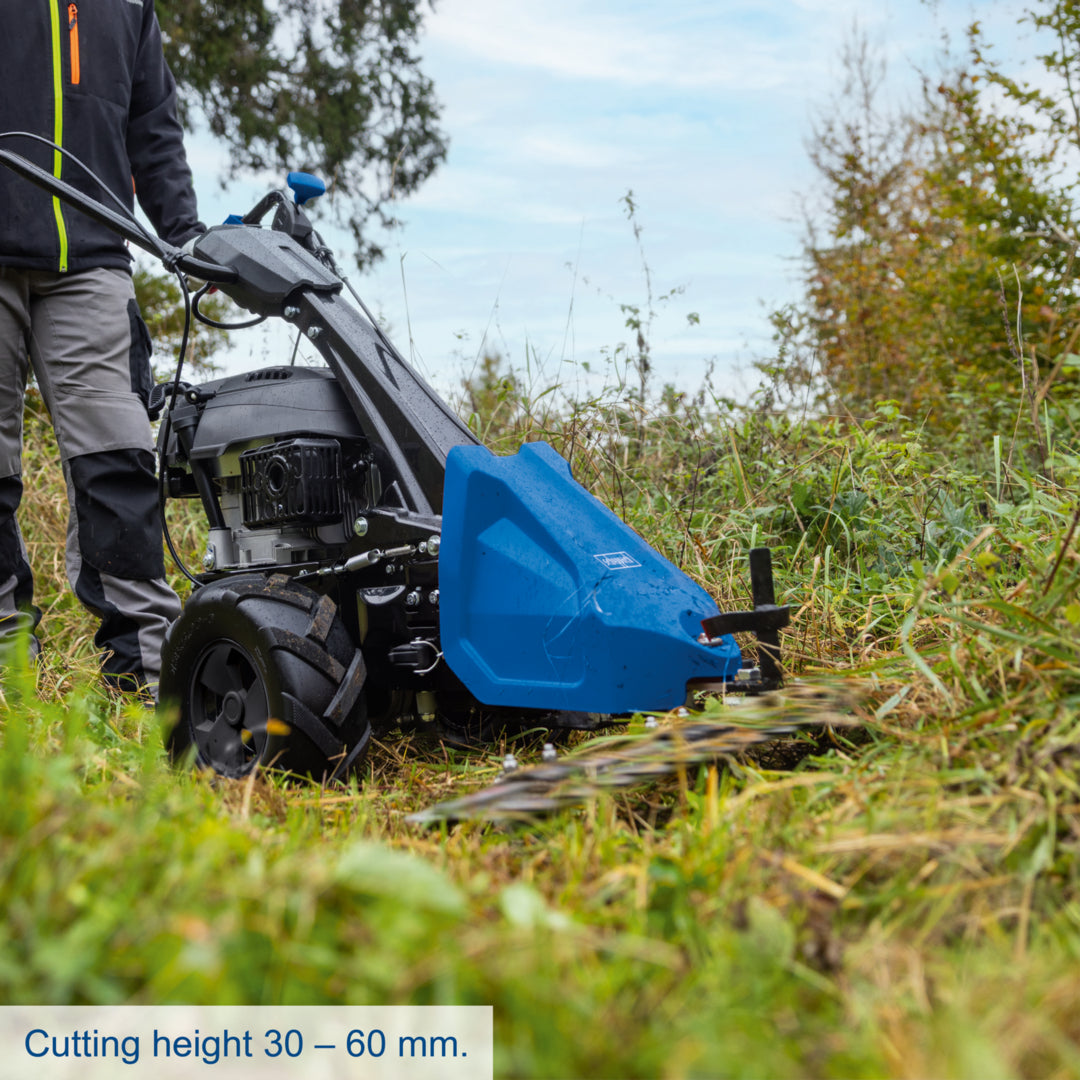

- Adjustable Cutting Height: Height adjustment system allows you to select cutting levels between 30 mm and 60 mm to suit varying ground conditions.

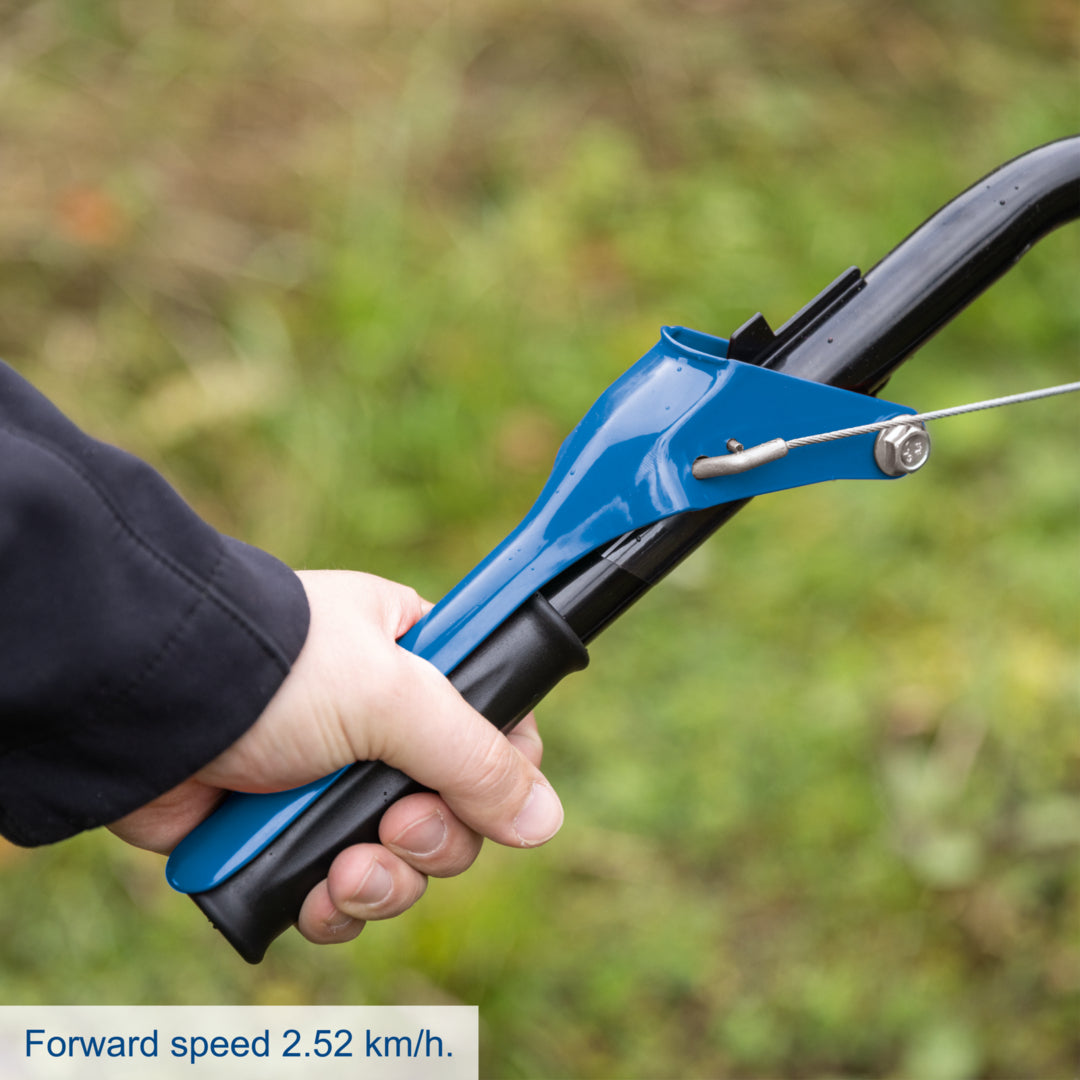

- Steady Forward Drive Speed: Propels forward at a consistent 2.52 km/h, taking the physical effort out of pushing across rough fields while maintaining an optimal cutting pace.

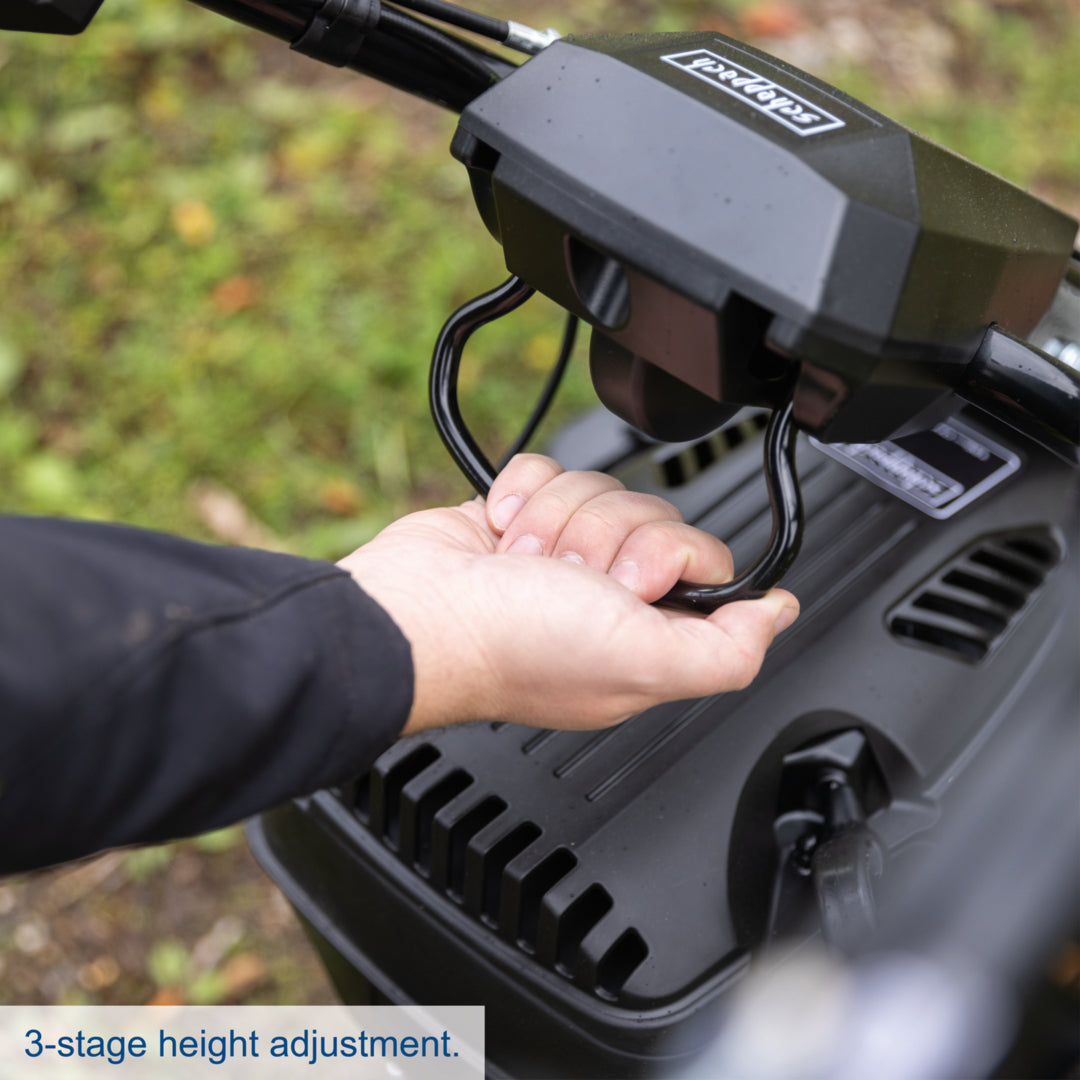

- Vibration-Damped Ergonomic Handlebar: Features three height settings to suit different operators, alongside integrated rubber damping to minimise hand fatigue during long working sessions.
- Reliable Recoil Starter: Smooth pull-start mechanism ensures quick and dependable engine ignition when working out in the field.
Technical Specification
| General Details | |
|---|---|
| Title | Bar mower BMS196-88 Scheppach (DIY) |
| Model Description | BMS196-88 |
| Machine Group | Sickle bar mower |
| Article Number | 59089029942 |
| EAN | 4046664223528 |
| Standard Basic Equipment | including oil |
| Net Weight | 58 kg |
| Gross Weight | 65 kg |
| General Dimensions (L x W x H) | 1380 mm x 920 mm x 1300 mm |
| Mowing & Cutting Performance | |
| Cutting Width | 880 mm |
| Cutting Height Range (Min / Max) | 30 mm – 60 mm |
| Number of Cuttings | 18 pcs |

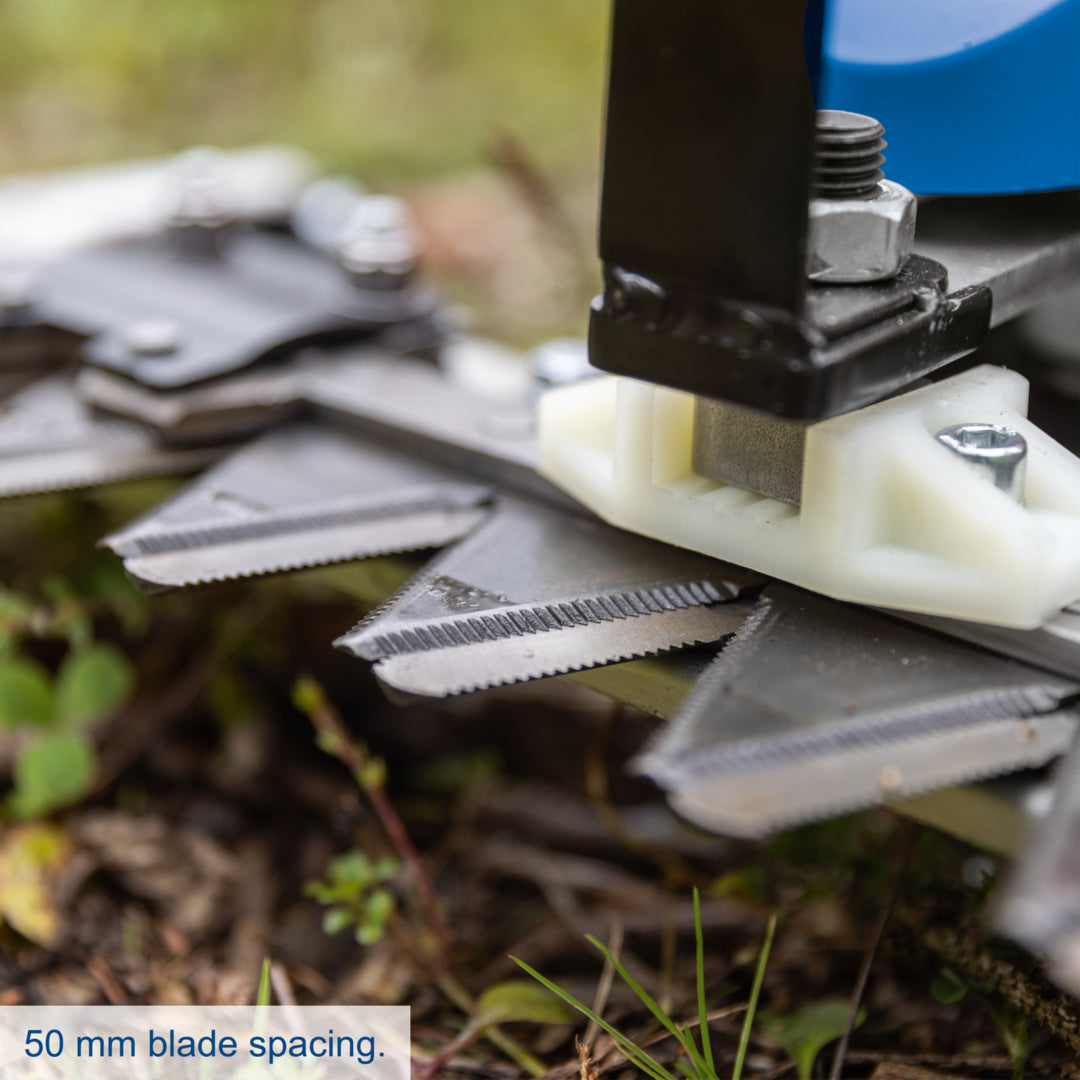

| Tooth Spacing | 50 mm |
| Ergonomics, Drive & Traction | |
| Number of Forward Speeds / Aisles | 1 / 1 |
| Forward Speed 1 | 2.52 km/h |
| Wheel Diameter | 320 mm |
| Grip Distance / Handle Height | 500 mm / 970 mm |
| Engine & Drive Specifications | |
| Drive Type General | Internal combustion engine |
| Engine Type / Subgrouping Drive Type | 4-stroke engine |
| Engine Displacement | 196 cm³ |
| Power Output | 4.2 kW / 5.7 hp |
| Engine Speed Range (Min / Max) | 1800 rpm – 3300 rpm |
| Engine Idle Speed / Tolerance | 2000 rpm / ±400 rpm |
| Starter Type | Cable pull |
| Coolant | Air |
| Fuel Tank Capacity | 1 l |
| Octane Rating Min / E10 Suitable | 92 / Yes |
| Engine Oil Quantity / Motor Oil Included | 0.6 l / No |
| Oil Monitors | No |
| Spark Plug Type | F7RTC |
| Emission Class / CO² Emissions | Euro V / 744 g/kWh |
| Scope of Delivery | |
| Scope of Delivery Text | • 1x throttle lever • 2x M8 hex nuts • 2x wheels • 2x axle covers • 2x bolts • 1x cutter bar • 1x blade guard • 4x M8x25 mm hex bolts • 4x M8 hex nuts • 1x square bushing • 1x belt cover • 1x M8x25 mm flange bolt • 1x guide bar • 4x M8x25 mm hex bolts • 4x M8 hex nuts • 1x instruction manual |
SKU: D-SCH-5908902903
MPN: 5908902903
