Scheppach BGS700 Grinder Belt Sander 370W
Scheppach BGS700 Grinder Belt Sander 370W
Regular price
£99.00
Regular price
Sale price
£99.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Free standard delivery on this item
Couldn't load pickup availability

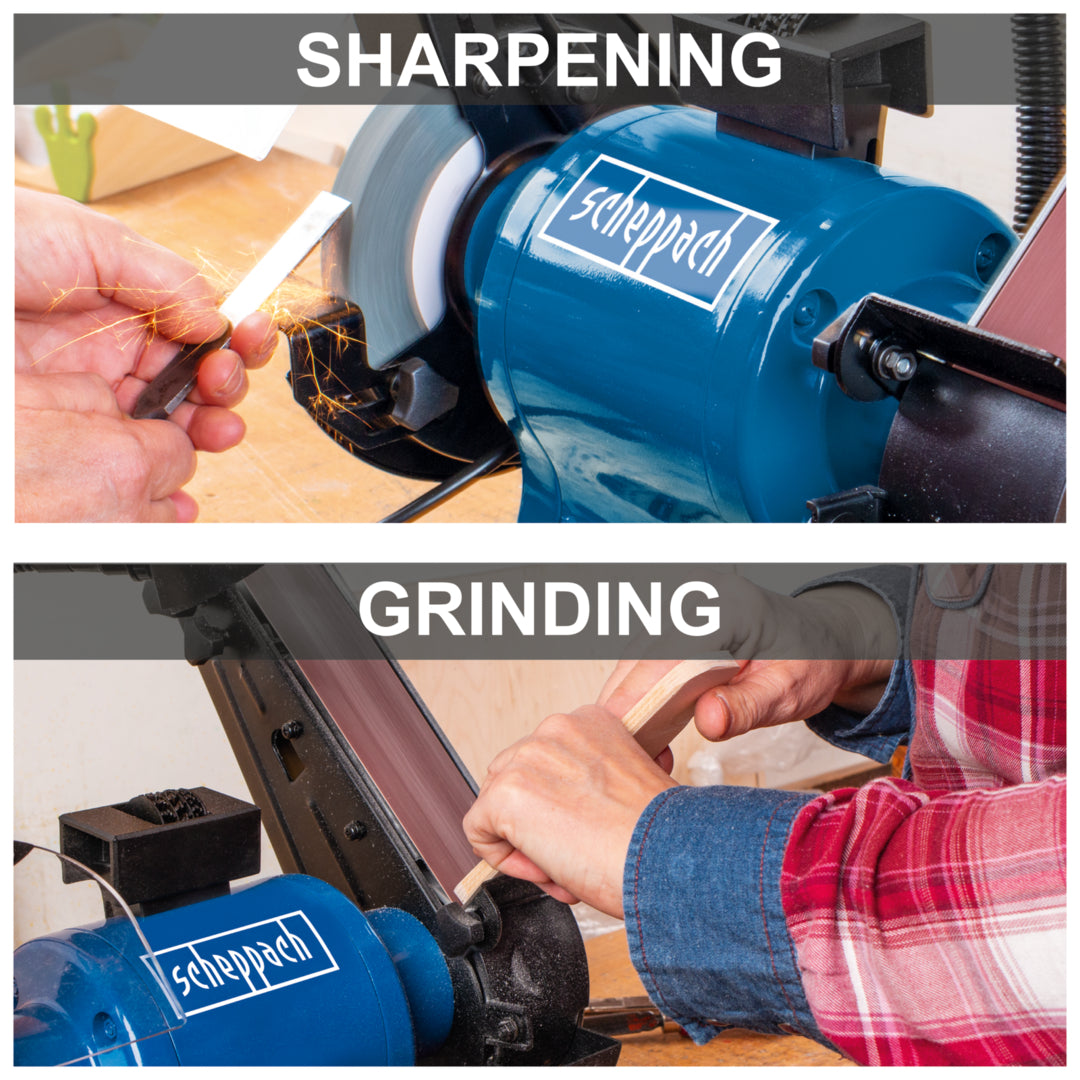

Multi-purpose workshop performance built for precise grinding, sharpening, and finishing.

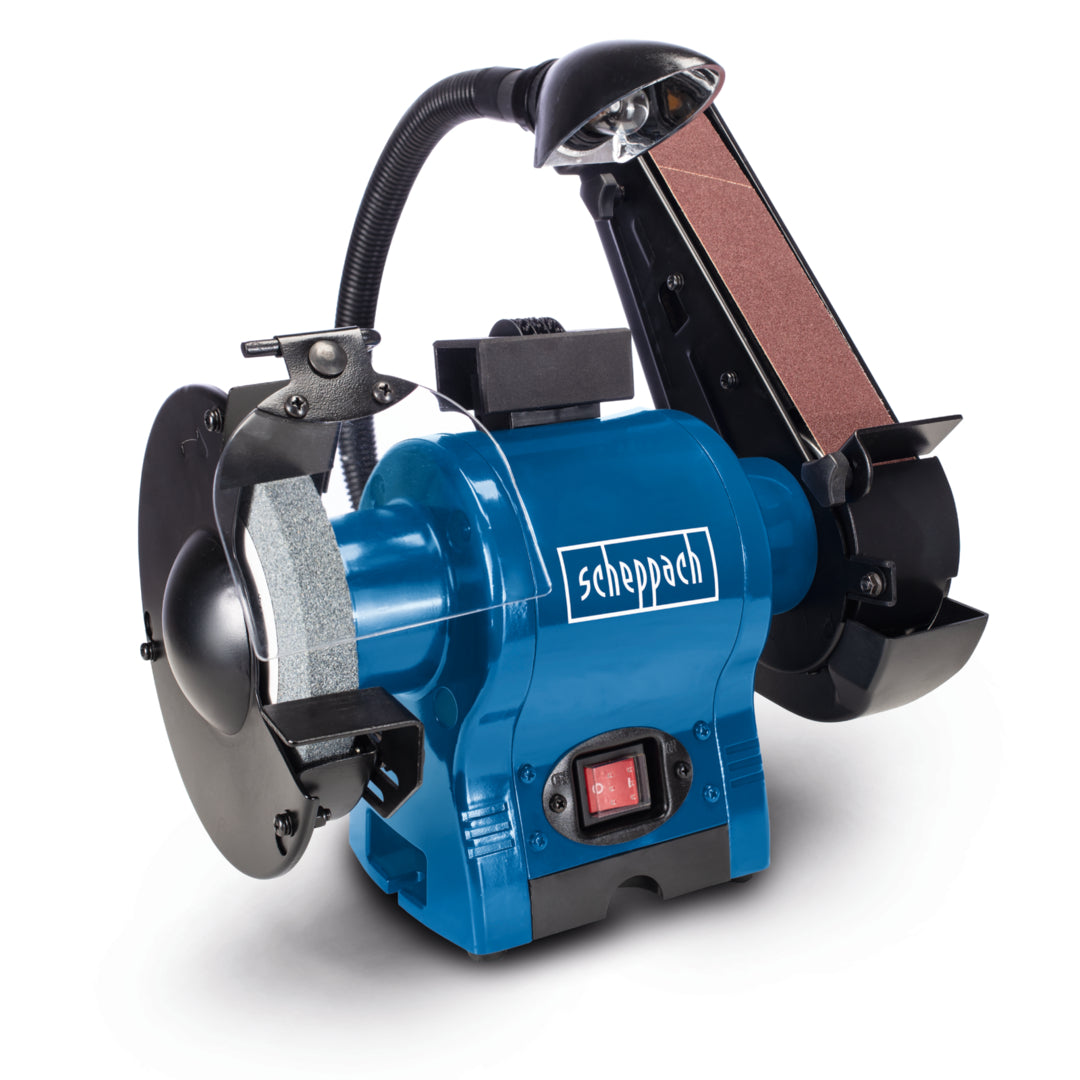

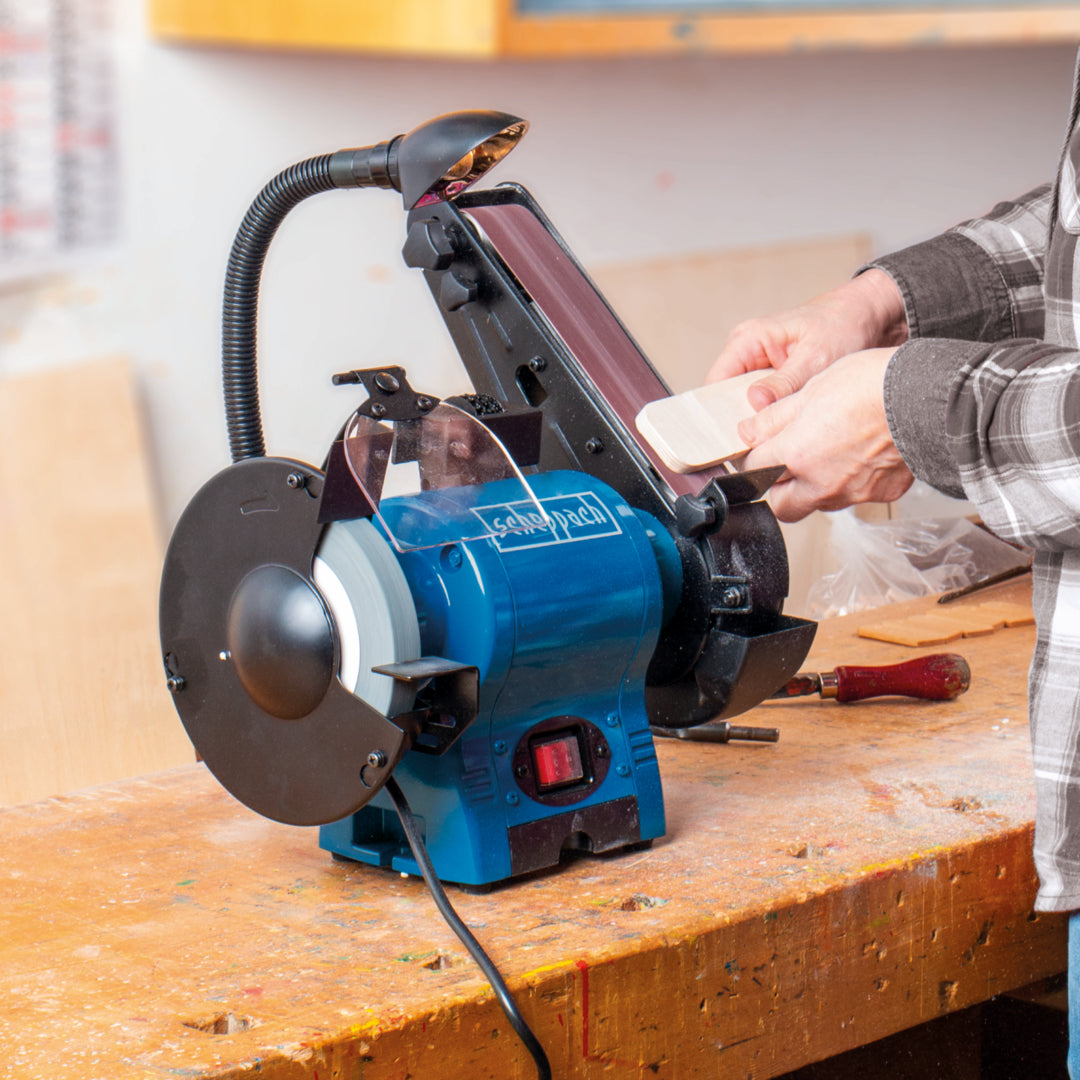

Combines a heavy-duty grinding wheel with a versatile sanding belt in one compact unit. Driven by a quiet induction motor to handle metal fabrication, tool maintenance, and woodworking projects with ease.
Features:
- Dual Functionality: Integrates a 150mm grinding wheel and a 50 x 686mm sanding belt, allowing you to quickly switch between coarse material removal and fine surface finishing.
- Smooth Induction Motor: The dependable 370W induction motor operates with minimal vibration and low noise, delivering consistent torque for controlled tool sharpening.
- Integrated Cooling Reservoir: Features a built-in water cooling tray to quench metal workpieces, preventing heat build-up and preserving tool temper during grinding.

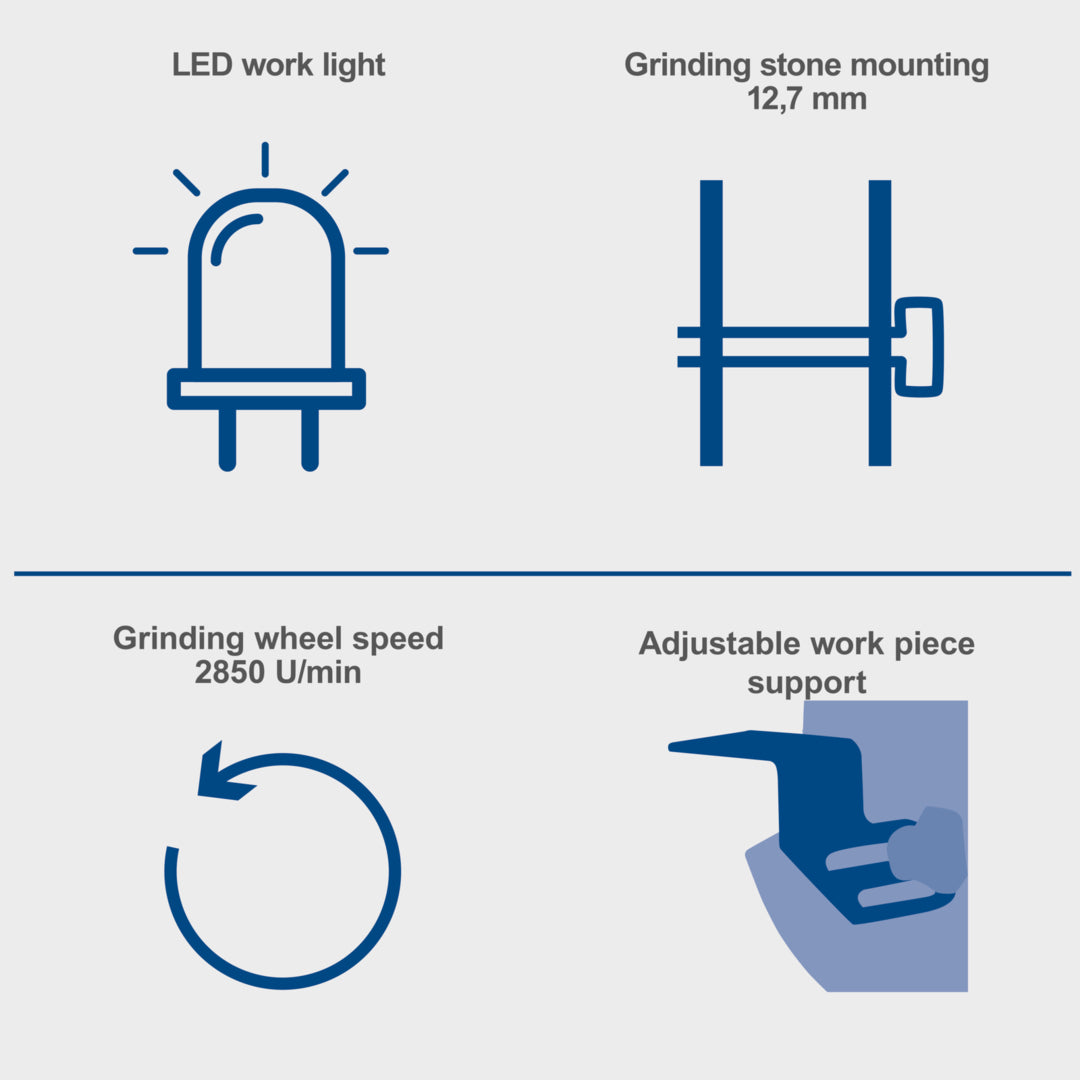

- Enhanced Safety & Visibility: Equipped with a flexible LED work light, adjustable spark deflectors, protective wheel guards, and sturdy work rests for safe, accurate operation.
- Durable Construction: Built around a heavy-duty cast iron base that provides excellent stability on the workbench, alongside an integrated dust extraction port to keep your workspace tidy.
Technical Specification
| General Details | |
|---|---|
| Title | Combination Grinding Machine BGS700 scheppach (DIY) |
| Article Number | 59033029977 |
| Model Description | BGS700 |
| Machine Group | Combination Grinding Machine |
| EAN | 4046664219859 |
| Mass Gross | 11.7 kg |
| Mass Net | 10.4 kg |
| General Dimensions (L x W x H) | 370.0 mm x 280.0 mm x 340.0 mm |
| Motor & Power Performance | |
| General Drive Type | Electro |
| Subgrouping Drive Type | 230V |
| Type of Motor | Induction Motor |
| Voltage | 230-240 V |
| Frequency | 50 Hz |
| Nominal Current | 1.25 A |
| Continuous Power Consumption S1 | 250.0 W |
| Power Consumption Operating Mode 1 | 370.0 W |
| Maximum Engine Speed | 2850.0 1/min |
| Appliance Class | Class I |
| Insulation Class | B (max. motor temp. 130°C) |
| Protection Class Electro | IP 44 |
| Degree of Protection | IP 20 |
| Motor Protection | Yes |
| Cable Length | 1800.0 mm |
| Plug Type | UK plug (Class I) |
| Phase Changing Switch 400 V in Plug New | No |
| Switch with No Voltage Release New | No |
| Grinding & Linishing Performance | |
| Grinding Wheel Diameter | 150.0 mm |
| Grinding Wheel Bore Diameter | 12.7 mm |
| Grinding Wheel Width | 20.0 mm |
| Left Grinding Stone Grit Size | 36.0 Körnung |
| Max Speed (Angle Grinder) | 23.0 m/sec |
| Sanding Belt Length | 686 mm |
| Grinding Belt Grit Size | 80 |
| Grinding Belt Speed | 15.0 m/sec |
| Grinding Plate Dimensions (L x W) | 70.0 mm x 30.0 mm |
| Magnified Eye-Shield | Yes |
| Grinding Wheel Covering | Yes |
| Puller Device | Yes |
| Water Tank | Yes |
| Work Lamp | Yes |
| Sound & Emissions | |
| Sound Power Level Lw(A) | 92.0 dB |
| Sound Pressure Level Lp(A) | 82.0 dB |
| Uncertainty KpA | 3.0 dB |
| Uncertainty KwA | 3.0 dB |
| Delivery Content | |
| Delivery Content Text | 1x Grinder/Sander, 1x Instruction manual, 1x Sanding disc, 1x Sanding belt, 1x Grinding wheel dresser |
SKU: D-SCH-59033029977
MPN: 59033029977
ID: D-SCH-59033029977
